NHSPT-484Transmitter

Model Name: R1G0050R1A00000 NOTE THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT Model Name: R1G0040R1A00000 NOTE THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT

LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:R1G0050R1A00000 FCC ID:NHSPT-484 LABEL Size: 45 x 20 mm LABEL Position:

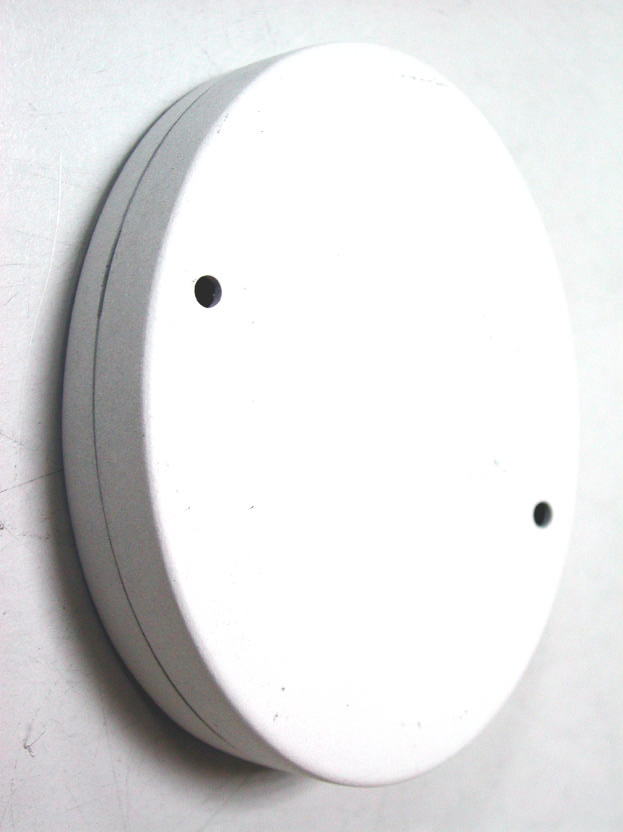

Circuit Block Description (Ref. To “RF CIRCUIT BLOCK”) Model: R1G0040R1A00000(mail-box alerting transmitter) Model: R1G0050R1A00000(Garage door transmitter) FCC I.D :NHSPT-484 (Transmitter Block) 1. Battery: 12V/23A. Transmitter is using battery operation system. 2. The Transmitter has two level sensor components. One is rolling-ball (J1); one is “piezo sensor”(X1). 3. When sensor is active, they can trig transistor (Q3/Q5), Let the transmitter working. 4. When the Transmitter active, then the Timer (BK-1, using 555 timer IC) setting only 1.5 second time on. 5. The (BK-2) is RF code encoder IC.(PT-2262) 6. The (BK-3) is 315Mhz RF transmitter circuit, It’s belong AM/FM modulation 100% by Manchester coding 33/66-duty cycle. 7. The Transmitter antenna is a PCB loop direction antenna for low power transmits.

Test Report -------------------------------------------------------------------------------- 2/20 Report No.: G2115962 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Table of Contents CHAPTER 1 GENERAL...........................................................................3 1.1INTRODUCTION...............................................................3 1.2DESCRIPTION OF EUT......................................................3 1.3DESCRIPTION OF SUPPORT EQUIPMENT............................3 1.4TEST PROCEDURE...........................................................4 1.5LOCATION OF THE TEST SITE...........................................4 1.6GENERAL TEST CONDITION.............................................4 CHAPTER 2 TRANSMITTER DUTY CYCLE MEASUREMENTS......5 2.1TEST CONDITION AND SETUP..........................................5 2.2LIST OF TEST INSTRUMENTS.............................................5 2.3TEST INSTRUMENTS CONFIGURATION...............................6 2.4TEST RESULT..................................................................6 CHAPTER 3 TRANSMITTER BANDWIDTH MEASUREMENTS, FCC PART 15.231(C).............................................................9 3.1TEST CONDITION & SETUP..............................................9 3.2TEST RESULT..................................................................9 CHAPTER 4 CONDUCTED EMISSIONS MEASUREMENTS...........11 4.1TEST CONDITION..........................................................11 4.2TEST RESULT................................................................11 CHAPTER 5 RADIATED EMISSIONS MEASUREMENTS................12 5.1GENERAL CONFIGURATION............................................12 5.2TEST CONDITION AND SETUP........................................12 5.3LIST OF TEST INSTRUMENTS...........................................14 5.4TEST INSTRUMENTS CONFIGURATION.............................15 5.5RADIATED TEST PLACEMENT: (PHOTOGRAPHS, X-AXIS).16 5.6TEST RESULT OF RADIATED EMISSIONS..........................17 Table 1 Open Field Radiated Emissions for 30MHz to 1GHz [Horizontal, X-axis].....................17 Table 2 Open Field Radiated Emissions for 30MHz to 1GHz [Vertical, X-axis].........................18 Table 3 Open Field Radiated Emissions for 1GHz to 4GHz [Horizontal, Y-axis]........................19 Table 4 Open Field Radiated Emissions For 1GHz to 4GHz [Vertical, Z-axis]...........................20 Test Report -------------------------------------------------------------------------------- 3/20 Report No.: G2115962 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Chapter 1 GENERAL 1.1Introduction The following measurement report is submitted on behalf of applicant in support of an International Periodic Radiator certification with Part 2 Subpart J and Part 15 Subpart A and C of the Commission's Rules and Regulations. 1.2Description of EUT EUT:Transmitter Model No.:R1G0050R1A00000 / R1G0040R1A00000 FCC ID:NHSPT-484 Frequency Range:Operated in 312.985MHz Power Type:Powered by 12V/23A battery Applicant:Powertech Industrial Co., Ltd. 10F, No. 403, Chung Shan Rd., Sec. 2, Chung Ho City, Taipei Hsien, Taiwan 235, R.O.C. The fundamental frequency of transmitter emitted is due to a press on button of the EUT. The emitting time of fundamental frequency is less than 5 seconds pursuant to FCC Part 15.231(a). There are security codes for avoiding the possibility of duplicating codes in adjacent systems. The coding must be matching with the companion receiver. While testing the EUT was adjusted at a position which transmit the maximum emission. 1.3Description of Support Equipment The EUT itself forms a system. No support equipment is requited for its normal operation. Test Report -------------------------------------------------------------------------------- 4/20 Report No.: G2115962 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 1.4Test Procedure All measurements contained in this report were performed according to the techniques described in measurement procedure of ANSI C63.4 1992 section 13 1.5Location of the Test Site The radiated emissions measurements required by the rules were performed on the three- meter, Anechoic Chamber (Registration Number: 93906) maintained by Training Research Co., Ltd. 1F, No. 2, Lane 194, Huan-Ho Street, Hsi-chih, Taipei Hsien 221, Taiwan, R.O.C. Complete description and measurement data have been placed on file with the commission. The conducted power line emissions tests and other test items were performed in a anechoic chamber also located at Training Research Co., Ltd. No. 2, Lane 194, Huan-Ho Street, Hsi-chih, Taipei Hsien 221, Taiwan, R.O.C. Training Research Co., Ltd. is listed by the FCC as a facility available to do measurement work for others on a contract basis. 1.6General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipment’s emission characteristics. The final configuration of the test system and the mode of operation used during these tests were chosen as that which produced highest emission levels. However, only those conditions that the EUT was considered likely encounter in normal use were investigated. Test Report -------------------------------------------------------------------------------- 5/20 Report No.: G2115962 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Chapter 2 TRANSMITTER DUTY CYCLE MEASUREMENTS 2.1Test Condition and Setup The duty cycle measurements were performed in a shielded enclosure. The EUT was placed on a wooded table which is 0.8 meters height and a bi-log periodic antenna was used distance about 3 meters for receiving. While testing EUT was set to transmit continuously. Various key configurations were also investigated to find the maximum duty cycle. The resolution bandwidth and video bandwidth of the spectrum analyzer was all set to 1MHz to encompass all significant spec…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------- 1/1 FCC ID: NHSPT-484 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Photographs, X-axis)
