NHSPTTX01

Powertech Industrial Co Ltd
DSC - Part 15 Security/Remote Control Transmitter - FCC ID NHSPTTX01 - Powertech Industrial Co Ltd
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Oct 14, 1999
Application Purpose
Original Equipment
Date of Application
Aug 22, 1999
Frequency Range
314.67000000 - 314.67000000
Company
Powertech Industrial Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Schematics

↗

Test Report

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

EXHIBIT C User Manual

Block Diagram

EXHIBIT E Block Diagram

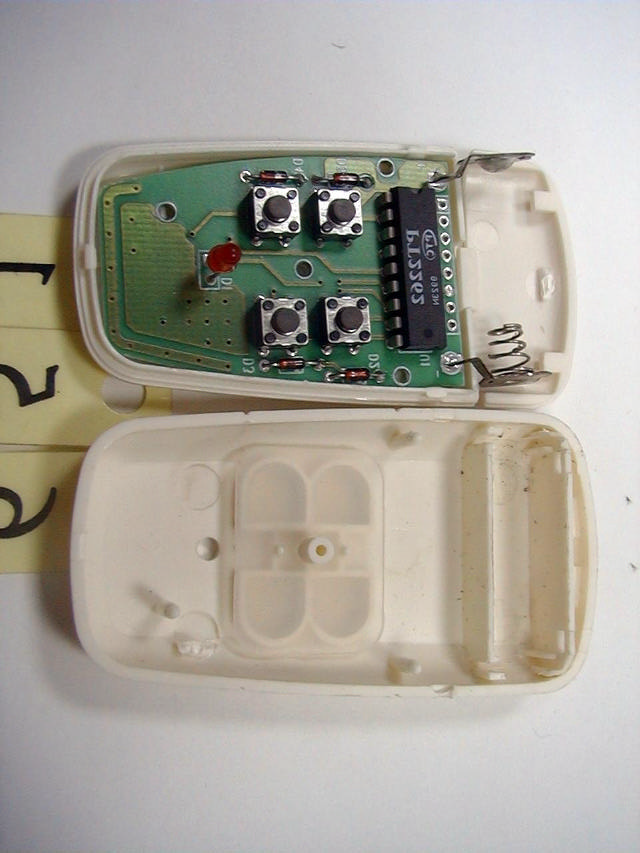

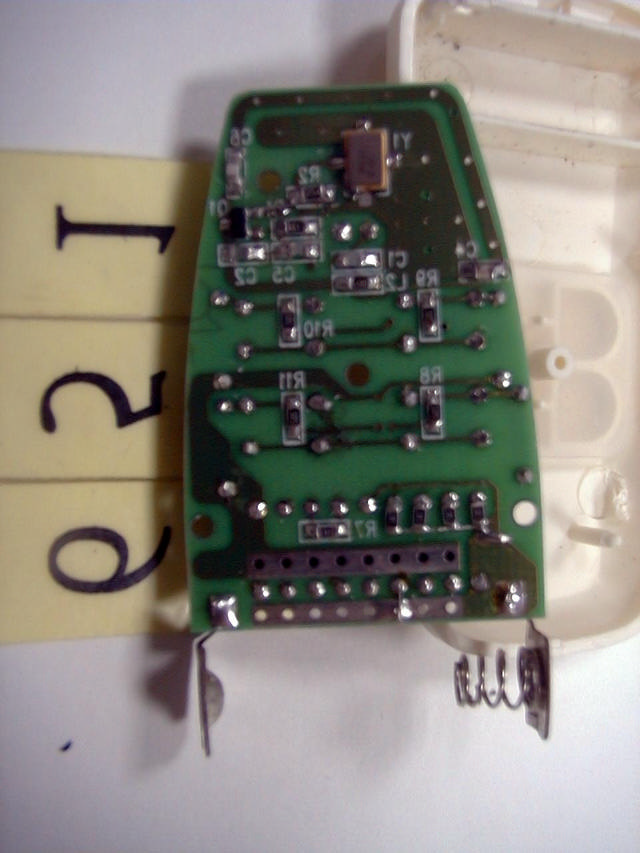

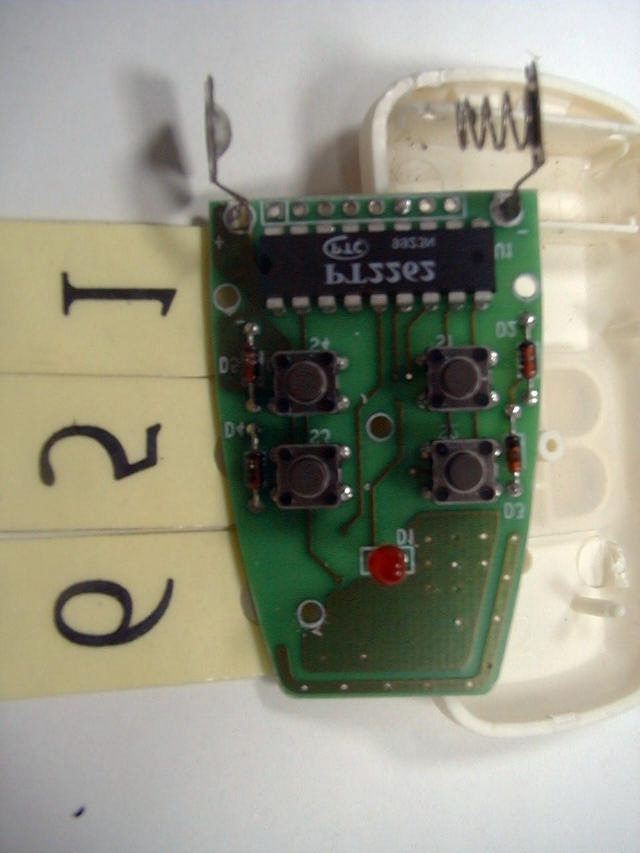

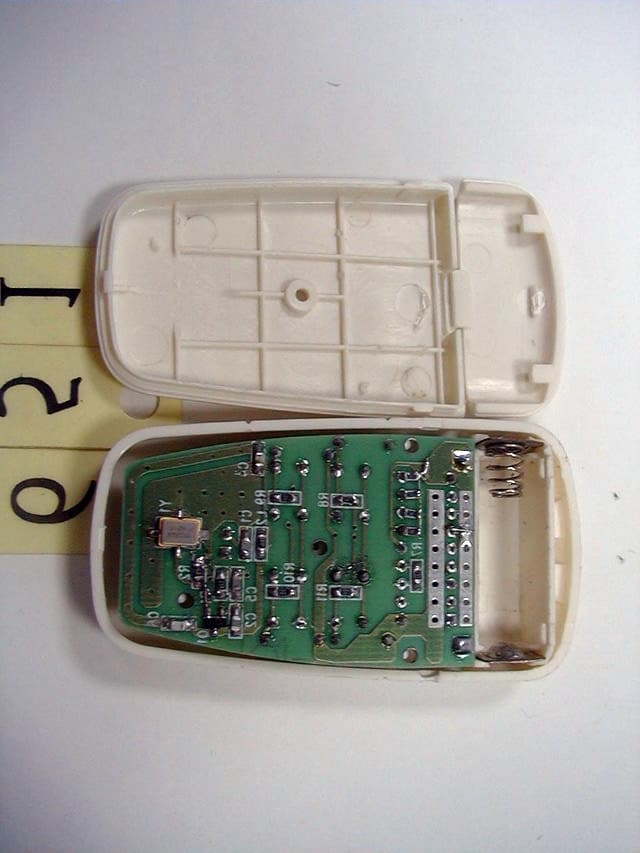

External Photos

EXHIBIT F Photographs of EUT

ID Label/Location Info

EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation Model No. : PTTX01 FCC ID : NHSPTTX01 SIZE : 25 x 15 mm LABEL Position :

Schematics

EXHIBIT D Circuit Diagram

Test Report

EXHIBIT B Test Report Test Report------------------------------------------------------------------------------------------------------------ Report No.: G2115651, Transmitter of Wireless Remote Outlet, FCC Part 15.231(C), Certification Test date: 08/13/99, Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 2/18 Tables of Contents Tables of Contents......................................................................................................... 2 I. GENERAL .................................................................................................................... 3 1.1 Introduction ..................................................................................................................... 3 1.2 Description of EUT ......................................................................................................... 3 1.3 Description of Support Equipment ................................................................................... 3 1.4 Test Procedure ................................................................................................................ 3 1.5 Location of the Test Site .................................................................................................. 4 1.6 General Test Condition .................................................................................................... 4 II. Transmitter Duty Cycle Measurements ...................................................... 5 2.1 Test Condition and Setup .............................................................................................. 5 2.2 List of Instruments ......................................................................................................... 5 2.3 Test Configuration ......................................................................................................... 6 2.4 Test Result .................................................................................................................... 6 III. Transmitter Bandwidth Measurements .................................................... 8 3.1 Test Condition and Setup ............................................................................................ 8 3.2 Test Result ................................................................................................................. 8 IV. Conducted Emissions Measurements ........................................................ 10 V. Radiated Emissions Measurements ............................................................. 11 5.1 General Configuration ................................................................................................... 11 5.2 Test Condition and Setup ............................................................................................. 11 5.3 List of Test Instruments ................................................................................................ 13 5.4 Test Instruments Configuration ...................................................................................... 14 5.5 Test Result of Radiated Emissions ................................................................................. 16 Test Report------------------------------------------------------------------------------------------------------------ Report No.: G2115651, Transmitter of Wireless Remote Outlet, FCC Part 15.231(C), Certification Test date: 08/13/99, Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 3/18 Tables Table 1 Open Field Radiated Emissions For 30MHz - 1GHz [HORIZONTAL] .................. 16 Table 2 Open Field Radiated Emissions For 1GHz - 18GHz [HORIZONTAL] ......................... 16 Table 3 Open Field Radiated Emissions For 30MHz - 1GHz [VERTICAL] ............................... 17 Table 4 Open Field Radiated Emissions For 1GHz - 18GHz [VERTICAL] ................................ 17 Test Report------------------------------------------------------------------------------------------------------------ Report No.: G2115651, Transmitter of Wireless Remote Outlet, FCC Part 15.231(C), Certification Test date: 08/13/99, Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 4/18 GENERAL 1.1 Introduction 1.2 The following measurement report is submitted on behalf of applicant in support of an International Periodic Radiator certification with Part 2 Subpart J and Part 15 Subpart A and C of the Commission's Rules and Regulations. 1.3 Description of EUT EUT:Transmitter of Wireless Remote Outlet Model:PTTX01 FCC ID:NHSPTTX01 Frequency Range :Operated in 314.67 MHz Power Type:Powered by Battery Applicant:Powertech Industrial Co., Ltd. 6F, No. 2, Lane 348, Chung Shan RD., Sec. 2, Chung Ho City, Taipei Hsien, Taiwan, R.O.C. The fundamental frequency of transmitter emitted is due to a press on button of the EUT. The emitting time of fundamental frequency is less than 5 seconds pursuant to FCC Part 15.231(a). There are security codes for avoiding the possibility of duplicating codes in adjacent systems. The coding must be matching with the companion receiver. While testing the EUT was adjusted at a position which transmit the maximum emission. 1.4 Description of Support Equipment The EUT itself forms a system. No support equipment is requited for its normal operation. 1.5 Test Procedure All measurements contained in this report were performed according to the techniques described in measurement procedure of ANSI C63.4 1992 section 13 Test Report------------------------------------------------------------------------------------------------------------ Report No.: G2115651, Transmitter of Wireless Remote Outlet, FCC Part 15.231(C), Certification Test date: 08/13/99, Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 5/18 1.6 Location of the Test Site The radiated emission measurement required by the rule were performed on the three-meter, open-field test site maintained by Training Research Co., Ltd., No. 2, Lane 194, Huan Ho…

Text truncated - open the document above for the full version.

Test Report

Test Report --------------------------------------------------------------------------------- 1/18 Report No.: G2115651 , Transmitter of Wireless Remote Outlet, FCC Part 15.231(C), Certification. Test date: 08/13/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 2.3 Test Instruments Configuration Pig 1. Test Configuration of Duty Cycle Measurement 2.4 Test Result Following is the test result which produce maximum duty cycle : Total on interval in a complete pulse train = 31.000 ms Length of a complete pulse train = 41.500 ms Duty cycle (%) = 31.000 ms / 41.5000 ms * 100%=0.746987951 Duty Cycle Correction Factor (dB) = 20 * Log 0.746987951 = -2.53 A plot is attached on the following page. Wood Table 0.8meters EMCO 3142 Bi-Lo g periodic Antenna 2 meters EUT HP 8591EM Spectrum Analyzer Resolution Bandwidth: 1 MHz Video Bandwidth : 1 MHz Span : 0 Hz Vertical Scale : Linear HP54502A Digitizing Oscilloscope Aux Video Output Test Report --------------------------------------------------------------------------------- 2/18 Report No.: G2115651, Transmitter of Wireless Remote Outlet, FCC Part 15.231(C), Certification. Test date: 08/10/99, Training Research Co., Ltd., TEL: 886-2-27881332, Fax: 886-2-27857408 5.5 Test Result of Radiated Emissions The highest peak values of radiated emissions form the EUT at various antenna heights, antenna polarization, EUT orientation, etc. are recorded on the following. Table 1 Open Field Radiated Emissions For 30MHz - 1GHz [Horizontal] (Orthogonal: X-position) Radiated Emission Correction Factors FCC Class B ( 3 M ) Frequency (MHz) Amplitude (dB μV/m) Ant.H. (cm) Table ( °) (dB) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 314.82090.611.00314-17.3073.3175.60-2.29 629.64865.923.00281-23.4042.5255.60-13.08 *** Note: 1. Margin = Corrected - Limit. 2. Peak Amplitude +Correction Factors = Corrected Table 2. Open Field Radiated Emissions for 1 GHz -18 GHz [Horizontal] Radiated Emission Correction Factors Duty Cycle FCC Class B ( 3 M ) Frequency (GHz) Amplitude (dB μV/m) Ant.H. (cm) Table ( °) ( dB )( dB ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) *************************** Note: 1. Margin = Corrected - Limit. 2. Peak Amplitude + Correction Factor + Duty Cycle = Corrected 3. The emissions that above 1GHz were all in the ambient. Test Report --------------------------------------------------------------------------------- 3/18 Report No.: G2115651, Transmitter of Wireless Remote Outlet, FCC Part 15.231(C), Certification. Test date: 08/10/99, Training Research Co., Ltd., TEL: 886-2-27881332, Fax: 886-2-27857408 Table 3 Open Field Radiated Emissions For 30MHz – 1GHz [Vertical] (Orthogonal: Y-position) Radiated Emission Correction Factors FCC Class B ( 3 M ) Frequency (MHz) Amplitude (dB μV/m) Ant.H. (cm) Table ( °) (dB) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 314.82087.031.00288-17.4169.6275.60-5.98 630.15063.641.0094-23.6440.0055.60-20.73 *** Note: 1. Margin = Corrected - Limit. 2. Peak Amplitude +Correction Factors = Corrected Table 4. Open Field Radiated Emissions For 1 GHz -18 GHz [Vertical] Radiated Emission Correction Factors Duty Cycle FCC Class B ( 3 M ) Frequency (GHz) Amplitude (dB μV/m) Ant.H. (cm) Table ( °) ( dB )( dB ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) *************************** Note: 1. Margin = Corrected - Limit. 2. Peak Amplitude + Correction Factor + Duty Cycle = Corrected 3. The emissions that above 1GHz were all in the ambient.

Contact Information

Applicant

George Lee(Manager)
[email protected]886 2-8221-5588Fax: 886 2-8221-5680

Technical Contact

Safety Solution (USA)David Woo
[email protected]408 517-0800

11 Stafford Drive · Cupertino, California · United States

Non-Technical Contact

Training Research Co., Ltd.Polly Chang
[email protected]+886-2-2693-5155

Test Firm

Training Research Co., LtdJack Tsai
[email protected]886-2-26935155Fax: 886-2-26934440

Technical Specifications

#Rule PartsFrequency RangePower Output
115C314.67 MHz - 314.67 MHz-
