NHSPTTX01ARemote Control Appliance (Transmitter)

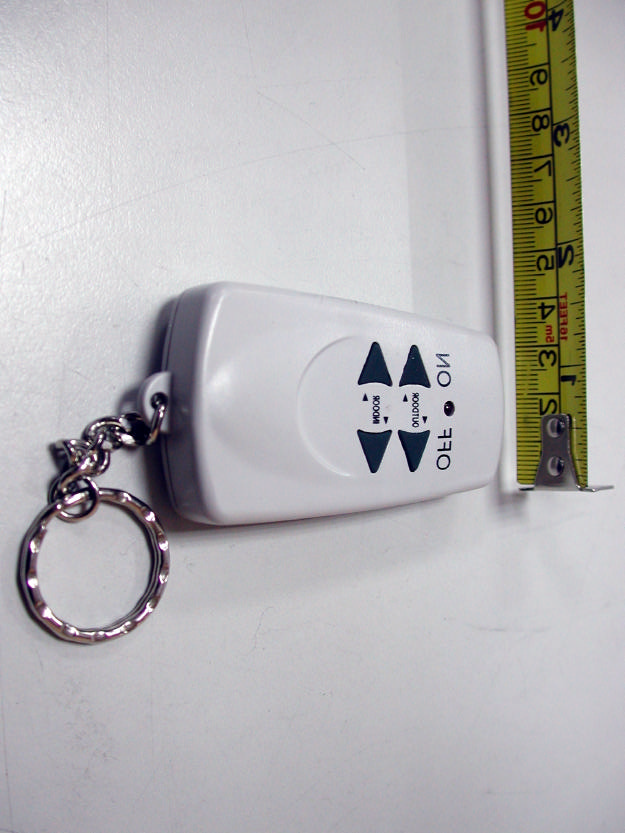

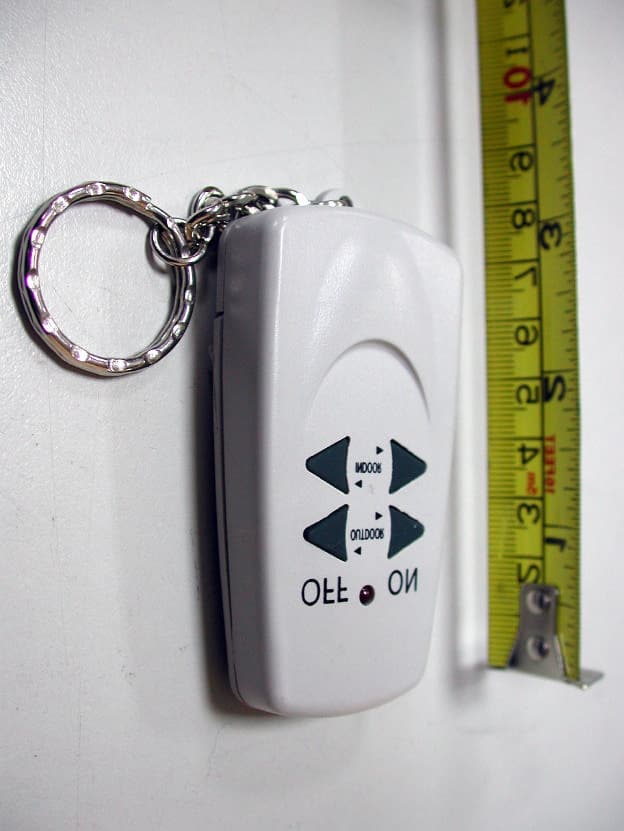

EXHIBIT F Photographs of EUT (External)

List of Exhibit EXHIBIT A Sample Label EXHIBIT BTest Report EXHIBIT CUser Manual EXHIBIT DCircuit Diagram EXHIBIT EBlock Diagram EXHIBIT FPhotographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:PTTX02 FCC ID:NHSPTTX01A LABEL Size: 26 x 17 mm LABEL Position:

EXHIBIT F Photographs of EUT (Internal)

Test Report -------------------------------------------------------------------------------- 2/20 Report No.: G2115599 Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Table of Contents Tables of Contents......................................................................................................... 2 Chapter 1 General ......................................................................................................... 4 1.1 Introduction ................................................................................................................... 4 1.2 Description of EUT ....................................................................................................... 4 1.3 Description of Support Equipment ................................................................................. 4 1.4 Test Procedure .............................................................................................................. 5 1.5 Location of the Test Site ................................................................................................ 5 1.6 General Test Condition .................................................................................................. 5 Chapter 2 Transmitter Duty Cycle Measurements ..................................... 6 2.1 Test Condition and Setup .............................................................................................. 6 2.2 List of Instruments ......................................................................................................... 6 2.3 Test Configuration ......................................................................................................... 7 2.4 Test Result .................................................................................................................... 7 Chapter 3 Transmitter Bandwidth Measurements ..................................... 9 3.1 Test Condition and Setup .............................................................................................. 9 3.2 Test Result .................................................................................................................... 9 Chapter 4 Conducted Emissions Measurements ........................................ 11 Chapter 5 Radiated Emissions Measurements ............................................ 12 5.1 General Configuration ................................................................................................... 12 5.2 Test Condition and Setup ............................................................................................. 12 5.3 List of Test Instruments ................................................................................................. 14 5.4 Test Instruments Configuration ...................................................................................... 15 5.5 Test Result of Radiated Emissions ................................................................................. 17 Test Report -------------------------------------------------------------------------------- 3/20 Report No.: G2115599 Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Table Table 1 Open Field Radiated Emissions For 30MHz ~ 1GHz [HORIZONTAL] ........................ 17 Table 2 Open Field Radiated Emissions For 1GHz ~ 18GHz [HORIZONTAL] ......................... 18 Table 3 Open Field Radiated Emissions For 30MHz ~ 1GHz [VERTICAL] .............................. 19 Table 4 Open Field Radiated Emissions For 1GHz ~ 18GHz [VERTICAL] ............................... 20 Test Report -------------------------------------------------------------------------------- 5/20 Report No.: G2115599 Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 1.4 Test Procedure All measurements contained in this report were performed according to the techniques described in measurement procedure of ANSI C63.4 1992 section 13 1.5 Location of the Test Site The radiated emissions measurements required by the rules were performed on the three- meter, Anechoic Chamber (Registration Number: 93906) maintained by Training Research Co., Ltd. 1F., No. 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Complete description and measurement data have been placed on file with the commission. The conducted power line emissions tests and other test items were performed in a anechoic chamber also located at Training Research Co., Ltd. No. 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Training Research Co., Ltd. is listed by the FCC as a facility available to do measurement work for others on a contract basis. 1.6 General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipment’s emission characteristics. The final configuration of the test system and the mode of operation used during these tests were chosen as that which produced highest emission levels. However, only those conditions that the EUT was considered likely encounter in normal use were investigated. Test Report -------------------------------------------------------------------------------- 6/20 Report No.: G2115599 Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Chapter 2 Transmitter Duty Cycle Measurements 2.1 Test Condition and Setup The duty cycle measurements were performed in a shielded enclosure. The EUT was placed on a wooded table which is 0.8 meters height and a bi-log periodic antenna was used distance about 3 meters for receiving. While testing EUT was set to transmit continuously. Various key configurations were also investigated to find the maximum duty cycle. The resolution bandwidth and video bandwidth of the spectrum analyzer was all set to 1MHz to encompass all significant spectral components during the test. The analyzer operated in linear scale and zero span mode after tuning to the transmitter carrier frequency. The spectrum analyzer measured pules width. …
