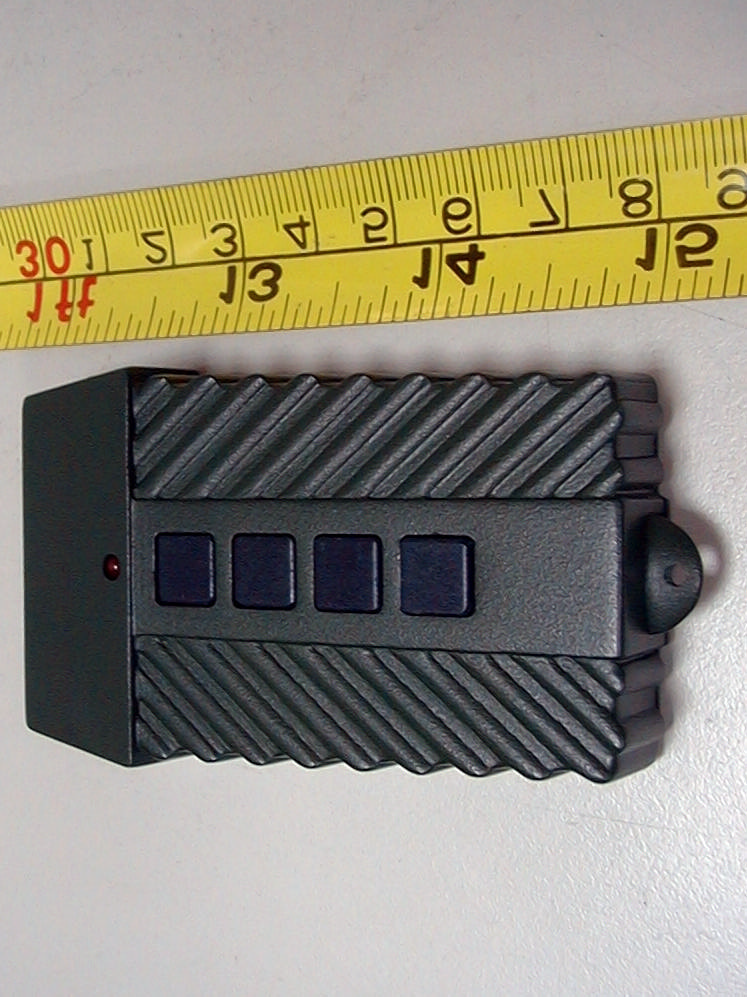

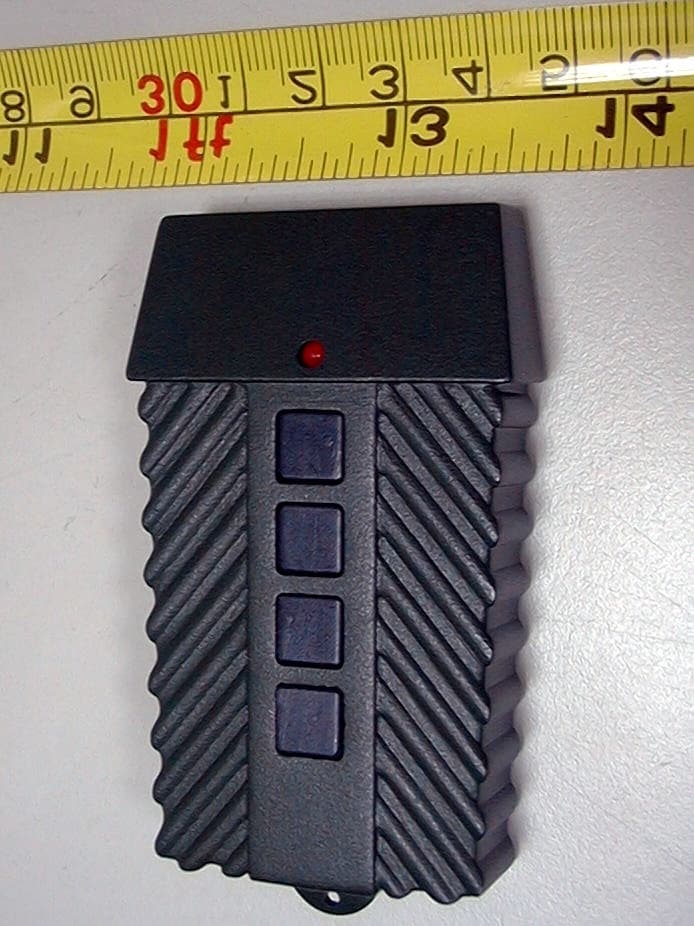

NHSPTTX03Remote Control Appliance Transmitter

LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:PTTX03 FCC ID:NHSPTTX03 LABEL Size: 29 x 20 mm LABEL Position:

Test Report -------------------------------------------------------------------------------- 2/20 Report No.: G2115786 Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Table of Contents Tables of Contents......................................................................................................... 2 Chapter 1 General ......................................................................................................... 4 1.1 Introduction ................................................................................................................... 4 1.2 Description of EUT ....................................................................................................... 4 1.3 Description of Support Equipment ................................................................................. 4 1.4 Test Procedure .............................................................................................................. 5 1.5 Location of the Test Site ................................................................................................ 5 1.6 General Test Condition .................................................................................................. 5 Chapter 2 Transmitter Duty Cycle Measurements ..................................... 6 2.1 Test Condition and Setup .............................................................................................. 6 2.2 List of Instruments ......................................................................................................... 6 2.3 Test Configuration ......................................................................................................... 7 2.4 Test Result .................................................................................................................... 7 Chapter 3 Transmitter Bandwidth Measurements ..................................... 9 3.1 Test Condition and Setup .............................................................................................. 9 3.2 Test Result .................................................................................................................... 9 Chapter 4 Conducted Emissions Measurements ........................................ 11 Chapter 5 Radiated Emissions Measurements ............................................ 12 5.1 General Configuration ................................................................................................... 12 5.2 Test Condition and Setup ............................................................................................. 12 5.3 List of Test Instruments ................................................................................................. 14 5.4 Test Instruments Configuration ...................................................................................... 15 5.5 Test Result of Radiated Emissions ................................................................................. 17 Test Report -------------------------------------------------------------------------------- 3/20 Report No.: G2115786 Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Table Table 1 Open Field Radiated Emissions For 30MHz ~ 1GHz [HORIZONTAL] ........................ 17 Table 2 Open Field Radiated Emissions For 1GHz ~ 18GHz [HORIZONTAL] ......................... 18 Table 3 Open Field Radiated Emissions For 30MHz ~ 1GHz [VERTICAL] .............................. 19 Table 4 Open Field Radiated Emissions For 1GHz ~ 18GHz [VERTICAL] ............................... 20 Test Report -------------------------------------------------------------------------------- 4/20 Report No.: G2115786 Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Chapter 1 General 1.1 Introduction The following measurement report is submitted on behalf of applicant in support of an International Periodic Radiator certification with Part 2 Subpart J and Part 15 Subpart A and C of the Commission's Rules and Regulations. 1.2 Description of EUT EUT:Remote Control Appliance (Transmitter) Model:PTTX03 FCC ID:NHSPTTX03 Frequency Range :Operated in 314.813 MHz Power Type:Powered by Battery (12V) Applicant:Powertech Industrial Co., Ltd. 6F, No. 2, Lane 348, Chung Shan RD., Sec. 2, Chung Ho City, Taipei Hsien, Taiwan, R.O.C. The fundamental frequency of transmitter emitted is due to a press on button of the EUT. The emitting time of fundamental frequency is less than 5 seconds pursuant to FCC Part 15.231(a). There are security codes for avoiding the possibility of duplicating codes in adjacent systems. The coding must be matching with the companion receiver. While testing the EUT was adjusted at a position which transmit the maximum emission. 1.3 Description of Support Equipment The EUT itself forms a system. No support equipment is requited for its normal operation. Test Report -------------------------------------------------------------------------------- 5/20 Report No.: G2115786 Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 1.4 Test Procedure All measurements contained in this report were performed according to the techniques described in measurement procedure of ANSI C63.4 1992 section 13 1.5 Location of the Test Site The radiated emissions measurements required by the rules were performed on the three- meter, Anechoic Chamber (Registration Number: 93906) maintained by Training Research Co., Ltd. 1F., No. 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Complete description and measurement data have been placed on file with the commission. The conducted power line emissions tests and other test items were performed in a anechoic chamber also located at Training Research Co., Ltd. No. 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Training Research Co., Ltd. is listed by the FCC as a facility available to do measurement work for others on a contract basis. 1.6 General Test Condition …
