NIYMW1101Wireless Mouse

1 RF Mini MOUSE USER’S MANUAL Model #: MW1101 Important Ergonomic Information Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS: l Take frequent breaks, get up and walk around several times every hour. l Vary your tasks throughout the day. l Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach. l Adjust your chair and keyboard so your upper arms and wrists are straight. l Avoid resting your wrists on sharp edges. System Requirement l Mouse compatible with standard Microsoft mode l 3 rd button and wheel function require Win98/2000/Me/XP Before you begin l Keep this installation guide for future reference! It contains Important Troubleshooting Information. l Keep your old PS/2 mouse as back-up devices. Getting Started Congratulations on your purchase of a RF (Radio Frequency) mini mouse. By using the advanced RF technology, there is fully 360operation, no line-of-sight required between receiver and this mouse. Package Contains Your RF Mini Mouse package includes the following: 2 1. RF Mini Mouse (Transmitter) 2. Mini Receiver 3. User’s manual 4. 2 AAA batteries NoteIf any part is missing, please contact your dealer for a replacement immediately. Precaution ! For optimal performance, place the receiver at least 8 inches or 20 centimeters away from other electrical devices, such as the computer, the computer monitor, speakers or other external storage drives. ! For best transmit distance, avoid to use this device on a metal surface because a large surface of iron, aluminum, copper and other metal will be a shielding or ground to the RF antenna of the mouse and receiver. ! If your notebook computer has a metal( contains Al or Mg) case, the LCD panel’s metal housing will isolate partial power of the RF signal from the mouse. This will result in reducing the distances of transmit when you connect the receiver on the back of LCD panel. However, the RF mouse should work properly while you are operating the mouse just beside your notebook computer. Installation Guide Step 1. Connecting the Receiver Before using this RF Mini Mouse, you need to connect the included receiver to your computer first. Please follow the steps below to finish the connecting: 1. Turn off your computer 2. Keep a USB slot of your notebook free for the receiver 3. Plug the USB connector end into the USB port 4. Prepare your original Microsoft Windows CD 5. Turn the notebook power on and then follow the instructions of Windows message for the new USB device connection 3 Step 2. Installing the Batteries This RF wireless mouse uses 2 AAA batteries. To apply the batteries, please follow the steps as below: n Turn the mouse to the bottom side and remove the batteries cassette by moving the opening tabs and pull the battery cover out n There are signs to indicate batteries' positive and negative poles. Carefully follow the signs to place the batteries n Place the batteries cassette back and make sure it is firmly closed Battery Warning! When replace the batteries, use alkaline. You may use other type batteries, but do not mix them with alkaline. Do not mix used and new batteries together! Step 3 Setting up the same ID code for both of receiver and mouse This RF wireless mouse provides 256 identification codes to avoid wrong reaction with other same model RF wireless mouse. Before you using the wireless mouse, please set the same ID code for both receiver and mouse. Establish ID connection between the receiver and the mouse. n Press and release the “connect “switch on bottom of the wireless mouse (refer to Fig-1). n Press and release the “connect” switch on the receiver (refer to Fig-2). n The "connect" LED on the top cover of receiver will flash while the same ID is selected on both of the receiver and the mouse. n When you change batteries of the mouse, you have to re-establish the connection. Fig-2 Connect switch for ID setting Tab to open the battery cassette Fig-1 Connect switch for ID setting 4 GENERAL SPECIFICATIONS l Digital Radio Frequency wireless mouse with receiver l 27MHz carrier with 256 ID selections for your options l 3 buttons design for multimedia purpose to immediately play l Ergonomic design for comfortable grip Electromagnetic Characteristics (EMC) FCC ID: NIYMW1101 This unit complies with Part 15 of FCC Rules. Operation is subject to following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. l CE - Type acceptance: ETS 300 220 Short range devices l VCCI approval (Japan) Transmitter l Distance: about 3 feet (1 meters) l Power: 3V DC (2 AAA batteries) l Carrier Frequency: 27.045 MHZ l Dimensions: 97*57*35 mm l Weight: 71 +/- 2 grams, without batteries Receiver l Interface: USB (and PS2, if use together with USB to PS2 adaptor) l Power: 5V DC, 100mA MAX connected to host computer l Dimensions: 50*22*15 mm( the USB metal connector is not included) l Weight: 13 grams Tested To Comply With FCC Standards 5 Troubleshooting 1. Mouse does not function n If mouse is not functional, please turn off the computer first. n Check the receiver is firmly attached to the computer mouse port. n Check the ID code connection of both receiver and mouse are established. n Check if the batteries are properly connecting. The "+" and "-" on the batteries must match the "+" and "-" on the slots. If the batteries aren't inserted correctly, the device won't work. n Restart the computer again. 2. Interference with other RF wireless mouse Reducing Interference with Other Wireless Devices: All 27MHz radio-based devices are subject to interference from other 27MHz radio- based devices, such as cordless telephones, cordless baby monitors, and c…

Text truncated - open the document above for the full version.

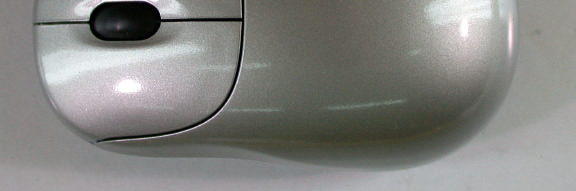

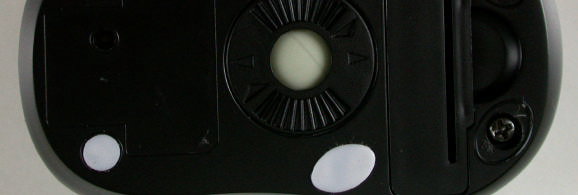

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Label Location for FCC ID: NIYMW1101

MW1101 Mouse/RX Label **********************************************************

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: NIYMW1101 ADT No.910509R04 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3V Battery. The receiver is powered by host computer. Both transmitter and receiver use Integral antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: NIYMW1101 Report No.: RF910509R041Issued: May 27, 2002 FCC TEST REPORT REPORT NO.: RF910509R04 MODEL NO.: MW1101 OEM MODEL NO.: PAUM006 RECEIVED: May 9, 2002 TESTED: May 20, 2002 APPLICANT:DEXIN Corporation ADDRESS: 20F-2, No. 37, Sec. 2, San-Ming Rd., Pan-Chiao City, Taipei Hsien, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: NIYMW1101 Report No.: RF910509R042Issued: May 27, 2002 Table of Contents 1CERTIFICATION.......................................................................................................3 2SUMMARY OF TEST RESULTS...............................................................................4 3GENERAL INFORMATION........................................................................................5 3.1GENERAL DESCRIPTION OF EUT...............................................................5 3.2DESCRIPTION OF TEST MODES.................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................6 3.4DESCRIPTION OF SUPPORT UNITS............................................................6 4TEST PROCEDURE AND RESULT..........................................................................7 4.1CONDUCTED EMISSION MEASUREMENT..................................................7 4.2RADIATED EMISSION MEASUREMENT.......................................................7 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT....................................7 4.2.2TEST INSTRUMENT......................................................................................8 4.2.3TEST PROCEDURE.......................................................................................9 4.2.4DEVIATION FROM TEST STANDARD...........................................................9 4.2.5TEST SETUP................................................................................................10 4.2.6EUT OPERATING CONDITION....................................................................10 4.2.7TEST RESULT...............................................................................................11 5PHOTOGRAPHS OF THE TEST CONFIGURATION..............................................13 6INFORMATION ON THE TESTING LABORATORIES.............................................14 FCC ID: NIYMW1101 Report No.: RF910509R043Issued: May 27, 2002 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : Dexin MODEL NO : MW1101 OEM BRAND NAME : Targus OEM MODEL NO : PAUM006 APPLICANT : DEXIN Corporation STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992, Canada RSS 210 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on May 20, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: NIYMW1101 Report No.: RF910509R044Issued: May 27, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from battery 15.227Radiated Emission TestPASS Minimum passing margin is –12.6dBuV at 54.04MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: NIYMW1101 Report No.: RF910509R045Issued: May 27, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless Mouse MODEL NO. MW1101 OEM MODEL NO.PAUM006 POWER SUPPLY3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz BANDWIDTH OF EACH CHANNEL 50kHz NUMBER OF CHANNEL1 ANTENNA TYPEIntegral antenna DATA CABLENA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. The EUT is the transmitter part of a Wireless Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: NIYMW1101 Report No.: RF910509R046Issued: May 27, 2002 3.2 DESCRIPTION OF TEST MODES One channel was provided in this EUT. ChannelFrequency 127.045MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992, Canada RSS 210 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. NA FCC ID: NIYMW1101 Report No.: RF910509R047Issued: May 27, 2002 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Field strength limits are at the distance of 3 meters, emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as f…
