NIYMWL61-PCordless Laser Mouse

B RUSSELS H ANNOVER B ARCELONA T OKYO M ILAN A MSTERDAM S INGAPORE L ONDON P ARIS N EW Y ORK L OS A NGELES T ORONTO H ONG K ONG S YDNEY Wireless Laser Mouse USER’S GUIDE Making Your Mobile Life Easier. ® Making Your Mobile Life Easier. ® Visit our Web site at: www.targus.com Features and specifications are subject to change without notice. © 2005 Targus Group International, Inc. and Targus Inc. AMW14US/400-0283-001A 2 TARGUS WIRELESS LASER MOUSE Introduction Congratulations on your purchase of the Targus Wireless Laser Mouse for the desktop. This ergonomically-designed mouse offers the latest in laser tracking technology as well as the most up-to-date wireless features. It allows for improved tracking accuracy on most types of surfaces, even some mirror and glass. With 6 channels and 256 IDs per channel, the mouse's digital signal processor offers a new level of accuracy and precision in wireless data transmission. Productivity is enhanced by a practical 8- button design that includes such short cuts as Internet back and forward, applications switch and scroll up and down functions. Note: While the mouse is functioning, no laser light is visible to the naked eye. Be careful not to look directly into the emitter hole while the mouse is active. Package Contents • Wireless Laser Mouse • USB Receiver • USB Charge Cable •USB Extension Seat • 2 x AA Rechargeable Batteries •User Guide AMW14US.fm Page 2 Tuesday, August 16, 2005 3:22 PM 3 Targus Wireless Laser Mouse System Requirements Hardware • USB interface Operating System •Windows ® 2000/XP For Desktop PCs For instances where the PC is positioned under a desk or other places that might impede wireless connectivity, use of the extension seat is recommended. 1 Connect the extension seat to an available USB port on your PC. 2 Plug the USB wireless receiver into the port labeled 'receiver' located at the top of the seat. 3 Connect the USB end of the charge cable to the USB port labeled 'charger' on the extension seat. For Notebook PCs 1 Connect the extension seat to an available USB port on your PC. 2 Plug the USB wireless receiver into the port labeled 'receiver' located at the top of the seat. 3 Connect the charge cable's USB end to the USB port labeled 'charger' on the extension seat. AMW14US.fm Page 3 Tuesday, August 16, 2005 3:22 PM 4 Targus Wireless Laser Mouse Alternatively, if more than one USB port is available you may opt not to use the extension seat by plugging the receiver and charging cable directly into the notebook PC's open USB ports. Installing the Batteries 1 Remove the battery cover from the bottom of the mouse by pressing the tab located on the bottom and lifting it off. Bottom of mouse 2 2 AA NiMH rechargeable batteries are included. Insert the supplied batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery housing. WARNINGS: Use ONLY heavy-duty NiMH recharegeable batteries. Never use alkaline batteries. Avoid mixing new and used batteries. 3 Slide the battery cover back into position until it “clicks” firmly into place. tab Battery cover AMW14US.fm Page 4 Tuesday, August 16, 2005 3:22 PM 5 Targus Wireless Laser Mouse Charging the Mouse For best results, you should charge the mouse at least eight hours before using it. 1 Connect the supplied charge cable to the charge port on the supplied extension seat and plug the extension seat cable to the USB port on your computer. 2 Connect the other end of the charge cable to the mouse. 3 Alternatively, you can connect the charge cable's USB connector directly into an available USB port on your computer. NOTE: To continuously charge the mouse via the USB charge cable, your computer must be on and awake. For best results, turn off your computer’s power management feature while charging the mouse. Synchronization Make sure that your computer is turned on and has detected the USB receiver before you synchronize. 1 Press and release the connect button on the receiver. Connect button AMW14US.fm Page 5 Tuesday, August 16, 2005 3:22 PM 6 Targus Wireless Laser Mouse 2 Press and release the connect button located on the bottom of the mouse. The receiver’s status light flashes while it scans the identification codes. When synchronized the status light stops flashing. This process must be completed within a few seconds or the steps will need to be repeated. After successfully synchronizing, you are ready to use the mouse. NOTE: Removing the batteries will require you to synchronize the mouse with the receiver again. Connect button Laser emitter AMW14US.fm Page 6 Tuesday, August 16, 2005 3:22 PM 7 Targus Wireless Laser Mouse Using the Mouse NOTES: The 4th through 8th buttons require Windows 2000 or XP to function. Due to the improved tracking speed of the laser engine, users may find the cursor movement is faster than a conventional optical mouse. Cursor settings can be changed from the Control Panel in Windows. 1: Left Mouse Button5: Application Switch 2: Right Mouse Button6: Internet Page Backward 3: Middle Button/Scrolling Wheel7: Scroll Up 4: Internet Page Forward8: Scroll Down 4 5 6 7 8 3 2 1 AMW14US.fm Page 7 Tuesday, August 16, 2005 3:22 PM 8 Targus Wireless Laser Mouse Safety Measures • Although this mouse is a Class 1 Laser Product and safe for operation, avoid pointing the laser into the eyes or looking directly into the laser emitter. • Keep the mouse away from young children. • Any attempt to disassemble, adjust or repair the mouse may result in exposure to laser light or other safety hazards. Sleep Mode The mouse's sleep mode feature activates after 8 minutes of non-operation. To wake the mouse, click the left, right or scroll mouse button. Troubleshooting What do I do if the mouse does not work? • Make sure that the polarity of the batteries is correct. The positive (+) and negative (-) ends of each battery must match the positive (+) and negative (-) connections in the battery housing. • Make sure that th…

Text truncated - open the document above for the full version.

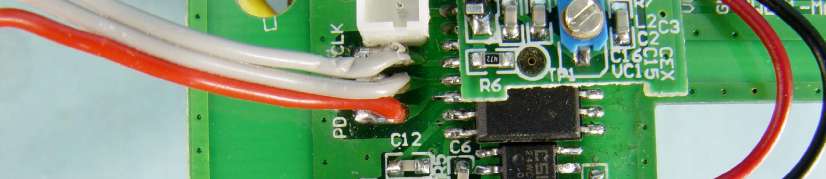

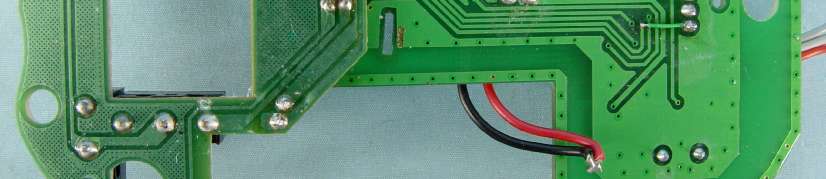

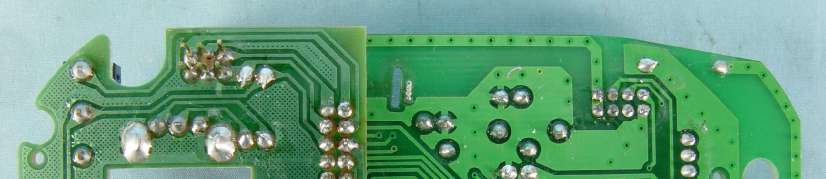

Page 1 CONSTRUCTION PHOTOS OF EUT

JAMES JAMES
: :78-100-XXX :78-100-XXX  :    Made in ChinaMadeinChina 78-100-XXX MODEL:MWL61-P S/N: CLASS 1 LASER PRODUCTCLASS1LASERPRODUCT APPAREIL A LASER DE CLASSE 1APPAREILALASERDECLASSE1 LASER KLASSE 1LASERKLASSE1 LUOKAN 1 LASERLAITELUOKAN1LASERLAITE PRODUIT LASERPRODUITLASER CATEGORIE 1CATEGORIE1 FCC ID:NIYMWL61-PFCCID:NIYMWL61-P 0560 ! Tested to Comply with FCC Standards Tested toComply with FCCStandards

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: NIYMWL61-P Report No.: RF940823L30 Operational Description The transmitter of the EUT (Cordless Laser Mouse) is powered from 3Vdc Batteries or 5Vdc from host equipment. The EUT uses Loop Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: NIYMWL61-P Report No.: RF940823L301Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940823L30 MODEL NO.: MWL61-P OEM MODEL NO.: AMW14 RECEIVED: Aug. 23, 2005 TESTED: Sep. 16 ~ 20, 2005 ISSUED: Sep. 20, 2005 APPLICANT: DEXIN Corporation ADDRESS: 14F-8, No 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 25 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: NIYMWL61-P Report No.: RF940823L302Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.......................................................................................................3 2SUMMARY OF TEST RESULTS...............................................................................4 2.1MEASUREMENT UNCERTAINTY.............................................................................4 3GENERAL INFORMATION........................................................................................5 3.1GENERAL DESCRIPTION OF EUT..........................................................................5 3.1DESCRIPTION OF TEST MODES............................................................................6 3.1.1CONFIGURATION OF SYSTEM UNDER TEST........................................................6 3.1.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................7 3.2GENERAL DESCRIPTION OF APPLIED STANDARDS............................................8 3.3DESCRIPTION OF SUPPORT UNITS......................................................................8 4TEST PROCEDURE AND RESULT...........................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.............................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................9 4.1.2TEST INSTRUMENTS...............................................................................................9 4.1.3TEST INSTRUMENTS.............................................................................................10 4.1.4DEVIATION FROM TEST STANDARD....................................................................10 4.1.5TEST SETUP..........................................................................................................11 4.1.6EUT OPERATING CONDITIONS............................................................................11 4.1.7TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT................................................................14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT..............................................14 4.2.2TEST INSTRUMENT...............................................................................................15 4.2.3TEST PROCEDURE...............................................................................................16 4.2.4TEST SETUP..........................................................................................................17 4.2.5EUT OPERATING CONDITION...............................................................................17 4.2.6TEST RESULTS......................................................................................................18 4PHOTOGRAPHS OF THE TEST CONFIGURATION...............................................21 5INFORMATION ON THE TESTING LABORATORIES.............................................24 APPENDIX-A....................................................................................................................A-1 FCC ID: NIYMWL61-P Report No.: RF940823L303Report Format Version 2.0.4 1 CERTIFICATION PRODUCT: Cordless Laser Mouse MODEL: MWL61-P OEM MODEL: AMW14 BRAND: DEXIN OEM BRAND: TARGUS APPLICANT: DEXIN CORPORATION TESTED: Sep. 16 ~ 20, 2005 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4-2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE:Sep. 20, 2005 Rennie Wang TECHNICAL ACCEPTANCE:, DATE:Sep. 20, 2005 Responsible for RF Gary Chang APPROVED BY : , DATE: Sep. 20, 2005 Cody Chang / Deputy Manager FCC ID: NIYMWL61-P Report No.: RF940823L304Report Format Version 2.0.4 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestPASS Minimum passing margin is –13.60dB at 0.451MHz 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –1.72dB at 407.11MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTFREQUENCYUNCERTAINTY Conducted emissions9kHz~30MHz2.44 dB 30MHz ~ 200MHz3.55 dB 200MHz ~1000MHz3.58 dB 1GHz ~ 18GHz1.10 dB Radiated emissions 18GHz ~ 40GHz0.91 dB This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. FCC ID: NIYMWL61-P Report No.: …

Text truncated - open the document above for the full version.

FCC ID: NIYMWL61-P Report No.: RF940823L3021Report Format Version 2.0.4 4 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE 2) FCC ID: NIYMWL61-P Report No.: RF940823L3022Report Format Version 2.0.4 RADIATED EMISSION TEST (TEST MODE 1) FCC ID: NIYMWL61-P Report No.: RF940823L3023Report Format Version 2.0.4 RADIATED EMISSION TEST (TEST MODE 2)
