NIYMWP0926Wireless Optical Mouse

1 RF WIRELESS SCROLL MOUSE USER’S MANUAL Model #: MWP0926 2 Important Ergonomic Information Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS: l Take frequent breaks, Get up and walk around several times every hour. l Vary your tasks throughout the day. l Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach. l Adjust your chair and keyboard so your upper arms and wrists are straight. l Avoid resting your wrists on sharp edges. System Requirement l Mouse compatible with standard Microsoft mode l 3 rd button and wheel function require Win98/2000/Me/XP Before you begin l Keep this installation guide for future reference! It contains Important Troubleshooting Information. l Keep your old PS/2 mouse as back-up devices. Getting Started Congratulations on your purchase of a RF (Radio Frequency) wireless & multimedia mouse. By using the advanced RF technology, there is fully 360 operation, no line-of-sight required between receiver and this mouse. The DC-1093 Mouse doesn't have to aim at the receiver when using. Package Contains Your MWP0926 Mouse package includes the following: 1. MWP0926 Mouse (Transmitter) 2. RX1087 Mini Receiver 3. User’s manual 4. 2 AA batteries 3 NoteIf any part is missing, please contact your dealer for a replacement immediately. Precaution ! For optimal performance, place the receiver at least 8 inches or 20 centimeters away from other electrical devices, such as the computer, the computer monitor, speakers or other external storage drives. ! For normal transmit distance, avoid to use this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will be a shielding or ground to the RF antenna of the mouse and receiver. Operating on a metal may cause the transmit distance shorter, ! For this RF optical mouse, it is not suggested operate the mouse on a dark surface for the consideration of saving battery power. so, the LED is not illuminated too bright, Although the working surface is not strictly restricted, it is strongly recommended to operate an optical mouse on a white paper to obtain the best performance. ! If your notebook computer has a metal( contains Al or Mg) case, the LCD panel’s metal housing will isolate partial power of the RF signal from the mouse. This will result in reducing the distance of transmit when you connect the receiver on the back of LCD panel. However, the RF mouse should work properly while you are operating the mouse just beside your notebook computer. Installation Guide Step 1. Connecting the Receiver Before using this MWP0926 Mouse, you need to connect the included receiver to your computer first. Please follow the steps below to finish the connecting: 1. Turn off your computer 2. Keep a USB slot of your notebook free for the receiver 3. Plug the USB connector end into the USB port 4. Prepare your original Microsoft Windows CD 5. Turn the notebook power on and then follow the instructions of Windows message for the new USB device connection 4 Step 2. Setting up the correct channel for both of receiver and mouse This RF wireless mouse provides 2 different carriers channel and up to 256 identification codes to avoid interference with other radio devices or other same model RF wireless mouse. Before you using the wireless mouse, please set the same carrier frequency and ID channels for both receiver and mouse. Please follow the steps as below to set up: 1. Check the end of receiver opposite to the USB connector and you will see a small rectangular tact switch. 2. Installing the Batteries This RF wireless mouse uses 2 AA batteries. To apply the batteries, please follow the steps as below: n Turn the mouse to the bottom side and remove the batteries cover by moving the opening tab and pull the battery cover (the top cover of the mouse) out n There are signs to indicate the polarity of the batteries. Follow the signs to place the batteries n Place the batteries cover back and make sure it is firmly closed Battery Warning! When replace the batteries, use alkaline. You may use other heavy-duty NiMH batteries, but do not mix them with alkaline. Do not mix used and new batteries together! 4. Establish communication between the receiver and the mouse (select identification codes). n Press and release the connect button on bottom of the wireless mouse (refer to Fig-3.1). n Press and release the connect button on the receiver (refer to Fig-3.2). n The "connect" light on the top cover of receiver will flash while the same ID is selected on both of the receiver and the mouse. Fig-3.2 Fig-3.1 5 GENERAL SPECIFICATIONS l Digital Radio Frequency wireless mouse with receiver l 2 channels and 256 ID selections for your options to prevent interruption. l 3 buttons design for multimedia purpose to immediately play l Ergonomic design for comfortable grip Electromagnetic Characteristics (EMC) FCC ID: NIYMWP0926 This unit complies with Part 15 of FCC Rules. Operation is subject to following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. l CE - Type acceptance: ETS 300 220 Short range devices Transmitter l Distance: less than 4 feet (1.2 meters) l Power: 3V DC (2 AA batteries) l Carrier Frequency: 27 MHz l Dimensions: 98*59*38 mm l Weight: 106 grams Receiver l Interface: USB l Power: 5V DC, 100mA MAX connected to host computer l Dimensions: 63*22*17 mm( the USB metal connector is not included) l Weight: 16 grams ELECTRIC SPECIFICATIONS l Operating Voltage: Transmitter: 3.0V DC (powered by batteries) Receiver: 4.5 to 5.5V DC (powered by USB port) l Operating Current: Transmitter: 35~45(Max)mA Receiver: 30mA typical l Stan…

Text truncated - open the document above for the full version.

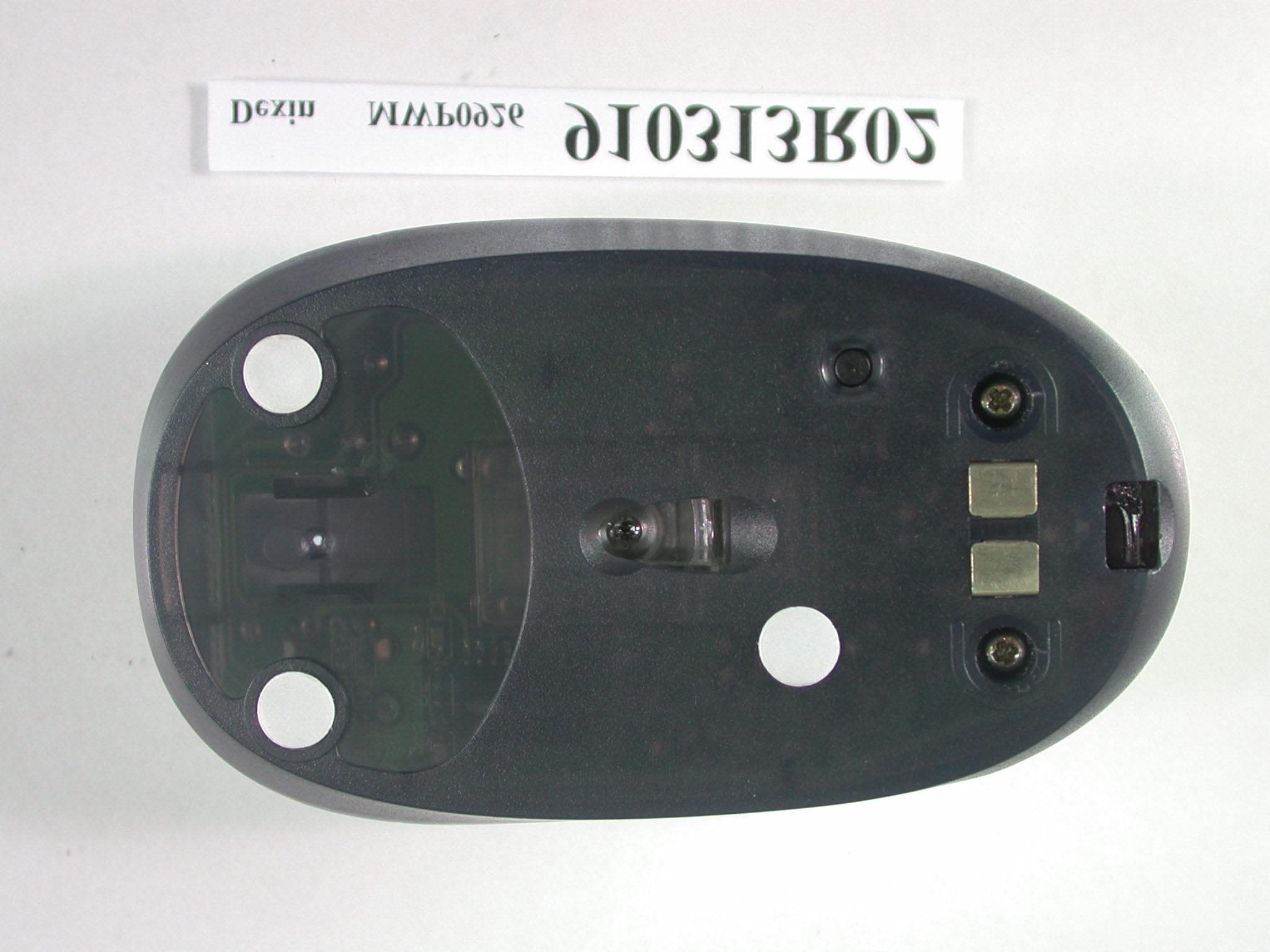

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

FCC ID Label Location

MWP0926 Label

Page 3 Page 4

Page 5 Page 6 Page 7

FCC ID: NIYMWP0926 ADT No.910313R02 Operational Description The transmitter of the EUT (Wireless Optical Mouse) is powered by 3V Battery. The receiver is powered by host computer. Both transmitter and receiver use Integral antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: NIYMWP0926 Report No.: RF910313R02 1 Issued: March 22, 2002 FCC TEST REPORT REPORT NO.: RF910313R02 MODEL NO.: MWP0926 RECEIVED: March 13, 2002 TESTED: March 14 ~ March 18, 2002 APPLICANT:DEXIN Corporation ADDRESS: 20F-2, 37, Sec 2, San-Ming Rd Pan-Chiao City, Taipei Hsien, Taiwan,R.O.C ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: NIYMWP0926 Report No.: RF910313R02 2 Issued: March 22, 2002 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURE AND RESULT ................................................................7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................7 4.2.2 TEST INSTRUMENT .......................................................................................8 4.2.3 TEST PROCEDURE........................................................................................9 4.2.4 TEST SETUP.................................................................................................10 4.2.5 EUT OPERATING CONDITION.....................................................................10 4.2.6 TEST RESULT............................................................................................... 11 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................13 6INFORMATION ON THE TESTING LABORATORIES ..................................14 FCC ID: NIYMWP0926 Report No.: RF910313R02 3 Issued: March 22, 2002 1 CERTIFICATION PRODUCT : Wireless Optical Mouse BRAND NAME : Dexin MODEL NO : MWP0926 APPLICANT : DEXIN Corporation STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992, Canada RSS 210 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from March 14, 2002 to March 18, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: NIYMWP0926 Report No.: RF910313R02 4 Issued: March 22, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.107Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –-12.1dBuV at 569.00MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: NIYMWP0926 Report No.: RF910313R02 5 Issued: March 22, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless Optical Mouse MODEL NO.MWP0926 POWER SUPPLY3VDC from battery MODULATION TYPEFSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz & 27.145MHz BANDWIDTH OF EACH CHANNEL 10KHz NUMBER OF CHANNEL2 ANTENNA TYPEIntegral antenna DATA CABLENA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. The EUT is the transmitter part of a Wireless Optical Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: NIYMWP0926 Report No.: RF910313R02 6 Issued: March 22, 2002 3.2 DESCRIPTION OF TEST MODES Two channels were provided in this EUT. ChannelFrequencyChannelFrequency 127.045MHz227.145MHz NOTE: Two channels were pre-tested in chamber. Channel 1, the worst case, was chosen for final test. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Optical Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992, Canada RSS 210 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. NA FCC ID: NIYMWP0926 Report No.: RF910313R02 7 Issued: March 22, 2002 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Field strength limits are at the distance of 3 meters, emissions radiated outside of the specified bands, shall be according to the general radiate…

Text truncated - open the document above for the full version.

FCC ID: NIYMWP0926 Report No.: RF910313R02 13 Issued: March 22, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
