NIYMWP156P6S2.4G Wireless mouse

MWP156-P6S 2.4GHz Wireless Optical Mouse Page 1 of 6 1.0 Edition 2.4GHz Wireless Mouse MWP156_P6S & MWB156_P6S Wireless Mouse USER’S MANUAL Important Ergonomic Information Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS: ƒ Take frequent breaks, get up and walk around several times every hour. ƒ Vary your tasks throughout the day. ƒ Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach. ƒ Adjust your chair and keyboard so your upper arms and wrists are straight. ƒ Avoid resting your wrists on sharp edges. System Requirement ƒ Mouse compatible with standard Microsoft OS ƒ 3 rd button and wheel function require Win98/ ME/ 2000/ XP/ Vista/7. ƒ 4 th & 5 th buttons of the mouse require Win2000/XP/ Vista/7 to function, default as backward and forward while in Microsoft Windows ME/2000/XP/ Vista/7, or will require install additional driver as attached with this product. ƒ If your computer’s operating system is Windows 98/ 98SE, please prepare the Windows98 or 98SE compact disk for system’s request during the installation of mouse. Before you begin ƒ Keep this installation guide for future reference! It contains Important Troubleshooting Information. ƒ Keep your old PS/2 or USB mouse as back-up devices. Getting Started Congratulations on your purchase of the advanced Wireless BlueSence Mouse. By using the advanced 2.4GHz RF technology a 360° operation is possible and no line-of-sight is required between the receiver and the mouse. The mouse featured with 1,600dpi high resolution will bring users the best operation accuracy and efficiency, For travel, loss prevention and more power saving, the MWP156_P6S is designed to MWP156-P6S 2.4GHz Wireless Optical Mouse Page 2 of 6 1.0 Edition store receiver in the cavity underneath the mouse. You can use the power on/off switch to save the power. The low power indicator on top of the mouse will blink to indicate battery low power. With numerous user-friendly functions and the compact and ergonomic design, the RF mouse may offer users the best experience of utilization and convenience in traveling. Package Contains Your LUGUS BS Wireless BlueSence Mouse package includes the following: 1. The Wireless Mouse 2. USB storable nano receiver 3. User’s manual 4. 2 AAA alkaline batteries Note：If any part is missing, please contact your dealer for a replacement immediately. Precaution ! This wireless BlueSence mouse can work on almost all kind of surfaces except on a glass or mirror surface. Avoid operating this mouse on a glossy surface; otherwise, this mouse may not operate normally. ! For consideration of saving battery power, it is strongly recommended to operate an optical mouse on a bright surface with fine texture to obtain lower power consumption of the high illumination LED. A very dark surface will cause higher power consumption. ! For optimal performance, mouse should be no more than 5M away from receiver. ! For a better transmission distance, avoid using this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will act as a shield or ground to the RF antenna of the mouse and receiver. Operating on a metal surface may shorten the transmission distance. ! If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This could possibly result in reducing the distance of transmission when you operate the mouse right in front of the notebook and when the receiver is connected on the back of the notebook. However, the RF mouse should work properly while you are operating the mouse just beside your desktop computer. Overview MWP156-P6S 2.4GHz Wireless Optical Mouse Page 3 of 6 1.0 Edition Hardware Installation Guide (Mouse) Battery installation: 1. Remove the battery compartment cover in the bottom. 2. Install batteries with the positive (+) & negative (-) in the correct direction indicated by the battery compartment label. 3. Clip the battery cover back into place and make sure it is firmly closed. (Caution: Do not look directly in to the optical emitter. Keep away from young children) Connect the RX36_6S receiver with computer. Plug in the RX36_6S receiver to any available USB port or hub connected to your computer. (Windows will now detect the mouse and install the required drivers automatically). Button #1 – Left mouse click Button #3 – Centre scroll Low‐Power Indication Button #5 – Internet Forwards Button #4 – Internet Backwards Button#2–Right mouse click MWP156-P6S 2.4GHz Wireless Optical Mouse Page 4 of 6 1.0 Edition CLICK ANY BUTTON, YOUR MOUSE IS NOW READY TO BE USED Note: * During normal use, please make sure that the mouse is no more than 5M away from the receiver in order to have reliable connection. Operation Guide BATTERY LOW INDICATION When battery power becomes low, indicator LED on the bottom of the mouse will blink when moving or clicking the mouse. The mouse will continue to operate for a period of time depending on usage, but batteries should be replaced immediately.. OPERATIONS ON POWER SAVING MODE In order to conserve battery power, the mouse is is also designed with the consideration of the trade-off between friendly usage and power consumption. Stages of power consumption include normal operation and idle. The idle mode is entered immediately upon stopping moving mouse. The optical sensor of the mouse will reduce current consumption gradually. In idle mode, moving the mouse can bore the mouse back to work. POWER ON/OFF: For the consideration of traveling purpose, this mouse designed a slide switch at the bottom of the mouse, which provides a power ON/ OFF function to avoid inadvertently waking up the mouse, th…

Text truncated - open the document above for the full version.

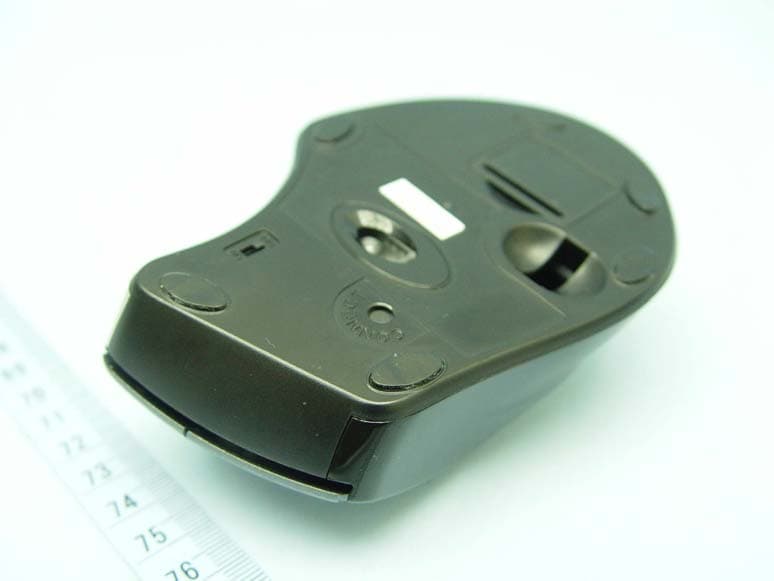

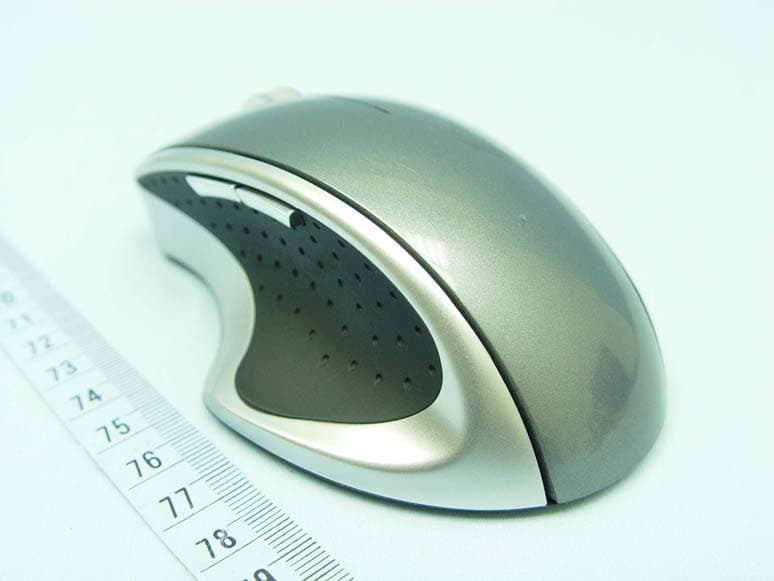

Page 1 CONSTRUCTION PHOTOS OF EUT

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Model: MWP156_P6S (Red light) Page 5 Model: MWB156_P6S (Blue light)

FCC ID: NIYMWP156P6S Report No.: RF110106C04 Operational Description The transmitter of the EUT (2.4GHz Wireless Mouse) is powered from 3Vdc from batteries. The antenna is copper trace antenna without antenna connector. The device has red and blue light version. Only the digital circuit part is a little changed and no effect to RF parameter. RF part is identical to each version. Detail difference is shown on below table BRAND MODEL DESCRIPTION Dexin MWP156_P6S Main model (with Red light) Red light: Without IC: PAM2400ACA300, Value of R6, 11, 12, 13, 14 is different with Blue light version Other parts are identical to Blue light version Verbatim MWB156_P6S Marketing purpose model (with Blue light) Blue light: With IC: PAM2400ACA300, Value of R6, 11, 12, 13, 14 is different with Red light version Other parts are identical to Red light version For more detailed instruction, please take a look at the user’s manual.

Report No.: RF110106C04 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO. :RF110106C04 MODEL NO. :MWP156_P6S (refer to item 3.1 for more details) FCC ID:NIYMWP156P6S RECEIVED :Jan. 06, 2011 TESTED :Jan. 07, 2011 ISSUED :Jan. 25, 2011 APPLICANT : DEXIN Corporation ADDRESS : 14F-8, No 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 26 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: RF110106C04 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD...............................................................................................3 1. CERTIFICATION ...........................................................................................................4 2. SUMMARY OF TEST RESULTS ...................................................................................5 2.1 MEASUREMENT UNCERTAINTY ................................................................................5 3. GENERAL INFORMATION............................................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................................6 3.2 DESCRIPTION OF TEST MODES................................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...............................................9 3.4 DESCRIPTION OF SUPPORT UNITS ..........................................................................9 4. TEST TYPES AND RESULTS .....................................................................................10 4.1 RADIATED EMISSION MEASUREMENT ...................................................................10 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................................10 4.1.2 TEST INSTRUMENTS ................................................................................................ 11 4.1.3 TEST PROCEDURES .................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD .......................................................................12 4.1.5 TEST SETUP ..............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ................................................................................13 4.1.7 TEST RESULTS ..........................................................................................................14 4.2 BAND EDGES MEASUREMENT ................................................................................21 4.2.1 LIMITS OF BAND EDGES MEASUREMENT .............................................................21 4.2.2 TEST INSTRUMENTS ................................................................................................21 4.2.3 TEST PROCEDURE ...................................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD .......................................................................21 4.2.5 EUT OPERATING CONDITION ..................................................................................21 4.2.6 TEST RESULTS ..........................................................................................................22 5. PHOTOGRAPHS OF THE TEST CONFIGURATION..................................................24 6. INFORMATION ON THE TESTING LABORATORIES ................................................25 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB...........................................................................................26 Report No.: RF110106C04 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Jan. 25, 2011 Report No.: RF110106C04 4 Report Format Version 4.0.0 1. CERTIFICATION PRODUCT: 2.4G Wireless mouse MODEL NO.: MWP156_P6S (refer to item 3.1 for more details) BRAND: Dexin (refer to item 3.1 for more details) APPLICANT: DEXIN Corporation TESTED: Jan. 07, 2011 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment (model: MWP156_P6S, MWB156_P6S) have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Jan. 25, 2011 Joanna Wang / Senior Specialist APPROVED BY : , DATE :Jan. 25, 2011 Gary Chang / Assistant Manager Report No.: RF110106C04 5 Report Format Version 4.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULTREMARK 15.207 Conducted Emission T…
