MULTI-CHANNEL MINI RF OPTICAL MOUSE USER’S MANUAL Model #: DC-2038 Important Ergonomic Information Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS: z Take frequent breaks, get up and walk around several times every hour. z Vary your tasks throughout the day. z Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach. z Adjust your chair and keyboard so your upper arms and wrists are straight. z System Requirement z Mouse compatible with standard Microsoft mode z Before you begin z Keep this installation guide for future reference! It contains Important Troubleshooting Information. z Keep your old PS/2 mouse as a back-up device. Getting Started Congratulations on your purchase of the multi-channel RF (Radio Frequency) optical mouse. By using the advanced RF technology, a 360of operation is possible, and no line-of-sight is required between the receiver and the mouse. This mouse provides a high resolution of 800dpi, which will bring users the best operation accuracy and efficiency, especially for a display resolution at 1024*768 or higher. Since it has a double operation speed, it requires only 1/4 operational space comparing to that required by a 400dpi mouse. Owing to the integration of multi-channel solution, this mouse is also an idea pointing device to be used in an office without considering the arrangement of desk to desk, or in a meeting room where two or more attendants are operating their own RF wireless mice. 1 Package Contains Your DC-2038 Mouse package includes the following: 1. A multi-channel RF optical mouse (Transmitter) 2. A thumb size USB receiver 3. A user’s manual Note: If any part of this package is missing, please contact your dealer for a replacement immediately. Precaution ! The optical mouse cannot work on a glass or mirror surface. Avoid operating this mouse on a glossy surface, otherwise, this mouse may not operate normally. ! For consideration of saving battery power, it is strongly recommended to operate an optical mouse on a bright surface with fine texture to obtain lower power consumption. A very dark surface will cause higher power consumption. ! For optimal performance, place the receiver at least 8 inches or 20 centimeters away from other electrical devices, such as a computer, a monitor, speakers, or other external storage drives. ! For a better transmission distance, avoid to use this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will be a shielding or ground to the RF antenna of the mouse and receiver. Operating on a metal may cause the transmission distance shorter. ! If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This will possibly result in reducing the distance of transmission when you operate the mouse right in front of the notebook, and the receiver is connected on the back of the notebook. However, the RF mouse should work properly while you are operating the mouse just beside your notebook computer. Installation Guide Step 1. Connecting the Receiver By using this RF optical mouse, you need to keep a free USB port for the included receiver. Please follow the steps below to finish the connecting: 1. Prepare your original Microsoft Windows CD. 2. Plug the USB connector end of the receiver into a USB port. 3. Turn your Notebook on if it was turned off. Then, follow the instructions of Windows to complete the registration of a new USB device. 2 Step 2. Setting up connection between mouse and receiver This RF wireless mouse provides 10 different RF channels, and 256 identification codes to avoid interference with other radio devices, or other same model of RF wireless mice. Before you go on, make sure that the mouse is in standby mode, i.e., the red light on the bottom of the mouse is on. If it is not, press any key to wake it up. 1. Press the Connect button on the receiver once (refer to Fig.1 for the location of Connect button.) The LED inside the receiver will light up to confirm the activation of Connect button. Fig. 1 The LED will stay on for around 7 seconds to indicate that the receiver is waiting for a new configuration of ID and channel. If no configuration message is received during this time, the receiver will turn off the LED without any change of ID and channel. If a valid configuration message is received before the end of wait time, the receiver will turn off the LED as well, and validate the new ID and channel. 2. Press the “Connect” button on the mouse once (refer to Fig.2 for the location of the “Connect” button.) The red light will go off, and turn on again upon releasing the Connect button. (Warning: Be sure NOT to depress the Connect button for more than 1.5 seconds when doing mouse connection.) There will be a duration of around 10 seconds for the mouse to get connect with the receiver. As soon as The mouse is known by the receiver, the LED on the receiver goes off, and the mouse is ready to operate. Fig. 2 Note: Since the transmission is one way from the mouse to the receiver, and in order to avoid possible interference of other RF devices, we urge you to put the mouse as close as possible to the receiver when you are connecting the mouse to the receiver. 3 Operation Guide Charge the mouse This mouse comes with a Li-ion polymer battery, which is not user replaceable. This battery should last the whole life span of the mouse if the mouse is recharged properly. So, users not only can save a lot of money for periodically replacing batteries, but also conserve the environment. It is recommended to charge the battery to full before you start using the mouse. The required charging time is…

Text truncated - open the document above for the full version.

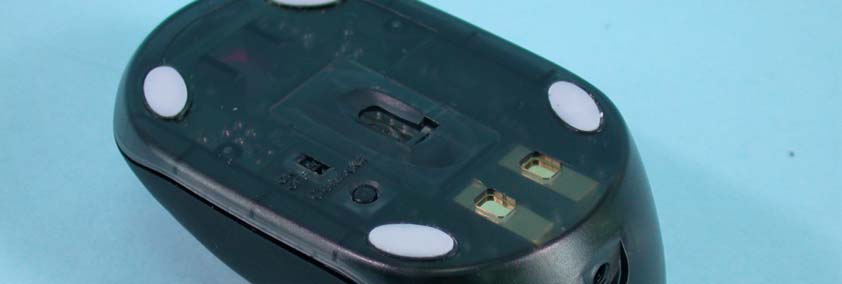

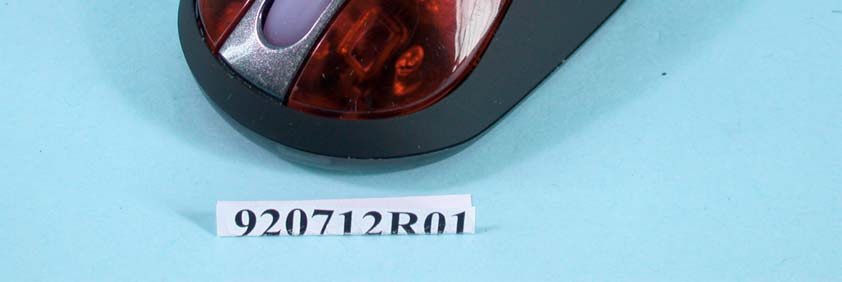

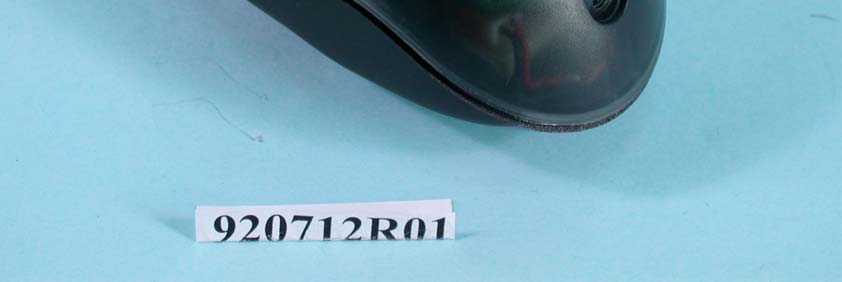

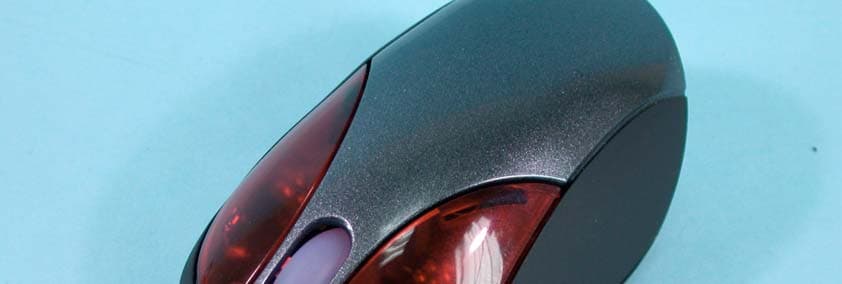

Page 1 CONSTRUCTION PHOTOS OF EUT

MWP2038 Label

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: NIYMWP2038 ADT No.920712R01 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3.6V Battery or host equipment via a USB cable. The receiver is powered by host computer. Both transmitter and receiver use Integral Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: NIYMWP2038 Report No.: RF920712R011Issued: Aug. 01, 2003 FCC TEST REPORT REPORT NO.: RF920712R01 MODEL NO.: MWP2038 OEM MODEL NO.: PAWM30 RECEIVED: July 12, 2003 TESTED: July 17 〜18, 2003 APPLICANT: DEXIN Corporation ADDRESS: 14F-8, No 258,Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 20 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: NIYMWP2038 Report No.: RF920712R012Issued: Aug. 01, 2003 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION ..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST TYPES AND RESULTS .........................................................................7 4.1 CONDUCTED EMISSION MEASUREMENT ..................................................7 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................7 4.1.2 TEST INSTRUMENTS.....................................................................................7 4.1.3 TEST PROCEDURES......................................................................................8 4.1.4 TEST SETUP ...................................................................................................8 4.1.5 EUT OPERATING CONDITIONS.....................................................................9 4.1.6 TEST RESULTS.............................................................................................10 5TEST PROCEDURE AND RESULT...............................................................12 5.1RADIATED EMISSION MEASUREMENT......................................................12 5.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...................................12 5.1.2 TEST INSTRUMENT .....................................................................................13 5.2.3 TEST PROCEDURE ......................................................................................14 5.2.4 TEST SETUP .................................................................................................15 5.1.5 EUT OPERATING CONDITION.....................................................................15 5.1.6 TEST RESULT...............................................................................................16 6PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................18 7INFORMATION ON THE TESTING LABORATORIES...................................20 FCC ID: NIYMWP2038 Report No.: RF920712R013Issued: Aug. 01, 2003 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : DEXIN OEM BRAND NAME : TARGUS MODEL NO : MWP2038 OEM MODEL NO : PAWM30 TEST ITEM: Engineering Sample APPLICANT : DEXIN Corporation STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on July 17 〜18, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: NIYMWP2038 Report No.: RF920712R014Issued: Aug. 01, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestPASS Minimum passing margin is –14.60dBuV at 0.170 MHz 15.227Radiated Emission TestPASS Minimum passing margin is –4.60dBuV/m at 270.36MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: NIYMWP2038 Report No.: RF920712R015Issued: Aug. 01, 2003 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Mouse MODEL NO. MWP2038 OEM MODEL NO. PAWM30 POWER SUPPLY 3.6VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 26.985MHz/27.015MHz/27.045MHz/27.075MHz 27.105MHz/27.135MHz/27.165MHz/27.195MHz 27.225MHz/27.255MHz BANDWIDTH OF EACH CHANNEL 30KHz NUMBER OF CHANNEL 10 ANTENNA TYPE Integral antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of a Wireless Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: NIYMWP2038 Report No.: RF920712R016Issued: Aug. 01, 2003 3.2 DESCRIPTION OF TEST MODES Ten channels were provided in this EUT. ChannelFrequencyChannelFrequency 126.985 MHz627.135 MHz 227.015 MHz727.165 MHz 327.045 MHz827.195 MHz 427.075 MHz927.225 MHz 527.105 MHz1027.255 MHz Note 1: Channel 3, the worst one, was chosen for final test. Note 2: The EUT was tested with the following two modes. The mode 1 was tested with Tx only, mode 2 was tested with charger function which powered by host equipment via a USB cable. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifi…

Text truncated - open the document above for the full version.

FCC ID: NIYMWP2038 Report No.: RF920712R0118Issued: Aug. 01, 2003 6 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NIYMWP2038 Report No.: RF920712R0119Issued: Aug. 01, 2003 RADIATED EMISSION TEST
