MINI RF OPTICAL MOUSE USER’S MANUAL Model #: B16A031 Important Ergonomic Information Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS: z Take frequent breaks, get up and walk around several times every hour. z Vary your tasks throughout the day. z Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach. z Adjust your chair and keyboard so your upper arms and wrists are straight. z Avoid resting your wrists on sharp edges. System Requirement z Mouse compatible with standard Microsoft mode z 3 rd button and wheel function require Win98/2000/ME/NT/XP Before you begin z Keep this installation guide for future reference! It contains Important Troubleshooting Information. z Keep your old PS/2 mouse as a back-up device. Getting Started Congratulations on your purchase of an 800dpi RF (Radio Frequency) wireless mouse. By using the advanced RF technology, a 360of operation is possible, and no line-of-sight is required between the receiver and the mouse. The 800dpi high resolution will bring users the best operation accuracy and efficiency, especially for a display at 1024*768 or higher. It has a double operation speed and only requires 1/4 space by comparing with a 400dpi mouse. 1 Package Contains Your B16A031 Mouse package includes the following: 1. Optical Mouse 2. Mini Receiver 3. User’s manual 7. 2 AA size of Alkaline batteries NoteIf any part is missing, please contact your dealer for a replacement Immediately. Precaution ! The optical mouse can not work on a glass or mirror surface. Avoid operating this mouse on a glossy surface. otherwise, this mouse may not operate normally. ! For consideration of saving battery power, it is strongly recommended to operate an optical mouse on a bright surface with fine texture to obtain lower power consumption of the Agilent high illumination LED. A very dark surface will cause higher power consumption. ! For optimal performance, place the receiver at least 8 inches or 20 centimeters away from other electrical devices, such as the computer, the computer monitor, speakers or other external storage drives. ! For a better transmission distance, avoid to use this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will be a shielding or ground to the RF antenna of the mouse and receiver. Operating on a metal may cause the transmission distance shorter. ! If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This will possibly result in reducing the distance of transmission when you operate the mouse right in front of the notebook, and the receiver is connected on the back of the notebook. However, the RF mouse should work properly while you are operating the mouse just beside your notebook computer. 2 Installation Guide (Mouse) Step 1. Inserting the Batteries 1. Open the mouse upper case by pushing down the Tab (at location A), and holding both sides of the upper case and lifting it up. 2. There are signs to indicate the polarity of the batteries. Carefully follow the signs to place the batteries. Do not reverse the polarity! 3. Close the upper case back and make sure it is firmly hooked up with the lower case. 3 A Step 2. Synchronize the RF Mouse 1. Bring the mouse within 1 ft range from the receiver, Hold the mouse upside-down and use a pointed object, such as a pen tip, to click the “CONNECT” button once. Do Not depress the CONNECT button longer then 1.5 seconds. (The red sensor light will go off when the “CONNECT” button is pressed down.) ! Please poke the Mouse Connect button first, and then click the receiver’s button! 2. Click the receiver’s connect button once (located on the back of the receiver) the LED will start blinking, when the connection is established. Click 3. Move the mouse around on the desk, the mouse cursor should be moving and the mouse is ready to use. 4. If the synchronization is not successful for some reason, please (1) Remove the batteries and unplug the receivers (2) Wait for 20 sec then try the steps 1 to 3 again. 4 Note: * During normal operation, please make sure that the mouse is no more than 3 ft away from the receiver in order to have reliable connection. ** The LED on the receiver will light up or blink while the mouse is being used. Note: Be sure to press the connect button firmly in procedure, if the connect button is not depressed steadily the red light will be on before 2 seconds expire. This will result in a change of channel and ID. Don’t panic, just re-connect the mouse to the receiver by doing step4 again. Operation Guide Battery low indication When the voltage level of the battery goes down under the preset level, the scrolling wheel will flash at least three times on moving or clicking the mouse. Although the mouse can still work for a while, the user, at this time, should have a new set of batteries ready for replacement. Power off the mouse 1. Be sure the mouse is NOT in sleep mode. If it is, press any key to wake it up. 2. Press and hold the Connect button on the bottom of the mouse for more than 2 seconds. (The red light will go off while the Connect button is depressed.) 3. Wait until the red light flash once. Release the Connect button. 4. Now, the mouse is in power off mode. No operation can be done. Power on the mouse To activate the mouse again, press the Connect button on the bottom of the mouse once. (DO NOT depress the Connect button for more than 1.5 seconds when resuming the mouse from power off mode.) The red light will turn on, and the mouse is ready for normal operation. Operations on power saving mode In order to conserve battery power, the mouse is designed to red…

Text truncated - open the document above for the full version.

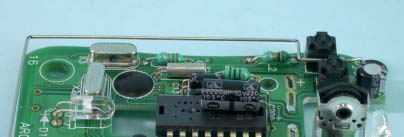

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

RX2051 Model Label

Page 1 Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: NIYMWP2051 ADT No.920712R02 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3V Battery. The type of antenna is Integral Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: NIYMWP2051 Report No.: RF920712R021Issued: July 31, 2003 FCC TEST REPORT REPORT NO.: RF920712R02 MODEL NO.: MWP2051 RECEIVED: July 12, 2003 TESTED: July 16~July 30, 2003 APPLICANT: DEXIN Corporation ADDRESS: 14F-8, NO 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA ,NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: NIYMWP2051 Report No.: RF920712R022Issued: July 31, 2003 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION ..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURE AND RESULT.................................................................7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................7 4.2.2 TEST INSTRUMENT .......................................................................................8 4.2.3 TEST PROCEDURE........................................................................................9 4.2.4 DEVIATION FROM TEST STANDARD............................................................9 4.2.5 TEST SETUP.................................................................................................10 4.2.6 EUT OPERATING CONDITION.....................................................................10 4.2.7 TEST RESULT............................................................................................... 11 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................13 6INFORMATION ON THE TESTING LABORATORIES...................................14 FCC ID: NIYMWP2051 Report No.: RF920712R023Issued: July 31, 2003 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : DEXIN MODEL NO : MWP2051 TEST ITEM: ENGINEERING SAMPLE APPLICANT : DEXIN Corporation STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on July 16~July 30, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: NIYMWP2051 Report No.: RF920712R024Issued: July 31, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from battery 15.227Radiated Emission TestPASS Minimum passing margin is –4.8dBuV/m at 324.57MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: NIYMWP2051 Report No.: RF920712R025Issued: July 31, 2003 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Mouse MODEL NO. MWP2051 POWER SUPPLY 3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz /27.145MHz BANDWIDTH OF EACH CHANNEL 100kHz NUMBER OF CHANNEL 2 ANTENNA TYPE Integral antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of a Wireless Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: NIYMWP2051 Report No.: RF920712R026Issued: July 31, 2003 3.2 DESCRIPTION OF TEST MODES Two channels are provided to this EUT. ChannelFrequency 127.045MHz 227.145MHz NOTE: CHANNEL 1, THE WORST CASE, WAS CHOSEN FOR FINAL TEST. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. NA FCC ID: NIYMWP2051 Report No.: RF920712R027Issued: July 31, 2003 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolt…
