NIYMWP2093-DV2Wireless Mouse

1 MINI RF OPTICAL MOUSE USER’S MANUAL Model #: DC-2093 Important Ergonomic Information Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS: z Take frequent breaks, get up and walk around several times every hour. z Vary your tasks throughout the day. z Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach. z Adjust your chair and keyboard so your upper arms and wrists are straight. z Avoid resting your wrists on sharp edges. System Requirement z Mouse compatible with standard Microsoft mode z 3 rd button and wheel function require Win98/98SE/2000/Me/XP Before you begin z Keep this installation guide for future reference! It contains Important Troubleshooting Information. z Keep your old PS/2 mouse as a back-up device. Getting Started Congratulations on your purchase of an 800dpi RF (Radio Frequency) wireless mouse. By using the advanced RF technology, a 360°of operation is possible, and no line-of-sight is required between the receiver and the mouse. The 800dpi high resolution will bring users the best operation accuracy and efficiency, especially for a display at 1024*768 or higher. It has a double operation speed and only requires 1/4 space by comparing with a 400dpi mouse. 2 Package Contains Your DC-2093 Mouse package includes the following: 1. DC-2093 Mouse (Transmitter) 2. DC-2093 Mini Receiver 3. User’s manual 4. 2 AA batteries Note：If any part is missing, please contact your dealer for a replacement immediately. Precaution ! The optical mouse can not work on a glass or mirror surface. Avoid operating this mouse on a glossy surface, otherwise, this mouse may not operate normally. ! For consideration of saving battery power, it is strongly recommended to operate an optical mouse on a bright surface with fine texture to obtain lower power consumption of the Agilent high illumination LED. A very dark surface will cause higher power consumption. ! For optimal performance, place the receiver at least 8 inches or 20 centimeters away from other electrical devices, such as the computer, the computer monitor, speakers or other external storage drives. ! For a better transmission distance, avoid to use this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will be a shielding or ground to the RF antenna of the mouse and receiver. Operating on a metal may cause the transmission distance shorter. ! If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This will possibly result in reducing the distance of transmission when you operate the mouse right in front of the notebook, and the receiver is connected on the back of the notebook. However, the RF mouse should work properly while you are operating the mouse just beside your notebook computer. Installation Guide Step 1. Connecting the Receiver By using this DC-2093 mouse, you need to keep a free USB port for the included receiver. Please follow the steps below to finish the connecting: 1. Prepare your original Microsoft Windows CD. 2. Plug the USB connector end of the receiver into a USB port. 3 3. Turn your Notebook on if it was off. Then, follow the instructions of Windows to complete the registration of a new USB device. Step 2. Setting up the correct channel and ID This RF wireless mouse provides 2 different RF channels, and 256 identification codes to avoid interference with other radio devices or other same model of RF wireless mouse. Before using the wireless mouse, you need to follow the following procedures to make the mouse be known by the receiver. 1. Installing the Batteries This RF wireless mouse uses 2 AA batteries. To apply the batteries, please follow the following steps: „ Remove the battery cover by pushing down the Tab (see Fig-2) and pull the battery cover out. „ There are signs to indicate the polarity of the batteries. Carefully follow the signs to place the batteries (refer to Fig-1.) Don’t reverse the polarity! „ Place the batteries cover back and make sure it is firmly closed. Battery Warning! When replace the batteries, use alkaline. You may use other heavy-duty NiMH batteries, but do not mix them with alkaline. Do not mix used and new batteries together! 2. Connecting the mouse to the receiver Be sure to press mouse connect button first, Then receiver connect button. Make sure that the mouse is in standby mode, i.e., the red light on the bottom of the mouse is on. If it is not, press any key to wake it up before you go on. „ Press and release the “connect” button on the wireless mouse (refer to Fig-2.) There will be a duration of around 10 seconds for the mouse to get connect with the receiver. Fig-1 Tab for battery cover Fig-2 4 Hold the mouse upside-down and use a pointed object such as pen press and release the “CONNECT” button once (NOT to be longer than 1.5 second). „ Press and release the “connect” button of the receiver at the end opposite to the USB plug (refer to Fig-3.) As soon as the LED inside the receiver starts flashing, the connection is done. A new set of ID and channel has been established, and normal operation can go on. „ If it is inconvenient to observe the LED inside the receiver, the user can also keep moving the mouse after depressing connect buttons on both the mouse and the receiver. The cursor on the screen will start to run according to the mouse movement when the new connection is established. „ Since the transmission is one way from the mouse to the receiver, we urge you to put the mouse as close as possible to the receiver when you feel like to re-connect the mouse and the receiver. „ When there is no concern of RF interference, it would be convenient to …

Text truncated - open the document above for the full version.

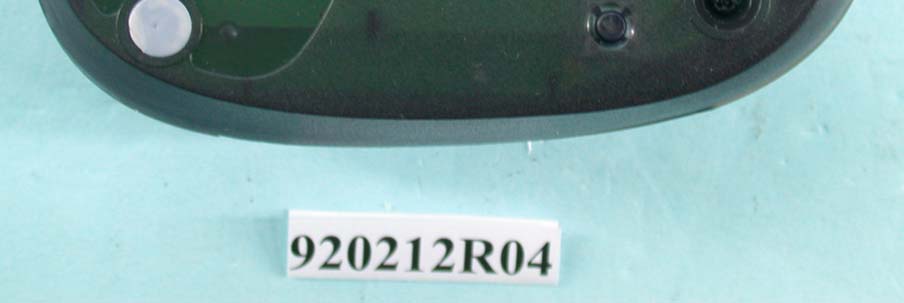

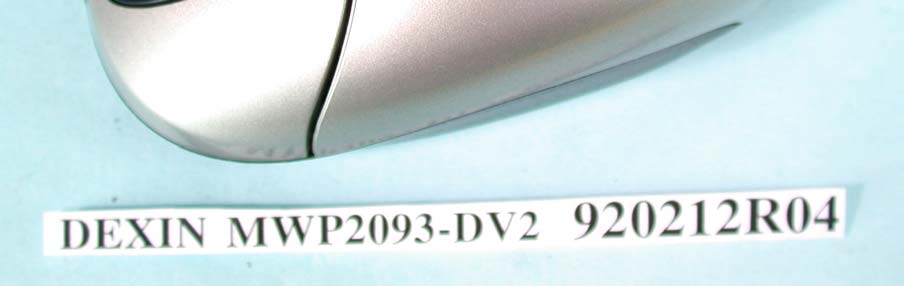

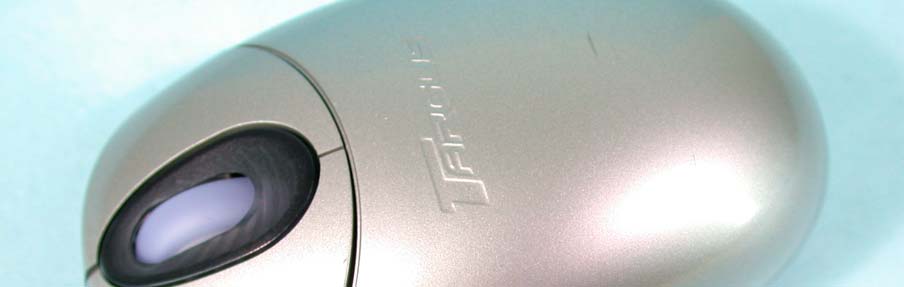

Page 1 ANNEX PHOTOGRAPHS OF EUT

LABEL LOCATION FOR FCC ID

MWP2093-DV2 Label OEM :TARGUS

Page 2 Page 3

FCC ID: NIYMWP2093-DV2 Report No.: RF920212R041Issued: March 5, 2003 FCC TEST REPORT REPORT NO.: RF920212R04 MODEL NO.: MWP2093-DV2 OEM MODEL NO.: PAUM005V2 RECEIVED: Feb. 12, 2003 TESTED: Feb. 07, 2003 APPLICANT: DEXIN CORPORATION ADDRESS: 14F-8, No. 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: NIYMWP2093-DV2 Report No.: RF920212R042Issued: March 5, 2003 Table of Contents 1CERTIFICATION ......................................................................................................... 3 2SUMMARY OF TEST RESULTS................................................................................. 4 3GENERAL INFORMATION ......................................................................................... 5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURE AND RESULT ............................................................................ 7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................7 4.2.2 TEST INSTRUMENT .......................................................................................8 4.2.3 TEST PROCEDURE........................................................................................9 4.2.4 DEVIATION FROM TEST STANDARD............................................................9 4.2.5 TEST SETUP.................................................................................................10 4.2.6 EUT OPERATING CONDITION.....................................................................10 4.2.7 TEST RESULT............................................................................................... 11 5PHOTOGRAPHS OF THE TEST CONFIGURATION ............................................... 13 6INFORMATION ON THE TESTING LABORATORIES .............................................. 14 FCC ID: NIYMWP2093-DV2 Report No.: RF920212R043Issued: March 5, 2003 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : DEXIN MODEL NO : MWP2093-DV2 OEM BRAND NAME : Targus OEM MODEL NO : PAUM005V2 APPLICANT : DEXIN CORPORATION STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Feb. 7, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: NIYMWP2093-DV2 Report No.: RF920212R044Issued: March 5, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from battery 15.227Radiated Emission TestPASS Minimum passing margin is –6.10dBuV at 81.46MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: NIYMWP2093-DV2 Report No.: RF920212R045Issued: March 5, 2003 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Mouse MODEL NO. MWP2093-DV2 OEM MODEL NO. PAUM005V2 POWER SUPPLY 3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz / 27.145MHz BANDWIDTH OF EACH CHANNEL 100kHz NUMBER OF CHANNEL 2 ANTENNA TYPE Integral antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of a Wireless Mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: NIYMWP2093-DV2 Report No.: RF920212R046Issued: March 5, 2003 3.2 DESCRIPTION OF TEST MODES Two channels are provided to this EUT. ChannelFrequency 127.045MHz 227.145MHz NOTE: Channel 2, the worse case, was chosen for final test. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. NA FCC ID: NIYMWP2093-DV2 Report No.: RF920212R047Issued: March 5, 2003 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Em…

Text truncated - open the document above for the full version.

FCC ID: NIYMWP2093-DV2 Report No.: RF920212R0413Issued: March 5, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
