NIYMWP33-LWWireless Optical Mouse

Rechargeable Wireless Optical Mouse Page 1 of 12 2 nd Edition Rechargeable Wireless Optical Mouse MWP33-LW USER’S MANUAL Important Ergonomic Information Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS: ) Take frequent breaks, get up and walk around several times every hour. ) Vary your tasks throughout the day. ) Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach. ) Adjust your chair and keyboard so your upper arms and wrists are straight. ) Avoid resting your wrists on sharp edges. System Requirement ) Mouse compatible with standard Microsoft OS ) 3 rd button and wheel function require Win98/ ME/ 2000/ XP ) 4 th & 5 th button require Win2000/XP, or required to install additional driver ) If your computer’s operating system is Windows 98/ 98SE, please prepare the Windows98 or 98SE compact disk for system’s request during the installation of mouse. Rechargeable Wireless Optical Mouse Page 2 of 12 2 nd Edition Getting Started Congratulations on your purchase of an 800dpi Rechargeable Wireless Optical Presenter Mouse. By using the advanced RF technology a 360° operation is possible and no line-of-sight is required between the receiver and the mouse. The 800dpi high resolution will bring users the best operation accuracy and efficiency, especially when the pixel of display over 1024*768 pixel. It operates at twice the speed and only requires 1/4 of the space in comparison to a 400 dpi mouse. Battery and power consumer is always the key issue for a wireless product. By the way, the MWP33-LW is designed as a rechargeable product. Package Contains Your MWP33-LW Wireless Mouse package includes the following: 1. The wireless mouse 2. USB plate charger with building receiver 3. User’s manual 4. 2 AAA rechargeable batteries Note：If any part is missing, please contact your dealer for a replacement immediately. Precaution The optical mouse can not work on a glass or mirror surface. Avoid operating this mouse on a glossy surface; otherwise, this mouse may not operate normally. For consideration of saving battery power, it is strongly recommended to operate an optical mouse on a bright surface with fine texture to obtain lower power consumption of the high illumination LED. A very dark surface will cause higher power consumption. For optimal performance, place the receiver at least 8 inches or 20 centimeters away from other electrical devices, such as the computer, the computer monitor, speakers or other external storage drives. For a better transmission distance, avoid using this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will act as a shield or ground to the RF antenna of the mouse and receiver. Operating on a metal surface may shorten the transmission distance. If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This could possibly result in reducing the distance of transmission when you operate the mouse right in front of the notebook and when the receiver is connected on the back of the notebook. However, the RF mouse should work properly while you are operating the mouse just beside your desktop computer. Hardware Installation Guide (Mouse) Insert the battery 1. Open the battery cover 2. Insert 2 AAA rechargeable batteries in correct direction 3. Close the battery cover. Note. It’s a rechargeable product. Please using rechargeable battery only, or will damage this product, even your computer. Connect the receiver with computer. 1. Turn off your computer 2. Disconnect the current mouse 3. Plug the adapter into the receiver 4. Plug the USB connector (receiver) into USB port (computer). 5. Turn the computer on Rechargeable Wireless Optical Mouse Page 3 of 12 2 nd Edition a. USB is a PnP device; you can plug the device no matter the computer is on or off. Of course, you can remove USB device in the same way. b. If the device is HD or pen drive or any device which can store files, stop the device than remove is the best way to protect. Synchronize the RF Mouse (Pairing) If the mouse is in sleep mode click the mouse button once to wake it up. 1. Bring the mouse within 1 ft range from the receiver. 2. Switch on the mouse. 3. Hold the mouse upside-down and use a pointed object, such as a pen tip, to click the “CONNECT” button (ID button) once. Note. *Poke the Mouse Connect button first, and then click the receiver’s button. CONNECT button (ID button) Charging pings 4. Click the receiver’s connect button once (located on the back of the receiver) within 5 seconds after clicking the connect button on the mouse. The LED will start blinking, when the connection is established. 5. Move the mouse around to test if it was successful. 6. If the synchronization is not successful for some reason please a. Remove the batteries and unplug the receivers b. Wait for 20 sec then to try the step 1 to 4 again. Note: * During normal use, please make sure that the mouse is no more than 3 ft away from the receiver in order to have reliable connection. ** The LED on the receiver will light up while the mouse is being used. Rechargeable Wireless Optical Mouse Page 4 of 12 2 nd Edition Rechargeable Wireless Optical Mouse Page 5 of 12 2 nd Edition Operation Guide Battery low indication When the voltage level of the battery goes down under the preset level, the scrolling wheel will flash at least three times on moving or clicking the mouse. Although the mouse can still work for a while, the user, at this time, should have a new set of batteries ready for replacement. Or, if the user has a companion charger base, and Two re-chargeable batteries are inside the mouse, charge the mous…

Text truncated - open the document above for the full version.

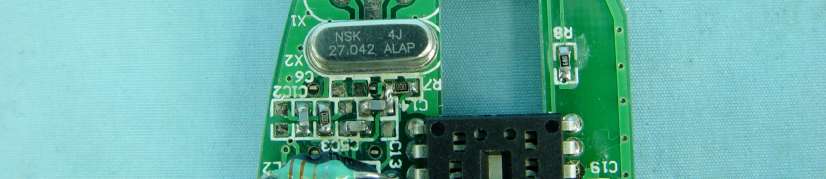

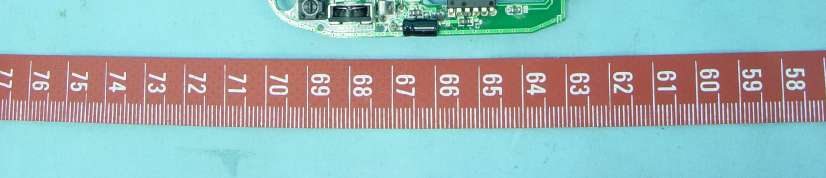

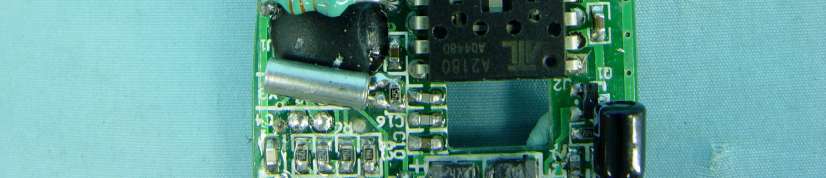

Page 1 CONSTRUCTION PHOTOS OF EUT

JAMES JAMES
: : . :78-100-675
: : . :78-100-675 MODEL:MWP33-LW S/N: FOR HOME OR OFFICE USEFOR HOME OR OFFICE USE Tested to Complywith FCC Standards Tested to Complywith FCC Standards FCC ID:NIYMWP33-LWFCC ID:NIYMWP33-LW Made in ChinaMade in China 78-100-67578-100-675 0560 !

Page 2 Page 3 Page 4

FCC ID: NIYMWP33-LW Report No.: RF940121L07 Operational Description The transmitter of the EUT (WIRELESS OPTICAL MOUSE) is powered by 3Vdc Batteries. The receiver is powered by host equipment. Both transmitter and receiver use Loop Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: NIYMWP33-LW Report No.: RF940121L071Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.: RF940121L07 MODEL NO.: MWP33-LW RECEIVED: Jan. 21, 2005 TESTED: Jan. 25, 2005 ISSUED: Jan. 26, 2005 APPLICANT: DEXIN Corporation ADDRESS: 14F-8, No. 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS:No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION:No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: NIYMWP33-LW Report No.: RF940121L072Report Format Version 2.0.1 Table of Contents 1CERTIFICATION ......................................................................................................... 3 2SUMMARY OF TEST RESULTS................................................................................. 4 2.1MEASUREMENT UNCERTAINTY .............................................................................. 4 3GENERAL INFORMATION ......................................................................................... 5 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 5 3.1DESCRIPTION OF TEST MODES.............................................................................. 6 3.2GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................. 6 3.3DESCRIPTION OF SUPPORT UNITS........................................................................ 6 3.4CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 6 4TEST PROCEDURE AND RESULT ............................................................................ 7 4.1CONDUCTED EMISSION MEASUREMENT .............................................................. 7 4.2RADIATED EMISSION MEASUREMENT ................................................................... 7 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................................ 7 4.2.2TEST INSTRUMENT................................................................................................... 8 4.2.3TEST PROCEDURE ................................................................................................... 9 4.2.4TEST SETUP ............................................................................................................ 10 4.2.5EUT OPERATING CONDITION ................................................................................ 10 4.2.6TEST RESULT .......................................................................................................... 11 4PHOTOGRAPHS OF THE TEST CONFIGURATION ............................................... 13 5INFORMATION ON THE TESTING LABORATORIES .............................................. 14 FCC ID: NIYMWP33-LW Report No.: RF940121L073Report Format Version 2.0.1 1 CERTIFICATION PRODUCT: WIRELESS OPTICAL MOUSE BRAND NAME: DEXIN MODEL NO: MWP33-LW TEST SAMPLE: ENGINEERING SAMPLE TESTED: Jan. 25, 2005 APPLICANT: DEXIN Corporation STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4 -2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Jan. 26, 2005 ( Candice Chen ) TECHNICAL ACCEPTANCE:, DATE:Jan. 26, 2005 Responsible for RF ( Gary Chang ) APPROVED BY :, DATE:Jan. 26, 2005 ( Cody Chang, Deputy Manager ) FCC ID: NIYMWP33-LW Report No.: RF940121L074Report Format Version 2.0.1 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –15.48dB at 296.31MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTFREQUENCYUNCERTAINTY Conducted emissions9kHz~30MHz2.44 dB 30MHz ~ 200MHz3.73 dB 200MHz ~1000MHz3.74 dB 1GHz ~ 18GHz2.20 dB Radiated emissions 18GHz ~ 40GHz1.88 dB FCC ID: NIYMWP33-LW Report No.: RF940121L075Report Format Version 2.0.1 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT WIRELESS OPTICAL MOUSE MODEL NO. MWP33-LW POWER SUPPLY 3Vdc from batteries MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of a WIRELESS OPTICAL MOUSE. 2. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: NIYMWP33-LW Report No.: RF940121L076Report Format Version 2.0.1 3.1 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 127.045MHz 3.2 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is a WIRELESS OPTICAL MOUSE. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC Part 15, Subpart C. (15.227) ANSI C63.4 -2003 All test items have been performed and recorded as per the above standards. 3.3 DESCRIPTION OF SUPPORT UNITS NA 3.4 CONFIGURATI…

Text truncated - open the document above for the full version.

FCC ID: NIYMWP33-LW Report No.: RF940121L0713Report Format Version 2.0.1 4 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
