1 Restorable Optical Cordless Mouse USER’S MANUAL Model #: MWP41-L System Requirement ) Mouse compatible with standard Microsoft OS ) 3 rd button and wheel function require Win 98/ 2000/ ME/ NT/ XP ) Compatible with MAC Before you begin ) Keep this installation guide for future reference! It contains Important Troubleshooting Information. ) Keep your old PS/2 mouse as a back-up device. Getting Started Congratulations on your purchase of an 800dpi restorable Cordless Optical Mouse. By using the advanced RF technology a 360°operation is possible and no line-of-sight is required between the receiver and the mouse. The 800dpi high resolution will bring users the best operation accuracy and efficiency, especially when the pixel of display over 1024*768 pixel. It operates at twice the speed and only requires 1/4 of the space in comparison to a 400dpi mouse. Battery or current consumer is always the key issue for a wireless product. In MWP41-L, two methods designed for power saving, the patent of ID power on/ off function and receiver store switch. MWP41-L can be power off by pressing ID button for 3 sec. There is a switch is the reviver store. By putting the receiver into the mouse, the power can be shout down. The way to open the top cover and store the receiver is other unique patent showing this mouse. By these special designs you will find it is so good to have a mouse like MWP41-L. 2 Package Contains Your MWP41-L Mouse package includes the following: 1. Mini cordless optical mouse 2. Sub-thumb size receiver 3. User’s manual 4. CD-ROM Driver for Windows 98/2000/ME/NT/XP(Optional) 5. 2 AAA size alkaline batteries Note:If any part is missing, please contact your dealer for a replacement immediately. Precaution The optical mouse can not work on a glass or mirror surface. Avoid operating this mouse on a glossy surface; otherwise, this mouse may not operate normally. For consideration of saving battery power, it is strongly recommended to operate an optical mouse on a bright surface with fine texture to obtain lower power consumption of the high illumination LED. A very dark surface will cause higher power consumption. For optimal performance, place the receiver at least 8 inches or 20 centimeters away from other electrical devices, such as the computer, the computer monitor, speakers or other external storage drives. For a better transmission distance, avoid using this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will act as a shield or ground to the RF antenna of the mouse and receiver. Operating on a metal surface may shorten the transmission distance. If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This could possibly result in reducing the distance of transmission when you operate the mouse right in front of the notebook and when the receiver is connected on the back of the notebook. However, the RF mouse should work properly while you are operating the mouse just beside your desktop computer. Hardware Installation Guide (Mouse) Step 1. Take out the receiver and Inserting the Batteries 1. Open the top cover as follow 2. A small in front of the mouse button case. Push it and open the top case. 3. Take the receiver out and put 2 AAA batteries in correct place. 4. Close the top cover. Step 2. Synchronize the RF Mouse (Pairing) If the mouse is in sleep mode click the mouse button once to wake it up. 1. Plug the receiver into the notebook/ Computer’s USB ports or into the USB HUB/ keyboard’s USB port. 2. Bring the mouse within 1 ft range from the receiver 3. Hold the mouse upside-down and use a pointed object, such as a pen tip, to click the “CONNECT” button (ID button) once. NOTE: Do Not depress the CONNECT button longer then 1.5 seconds. The LED will go off when the “CONNECT” button is pressed down. (You just power off the mouse) * Poke the Mouse Connect button first, and then click the receiver’s button! 3 2. Click (ID button) (ID button) 3. Click 1. Plug into USB Port 4. Click the receiver’s connect button once (located on the back of the receiver) within 5 seconds after clicking the connect button on the mouse. The LED will start blinking, when the connection is established. 5. Move the mouse around to test if it was successful. 6. If the synchronization is not successful for some reason please a. Remove the batteries and unplug the receivers b. Wait for 20 sec then to try the step 1 to 4 again. Note: * During normal use, please make sure that the mouse is no more than 3 ft away from the receiver in order to have reliable connection. ** The LED on the receiver will light up or blink while the mouse is being used. 4 5 Operation Guide Power off the mouse 1. Be sure the mouse is NOT in sleep mode. If it is, press any key to wake it up. 2. Press and hold the Connect button on the bottom of the mouse for more than 2 seconds. (The red light will go off while the Connect button is depressed.) 3. Wait until the red light flash once. Release the Connect button. 4. Now, the mouse is in power off mode. No operation can be done. Power on the mouse To activate the mouse again, press the Connect button on the bottom of the mouse once. (DO NOT depress the Connect button for more than 1.5 seconds when resuming the mouse from power off mode.) The red light will turn on, and the mouse is ready for normal operation. Note: Be sure to press the connect button firmly in procedure, if the connect button is not depressed steadily the red light will be on before 2 seconds expire. This will result in a change of channel and ID. Don’t panic, just re-connect the mouse to the receiver, and follow step 4 again. Operations on power saving mode In order to conserve battery power, the mouse is designed to reduce power consumption gradually from standby mode to sleep mode, if it is not being used. Standby mode – Around 2 seconds after the mouse stops movi…
Text truncated - open the document above for the full version.

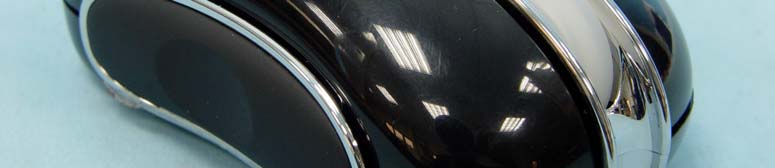

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2
FCC ID Label Location (FCC ID: NIYMWP41-L)
± 0.15±0.15 TOLERANCE 6 A 18~30 4~18 B ± 0.2±0.2 DIMENSION DATE 1~4 NO ± 0.1±0.1 5 4 DEXIN CORPORATION.DEXINCORPORATION. DWG.NAME:DWG.NAME: 400~ 250~400 80~120 50~80 ± 0.4 ±0.4 ± 0.3±0.3 C ±0.8±0.8 ±0.6±0.6 120~250 DIMENSIONDIMENSION DIMENSION DESCRIPTION 30~50 TOLERANCE ± 0.25 ±0.25 MODEL: TOLERANCE APPROVAL ±0.5±0.5 APPD.BY DES.BY DWG.BY UNIT D SHEET REV. DWG.NO. SCALE DATE OF 6 5 4 2 3 1 AB 2 3 1 CD :PC/D/Jasco :78-400-025-1.A3UP8I RRNAV434 mm 1:1 2003.08.05 : : . :78-100-669 : : . :78-100-669 Mouse LABEL MWP2051 Lb01299 1 1 1 JOJO 1:2 1:1 MODEL:MWP41-L S/N: FOR HOME OR OFFICE USEFORHOMEOROFFICEUSE Tested to Complywith FCC Standards TestedtoComplywith FCC Standards FCC ID:NIYMWP41-LFCCID:NIYMWP41-L Made in ChinaMadeinChina78-100-669 0560 ! MODEL:MWP41-L S/N: FOR HOME OR OFFICE USEFORHOMEOROFFICEUSE Tested to Complywith FCC Standards Tested toComplywith FCC Standards FCC ID:NIYMWP41-LFCCID:NIYMWP41-L Made in ChinaMadeinChina78-100-669 0560 !
Page 3 Page 4 Page 5 Page 6
FCC ID: NIYMWP41-L Report No.: RF940408L05 Operational Description The transmitter of the EUT (Cordless Mouse) is powered by 3Vdc Batteries. The EUT use Loop Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.
FCC ID: NIYMWP41-L Report No.: RF940408L051Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940408L05 MODEL NO.: MWP41-L RECEIVED: Apr. 08, 2005 TESTED: Apr. 14, 2005 ISSUED: Apr. 15, 2005 APPLICANT: DEXIN CORPORATION ADDRESS: 14F-8, No 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS:No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION:No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 16 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: NIYMWP41-L Report No.: RF940408L052Report Format Version 2.0.2 Table of Contents 1CERTIFICATION ......................................................................................................... 3 2SUMMARY OF TEST RESULTS................................................................................. 4 2.1MEASUREMENT UNCERTAINTY .............................................................................. 4 3GENERAL INFORMATION ......................................................................................... 5 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 5 3.1DESCRIPTION OF TEST MODES.............................................................................. 6 3.1.1CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 6 3.1.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: ............................ 7 3.2GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................. 8 3.3DESCRIPTION OF SUPPORT UNITS........................................................................ 8 4TEST PROCEDURE AND RESULT ............................................................................ 9 4.1CONDUCTED EMISSION MEASUREMENT .............................................................. 9 4.2RADIATED EMISSION MEASUREMENT ................................................................... 9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................................ 9 4.2.2TEST INSTRUMENT................................................................................................. 10 4.2.3TEST PROCEDURE ................................................................................................. 11 4.2.4TEST SETUP ............................................................................................................ 12 4.2.5EUT OPERATING CONDITION ................................................................................ 12 4.2.6TEST RESULTS ........................................................................................................ 13 4PHOTOGRAPHS OF THE TEST CONFIGURATION ............................................... 15 5INFORMATION ON THE TESTING LABORATORIES .............................................. 16 FCC ID: NIYMWP41-L Report No.: RF940408L053Report Format Version 2.0.2 1 CERTIFICATION PRODUCT: Cordless Mouse BRAND NAME: DEXIN MODEL NO: MWP41-L TEST SAMPLE: ENGINEERING SAMPLE TESTED: Apr. 14, 2005 APPLICANT: DEXIN CORPORATION STANDARDS: FCC Part 15, Subpart C (Section 15.227), ANSI C63.4-2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Apr. 15, 2005 ( Andrea Hsia ) TECHNICAL ACCEPTANCE:, DATE:Apr. 15, 2005 Responsible for RF ( Gary Chang ) APPROVED BY :, DATE:Apr. 15, 2005 ( Cody Chang, Deputy Manager ) FCC ID: NIYMWP41-L Report No.: RF940408L054Report Format Version 2.0.2 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –14.76dB at 53.33MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTFREQUENCYUNCERTAINTY Conducted emissions9kHz~30MHz2.44 dB Radiated emissions30MHz ~ 200MHz3.63 dB 200MHz ~1000MHz3.65 dB 1GHz ~ 18GHz2.20 dB 18GHz ~ 40GHz1.88 dB FCC ID: NIYMWP41-L Report No.: RF940408L055Report Format Version 2.0.2 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Cordless Mouse MODEL NO. MWP41-L POWER SUPPLY 3Vdc from batteries MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is a Cordless Mouse. 2. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: NIYMWP41-L Report No.: RF940408L056Report Format Version 2.0.2 3.1 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 127.045MHz 3.1.1 CONFIGURATION OF SYSTEM UNDER TEST EUT Test table (Power from battery) FCC ID: NIYMWP41-L Report No.: RF940408L057Report Format Version 2.0.2 3.1.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: Applicable to EUT configure mode PLCRE<1G Description 1NotexNA Where PLC: Power Line Conducted EmissionRE<1G RE: Radiated Emission below 1GHz Note:…
