NIYMWP5020-AWWireless Optical Mouse

1 WIRELESS OFFICE-WEB OPTICAL MOUSE USER’S MANUAL Model #: DC-5020C Important Ergonomic Information Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS: z Take frequent breaks, get up and walk around several times every hour. z Vary your tasks throughout the day. z Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach. z Adjust your chair and keyboard so your upper arms and wrists are straight. z Avoid resting your wrists on sharp edges. System Requirement z Mouse compatible with standard Microsoft mode z 3 rd button and wheel function require Win98/2000/ME/XP z 4 th & 5 th button require Win2000/XP, or required to install additional driver Before you begin z Keep this installation guide for future reference! It contains Important Troubleshooting Information. z Keep your old PS/2 mouse as a back-up device. Getting Started Congratulations on your purchase of an 800dpi RF (Radio Frequency) wireless mouse. By using the advanced RF technology, a 360of operation is possible, and no line-of-sight is required between the receiver and the mouse. The 800dpi high resolution will bring users the best operation accuracy and efficiency, especially for a display at 1024*768 or higher. It has a double operation speed and only requires 1/4 space by comparing with a 400dpi mouse. 2 Package Contains Your DC-5020C Mouse package includes the following: 1. RF Optical Mouse 2. Charger with USB-HUB & Receiver for RF Mouse 3. AC Adaptor 4. User’s manual 5. CD-ROM Driver Windows 98/2000/ME/XP 7. 2 AAA size of Ni-MH rechargeable battery NoteIf any part is missing, please contact your dealer for a replacement Immediately. Precaution ! The optical mouse can not work on a glass or mirror surface. Avoid operating this mouse on a glossy surface. otherwise, this mouse may not operate normally. ! For consideration of saving battery power, it is strongly recommended to operate an optical mouse on a bright surface with fine texture to obtain lower power consumption of the Agilent high illumination LED. A very dark surface will cause higher power consumption. ! For optimal performance, place the receiver at least 8 inches or 20 centimeters away from other electrical devices, such as the computer, the computer monitor, speakers or other external storage drives. ! For a better transmission distance, avoid to use this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will be a shielding or ground to the RF antenna of the mouse and receiver. Operating on a metal may cause the transmission distance shorter. ! If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This will possibly result in reducing the distance of transmission when you operate the mouse right in front of the notebook, and the receiver is connected on the back of the notebook. However, the RF mouse should work properly while you are operating the mouse just beside your notebook computer. 3 Installation Guide (Mouse) Step 1. Inserting the Batteries 1. Remove the battery cover by. 2. There are battery outlines etched in the battery compartment. Carefully follow the signs to place the batteries. Do not reverse the polarity! 3.Place the battery cover back and make sure it is firmly Closed. + Step 2. Synchronize the RF Mouse Once the batteries are fully charged, remove the mouse from the cradle. If the mouse is in sleep mode, click the mouse button once to wake it up. 1. Bring the mouse within 1 ft range from the receiver, Hold the mouse upside-down and use a pointed object, such as a pen tip, to click the “CONNECT” button once. Do Not depress the CONNECT button longer then 1.5 seconds. (The red sensor light will go off when the “CONNECT” button is pressed down.) ! Please poke the mouse Connect button first, and then click the receiver’s button! 4 2. Click the receiver’s Connect button once (located on the front of the charger.) The red LED beneath the Connect button will start blinking, when the connection is established. Click 3. Move the mouse around on the desk, the mouse cursor should move accordingly. Now the mouse is ready to use. Click 4. If the synchronization is not successful for some reason, please (1) remove the batteries and unplug the receivers, (2) wait for 20 sec then re-install the batteries and re-plug the receiver to your system. Try the steps 1 to 4 again. Note: * During normal use, please make sure that the mouse is no more than 3 ft away from the receiver in order to have reliable connection. ** The LED on the receiver will light up or blink while the mouse is being used. Installing the Software To install the software, please follow the steps below to finish: 1. Insert the Auto-Run CD-ROM onto CD-ROM driver, the installation menu will be executed automatically. (If the auto-run does not function itself, double-click the “setup” icon in the CD files.) 2. The setup program will guide you through the installation step by step 5 After you finish the installation, select "Restart" to reboot your system and active multimedia hot keys and wheel scrolling functions. Program Office and Web Hot Keys When the software driver is installed, the mouse hot keys are initially in their default settings. Click these hot keys to launch the Office and Web Wheel centers as following: … The desired office function can be activated by clicking the corresponding short cut on the Office Wheel Center, while the desired internet function can be activated by clicking the corresponding short cut on the Web Wheel Center. … The wheel, by default, provides a standard scrolling up-down function. When Office or Web Wheel Center is engaged, rol…

Text truncated - open the document above for the full version.

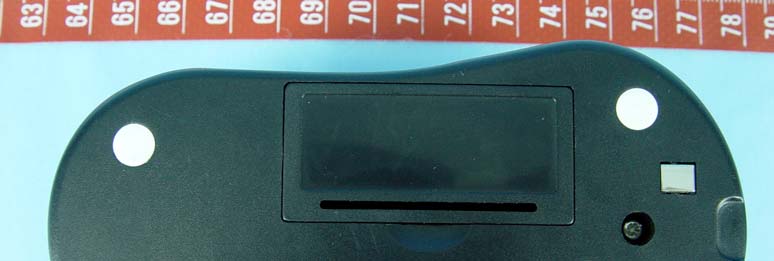

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6

FCC ID: NIYMWP5020-AW ADT No.930819L10 Operational Description The transmitter of the EUT (WIRELESS OPTICAL MOUSE) is powered by 3V Batteries. The antenna type is loop antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: NIYMWP5020-AW Report No.: RF930819L101Issued: Aug. 27, 2004 FCC TEST REPORT REPORT NO.: RF930819L10 MODEL NO.: MWP5020-AW RECEIVED: Aug. 19, 2004 TESTED: Aug. 23, 2004 APPLICANT: DEXIN Corporation ADDRESS: 14F-8, No 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 13 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 0528 ILAC MRA FCC ID: NIYMWP5020-AW Report No.: RF930819L102Issued: Aug. 27, 2004 Table of Contents 1CERTIFICATION ......................................................................................................... 3 2SUMMARY OF TEST RESULTS................................................................................. 4 3GENERAL INFORMATION ......................................................................................... 5 3.1GENERAL DESCRIPTION OF EUT............................................................................ 5 3.2DESCRIPTION OF TEST MODES.............................................................................. 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................. 6 3.4DESCRIPTION OF SUPPORT UNITS........................................................................ 6 3.5CONFIGURATION OF SYSTEM UNDER TEST......................................................... 6 4TEST PROCEDURE AND RESULT ............................................................................ 7 4.1CONDUCTED EMISSION MEASUREMENT .............................................................. 7 4.2RADIATED EMISSION MEASUREMENT ................................................................... 7 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................................ 7 4.2.2TEST INSTRUMENT................................................................................................... 8 4.2.3TEST PROCEDURE ................................................................................................... 9 4.2.4DEVATION FROM TEST STANDARD ........................................................................ 9 4.2.5TEST SETUP ............................................................................................................ 10 4.2.6EUT OPERATING CONDITION ................................................................................ 10 4.2.7TEST RESULTS ........................................................................................................ 11 5PHOTOGRAPHS OF THE TEST CONFIGURATION ............................................... 12 6INFORMATION ON THE TESTING LABORATORIES .............................................. 13 FCC ID: NIYMWP5020-AW Report No.: RF930819L103Issued: Aug. 27, 2004 1 CERTIFICATION PRODUCT NAME : WIRELESS OPTICAL MOUSE BRAND NAME: DEXIN MODEL NO. : MWP5020-AW APPLICANT : DEXIN Corporation TEST ITEM : ENGINEERING SAMPLE TESTED : Aug. 23, 2004 STANDARDS : FCC Part 15, Subpart C(15.227) ANSI C63.4-2001 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Aug. 27, 2004 ( Wendy Liao ) TECHNICAL ACCEPTANCE:, DATE:Aug. 27, 2004 Responsible for RF ( Gary Chang ) APPROVED BY:, DATE:Aug. 27, 2004 ( Cody Chang / Deputy Manager ) FCC ID: NIYMWP5020-AW Report No.: RF930819L104Issued: Aug. 27, 2004 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestNA Power supply is 3Vdc from batteries 15.227 15.209 Radiated Emission TestPASS Minimum passing margin is –6.01dB at 84.43MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTFREQUENCYUNCERTAINTY Conducted emissions9k~30MHz2.44 dB Radiated emissions30MHz ~ 200MHz3.55 dB 200MHz ~1000MHz3.58 dB 1GHz ~ 18GHz2.20 dB 18GHz ~ 40GHz1.88 dB FCC ID: NIYMWP5020-AW Report No.: RF930819L105Issued: Aug. 27, 2004 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT WIRELESS OPTICAL MOUSE MODEL NO. MWP5020-AW POWER SUPPLY 3.0Vdc from AA batteries MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz, 27.145MHz BANDWIDTH OF EACH CHANNEL ±5kHz NUMBER OF CHANNEL 2 ANTENNA TYPE Loop antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DDVCES NA NOTE: 1. The EUT is the transmitter part of a wireless mouse. 2. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or User's Manual. FCC ID: NIYMWP5020-AW Report No.: RF930819L106Issued: Aug. 27, 2004 3.2 DESCRIPTION OF TEST MODES Two channels were provided in this EUT. CHANNELFREQUENCY 127.045 MHz 227.145 MHz Note: Frequency of 27.045MHz, the worst case one, was chosen for the final test after pre- testing. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a WIRELESS OPTICAL MOUSE. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC Part 15, Subpart C (15.227) ANSI C63.4-2001 All test items have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS NA 3.5 CONFIGURATION OF SYS…

Text truncated - open the document above for the full version.

FCC ID: NIYMWP5020-AW Report No.: RF930819L1012Issued: Aug. 27, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
