This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. In the hibernate/suspend/standby mode of the notebook, if mouse does not operateon rebooting, click any keys on keyboard, or unplug and repulg the USB receiver.

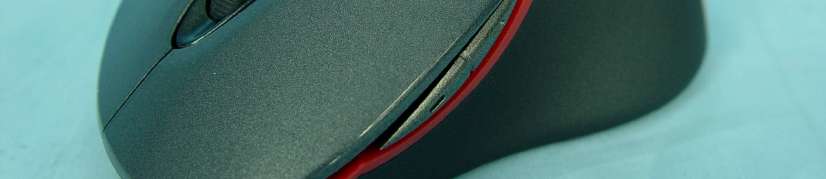

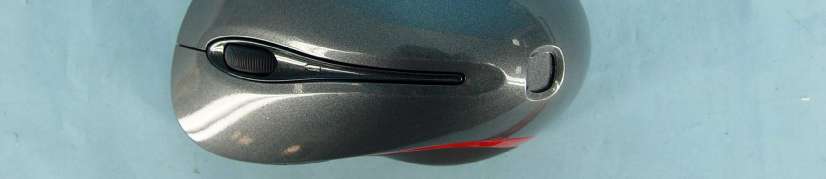

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: NIYMWP84-U Label Location

CONNECT FCC ID# NIYMWP84-U FCC ID# NIYMWP84-U S/N:XXXXXXXXX YEAR MONTH SERIAL NO. EX. 2006/04/00001S/N:060400001 0560 MODEL #: WA-6268-15MODEL #: WA-6268-15 FCC ID# NIYMWP84-UFCC ID# NIYMWP84-U S/N:XXXXXXXXX MOBILE MOUSEMOBILE MOUSE

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Antenna Location Page 4 Page 5

FCC ID: NIYMWP84-U Report No. RF950529L07 Operational Description The transmitter of the EUT (The DIABLO 5 Button Wireless Optical Notebook Mouse) is powered from 3Vdc batteries. The antenna is Open antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: RF950529L071Report Format Version 2.0.4 FCC TEST REPORT REPORT NO. :RF950529L07 MODEL NO. :WA-6268-15 RECEIVED :May 29, 2006 TESTED :May 30, 2006 ISSUED :Jun. 02, 2006 APPLICANT : DEXIN Corporation ADDRESS : 14F-8, No 258, Lian Cheng Rd., Chung Ho City, Taipei Hsien, Taiwan, R.O.C ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 22 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF950529L072Report Format Version 2.0.4 Table of Contents 1.CERTIFICATION........................................................................................................3 2.SUMMARY OF TEST RESULTS...............................................................................4 2.1MEASUREMENT UNCERTAINTY.............................................................................4 3.GENERAL INFORMATION........................................................................................5 3.1GENERAL DESCRIPTION OF EUT..........................................................................5 3.2DESCRIPTION OF TEST MODES............................................................................6 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.......................................................6 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...........................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................8 3.4DESCRIPTION OF SUPPORT UNITS......................................................................8 4.TEST TYPES AND RESULTS...................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT............................................................9 4.2RADIATED EMISSION MEASUREMENT.................................................................9 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT..............................................9 4.2.2TEST INSTRUMENTS.............................................................................................10 4.2.3TEST PROCEDURES..............................................................................................11 4.2.4DEVIATION FROM TEST STANDARD....................................................................11 4.2.5TEST SETUP...........................................................................................................12 4.2.6EUT OPERATING CONDITIONS............................................................................12 4.2.7TEST RESULTS.......................................................................................................13 4.3BAND EDGES MEASUREMENT.............................................................................17 4.3.1LIMITS OF BAND EDGES MEASUREMENT..........................................................17 4.3.2TEST INSTRUMENTS.............................................................................................17 4.3.3TEST PROCEDURE................................................................................................17 4.3.4DEVIATION FROM TEST STANDARD...................................................................17 4.3.5EUT OPERATING CONDITION...............................................................................17 4.3.6TEST RESULTS.......................................................................................................17 5.PHOTOGRAPHS OF THE TEST CONFIGURATION.............................................20 6.INFORMATION ON THE TESTING LABORATORIES............................................21 APPENDIX-A.....................................................................................................................A-1 Report No.: RF950529L073Report Format Version 2.0.4 1. CERTIFICATION PRODUCT : The DIABLO 5 Button Wireless Optical Notebook Mouse BRAND NAME : Swiss Gear MODEL NO. : WA-6268-15 APPLICANT : DEXIN Corporation TESTED : May 30, 2006 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Jun. 02, 2006 Andrea Hsia TECHNICAL ACCEPTANCE:, DATE:Jun. 02, 2006 Responsible for RF Long Chen APPROVED BY:, DATE:Jun. 02, 2006 Gary Chang / Supervisor Report No.: RF950529L074Report Format Version 2.0.4 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPE RESULTREMARK 15.207Conducted Emission TestPASS Power supply is 3Vdc from batteries 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 15.209 PASS Minimum passing margin is –3.62dB at 2473.00MHz 2.1MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTFREQUENCYUNCERTAINTY Conducted emissions9kHz~30MHz2.44 dB 30MHz ~ 200MHz3.73 dB 200MHz ~1000MHz3.74 dB 1GHz ~ 18GHz2.20 dB Radiated emissions 18GHz ~ 40GHz1.88 dB This uncertainty represents an ex…
