NL3GA0003Gas Meter

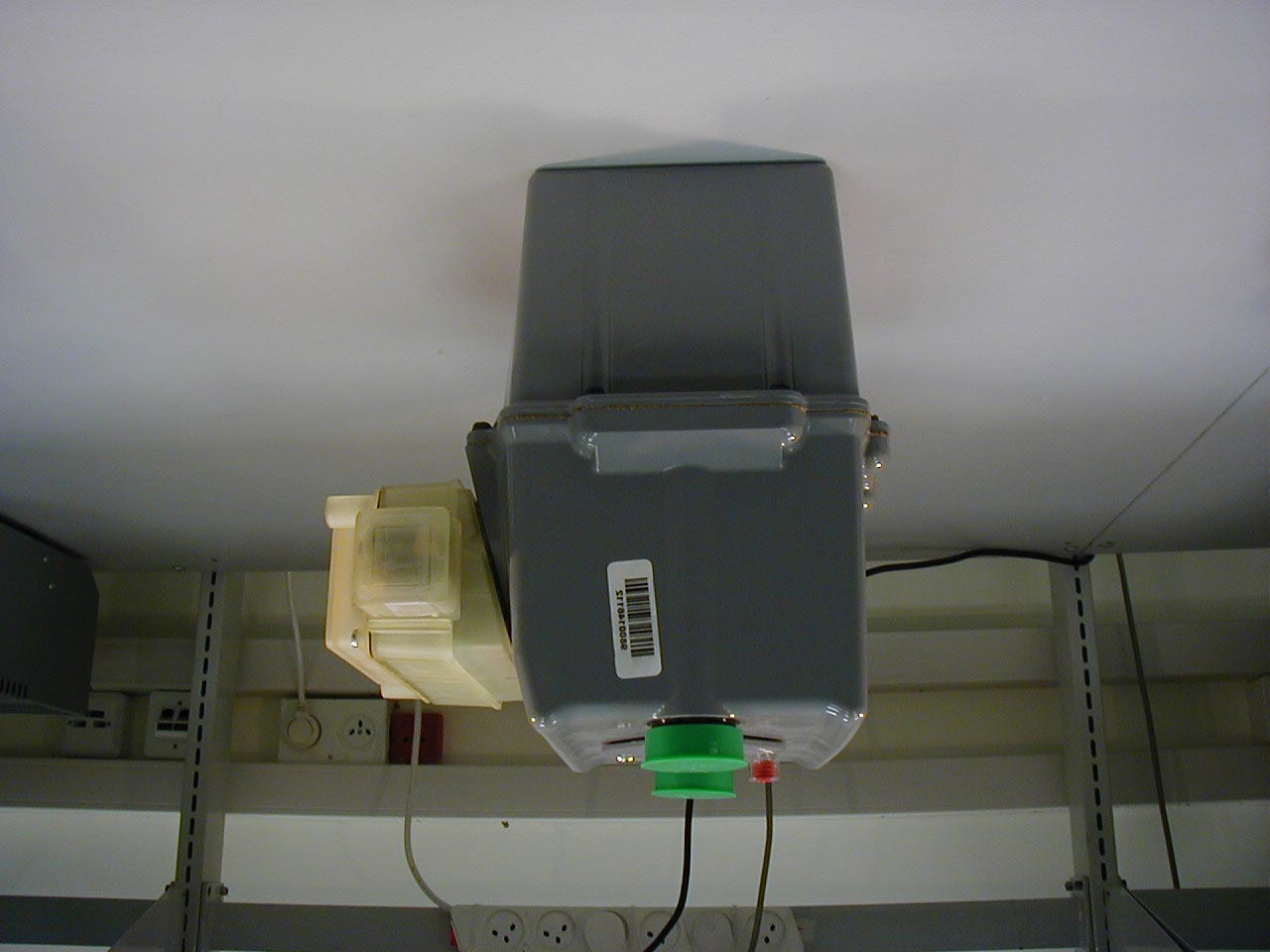

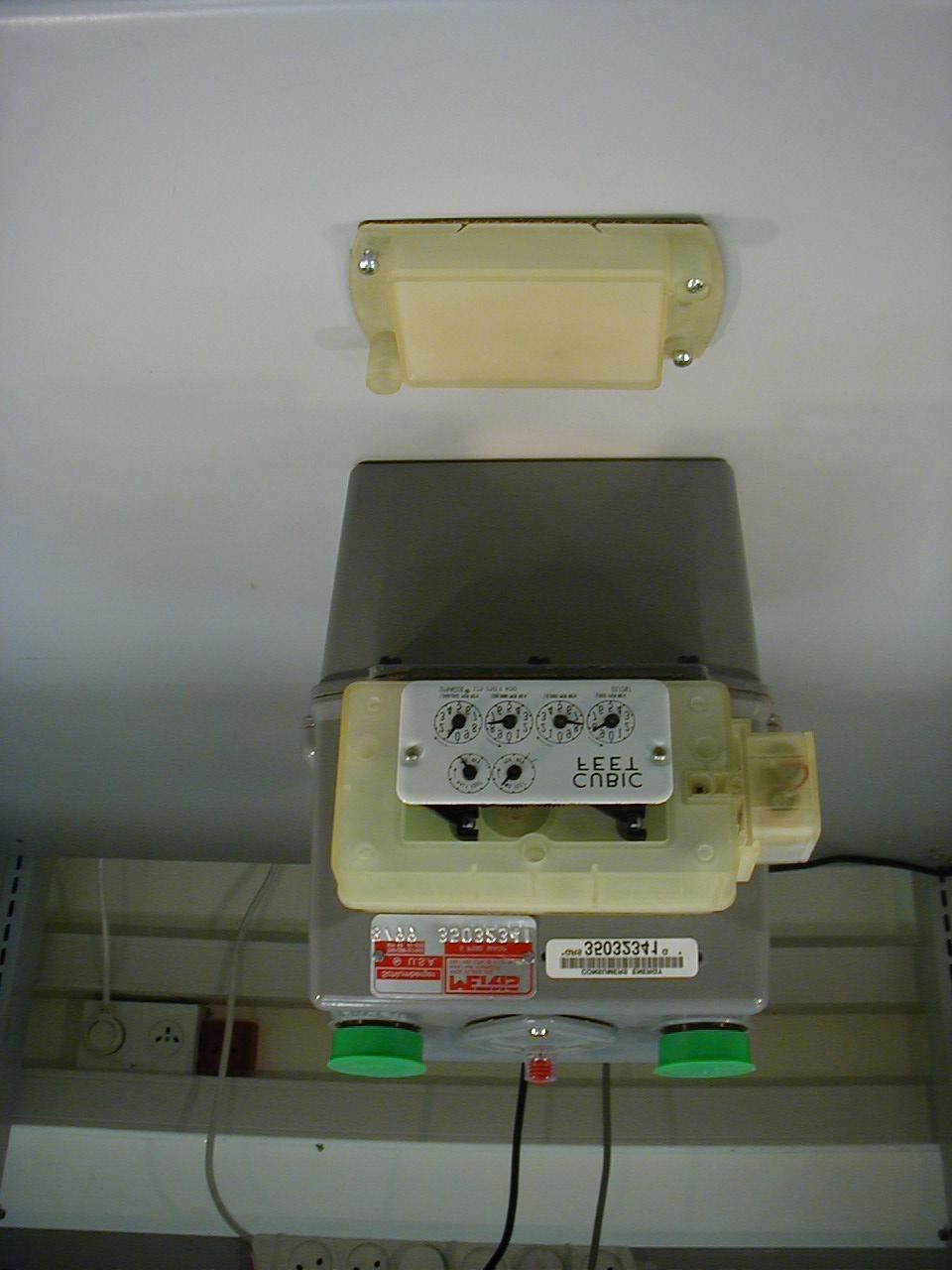

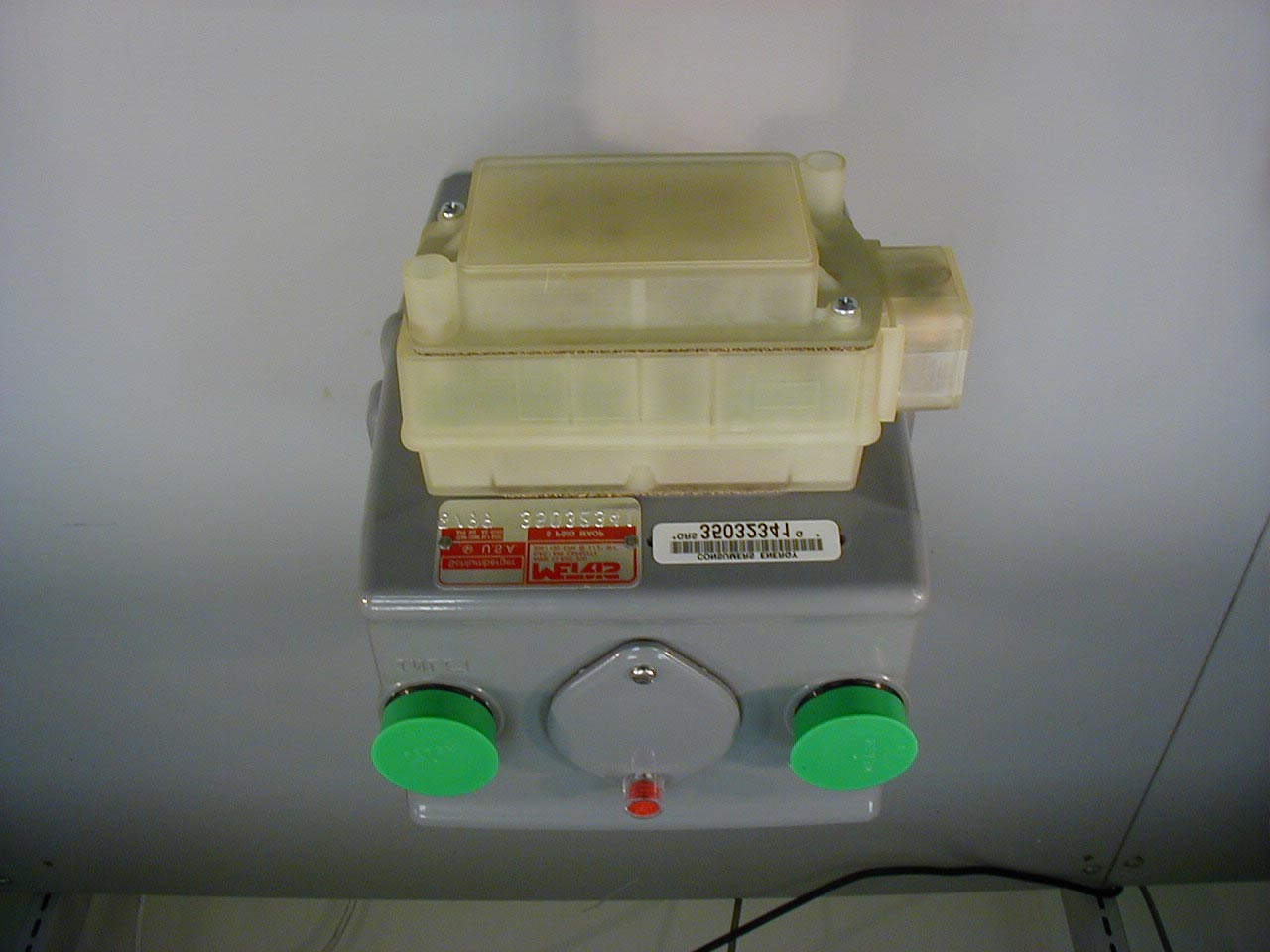

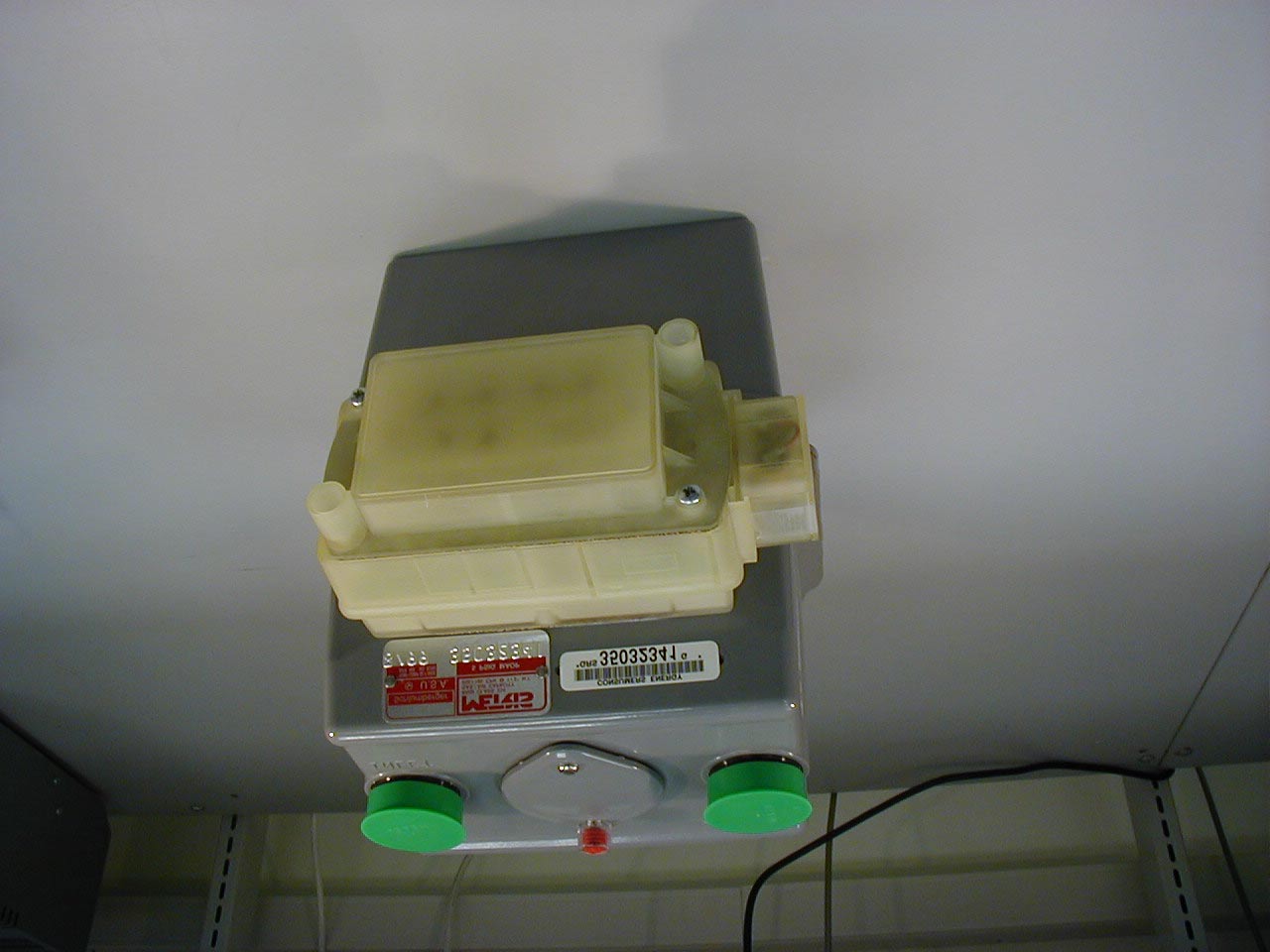

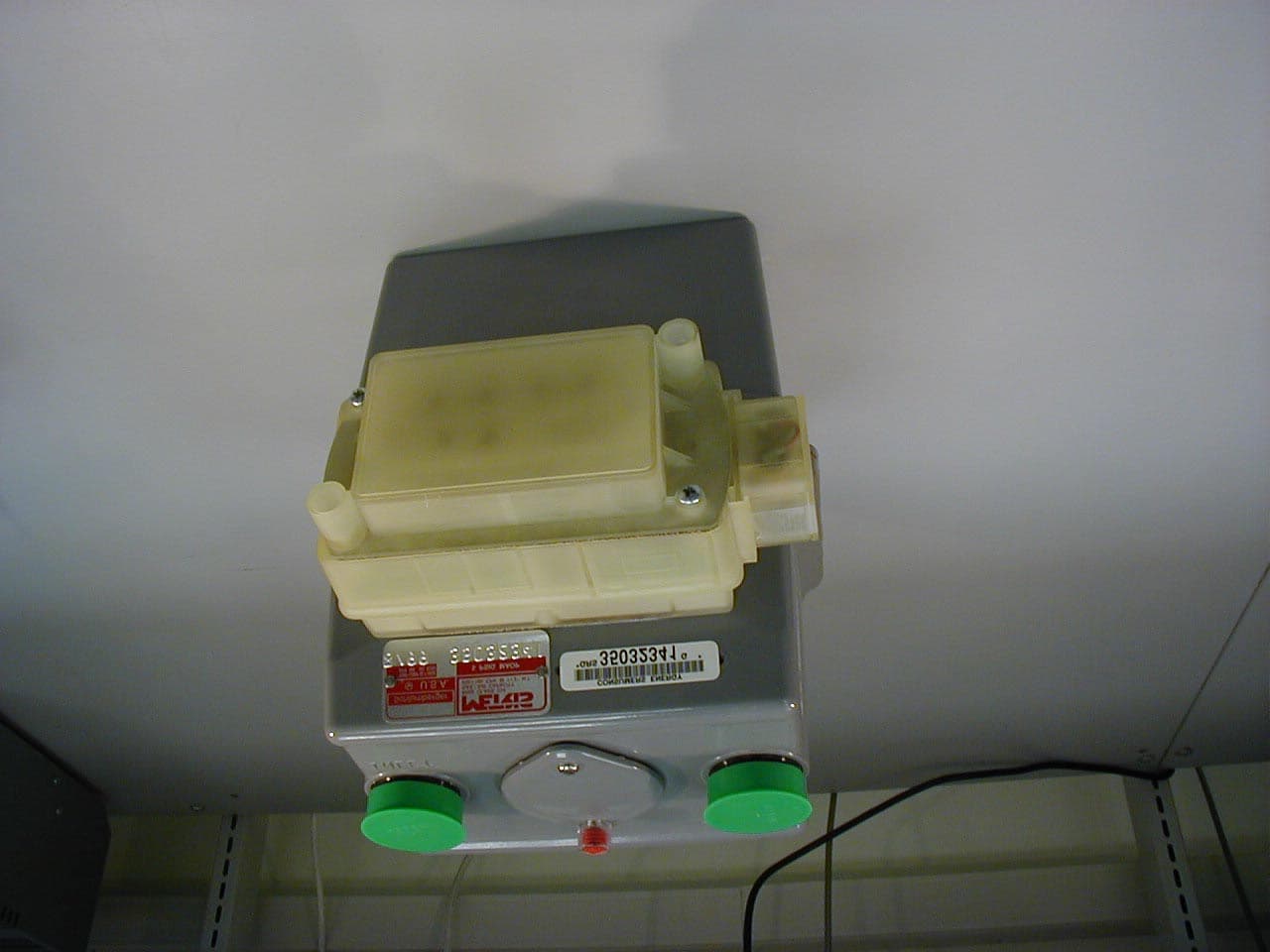

Nexus Data Industrial AMR Unit Installation and Initialization Manual General In order to comply with FCC RF Exposure requirements, the AMR unit must be installed in such a way that there is a 20 c”m separation distance between it and all persons during normal operation. Assembly 1. Break seals. 2. Dismantle index cover, from meter (releasing 2 screws). 3. Dismantle old index, from meter (releasing 2 screws). 4. Dispose all old screws. 5. Connect index to AMR unit with 2 short screws, aligning the AMR unit’s shaft to the index’s shaft. 6. Place the AMR unit on the meter top, its label facing the front, and align its shaft with the meter shaft. By slightly rotating the shaft of the index, check that motion is transferred and that shafts are not stuck. 7. Holding the AMR unit’s position, place the index cover on top and assemble 2 long screws in index cover. The screws should fit through the AMR unit and into meter. 8. Tighten screws and seal with the red plastic seals. 9. Initialize the AMR unit using the MINT (handheld programmer): 9.1. Press 1 for WO (work order) by route to initializing the first AMR unit. 1. WO by route 2. Add WO 3. Read TX 4. Program TX 9.2. Select the Work Order and verify the details. Then key ENTER. 9.3. Select ‘4. CCF Reading’ and enter the number appearing on the index. 9.4. Press on the program key to initialize the AMR unit. WO: nnn/xxx > (APP) Loc: [decoded MeterLocation] Address: [first 63 characters of address] Meter: xxxyyyzzz 1. No. of Dials: 4 2. Index Drive: 1 3. Index Pressure: LP 4. CCF Reading: _

FCC Label 40mm 15mm FCC ID: NL3GA0003 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

NE US Gas Meter AMR Transmitter Technical description The GA-TX is a family of wireless end-point units (Transmitters) for gas utility Automated Meter Reading (AMR). These Transmitters are designed to operate in NexusData’s Fixnet TM , a highly economical fixed network configuration, achieving long coverage range while maintaining high reliability of the communication link. Transmitted messages contain meter reading, status and online alerts. Readings are transmitted periodically (typically daily), and status alert messages are transmitted immediately, once exception or tampering is detected. Transmitters are battery operated, with a typical battery life of over 10 years. The GA-TX is housed in a sealed, unobtrusive, waterproof enclosure, and is installed between the meter cast and the index. Its installation procedure is very simple since the Transmitter is delivered as a single-piece module. A separate, sealed and waterproof battery compartment is easily replaceable in the field by removing the index cover and sliding in a new battery pack in place of the old one. Initial settings (ID, Reading, etc.) are programmed to the GA-TX by using a handheld terminal with a wireless (magnetic loop) interface, eliminating the need to open its enclosure. Models of the GA-TX have been adapted to residential and industrial gas meters by American Meter, Invensys/Equimeter (Rockwell) and Schlumberger (Sprague). NE US Specification RF Output 30dBm (1 Watt) Range Urban area (typical) – 5-10 miles (8-16 km) Data Rate 4 Kbps Chip Rate 1 Mchips / sec Frequencies 903.8 – 926.2 MHz, 57 channels x 400 kHz steps Modulation Direct Sequence SP SP , BP SK PN Codes 255, maximal length sequence Configuration Storage Non-volatile memory Pow er Supply Lithium battery NE US Pow er Consumption 750mA at transmission burst Less than 3μA – in power-down mode Battery Life (T ypical) Over 10 years for daily reads Operating Temperature -30°C to +80°C

Electrical (EMC) Test Report E41470.00Nexus Data (1993) Ltd.Page 1 of 88 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 20 May 2001 I.T.L. (PRODUCT TESTING) LTD. EMC Test for Nexus Data (1993) Ltd. Equipment under test: Residential Gas Meter Schlumberger Approved by:_____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Electrical (EMC) Test Report E41470.00Nexus Data (1993) Ltd.Page 2 of 88 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Nexus Data (1993) Ltd. Residential Gas Meter : Schlumberger FCC ID:NL3GA0003 20 May 2001 This report concerns:Original Grant x Class II change Class B verification Class A verification Class I change Equipment type: Radio Telemetry Transmitter Request Issue of Grant: x Immediately upon completion of review Limits used: CISPR 22 Part 15 x Measurement procedure used is ANSI C63.4-1992. Application for Certification Applicant for this device: prepared by:(different from "prepared by") Ishaishou RazShimon Zigdon ITL (Product Testing) Ltd.Nexus Data (1993) Ltd. Kfar Bin Nun16 Hamelacha St. D.N. Shimshon 99780Rosh Haayin 48091 IsraelIsrael e-mail [email protected]:+972- 903-2288 Fax:+972- 903-32299 e-mail: [email protected] Test Report E41470.00Nexus Data (1993) Ltd.Page 3 of 88 FCC ACC M Ver 1.1 05Mayl 2000 TABLE OF CONTENTS 1.GENERAL INFORMATION -----------------------------------------------------------------------------5 1.1Administrative Information........................................................................... 5 1.2Product Description.................................................................................... 6 1.3Test Methodology...................................................................................... 7 1.4Test Facility............................................................................................... 7 1.5Measurement Uncertainty ........................................................................... 7 2.PRODUCT LABELING----------------------------------------------------------------------------------8 3.SYSTEM TEST CONFIGURATION-------------------------------------------------------------------9 3.1Justification................................................................................................ 9 3.2EUT Exercise Software .............................................................................. 9 3.3Special Accessories ................................................................................... 9 3.4Equipment Modifications ............................................................................. 9 3.5Configuration of Tested System ................................................................ 10 4.BLOCK DIAGRAM ------------------------------------------------------------------------------------- 11 4.1Schematic Block/Connection Diagram........................................................ 11 4.2Theory of Operation................................................................................. 11 5.RADIATED MEASUREMENT PHOTOS ----------------------------------------------------------- 12 6.RADIATED EMISSION, BELOW 1 GHZ ----------------------------------------------------------- 13 6.1Test Specification..................................................................................... 13 6.2Test Procedure........................................................................................ 13 6.3Measured Data........................................................................................ 14 6.4Test Instrumentation Used, Radiated Measurements .................................. 27 6.5Field Strength Calculation ......................................................................... 28 7.RADIATED EMISSION ABOVE 1 GHZ------------------------------------------------------------- 29 7.1Radiated Emission Above 1 GHz............................................................... 29 7.2Test Data ................................................................................................ 29 7.3Test Instrumentation Used, Radiated Measurements Above 1 GHz.............. 54 8.MAXIMUM TRANSMITTED PEAK POWER OUTPUT ------------------------------------------ 55 8.1Test procedure ........................................................................................ 55 8.2Results table............................................................................................ 57 8.38.3 Test Equipment Used.......................................................................... 58 9.PEAK POWER OUTPUT OUT OF 902-928 MHZ BAND--------------------------------------- 59 9.1Test procedure ........................................................................................ 59 9.2Results table............................................................................................ 61 9.3Test Equipment Used. .............................................................................. 62 10.6 DB MINIMUM BANDWIDTH ----------------------------------------------------------------------- 63 10.1 Test procedure ........................................................................................ 63 10.2 Results table............................................................................................ 65 10.3 Test Equipment Used. .............................................................................. 66 11.BAND EDGE SPECTRUM---------------------------------------------------------------------------- 67 11.1 Test procedure ........................................................................................ 67 11.2 Results table............................................................................................ 70 11.3 Test Equipment Used. .............................................................................. 71 12.TRANSMITTED POWER DENSITY-----------------------------------…
