NLMSEW3036WBaby Monitor

SEW-3036W If you have additional questions or need further assistance, contact Samsung support at (877) 349-3149. To extend your one year warranty by three months, be sure to go to www.samsungsv.com and register your product. BabyVIEW User Manual IMPORTANT SAFETY INSTRUCTIONS1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/ accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lighting storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Copyright©2012 Samsung Techwin Co., Ltd. All rights reserved.Trademark is the registered logo of Samsung Techwin Co., Ltd. The name of this product is the registered trademark of Samsung Techwin Co., Ltd.Other trademarks mentioned in this manual are the registered trademark of their respective company. RestrictionSamsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.DisclaimerSamsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice. BabyVIEWUser Manual SPECIFY SERVICE INSTRUCTIONS AND WARRANTY TERMS FCC Caution :Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and monitor . o Connect the equipment into an outlet on a circuit different from that to which the monitor is connected. o Consult the dealer or an experienced radio/TV technician for help. WARNINGo STRANGULATION HAZARD - Keep cord out of child's reach. NEVER place camera or cords within 3 feet of crib or playpen. Never use extension cords with AC Adapters. Only use the AC Adapters provided. o Some adult assembly or installation required. o This product contains small parts that may cause choking. Keep small parts away from children. o This product is NOT intended to replace proper supervision of children. You MUST check your child’s activity regularly, as this product will not alert parents to silent activities of a child. o Before using this product, read and follow all instructions contained in this booklet, and read and follow all instructions and warnings on the product. o NEVER use the transmitter or monitor near water, including near a bathtub, sink, laundry tub, wet basement, etc. o This product is intended for indoor use only. o This product is not intended for use as a medical monitor and its use should not replace adult supervision. o The transmitter detects normal sound levels within a range of 2 to 3 meters (6 to 10 feet) from a child. If the child moves outside of this range, if may not be able to detect sounds from him or her. o It is essential that you check the operating range and condition of the transmitter monitor on initial installation, and on a regular basis after that. o Check reception regularly. Test monitor before use and after changing camera location. The wireless signal transfer range may be shortened if an obstacle such as a concrete wall is in between the camera and mon…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 Samsung Techwin Co.,Ltd. 1204,Changwon-daero,Seongsan-gu,Chang-won-si,Gyeongsangnam-do,Korea Tel. +82-70-7147-8361 / Fax. +82-31-277-2784 11 June 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Samsung Techwin Co Ltd, hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: NLMSEW3036W Sincerely, Client’s signature : Client’s name & title : Jeisoon Kang / Principal Research Engineer Contact information / address: [email protected] SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 Samsung Techwin Co.,Ltd. 1204,Changwon-daero,Seongsan-gu,Chang-won-si,Gyeongsangnam-do,Korea Tel. +82-70-7147-8361 / Fax. +82-31-277-2784 11 June 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: NLMSEW3036W We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Jeisoon Kang / Principal Research Engineer Contact information / address: [email protected] SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0

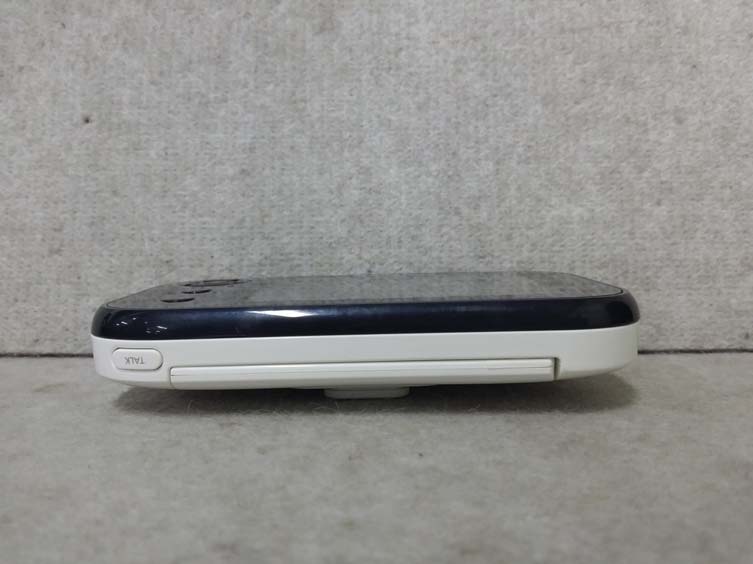

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 4 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. External photos of EUT http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 4 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 4 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 4 of 4 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

BABY MONITOR M/C:SEW-3036WN/US S/N:C8MU********* MODEL:SEW-3036W DC 6V 0.8A FCC ID:NLMSEW3036W MONITOR M/C:SEW-3036WN/US C8MU*********** M/C:SEB-1019RWN/US C8X2************ WIRELESS BABY CAMERA MODEL:SEB-1019RW DC 6V 0.8A FCC ID:XXXXXXXXXXXX M/C:SEB-1019RWN/US S/N:C8X2*********** CAMERA SEW-3036W BABY MONITOR SEB-1019RW BABY CAMERA SEW-3036WN SEW-3036WN/US 4 8 55726 002438

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Internal photos of EUT http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 3 65, Sinwon-ro, Yeongtong-gu, Suwon- si, Gyeonggi-do, 443-390, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Antenna Module

http://www.emc2000.co.kr EMC compliance Ltd. 480-5, Sindong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea TEL: 82 31 336 9919 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval. Report No.: EMC-FCC-A0018 Page: 1 of 52 SAR TEST REPORT Test report No: EMC-FCC-A0018 Type of Equipment: Baby Monitor Model Name: SEW-3036W Applicant: Samsung Techwin Co., Ltd. FCC ID: NLMSEW3036W FCC Rule Part: CFR §2.1093 Test standards: IEEE 1528, 2003 ANSI/IEEE C95.1 KDB Publication Max. SAR(1g): 1.09 W/kg Test result: Complied This report details the results of the testing carried out on one sample, the results contained in this testreport do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in anyconfiguration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of EMC compliance Ltd. or testing done by EMC compliance Ltd. in connection with distribution or use of the product described in this report must be approved by EMC compliance Ltd. in writing. Date of receipt: 2015.05.04 Date of testing: 2015.05.13 Issued date: 2015.06.03 Tested by: Kim Dong-kyu Approved by: Choi Cheon-sig http://www.emc2000.co.kr EMC compliance Ltd. 480-5, Sindong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea TEL: 82 31 336 9919 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval. Report No.: EMC-FCC-A0018 Page: 2 of 52 Contents 1. Applicant information ........................................................................................................................... 3 2. Laboratory information ........................................................................................................................ 4 3. Identification of Sample ......................................................................................................................... 5 4.Test Result Summary ............................................................................................................................. 6 5. Report Overview ................................................................................................................................... 6 6. Test Lab Declaration or Comments........................................................................................................ 6 7. Applicant Declaration or Comments ...................................................................................................... 6 8. Measurement Uncertainty ..................................................................................................................... 7 9. The SAR Measurement System ............................................................................................................. 8 10. System Verification ............................................................................................................................ 11 10.1 Tissue Verification ........................................................................................................................... 11 10.2 Test System Verification ................................................................................................................... 12 11. Operation Configurations .................................................................................................................. 13 12. SAR Measurement Procedures .......................................................................................................... 14 13. Test Equipment Information .............................................................................................................. 16 14. RF Average Conducted Output Power ............................................................................................... 17 14.1 Average Conducted Output Power ................................................................................................... 17 14.2 Max. tune up power ......................................................................................................................... 17 15. SAR Test Results ............................................................................................................................... 17 16. Test System Verification Results ......................................................................................................... 18 17. Test Results........................................................................................................................................ 19 Annex A. Photographs............................................................................................................................. 21 Annex B. Calibration certificate .............................................................................................................. 29 http://www.emc2000.co.kr EMC compliance Ltd. 480-5, Sindong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea TEL: 82 31 336 9919 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval. Report No.: EMC-FCC-A0018 Page: 3 of 52 1. Applicant information Applicant: Samsung Techwin Co., Ltd. Address: 84, Jeongdong-ro, Seonsan-gu, Changwon-si, Gyeongsangnam- do, Korea Telephone: +82-70-7147-8361 Fax: +82-31-277-2784 E-mail: [email protected] Contact name: Kim Cheol-Gyo Manufacturer: GCT Address: FLAT/RM 308 3/F KWONG SANG HONG CENTRE 151- 153H01 BUN ROAD SWUN TONGI http://www.emc2000.co.kr EMC compliance Ltd. 480-5, Sindong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea TEL: 82 31 336 9919 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval. Report No.: EMC-FCC-A0018 Pag…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0225 EMC compliance Ltd. Page: 2 of 36 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description........................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage................................................................................................................................................... 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Carrier Frequency Separation ..................................................................................................................... 13 5.4 20 dB Channel Bandwidth .......................................................................................................................... 16 5.5 Number of Hopping Channels .................................................................................................................... 20 5.6 Time of Occupancy(Dwell Time) ............................................................................................................... 22 5.7 Spurious Emission, Band edge and Restricted bands ................................................................................. 25 5.8 Conducted Emission ................................................................................................................................... 34 6. Test equipment used for test ........................................................................................................................... 36 http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0225 EMC compliance Ltd. Page: 3 of 36 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: Address: Telephone number: Facsimile number: Contact person: Samsun g Techwin Co., Ltd. 84, Jeongdong-ro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, Korea +82-70-7147-8361 +82-31-277-2784 Kang Jei Soon / [email protected] Manufacturer: GCT Address: FLAT/RM 308 3/F KWONG SANG HONG CENTRE 151-153HOI BUN ROAD SWUN TONGI http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0225 EMC compliance Ltd. Page: 4 of 36 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC compliance Ltd. 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: 82-31-336-9919 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No.: KR0040 FCC Site Registration No.: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP EMC Compliance Ltd. Suwon city http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0225 EMC compliance Ltd. Page: 5 of 36 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3. Description of E.U.T. 3.1 Basic description Applicant Samsung Techwin Co., Ltd. Address of Applicant 84, Jeongdong-ro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, Korea Manufacturer GCT Address of Manufacturer FLAT/RM 308 3/F KWONG SANG HONG CENTRE 151-153HOI BUN ROAD SWUN TONGI Type of equipment Baby Monitor Basic Model SEW-3036W Serial number N/A 3.2 General description Frequency Range 2 410.875 ㎒ ~ 2 471.625 ㎒ Type of Modulation GFSK Type of Antenna Wire Antenna Antenna Gain 2.0 ㏈i Transmit Power 16.88 ㏈m Power supply DC 6.0 V * (AC Adaptor: 5E-AD060080-U) Product SW/HW version HS960020130415_1B74 / VM9600-ALL-HM00 Radio SW/HW version VM9600-ALL-RF00_RFX2402 Test SW Version N/A RF power setting in TEST SW set default * Declared by the applicant. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0225 EMC compliance Ltd. Page: 6 of 36 48…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 2 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Te s t setup photos * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 2 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * 1 ㎓ Over * Conducted Emission
