NLMSNHV6414BNSMART HOME CAMERA

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution Any changes or modifications (including the antenna) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co- located or operation in conjunction with any other antenna or transmitter. This equipment complies with FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution Any changes or modifications (including the antenna) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co- located or operation in conjunction with any other antenna or transmitter. This equipment complies with FCC

Samsung Techwin Co Ltd #42 Seongju-Dong Kyungsangnam-do Changwon-si, South Korea Date: Oct. 27, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Samsung Techwin Co Ltd #42 Seongju-Dong Kyungsangnam-do Changwon-si, South Korea h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, JEISOON KANG / Principal Research Engineer REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Samsung Techwin Co Ltd #42 Seongju-Dong Kyungsangnam-do Changwon-si, South Korea Date: October 27, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: NLMSNHV6414BN Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT Exhibit Type File Name Part List CONF APPENDIX_ Part List_ SNH-V6414BN.pdf Schematics Diagram(s) CONF APPENDIX_ Schematics_ SNH-V6414BN.pdf Block diagram CONF APPENDIX_ Block diagram_ SNH-V6414BN.pdf Operation description CONF APPENDIX_ Operation description_ SNH-V6414BN.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, JEISOON KANG / Principal Research Engineer Samsung Techwin Co Ltd

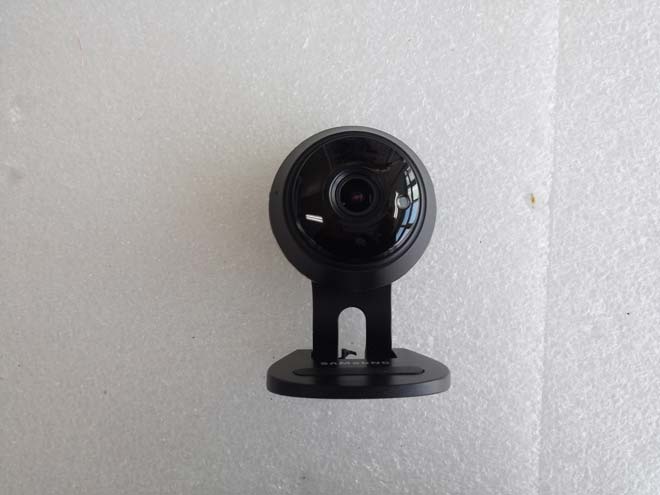

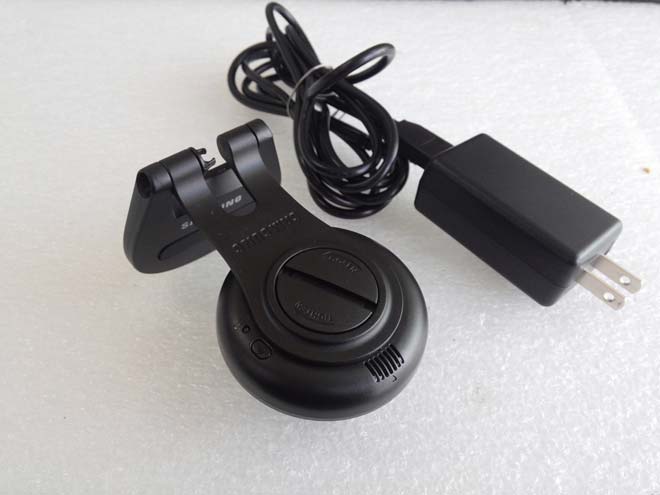

www.kes.co.kr FCC ID: NLMSNHV6414BN Page 1 of 5 EUT External photographs www.kes.co.kr FCC ID: NLMSNHV6414BN Page 2 of 5 www.kes.co.kr FCC ID: NLMSNHV6414BN Page 3 of 5 www.kes.co.kr FCC ID: NLMSNHV6414BN Page 4 of 5 www.kes.co.kr FCC ID: NLMSNHV6414BN Page 5 of 5

www.kes.co.kr FCC ID : NLMSNHV6414BN Page 1 of 1 Label and Location Because the device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the User’s Manual.

www.kes.co.kr FCC ID: NLMSNHV6414BN Page 1 of 4 EUT Internal photographs www.kes.co.kr FCC ID: NLMSNHV6414BN Page 2 of 4 RF Module(Shields removed) PCB Antenna www.kes.co.kr FCC ID: NLMSNHV6414BN Page 3 of 4 www.kes.co.kr FCC ID: NLMSNHV6414BN Page 4 of 4

RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results – 802.11b (Worst case) Channel Frequency (㎒) Average output power (㏈m) Antenna gain (㏈i) Power density at 20 ㎝(㎽/㎠) Limit (㎽/㎠) Low 2 412.000 11.73 1.70 0.004 38 1 Middle 2 437.000 11.70 1.70 0.004 35 1 High 2 462.000 11.97 1.70 0.004 63 1 Frequency range (㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽/㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 6 1 500 – 100 000 -- -- 1 30

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0085 Page (2 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Revision history Revision Date of issue Test report No. Description - 2015.11.03 KES-RF-15T0085Initial KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0085 Page (3 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2. Frequency/channel operations ................................................................................................................... 4 1.3 Device information ............................................................................................................................................ 4 2. Summary of tests ........................................................................................................................................................ 5 3. Test results .................................................................................................................................................................. 7 3.1 Radiated spurious emissions & band edge ................................................................................................ 7 3.2 Conducted spurious emissions & band edge ........................................................................................... 15 3.3. 6 ㏈ bandwidth ...................................................................................................................................... 28 3.4. Peak Output power .................................................................................................................................. 36 3.5. Power spectral density ............................................................................................................................. 38 3.6. AC conducted emission ........................................................................................................................... 46 Appendix A. Measurement equipment ......................................................................................................................... 49 Appendix B. Test setup photo ....................................................................................................................................... 50 KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0085 Page (4 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 1. General information Applicant: Samsung Techwin Co Ltd Applicant address: #42 Seongju-Dong Kyungsangnam-do Changwon-si, South Korea Test site: KES Co., Ltd. Test site address: C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do,14057, Korea 473-29, Gayeo-ro, Yeoju-si, Gyeonggi-do, 12658, Korea Rule part(s): Part 15.247 Test device serial No.: Production Pre-production Engineering Application purpose: Original grant Class I permissive change Class II permissive change 1.1. EUT description Equipment under test SMART HOME CAMERA Frequency range 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) 2 422 ㎒ ~ 2 452 ㎒ (11n_HT40) Model: SNH-V6414BN Modulation technique DSSS, OFDM Number of channels 11 Antenna specification PCB antenna & 1.7 ㏈i Power source AC 120V Adapter (Output : DC 5V / 2A) 1.2. Frequency/channel operations Ch. Frequency (㎒) Mode 1 2 412 11b/g/n_HT20 . . . . . . 6 2 437 11b/g/n_HT20 . . . . . . 11 2 462 11b/g/n_HT20 Ch. Frequency (㎒) Mode 3 2 422 11n_HT40 . . . . . . 6 2 437 11n_HT40 . . . . . . 9 2 452 11n_HT40 1.3 Device information - The device duty cycles are as follows: 802.11b/g/n_HT20, 40 ≥ 98 percent. KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0085 Page (5 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 2. Summary of tests Reference Parameter Test results 15.205 15.209 Radiated spurious emission and band edge Pass 15.247(d) Conducted spurious emission and band edge Pass 15.247(a)(2) 6 ㏈ bandwidth Pass 15.247(b)(3) Peak output power Pass 15.247(e) Power spectral density Pass 15.207 AC conducted emissions Pass Test procedures; The EUT was tested per the guidance of ANSI C63.10-2009 was used to reference the appropriate EUT setup for radiated spurious emissions testing, the guidance provided in KDB 558074_v03r03 were used in the measurement of the EUT. KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0085 Page (6 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Pre-…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0085 Page (50 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Appendix B. Test setup photo Radiated Emission (30MHz~1GHz) Radiated Emission (Above 1GHz) KES Co., Ltd. C-3701, Simin-daero 365-40l, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-15T0085 Page (51 ) of (51) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-14 Rev. 1 KES A4 Conducted Emission
