NM80P3P100Smartphone

Your HTC One max User guide Only for certification Only for certification Only for certification Contents Unboxing HTC One max7 Back cover8 micro SIM card10 Storage card11 Charging the battery12 Switching the power on or off12 Want some quick guidance on your phone?13 Setting up your phone Setting up your new phone for the first time14 Transferring content from an Android phone15 Transferring contacts from your old phone through Bluetooth16 Getting contacts and other content into HTC One max17 Transferring photos, videos, and music between your phone and computer17 Getting to know your settings18 About the Fingerprint sensor18 Updating your phone's software20 Your first week with your new phone Basics21 Notifications29 Working with text32 Battery37 Camera Camera basics41 Taking a photo42 Recording video42 Taking continuous camera shots43 Camera scenes44 Improving portrait shots44 Taking a self portrait44 Taking HTC Zoe photos44 What is HTC Zoe?45 Taking a panoramic photo45 Using HDR45 Recording videos in slow motion46 2Contents Only for certification Only for certification Only for certification Personalizing Making HTC One max truly yours47 Changing your wallpaper47 Personalizing the launch bar48 Adding a widget to your Home screen48 Adding apps and other shortcuts on your Home screen49 Rearranging or removing widgets and icons on your Home screen50 Arranging apps on the All Apps screen50 Grouping apps into a folder51 Hiding or unhiding apps52 Adding, removing, or arranging widget panels52 Changing your main Home screen53 Changing the sounds for your ringtone, notifications, and alarm53 Rearranging application tabs53 Phone calls Making a call with Smart dial54 Dialing an extension number55 Returning a missed call55 Using Speed dial55 Calling a phone number in a text message56 Calling a phone number in an email56 Calling a phone number in a Calendar event56 Making an emergency call56 Receiving calls57 What can I do during a call?58 Setting up a conference call59 Checking calls in the Call History59 Changing ringtone settings60 Home dialing61 Messages Sending a text message (SMS)62 Sending a multimedia message (MMS)62 Sending a group message64 Resuming a draft message65 Replying to a message65 Saving a text message in the Tasks app66 Forwarding a message66 Viewing and saving an attachment from a multimedia message67 Moving messages to the secure box67 Blocking unwanted messages68 WAP push messages68 Copying a text message to your micro SIM card69 Deleting messages and conversations69 Search and web browser Searching HTC One max and the Web70 Getting instant information with Google Now71 Browsing the Web73 Bookmarking a webpage75 3Contents Only for certification Only for certification Only for certification Using your browsing history76 Clearing your browsing history77 Entertainment Music78 TV82 Wireless media88 Storage Types of storage90 Copying files to or from HTC One max90 Making more storage space91 Encrypting data on HTC One max92 People Your contacts list94 Setting up your profile95 Adding a new contact96 Editing a contact’s information97 Getting in touch with a contact97 Importing or copying contacts97 Merging contact information98 Sending contact information99 Contact groups100 Email Gmail102 Mail104 Travel and maps Location settings109 Google Maps109 HTC Car113 Google Play and other apps Getting apps117 Essential apps119 Fun apps123 Productivity apps126 Internet connections Data connection128 Managing your data usage129 Wi-Fi130 Connecting to a virtual private network (VPN)132 Using HTC One max as a wireless router134 Sharing your phone's Internet connection by USB tethering135 Connecting to the Internet through a computer136 4Contents Only for certification Only for certification Only for certification Wi-Fi printing136 Wireless sharing Connecting a Bluetooth headset138 Unpairing from a Bluetooth device139 Where sent information is saved139 Receiving files using Bluetooth140 Sharing content with NFC141 Settings and security Checking your phone's HTC Sense version143 Turning Airplane mode on or off143 Turning Do not disturb mode on and off143 Turning automatic screen rotation off144 Adjusting the time before the screen turns off145 Adjusting the screen brightness145 Touch sounds and vibration145 Changing the display language146 Accessibility settings146 Magnifying your phone's screen146 Working with certificates147 Protecting your SIM card with a PIN147 Showing or hiding notifications on the lock screen148 Protecting HTC One max with a screen lock148 Securing HTC One max with face unlock149 Bypassing the lock screen150 Trademarks and copyrights Index 5Contents Only for certification Only for certification Only for certification Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 6Conventions used in this guide Only for certification Only for certification Only for certification Unboxing HTC One max Front panel 1.BACK 2.USB connector 3.HOME 4.Dual speakers 5.POWER 6.VOLUME 7.Front camera 8.3.5mm headset jack 9.IR SENSOR 10.Proximity sensor 11.Notification LED 12.Back cover lock §HTC One max is available in either a 3G or LTE version, depending on your region and mobile operator. You need an LTE plan to use your operator's 4G/LTE network for voice calls and data services. Check with your operator for det…

Text truncated - open the document above for the full version.

Product Safety & Warranty Information 2 Safety and regulatory guideSafety and regulatory guide 3 Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, TC P900-US  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts or circuits, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. 4 Safety and regulatory guideSafety and regulatory guide 5  Take extra precautions Ÿ Keep the device dry and away from water or any liquid as it may cause a short circuit. Ÿ The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Ÿ Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard. Ÿ Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection. Ÿ If the battery leaks: • Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice. • Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice. • Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Road safety Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving (even with a hands free kit) 6 Safety and regulatory guideSafety and regulatory guide 7 causes distraction an…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 September 17, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HTC Corporation, hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Smartphone, NM80P3P100 We affirm that between SIEMIC and HTC Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ____________________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: +886 3 318 3232 #1857 宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 1F, 6-3 Baoqiang Road, HTC Corporation Xindian District, New Taipei City, Taiwan 231

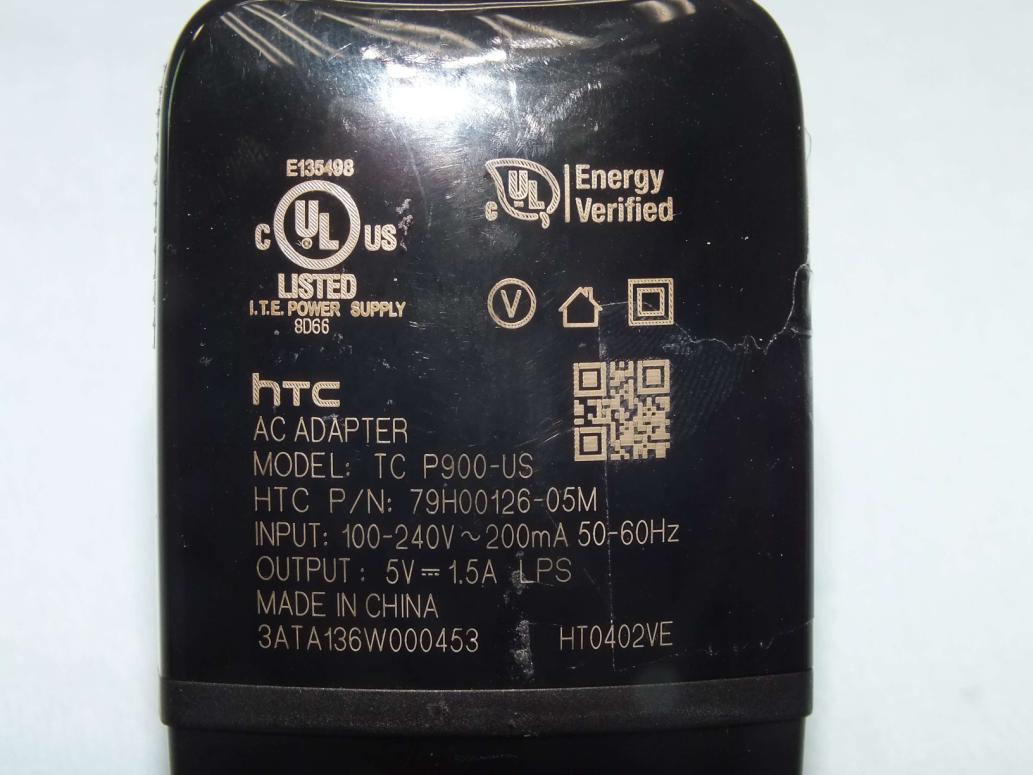

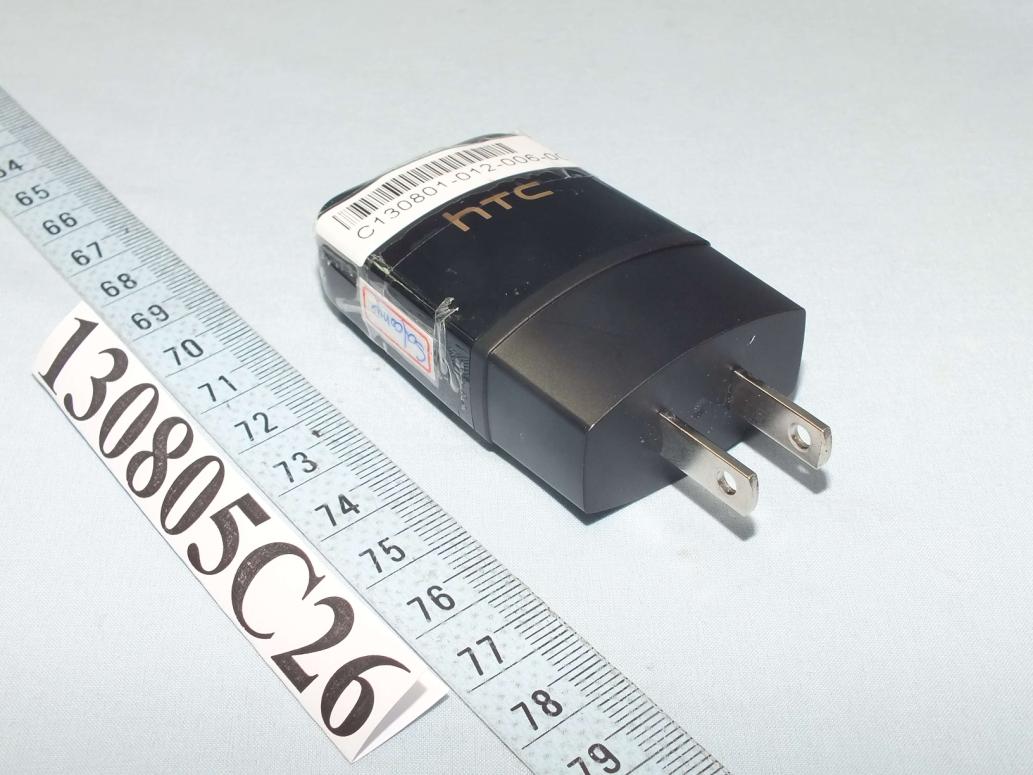

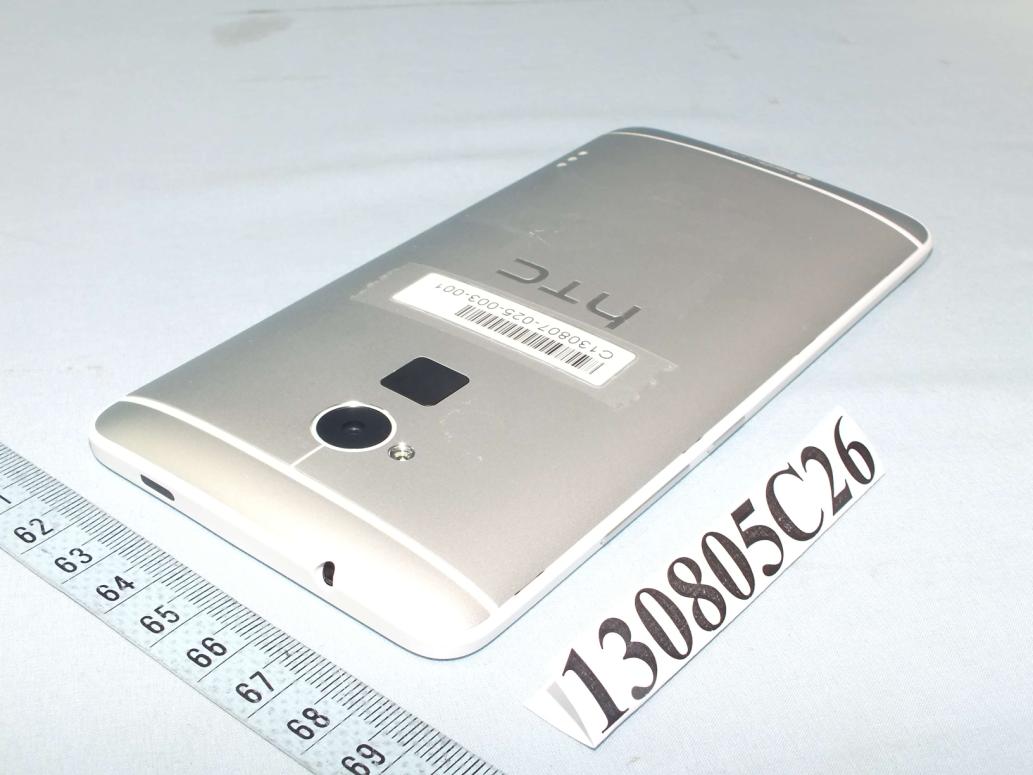

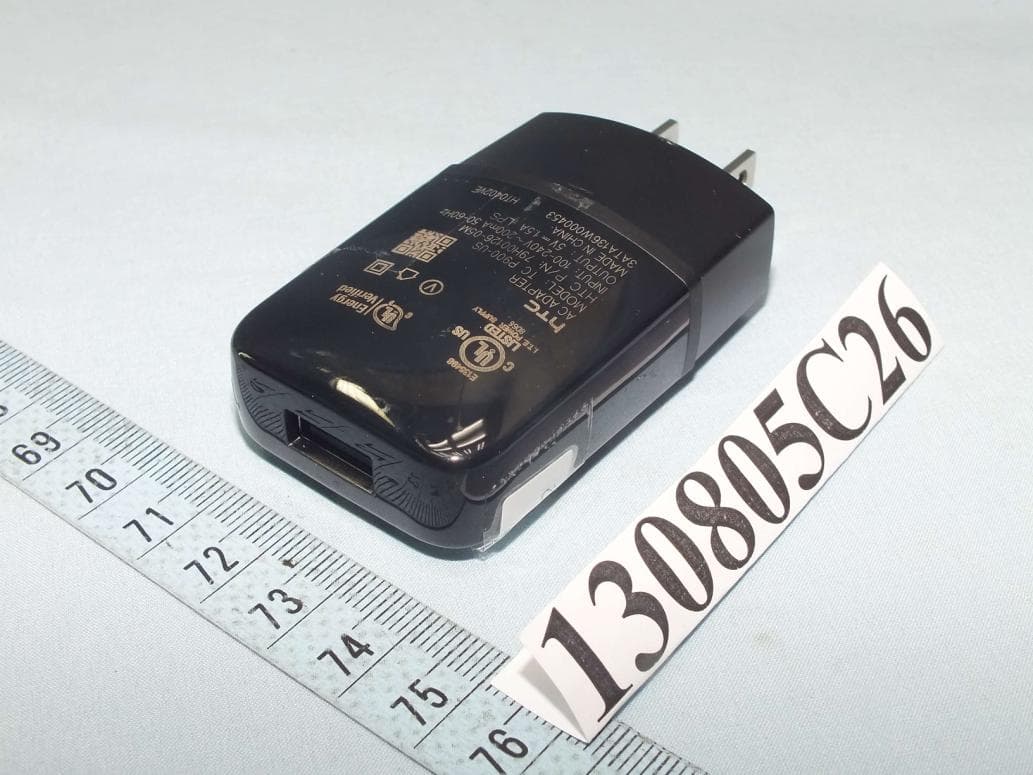

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter Salcomp TC P900-US I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Battery ATL B0P3P100 Rating: 3.8Vdc, 3300mAh Type: Li-ion USB Cable Coxoc DC M600 1m non-shielded cable without core Page 2 Page 3 Page 4

0.15 TSX#WL 0P3P100 gency label (77H01898-00M) Label thickness: Black Cool gray 9C Cool gray 5C 0.15 66.4 45.2 15 Use only power supplies listed in safety guide. 0P3P1005VDC 1.5A / 1A Made in Taiwan IMEI: XXXXXXXXXXXXXXX 3mm 2mm 2mm FCC ID: NM80P3P100

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 63 Report No. : SA130805C26-2 Issued Date : Sep. 04, 2013 Revision : R01 FCC SAR Test Report Report No. : SA130805C26-2 Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan 330, Taiwan, R.O.C. Product : Smartphone FCC ID : NM80P3P100 Brand : HTC Model No. : 0P3P100 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 KDB 248227 D01 v01r02 / KDB 447498 D01 v05r01 / KDB 648474 D04 v01r01 KDB 941225 D01 v02 / KDB 941225 D02 v02r02 / KDB 941225 D03 v01 KDB 941225 D05 v02r02 / KDB 941225 D06 v01r01 Date of Testing : Aug. 22, 2013 ~ Aug. 30, 2013 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Evonne Liu / Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 63 Report No. : SA130805C26-2 Issued Date : Sep. 04, 2013 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 04, 2013 Report No. : SA130805C26-2 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/29 System Check_H750_130829 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750_0829 Medium parameters used: f = 750 MHz; σ = 0.912 S/m; ε r = 40.638; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5°C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.69, 9.69, 9.69); Calibrated: 2013/04/30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.77 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.520 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.23 W/kg SAR(1 g) = 2.22 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.78 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/23 System Check_H835_130823 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d121 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0823 Medium parameters used: f = 835 MHz; σ = 0.904 S/m; ε r = 42.588; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.96, 9.96, 9.96); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.87 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.332 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.47 W/kg SAR(1 g) = 2.31 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.93 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/28 System Check_H835_130828 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d121 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0828 Medium parameters used: f = 835 MHz; σ = 0.886 S/m; ε r = 42.018; ρ = 1000 kg/m 3 Ambient Temperature：21.4 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9, 9, 9); Calibrated: 2013/06/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2013/03/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1127 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.82 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.616 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 3.45 W/kg SAR(1 g) = 2.3 W/kg; SAR(10 g) = 1.51 W/kg Maximum value of SAR (measured) = 2.93 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/29 System Check_H1750_130829 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1023 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H1750_0829 Medium parameters used: f = 1750 MHz; σ = 1.387 S/m; ε r = 41.551; ρ = 1000 kg/m 3 Ambient Temperature：21.1 °C; Liquid Temperature：20.5°C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.91, 7.91, 7.91); Calibrated: 2013/04/30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 12.9 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.539 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 15.8 W/kg SAR(1 g) = 8.76 W/kg; SAR(10 g) = 4.64 W/kg Maximum value of SAR (measured) = 12.4 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/22 System Check_H1900_130822 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0822 Medium parameters used: f = 1900 MHz; σ = 1.406 S/m; ε r = 39.541; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.2, 8.2, 8.2); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.6 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.621 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 18.5 W/kg SAR(1 g) = 9.59 W/kg; SAR(10 g) = 4.82 W/kg Maximum value of SAR (measured) = 14.1 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/28 System Check_H1900_130828 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0828 Medium parameters used: f = 1900 MHz; σ = 1.426 S/m; ε r = 39.212; ρ = 1000 kg/m 3 Ambient Temperature：21.4 °C; Liquid Temperature：20.5 …

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 04, 2013 Report No. : SA130805C26-2 Revision : R01 Appendix B. SAR Plots of SAR Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination, and measured SAR > 1.5 W/kg are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/23 P01 GSM850_GPRS11_Right Cheek_Ch128_ANT1 DUT: 130805C26 Communication System: GPRS11; Frequency: 824.2 MHz;Duty Cycle: 1:2.67 Medium: H835_0823 Medium parameters used: f = 824.2 MHz; σ = 0.893 S/m; ε r = 42.689; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.96, 9.96, 9.96); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) - Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.597 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.982 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.553 W/kg SAR(1 g) = 0.290 W/kg; SAR(10 g) = 0.149 W/kg Maximum value of SAR (measured) = 0.466 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/22 P02 GSM1900_GPRS12_Right Cheek_Ch810_ANT1 DUT: 130805C26 Communication System: GPRS12; Frequency: 1909.8 MHz;Duty Cycle: 1:2 Medium: H1900_0822 Medium parameters used: f = 1910 MHz; σ = 1.419 S/m; ε r = 39.51; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.2, 8.2, 8.2); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) - Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.676 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.212 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.752 W/kg SAR(1 g) = 0.389 W/kg; SAR(10 g) = 0.217 W/kg Maximum value of SAR (measured) = 0.534 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/22 P03 WCDMA II_RMC12.2K_Right Cheek_Ch9400_ANT1 DUT: 130805C26 Communication System: WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H1900_0822 Medium parameters used: f = 1880 MHz; σ = 1.377 S/m; ε r = 39.651; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.2, 8.2, 8.2); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) - Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.688 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.262 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.809 W/kg SAR(1 g) = 0.421 W/kg; SAR(10 g) = 0.235 W/kg Maximum value of SAR (measured) = 0.575 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/23 P04 WCDMA V_RMC12.2K_Left Cheek_Ch4132_ANT1 DUT: 130805C26 Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium: H835_0823 Medium parameters used: f = 826.4 MHz; σ = 0.895 S/m; ε r = 42.67; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration:…

Text truncated - open the document above for the full version.
