NM82QBP100Tracker

Safety and Regulatory Guide Safety and Regulatory Guide...........................................................................................................................................2 2 Important Safety Information – Read Before Use READ THE FOLLOWI NG W ARNI NGS A ND I NFORMATI ON BEFORE USE OF THE PRODUCT A ND FOLLOW ALL PRODUCT SAFETY AND OPERATI NG I NSTRUCTI ONS. FAILURE TO DO SO MA Y CAUSE BODILY I NJUR Y (I NCLUDI NG ELECTRI C SHOCK, FI RE, AND OTHER I NJURY), PROPERTY DAMAGE, OR EVEN DEATH. I F YO U ALLOW OTHERS TO USE T HE PRODUCT, YO U ARE RESPONSIBLE FOR ENSURI NG EACH USER I S AWARE OF AND FOLLOW S ALL PRODUCT SAFETY A ND OPERATI NG I NSTRUCTI ONS Ensure You Are Able to Safely Use the Product Consult your doctor before using the product if you have pre-existing serious medical conditions (such as a heart ailment), conditions that aff ect your ability to saf ely perform physical activities, psychiatric conditions (such as anxiety disorders or post-traum atic stress disorder), or if you are pregnant or elderly Do not use the product if you are sick, f atigued, under the inf luence of intoxicants/drugs, or are not feeling generally well, as it may exacerbate your condition Ensure the Area around You is Safe for Use of the Product W hile wearing the product you are blind to the world around you. The image displayed in the tracker will not match the real world. Always use the product in a clear and safe area. Do not rely on the product’s chaperone system for protection. Do not use near stairways, walls, large windows, balconies, heat sources, or outdoors. Clear the play area of people, pets, f urniture, and other things that may be obstacles, tripping hazards, or that block you f rom freely moving around. Do not move outside the set play area. Use outdoors is not recommended. I njuries may occur from losing balance on uneven surf aces or f rom tripping over or running into objects. Do not handle sharp objects, hot liquids, or other potentially hazardous items while wearing the product. Do not use while driving, in a vehicle or engaging in activities that require the ability to view your surroundings. It is recommended that the product be used only while under the supervision of another person who is ready to warn of hazards that may arise while the product is being used. Examples of hazards that could arise include, but are not limited to, tangling of a cable in a manner that presents a tripping hazard. Use Caution When Charging the Product Remain seated if using the product’s tracker while it is plugged in and keep in mind the location of the charging cable. Standing up or moving around energetically could cause personal injury or damage to the product. Photosensitive Seizures Like other products that produce visual effects (including light f lashes), the product may trigger epileptic seizures, seizures, f ainting, or severe dizziness even in people who have no history of these conditions. If you have a previous history of epilepsy or seizures, loss of awareness, or other symptoms linked to an epileptic condition, consult your doctor before using the product. To reduce the likelihood of a seizure do not use the product if you are tired or need sleep. 3 Repetitive Stress Injuries Operate the product in a comfortable posture. Do not grip the product too tightly. Press the buttons lightly. If you have tingling, numbness, stiff ness, throbbing, or other discomf ort, immediately stop using the product and consult your doctor. Physical and Psychological Effects Content viewed using the product can be intense, immersive, and appear very life-like and may cause your brain and body to react accordingly. Certain types of content (e.g. violent, scary, emotional, or adrenaline- based content) could trigger increased heart rate, spikes in blood pressure, panic attacks, anxiety, PTSD, f ainting, and other adverse effects. If you have a history of negative physical or psychological reactions to certain real-lif e circumstances, or are sensitive to certain types of content, avoid using the product to view similar content. Similarly, it is important to remember that simulated objects, such as f urniture, that may be encountered while using the product do not exist in the real world, and injuries may result when interacting with those simulated objects as if they were real, f or example, by attempting to sit on a virtual chair. Radio Frequency Interference The product can emit radio waves that can interfere with the operation of nearby electronic devices. If you have a cardiac pacemaker or other implanted medical device, do not use the product until you have consulted with your doctor or the manuf acturer of your medical device. To minimize radio frequency interference, use only original manuf acturer-approved accessories, or accessories that do not contain any metal. Use of non-original manuf acturer-approved accessories may violate your local radio frequency exposure guidelines and should be avoided. Avoid Overuse Prolonged, uninterrupted use of the product should be avoided. I t may negatively impact hand-eye coordination, balance, and/or causes other negative effects. W hile using the product f requently and f or prolonged periods of time, you may experience tiredness or soreness in your muscles, joints, or other body parts. Take regular breaks from using the product. The length and f requency of necessary breaks may var y f rom person to person. Stop Using If You Experience Any Discomfort Stop using the product and consult your doctor if you experience any of the following symptoms.  Seizures, loss of awareness, convulsions, involuntary movements, dizziness, disorientation, impaired balance, nausea, lightheadedness, drowsiness, or f atigue.  Eye pain or discomfort, eyestrain, eye twitching, or vision abnormalities (such as altered, blurred, or double vision).  Excessive sweating increased salivation, impaired sense of balance, impaired hand-eye coordination, or other symptoms s…

Text truncated - open the document above for the full version.

Tracker(2QBP100) / Dongle(2QCD100) setup guide About the Tracker Tra cke r(2QBP100) is a self-tracking device. Attach it to a real object or human body, and put yourself in the virtual reality applications. 1.Tra cke r (2QBP100) 2.Power button 3.Status light 4.POGO pin 5.USB Type-C port 6.Dongle (2QCD100) 7.Dongle cradle 8.Camera HTC Confidential forCertification HTC Confidential forCertification HTC Confidential forCertification HTC Confidential forCertification HTC Confidential forCertification HTC Confidential forCertification Charging Tracker Charging Tracker using the USB Type-C cable that came in the box. Connect one end of the USB Type-C cable to Tracker and the other end to your computer. When Tracker is fully charged, status light will go back to the previous status. Yo u can also use a power adapter with the USB Type-C cable to charge Tracker. Tur ning Tracker on or off To t u r n Tracker on, brief press the POWER button. The status light will turn b lue. To t u r n Tracker off, press the POWER button for 5 seconds. Using the dongle and pairing Tracker The dongle needs to be connected to the headset for Tracker to be tracked. Connect the dongle to your headset 1. Connect the dongle to headset USB-C port. 2. From your VR headset, turn on Wi-Fi, then go to Settings > inputs > Motion Trackers, pair new device. 3. Press the Tracker POWER button for 2 seconds. The status light will blink blue. 4. Wait for the status light to turn green or blink red/green. This means pairing is successful. Status light Charging Solid amber Fully charged Back to the previous status Pairing mode Blinking blue Battery low Blinking red Connected Solid green © 2023 HTC Corporation. All Rights Reserved. HTC and the HTC logo are trademarks of HTC Corporation (or HTC). HTC Confidential for Certification HTC Confidential for Certification HTC Confidential for Certification HTC Confidential for Certification HTC Confidential for Certification HTC Confidential for Certification

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 26, 2023 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: NM8 Grantee FRN ：0018941682 HTC Corporation (“the applicant”) certifies that, as of the date of the filing of the application, HTC America, Inc. is our designated U.S. agent for service of process for the above referenced Grantee Code. HTC Corporation accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the designated agent information changes. HTC America, Inc. accepts the designation by the applicant as the U.S. agent to accept service of process includes, but is not limited to, delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial process related to Commission proceedings. Designated U.S. Agent Information: Company Name: HTC America, Inc. Address: 308 Occidental Ave S. #300 Seattle, Seattle, WA 98104, USA Contact Person: Marc Metis Tel.: 425-679-5318 Email: [email protected] Sincerely, Applicant U.S. Agent HTC Corporation HTC America, Inc. Sylvia Shen Marc Metis Signature: Signature: DocuSign Envelope ID: F085AE74-AE1C-4484-B15B-F4D191F1D082

Date: 2023/4/25 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: NM82QBP100 Product name: Tracker To whom it may concern: I, Sylvia Shen, the undersigned, hereby authorize the person named below to act on my behalf as authorized agent and representative for this project. All acts carried out and requests made by this named representative relating to any matter before the FCC, including requests for confidentiality, shall have the same effect as mine. HTC Corporation Address : No. 88, Section 3, Zhongxing Road, Xindian District, New Taipei City 231, Taiwan Name : Jeff.ch Chu e-mail : [email protected] I declare under penalty of perjury that the foregoing is true and correct, and that this Authorization was executed at USA on the date indicated below my signature. Applicant : HTC Corporation Address : No. 88, Section 3, Zhongxing Road, Xindian District, New Taipei City 231, Taiwan Signature : _________________________________ Name and Job Title. : Sylvia Shen, Manager E-mail : [email protected] Tel. : 886289124138

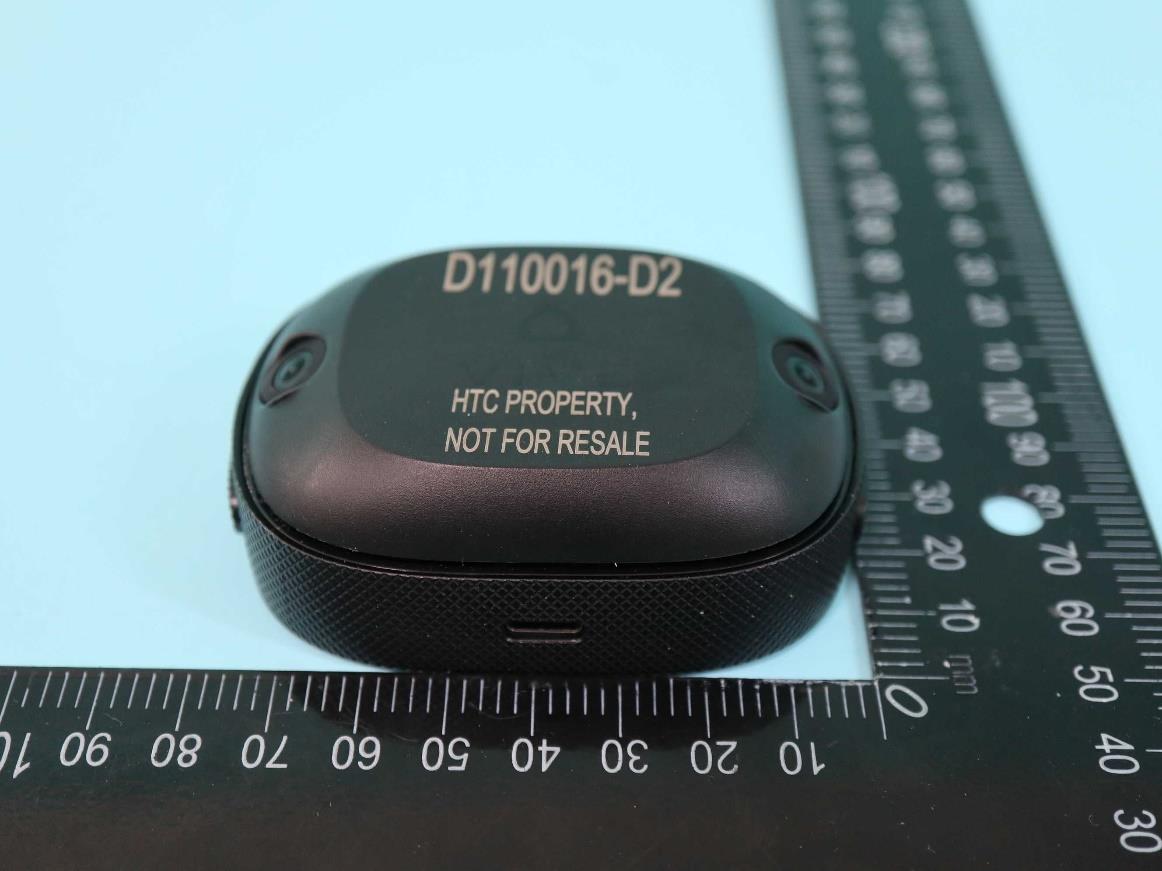

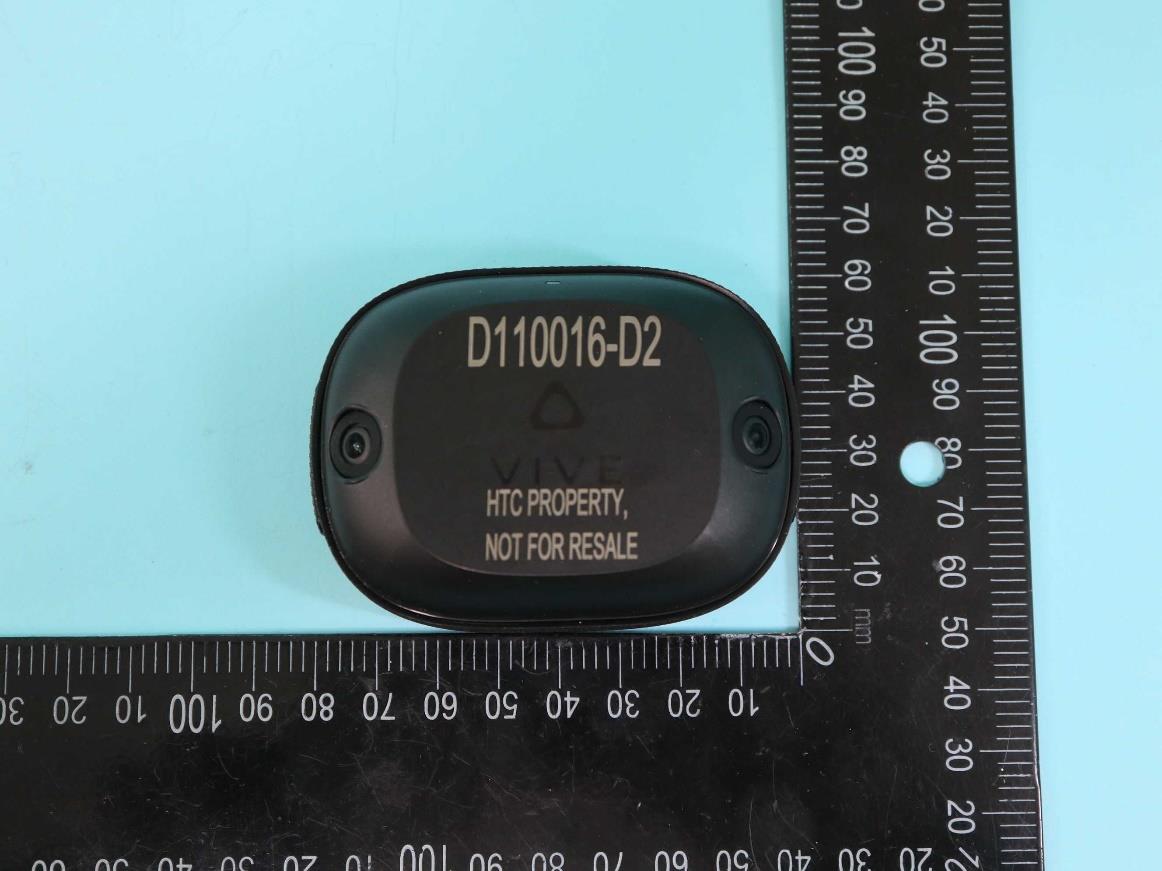

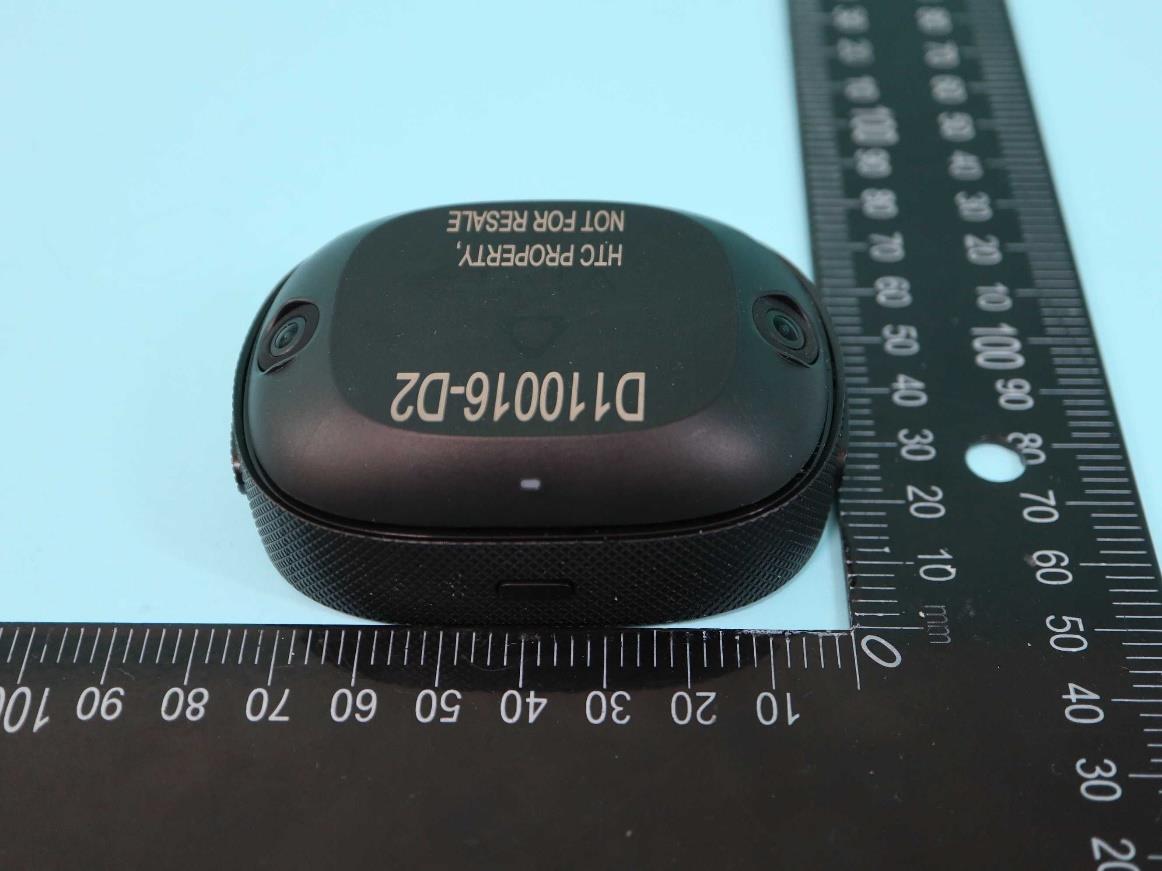

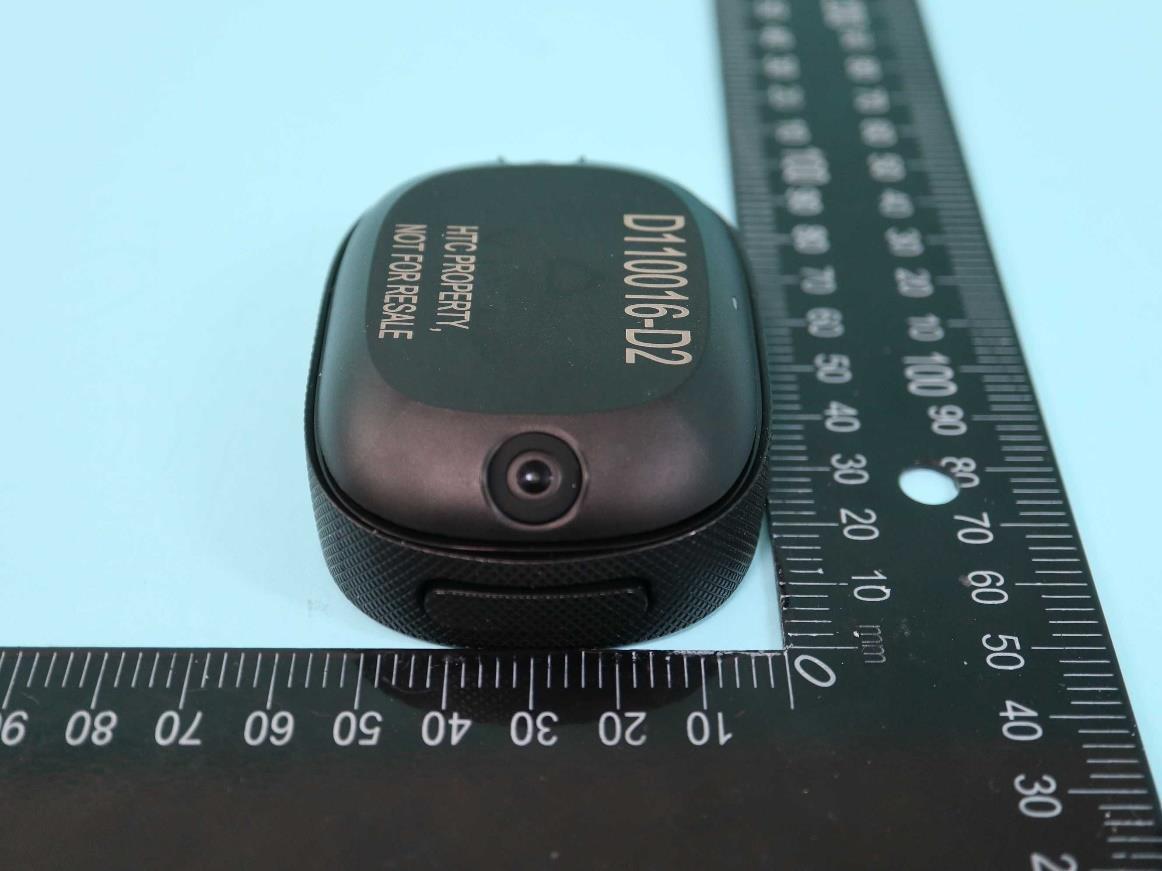

PHOTOGRAPHS OF EUT EP331027 Sporton International Inc. Page No. : 1 of 21 Report Template No.: SE Ver 1.0_EP Issued Date : May 03, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP331027 Sporton International Inc. Page No. : 2 of 21 Report Template No.: SE Ver 1.0_EP Issued Date : May 03, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP331027 Sporton International Inc. Page No. : 3 of 21 Report Template No.: SE Ver 1.0_EP Issued Date : May 03, 2023 Report Version : 01 PHOTOGRAPHS OF EUT EP331027 Sporton International Inc. Page No. : 4 of 21 Report Template No.: SE Ver 1.0_EP Issued Date : May 03, 2023 Report Version : 01

 Tracker (2QBP100) label plan & location - Label : - Location ( Bottom of EUT ):

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2023/4/19 #01_2.4GHz_Proprietary_Front_5mm_Ch19 Communication System: 2.4G Proprietary; Frequency: 2440 MHz;Duty Cycle: 1:1.58 Medium: HSL_2450_230419 Medium parameters used: f = 2440 MHz; σ = 1.79 S/m; ε r = 39.433; ρ = 1000 3 kg/m Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(7.5, 7.5, 7.5) @ 2440 MHz; Calibrated: 2023/3/23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1794; Calibrated: 2023/2/1 - Phantom: SAM_Left; Type: QD OOO P40 CB; Serial: TP-1477 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (101x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.154 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.930 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.208 W/kg SAR(1 g) = 0.101 W/kg; SAR(10 g) = 0.047 W/kg Maximum value of SAR (measured) = 0.162 W/kg 0 dB = 0.162 W/kg = -7.90 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2023/4/19 #02_WLAN5GHz_802.11a 6Mbps_Front_5mm_Ch56 Communication System: 802.11a; Frequency: 5280 MHz;Duty Cycle: 1:1.16 Medium: HSL_5G_230419 Medium parameters used: f = 5280 MHz; σ = 4.806 S/m; ε r = 36.738; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(5.34, 5.34, 5.34) @ 5280 MHz; Calibrated: 2023/3/23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1794; Calibrated: 2023/2/1 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (111x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.12 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 17.37 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.97 W/kg SAR(1 g) = 0.496 W/kg; SAR(10 g) = 0.161 W/kg Maximum value of SAR (measured) = 1.19 W/kg 0 dB = 1.19 W/kg = 0.76 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2023/4/19 #03_WLAN5GHz_802.11a 6Mbps_Front_5mm_Ch116 Communication System:802.11a; Frequency: 5580 MHz;Duty Cycle: 1:1.16 Medium: HSL_5G_230419 Medium parameters used: f = 5580 MHz; σ = 5.115 S/m; ε r = 36.296; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(4.78, 4.78, 4.78) @ 5580 MHz; Calibrated: 2023/3/23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1794; Calibrated: 2023/2/1 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (111x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 1.00 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 15.67 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 1.88 W/kg SAR(1 g) = 0.431 W/kg; SAR(10 g) = 0.136 W/kg Maximum value of SAR (measured) = 1.01 W/kg 0 dB = 1.01 W/kg = 0.04 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2023/4/19 #04_WLAN5GHz_802.11a 6Mbps_Front_5mm_Ch149 Communication System: 802.11a ; Frequency: 5745 MHz;Duty Cycle: 1:1.16 Medium: HSL_5G_230419 Medium parameters used : f = 5745 MHz; σ = 5.307 S/m; ε r = 36.076; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(5.02, 5.02, 5.02) @ 5745 MHz; Calibrated: 2023/3/23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1794; Calibrated: 2023/2/1 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (111x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.926 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 14.58 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 1.77 W/kg SAR(1 g) = 0.379 W/kg; SAR(10 g) = 0.116 W/kg Maximum value of SAR (measured) = 0.922 W/kg 0 dB = 0.922 W/kg = -0.35 dBW/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2023/4/19 System Check_Head_2450MHz DUT: D2450V2-929 Communication System: CW ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_230419 Medium parameters used : f = 2450 MHz; σ = 1.799 S/m; ε r = 39.399; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(7.5, 7.5, 7.5) @ 2450 MHz; Calibrated: 2023/3/23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1794; Calibrated: 2023/2/1 - Phantom: SAM_Left; Type: QD OOO P40 CB; Serial: TP-1477 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.5 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 115.7 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 25.5 W/kg SAR(1 g) = 13.2 W/kg; SAR(10 g) = 6.27 W/kg Maximum value of SAR (measured) = 21.4 W/kg 0 dB = 21.4 W/kg = 13.30 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2023/4/19 System Check_Head_5250MHz DUT: D5GHzV2-1006-5250 Communication System: CW; Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL_5G_230419 Medium parameters used : f = 5250 MHz; σ = 4.768 S/m; ε r = 36.764; ρ = 1000 3 kg/m Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(5.34, 5.34, 5.34) @ 5250 MHz; Calibrated: 2023/3/23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1794; Calibrated: 2023/2/1 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 9.05 W/kg Pin=50mW/Zoom Scan (9x9x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 43.98 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 16.7 W/kg SAR(1 g) = 4.13 W/kg; SAR(10 g) = 1.16 W/kg Maximum value of SAR (measured) = 10.2 W/kg 0 dB = 10.2 W/kg = 10.09 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2023/4/19 System Check_Head_5600MHz DUT: D5GHzV2-1006-5600 Communication System: CW ; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: HSL_5G_230419 Medium parameters used: f = 5600 MHz; σ = 5.143 S/m; ε r = 36.253; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(4.78, 4.78, 4.78) @ 5600 MHz; Calibrated: 2023/3/23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1794; Calibrated: 2023/2/1 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 11.8 W/kg Pin=50mW/Zoom Scan (9x9x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 45.58 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 20.1 W/kg SAR(1 g) = 4.55 W/kg; SAR(10 g) = 1.26 W/kg Maximum value of SAR (measured) = 11.8 W/kg 0 dB = 11.8 W/kg = 10.72 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2023/4/19 System Check_Head_5750MHz DUT: D5GHzV2-1006-5750 Communication System: CW ; Frequency: 5750 MHz;Duty Cycle: 1:1 Medium: HSL_5G_230419 Medium parameters used: f = 5750 MHz; σ = 5.311 S/m; ε r = 36.07; ρ = 1000 3 kg/m Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(5.02, 5.02, 5.02) @ 5750 MHz; Calibrated: 2023/3/23 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1794; Calibrated: 2023/2/1 - Phantom: SAM_Right; Type: QD000P40CD; Serial: TP:1683 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 9.72 W/kg Pin=50mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 38.57 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 4.14 W/kg; SAR(10 g) = 1.12 W/kg Maximum value of SAR (measured) = 10.6 W/kg 0 dB = 10.6 W/kg = 10.25 dBW/kg

TEL : 886-3-327-3456 Page 1 of 25 FAX : 886-3-328-4978 Issued Date : May 03, 2023 Template version: 211220 FCC SAR TEST REPORT Report No. : FA331027 FCC SAR TEST REPORT FCC ID : NM82QBP100 Equipment : Tracker Brand Name : VIVE Model Name : 2QBP100 Applicant : HTC America, Inc. No. 88, Section 3, Zhongxing Road, Xindian District, New Taipei City 231, Taiwan Manufacturer : HTC Corporation No.88, Section 3, Zhongxing Rd., Xindian Dist, New Taipei City 231 Taiwan Standard : FCC 47 CFR Part 2 (2.1093) The product was received on Apr. 17, 2023 and testing was started from Apr. 19, 2023 and completed on Apr. 19, 2023. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample provide by manufacturer and the test data has been evaluated in accordance with the test procedures given in 47 CFR Part 2.1093 and FCC KDB and has been pass the FCC requirement. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Laboratory, the test report shall not be reproduced except in full. Sporton International Inc. Wensan Laboratory No.58, Aly. 75, Ln. 564, Wenhua 3rd, Rd., Guishan Dist., Taoyuan City 333010, Taiwan Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 25 FAX : 886-3-328-4978 Issued Date : May 03, 2023 Template version: 211220 FCC SAR TEST REPORT Report No. : FA331027 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 4 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 4. RF Exposure Limits....................................................................................................................................................... 6 4.1 Uncontrolled Environment ...................................................................................................................................... 6 4.2 Controlled Environment .......................................................................................................................................... 6 5. Specific Absorption Rate (SAR) ................................................................................................................................... 7 5.1 Introduction ............................................................................................................................................................ 7 5.2 SAR Definition ........................................................................................................................................................ 7 6. System Description and Setup .................................................................................................................................... 8 6.1 Test Site Location ................................................................................................................................................... 8 6.2 E-Field Probe ......................................................................................................................................................... 9 6.3 Data Acquisition Electronics (DAE) ........................................................................................................................ 9 6.4 Phantom ................................................................................................................................................................10 6.5 Device Holder........................................................................................................................................................ 11 7. Measurement Procedures ...........................................................................................................................................12 7.1 Spatial Peak SAR Evaluation ................................................................................................................................12 7.2 Power Reference Measurement............................................................................................................................13 7.3 Area Scan .............................................................................................................................................................13 7.4 Zoom Scan ............................................................................................................................................................14 7.5 Volume Scan Procedures ......................................................................................................................................14 7.6 Power Drift Monitoring ...........................................................................................................................................14 8. Test Equipment List .....................................................................................................................................................15 9. System Verification ......................................................................................................................................................16 9.1 Tissue Verification .................................................................................................................................................16 9.2 System Performance Check Results .....................................................................................................................16 10. Wi…

Text truncated - open the document above for the full version.

Antenna Specification Page 1 of 11 宏達國際電子股份有限公司 HTC Corporation Antenna Specification Model Name : 2QBP100 Date: 2023 / 04 /26 Project Manager: Jeff.CF Chu Author Alvin_yu Countersign: Alvin_yu / CY Lin Antenna Specification Page 2 of 11 宏達國際電子股份有限公司 HTC Corporation CONTENTS Antenna manufacturer/Antenna Type........................ P.3 Antenna Test Results ................................. P.4 Antenna Location ................................. P.11 Antenna Specification Page 3 of 11 宏達國際電子股份有限公司 HTC Corporation Antenna manufacturer /Antenna Type Antenna manufacturer: AWAN AWAN Address: Rm. B2-F, No. 207-1, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231 , Taiwan (R.O.C.) Antenna type: PIFA Antenna Specification Page 4 of 11 宏達國際電子股份有限公司 HTC Corporation Antenna Test Results 1. Passive Gains - WiFi 5GHz Freq. (MHz) 5180 5500 5805 Peak Gain (dBi) 2.69 2.72 2.87 - Proprietary 2.4GHz Freq. (MHz) 2412 2442 2472 Peak Gain (dBi) 0.48 0.26 -0.13 Antenna Specification Page 5 of 11 宏達國際電子股份有限公司 HTC Corporation 2. 2D Antenna Pattern - WiFi 5GHz 5180 MHz Antenna Specification Page 6 of 11 宏達國際電子股份有限公司 HTC Corporation 5500 MHz Antenna Specification Page 7 of 11 宏達國際電子股份有限公司 HTC Corporation 5805 MHz Antenna Specification Page 8 of 11 宏達國際電子股份有限公司 HTC Corporation - Proprietary 2.4GHz 2412 MHz Antenna Specification Page 9 of 11 宏達國際電子股份有限公司 HTC Corporation 2442 MHz Antenna Specification Page 10 of 11 宏達國際電子股份有限公司 HTC Corporation 2472 MHz Antenna Specification Page 11 of 11 宏達國際電子股份有限公司 HTC Corporation 3. Antenna Location

FCC Radio Test Report Report No. :FR331027AC TEL : 886-3-3273456 Page Number : 1 of 29 FAX : 886-3-3270973 Issued Date : May 03, 2023 Report Template No.: HE1-C8 Ver4.4 Report Version : 01 FCC ID: NM82QBP100 FCC Radio Test Report FCC ID : NM82QBP100 Equipment : Tracker Brand Name : VIVE Model Name : 2QBP100 Applicant : HTC Corporation No. 88, Section 3, Zhongxing Road, Xindian District, New Taipei City 231, Taiwan Manufacturer : HTC Corporation No.88, Section 3, Zhongxing Rd., Xindian Dist, New Taipei City 231 Taiwan Standard : 47 CFR FCC Part 15.247 The product was received on Mar. 16, 2023, and testing was started from 31. Mar, 2023 and completed on Apr. 21, 2023. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC Radio Test Report Report No. :FR331027AC TEL : 886-3-3273456 Page Number : 2 of 29 FAX : 886-3-3270973 Issued Date : May 03, 2023 Report Template No.: HE1-C8 Ver4.4 Report Version : 01 FCC ID: NM82QBP100 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ................................................................................................................…

Text truncated - open the document above for the full version.
