NM80P4E200Smartphone

Your HTC Phone User guide Contents Unboxing HTC Phone7 Back cover8 micro SIM card9 Storage card10 Battery11 Switching the power on or off12 Want some quick guidance on your phone?13 Setting up your phone Setting up your new phone for the first time14 Transferring content from an Android phone15 Transferring content from an iPhone16 Transferring contacts from your old phone through Bluetooth16 Getting contacts and other content into HTC Phone17 Transferring photos, videos, and music between your phone and computer17 Home screen18 Getting to know your settings18 Updating your phone's software19 Your first week with your new phone About your phone20 Basics22 Home screen feeds30 Notifications32 Working with text34 Battery38 Camera and Gallery Camera42 Gallery47 Personalizing Making HTC Phone truly yours57 Changing your wallpaper57 Adding a widget to your Home screen57 Adding apps and other shortcuts on your Home screen59 Rearranging or removing widgets and icons on your Home screen59 Personalizing the launch bar60 Grouping apps into a folder60 2Contents Adding a Home screen panel61 Changing your ringtone, notifications, and sounds62 Rearranging application tabs62 Customizing the lock screen style62 Hiding missed calls and messages on the lock screen63 Securing HTC Phone with a personal touch63 Phone calls Making a call with Smart dial64 Dialing an extension number64 Returning a missed call65 Using Speed dial65 Calling a phone number in a text message65 Calling a phone number in an email66 Calling a phone number in a Calendar event66 Making an emergency call66 Receiving calls66 What can I do during a call?67 Setting up a conference call68 Checking calls in the Call History69 Changing ringtone settings70 Home dialing70 Messages Sending a text message (SMS)72 Sending a multimedia message (MMS)72 Sending a group message74 Resuming a draft message75 Replying to a message75 Saving a text message in the Tasks app76 Forwarding a message76 Viewing and saving an attachment from a multimedia message76 Moving messages to the secure box77 Blocking unwanted messages77 WAP push messages78 Copying a text message to your SIM card78 Deleting messages and conversations78 Search and web browser Searching HTC Phone and the Web80 Getting instant information with Google Now81 Browsing the Web82 Bookmarking a webpage85 Using your browsing history86 Clearing your browsing history87 Entertainment Music88 Wireless display92 3Contents Storage Phone storage94 Dropbox integration96 Sync, backup, and reset Online sync102 Backup104 HTC Sync Manager108 Reset114 People Your contacts list116 Setting up your profile117 Adding a new contact118 Editing a contact’s information119 Getting in touch with a contact119 Importing or copying contacts119 Merging contact information120 Sending contact information121 Contact groups121 Email Mail123 Travel and maps Location settings128 HTC Car128 Google Play and other apps Getting apps131 Essential apps133 Fun apps137 Productivity apps140 Internet connections Data connection144 Managing your data usage145 Wi‑Fi146 Connecting to a virtual private network (VPN)148 Using HTC Phone as a wireless router150 Sharing your phone's Internet connection by USB tethering151 Connecting to the Internet through a computer152 Wi‑Fi printing152 Wireless sharing Connecting a Bluetooth headset154 Unpairing from a Bluetooth device155 4Contents Where sent information is saved155 Receiving files using Bluetooth156 Settings and security Turning Airplane mode on or off157 Turning automatic screen rotation off157 Adjusting the time before the screen turns off158 Adjusting the screen brightness manually158 Playing a sound when selecting onscreen items158 Changing the display language158 Accessibility settings158 Magnifying your phone's screen159 Working with certificates159 Protecting your SIM card with a PIN160 Protecting HTC Phone with a screen lock160 Checking your phone's HTC Sense version161 Trademarks and copyrights Index 5Contents Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 6Conventions used in this guide Unboxing HTC Phone 1.BACK 2.USB connector 3.HOME 4.Dual speakers 5.VOLUME 6.Front camera 7.3.5mm headset jack 8.Notification LED 9.POWER 10.Proximity sensor §You need an LTE plan to use your operator's 4G/LTE network for voice calls and data services. Check with your operator for details. §If you want to use a screen protector, please don't cover and block the proximity sensor. Purchase a screen protector designed for HTC Phone. 7Unboxing Back cover Removing the back cover 1.With one hand, securely hold HTC Phone with the bottom edge facing up and the back facing you. 2.With your other hand, press your thumb on the back cover. From the notch (where the USB port is located), use your finger to open a small gap along the bottom edge. Then continue to lift open from the bottom edge. 3.Slowly detach the cover from the phone to remove it. Replacing the back cover To avoid damaging the VOLUME buttons, don't press the buttons while replacing the back cover. 1.Align the back cover onto the top part of HTC Phone. 2.Press the sides and the bottom part of the back cover against HTC Phone to lock the cover into place. You will hear a click when the back cover is locked in place. 8Unboxing micro SIM card HTC Phone uses a micro SIM card.…

Text truncated - open the document above for the full version.

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. Safety and regulatory guide 3 This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, TC U250  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s).  HTC, Model BM65100  Take extra precautions  Keep the battery or device dry and away from water or any liquid as it may cause a short circuit.  Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor.  Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area 4 Safety and regulatory guide immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical Safety and regulatory guide 5 plants, or where blasting operations are in progress. Road safety Full attention must be given to driving at all times in order …

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 1F, 6-3 Baoqiang Road, HTC Corporation Xindian District, New Taipei City, Taiwan 231 Date: September 9, 2013 Power of Attorney To whom it may concern, Please be notified that I, Lucy Shih, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Yvonne Lin in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Yvonne Lin in HTC Corporation on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM80P4E200 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Lucy Shih HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 September 17, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HTC Corporation, hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Smartphone, NM80P4E200 We affirm that between SIEMIC and HTC Corporation, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ____________________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: +886 3 318 3232 #1857 宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 1F, 6-3 Baoqiang Road, HTC Corporation Xindian District, New Taipei City, Taiwan 231

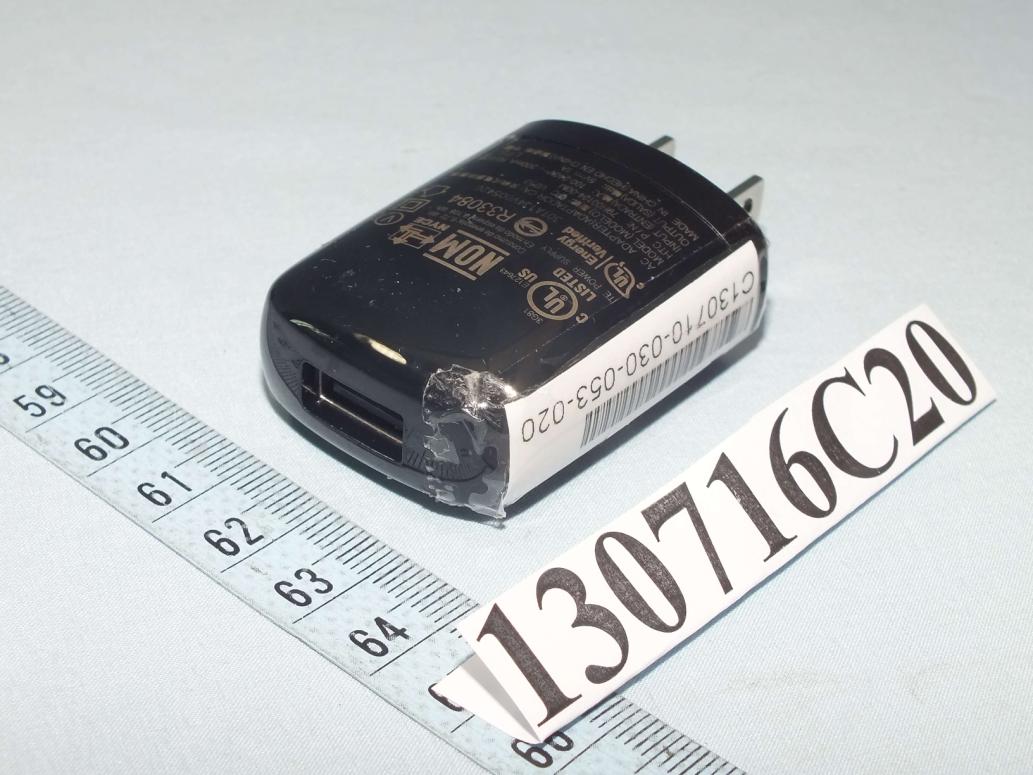

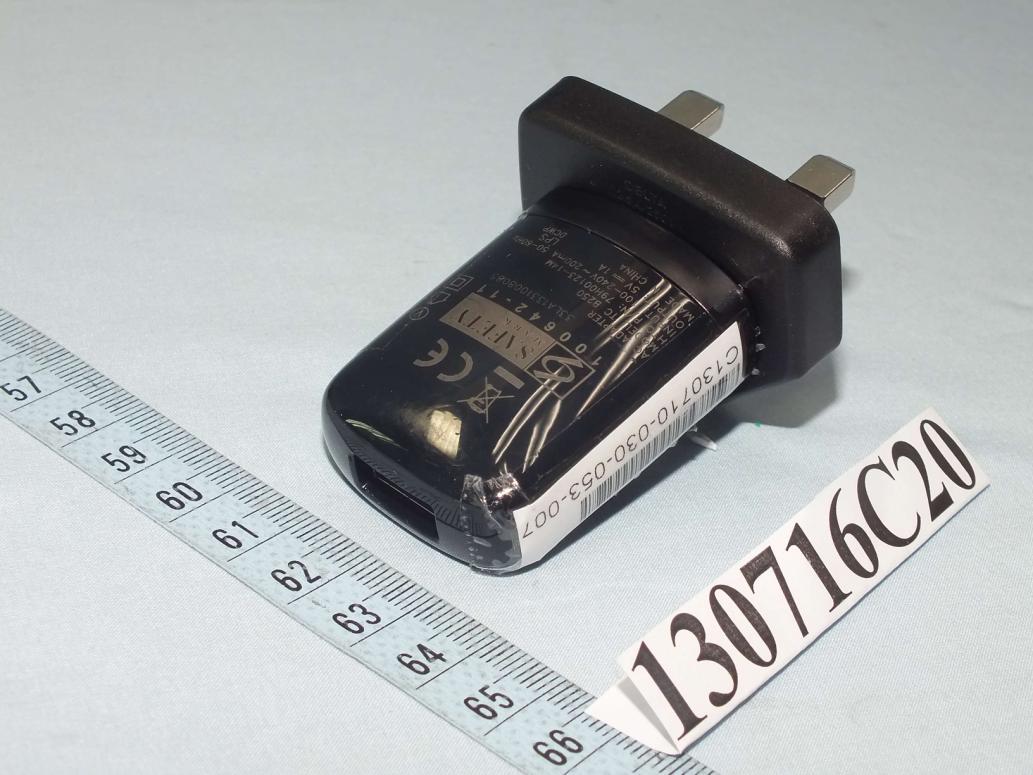

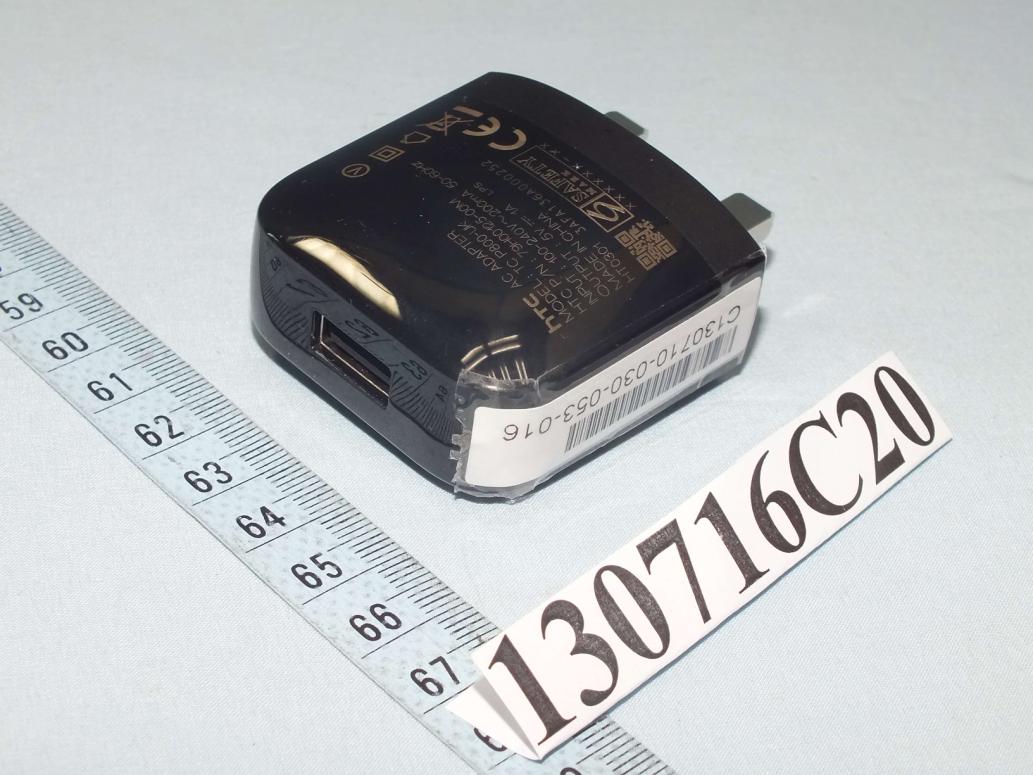

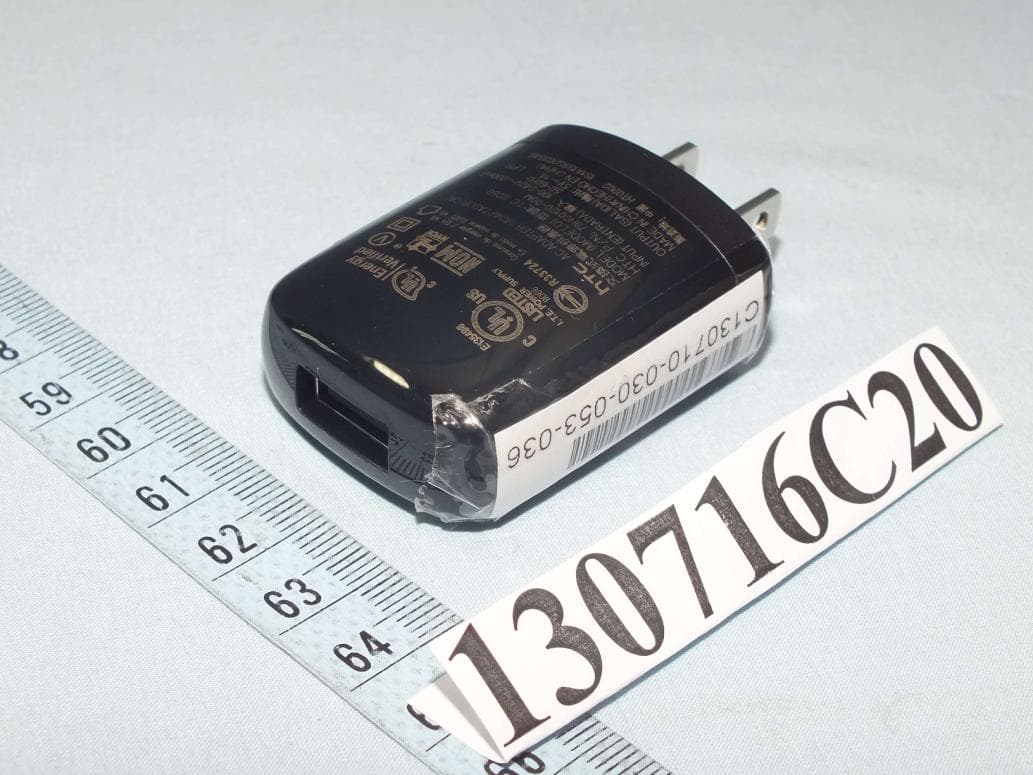

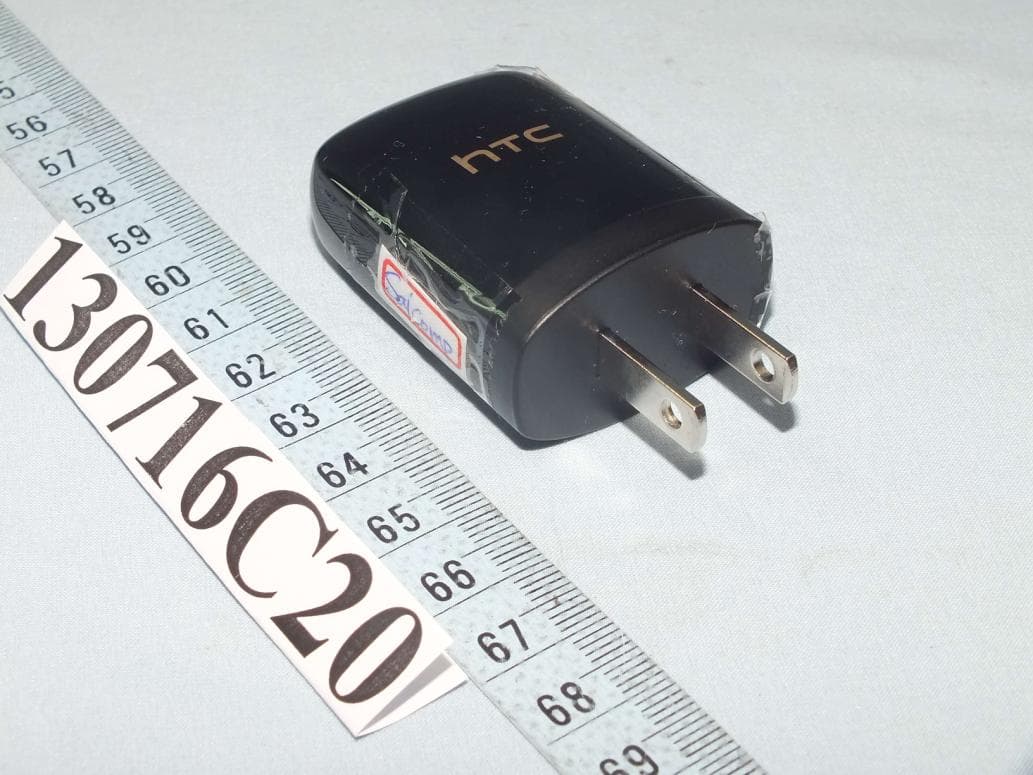

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter 1 Salcomp TC X250(X=A,E,U) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 2 Salcomp TC P800-UK I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 3 Phihong TC X250(X=A,E,U) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 4 Delta TC X250(X=A,E,U) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 5 Delta TC B250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Battery TWS BM65100 Rating: 3.8Vdc, 2100mAh Type: Li-ion Earphone 1 Merry HS S250 1.1m non-shielded cable without core Earphone 2 Cotron HS S250 1.1m non-shielded cable without core USB Cable 1 Foxlink DC M600 1m non-shielded cable without core USB Cable 2 Foxconn DC M600 1m non-shielded cable without core USB Cable 3 Coxoc DC M600 1m non-shielded cable without core Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

0P4E200

Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 51 Report No. : SA130716C20 Issued Date : Aug. 26, 2013 Revision : R01 FCC SAR Test Report Report No. : SA130716C20 Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan City, Taiwan Product : Smartphone FCC ID : NM80P4E200 Brand : HTC Model No. : 0P4E200 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 KDB 248227 D01 v01r02 / KDB 447498 D01 v05r01 / KDB 648474 D04 v01r01 KDB 941225 D01 v02 / KDB 941225 D02 v02r02 / KDB 941225 D03 v01 KDB 941225 D05 v02r02 / KDB 941225 D06 v01r01 Date of Testing : Aug. 16, 2013 ~ Aug. 24, 2013 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 51 Report No. : SA130716C20 Issued Date : Aug. 26, 2013 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.5 SAR Averaged…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Aug. 26, 2013 Report No. : SA130716C20 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/20 System Check_H750_130820 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750_0820 Medium parameters used: f = 750 MHz; σ = 0.894 S/m; ε r = 40.229; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9.39, 9.39, 9.39); Calibrated: 2013/06/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.67 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.658 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.13 W/kg SAR(1 g) = 2.12 W/kg; SAR(10 g) = 1.41 W/kg Maximum value of SAR (measured) = 2.67 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/16 System Check_H835_130816 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d121 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0816 Medium parameters used: f = 835 MHz; σ = 0.916 S/m; ε r = 42.756; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.52, 10.52, 10.52); Calibrated: 2013/02/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn360; Calibrated: 2013/01/30 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.85 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.515 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.38 W/kg SAR(1 g) = 2.23 W/kg; SAR(10 g) = 1.45 W/kg Maximum value of SAR (measured) = 2.85 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/16 System Check_H1750_130816 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1023 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H1750_0816 Medium parameters used: f = 1750 MHz; σ = 1.348 S/m; ε r = 38.858; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.89, 8.89, 8.89); Calibrated: 2013/02/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn360; Calibrated: 2013/01/30 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 12.3 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 95.628 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 15.1 W/kg SAR(1 g) = 8.32 W/kg; SAR(10 g) = 4.4 W/kg Maximum value of SAR (measured) = 11.8 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/16 System Check_H1900_130816 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0816 Medium parameters used: f = 1900 MHz; σ = 1.406 S/m; ε r = 39.596; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.7, 8.7, 8.7); Calibrated: 2013/02/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn360; Calibrated: 2013/01/30 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.8 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.4 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 17.9 W/kg SAR(1 g) = 9.8 W/kg; SAR(10 g) = 5.13 W/kg Maximum value of SAR (measured) = 13.8 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/23 System Check_H2450_130823 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450_0823 Medium parameters used: f = 2450 MHz; σ = 1.887 S/m; ε r = 38.907; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(7.47, 7.47, 7.47); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2013/04/24 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.1 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.8 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 27.6 W/kg SAR(1 g) = 12.9 W/kg; SAR(10 g) = 5.86 W/kg Maximum value of SAR (measured) = 20.0 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/20 System Check_H2600_130820 DUT: Dipole 2600 MHz; Type: D2600V2; SN: 1020 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H2600_0820 Medium parameters used: f = 2600 MHz; σ = 2.049 S/m; ε r = 37.739; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temp…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Aug. 26, 2013 Report No. : SA130716C20 Revision : R01 Appendix B. SAR Plots of SAR Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination, and measured SAR > 1.5 W/kg are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/16 P01 GSM850_GPRS11_Right Cheek_Ch128 DUT: 130722C07 Communication System: GPRS11; Frequency: 824.2 MHz;Duty Cycle: 1:2.67 Medium: H835_0816 Medium parameters used: f = 824.2 MHz; σ = 0.905 S/m; ε r = 42.893; ρ = 1000 kg/m 3 Ambient Temperature：21.6 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.52, 10.52, 10.52); Calibrated: 2013/02/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn360; Calibrated: 2013/01/30 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) - Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.120 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.956 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.121 W/kg SAR(1 g) = 0.089 W/kg; SAR(10 g) = 0.062 W/kg Maximum value of SAR (measured) = 0.107 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/08/16 P02 GSM1900_GPRS12_Left Cheek_Ch810 DUT: 130722C07 Communication System: GPRS12; Frequency: 1909.8 MHz;Duty Cycle: 1:2 Medium: H1900_0816 Medium parameters used: f = 1910 MHz; σ = 1.419 S/m; ε r = 39.565; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.7, 8.7, 8.7); Calibrated: 2013/02/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn360; Calibrated: 2013/01/30 - Phantom: SAM P…

Text truncated - open the document above for the full version.
