NM80P6B170Smartphone

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. Safety and regulatory guide 3 This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, TC P900-US  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts or circuits, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard.  Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. 4 Safety and regulatory guide Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Using Your Phone While Flying Use of cell phones may be restricted on aircraft. Please check with your airline to see what restrictions may apply. You may be required to turn off your phone at certain times. Use of your phone’s cellular connection and use of your phone for voice communications may be prohibited by law or airline policy. For your safety and the safety of other passengers, always follow crew instructions regarding the use of your phone. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Road safety Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving (even with a hands free kit) causes distraction and can lead to an Safety and regulatory guide 5 accident. You must comply with local …

Text truncated - open the document above for the full version.

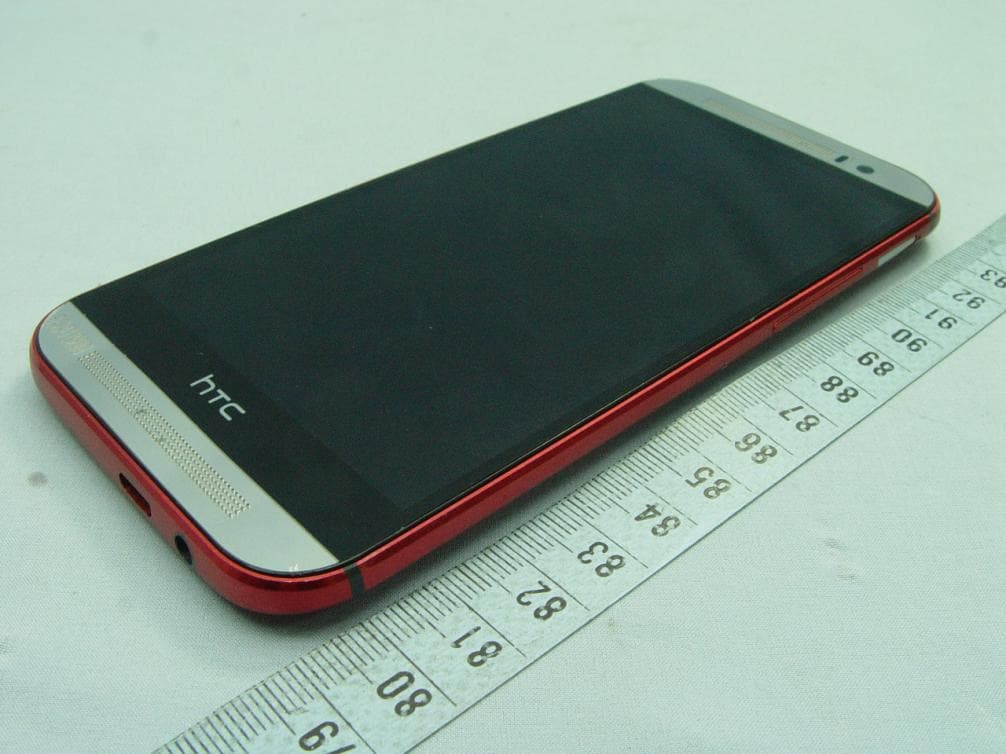

Your HTC Phone User guide HTC CONFIDENTIAL Only for certification review Unboxing HTC Phone Front panel 1.Dual speakers 2.nano SIM card tray with eject hole 3.USB connector 4.3.5mm headset jack 5.VOLUME 6.microSD ™ card tray with eject hole 7.Proximity sensor 8.Front camera 9.POWER and IR SENSOR 10.Notification LED §HTC Phone is available in either a 3G-only or 3G-and-LTE version, depending on what's supported by the phone you purchased and your mobile operator. You need an LTE plan to use your operator's 4G/LTE network for voice calls and data services. Check with your operator for details. §If you want to use a case, please don't cover and block the proximity sensor. Purchase a case designed for HTC Phone. 7Unboxing HTC CONFIDENTIAL Only for certification review Back panel 1. Camera 2.LED flash nano SIM card HTC Phone uses a nano SIM card. The nano SIM card contains your phone number, service details, and memory for storing phonebook contacts and/or text messages. Inserting the nano SIM card Use a standard nano SIM card only. Inserting a modified card may cause the card to not fit properly or damage the card slot. 1.Hold the phone face up. 2.Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject hole next to the nano SIM card tray slot. 3.Push the tip all the way into the hole until the nano SIM card tray ejects. 8Unboxing HTC CONFIDENTIAL Only for certification review 4.Pull the nano SIM card tray out, and place the nano SIM card (contacts facing down) into the tray. 5.Insert the nano SIM card tray back into the slot. Removing the nano SIM card Make sure to switch off HTC Phone before removing your nano SIM card. 1.Hold the phone face up and the top panel facing you. 2.Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject hole next to the nano SIM card tray slot. 3.Push the tip all the way into the hole until the nano SIM card tray ejects. 4.Pull the nano SIM card tray out, and remove the nano SIM card. After removing the nano SIM card, make sure that you insert the empty nano SIM card tray back into the slot. 9Unboxing HTC CONFIDENTIAL Only for certification review Storage card Use a storage card to store your photos, videos, and music. Inserting the microSD card 1.Hold the phone face up. 2.Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject hole next to the microSD card tray slot. 3.Push the tip all the way into the hole until the microSD card tray ejects. 4.Pull the microSD card tray out, and place the microSD card (contacts facing down) into the tray. 5.Insert the microSD card tray back into the slot. Unmounting the storage card When you need to remove the storage card while HTC Phone is on, unmount the storage card first to prevent corrupting or damaging the files in the storage card. 1.Go to Settings, and then tap Storage. 2.Tap Unmount SD card. 10Unboxing HTC CONFIDENTIAL Only for certification review Removing the microSD card Make sure to unmount your microSD card before removing it. 1.Hold the phone face up and the top panel facing you. 2.Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject hole next to the microSD card tray slot. 3.Push the tip all the way into the hole until the microSD card tray ejects. 4.Pull the microSD card tray out, and remove the microSD card. After removing the microSD card, make sure that you insert the empty microSD card tray back into the slot. 11Unboxing HTC CONFIDENTIAL Only for certification review Charging the battery Before you turn on and start using HTC Phone, it is recommended that you charge the battery. Use only the adapter and the USB cable that came with HTC Phone to charge the battery. When the battery power is too low, make sure to use the power adapter to charge, not the USB cable connection with your computer. 1.Insert the small end of the USB cable into the USB connector. 2.Insert the other end of the USB cable into the power adapter. 3.Plug in the power adapter to an electrical outlet to start charging the battery. §As a safety precaution, the battery may stop charging to avoid overheating. §When you're using the Internet and charging the battery, HTC Phone may become warmer. This is normal. §To conserve energy, unplug the power adapter from the electrical outlet after you finish charging. Switching the power on or off Switching the power on Press the POWER button until HTC Phone vibrates. When you turn on HTC Phone for the first time, you’ll need to set it up. Switching the power off 1.If the display is off, press the POWER button to turn it back on. If you've set up a lock screen, you need to unlock it. 2.Press and hold the POWER button for a few seconds. 3.Tap Power off on the options menu. 12Unboxing HTC CONFIDENTIAL Only for certification review Want some quick guidance on your phone? Check out the friendly walkthroughs and the FAQs in the Tips & Help app to learn how to use your phone. §When you see a Tips & Help tile in HTC BlinkFeed ™ , just tap the tile to know more about the tip. §To open Tips & Help from the Home screen, tap > Tips & Help. You can then browse by subject matter and topic. Or tap , and then enter what you want to search for. 13Unboxing HTC CONFIDENTIAL Only for certification review Phone setup and transfer Transferring content from an Android phone On your old Android ™ phone, download the HTC Transfer Tool and use it to transfer your content to your new HTC phone. The types of locally stored content on your old phone that the tool can transfer include contacts, messages, calendar events, web bookmarks, music, photos, and videos. Some settings can also be transferred. §You need Android version 2.2 or later to use the HTC Transfer Tool on your old phone. §If your old phone has Android version 2.1 or an earlier version, you need to use Bluetooth ® transfer. For details, see Transferring contacts from your old phone through Bluetooth on page 15. 1.Do one of the following: §If you…

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan Date: February 18, 2014 Power of Attorney To whom it may concern, Please be notified that I, Lucy Shih, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and David Yang in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and David Yang in HTC Corporation on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM80P6B170 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Lucy Shih HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

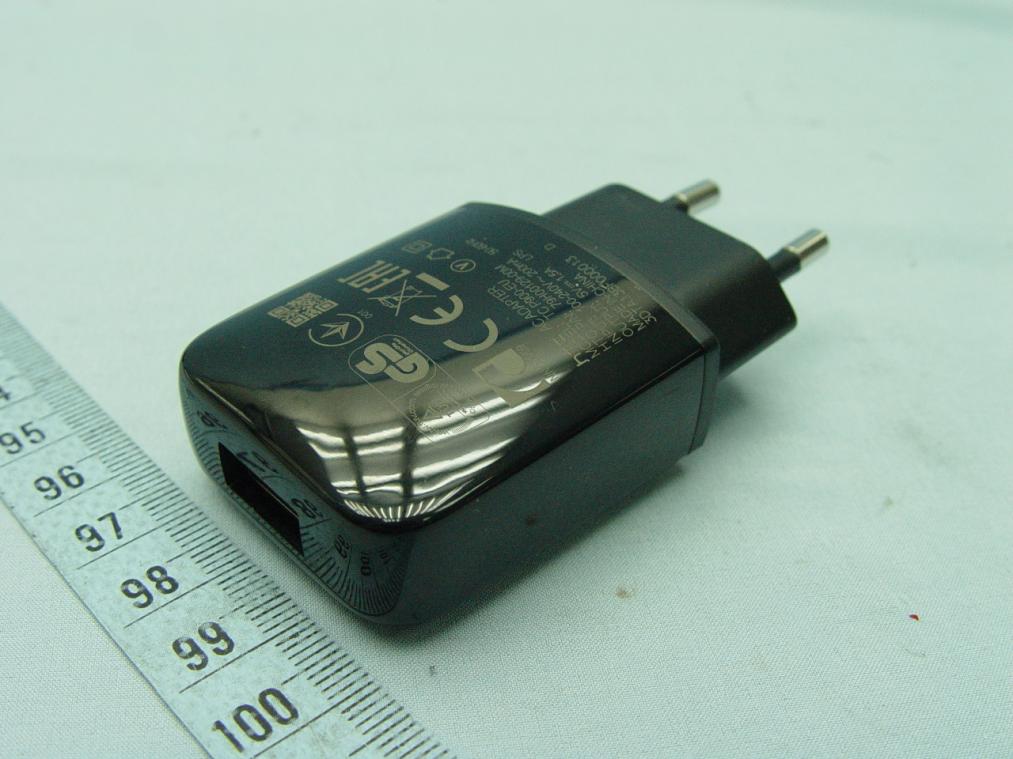

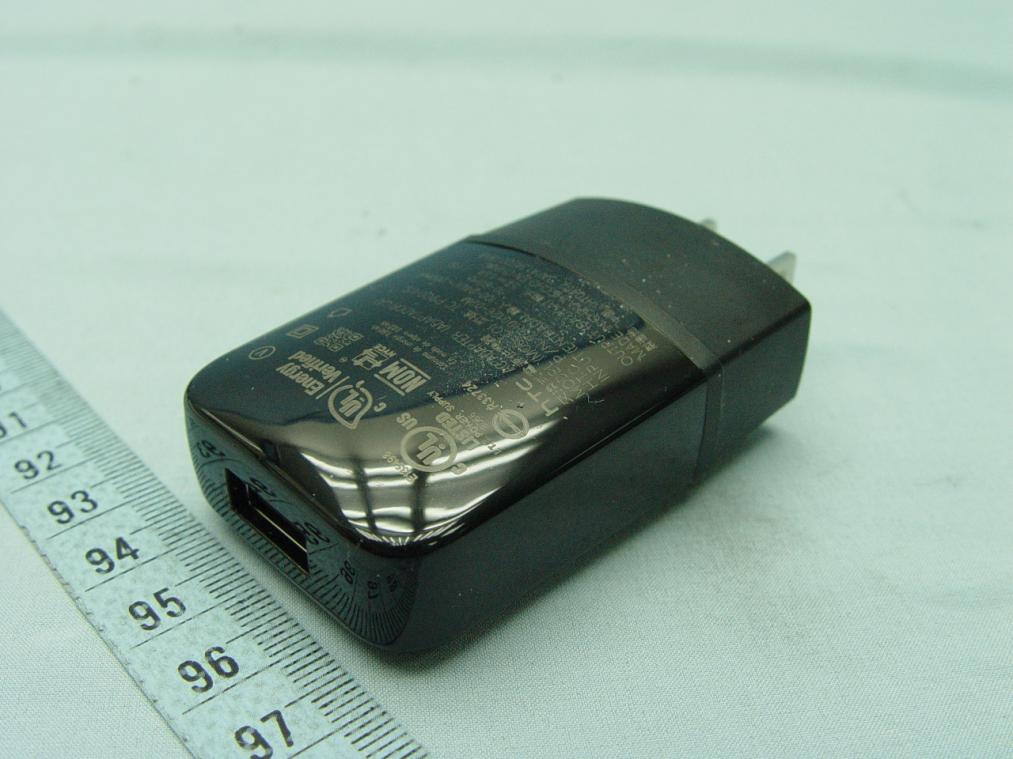

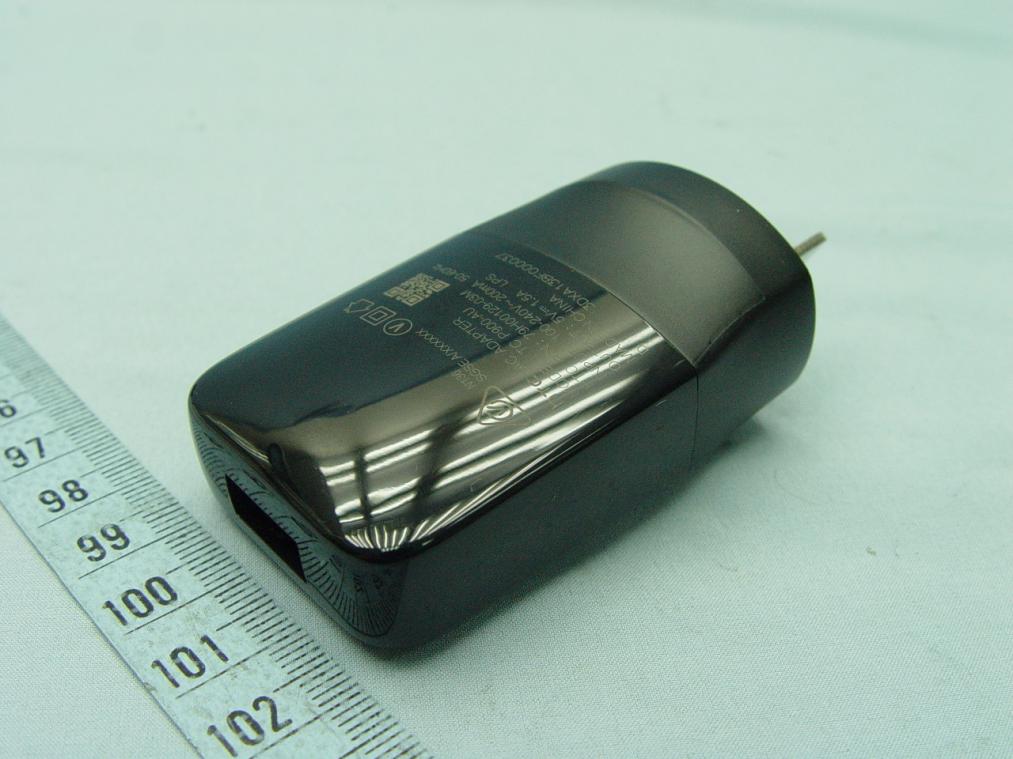

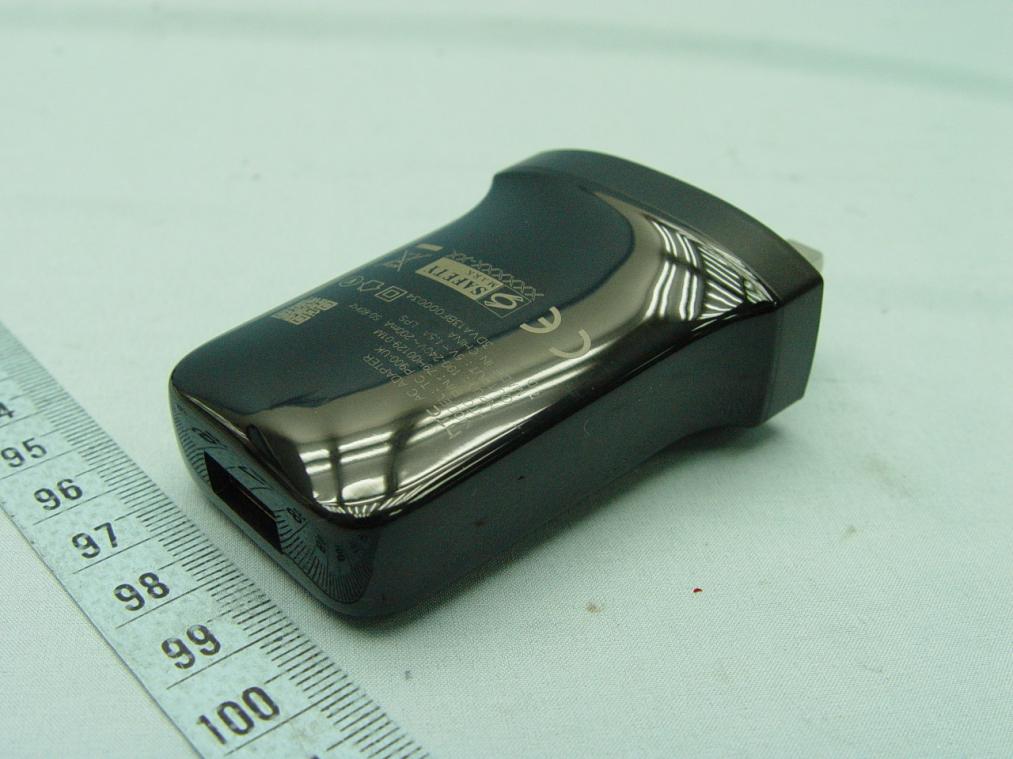

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter 1 Salcomp TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Power Adapter 2 Phihong TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Battery 1 Welltech B0P6B100 Rating: 3.8Vdc, 2600mAh Type: Li-ion Battery 2 Formosa B0P6B100 Rating: 3.8Vdc, 2600mAh Type: Li-ion Earphone 1 Merry MAX-301 1.1m cable Earphone 2 Cotron MAX-301 1.1m cable USB Cable 1 Foxlink DC MSR600 1m cable USB Cable 2 Foxconn DC MSR600 1m cable USB Cable 3 Coxoc DC MSR600 1m cable LCM 1 Sharp LS050T -- LCM 2 LG display LS047T1SC01 -- Photo Camera Sharp LH500WF -- Front Camera 1 LITEON FRAR010152 Front Camera 2 Altek ATA0403_001-DX47-100 -- Page 2 Main Sample Page 3 2 nd Sample Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

Page 16 0DLQ6DPSOH Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 Page 27 Page 28 Page 29 Page 30 Page 31 Page 32 Page 33 Page 34  QG 66DPSOH Page 35 Page 36 Page 37 Page 38 Page 39 Page 40 Page 41 Page 42 Page 43 Page 44 Page 45 Page 46 Page 47 Page 48

Report No.: RF140127C02-3 1 of 67 Report Format Version 5.2.0 FCC TEST REPORT (BLUETOOTH) REPORT NO.: RF140127C02-3 MODEL NO.: 0P6B170 FCC ID: NM80P6B170 RECEIVED: Oct. 23, 2013 TESTED: Nov. 21, 2013 ISSUED: Feb. 12, 2014 APPLICANT: HTC Corporation ADDRESS: No. 23,Xinghua Rd.,Taoyuan 330,Taiwan,R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140127C02-3 2 of 67 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..............................................................................................................5 1. CERTIFICATION ..................................................................................................................................6 2. SUMMARY OF TEST RESULTS .........................................................................................................7 2.1 MEASUREMENT UNCERTAINTY...............................................................................................8 3. GENERAL INFORMATION ..................................................................................................................9 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................9 3.2 DESCRIPTION OF TEST MODES ........................................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................... 11 3.3 DESCRIPTION OF SUPPORT UNITS ..................................................................................... 15 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................... 15 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 16 4. TEST TYPES AND RESULTS (FOR BLUETOOTH EDR) ............................................................... 17 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 17 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................... 17 4.1.2 TEST INSTRUMENTS ................................................................................................. 18 4.1.3 TEST PROCEDURES ................................................................................................. 19 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................... 19 4.1.5 TEST SETUP ............................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ................................................................................ 21 4.1.7 TEST RESULTS........................................................................................................... 22 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................................... 26 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 26 4.2.2 TEST INSTRUMENTS ................................................................................................. 26 4.2.3 TEST PROCEDURES ................................................................................................. 27 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................... 27 4.2.5 TEST SETUP ............................................................................................................... 28 4.2.6 EUT OPERATING CONDITIONS ................................................................................ 28 4.2.7 TEST RESULTS........................................................................................................... 29 4.3 NUMBER OF HOPPING FREQUENCY USED ........................................................................ 31 4.3.1 LIMIT OF HOPPING FREQUENCY USED ................................................................. 31 4.3.2 TEST SETUP ............................................................................................................... 31 4.3.3 TEST INSTRUMENTS ................................................................................................. 31 4.3.4 TEST PROCEDURE .................................................................................................... 31 4.3.5 D…
