NM80P6B700Smartphone

Important Information for the HTC One® Important Safety Information – page 2 Manufacturer’s Warranty – page 20 General Terms and Conditions of Service – page 38 Important Message from Sprint – page 69 [device logo, if applicable] 2 Important Safety Information Important Safety Information ♦General Precautions (page 2) ♦Maintaining Safe Use of and Access to Your Phone (page 3) ♦Important Health Information and Safety Precautions (page 5) ♦Regulatory Agency Identifications (page 10) ♦FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices (page 10) ♦Caring for the Battery (page 11) ♦Exposure to Radio Frequency Energy (page 13) ♦Owner’s Record (page 17) ♦Proprietary Notice (page 17) ♦Disposing Notice: (page 17) This booklet contains important operational and safety information that will help you safely use your phone. Failure to read and follow the information provided in this booklet may result in serious bodily injury, death, or property damage. General Precautions There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service. • To maximize performance, do not touch the bottom portion of your phone where the internal antenna is located while using the phone. • Speak directly into the mouthpiece. • Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. 2 Important Safety Information Important Safety Information 3 • Do not expose your phone to direct sunlight for extended periods of time (such as on the dashboard of a car). • Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it. • Any changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. Note: For the best care of your device, only Sprint- authorized personnel should service your phone and accessories. Failure to do so may be dangerous and void your warranty. Maintaining Safe Use of and Access to Your Phone Do Not Rely on Your Phone for Emergency Calls Mobile phones operate using radio signals, which cannot guarantee connection in all conditions. Therefore you should never rely solely upon any mobile phone for essential communication (e.g., medical emergencies). Emergency calls may not be possible on all cellular networks or when certain network services or mobile phone features are in use. Check with your local service provider for details. Using Your Phone While Driving Talking on your phone while driving (or operating the phone without a hands-free device) is prohibited in some jurisdictions. Laws vary as to specific restrictions. Remember that safety always comes first. 4 Important Safety Information Tip: Purchase an optional hands-free accessory at your local Sprint Store, or call Sprint at 1-866-866-7509. Following Safety Guidelines To operate your phone safely and efficiently, always follow any special regulations in a given area. Turn your phone off in areas where use is forbidden or when it may cause interference or danger. Using Your Phone Near Other Electronic Devices Most modern electronic equipment is shielded from radio frequency (RF) signals. However, RF signals from wireless phones may affect inadequately shielded electronic equipment. RF signals may affect improperly installed or inadequately shielded electronic operating systems or entertainment systems in motor vehicles. Check with the manufacturer or their representative to determine if these systems are adequately shielded from external RF signals. Also check with the manufacturer regarding any equipment that has been added to your vehicle. Consult the manufacturer of any personal medical devices, such as pacemakers and hearing aids, to determine if they are adequately shielded from external RF signals. Note: Always turn off the phone in healthcare facilities, and request permission before using the phone near medical equipment. Turning Off Your Phone Before Flying Turn off your phone before boarding any aircraft. To prevent possible interference with aircraft systems, the U.S. Federal Aviation Administration (FAA) regulations require you to have permission from a crew member to use your phone while the plane is on the ground. To prevent any risk of 4 Important Safety Information Important Safety Information 5 interference, FCC regulations prohibit using your phone while the plane is in the air. Turning Off Your Phone in Dangerous Areas To avoid interfering with blasting operations, turn your phone off when in a blasting area or in other areas with signs indicating two-way radios should be turned off. Construction crews often use remote-control RF devices to set off explosives. Turn your phone off when you’re in any area that has a potentially explosive atmosphere. Although it’s rare, your phone and accessories could generate sparks. Sparks can cause an explosion or fire, resulting in bodily injury or even death. These areas are often, but not always, clearly marked. They include: • Fueling areas such as gas stations. • Below deck on boats. • Fuel or chemical transfer or storage facilities. • Areas where the air contains chemicals or particles such as grain, dust, or metal powders. • Any other area where you would normally be advised to turn off your vehicle’s engine. Note: Never transport or store flammable gas, flammable liquids, or explosives in the compartment of your vehicle that contains your phone or accessories. Restricting Children’s Access to Your Phone Your phone is not a toy. Do not allow children to play with it as they could hurt themselves and others, damage the phone or make calls that increase your Sprint invoice. Important Health Information and Safety Precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. 6 Important …

Text truncated - open the document above for the full version.

Your HTC One User guide Only for certification Only for certification Only for certification Contents Unboxing HTC One9 nano SIM card10 Storage card12 Charging the battery14 Switching the power on or off14 Want some quick guidance on your phone?15 Phone setup and transfer Transferring content from an Android phone16 Transferring content from an iPhone17 Transferring contacts from your old phone through Bluetooth18 Getting contacts and other content into HTC One18 Transferring photos, videos, and music between your phone and computer19 Home screen19 Getting to know your settings20 Updating your phone's software20 Getting apps from Google Play22 Downloading apps from the web23 Uninstalling an app23 Matching your iPhone apps23 Your first week with your new phone About your phone24 Basics26 HTC BlinkFeed35 Notifications39 Working with text41 Battery46 Camera Camera basics50 Taking a photo52 Recording video52 Taking continuous camera shots53 Using Zoe Camera54 Taking selfies54 Improving portrait shots54 Taking a panoramic photo55 Taking a 360 degree panoramic photo55 2Contents Only for certification Only for certification Only for certification Using dual capture mode56 Using HDR57 Recording videos in slow motion57 Manually adjusting your camera settings58 Saving your settings as a camera mode58 Tips for capturing better photos59 Photo tips when using the Duo Camera61 Gallery Viewing photos and videos in Gallery63 Viewing photos and videos organized by time63 Viewing photos and videos by album63 Viewing photos by location64 Finding matching images66 Editing your photos66 Trimming a video67 Introducing Duo Effects68 Changing the focus in a photo (UFocus)68 Cutting and pasting photos68 Adding stickers to your photos69 Adding animated seasons69 Adding artistic effects to the background (Foregrounder)69 Changing the angle of a photo (Dimension Plus)70 Viewing and editing Zoe Highlights70 Viewing and editing Pan 360 photos71 Creating an animated gif71 Creating an action sequence shot73 Editing a group shot73 Removing unwanted objects in a photo74 Changing the video playback speed74 Tips for editing photos75 Personalizing Making HTC One truly yours76 Ringtones, notification sounds, and alarms76 Home wallpaper77 Launch bar77 Adding Home screen widgets77 Adding Home screen shortcuts78 Editing Home screen panels79 Changing your main Home screen80 Grouping apps on the widget panel and launch bar81 Arranging apps81 Lock screen82 Phone calls Making a call with Smart dial84 Dialing an extension number84 Returning a missed call85 Using Speed dial85 Making an emergency call86 Receiving calls86 3Contents Only for certification Only for certification Only for certification What can I do during a call?86 Setting up a conference call87 Call History88 Changing ringtone settings89 Home dialing89 Messages Sending a text message (SMS)91 Sending a multimedia message (MMS)91 Sending a group message92 Resuming a draft message92 Replying to a message92 Saving a text message as a task93 Forwarding a message93 Moving messages to the secure box94 Blocking unwanted messages94 Copying a text message to the nano SIM card95 Deleting messages and conversations95 Search and web browser Searching HTC One and the Web96 Getting instant information with Google Now97 Browsing the Web99 Bookmarking a webpage101 Using your browsing history102 Clearing your browsing history103 Fun and entertainment Using Scribble104 Listening to music107 Creating and working with playlists108 Adding a song to the queue109 Updating album covers and artist photos109 Setting a song as a ringtone109 Viewing song lyrics110 Looking up related music info111 Finding music videos on YouTube111 Turning Music Channel on or off111 Listening to FM Radio111 Enjoying TV with HTC One112 Setting up your remote control115 Controlling your TV with HTC One116 Watching videos on YouTube117 Creating video playlists118 Connecting to your home entertainment system118 About HTC Media Link HD119 HTC Connect120 Sharing your media on DLNA devices120 Storage Phone storage121 4Contents Only for certification Only for certification Only for certification Google Drive123 Dropbox128 Sync, backup, and reset Online sync130 Backup131 HTC Sync Manager136 Reset139 People Your contacts list141 Setting up your profile142 Adding a new contact143 Editing a contact’s information144 Getting in touch with a contact144 Importing or copying contacts144 Merging contact information145 Sending contact information146 Contact groups147 Email Gmail149 Mail151 Travel and maps Location settings156 Google Maps156 HTC Car160 Other apps Using the Clock164 Checking Weather165 Viewing the Calendar165 Scheduling or editing an event166 Choosing which calendars to show167 Sharing an event168 Accepting or declining a meeting invitation168 Dismissing or snoozing event reminders169 Recording voice clips169 Keeping track of your tasks170 Switching to Kid Mode171 Internet connections Data connection173 Managing your data usage174 Wi-Fi175 Connecting to VPN177 Using HTC One as a Wi-Fi hotspot178 Sharing your phone's Internet connection by USB tethering179 5Contents Only for certification Only for certification Only for certification Wi-Fi printing179 Wireless sharing Turning Bluetooth on or off181 Connecting a Bluetooth headset181 Unpairing from a Bluetooth device182 Receiving files using Bluetooth182 Using NFC183 Settings and security Checking your phone's HTC Sense version185 Turning Airplane mode on or off185 Turning Do not disturb mode on and off185 Scheduling when to turn data connection off186 Turning automatic screen rotation off186 Adjusting the time before the screen turns off187 Adjusting the screen brightness187 Touch sounds and vibration188 Changing the display language188 Accessibility settings188 Magnifying your phone's screen189 Working with certificates189 Assigning a PIN to help protect the nano SIM card190 Disabling an app190 Showing or hiding notifications on the lock screen191 Setting a screen lock t…

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan Date: January 15, 2014 Declaration We, HTC Corporation, declare that the device, FCC ID:NM80P6B700, Model Name:0P6B700, does not have Ad Hoc on non-US frequencies and/or on DFS frequencies. Also, the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. Moreover, for 2.4G part of this device, only channels 1~11, will be used in North America and all non- US frequencies and Country code selection are disabled through proprietary software and is not user changeable. Should you have any question or comment regarding this matter, please do not hesitate to contact me. Sincerely yours, _____________________ Vincent Jou HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

Declaration for DFS client devices January 15, 2014 Dear Examiner: Per KDB# 848637, We, HTC Corporation, declare that following description truly represent our product in consideration (FCC ID: NM80P6B700). Please do not hesitate to contact us, if further info is required. Thanks. Below is the channel / frequency plan for the device On DFS channels, the WLAN driver in the device operates under the control of an AP at all times, except when in ad-hoc mode, on US non-DFS channels. The device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is protected by special signature and CRC checksum. Signature and CRC checksum will be calculated and verified before firmware upgrade. Unauthorized modification to firmware will lead the failure of verification thus firmware upgrade is not allowed. Sincerely yours, _____________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: 886-3-318 3232 E-mail: [email protected] CH 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 Scan Type Active Active Active Active Active Active Active Active Active Active Active CH 36 38 40 42 44 48 52 54 56 58 60 Frequency (MHz) 5180 5190 5200 5210 5220 5240 5260 5270 5280 5290 5300 Scan Type Active Active Active Active Active Active Passive Passive Passive Passive Passive CH 62 64 Frequency (MHz) 5310 5320 Scan Type Passive Passive CH 100 102 104 106 108 110 112 116 132 134 136 Frequency (MHz) 5500 5510 5520 5530 5540 5550 5560 5580 5660 5670 5680 Scan Type Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive CH 140 Frequency (MHz) 5700 Scan Type Passive CH 149 151 153 155 157 159 161 165 Frequency (MHz) 5745 5755 5765 5775 5785 5795 5805 5825 Scan Type Active Active Active Active Active Active Active Active

宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan Date: January 15, 2014 Federal Communications Commission Authorization and Evaluation Division 7345 Oakland Mills Road Columbia MD 21046 FCC ID: NM80P6B700 To Whom It May Concern, We, HTC Corporation, hereby declare that the user guide submitted for review is draft and the final version will be made publicly available on HTC’s website (http://www.htc.com) at the time the product is commercially released. Sincerely yours, Vincent Jou HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan January 15, 2014 Declaration – MIF for HAC RF Interference Evaluation To Whom It May Concern, This device, with FCC ID: NM80P6B700, Hearing Aid Compatibility Requirement is going to be certified under ANSI C63.19-2011 version per Part 20.19. The M rating was determined by measuring the maximum steady state average E-field values in dB (V/m) as documented in the HAC report and adding the MIF value in dB (V/m) using pre-determined values provided by Speag under . The Speag-reference documentation for supporting the pre-determined MIF value is Schmid & Partner Engineering AG, UID SUMMARY (Communication Systems for Calibration, Issued Date 2013/05/31). We confirm that the Speag simulation provided represents all the air interface modes applicable for a HAC rating for this handset. Sincerely Yours, __________________ Vincent Jou HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan Date: January 15, 2014 Declaration To whom it may concern, 0P6B700 is a WLAN/Bluetooth combination antenna with FCC ID: NM80P6B700. This WLAN/Bluetooth co-existence mechanism is to ensure that the WLAN and Bluetooth transmitters would not simultaneously operate. Therefore, WLAN and Bluetooth antenna in 0P6B700 should not be considered to be able to transmit simultaneously. Though the users can use WLAN and Bluetooth simultaneously, but the real situation is that WLAN and Bluetooth are used by time sharing and no overlap transmission. Should you have any question, please have my best attention. Sincerely yours, _______________ Vincent Jou HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan Date: January 15, 2014 Federal Communications Commission 7345 Oakland Mills Road Columbia MD21046 Subject: Request for Confidentiality FCC ID: NM80P6B700 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Parts List  Tune-up Procedure  Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Vincent Jou HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan Date: January 13, 2014 Power of Attorney To whom it may concern, Please be notified that I, Lucy Shih, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Vincent Jou in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Vincent Jou in HTC Corporation on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM80P6B700 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Lucy Shih HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan Date: January 15, 2014 Federal Communications Commission Authorization and Evaluation Division 7345 Oakland Mills Road Columbia MD 21046 SUBJECT: FCC Application for FCC ID: NM80P6B700 To Whom It May Concern, We, HTC Corporation, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Vincent Jou HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

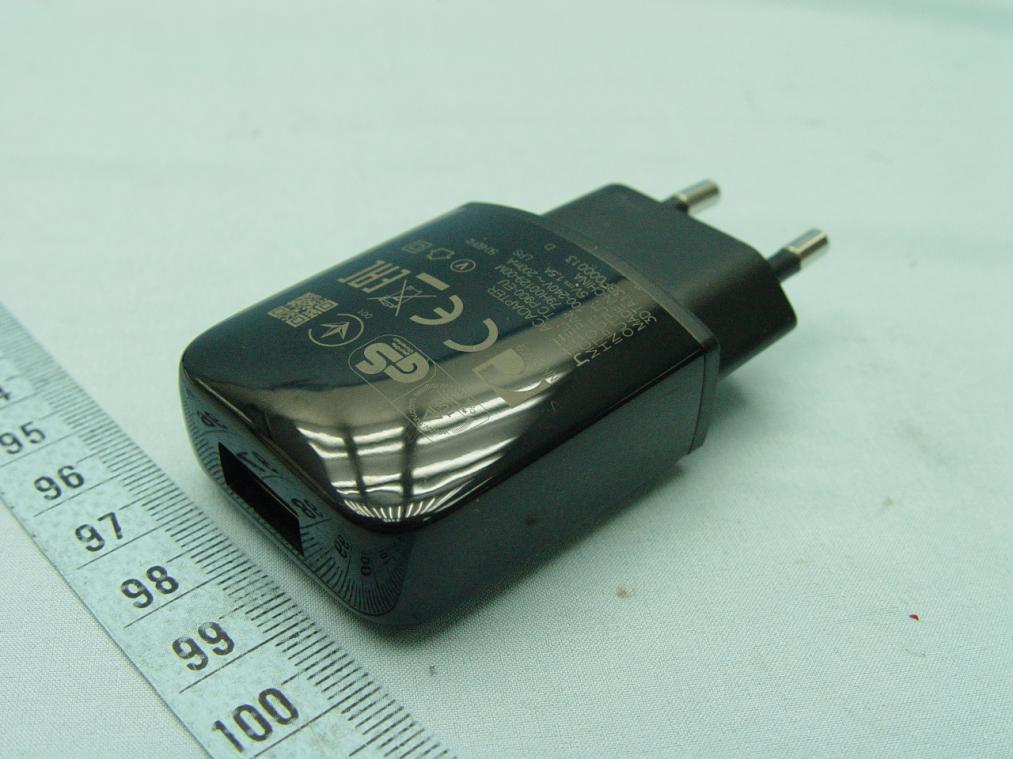

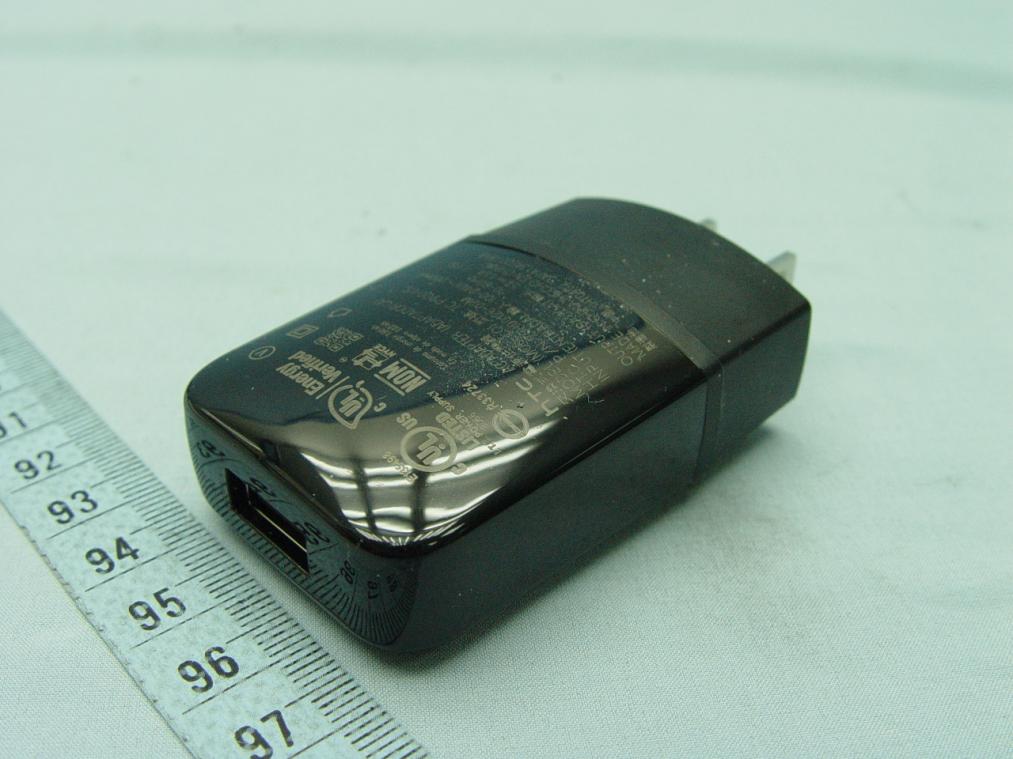

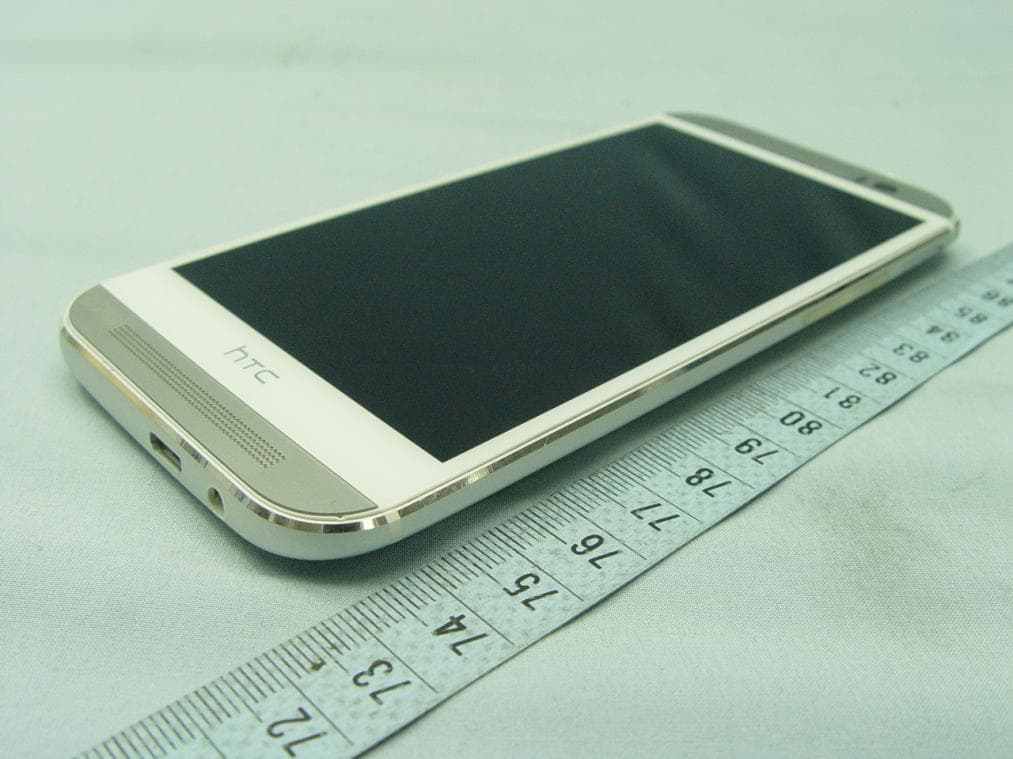

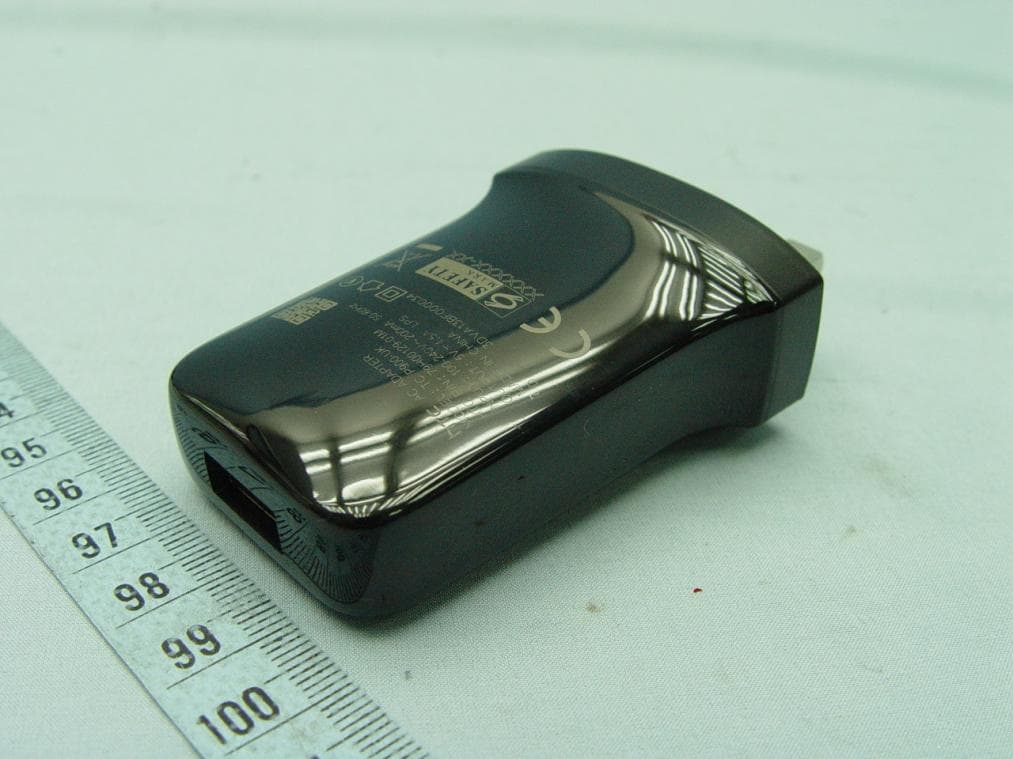

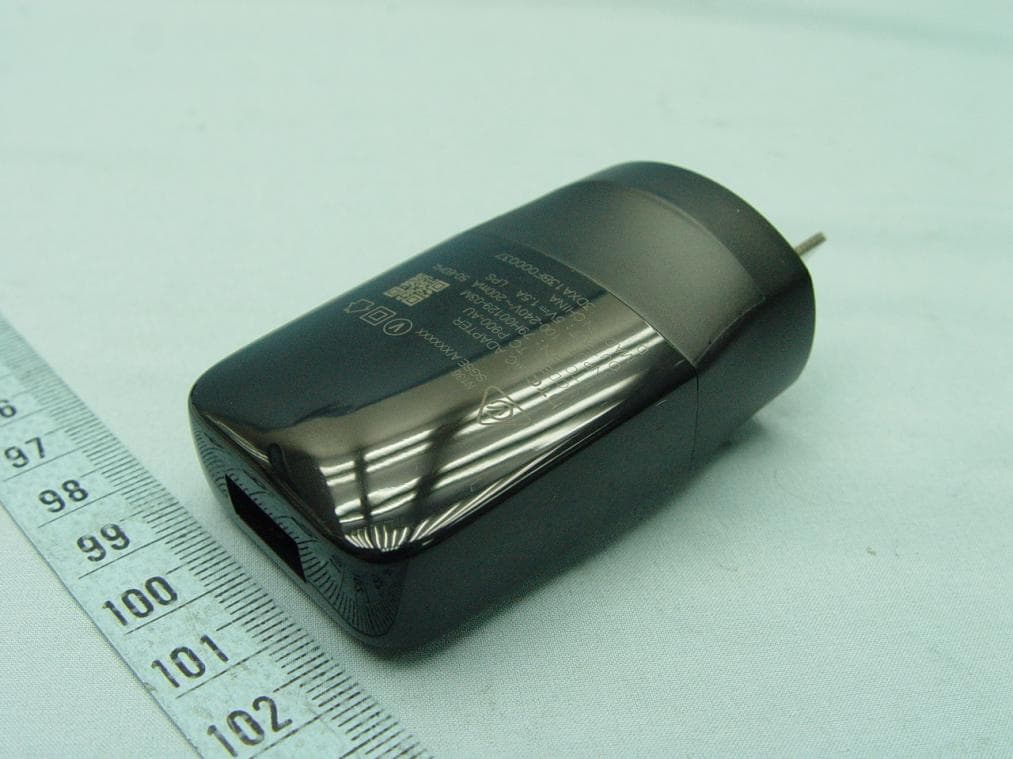

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter 1 Salcomp TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Power Adapter 2 Phihong TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Battery 1 Welltech B0P6B100 Rating: 3.8Vdc, 2600mAh Type: Li-ion Battery 2 Formosa B0P6B100 Rating: 3.8Vdc, 2600mAh Type: Li-ion Earphone 1 Merry MAX-301 1.1m cable Earphone 2 Cotron MAX-301 1.1m cable USB Cable 1 Foxlink DC MSR600 1m cable USB Cable 2 Foxconn DC MSR600 1m cable USB Cable 3 Coxoc DC MSR600 1m cable LCM 1 Sharp LS050T -- LCM 2 LG display LS047T1SC01 -- Photo Camera Sharp LH500WF -- Front Camera 1 LITEON FRAR010152 Front Camera 2 Altek ATA0403_001-DX47-100 -- Page 2 Main Sample Page 3 2 nd Sample Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

Page 16 0DLQ6DPSOH Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 Page 27 Page 28 Page 29 Page 30 Page 31 Page 32 Page 33 Page 34  QG 66DPSOH Page 35 Page 36 Page 37 Page 38 Page 39 Page 40 Page 41 Page 42 Page 43 Page 44 Page 45 Page 46 Page 47 Page 48

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 52 Report No. : SA131023C31 Issued Date : Jan. 03, 2014 Revision : R01 FCC SAR Test Report Report No. : SA131023C31 Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan 330, Taiwan, R.O.C. Product : Smartphone FCC ID : NM80P6B700 Brand : HTC Model No. : 0P6B700 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r02 / KDB 248227 D01 v01r02 KDB 447498 D01 v05r01 / KDB 648474 D04 v01r02 / KDB 941225 D01 v02 KDB 941225 D05 v02r03 / KDB 941225 D06 v01r01 Date of Testing : Nov. 30, 2013 ~ Dec. 26, 2013 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 52 Report No. : SA131023C31 Issued Date : Jan. 03, 2014 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot .................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure ................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.5 SAR Av…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jan. 03, 2014 Report No. : SA131023C31 Revision : R01 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/12/08 System Check_H835_131208 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d121 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_1208 Medium parameters used: f = 835 MHz; σ = 0.888 S/m; ε r = 42.814; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(9, 9, 9); Calibrated: 2013/06/20; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1127 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.92 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.493 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.29 W/kg; SAR(10 g) = 1.5 W/kg Maximum value of SAR (measured) = 2.92 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2013/12/23 System Check_H835_131223 DUT: Dipole 835 MHz; Type:…
