NM80P9C300Smartphone

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. Safety and regulatory guide 3 This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, TC U250  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts or circuits, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard.  Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. 4 Safety and regulatory guide Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Using Your Phone While Flying Use of cell phones may be restricted on aircraft. Please check with your airline to see what restrictions may apply. You may be required to turn off your phone at certain times. Use of your phone’s cellular connection and use of your phone for voice communications may be prohibited by law or airline policy. For your safety and the safety of other passengers, always follow crew instructions regarding the use of your phone. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Road safety Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving (even with a hands free kit) causes distraction and can lead to an Safety and regulatory guide 5 accident. You must comply with local law…

Text truncated - open the document above for the full version.

Your HTC Desire 816 User guide 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification Unboxing HTC Desire 816 1.Notification LED 2.POWER 3.VOLUME buttons 4.USB connector 5.Dual speakers 6.Slot cover 7.3.5mm headset jack 8.Proximity sensor 9.Front camera §If you want to use a screen protector, please don’t cover and block the proximity sensor. You can purchase the dedicated screen protector for HTC 816 that already has a small opening for the sensor. §When installing a skin protector, make sure not to cover and block the front speakers to avoid affecting the sound quality. If you've already covered HTC 816 with a skin protector, don't use a sharp, pointed object to cut out the part that covers the speakers to avoid accidentally piercing and damaging the speakers. Doing so is also considered as user damage and voids the warranty. 7Unboxing 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification nano UIM and nano SIM cards HTC 816 has nano UIM and nano SIM slots. In the primary slot, you can insert a 3G/GSM nano SIM card. Inserting the nano UIM and nano SIM cards Use standard nano UIM and nano SIM cards only. Inserting a smaller size card (such as a nano UIM/SIM with an adapter or a modified UIM/SIM) may cause the card to not fit properly or damage the card slot. 1.Open the slot cover with your thumb or finger. 2.With HTC 816 facing down, make sure that the cards' gold contacts are facing up and its cut-off corner facing in. 3.In the slot, insert a CDMA nano UIM or 3G/GSM nano SIM card, and then push it until it clicks in place. 8Unboxing 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification 4.To close the slot cover, slightly move it side to side to let the rubber hinge sink down by itself. Then gently press down the cover. Removing the nano UIM and nano SIM cards Make sure to switch off HTC 816 before removing your nano UIM and nano SIM cards. 1.Open the slot cover with your thumb or finger. 2.Press the nano UIM or nano SIM card to eject it from its slot. 3.To close the slot cover, slightly move it side to side to let the rubber hinge sink down by itself. Then gently press down the cover. Storage card Use a storage card to store your photos, videos, and music. Inserting the storage card 1.Open the slot cover with your thumb or finger. 2.With HTC 816 down, insert a microSD ™ in slot, with its gold contacts facing up and its cut-off corner facing in. 3.To close the slot cover, slightly move it side to side to let the rubber hinge sink down by itself. Then gently press down the cover. Unmounting the storage card When you need to remove the storage card while HTC 816 is on, unmount the storage card first to prevent corrupting or damaging the files in the storage card. 1.Go to Settings, and then tap Storage. 2.Tap Unmount SD card. 9Unboxing 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification Removing the storage card 1.Open the slot cover with your thumb or finger. 2.Push the storage card in to eject it from its slot. 3.To close the slot cover, slightly move it side to side to let the rubber hinge sink down by itself. Then gently press down the cover. Battery Charging the battery Before you turn on and start using HTC 816, it is recommended that you charge the battery. Use only the adapter and the USB cable that came with HTC 816 to charge the battery. When the battery power is too low, make sure to use the power adapter to charge, not the USB cable connection with your computer. 1.Insert the small end of the USB cable into the USB connector. 2.Insert the other end of the USB cable into the power adapter. 3.Plug in the power adapter to an electrical outlet to start charging the battery. §As a safety precaution, the battery stops charging if it overheats. §When you're using the Internet and charging the battery, HTC 816 may become warmer. This is normal. §To conserve energy, unplug the power adapter from the electrical outlet after you finish charging. 10Unboxing 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification Switching the power on or off Switching the power on Press the POWER button. When you turn on HTC 816 for the first time, you’ll need to set it up. Switching the power off 1.If the display is off, press the POWER button to turn it back on. If your screen is protected with a lock screen, you need to unlock it. 2.Press and hold the POWER button for a few seconds. 3.Tap Power off on the options menu. Want some quick guidance on your phone? Exploring HTC 816 Tips & Help lets you get the most out of HTC 816 in seconds. §Ever have the feeling that you're not getting the most out of your phone? Browse through the friendly walkthroughs on Tips & Help to learn how. The topics range from intro to advanced and the Tips & Help feed on the Home screen even recommends topics that you might like. §Need to know how to do something right away? Just type in some keywords and get clear, up-to-date answers right on HTC 816. To open Tips & Help from the Home screen, tap > Tips & Help. If you haven't downloaded Tips & Help content yet, or if there's updated content available, just tap the download link to get it. To change the sync settings of Tips & Help, tap > Update settings. Searching Tips & Help 1.In Tips & Help, tap , and then enter the words you want to search for. 2.Tap a search result to jump straight to that item. 11Unboxing 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification 0P9C300 R&TTE Certification Setting up your phone Setting up your new phone for the first time When you switch on your new phone for the first time, you’ll be asked to set it up. Walk through the on-device setup to choose your Internet connection, select how you want to set up your new phone, and more. §Select Set up from scratch to set up your accounts and personalize your new phone from your computer using the HTC Get Started service. Your phone shows you the URL of the …

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 宏達國際電子股份有限公司宏達國際電子股份有限公司 宏達國際電子股份有限公司 No. 23, Xinghua Rd., HTC Corporation Taoyuan City 330, Taiwan Date: March 21, 2014 Power of Attorney To whom it may concern, Please be notified that I, Lucy Shih, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Yuju Tai in HTC Corporation as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan and Yuju Tai in HTC Corporation on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NM80P9C300 If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. Sincerely yours, Lucy Shih / Asst. Manager HTC Corporation Fax: 886-2-8912-6307 Tel: 886-2-8912-4138 E-mail: [email protected]

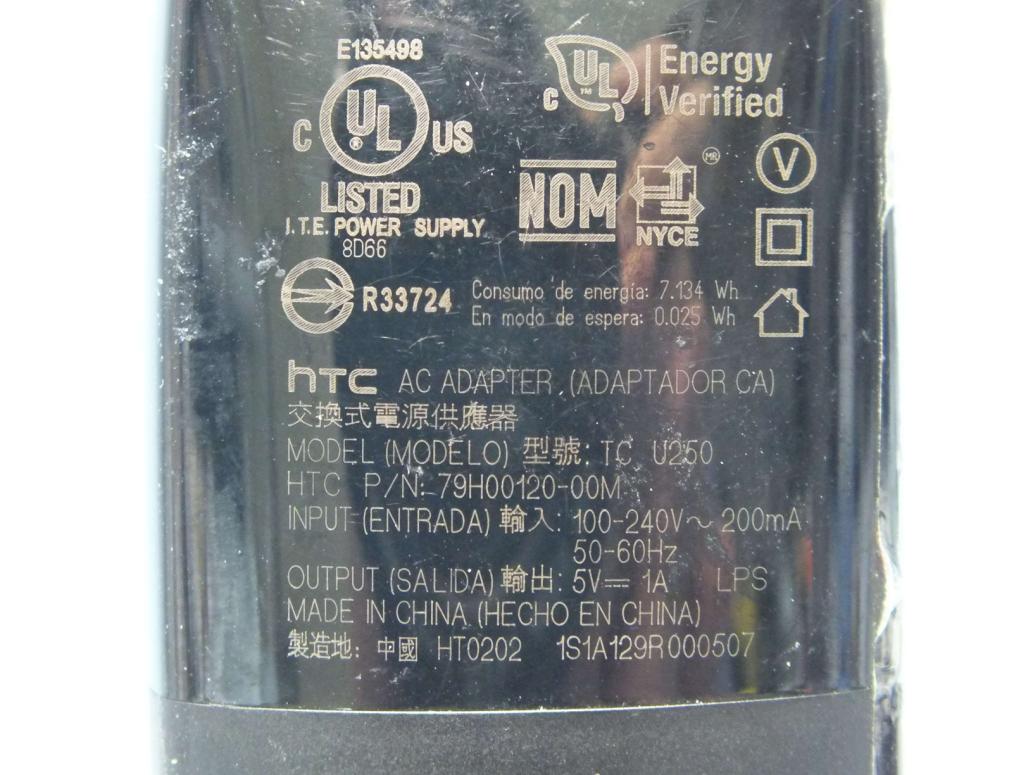

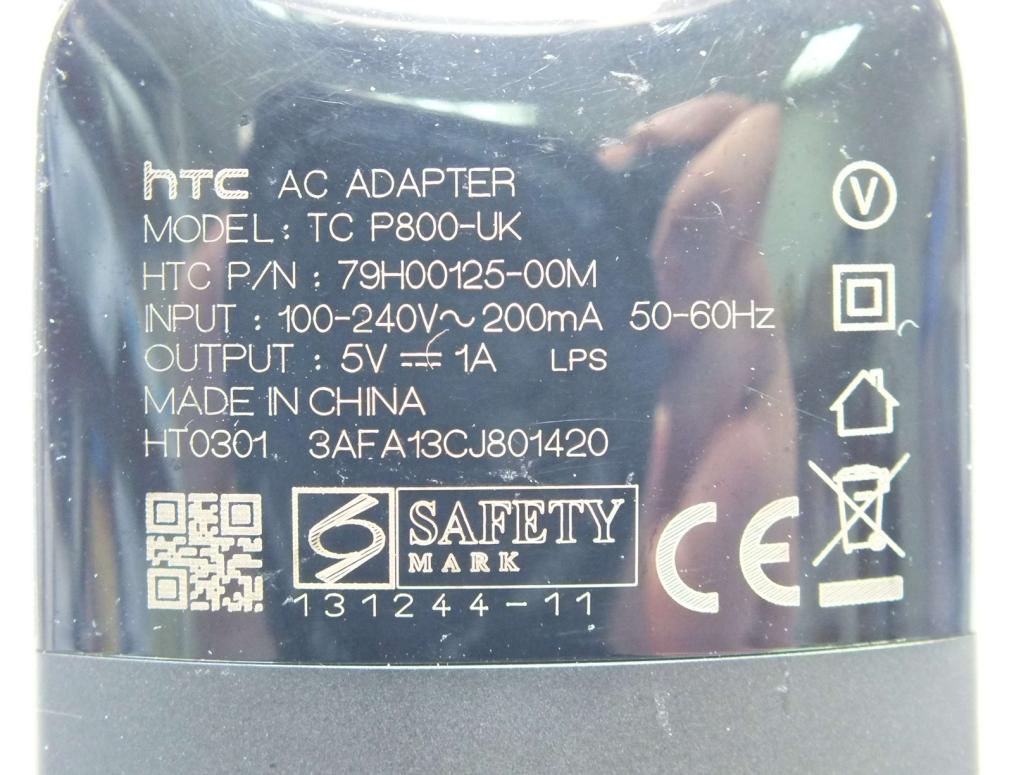

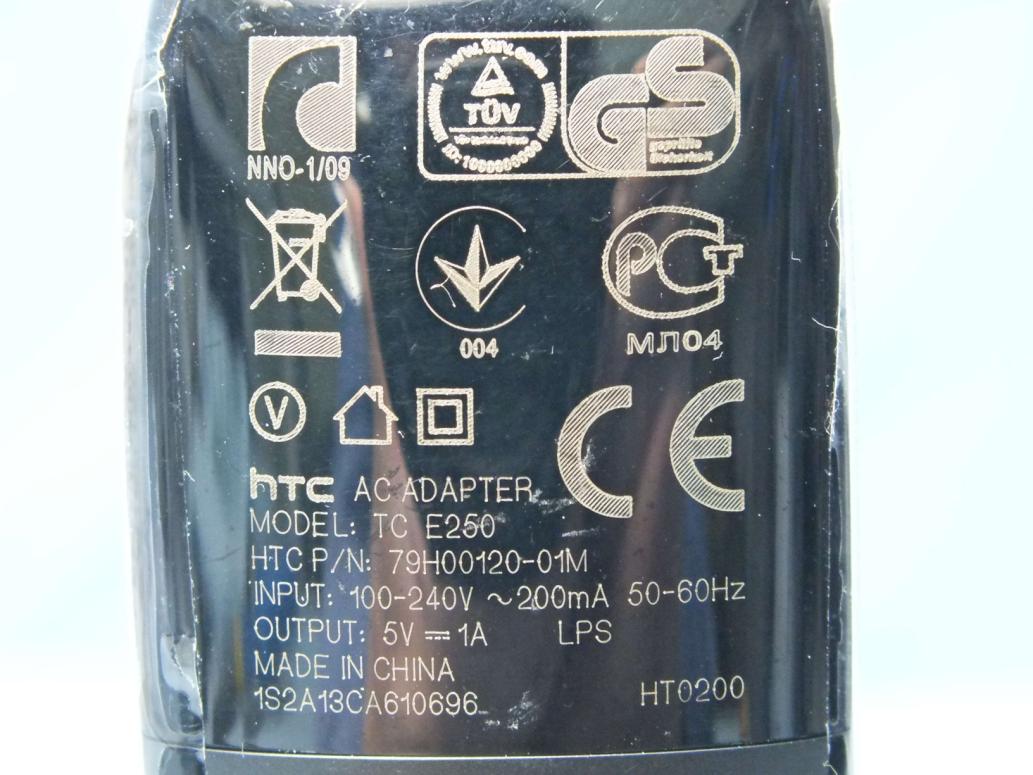

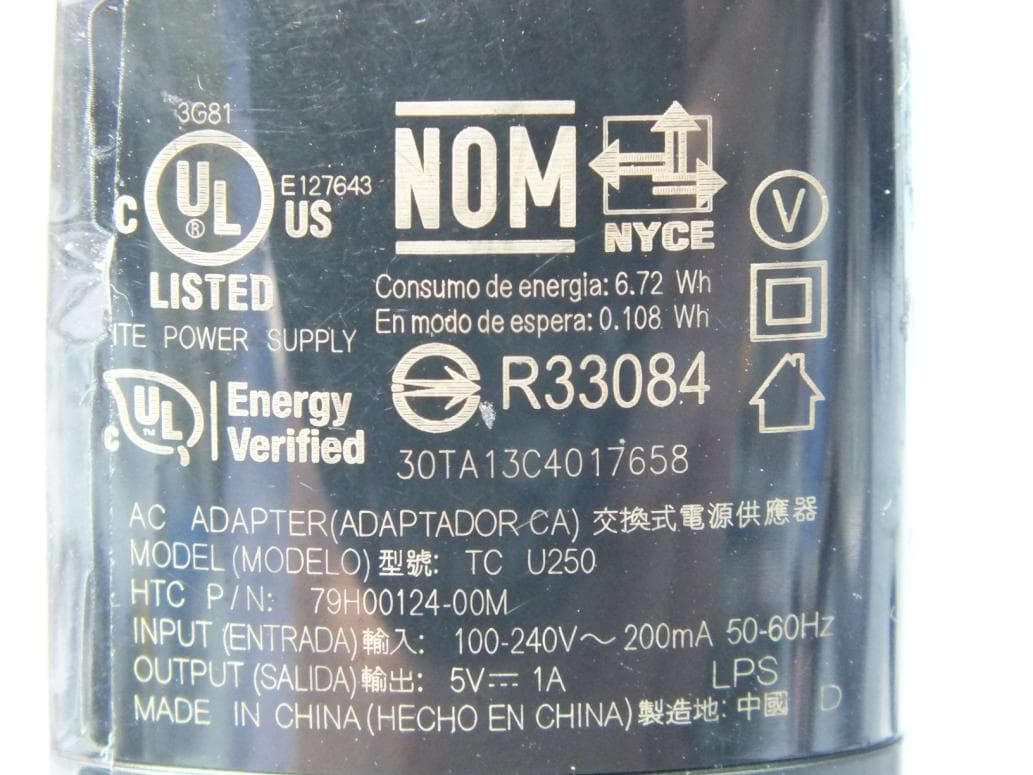

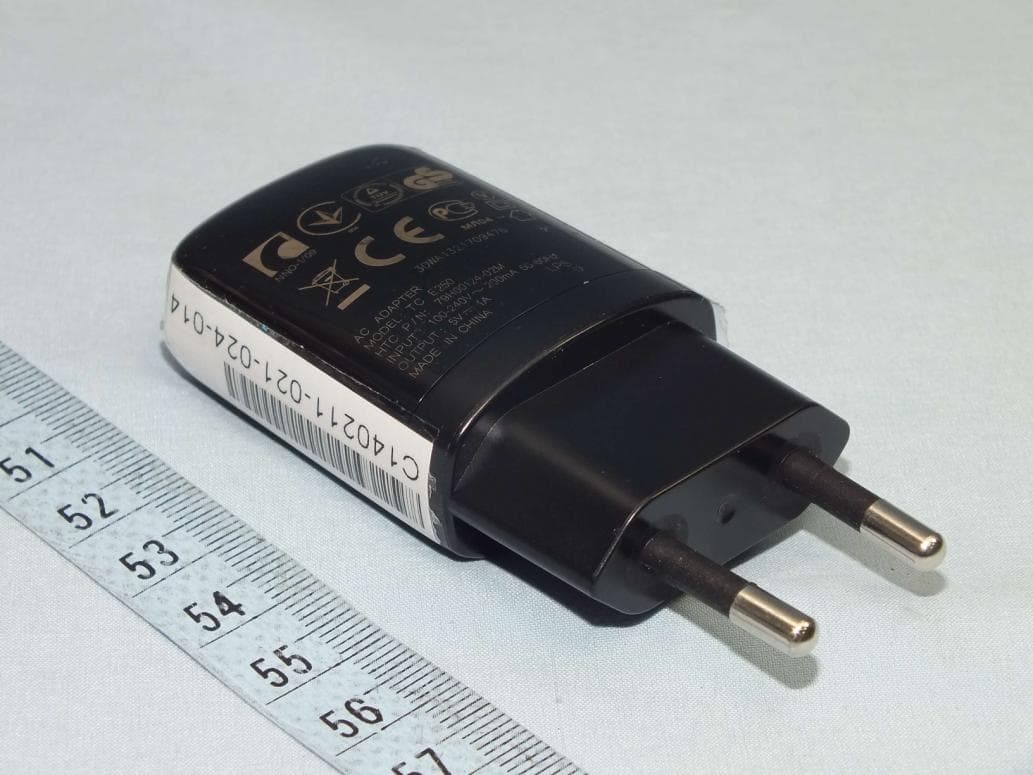

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter 1 Salcomp TC A250 TC U250 TC E250 TC P800-UK I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.0A Power Adapter 2 Phihong TC A250 TC U250 TC E250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.0A Battery 1 Welltech B0P9C100 Rating: 3.8Vdc, 2600mAh Type: Li-ion Battery 2 Formosa B0P9C100 Rating: 3.8Vdc, 2600mAh Type: Li-ion Earphone 1 Merry HS S250 1.1m cable Earphone 2 Cotron HS S250 1.1m cable USB Cable 1 Foxlink DC M600 1m cable USB Cable 2 Coxoc DC M600 1m cable USB Cable 3 Foxconn DC M600 1m cable Page 2 Main Sample Page 3 2 nd Sample Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

Page 15 Main Sample Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 2 nd Sample Page 27 Page 28

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Mar. 28, 2014 Report No. : SA140123C02 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/03/17 System Check_H835_140317 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d121 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0317 Medium parameters used: f = 835 MHz;  = 0.922 S/m;  r = 41.793;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˊкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˈʳк DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.96, 9.96, 9.96); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1485 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.94 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.405 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.99 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 201//      !" #$" Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_031 Medium parameters used: f = 835 MHz;  = 0.921 S/m;  r = 41.715;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˅кˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˈʳк DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.96, 9.96, 9.96); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) %&'"()*+, ,&-.//0 Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.78 W/kg %&'"()1 ,&-//20) 34 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.180 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 3.42 W/kg *5-60'"7"2() 6 *5-60'7() 6 Maximum value of SAR (measured) = 2.89 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/03/04 System Check_H1900_140304 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d022 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0304 Medium parameters used: f = 1900 MHz;  = 1.403 S/m;  r = 40.911;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĸġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįIJġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.2, 8.2, 8.2); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1653 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.4 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.270 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 17.3 W/kg SAR(1 g) = 9.28 W/kg; SAR(10 g) = 4.79 W/kg Maximum value of SAR (measured) = 13.5 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/03/19 System Check_H1900_140319 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d022 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0319 Medium parameters used: f = 1900 MHz;  = 1.442 S/m;  r = 39.194;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįķɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįĸɗ DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.7, 8.7, 8.7); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2013/03/19 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.5 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 97.943 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 9.41 W/kg; SAR(10 g) = 4.74 W/kg Maximum value of SAR (measured) = 13.9 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 201/0/1   " " " "!" #2. Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450_0213 Medium parameters used: f = 2450 MHz;  = 1.79 S/m;  r = 39.714;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˌʳк DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.99, 6.99, 6.99); Calibrated: 2013/04/30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn913; Calibrated: 2013/12/17 - Phantom: SAM Phantom_Front; Type: SAM V4.0; Serial: TP 1485 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) %&'"()*+, ,&-//0 Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 18.4 W/kg %&'"()1 ,&-2/2/20) 34 Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 102.2 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 24.5 W/kg *5-60'"7() 6 *5-60'.7() 6 Maximum value of SAR (measured) = 18.4 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/03/14 System Check_H2600_140314 DUT: Dipole 2600 MHz; Type: D2600V2; SN: 1003 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H2600_0314 Medium parameters used: f = 2600 MHz;  = 2.052 S/m;  r = 37.587;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˊкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˆʳк DASY5 Co…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 46 Report No. : SA140123C02 Issued Date : Mar. 28, 2014 FCC SAR Test Report Report No. : SA140123C02 Applicant : HTC Corporation Address : No. 23, Xinghua Rd., Taoyuan City, Taiwan Product : Smartphone FCC ID : NM80P9C300 Brand : HTC Model No. : 0P9C300 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 / KDB 248227 D01 v01r02 KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 / KDB 941225 D01 v02 KDB 941225 D05 v02r03 / KDB 941225 D06 v01r01 Sample Received Date : Jan. 23, 2014 Date of Testing : Feb. 13, 2014 ~ Mar. 19, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 46 Report No. : SA140123C02 Issued Date : Mar. 28, 2014 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.5 SAR …

Text truncated - open the document above for the full version.

Report No.: RF140123C02-4 1 of 50 Report Format Version 5.2.0 FCC TEST REPORT (15.247) REPORT NO.: RF140123C02-4 MODEL NO.: 0P9C300 FCC ID: NM80P9C300 RECEIVED: Jan. 23, 2014 TESTED: Jan. 29, 2014 ~ Mar. 12, 2014 ISSUED: Mar. 28, 2014 APPLICANT: HTC Corporation ADDRESS: No. 23, Xinghua Rd., Taoyuan City, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140123C02-4 2 of 50 Report Format Version 5.2.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..............................................................................................................4 1. CERTIFICATION ..................................................................................................................................5 2. SUMMARY OF TEST RESULTS .........................................................................................................6 2.1 MEASUREMENT UNCERTAINTY...............................................................................................6 3. GENERAL INFORMATION ..................................................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................7 3.2 DESCRIPTION OF TEST MODES ..............................................................................................8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .................................9 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 11 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 11 3.4 DUTY CYCLE TEST SIGNAL ................................................................................................... 12 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................…

Text truncated - open the document above for the full version.
