NM80PAJ500Smartphone

Important Information for the HTC One® (E8) Important Safety Information – page 2 Manufacturer’s Warranty – page 20 General Terms and Conditions of Service – page 42 Important Message from Sprint – page 73 2 Important Safety Information Important Safety Information 3 Important Safety Information ♦General Precautions (page 2) ♦Maintaining Safe Use of and Access to Your Phone (page 3) ♦Important Health Information and Safety Precautions (page 5) ♦Regulatory Agency Identifications (page 10) ♦FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices (page 10) ♦Caring for the Battery (page 11) ♦Exposure to Radio Frequency Energy (page 13) ♦Owner’s Record (page 17) ♦Proprietary Notice (page 17) ♦Disposing Notice (page 17) This booklet contains important operational and safety information that will help you safely use your phone. Failure to read and follow the information provided in this booklet may result in serious bodily injury, death, or property damage. General Precautions There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service. • To maximize performance, do not touch the bottom portion of your phone where the internal antenna is located while using the phone. • Speak directly into the mouthpiece. • Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. • Do not expose your phone to direct sunlight for extended periods of time (such as on the dashboard of a car). • Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it. • Any changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. Note: For the best care of your device, only Sprint- authorized personnel should service your phone and accessories. Failure to do so may be dangerous and void your warranty. Maintaining Safe Use of and Access to Your Phone Do Not Rely on Your Phone for Emergency Calls Mobile phones operate using radio signals, which cannot guarantee connection in all conditions. Therefore you should never rely solely upon any mobile phone for essential communication (e.g., medical emergencies). Emergency calls may not be possible on all cellular networks or when certain network services or mobile phone features are in use. Check with your local service provider for details. Using Your Phone While Driving Talking on your phone while driving (or operating the phone without a hands-free device) is prohibited in some jurisdictions. Laws vary as to specific restrictions. Remember that safety always comes first. 4 Important Safety Information Important Safety Information 5 and the safety of other passengers, always follow crew instructions regarding the use of your phone. Turning Off Your Phone in Dangerous Areas To avoid interfering with blasting operations, turn your phone off when in a blasting area or in other areas with signs indicating two-way radios should be turned off. Construction crews often use remote-control RF devices to set off explosives. Turn your phone off when you’re in any area that has a potentially explosive atmosphere. Although it’s rare, your phone and accessories could generate sparks. Sparks can cause an explosion or fire, resulting in bodily injury or even death. These areas are often, but not always, clearly marked. They include: • Fueling areas such as gas stations. • Below deck on boats. • Fuel or chemical transfer or storage facilities. • Areas where the air contains chemicals or particles such as grain, dust, or metal powders. • Any other area where you would normally be advised to turn off your vehicle’s engine. Note: Never transport or store flammable gas, flammable liquids, or explosives in the compartment of your vehicle that contains your phone or accessories. Restricting Children’s Access to Your Phone Your phone is not a toy. Do not allow children to play with it as they could hurt themselves and others, damage the phone or make calls that increase your Sprint invoice. Important Health Information and Safety Precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Tip: Purchase an optional hands-free accessory at your local Sprint Store, or call Sprint at 1-866-866-7509. Following Safety Guidelines To operate your phone safely and efficiently, always follow any special regulations in a given area. Turn your phone off in areas where use is forbidden or when it may cause interference or danger. Using Your Phone Near Other Electronic Devices Most modern electronic equipment is shielded from radio frequency (RF) signals. However, RF signals from wireless phones may affect inadequately shielded electronic equipment. RF signals may affect improperly installed or inadequately shielded electronic operating systems or entertainment systems in motor vehicles. Check with the manufacturer or their representative to determine if these systems are adequately shielded from external RF signals. Also check with the manufacturer regarding any equipment that has been added to your vehicle. Consult the manufacturer of any personal medical devices, such as pacemakers and hearing aids, to determine if they are adequately shielded from external RF signals. Note: Always turn off the phone in healthcare facilities, and request permission before using the phone near medical equipment. Using Your Phone While Flying Use of cell phones may be restricted on aircraft. Please check with your airline to see what restrictions may apply. You may be required to turn off your phone at certain times. Use of your phone’s cellular connection and use of your phone for voice communications may be prohibited by law or airline policy. For your safety 6 Important Safety Information Important Safety Informati…

Text truncated - open the document above for the full version.

HTC One (E8) User guide HTC Confidential 20140625 For Certification Only Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. 7Conventions used in this guide HTC Confidential 20140625 For Certification Only Important note on recoverable data Files and other data that have been deleted, cleared, removed, or erased from your device may still be recoverable by third-party data recovery software. Even a factory reset may not permanently erase all data from your phone, including personal information. 8Important note on recoverable data Important RF Notice This device was tested for compliance with the applicable FCC and Industry Canada specific absorption rate (SAR) limits for radio frequency (RF) exposure during typical body-worn operations. To ensure that RF exposure levels remain at or below the tested levels, use a belt-clip, holster, or similar accessory that maintains a minimum separation distance of 1.0 cm between your body and the device, with either the front or back of the device facing towards your body. Such accessories should not contain any metallic components. Body-worn accessories that do not meet these specifications may not ensure compliance with applicable SAR limits and their use should be avoided. HTC Confidential 20140625 For Certification Only Unboxing HTC One (E8) 1.USB connector 2.3.5mm headset jack 3.Dual speakers 4.VOLUME 5.microSD ™ card tray with eject hole 6.Proximity sensor 7.Front camera 8.Notification LED 9.POWER 10.nano SIM card tray with eject hole If you want to use a case, please don’t cover and block the proximity sensor. Purchase a case designed for HTC One (E8). 9Unboxing HTC Confidential 20140625 For Certification Only Back panel 1.LED flash 2.Camera 10Unboxing HTC Confidential 20140625 For Certification Only nano SIM card HTC One (E8) uses a nano SIM card. You need a provisioned nano SIM card to connect to the mobile_operator 4G/LTE ™ network and to support roaming on compatible GSM networks. The nano SIM card is preinstalled on HTC One (E8). If you need to remove or replace the card, refer to the following instructions. Use a standard nano SIM card only. Inserting a modified card that is thicker than the standard nano SIM card may cause the card to not fit properly or damage the card slot. Inserting a nano SIM card 1.Hold the phone face up. 2.Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject hole next to the nano SIM card slot. 3.Push the tip all the way into the hole until the card tray ejects. 4.Pull the card tray out. 5.Place the nano SIM card (contacts facing down) into the tray. 6.Insert the card tray back into the slot. 11Unboxing HTC Confidential 20140625 For Certification Only Removing a nano SIM card Make sure to switch off HTC One (E8) before removing the card. 1.Hold the phone face up and the top panel facing you. 2.Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject hole next to the nano SIM card slot. 3.Push the tip all the way into the hole until the card tray ejects. 4.Pull the card tray out, and remove the nano SIM card. 5.Make sure that you insert the empty card tray back into the slot. Storage card Use a storage card to store your photos, videos, and music. When you need to free up phone storage space, you can also move certain apps to the storage card, if the apps support this feature. The storage card is optional and sold separately. §Moving apps to the storage card doesn't back up the apps. If you do a factory reset, your phone loses the apps. You'll need to reinstall them. §When you remove the storage card and insert it in another phone, the apps on the storage card won't be installed automatically to the other phone. You'll need to reinstall them. 12Unboxing HTC Confidential 20140625 For Certification Only Inserting the microSD card 1.Hold the phone face up. 2.Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject hole next to the microSD card slot. 3.Push the tip all the way into the hole until the microSD card tray ejects. 4.Pull the microSD card tray out, and place the microSD card (contacts facing down) into the tray. 5.Insert the microSD card tray back into the slot. Unmounting the storage card When you need to remove the storage card while HTC One (E8) is on, unmount the storage card first to prevent corrupting or damaging the files in the storage card. 1.Go to Settings, and then tap Storage. 2.Tap Unmount SD card. 13Unboxing HTC Confidential 20140625 For Certification Only Removing the microSD card Make sure to unmount your microSD card before removing it. 1.Hold the phone face up and the top panel facing you. 2.Insert the tip of the tray eject tool (or a small bent paperclip) into the tray eject hole next to the microSD card slot. 3.Push the tip all the way into the hole until the microSD card tray ejects. 4.Pull the microSD card tray out, and remove the microSD card. After removing the microSD card, make sure that you insert the empty microSD card tray back into the slot. 14Unboxing HTC Confidential 20140625 For Certification Only Charging the battery Before you turn on and start using HTC One (E8), it is recommended that you charge the battery. Use only the adapter and the USB cable that came with HTC One (E8) to charge the battery. When the …

Text truncated - open the document above for the full version.

Declaration for DFS client devices June 27, 2014 Dear Examiner: Per KDB# 848637, We, HTC Corporation, declare that following description truly represent our product in consideration (FCC ID: NM80PAJ500). Please do not hesitate to contact us, if further info is required. Thanks. Below is the channel / frequency plan for the device On DFS channels, the WLAN driver in the device operates under the control of an AP at all times, except when in ad-hoc mode, on US non-DFS channels. The device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is protected by special signature and CRC checksum. Signature and CRC checksum will be calculated and verified before firmware upgrade. Unauthorized modification to firmware will lead the failure of verification thus firmware upgrade is not allowed. Sincerely yours, _____________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: 886-3-318 3232 E-mail: [email protected] CH 1 2 3 4 5 6 7 8 9 10 11 Frequency (MHz) 2412 2417 2422 2427 2432 2437 2442 2447 2452 2457 2462 Scan Type Active Active Active Active Active Active Active Active Active Active Active CH 36 38 40 42 44 48 52 54 56 58 60 Frequency (MHz) 5180 5190 5200 5210 5220 5240 5260 5270 5280 5290 5300 Scan Type Active Active Active Active Active Active Passive Passive Passive Passive Passive CH 62 64 Frequency (MHz) 5310 5320 Scan Type Passive Passive CH 100 102 104 106 108 110 112 116 132 134 136 Frequency (MHz) 5500 5510 5520 5530 5540 5550 5560 5580 5660 5670 5680 Scan Type Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive Passive CH 140 Frequency (MHz) 5700 Scan Type Passive CH 149 151 153 155 157 159 161 165 Frequency (MHz) 5745 5755 5765 5775 5785 5795 5805 5825 Scan Type Active Active Active Active Active Active Active Active

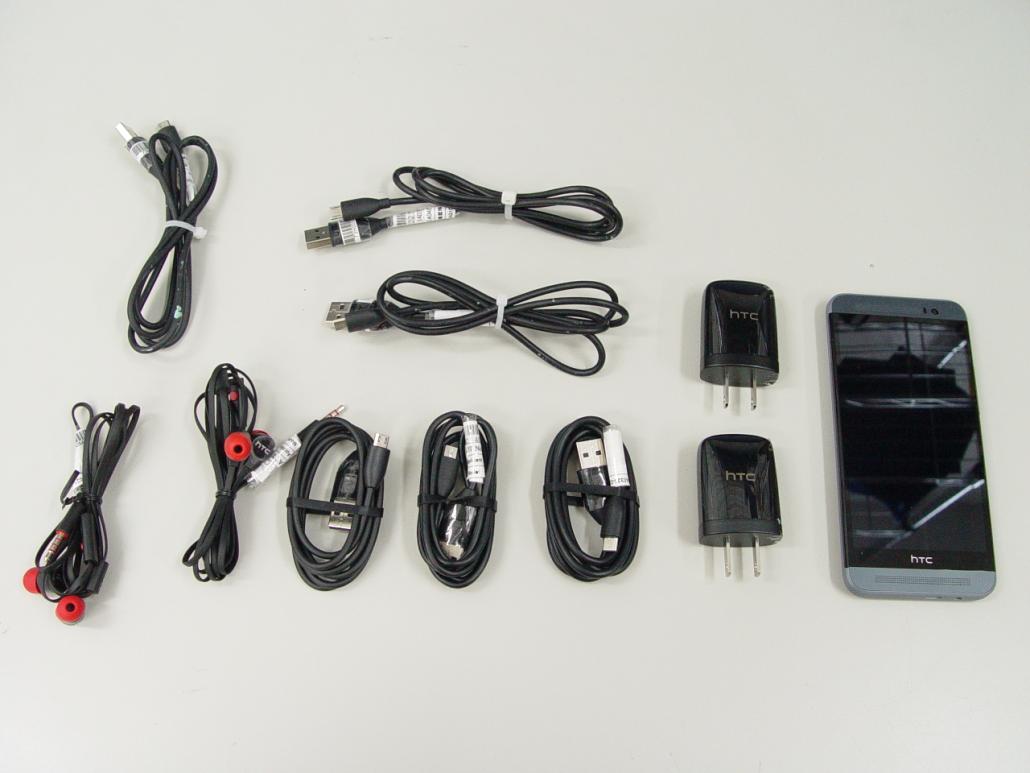

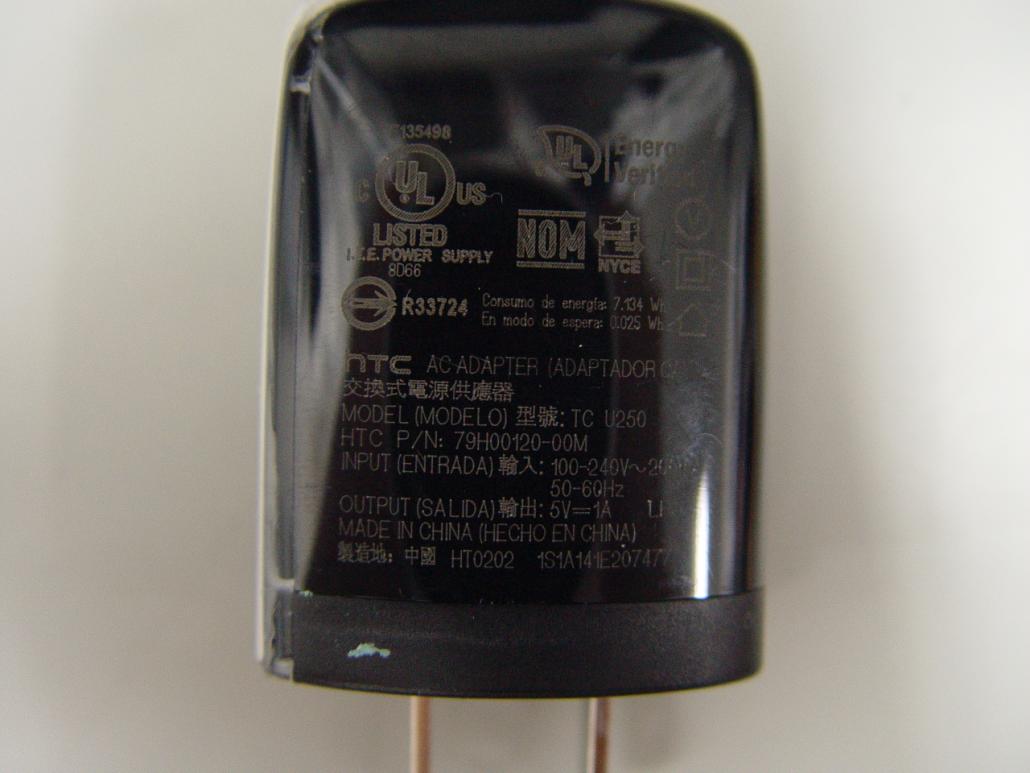

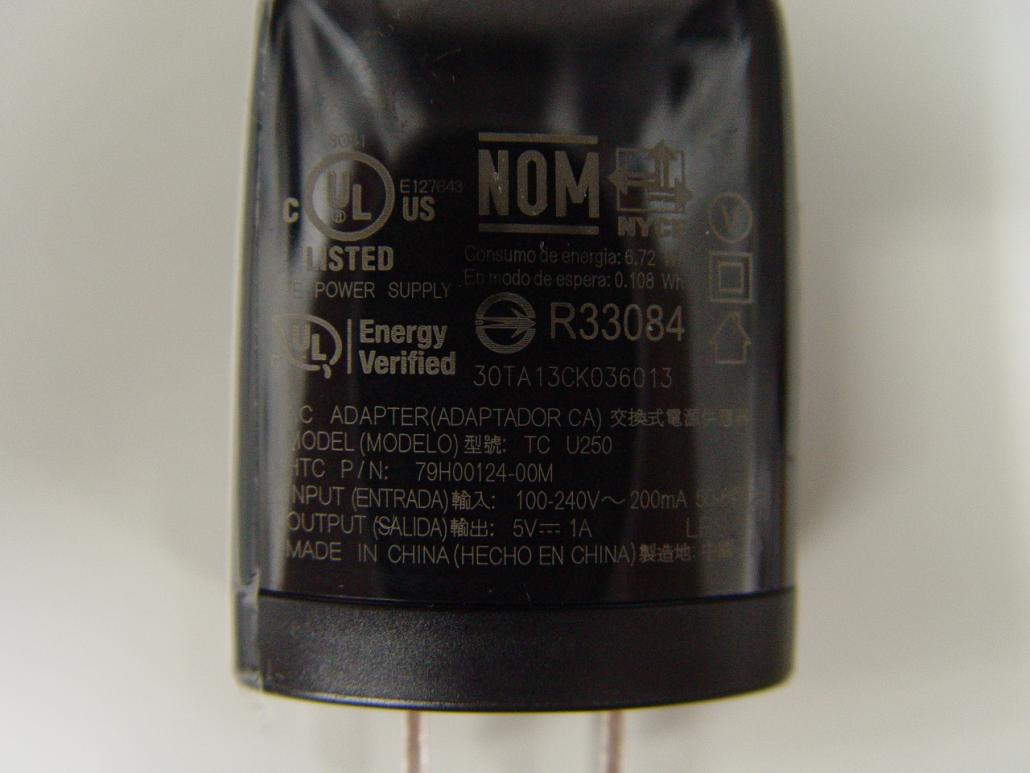

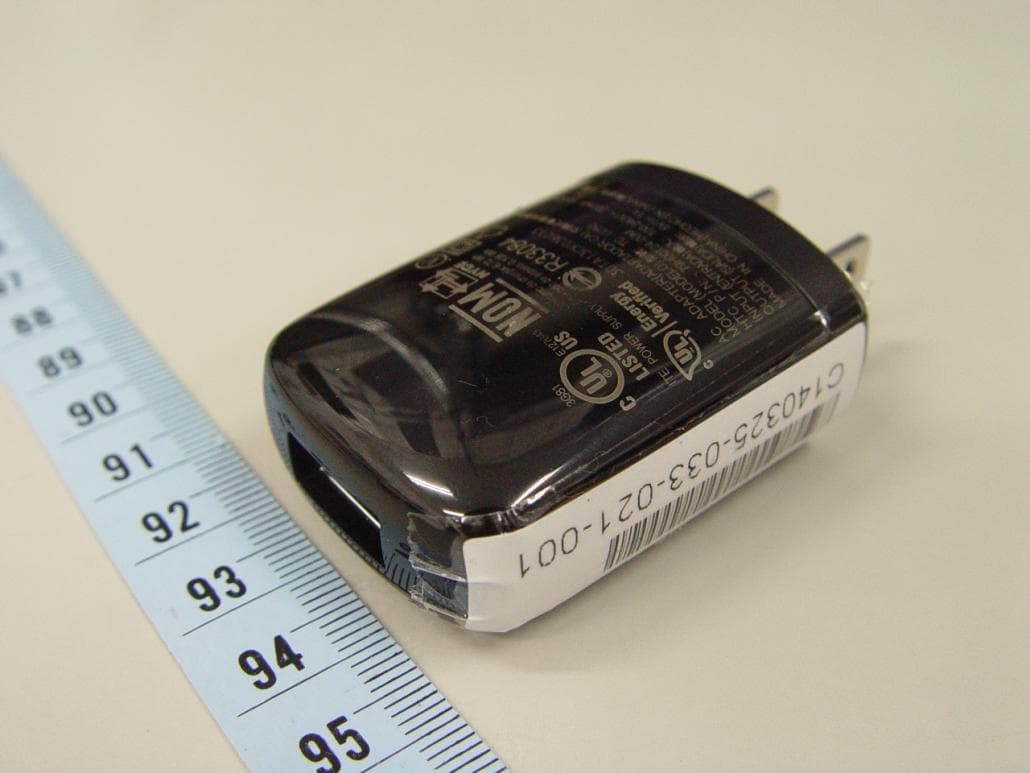

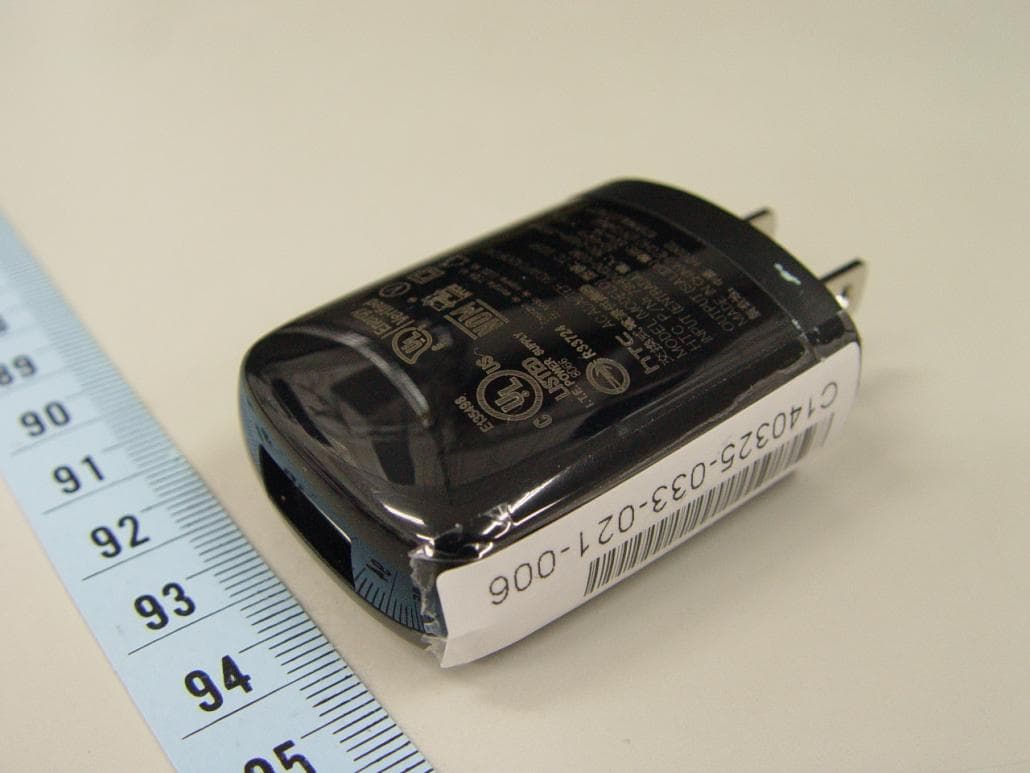

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter 1 Salcomp TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 2 Phihong TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Battery 1 LG B0P6B100 Rating: 3.8Vdc, 2600mAh Type: Li-ion Battery 2 Formosa B0P6B100 Rating: 3.8Vdc, 2600mAh Type: Li-ion Earphone 1 Merry MAX-301 1.1m cable Earphone 2 Cotron MAX-301 1.1m cable USB Cable 1 Coxoc DC M600 1m cable USB Cable 2 Foxconn DC M600 1m cable USB Cable 3 Foxlink DC M600 1m cable USB Cable 4 Foxlink DC MSR600 1m cable USB Cable 5 Foxconn DC MSR600 1m cable USB Cable 6 Coxoc DC MSR600 1m cable LCM 1 Sharp LS050T -- LCM 2 LG Display LH500WF -- Photo Camera PRIMAX WD01H ASSY -- Video Camera LITEON 3BF507P1A -- Page 2 Page 3 Page 4 Page 5

Page 6 Main Sample Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 2 nd Sample Page 20 Page 21

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 51 Report No. : SA140324C25 Issued Date : Jun. 04, 2014 FCC SAR Test Report Report No. : SA140324C25 Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City, Taiwan 231 Product : Smartphone FCC ID : NM80PAJ500 Brand : HTC Model No. : 0PAJ500 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a- 2005 / KDB 865664 D01 v01r03 / KDB 248227 D01 v01r02 KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 / KDB 941225 D01 v02 KDB 941225 D05 v02r03 / KDB 941225 D06 v01r01 Sample Received Date : Mar. 24, 2014 Date of Testing : Apr. 10, 2014 ~ May 13, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 51 Report No. : SA140324C25 Issued Date : Jun. 04, 2014 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ..............................................................................................................…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 04, 2014 Report No. : SA140324C25 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/10 System Check_H835_140410 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d21 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0410 Medium parameters used: f = 835 MHz;  = 0.923 S/m;  r = 41.836;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˋкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.96, 9.96, 9.96); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.94 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.405 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 3.00 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/12 System Check_H1900_140412 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d022 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0412 Medium parameters used: f = 1900 MHz;  = 1.43 S/m;  r = 39.118;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˄кˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳк DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.2, 8.2, 8.2); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Front; Type: QD000P40CB; Serial: TP 1485 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.5 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 98.273 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 18.3 W/kg SAR(1 g) = 9.52 W/kg; SAR(10 g) = 4.78 W/kg Maximum value of SAR (measured) = 14.0 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/05/13 System Check_H2450_140513 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 7 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450_0513 Medium parameters used: f = 2450 MHz;  = 1.855 S/m;  r = 38.637;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(7.95, 7.95, 7.95); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Left; Type: SAM V5.0; Serial: TP 1823 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.6 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.2 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 27.1 W/kg SAR(1 g) = 12.5 W/kg; SAR(10 g) = 5.67 W/kg Maximum value of SAR (measured) = 19.6 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/24      ! Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H2600_0424 Medium parameters used: f = 2600 MHz;  = 2.053 S/m;  r = 38.007;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˋʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˈʳк DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(7.15, 7.15, 7.15); Calibrated: 2014/03/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) "#$%&'()* *#+,-,-. Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = .4 W/kg "#$%&'/ *#+0-0-0.' 12 Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = .4 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = . W/kg (3+4.$%&' 4(3+4.$050&' 4 Maximum value of SAR (measured) = .8 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 201/0/ System Check_H5200_140508 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 101 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: H5G_0508 Medium parameters used: f = 5200 MHz;  = 4.806 S/m;  r = 35.62;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˅ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(5.22, 5.22, 5.22); Calibrated: 2014/03/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=100mW/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 16.2 W/kg Pin=100mW/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 61.934 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 31.9 W/kg SAR(1 g) = 7.79 W/kg; SAR(10 g) = 2.23 W/kg Maximum value of SAR (measured) = 16.5 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/05/08 System Check_H5300_140508 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 101 Communication System: CW; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: H5G_0508 Medium parameters used: f = 5300 MHz;  = 4.926 S/m;  r = 35.427;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˅ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(4.81, 4.81, 4.81)…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 04, 2014 Report No. : SA140324C25 Appendix B. SAR Plots of SAR Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination, and measured SAR > 1.5 W/kg are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/10 P0 CDMA BC0_RC3+SO55_Left Cheek_Ch777_Ant 0 DUT: 140324C25 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: H835_0410 Medium parameters used: f = 848.31 MHz;  = 0.936 S/m;  r = 41.661;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˋкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.96, 9.96, 9.96); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1652 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) - Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.346 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.615 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.381 W/kg SAR(1 g) = 0.300 W/kg; SAR(10 g) = 0.226 W/kg Maximum value of SAR (measured) = 0.345 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/12 " (6  3 !:;%% 34    (# ! % Communication System: CDMA2000; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H1900_0412 Medium parameters used: f = 1880 MHz;  = 1.408 S/m;  r = 39.202;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˄кˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳк DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.2, 8.2, 8.2); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Front; Type: QD000P40CB; Serial: TP 1485 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) <()* *#+--. Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.22 W/kg </ *#+%-%-0.' 12 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.245 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.39 W/kg (3+4.$50!&' 4(3+4.$5!%&' 4 Maximum value of SAR (measured) = 1.03 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/10 P CDMA BC10_RC3+SO55_Left Cheek_Ch580_Ant 0 DUT: 140324C25 Communication System: CDMA2000; Frequency: 820.5 MHz;Duty Cycle: 1:1 Medium: H835_0410 Medium parameters used: f = 820.5 MHz;  = 0.908 S/m;  r = 42.028;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˋкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˄ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.96, 9.96, 9.96); Calibrated: 2013/07/31; - Sensor-Surface: 2mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2013/07/26 - Phantom: SAM Phantom_Left;…

Text truncated - open the document above for the full version.
