NM80PG1100companion camera

1 Safety and regulatory guide 2 Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Important health information and safety precautions When using this product, the safety precautions bel ow must be taken to avoid possible legal liabilitie s and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock , fire, and damage to the equipment, observe the fo llowing precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installatio n CAUTION: Connecting to improperly grounded equipmen t can result in an electric shock to your device. This product is equipped with a USB Cable for conne cting with desktop or notebook computer. Be sure yo ur computer is properly grounded (earthed) before connecting this product t o the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding pl ug. The plug must be plugged into an appropriate ou tlet which is properly installed and grounded in accordance with all local codes and ordinances. 3 Safety precautions for power supply unit
Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings la bel. If you are not sure of the type of power source required, consult your authori zed service provider or local power company. For a product that operates from battery power or other sources, refer to the operat ing instructions that are included with the product .
Handle battery packs carefully This product contains a Lithium-ion polymer or Lith ium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING: To reduce risk of fire or burns, do not di sassemble, crush, puncture, short external contacts or circuits, expose to temperature above 60° C (140° F), or disp ose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference gui de supplied with your product.
Take extra precautions  Do not expose the device to liquids, except as spe cified in the Waterproof Attributes section on Safe ty and regulatory guide and Quick Start Guide. 4  The device should only be connected to products th at bear the USB-IF logo or have completed the USB-I F compliance program.  Avoid dropping the device. If the device or batter y is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery a way from fire as there is a danger of ignition or e xplosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product insi de a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glas s that is exposed to direct sunlight or strong ultraviolet light for extended p eriods of time. This may damage the product, overhe at the battery, or pose a risk to the vehicle. Environment restrictions Do not use this product in gas stations, fuel depot s, chemical plants or where blasting operations are in progress, or in potentially 5 explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contain s chemicals or particles, such as grain, dust, or m etal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. When in any area with a potentially explosive atmos phere or where flammable materials exist, the produ ct should be turned off and the user should obey all signs and instructions. Us ers are advised not to use the equipment at refueli ng points such as service or gas stations, and are reminded of the need to obser ve restrictions on the use of radio equipment in fu el depots, chemical plants, or where blasting operations are in progress. Road safety Full attention must be given to driving at all time s in order to reduce the risk of an accident. You m ust comply with local laws and regulations restricting the use of wireless devices while driving. Safety precautions for RF exposure
Avoid using your device near metal structures (for example, the steel frame of a building).
Avoid using your device near strong electromagneti c sources, such as microwave ovens, sound speakers, TV and radio.
Use only original manufacturer-approved accessorie s, or accessories that do not contain any metal.
Use of non-original manufacturer-approved accessor ies may violate your local RF exposure guidelines a nd should be avoided. Electrical safety
Accessories 6  Use only approved accessories.  Do not connect with incompatible products or acces sories.
Faulty and damaged the device  Do not attempt to disassemble this device or its a ccessory.  Only qualified personnel must service or repair th is device or its accessory. General precautions You alone are responsible for how you use your devi ce and any consequences of its use. You must always switch off your device wherever the use of an electronic device is prohibi ted. Use of your device is subject to safety measur es designed to protect users and their environme…

Text truncated - open the document above for the full version.

ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
ΑΝΌ
ΌφϔόϏϊϋϔϚϏ ƫƫƫƫ ƫƫƫƫƫƫƫƫƫƫƫƫƫƫƫƫƫƫĀāāĀĀƫĥƫćāĀ ƫƫƫƫ Contents Discover Introducing RE4 RE app6 Storage card8 Battery10 Waterproof protection12 Set up Setting up your RE for the first time16 Pairing your RE and iPhone for the first time17 Pairing your RE and Android phone for the first time19 Connecting your RE and phone20 Exploring basic and advanced settings20 Checking for firmware updates21 Disconnecting your RE and phone22 Attaching the wrist lanyard22 Take photos and videos Getting to know the live viewfinder24 Taking a photo25 2Contents ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
er ϔόϏ φϔ ducing REucing RE apppp Storage cStorage BatterBatter WaW όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
Ϗφ χϚϏ f protectiorotect upp Ό Ϙ Setting up Setting up Pairing Pairing riri ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
χΥ ϚϏχ ΌφϔΌφ for the firfor the fir and iPhonand iPho RE and AnRE and A ng your REg your RE basic abasic όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
χϚ όϏωχ e first timeirst time hone for tne for t oneone anced setted set e updatespd ur RE and r RE and t lanyalanya ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
1 1212 ϚϏχ ϔϚ imee eoseos ΑΝΑ findind όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
7 199 2020 202 ΌϋϘΌ ΑΝΌ
ΌφϔόϏϊϋϔϚϏ 2222 ϔό φϔ Recording a video26 Recording slow motion videos27 Turning Ultra-wide angle on or off28 Setting up Time lapse29 View, edit, and share Viewing photos and videos31 Removing fisheye effect32 Downloading a photo or video to your phone33 Sharing a photo and video34 Copying media files from your RE to your computer35 Deleting photos and videos on your camera36 Back up and reset Backing up photos and videos to your phone37 Backing up photos and videos to your online storage38 Formatting your storage card39 Resetting your RE39 Trademarks and copyrights Contents3 ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
motion vidmotion vid wide anglwide angl Time lapsme lap ew, edit, w, edit, φϔ Όφ Viewing pwing p Removm DowDow S όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
off harere χϚ Ϗωχ d videos videos ye effecte effect g a photo photo a photo anphoto an ng media g media leting phong pho BackBack όφό ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
ϚϏχ ϔϚ o to your pto your p m your REour RE videos onideos on d resetd reset ΌΌ ΝΌ p photos a photos g up photo up photo ng yog yo όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
computermputer meramera ϏόϏ ϘϚϏ os to yourto your deos to yodeos to y ge cardard nd cdc όφ ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
3434 33 ϊϋ όϏϊ e storagetorage ghtsghts Ό
ΝΌ όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
φϔ 3737 383 ϚϏό ϘϚ ΑΝΌ
ΌφϔόϏϊϋϔϚϏ Ϗϊϋ όϏ Discover Introducing RE There's a new way to capture life's priceless moments—and that's with RE. With it, you can step out from behind the scene and live life in full view. Here are the parts and features that you need to know about your remarkable little camera. 4Discover ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
ucing REing RE ere's a newe's a new With it, youWith it, you Here arHere a remaema όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
capture licapture l p out fromout from rts and fea and fe ttle camercamer ΌϋΌ όφϘ
ΌόφϘ
ΌόφϘ
Ό φϘφϘφ ΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
eless momss mom the scenethe scene hat you neat you ne ΝΌ ϔϔ φϔφϔφφ όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ e ow abouabou ό ϋϘϚϏόϏωχϚ ϚϏόϏϚϏόϏ ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
ΝΝΌ
Όφ όφϘ
ΌϋϘϚϏόϏωχϚϏφϔ
όϏωόϏωόϏωχόϏω ϏόϏό ϚϏόϚϏόϚ ΑΝΌ
ΌφϔόϏϊϋϔϚϏ φϔόϏφϔόϏφϔόϏ ϔό FrontBackBottom 1LensMicMicro USB port 2Slow motion mode switchIndicator LEDTripod socket 3Grip sensorShutter buttonmicroSD ™ card slot 4Indicator LED 5Speaker Key features at a glance Instant On RE is always ready for your next big moment. After your first- time setup, you only have to hold it by the grip sensor and it is automatically switched on.. Slow motion recording Add a cinematic flair to your action videos. Switch to Slow motion mode and record slow motion videos on the fly. Ultra-wide angle Stop framing a moment in small boxes. Capture an Ultra-wide angle view of what's in front of you.  Time lapse Beautiful night sky? Switch to Time lapse mode, customize your camera settings, and let your RE take sequential shots of the night sky for an extended period of time. Discover5 ΑΝΌ
ΌφϔόϏϊϋϔϚϏχΥ
ϋϔϚ otion modion mod sensornsor ndicator Ldicator L 5SpeakeSpeak ϋϔ Ϗϊϋ όϏ ϔ ΌΌ Όφ ΌΌ Key Key Ό ΝΌ όφϘ
ΌϋϘ ϘΌϘϘ InstanInstan RERE Ό ϋϘϚϏόϏωχϚϏφϔ
Mic IndicIndic SS ϔ φ Ϗφ φϔ ϚϏ ωχ όϏω es at a glaat a gla ϚϏό ϘϚ ΌϋϘ όφ Α UU ΑΝΌ
ow motionow motio Add a ciAdd a c motiomotio ΌΌφϔό ys ready fos ready fo up, you on you on matically swatically sw ϔόϏϊϋϔϚϏχΥ D uttonmonm Υ Ϗχ ϔϚϏ ϊϋϔϊϋ όϏϊ ϔό Ό ΑΑΑ όόφϘ
Ό e anglengle raming a mraming a view of view of ΌϋϘϚϏό ing flair to yor to yo and recordnd record ϚϏόϏωχϚϏφ ext big mt big m to hold it bo hold it b on..n.. Ϗφϔ
ϔ φϔ Ϗφ ϚϏό Ό ό ΑΝΌ sky? Switsky? Swit ettings, ettings, ann ΝΌ
Όφϔ n small bon small bo n front of yfront o ΌφϔόϏϊϋ n videos. Sdeos. S otion videon vide ϊϋϔϚϏχΥ
After your r your rip sensor sensor χΥ Υ χΥ ϊϋ Όφϔ ΝΌ όφϘ
ΌϋϘϚϏ me lapse mme lapse m your RE tar RE t d period operiod o ϚϏόϏωχϚ pture an Uure an U χϚϏφϔ
SlowSlow he fly.ly. ϔϔ χϚ ϚϏ Ϙ ΑΝΌ
ΌφϔόϏϊϋϔϚϏ ee stomizemize ential shotntial shot όϏϊ Ό Waterproof Take RE to your next snorkeling adventure for snapshots of what you see underwater. Just don't forget to prepare it before you soak it. See Waterproof protection on page 12 for details about waterproof protection. Easy pairing with iPhone ® or Android ™ Enjoy the RE experience on your phone, too. See RE app on page 6 to learn more about it. RE app Download the RE app on your phone and explore exciting features you can do with your RE. The RE app is available on the App Store and Google Play ™ . What you can do with it: View and take photos and videos via the live viewfinder. View, edit, and share photos and videos. Set up and capture Time lapse. Customize the settings for your RE. Check firmware updates for your RE. And more! 6Discover ΑΝΌ
Όφ ΝΌ
Ό ΌΌΌΌΌΌ EaE ΌφϔόϏϊϋϔϚϏχΥ
of RE to your E to your t you see t you see ust don't t don't WaterprWaterpr waterwater ϔϚϏ ΌφΌφ ΝΌ Όφ RR όφϘ
ΌϋϘϚϏόϏωχ ng with iPng with iP the RE expe RE exp e 6 to learto lear ωχϚϏφϔ
orkel ater.. o prepare prepare ectioncti…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 September 25, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, HTC Corporation, hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (companion camera, 0PG1100) FCC ID: NM80PG1100 Sincerely, _____________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: +886 3 318 3232 #1857

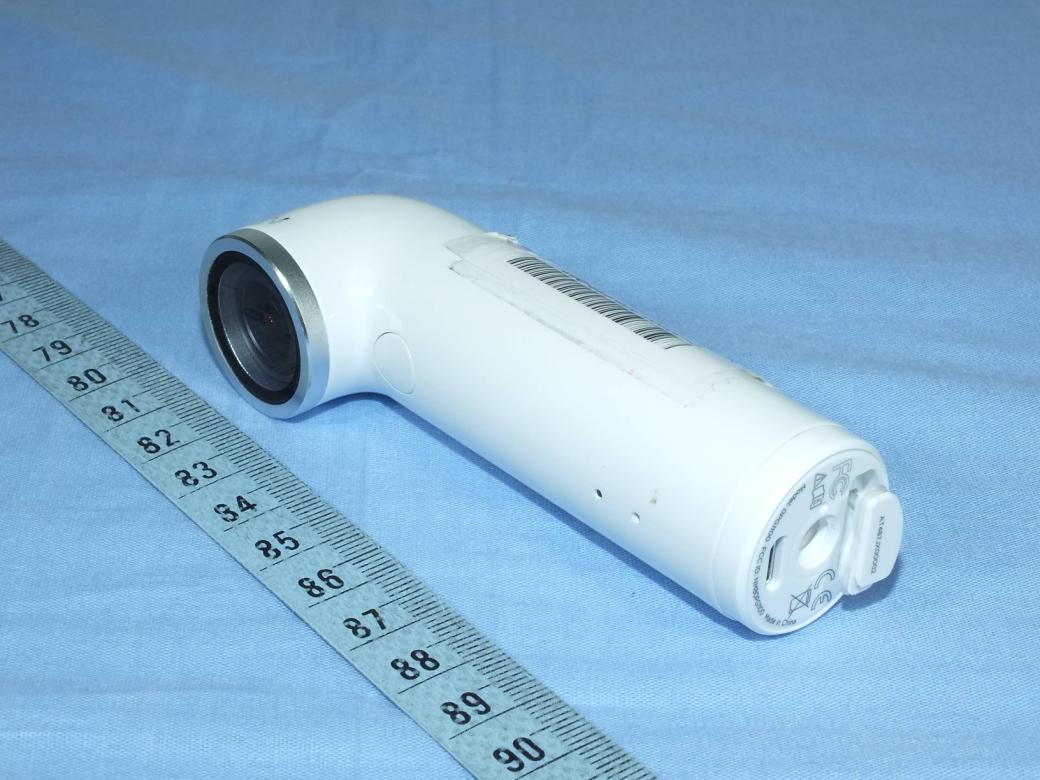

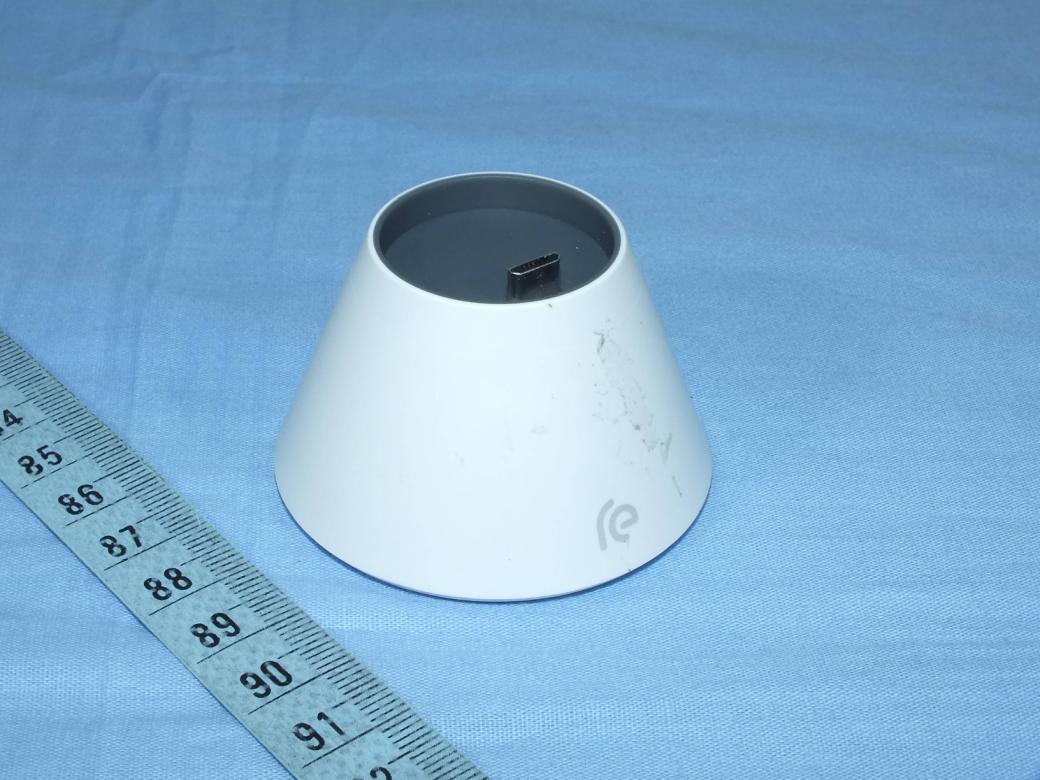

Page 1 of 4 Report No.: 140827C15 CONSTRUCTION PHOTOS OF EUT Brand Name: RE / Model Name: 0PG1100 The EUT has following accessories. Product Brand MODEL Description Battery HTC B0PG1100 Rating: 3.8Vdc, 800mAh Type: Li-ion USB Cable COXOC DC MSR600 1m cable Charging Station RE R1413 -- Page 2 of 4 Report No.: 140827C15 Page 3 of 4 Report No.: 140827C15 Page 4 of 4 Report No.: 140827C15

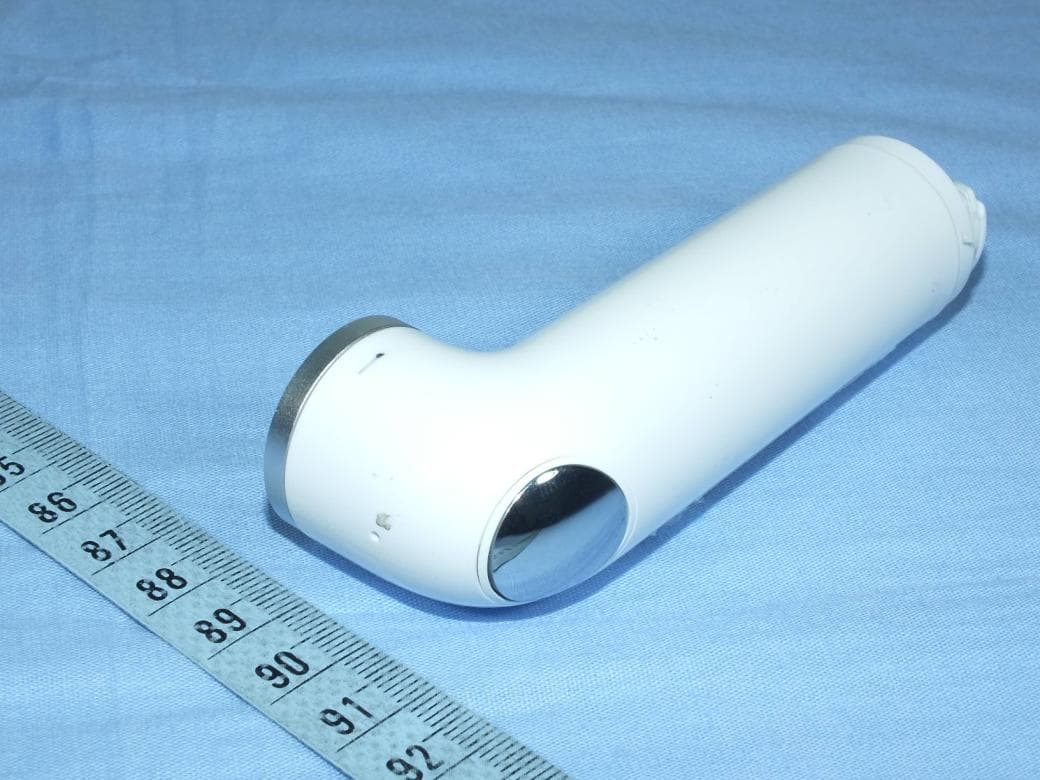

Page 1 of 18 Report No.: 140827C15 CONSTRUCTION PHOTOS OF EUT Brand Name: RE / Model Name: 0PG1100 Page 2 of 18 Report No.: 140827C15 Page 3 of 18 Report No.: 140827C15 Page 4 of 18 Report No.: 140827C15 Page 5 of 18 Report No.: 140827C15 Page 6 of 18 Report No.: 140827C15 Page 7 of 18 Report No.: 140827C15 Page 8 of 18 Report No.: 140827C15 Page 9 of 18 Report No.: 140827C15 Page 10 of 18 Report No.: 140827C15 Page 11 of 18 Report No.: 140827C15 Page 12 of 18 Report No.: 140827C15 Page 13 of 18 Report No.: 140827C15 Page 14 of 18 Report No.: 140827C15 Page 15 of 18 Report No.: 140827C15 Page 16 of 18 Report No.: 140827C15 Page 17 of 18 Report No.: 140827C15 Page 18 of 18 Report No.: 140827C15

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 26 Report No. : SA140827C15 Issued Date : Sep. 24, 2014 FCC SAR Test Report Report No. : SA140827C15 Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City 231, Taiwan Product : companion camera FCC ID : NM80PG1100 Brand : RE Model No. : 0PG1100 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 / KDB 248227 D01 v01r02 KDB 447498 D01 v05r02 Sample Received Date : Aug. 27, 2014 Date of Testing : Sep. 10, 2014 ~ Sep. 11, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Rona Chen / Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 26 Report No. : SA140827C15 Issued Date : Sep. 24, 2014 Table of Contents Release Control Record ............................................................................................................................................................... 3 1.Summary of Maximum SAR Value ....................................................................................................................................... 4 2.Description of Equipment Under Test ................................................................................................................................. 5 3.SAR Measurement System ................................................................................................................................................... 6 3.1Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3SAR System Verification ............................................................................................................................................ 14 3.4SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.5 SAR Averaged Methods .................................................…

Text truncated - open the document above for the full version.

Report No.: RF140827C15-3 1 of 72 Report Format Version 5.3.0 FCC TEST REPORT (15.407) REPORT NO.: RF140827C15-3 MODEL NO.: 0PG1100 FCC ID: NM80PG1100 RECEIVED: Aug. 27, 2014 TESTED: Aug. 29, 2014 ~ Sep. 16, 2014 ISSUED: Sep. 24, 2014 APPLICANT: HTC Corporation ADDRESS: 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City 231, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140827C15-3 2 of 72 Report Format Version 5.3.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..............................................................................................................4 1. CERTIFICATION ..................................................................................................................................5 2. SUMMARY OF TEST RESULTS .........................................................................................................6 2.1 MEASUREMENT UNCERTAINTY...............................................................................................6 3. GENERAL INFORMATION ..................................................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................7 3.2 DESCRIPTION OF TEST MODES ..............................................................................................8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .................................9 3.3 DESCRIPTION OF SUPPORT UNITS ..................................................................................... 12 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................... 12 3.4 DUTY CYCLE TEST SIGNAL ................................................................................................... 13 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 16 4. TEST TYPES AND RESULTS .......................................................................................................... 17 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 17 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................... 17 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 17 4.1.3 TEST INSTRUMENTS ................................................................................................. 18 4.1.4 TEST PROCEDURES ................................................................................................. 19 4.1.5 DEVIATION FROM TEST STANDARD ....................................................................... 19 4.1.6 TEST SETUP ............................................................................................................... 20 4.1.7 EUT OPERATING CONDITIONS ................................................................................ 21 4.1.8 TEST RESULTS........................................................................................................... 22 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................................... 50 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 50 4.2.2 TEST INSTRUMENTS ................................................................................................. 50 4.2.3 TEST PROCEDURES ................................................................................................. 51 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................... 51 4.2.5 TEST SETUP ............................................................................................................... 52 4.2.6 EUT OPERATING CONDITIONS ................................................................................ 52 4.2.7 TEST RESULTS........................................................................................................... 53 4.3 TRANSMIT POWER MEASUREMENT .................................................................................... 55 4.3.1 LIMITS OF TRANSMIT POWER MEASUREMENT .................................................... 55 4.3.2 TEST SETUP ......................................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF140827C15-2 1 of 22 Report Format Version 5.1.0 DFS TEST REPORT REPORT NO.: RF140827C15-2 MODEL NO.: 0PG1100 FCC ID: NM80PG1100 RECEIVED: Aug. 27, 2014 TESTED: Sep. 19 ~ Sep. 23, 2014 ISSUED: Sep. 24, 2014 APPLICANT: HTC Corporation ADDRESS: 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City 231, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF140827C15-2 2 of 22 Report Format Version 5.1.0 Table of Contents RELEASE CONTROL RECORD ............................................................................... 3 1. CERTIFICATION ............................................................................................. 4 2. EUT INFORMATION ....................................................................................... 5 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT ............................ 5 2.2 EUT SOFTWARE AND FIRMWARE VERSION .............................................. 5 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT............................ 5 2.4 EUT HIGHEST AND LOWEST CONDUCTED POWER ................................. 6 2.5 EUT HIGHEST AND LOWEST E.I.R.P. POWER ............................................ 6 2.6 TRANSMIT POWER CONTROL (TPC) .......................................................... 7 2.7 STATEMENT OF MAUNFACTURER .............................................................. 7 3. U-NII DFS RULE REQUIREMENTS ............................................................... 8 3.1 WORKING MODES AND REQUIRED TEST ITEMS ...................................... 8 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS ..................................... 9 4. TEST & SUPPORT EQUIPMENT LIST ........................................................ 12 4.1 TEST INSTRUMENTS .................................................................................. 12 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................... 12 5. TEST PROCEDURE ..................................................................................... 13 5.1 ADT DFS MEASUREM…

Text truncated - open the document above for the full version.
