User guide HTC Desire® 520 Confidential For certification only Contents Features you'll enjoy Personalization9 Imaging10 Sound11 Unboxing HTC Desire 52012 Back cover13 Battery14 nano UIM card17 Storage card18 Switching the power on or off19 Want some quick guidance on your phone?20 Phone setup and transfer Setting up HTC Desire 520 for the first time21 Transferring content from an Android phone22 Ways of transferring content from an iPhone22 Transferring iPhone content through iCloud23 Other ways of getting contacts and other content23 Transferring photos, videos, and music between your phone and computer24 Using Quick Settings24 Getting to know your settings26 Updating your phone's software26 Getting apps from Google Play28 Downloading apps from the web29 Uninstalling an app29 Your first week with your new phone Basics30 HTC Sense Home widget39 Lock screen41 Notifications44 Working with text45 HTC Help49 Personalizing Themes50 More ways to personalize53 HTC BlinkFeed What is HTC BlinkFeed?60 2Contents Confidential For certification only Turning HTC BlinkFeed on or off61 Restaurant recommendations61 Ways of adding content on HTC BlinkFeed62 Customizing the Highlights feed63 Saving articles for later63 Posting to your social networks64 Removing content from HTC BlinkFeed64 Camera Camera basics65 Selfies and people shots68 Panoramic shots71 Other camera features71 Camera settings72 Gallery Viewing photos and videos in Gallery73 Adding photos or videos to an album76 Copying or moving photos or videos between albums76 Tagging photos and videos76 Searching for photos and videos77 Trimming a video78 Saving a photo from a video78 Viewing a Zoe in Gallery78 Photo Editor Basics79 Creative effects81 Phone calls Making a call with Smart dial87 Making a call with your voice87 Dialing an extension number88 Returning a missed call88 Speed dial88 Calling a number in a message, email, or calendar event88 Making an emergency call89 Receiving calls89 What can I do during a call?89 Setting up a conference call90 Call History91 Switching between silent, vibrate, and normal modes91 Home dialing92 Messages Sending a text message (SMS)93 Sending a multimedia message (MMS)93 Sending a group message94 Resuming a draft message94 Replying to a message95 3Contents Confidential For certification only Forwarding a message95 Copying a text message to the nano UIM card95 Deleting messages and conversations96 Entertainment HTC Music97 FM Radio100 HTC Connect100 Power and storage management Battery105 Phone storage108 File Manager109 Sync, backup, and reset Online sync111 Backup112 HTC Sync Manager117 Reset119 People Your contacts list120 Setting up your profile121 Adding a new contact121 Editing a contact’s information122 Getting in touch with a contact123 Importing or copying contacts123 Merging contact information124 Sending contact information125 Contact groups125 Private contacts126 Calendar and Email Viewing the Calendar128 Scheduling or editing an event129 Choosing which calendars to show129 Sharing an event130 Accepting or declining a meeting invitation130 Dismissing or snoozing event reminders131 Checking your mail132 Sending an email message133 Reading and replying to an email message133 Managing email messages134 Searching email messages135 Working with Exchange ActiveSync email135 Adding an email account136 What is Smart Sync?137 4Contents Confidential For certification only Google Search and apps Google Now138 Google Search140 Google Chrome141 Google Drive142 Google Maps144 YouTube146 Other apps HTC Car148 Scribble150 Clock152 Weather153 Internet connections Turning the data connection on or off154 Managing your data usage154 Wi-Fi connection155 Connecting to VPN156 Using HTC Desire 520 as a Wi-Fi hotspot157 Wireless sharing Bluetooth159 Settings and security Turning location services on or off162 Do not disturb mode162 Airplane mode163 Scheduling when to turn data connection off164 Automatic screen rotation164 Setting when to turn off the screen164 Screen brightness164 Touch sounds and vibration165 Changing the display language165 Installing a digital certificate166 Pinning the current screen166 Disabling an app167 Assigning a PIN to a nano UIM card167 Accessibility features167 Accessibility settings168 Turning Magnification gestures on or off168 Navigating HTC Desire 520 with TalkBack169 Trademarks and copyrights Index 5Contents Confidential For certification only About this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. Some apps may not be available in all regions or with your mobile operator. 6About this guide Confidential For certification only Important RF Notice This device was tested for compliance with the applicable FCC and Industry Canada specific absorption rate (SAR) limits for radio frequency (RF) exposure during typical body-worn operations. To ensure that RF exposure levels remain at or below the tested levels, use a belt-clip, holster, or similar accessory that maintains a minimum separation distance of 1.0 cm between your body and the device, with either the front or back of the device facing towards your body. Such accessories should not contain any metallic components. Body-worn accessories that do not meet these specifications may not ensure compliance with applicable SAR limits and their use should be avoided. 7Important RF Not…

Text truncated - open the document above for the full version.

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit
Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). Safety and regulatory guide 3 AC adapter: HTC, TC U250
Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts or circuits, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.
Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard.  Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme 4 Safety and regulatory guide temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Using Your Phone While Flying Use of cell phones may be restricted on aircraft. Please check with your airline to see what restrictions may apply. You may be required to turn off your phone at certain times. Use of your phone’s cellular connection and use of your phone for voice communications may be prohibited by law or airline policy. For your safety and the safety of other passengers, always follow crew instructions regarding the use of your phone. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Road safety When behind the wheel, driving safely should always be your first priority. According to the National Highway Traffic Safety Administration (NHTSA), scientific research indicates that using a wireless phone while driving degrades a driver’s performance, whether …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 July 21, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, HTC Corporation, hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Smartphone, 0PGQ100) FCC ID: NM80PGQ100 Sincerely, _____________________ Daniel Lee / Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Tel: +886 3 318 3232 #1857

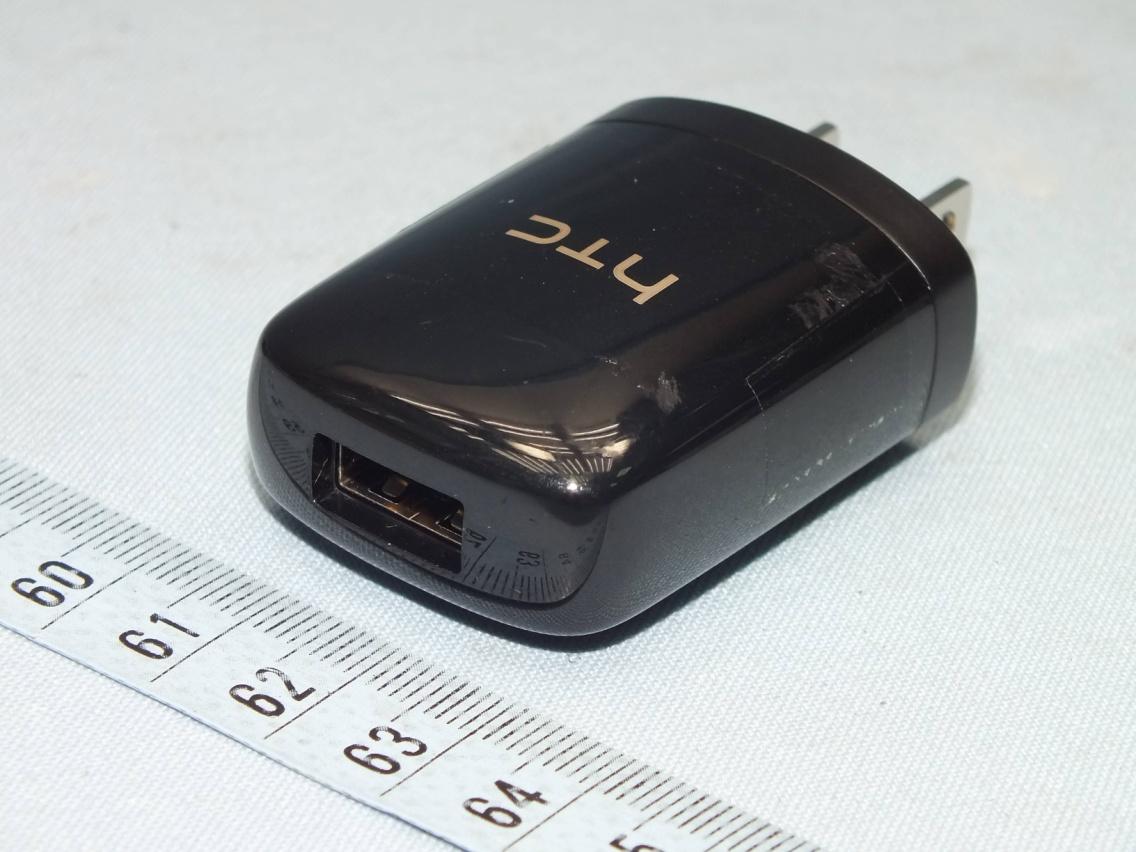

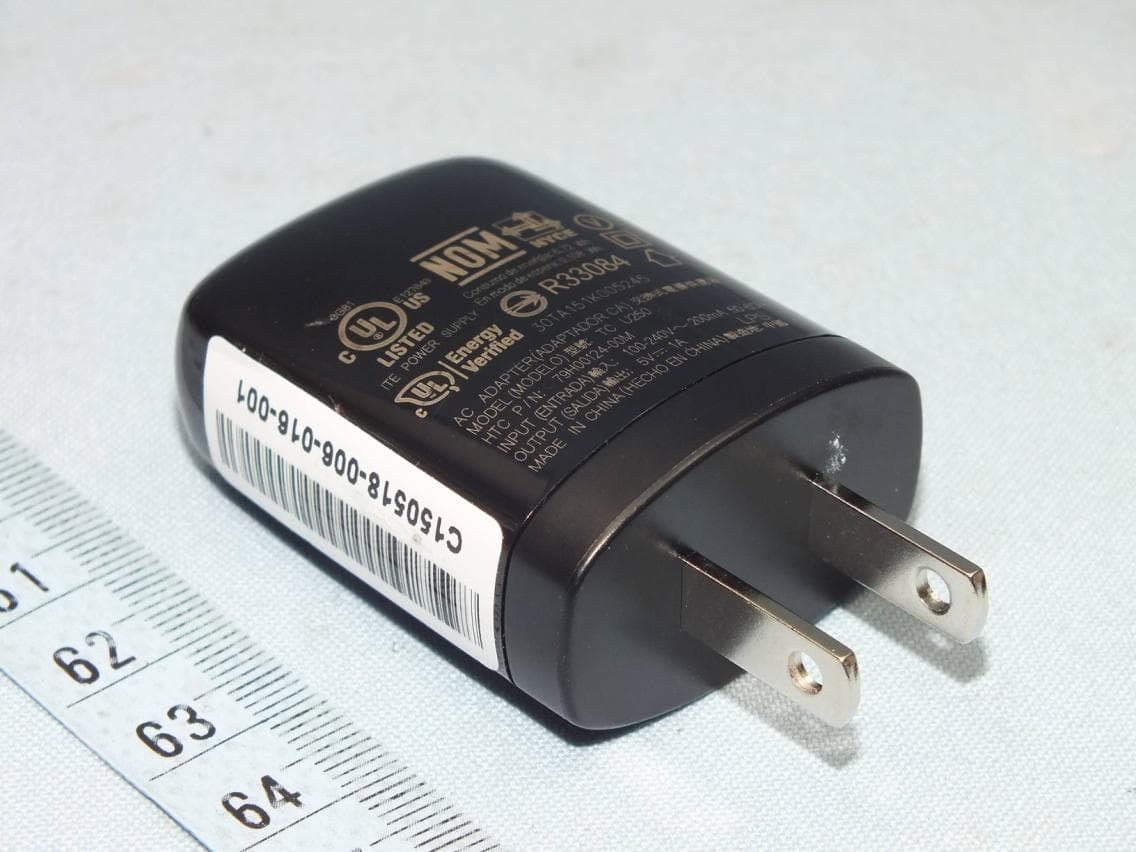

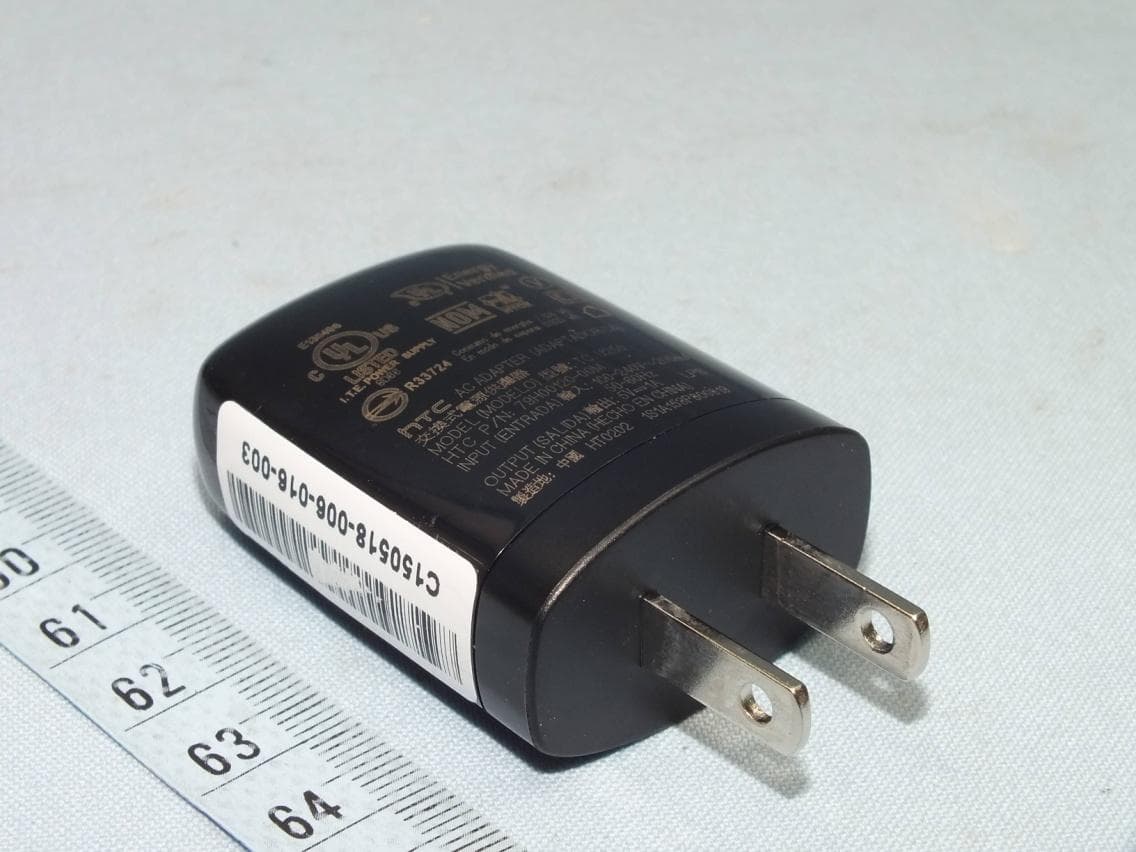

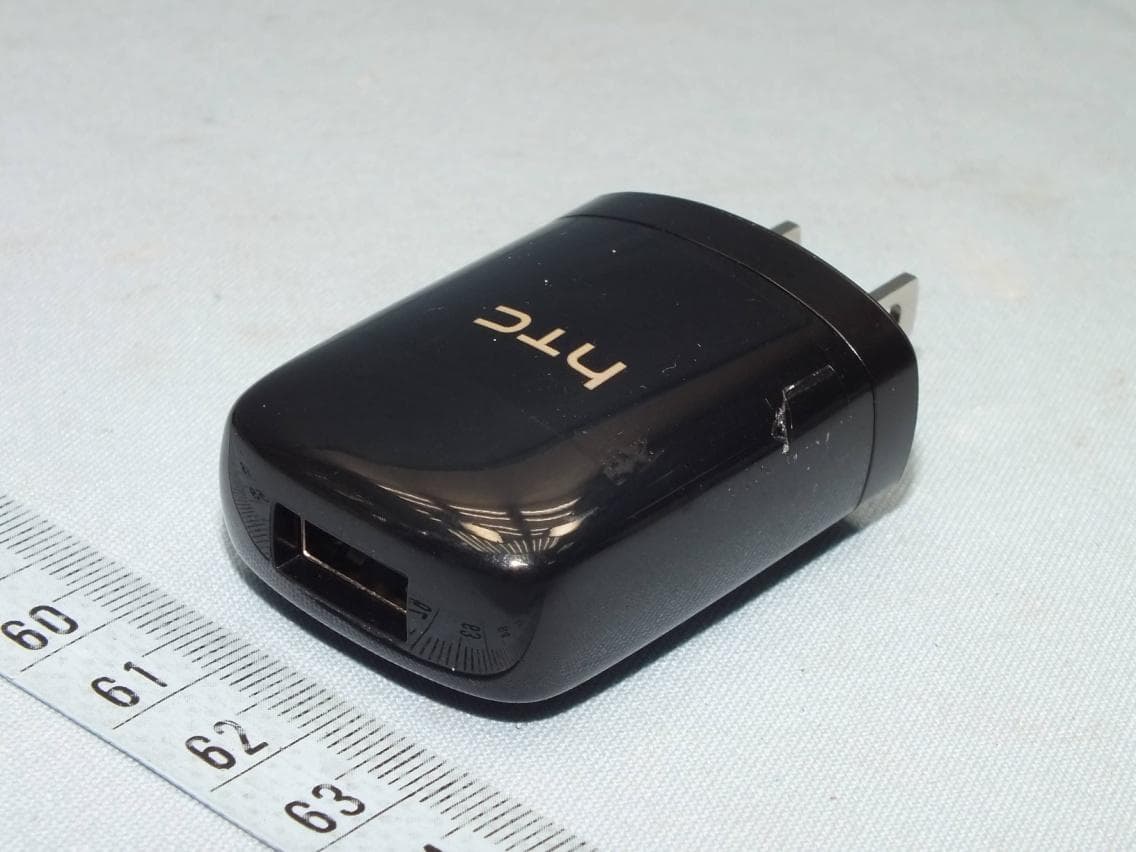

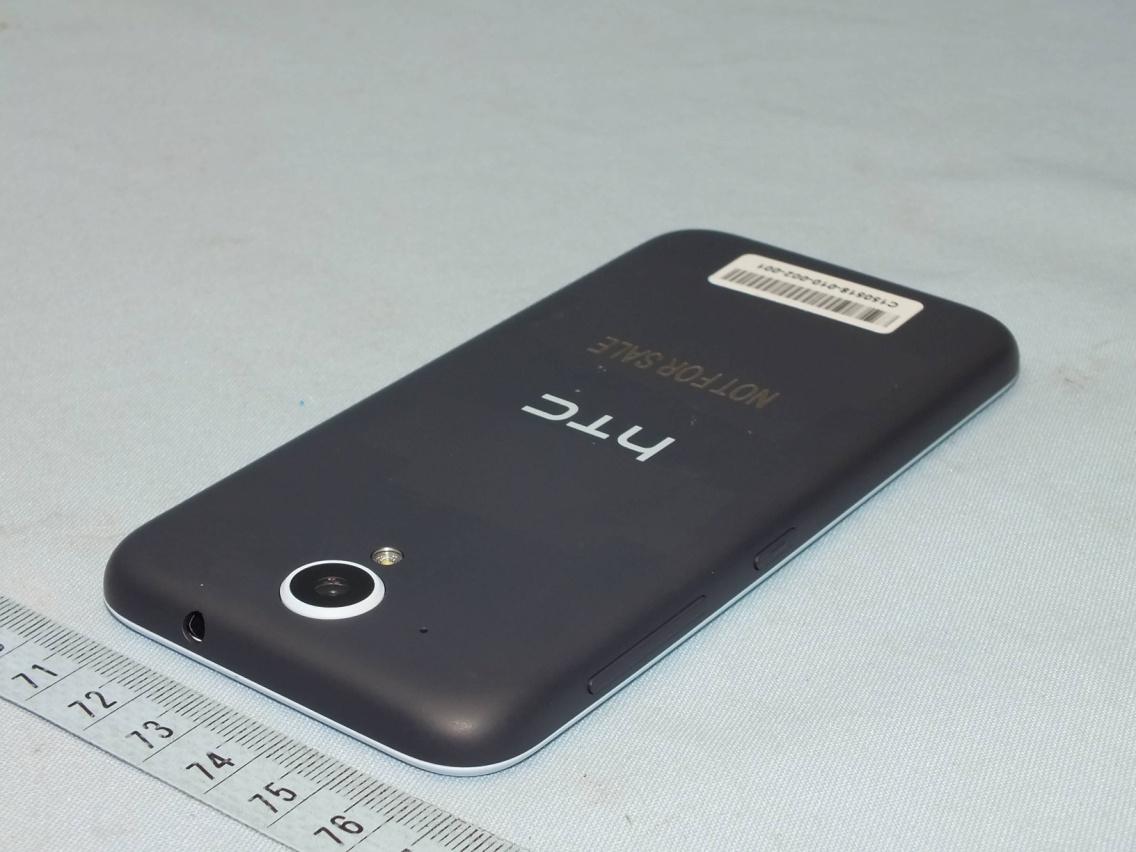

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Adapter 1 Salcomp TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Adapter 2 Phihong TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Battery 1 FORMOSA B0PM3100 Rating: 3.8Vdc, 2000mAh Type: Li-ion Battery 2 SUNWODA B0PM3100 Rating: 3.8Vdc, 2000mAh Type: Li-ion Earphone SIYOTO HS S270 1.1m cable USB Cable 1 COXOC DC MSR600 1.0m cable USB Cable 2 Foxconn DC MSR600 1.0m cable USB Cable 3 Foxlink DC MSR600 1.0m cable USB Cable 4 Luxshare DC MSR600 1.0m cable LCD Panel Bitland BT045 -- Page 2 Page 3 Page 4 Page 5

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 50 Report No. : SA150513C15 Issued Date : Jun. 09, 2015 FCC SAR Test Report Report No. : SA150513C15 Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian City, Taipei County 231, Taiwan Product : Smartphone FCC ID : NM80PGQ100 Brand : HTC Model No. : 0PGQ100 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a -2005 / KDB 865664 D01 v01r03 / KDB 865664 D02 v01r01 KDB 248227 D01 v02 / KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 KDB 941225 D01 v03 / KDB 941225 D05 v02r03 / KDB 941225 D06 v02 Sample Received Date : May 19, 2015 Date of Testing : May 21, 2015 ~ Jun. 02, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. IonneWu/SupervisorIvonne rdon Lin / Assistant Manage onofthis Ivon FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 50 Report No. : SA150513C15 Issued Date : Jun. 09, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ..................…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jun. 09, 2015 Report No. : SA150513C15 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/06/01 System Check_H750_150601 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H07T08N1_0601 Medium parameters used: f = 750 MHz;  = 0.906 S/m;  r = 41.293;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįĶġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįĶġɗ DASY5 Configuration: -       !"#$%&'&$( - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2014/07/22 - Phantom: Twin SAM Phantom_1485; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.73 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.37 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.17 W/kg SAR(1 g) = 2.18 W/kg; SAR(10 g) = 1.47 W/kg Maximum value of SAR (measured) = 2.73 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/29 System Check_H835_150529 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d121 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H08T09N1_0529 Medium parameters used: f = 835 MHz;  = 0.876 S/m;  r = 42.567;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįĶġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįķġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.52, 9.52, 9.52); Calibrated: 2014/07/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2014/07/22 - Phantom: Twin SAM Phantom_1485; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.82 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.69 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 3.35 W/kg SAR(1 g) = 2.23 W/kg; SAR(10 g) = 1.46 W/kg Maximum value of SAR (measured) = 2.84 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/30 System Check_H1750_150530 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1055 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H17T18N1_0530 Medium parameters used: f = 1750 MHz;  = 1.387 S/m;  r = 41.599;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁˈʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˃ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.83, 8.83, 8.83); Calibrated: 2015/02/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2015/04/28 - Phantom: Twin SAM Phantom_1202; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.2 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.31 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 17.0 W/kg SAR(1 g) = 9.57 W/kg; SAR(10 g) = 5.17 W/kg Maximum value of SAR (measured) = 13.3 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/30 System Check_H1900_150530 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H18T19N1_0530 Medium parameters used: f = 1900 MHz;  = 1.446 S/m;  r = 40.483;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˃ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.65, 8.65, 8.65); Calibrated: 2015/02/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2015/04/28 - Phantom: Twin SAM Phantom_1202; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 15.1 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.5 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 18.6 W/kg SAR(1 g) = 10 W/kg; SAR(10 g) = 5.2 W/kg Maximum value of SAR (measured) = 14.4 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/21 System Check_H2450_150521 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H24T25N2_0521 Medium parameters used: f = 2450 MHz;  = 1.861 S/m;  r = 38.468;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįĹġɗġļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįĸġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(7.39, 7.39, 7.39); Calibrated: 2014/07/25; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2014/08/26 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.5 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 106.9 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 28.1 W/kg SAR(1 g) = 13.2 W/kg; SAR(10 g) = 6 W/kg Maximum value of SAR (measured) = 20.5 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/06/01 System Check_B750_150601 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: B07T08N1_0601 Medium parameters used: f = 750 MHz;  = 0.966 S/m;  r = 55.259;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįĴġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįIJġɗ DASY5 Configuration: - Probe: EX3DV4 - SN365…

Text truncated - open the document above for the full version.

Report No.: RF150513C15 1 of 48 Report Format Version 5.0.0 FCC TEST REPORT (PART 22) REPORT NO.: RF150513C15 MODEL Name: 0PGQ100 FCC ID: NM80PGQ100 RECEIVED: May 13, 2015 TESTED: May 19, 2015 ~ May 22, 2015 ISSUED: Jun. 04, 2015 APPLICANT: HTC Corporation ADDRESS: 1F, 6-3 Baoqiang Road, Xindian City, Taipei County 231, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150513C15 2 of 48 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 3 1 CERTIFICATION ................................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ........................................................................................................... 5 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 5 2.2 TEST SITE AND INSTRUMENTS ................................................................................................. 6 3 GENERAL INFORMATION ................................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 7 3.2 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................... 8 3.3 DESCRIPTION OF SUPPORT UNITS .......................................................................................... 8 3.4 TEST ITEM AND TEST CONFIGURATION .................................................................................. 9 3.5 EUT OPERATING CONDITIONS ................................................................................................ 12 3.6 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 12 4 TEST TYPES AND RESULTS ............................................................................................................. 13 4.1 OUTPUT POWER MEASUREMENT .......................................................................................... 13 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT ............................................................. 13 4.1.2 TEST PROCEDURES .....................................................................…
