NM80PJA200Smartphone

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. Safety and regulatory guide 3 This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, TC P900-US  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts or circuits, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard.  Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. 4 Safety and regulatory guide Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Using Your Phone While Flying Use of cell phones may be restricted on aircraft. Please check with your airline to see what restrictions may apply. You may be required to turn off your phone at certain times. Use of your phone’s cellular connection and use of your phone for voice communications may be prohibited by law or airline policy. For your safety and the safety of other passengers, always follow crew instructions regarding the use of your phone. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Road safety When behind the wheel, driving safely should always be your first priority. According to the National Highway Traffic Safety Administration (NHTSA), scientific research indicates that using a Safety and regulatory guide 5 wireless phone while driving degrades…

Text truncated - open the document above for the full version.

HTC Phone User guide Confidential For certification only Contents Unboxing HTC Phone8 Slots with card trays8 nano SIM card9 Storage card10 Charging the battery13 Switching the power on or off13 Need help using your phone?14 Phone setup and transfer Setting up your new phone for the first time15 Restoring your backup from your online storage15 Transferring content from an Android phone16 Transferring content from an iPhone17 Transferring contacts from your old phone through Bluetooth17 Other ways of getting contacts and other content18 Transferring photos, videos, and music between your phone and computer18 Home screen19 Using Quick Settings19 Getting to know your settings21 Updating your phone's software21 Getting apps from Google Play23 Downloading apps from the web24 Uninstalling an app24 Your first week with your new phone Basics25 Motion Launch34 Lock screen39 Notifications42 Working with text44 HTC Guide48 Personalizing More ways to personalize49 Video chat and phone calls Video chat56 Phone calls58 Messages Sending a text message (SMS)63 2Contents Confidential For certification only Sending a multimedia message (MMS)63 Sending a group message64 Resuming a draft message64 Replying to a message64 Forwarding a message65 Moving messages to the secure box65 Blocking unwanted messages66 Copying a text message to the nano SIM card66 Deleting messages and conversations67 Entertainment HTC Music68 FM Radio72 Power and storage management Battery73 Phone storage77 File Manager79 Google Drive80 Sync, backup, and reset Online sync85 Backup86 HTC Sync Manager92 Reset94 People Your contacts list96 Setting up your profile97 Adding a new contact97 Editing a contact’s information98 Getting in touch with a contact99 Importing or copying contacts99 Merging contact information100 Sending contact information101 Contact groups101 Private contacts102 Calendar and Email Checking your mail104 Sending an email message105 Reading and replying to an email message105 Managing email messages106 Searching email messages107 Working with Exchange ActiveSync email107 Adding an email account108 What is Smart Sync?109 Viewing the Calendar109 Scheduling or editing an event110 Choosing which calendars to show111 3Contents Confidential For certification only Sharing an event111 Accepting or declining a meeting invitation112 Dismissing or snoozing event reminders112 Google apps Google Now113 Google Search115 Google Chrome116 Gmail116 Google Maps116 YouTube119 Other apps HTC Dot View121 HTC Car123 Scribble125 Clock127 Weather128 Voice recorder128 Internet connections Turning the data connection on or off129 Managing your data usage129 Wi-Fi connection131 Connecting to VPN132 Using HTC Phone as a Wi-Fi hotspot133 Sharing your phone's Internet connection by USB tethering134 Wireless sharing Bluetooth135 NFC137 HTC Mini+138 Settings and security Turning location services on or off141 Airplane mode141 Do not disturb mode142 Scheduling when to turn data connection off143 Automatic screen rotation143 Setting when to turn off the screen144 Screen brightness144 Changing the display font144 Touch sounds and vibration145 Changing the display language145 Accessibility settings145 Turning Magnification gestures on or off146 Installing a digital certificate146 Disabling an app146 Assigning a PIN to a nano SIM card147 Navigating HTC Phone with TalkBack148 4Contents Confidential For certification only Trademarks and copyrights Index 5Contents Confidential For certification only About this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. Some apps may not be available in all regions or with your mobile operator. 6About this guide Confidential For certification only Important note on recoverable data Files and other data that have been deleted, cleared, removed, or erased from your device may still be recoverable by third-party data recovery software. Even a factory reset may not permanently erase all data from your phone, including personal information. 7Important note on recoverable data Confidential For certification only Unboxing HTC Phone 1.POWER 2.VOLUME 3.microSD ™ card slot with eject hole 4.Front camera 5.Proximity sensor 6.IR SENSOR 7.Dual speakers 8.Notification LED 9.nano SIM card slot with eject hole 10.USB connector 11.3.5mm headset jack You need a 4G/LTE ™ plan to use your operator's 4G/LTE network for voice calls and data services. Check with your operator for details. §If you want to use a case or screen protector, don’t cover and block the proximity sensor. Purchase a case or screen protector designed for HTC Phone. §Avoid connecting third-party headsets or accessories with metallic charms that dangle near the headset jack. Using these may affect signal reception. Slots with card trays With HTC Phone facing up, the nano SIM slot is on the left side and the microSD slot on the right side. There are trays inside the slots that are used for inserting your cards. When inserting the eject tool into the tray eject holes to remove the card trays, make sure not to press on the trays to avoid damaging the eject mechanism inside the slots. 8Unboxing Confidential For certification only Also, if you want to use a protective case, make sure to buy a case that's designed for HTC Phone and that doesn't block the trays. nano SIM card HTC Phone uses a nano SIM card. Use a standard n…

Text truncated - open the document above for the full version.

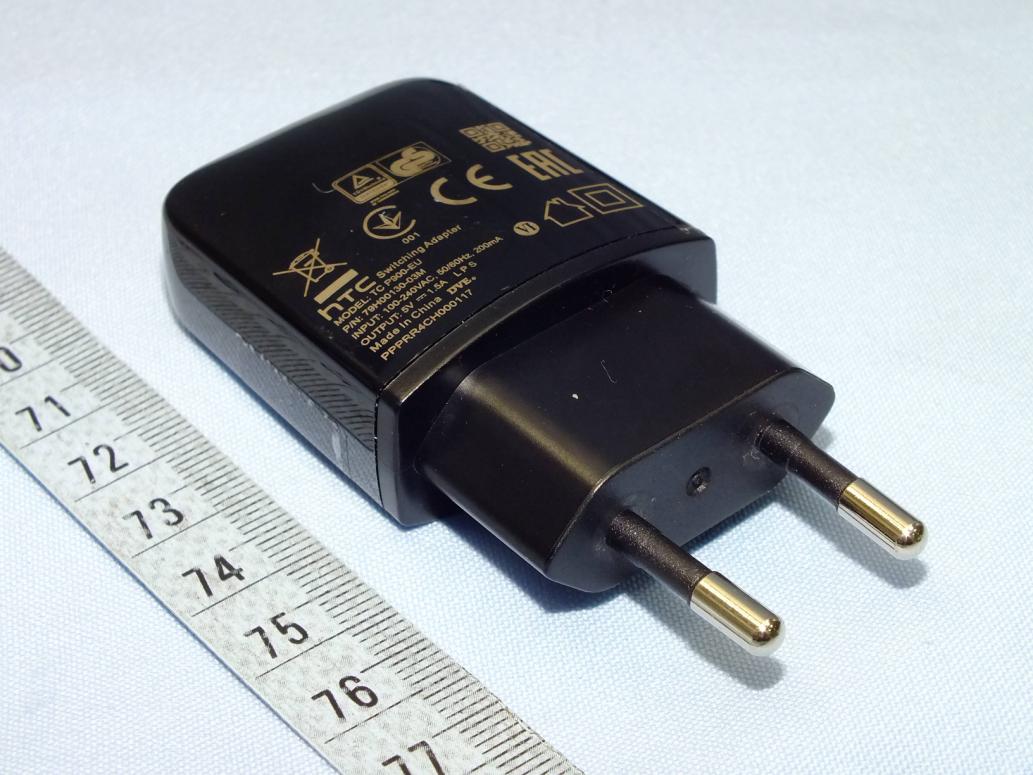

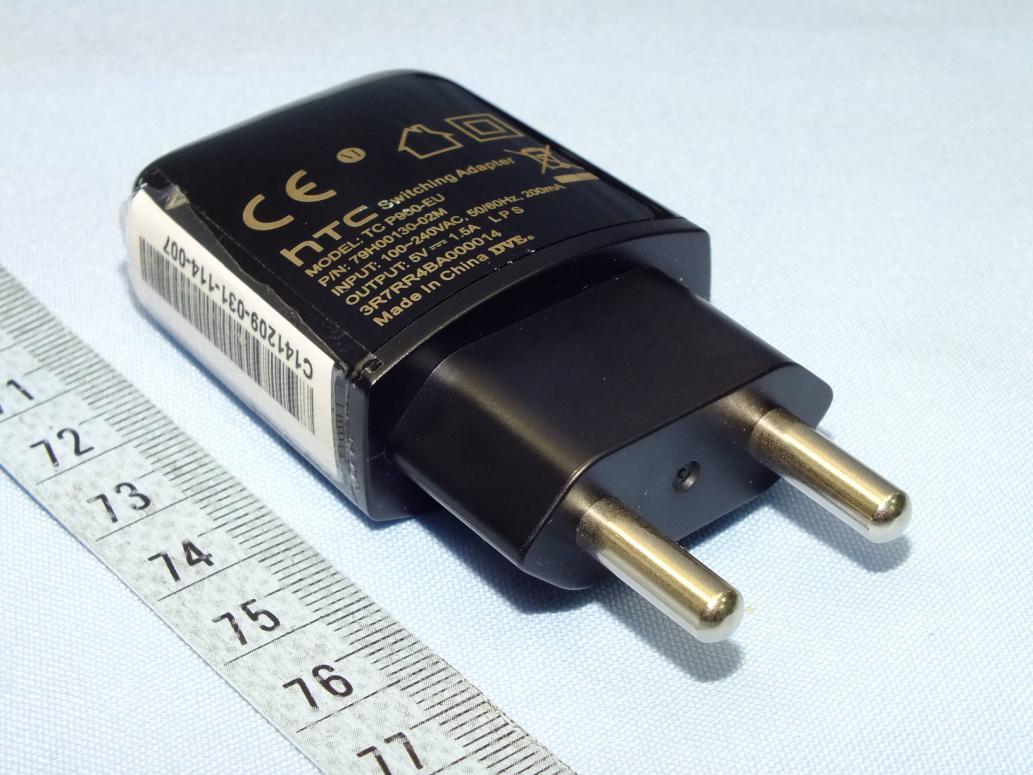

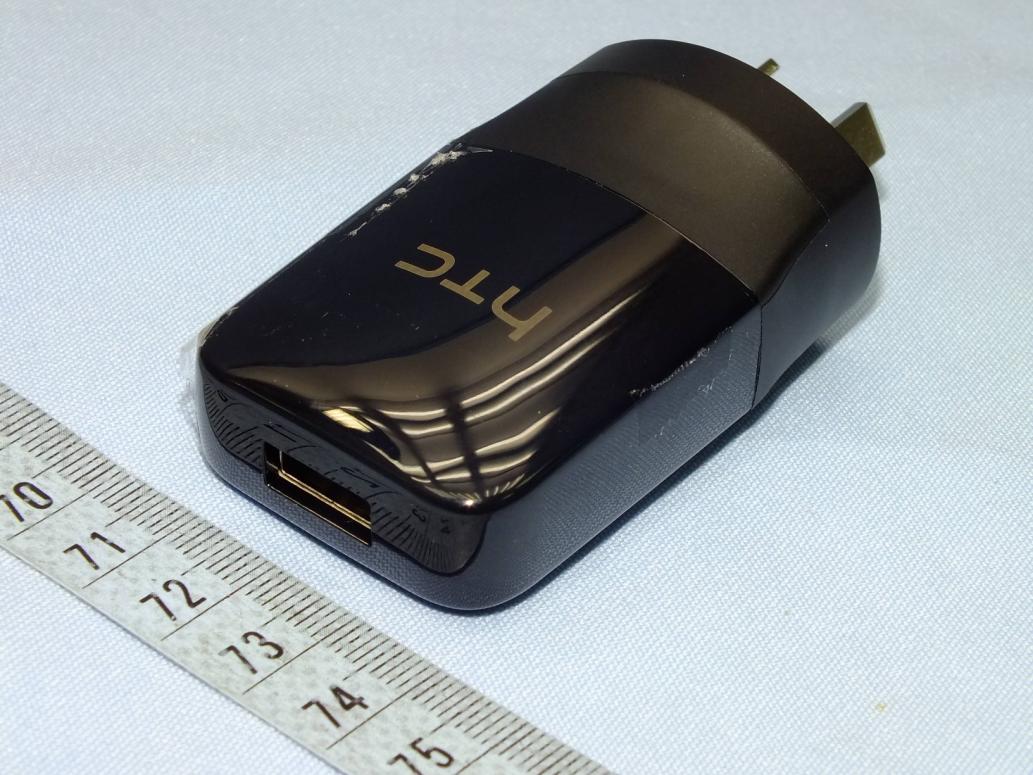

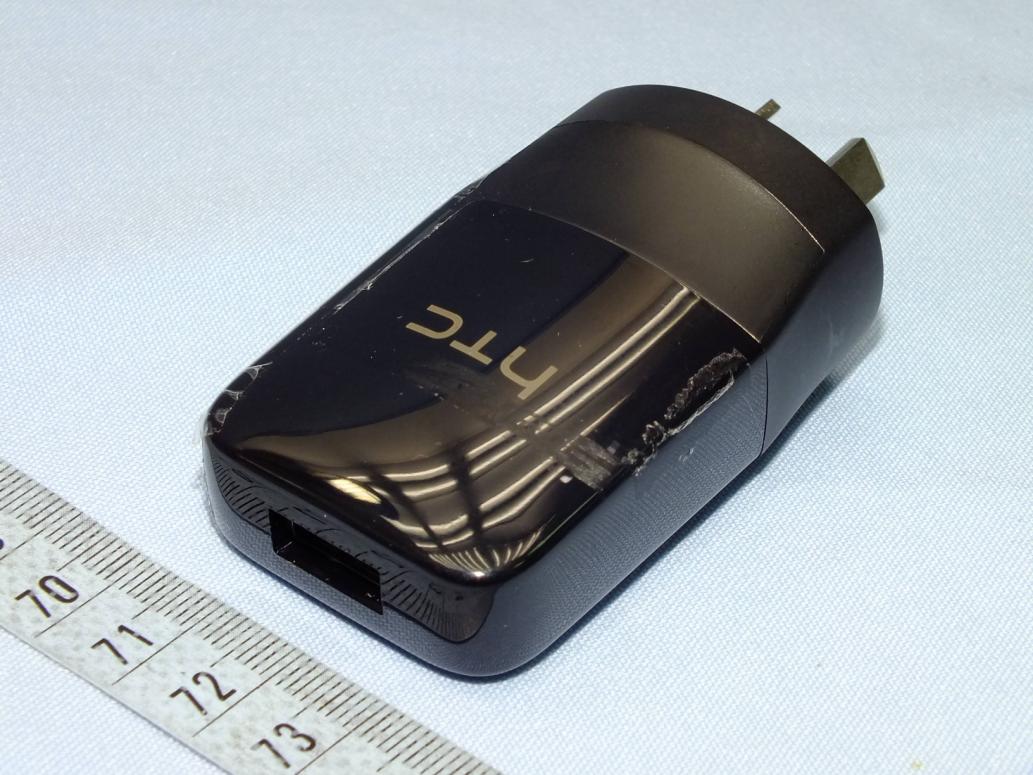

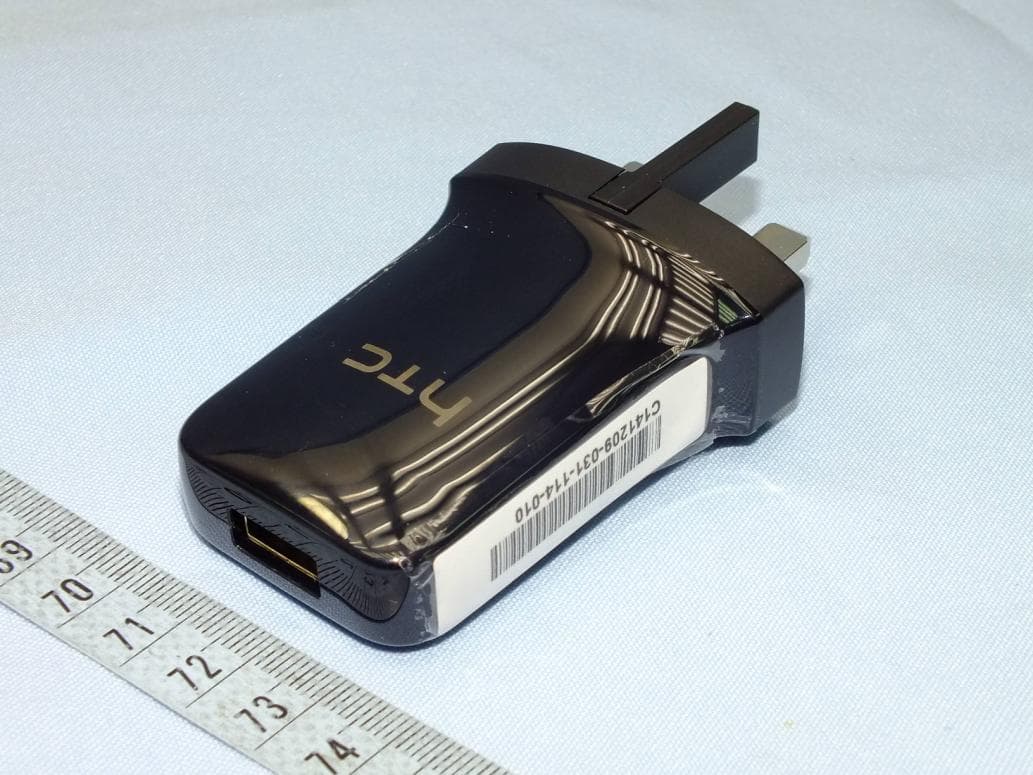

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Adapter 1 Salcomp TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Adapter 2 Phihong TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Adapter 3 Deevan TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Battery Amperex Technology Limited B0PGE100 Rating: 3.83Vdc, 2840mAh Type: Li-ion Earphone 1 Merry MAX-301 1.1m cable Earphone 2 Cotron MAX-301 1.1m cable Earphone 3 SIYOTO HS S270 1.1m cable Earphone 4 Merry HS S250 1.1m cable Earphone 5 Cotron HS S250 1.1m cable USB Cable 1 COXOC DC MSR600 1.0m cable USB Cable 2 Foxconn DC MSR600 1.0m cable USB Cable 3 Foxlink DC MSR600 1.0m cable LCM JDI TPM050 -- Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16

Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 Page 27 Page 28

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 59 Report No. : SA141203C11 Issued Date : Feb. 08, 2015 FCC SAR Test Report Report No. : SA141203C11 Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City, Taiwan 231 Product : Smartphone FCC ID : NM80PJA200 Brand : HTC Model No. : 0PJA200 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a -2005 / KDB 865664 D01 v01r03 / KDB 248227 D01 v01r02 KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 / KDB 941225 D01 v02 KDB 941225 D05 v02r03 / KDB 941225 D06 v01r01 Sample Received Date : Dec. 03, 2014 Date of Testing : Jan. 04, 2015 ~ Jan. 24, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Ivonne Wu / Supervisor FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 59 Report No. : SA141203C11 Issued Date : Feb. 08, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ......................................................................................…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Feb. 08, 2015 Report No. : SA141203C11 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/16 System Check_H750_150116 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H07T08N2_0116 Medium parameters used: f = 750 MHz;  = 0.892 S/m;  r = 41.077;  = 1000 kg/m 3 DASY5 Configuration: - Probe:     !"#$$ - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.71 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.51 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.16 W/kg SAR(1 g) = 2.17 W/kg; SAR(10 g) = 1.46 W/kg Maximum value of SAR (measured) = 2.72 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/16 System Check_H835_150116 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d121 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H08T09N2_0116 Medium parameters used: f = 835 MHz;  = 0.919 S/m;  r = 42.196;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(10, 10, 10); Calibrated: 2014/03/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.06 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.73 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 3.63 W/kg SAR(1 g) = 2.4 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 3.07 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/16 System Check_H1750_150116 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1055 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H17T18N2_0116 Medium parameters used: f = 1750 MHz;  = 1.387 S/m;  r = 41.405;  = 1000 kg/m 3 DASY5 Configuration: - Probe:    %%% !"#$$ - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.9 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.26 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 16.9 W/kg SAR(1 g) = 9.53 W/kg; SAR(10 g) = 5.19 W/kg Maximum value of SAR (measured) = 13.3 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/16 System Check_H1900_150117 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d0 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H18T19N2_011& Medium parameters used: f = 1900 MHz;  = 1.442 S/m;  r = 40.609;  = 1000 kg/m 3 DASY5 Configuration: - Probe:    % % %  !"#$$ - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 16.9 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 106.2 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 19.8 W/kg SAR(1 g) = 10.9 W/kg; SAR(10 g) = 5.73 W/kg Maximum value of SAR (measured) = 15.5 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/13 System Check_H2450_150113 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H24T25N2_0113 Medium parameters used: f = 2450 MHz;  = 1.809 S/m;  r = 39.923;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijijįIJġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįĸɗ DASY5 Configuration: -' "  &( % % % !"#$ $#% - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2014/07/22 - Phantom: Twin SAM Phantom_1822; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 18.6 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 102.2 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 24.7 W/kg SAR(1 g) = 12.5 W/kg; SAR(10 g) = 6.17 W/kg Maximum value of SAR (measured) = 18.6 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/20 System Check_H2600_150120 DUT: Dipole 2600 MHz; Type: D2600V2; SN: 1020 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H25T27N1_0120 Medium parameters used: f = 2600 MHz;  = 2.053 S/m;  r = 37.984;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˃ˁˌʳк DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(6.85, 6.85, 6.85); Calibrated: 2013/04/30; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2012/07/19 - Phantom: SAM Phantom_Left; Type: SAM V4.0; Serial: TP 1…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Feb. 08, 2015 Report No. : SA141203C11 Appendix B. SAR Plots of SAR Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination, and measured SAR > 1.5 W/kg are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/16            Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: H08T09N2_0116 Medium parameters used: f = 837 MHz;  = 0.922 S/m;  r = 42.215;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(10, 10, 10); Calibrated: 2014/03/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)  !"!#$%%& Interpolated grid: dx=.(00 mm, dy=.(00 mm Maximum value of SAR (interpolated) = 0.846 W/kg '(()"!#%%$&*+, Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.00 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.998 W/kg  #&-./*0 #&-. 1/* Maximum value of SAR (measured) = 0.753 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/16       2    Communication System: CDMA2000; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H18T19N2_0116 Medium parameters used: f = 1880 MHz;  = 1.422 S/m;  r = 40.68;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(8.19, 8.19, 8.19); Calibrated: 2014/03/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)  !"!#$%%& Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.735 W/kg '(()"!#%%$&*+, Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.18 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.701 W/kg  #&-. $/*0 #&-./* Maximum value of SAR (measured) = 0.496 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/16        $2    Communication System: CDMA2000; Frequency: 817.9 MHz;Duty Cycle: 1:1 Medium: H08T09N2_0116 Medium parameters used: f = 818 MHz;  = 0.904 S/m;  r = 42.409;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(10, 10, 10); Calibrated: 2014/03/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)  !"!#$%%& Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.750 W/kg '(()"!#%%$&*+, Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.37 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.903 W/kg  #&-.1 /*0 #&-. /* Maximum value of SAR (measured) = 0.684 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/16 34 56  1      Communication System: LTE; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H18T19N2_0116 Medium parameters used: f = 1900 MHz;  = 1.442 S/m;  r = 40.609;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(8.19, 8.19, 8.19); Calibrated: 2014/03/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)  !"!#$%%& Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.524 W/kg '(()"!#%%$&*+, Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.421 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.527 W/kg  #&-.1/*0 #&-.1/* Maximum value of SAR (measured) = 0.372 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/01/16 34 56         Communication System: LTE; Frequency: 1745 MHz;Duty Cycle: 1:1 Medium: H17T18N2_0116 Medium parameters used: f = 1745 MHz;  = 1.381 S/m;  r = 41.427;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(8.4, 8.4, 8.4); Calibrated: 2014/03/31; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2014/03/24 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331)  !"!#$%%& Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of …

Text truncated - open the document above for the full version.
