NM80PM9310Smartphone

Product Safety & Warranty Information 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit
Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, TC U250
Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Safety and regulatory guide 3 WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts or circuits, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.
Take extra precautions  Keep the battery dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard.  Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. This device and earphone have been tested to comply with the Sound Pressure Level requirement laid down in the applicable EN 50332-1 and/or EN 50332-2 standards. Using Your Phone While Flying Use of cell phones may be restricted on aircraft. Please check with your airline to see what restrictions may apply. You may be required to turn off your phone at certain times. Use of your phone’s cellular connection and use of your phone for voice communications may be prohibited by law or airline policy. For your safety and the 4 Safety and regulatory guide safety of other passengers, always follow crew instructions regarding the use of your phone. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Road safety Whe…

Text truncated - open the document above for the full version.

User guide HTC Desire® 626 0PM9XXX User Manual_for CE/FCC certification only Contents Features you'll enjoy Personalization10 Imaging11 Sound12 Unboxing HTC Desire 62613 nano UIM card14 Storage card15 Charging the battery17 Switching the power on or off17 Want some quick guidance on your phone?18 Phone setup and transfer Setting up HTC Desire 626 for the first time19 Restoring your backup from your cloud storage20 Transferring content from an Android phone21 Ways of transferring content from an iPhone22 Transferring iPhone content through iCloud22 Transferring contacts from your old phone through Bluetooth22 Other ways of getting contacts and other content23 Transferring photos, videos, and music between your phone and computer24 Using Quick Settings24 Getting to know your settings25 Updating your phone's software26 Getting apps from Google Play28 Downloading apps from the web29 Uninstalling an app29 Your first week with your new phone Basics30 HTC Sense Home widget39 Lock screen41 Notifications44 Working with text46 HTC Help50 Personalizing Themes51 More ways to personalize54 2Contents 0PM9XXX User Manual_for CE/FCC certification only HTC BlinkFeed What is HTC BlinkFeed?61 Turning HTC BlinkFeed on or off62 Restaurant recommendations62 Ways of adding content on HTC BlinkFeed63 Customizing the Highlights feed64 Saving articles for later64 Posting to your social networks65 Removing content from HTC BlinkFeed65 Camera Camera basics66 Selfies and people shots70 Panoramic shots72 Other camera features73 Camera settings73 Gallery Viewing photos and videos in Gallery74 Adding photos or videos to an album77 Copying or moving photos or videos between albums77 Tagging photos and videos77 Searching for photos and videos78 Trimming a video79 Saving a photo from a video79 One Gallery79 Photo Editor Basics81 Editing continuous shots83 Creative effects85 Phone calls Making a call with Smart dial91 Dialing an extension number91 Returning a missed call91 Speed dial92 Calling a number in a message, email, or calendar event92 Making an emergency call92 Receiving calls93 What can I do during a call?93 Setting up a conference call94 Call History94 Switching between silent, vibrate, and normal modes95 Home dialing95 Messages Sending a text message (SMS)97 Sending a multimedia message (MMS)97 3Contents 0PM9XXX User Manual_for CE/FCC certification only Sending a group message98 Resuming a draft message98 Replying to a message98 Forwarding a message99 Moving messages to the secure box99 Blocking unwanted messages100 Copying a text message to the nano UIM card100 Deleting messages and conversations100 Entertainment HTC Music102 FM Radio105 HTC Connect105 Power and storage management Battery110 Phone storage113 File Manager115 Sync, backup, and reset Online sync117 Backup118 HTC Sync Manager123 Reset125 People Your contacts list127 Setting up your profile128 Adding a new contact128 Editing a contact’s information129 Getting in touch with a contact130 Importing or copying contacts130 Merging contact information131 Sending contact information132 Contact groups132 Private contacts133 Calendar and Email Viewing the Calendar135 Scheduling or editing an event136 Choosing which calendars to show136 Sharing an event137 Accepting or declining a meeting invitation137 Dismissing or snoozing event reminders138 Checking your mail139 Sending an email message140 Reading and replying to an email message140 Managing email messages141 Searching email messages142 Working with Exchange ActiveSync email142 4Contents 0PM9XXX User Manual_for CE/FCC certification only Adding an email account143 What is Smart Sync?144 Google Search and apps Google Now145 Google Search147 Google Chrome148 Google Drive149 Google Maps151 YouTube153 Other apps HTC Dot View155 Kid Mode157 HTC Car159 Scribble160 Clock162 Weather163 Voice recorder164 Internet connections Turning the data connection on or off165 Managing your data usage165 Wi-Fi connection167 Connecting to VPN167 Wireless sharing Bluetooth169 Settings and security Turning location services on or off172 Airplane mode172 Scheduling when to turn data connection off173 Automatic screen rotation173 Setting when to turn off the screen173 Screen brightness173 Touch sounds and vibration174 Changing the display language174 Installing a digital certificate175 Pinning the current screen175 Disabling an app176 Assigning a PIN to a nano UIM card176 Accessibility features176 Accessibility settings177 Turning Magnification gestures on or off177 Navigating HTC Desire 626 with TalkBack178 Trademarks and copyrights 5Contents 0PM9XXX User Manual_for CE/FCC certification only Index 6Contents 0PM9XXX User Manual_for CE/FCC certification only About this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. Some apps may not be available in all regions or with your mobile operator. 7About this guide 0PM9XXX User Manual_for CE/FCC certification only Important RF Notice This device was tested for compliance with the applicable FCC and Industry Canada specific absorption rate (SAR) limits for radio frequency (RF) exposure during typical body-worn operations. To ensure that RF exposure levels remain at or below the tested levels, use a belt-clip, holster, or similar accessory that maintains a minimum separation distance of 1.0 cm between your body and the device, with eit…

Text truncated - open the document above for the full version.

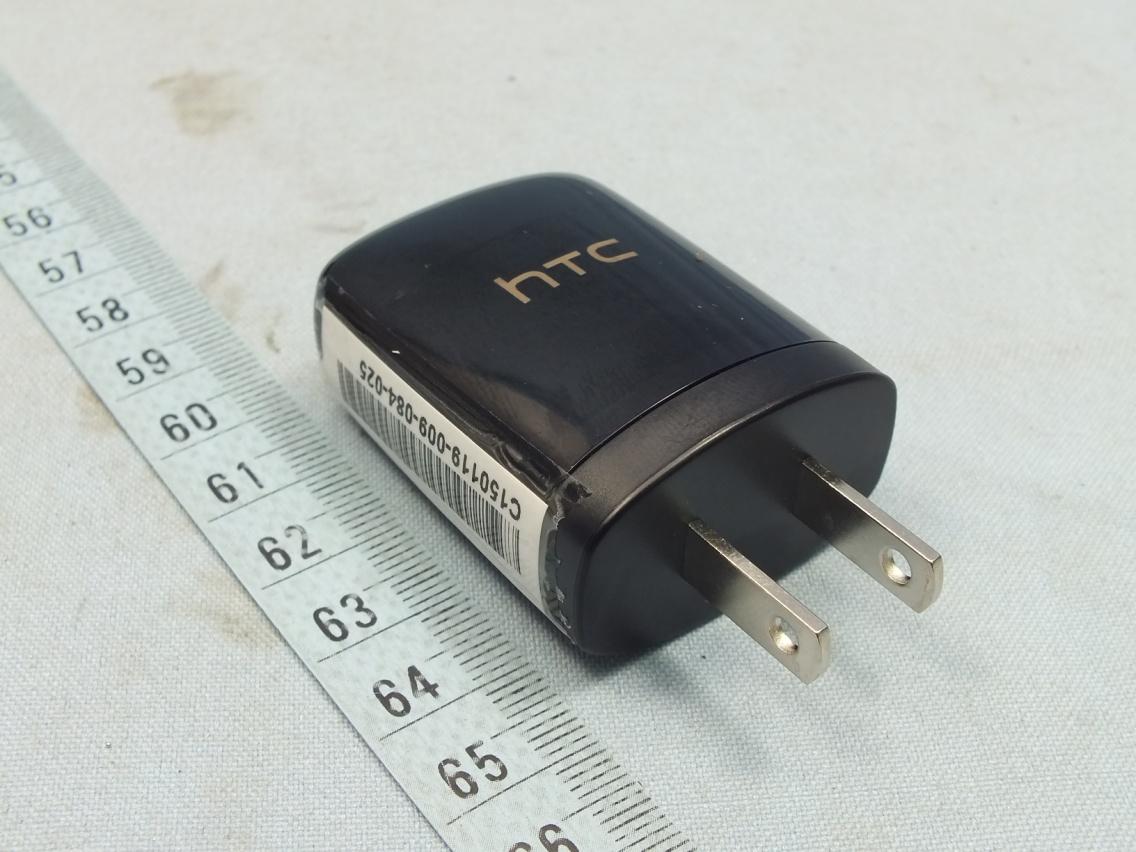

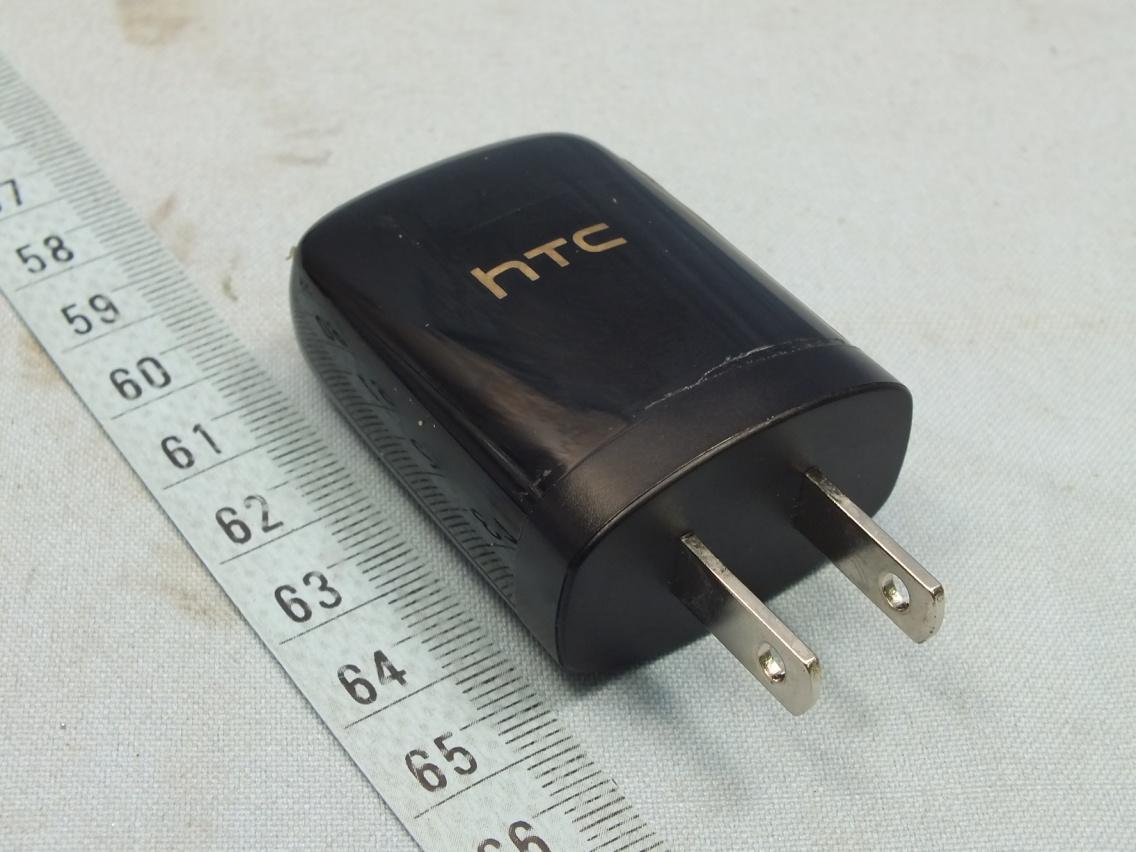

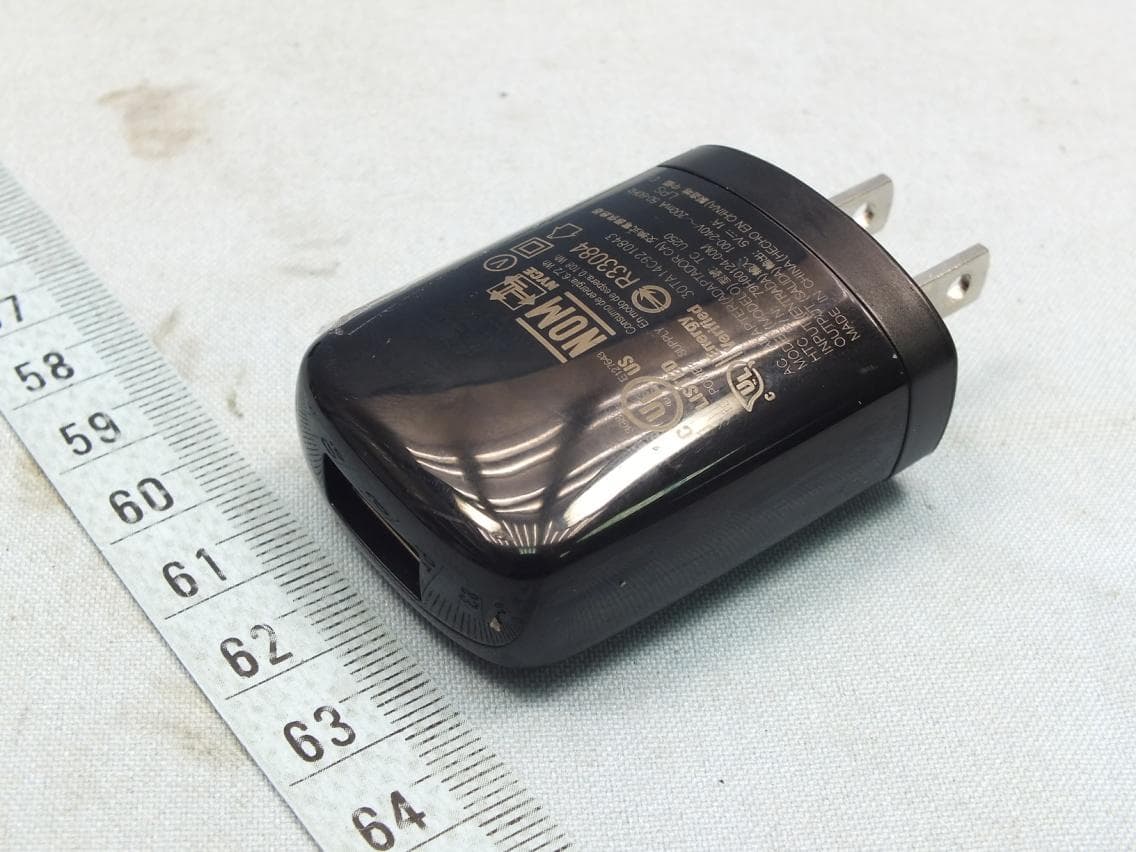

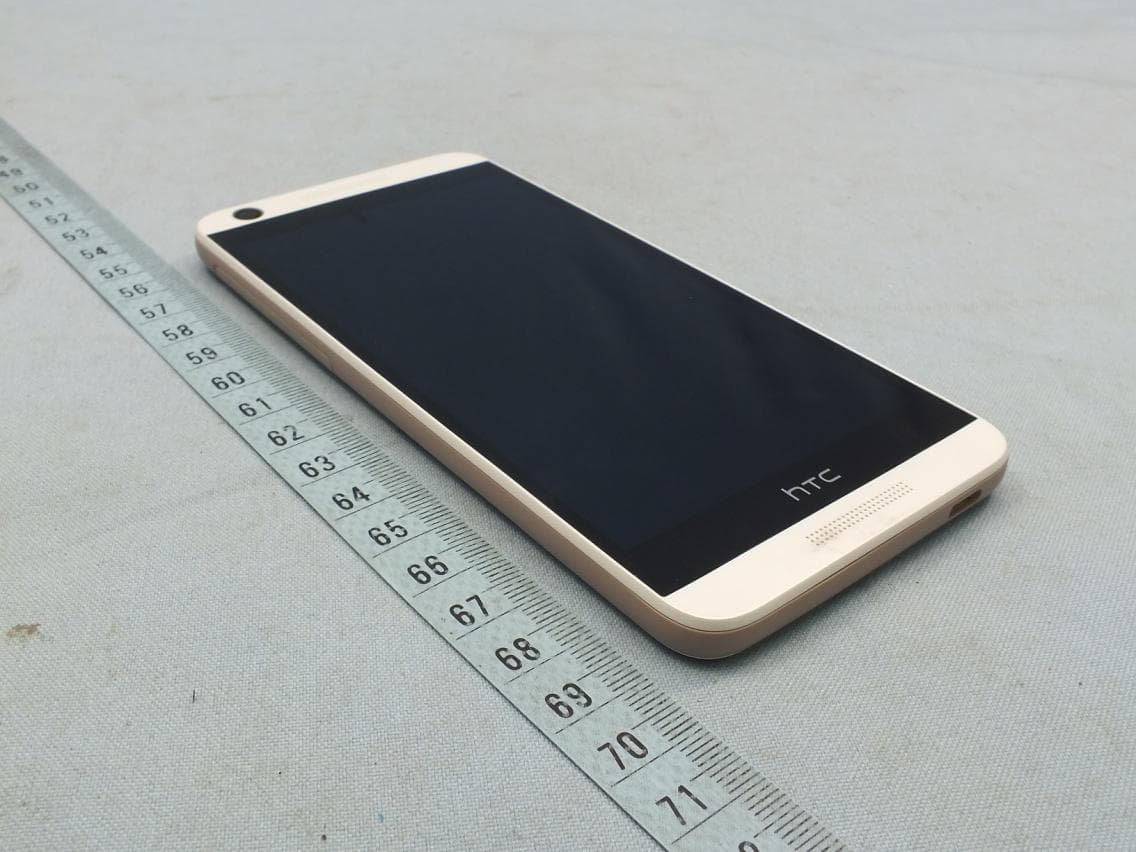

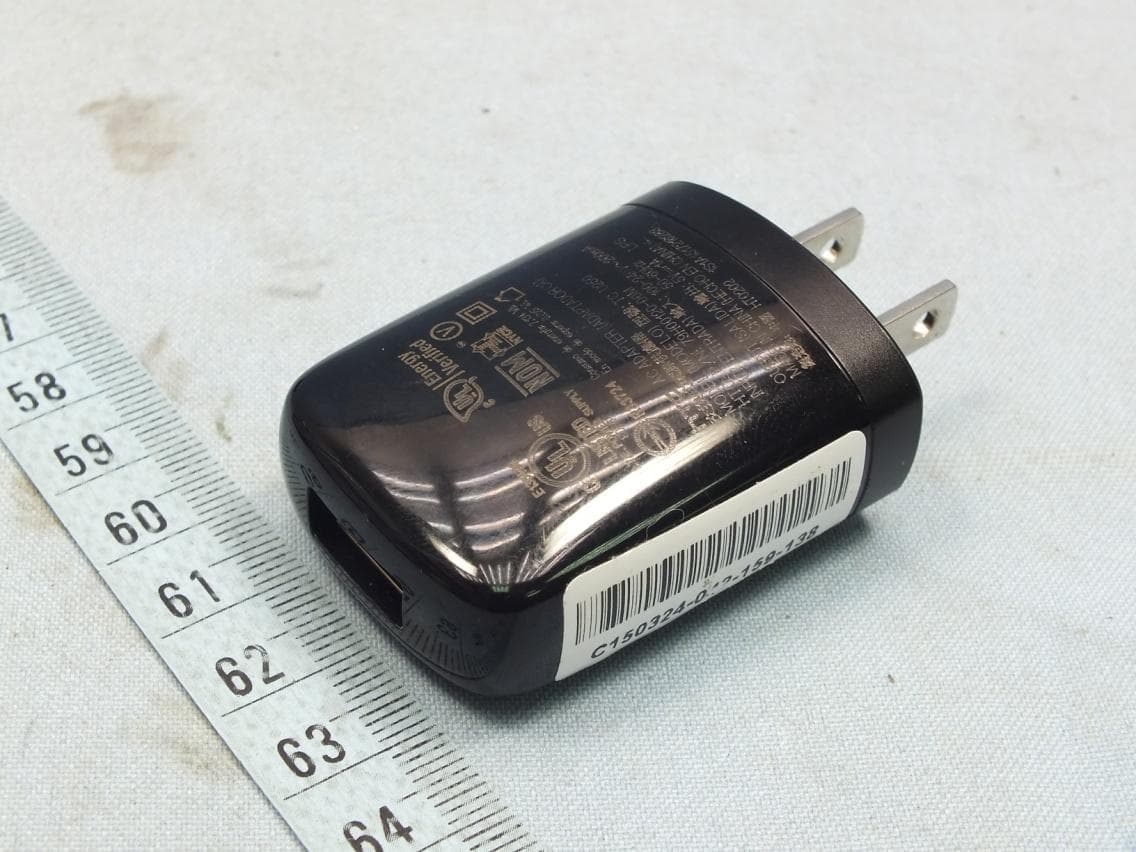

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Adapter 1 Salcomp TC X250 (X=U or E) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Adapter 2 Phihong TC X250 (X=U or E) I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Battery ATL B0PKX100 Rating: 3.85Vdc, 2000mAh Type: Li-ion Earphone 1 SIYOTO HS S270 1.1m cable Earphone 2 Merry HS S250 1.1m cable Earphone 3 Cotron HS S250 1.1m cable USB Cable 1 COXOC DC MSR600 1.0m cable USB Cable 2 Foxconn DC MSR600 1.0m cable USB Cable 3 Foxlink DC MSR600 1.0m cable USB Cable 4 Luxshare DC MSR600 1.0m cable LCD Panel Tianma 60H00905-00P -- Page 2 Page 3 Page 4 Page 5

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jul. 31, 2015 Report No. : SA150714C29 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jul. 31, 2015 Report No. : SA150714C29 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/13 System Check_H750_150513 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H07T08N2_0513 Medium parameters used: f = 750 MHz;  = 0.892 S/m;  r = 41.542;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁˉʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˇʳк DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.52, 10.52, 10.52); Calibrated: 2015/02/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2014/12/29 - Phantom: Twin SAM Phantom_1654; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.57 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.86 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.00 W/kg SAR(1 g) = 2.05 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.57 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/12 System Check_H835_150512 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d121 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H08T09N2_0512 Medium parameters used: f = 835 MHz;  = 0.883 S/m;  r = 43.385;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁˈʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˆʳк DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.17, 10.17, 10.17); Calibrated: 2015/02/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2014/12/29 - Phantom: Twin SAM Phantom_1654; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.01 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.54 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.50 W/kg SAR(1 g) = 2.37 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.99 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/11 System Check_H1750_150511 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1055 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H17T18N2_0511 Medium parameters used: f = 1750 MHz;  = 1.316 S/m;  r = 40.477;  = 1000 kg/m 3 DASY5 Configuration: - Probe:     !"#$%&'%' - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2015/03/20 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.5 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.3 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 16.3 W/kg SAR(1 g) = 9.23 W/kg; SAR(10 g) = 5.03 W/kg Maximum value of SAR (measured) = 12.8 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/13 System Check_H1900_150513 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H18T19N1_0513 Medium parameters used: f = 1900 MHz;  = 1.394 S/m;  r = 39.252;  = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˅ˁ˄ʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˊʳк DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.65, 8.65, 8.65); Calibrated: 2015/02/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn916; Calibrated: 2014/12/29 - Phantom: Twin SAM Phantom_1654; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.5 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.3 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 17.9 W/kg SAR(1 g) = 9.63 W/kg; SAR(10 g) = 4.99 W/kg Maximum value of SAR (measured) = 13.8 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/10 System Check_H2450_150510 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H24T25N1_0510 Medium parameters used: f = 2450 MHz;  = 1.874 S/m;  r = 39.764;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįijġɗġļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijijįĶġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(7.39, 7.39, 7.39); Calibrated: 2014/07/25; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2014/08/26 - Phantom: Twin SAM Phantom_1652; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.9 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.3 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 27.0 W/kg SAR(1 g) = 13 W/kg; SAR(10 g) = 6.02 W/kg Maximum value of SAR (measured) = 20.1 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/05/10 System Check_H2600_150510 DUT: Dipole 2600 MHz; Type: D2600V2; SN: 1020 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H25T27N1_0510 Medium parameters used: f = 2600 MHz;  = 2.052 S/m;  r = 37.587;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįĴġɗġļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijijįĶġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(7.27, 7.27, 7.27); Calibrated: 201…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 54 Report No. : SA150714C29 Issued Date : Jul. 31, 2015 FCC SAR Test Report Report No. : SA150714C29 Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City, Taiwan 231 Product : Smartphone FCC ID : NM80PM9310 Brand : HTC Model Name : 0PM9310 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a -2005 / KDB 865664 D01 v01r03 / KDB 865664 D02 v01r01 KDB 248227 D01 v02r01 / KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 KDB 941225 D01 v03 / KDB 941225 D05 v02r03 / KDB 941225 D06 v02 Sample Received Date : Mar. 24, 2015 Date of Testing : May 07, 2015 ~ May 13, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Ivonne Wu / Sup /Assistant Manager FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 54 Report No. : SA150714C29 Issued Date : Jul. 31, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ........................................…

Text truncated - open the document above for the full version.

Report No.: RF150714C29-4 1 of 50 Report Format Version 5.2.1 FCC TEST REPORT (15.247) REPORT NO.: RF150714C29-4 MODEL NAME: 0PM9310 FCC ID: NM80PM9310 RECEIVED: Mar. 24, 2015 TESTED: May 08, 2015 ~ May 15, 2015 ISSUED: Jul. 31, 2015 APPLICANT: HTC Corporation ADDRESS: 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150714C29-4 2 of 50 Report Format Version 5.2.1 TABLE OF CONTENTS RELEASE CONTROL RECORD ..............................................................................................................4 1. CERTIFICATION ..................................................................................................................................5 2. SUMMARY OF TEST RESULTS .........................................................................................................6 2.1 MEASUREMENT UNCERTAINTY...............................................................................................6 3. GENERAL INFORMATION ..................................................................................................................7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................7 3.2 DESCRIPTION OF TEST MODES ..............................................................................................8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .................................9 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 11 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 11 3.4 DUTY CYCLE TEST SIGNAL ................................................................................................... 12 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................... 13 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ....................................................................... 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................... 14 4.1.2 TEST INSTRUMENTS ................................................................................................. 15 4.1.3 TEST PROCEDURES ................................................................................................. 16 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................... 16 4.1.5 TEST SETUP ............................................................................................................... 17 4.1.6 EUT OPERATING CONDITIONS ................................................................................ 17 4.1.7 TEST RESULTS........................................................................................................... 18 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................................... 28 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 28 4.2.2 TEST INSTRUMENTS ................................................................................................. 28 4.2.3 TEST PROCEDURES ...........................................................…

Text truncated - open the document above for the full version.
