NM82PPNFitness Band

English 11 Connecting your UA Band To set up and enjoy all the features of your UA Band, you’ll need to connect it to your phone using the UA Record™ mobile app. TODAY HOURS 4:55 STEPS 10,345 BURNED 475 CALORIES 525 HOW DO YOU FEEL? Download and install UA Record™ from the iOS App Store or Google Play store. English 2 Pairing your UA Band to your phone 1. Launch the UA Record™ app and create an account. 2. Choose from the list of devices to connect. 3. Follow the on-screen instructions to pair your UA Band to your phone and UA Record™ account. Note: If you already have the UA Record™ app, sign in and tap the ‘More’ button from the menu on the ‘My Record’ screen. Next, select ‘Manage Apps & Devices’ and choose from the list of available devices. English 23 About your UA Band Your UA Band tracks your daily activity, workouts, calories burned, resting heart rate and sleep quality. Touch screenBand clasps Home buttonCharging connector Indicator LEDBuilt-in heart rate monitor English 4 How to turn on your UA Band To turn the band on or off , press and hold the Home button for 3 seconds. Charging your UA Band If your band doesn’t turn on after pressing and holding the Home button, you will need to charge it by following these steps: 1. Connect your UA Band to the supplied charging cable. 2. Plug the USB cable end to a power source. 3. When charging, your UA Band will display a red light next to the Home button. Once fully charged, the light will turn green. English 45 Replacing your UA Band strap Your UA Band comes with an extra strap that can fi t smaller wrist sizes. To replace the strap with a diff erent size, follow these steps: 1. Insert the pin provided into the small hole on the underside of the strap. 2. Attach the smaller strap into the main portion of the band. htc.com UA Record™ Any and all data synced with UA Record™ is subject to the Under Armour Terms and Conditions of Use and Privacy Policy. You can review both notices at UA.com. Disclaimer UA Band is not a healthcare device and should not be used as a substitute for medical care. The accuracy of the data captured is not verified. You should never disregard medical advice or delay in seeking medical advice because of any content presented on or through the products, and you should never use the products or content presented on or through the products for diagnosing or treating a health problem. Please consult your health care provider before beginning an exercise routine. Safety Information regarding small children Do not leave your device and its accessories within the reach of small children or allow them to play with it. They could hurt themselves or others, or could accidentally damage the device. Your device contains small parts with sharp edges that may cause an injury or which could become detached and create a choking hazard. Consult the doctor immediately if the accessories are swallowed. © 2016 HTC Corporation. All rights reserved. HTC and the HTC logo are trademarks of HTC Corporation. Under Armour, UA, the UA Logo, UA Record, and UA HealthBox are trademarks of Under Armour, Inc. All other company, product and service names mentioned herein are trademarks, registered trademarks or service marks of their respective owners. Français 11 Connecter votre UA Band Pour confi gurer et apprécier toutes les fonctions de votre UA Band, vous devrez le connecter à votre téléphone en utilisant l’appli mobile UA Record™. TODAY HOURS 4:55 STEPS 10,345 BURNED 475 CALORIES 525 HOW DO YOU FEEL? Téléchargez et installez UA Record™ depuis iOS App Store ou la boutique Google Play. Français 2 Lier votre UA Band à votre téléphone 1. Lancez l’appli UA Record™ et créez un compte. 2. Choisissez dans la liste des appareils pour connecter. 3. Suivez les instructions à l’écran pour lier votre UA Band à votre téléphone et votre compte UA Record™ . Remarque : Si vous avez déjà l’appli UA Record™, connectez-vous et appuyez sur le bouton ‘Plus’ dans le menu de l’écran ‘Mon Record’. Ensuite sélectionnez ‘Gérer les applis et les appareils’ et choisissez dans la liste des appareils disponibles. Français 23 À propos de votre UA Band Votre UA Band suit votre activité quotidienne, séances d’entraînement, calories brûlées, fréquence cardiaque au repos et qualité du sommeil. Écran tactileFermoirs du bracelet Bouton AccueilConnecteur de charge Voyant LEDMoniteur de fréquence cardiaque intégré Français 4 Comment allumer votre UA Band Pour allumer ou éteindre le bracelet, appuyez et maintenez le bouton Accueil pendant 3 secondes. Charger votre UA Band Si votre bracelet ne s’allume pas après avoir appuyé et maintenu le bouton Accueil, vous devrez le recharger en suivant ces étapes : 1. Connectez votre UA Band au câble de charge fourni. 2. Branchez l’extrémité USB du câble à une source d’alimentation. 3. Pendant la charge, votre UA Band affi chera une lumière rouge à côté du bouton Accueil. Une fois complètement chargé, la lumière deviendra verte. Français 45 Remplacer la sangle de votre UA Band Votre UA Band est livré avec une sangle supplémentaire qui est adaptée aux plus petites tailles de poignet. Pour remplacer la sangle avec une taille diff érente, procédez comme suit : 1. Insérez l’aiguille fournie dans le petit trou sur la face inférieure de la sangle. 2. Fixez la plus petite sangle dans la partie principale du bracelet. htc.com UA Record™ Toutes les données synchronisées avec UA Record™ sont soumises aux Termes et conditions d’utilisation et à la Politique de confidentialité d’Under Armour. Vous pouvez consulter les deux avis sur UA.com. Avis d’exclusion UA Band n’est pas un appareil de soins et ne doit pas être utilisé comme un substitut aux soins médicaux. La précision des données capturées n’est pas vérifiée. N’ignorez jamais les conseils médicaux ou ne tardez jamais pour demander des conseils médicaux en raison du contenu présenté sur ou via les produits, et n’utilisez jamais les produits ou contenus présentés sur ou via les produits pour diagnostique…

Text truncated - open the document above for the full version.

Safety and regulatory guide (band) Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THIS PRODUCT OUT OF THE BOX. Important health information and safety precautions When using this product, the safety precautions bel ow must be taken to avoid possible damage, injury, or liability. Retain and follow all safety and operati ng instructions. Observe all warnings in the operat ing instructions. To reduce the risk of bodily injury, electric shock, fire, and damage; observe the follo wing precautions.
WARNING: This product is not a medical product and should not be used as a substitute for medical care. This product is not intended to diag nose, treat, cure, or prevent any disease. We recommend checking with your doctor before starting a new exercise program.
WARNING: This product has a heart rate tracking fea ture that may pose risks if you have certain health conditions. These health conditions include : heart conditions, taking photosensitive medicine, epilepsy, sensitivity to flashing lights, and reduced circulation. This heart tracking feature works best when the product is snugly fitte d. If you have tendonitis, carpal tunnel syndrome, or other musculoskeletal disorders, check with your doctor before using this product. Please discontinue use of this product if you feel tingling, numbness, burning, or stiffness in your hands or wrists while wearing this product. Electrical safety& safety precautions for RF exposure This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalid ate any approval or warranty given to this product.
Accessories  Use only original manufacturer-approved accessories , or accessories that do not contain any metal.  Do not connect with incompatible products or access ories. Use of non-original manufacturer-approved accessories may violate your local RF exposure guidelines and should be avoided.
Faulty and damaged products  Do not attempt to disassemble this product or its a ccessories.  Only qualified personnel should service or repair t his product or its accessories. Safety precautions for proper grounding installatio n CAUTION: Connecting to improperly grounded equipmen t can result in an electric shock. This product is equipped with a USB cable for conne cting to a desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has a n equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit
Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power sou rce required, consult your authorized service provi der or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the p roduct.
Handle battery packs carefully This product contains a Lithium-ion polymer or Lith ium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING: To reduce risk of fire or burns, do not di sassemble, crush, puncture, short external contacts or circuits, expose to temperatur e above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with this product.
Other battery precautions  Do not immerse this product in water or other liqui ds.  The product should only be connected to products th at bear the USB-IF logo or have completed the USB-IF compliance program.  Avoid dropping the product. If the product is dropp ed, especially on a hard surface, and the user suspects damage, take it to a service center for in spection.  If the battery leaks:  Do not allow the leaking fluid to come in contact w ith skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact w ith eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advic e.  Take precautions to keep a leaking battery away fro m fire as there is a danger of ignition or explosio n. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboar d, window sill, or behind glass that is exposed to dir ect sunlight or strong ultraviolet light for extend ed periods of time. This may damage the product, overh eat the battery, or pose a risk to the vehicle. Road safety Full attention must be given to driving at all time s in order to reduce the risk of an accident. You m ust comply with local laws and regulations restricting the use of wireless products while driving. General precautions You alone are responsible for how you use this prod uct and any consequences of its use. You must always switch off this product wherever the use of an electronic device is prohibited. Use of this product is subject to safety measures designed to p rotect users and their environment.
Before exposing the product to liquids, refer to th e operating instructions for specific information o n water resistance.
Avoid applying excessive pressure to the product Do not apply excessive pressure on this product to prevent damage and remove the product from your pocket before sitting down. Cracked display screens due to improper handling are not covered by the warranty.
Protect this product  Always treat this product and its accessories with care and keep them in a cl…

Text truncated - open the document above for the full version.

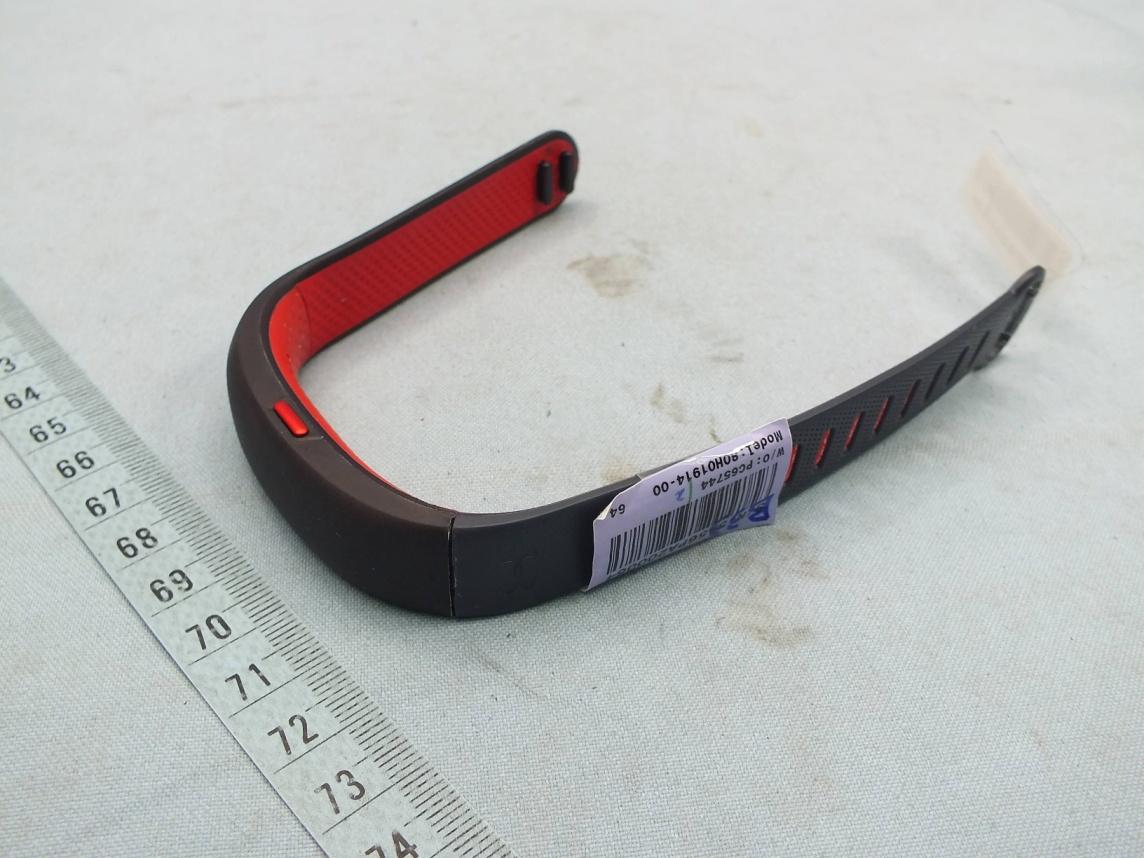

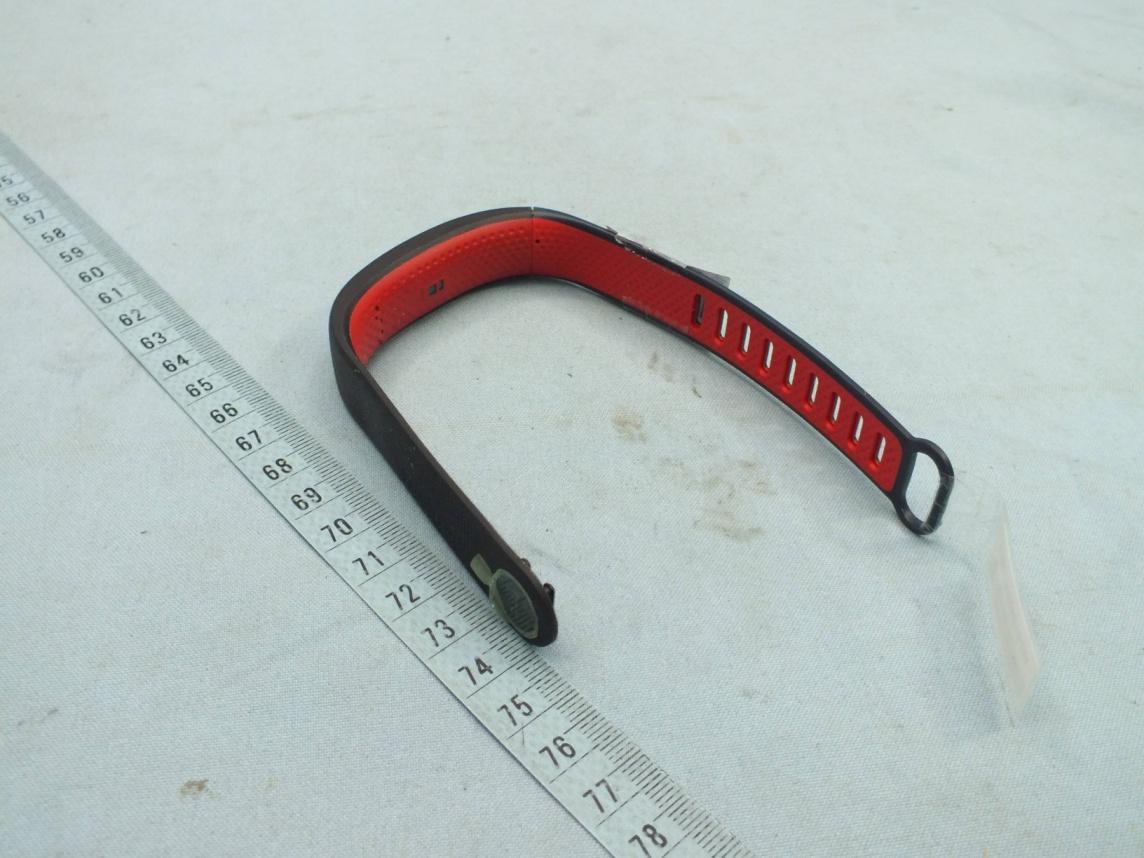

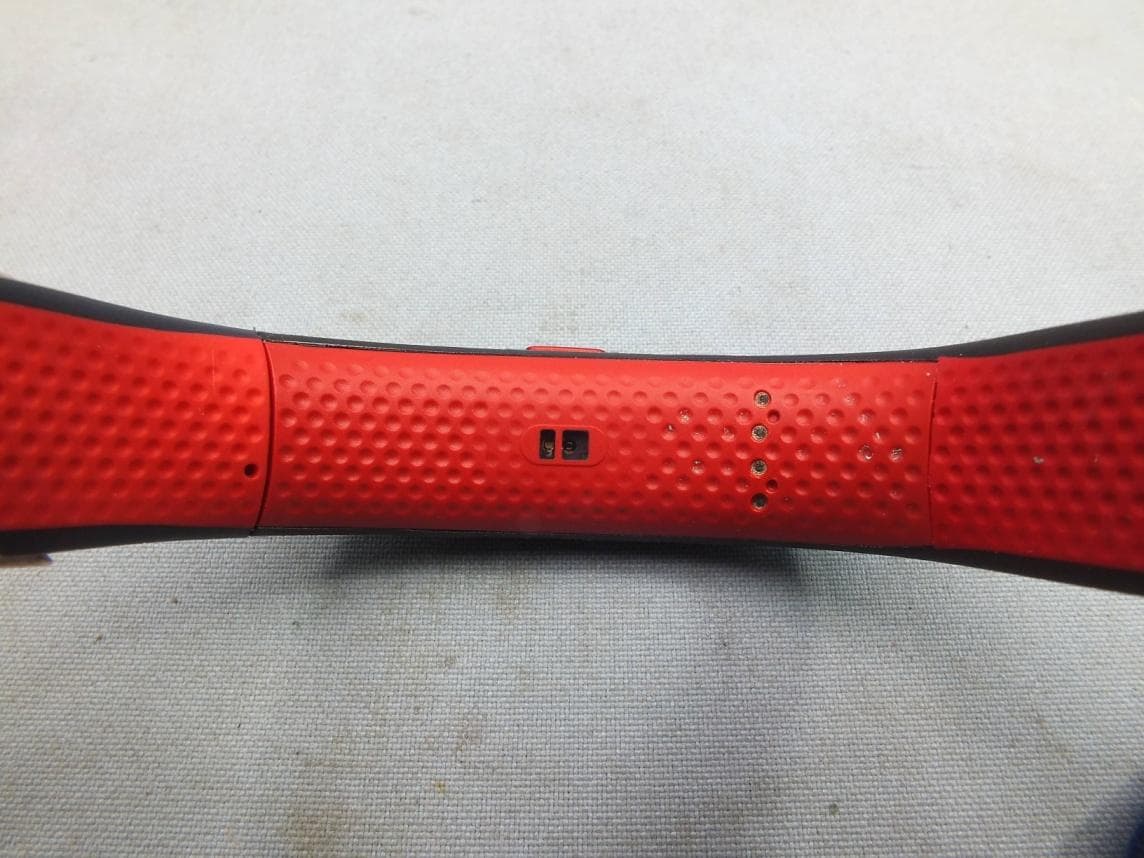

Page 1 of 10 Report No.: 150714C08 CONSTRUCTION PHOTOS OF EUT The EUT contains following accessory devices. Product Brand Model Description Battery SYNERGY AHB381230HPS (HTC Model : B2PPN100) 3.8Vdc, 112mAh USB Cable Luxshare CB 246MM-CC 0.2m non-shielded cable w/o core Page 2 of 10 Report No.: 150714C08 Page 3 of 10 Report No.: 150714C08

Page 4 of 10 Report No.: 150714C08 Page 5 of 10 Report No.: 150714C08 Page 6 of 10 Report No.: 150714C08 Page 7 of 10 Report No.: 150714C08 Page 8 of 10 Report No.: 150714C08 Page 9 of 10 Report No.: 150714C08 Page 10 of 10 Report No.: 150714C08

FCC SAR Exclusion Report Report Format Version 5.0.0 Page No. : 1 of 7 Report No. : SA150714C08A Issued Date : Jul. 29, 2015 Reference No.: 150716C23 FCC SAR Exclusion Report Report No. : SA150714C08A Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City, Taiwan 231 Product : Fitness Band Brand : HTC FCC ID : NM82PPN Model No. : 2PPN Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 / KDB 865664 D02 v01r01 / KDB 447498 D01 v05r02 Sample Received Date : Jul. 14, 2015 Date of Evaluation : Jul. 29, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Exclusion Report Report Format Version 5.0.0 Page No. : 2 of 7 Report No. : SA150714C08A Issued Date : Jul. 29, 2015 Reference No.: 150716C23 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement Evaluation .............................................................................................................................................. 6 3.1 Maximum Output Power ............................................................................................................................................... 6 3.2 SAR Testing Exclusions ............................................................................................................................................... 6 4. Information on the Testing Laboratories ............................................................................................................................. 7 Appendix A. Photographs of EUT and Setup FCC SAR Exclusion Report Report Format Version 5.0.0 Page No. : 3 of 7 Report No. : SA150714C08A Issued Date : Jul. 29, 2015 Reference No.: 150716C23 Release Control Record Issue No. Reason for Change Date Issued SA150714C08A Initial release Jul. 29, 2015 FCC SAR Exclusion Report Report Format Version 5.0.0 Page No. : 4 of 7 Report No. : SA150714C08A Issued Date : Jul. 29, 2015 Reference No.: 150716C23 1. Summary of Maximum SAR Value Equipment Class Mode Highest Reported SAR 1g (5 mm Gap) (W/kg) DSS Bluetooth Not Required Note: 1. The SAR limit (Head & Body: SAR 1g 1.6 W/kg) for general population / uncontrolled exposure is specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992. FCC SAR Exclusion Report Report Format Version 5.0.0 Page No. : 5 of 7 Report No. : SA150714C08A Issued Date : Jul. 29, 2015 Reference No.: 150716C23 2. Description of Equipment Under Test EUT Type Fitness Band Brand Name HTC FCC ID NM82PPN Model Name 2PPN Tx Frequency Bands (Unit: MHz) Bluetooth : 2402 ~ 2480 Uplink Modulations Bluetooth : GFSK, π/4-DQPSK, 8-DPSK Maximum Tune-up Average Conducted Power (Unit: dBm) Bluetooth : 3.5 Antenna Type PIFA Antenna EUT Stage Production Unit Note: 1. The above EUT information is declared by manufacturer and for more detailed features description please refers to the manufacturer's specifications or User's Manual. FCC SAR Exclusion Report Report Format Version 5.0.0 Page No. : 6 of 7 Report No. : SA150714C08A Issued Date : Jul. 29, 2015 Reference No.: 150716C23 3. SAR Measurement Evaluation 3.1 Maximum Output Power The maximum average conducted power (Unit: dBm) including tune-up tolerance is shown as below. Mode 2.4G Bluetooth Bluetooth 3.5 3.2 SAR Testing Exclusions According to KDB 447498 D01, the SAR test exclusion condition is based on source-based time-averaged maximum conducted output power, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure con…

Text truncated - open the document above for the full version.

Report No.: RF150714C08-1 1 of 35 Report Format Version 5.1.0 FCC TEST REPORT REPORT NO.: RF150714C08-1 MODEL NAME: 2PPN FCC ID: NM82PPN RECEIVED: Jul. 14, 2015 TESTED: Jul. 17, 2015 ~ Nov. 06, 2015 ISSUED: Nov. 09, 2015 APPLICANT: HTC Corporation ADDRESS: 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City, Taiwan 231 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF150714C08-1 2 of 35 Report Format Version 5.1.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................. 4 1. CERTIFICATION ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................ 6 2.1 MEASUREMENT UNCERTAINTY ............................................................................................. 6 3. GENERAL INFORMATION ................................................................................................................. 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 7 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................................ 9 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 11 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 11 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 11 4. TEST TYPES AND RESULTS (FOR BLUETOOTH LE 4.0) ............................................................. 12 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................... 12 4.1.2 TEST INSTRUMENTS ................................................................................................. 13 4.1.3 TEST PROCEDURES ................................................................................................. 14 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................... 14 4.1.5 TEST SETUP ............................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS ................................................................................ 15 4.1.7 TEST RESULTS........................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................................... 20 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................... 20 4.2.2 T EST INSTRUMENTS ................................................................................................ 20 4.2.3 TEST PROCEDURES ................................................................................................. 21 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................... 21 4.2.5 TEST SETUP ............................................................................................................... 21 4.2.6 EUT OPERATING CONDITIONS ................................................................................ 21 4.2.7 TEST RESULTS........................................................................................................... 22 4.3 6dB BANDWIDTH MEASUREMENT ....................................................................................... 24 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................................ 24 4.3.2 TEST SETUP ............................................................................................................... 24 4.3.3 TEST INSTRUMENTS ................................................................................................. 24 4.3.4 TEST PROCEDURE .................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST <30MHz – 1GHz> 3 4 RADIATED EMISSION TEST <Above 1GHz> 5
