User guide HTC Phone HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only About this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. Some apps may not be available in all regions or with your mobile operator. 6About this guide HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only Important note on recoverable data Files and other data that have been deleted, cleared, removed, or erased from your device may still be recoverable by third-party data recovery software. Even a factory reset may not permanently erase all data from your mobile device, including personal information. 7Important note on recoverable data HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only Features you'll enjoy Personalization Designed with you in mind, HTC Phone is filled with innovations that help it to adapt to your life. Themes Make HTC Phone feel more personal by customizing how it looks with your own photos and then mix and match with different sets of icons, sounds, color schemes, and more. See What is the Themes app? on page 50. HTC Sense Home Your Home screen adapts to your needs at home, at work, and on the go. See What is the HTC Sense Home widget? on page 34. New lock screen notifications make it easier to find what you've missed, see upcoming events, get restaurant recommendations, and more. See HTC BlinkFeed Notifications on page 42. 8Features you'll enjoy HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC BlinkFeed Get your favorite topics, news, social media, and more conveniently delivered to one place on your phone. Even get suggestions for points of interests and places to eat! See What is HTC BlinkFeed? on page 60. Imaging Made to help you capture your memories to share with family and friends. Front camera features Enjoy using selfie-friendly features with the Camera app. §Live Makeup – Before taking your selfie, use Live Makeup to smoothen your skin. See Applying skin touch-ups with Live Makeup on page 70. §Instant selfie shots – Flash a smile, and the camera instantly captures your smiling face. Or, Just say "Cheese"! See Using Auto Selfie on page 70 and Using Voice Selfie on page 70. One Gallery One Gallery lets you view all your photos and videos that are stored on HTC Phone as well as on favored online services right from the Gallery app. You can also find similar photos and videos using Image match or by searching with keywords or tags. See One Gallery on page 80. Photo Editor The Photo Editor app enhances your photos, from basic edits to elegant effects! Make a photo surreal. Blend in shapes, elements, and prismatic effects. See Prismatic on page 85. 9Features you'll enjoy HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only HTC CONFIDENTIAL For Certification review only Superimpose one image onto another and create a unique composition only you can imagine! See Double Exposure on page 86. Face Fusion uses two photos such as your selfie and a photo of your favorite celebrity to merge your looks together. See Face Fusion on page 88. Sound Discover audio bliss on HTC Phone through its built-in speakers or headphones. Easily connect wireless speakers to your phone. HTC BoomSound with Dolby Audio Hear what you've been missing. HTC BoomSound ™ gives you a rich, authentic sound experience, whether you’re listening to music, watching a video, or playing a game. To find out more, see Toggling modes in HTC BoomSound on page 160 and Using HTC BoomSound with headphones on page 160. HTC Connect Simply swipe up the screen with three fingers to stream music or video from HTC Phone to your speakers or TV. Control the volume and playback with your phone! You can even enjoy your favorite music on multiple speakers. See What is HTC Connect? on page 152. Fingerprint sensor You can use the fingerprint scanner on HTC Phone to quickly wake up and unlock your phone with your fingerprint. You can register up to 5 fingerprints. See About the fingerprint scanner on page 21. 10Features you'll enjoy HTC CONFIDENTIAL For Certification review only…

Text truncated - open the document above for the full version.

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Pictograms and graphic symbols Read this manual’s Safety Information and General Precautions. Do not use while re-fuelling Do not use hand-held while driving This device may produce a bright or flashing light For body-worn operation maintain a separation of 1.5 cm Do not dispose of in a fire Small parts may cause a choking hazard Avoid contact with magnetic media This device may produce a loud sound Avoid extreme temperatures Keep away from pacemakers and other personal medical devices Avoid contact with liquid, keep dry Switch off when instructed in hospitals and medical facilities Do not try and disassemble Switch off when instructed in aircraft and airports Do not rely on this device for emergency communications Safety and regulatory guide 3 Switch off in explosive environments Only use approved accessories Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). 4 Safety and regulatory guide AC adapter: HTC, Model TC P900-US, TC P900-EU, TC P900-UK, TC P900-AU  Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety and regulatory guide 5 Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. This device and earphone have been tested to comply with the Sound Pressure Level requirement laid down in the applicable EN 50332-1 and/or EN 50332-2 standards. Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire re…

Text truncated - open the document above for the full version.

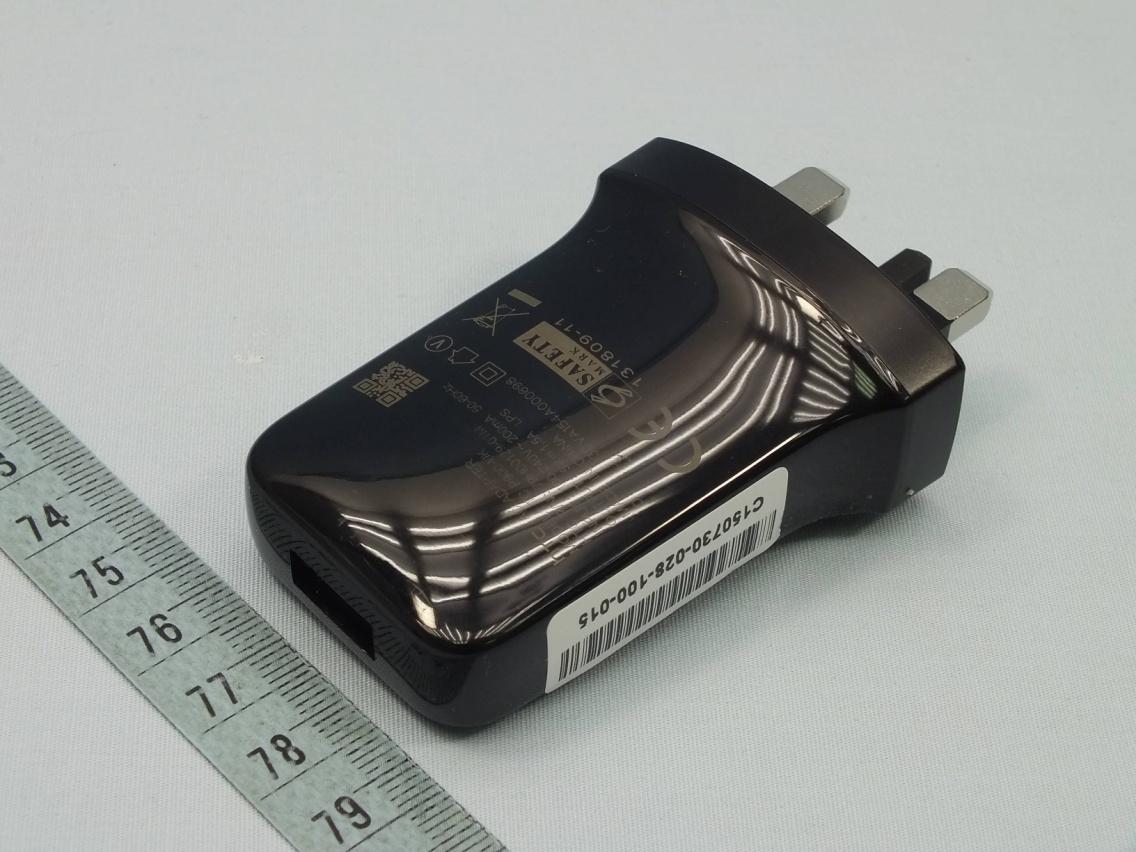

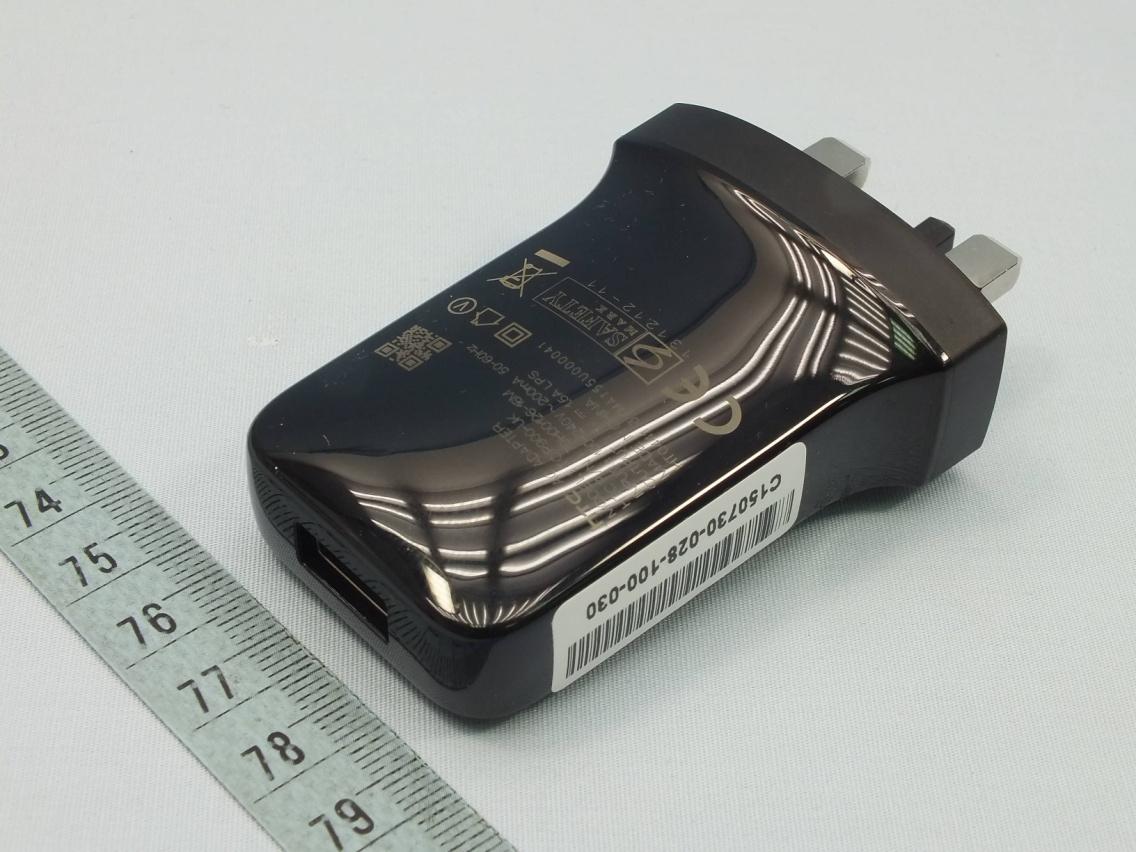

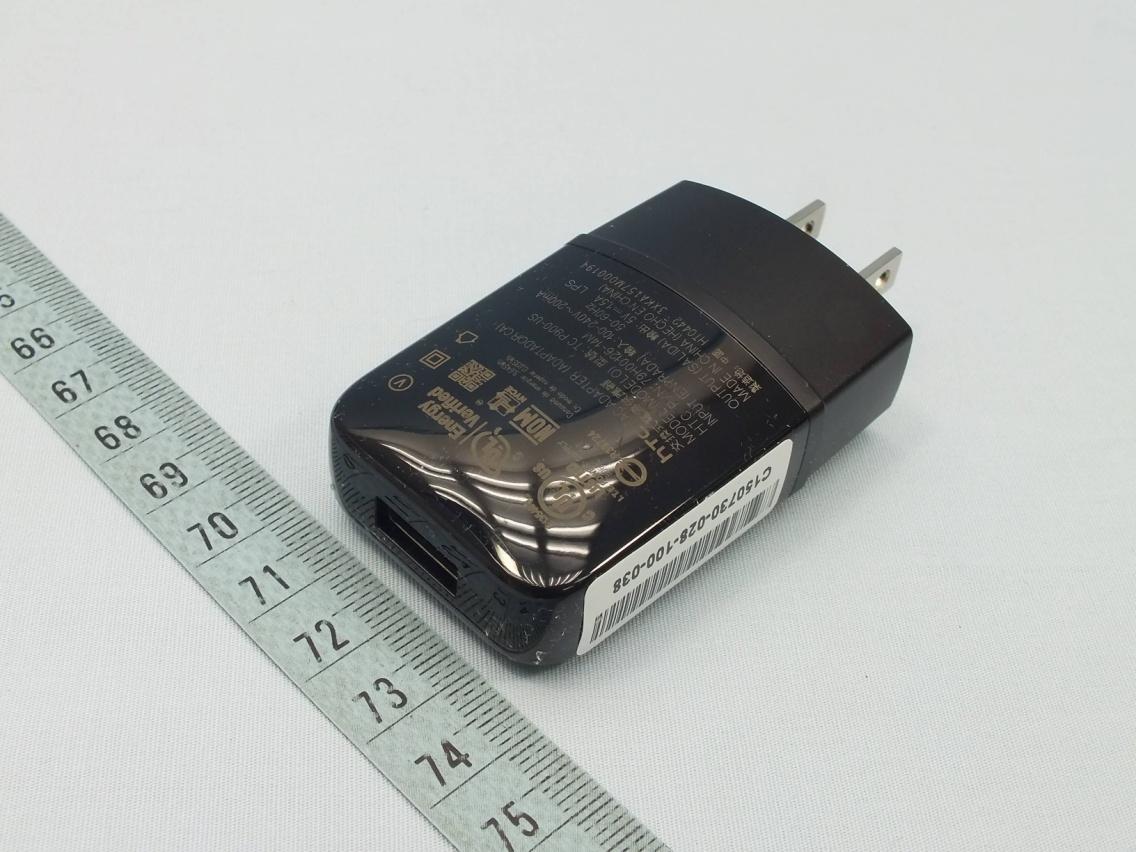

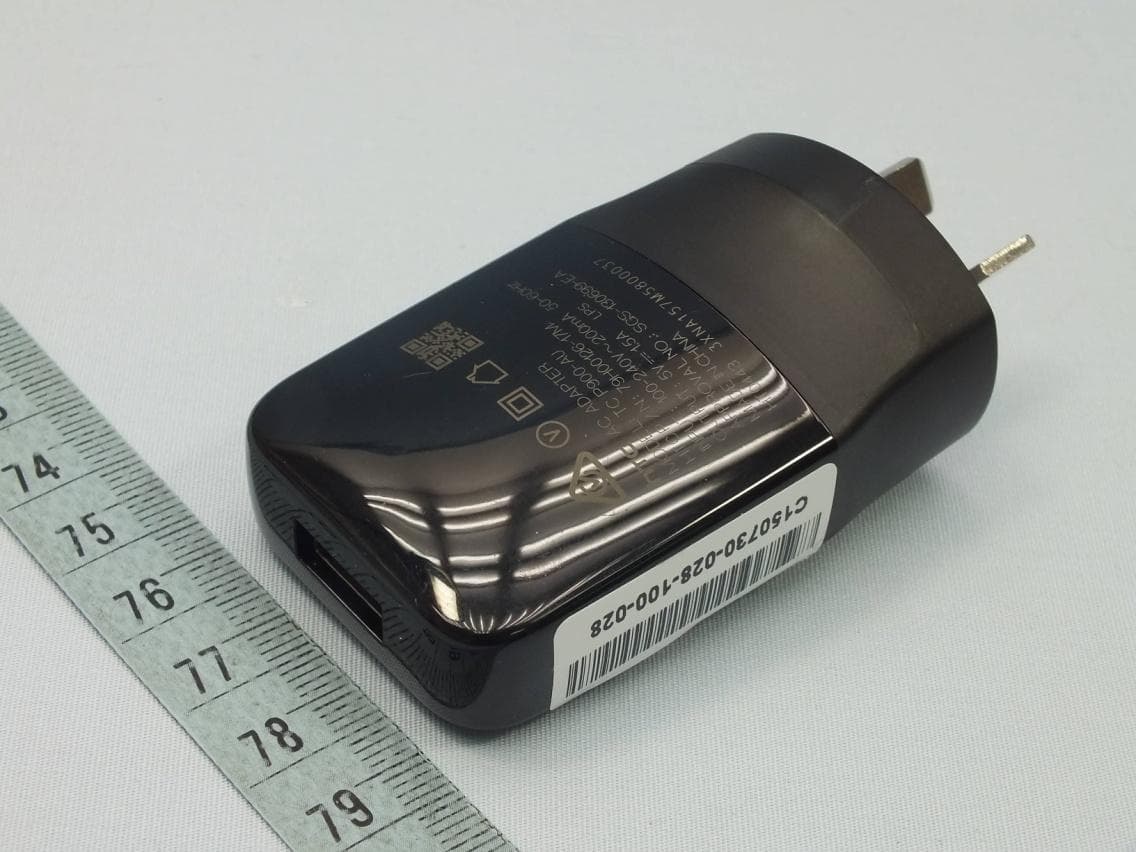

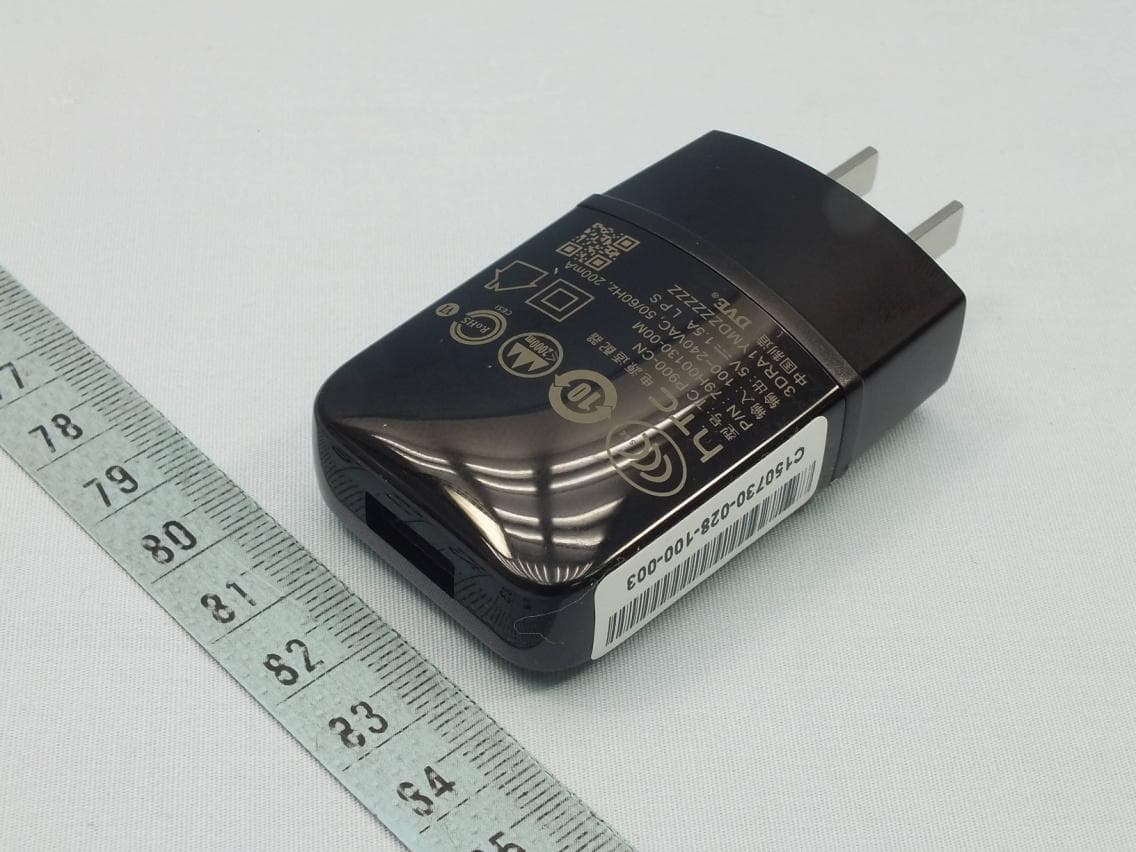

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Adapter 1 Deevan TC P900-US TW TC P900-EU TC P900-IN TC P900-US I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Adapter 2 Phihong TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Adapter 3 Salcomp TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Battery ATL B2PQ9100 Rating: 3.85Vdc, 2150mAh Type: Li-ion Earphone 1 MERRY Max-301 1.1m cable Earphone 2 Cotron Max-301 1.1m cable USB Cable 1 Luxshare DC MSR600 1.0m cable USB Cable 2 Foxconn DC MSR600 1.0m cable USB Cable 3 COXOC DC MSR600 1.0m cable USB Cable 4 Foxlink DC MSR600 1.0m cable LCD Panel SDC AMS499 -- Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20

Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 Page 27 Page 28 Page 29 Page 30 Page 31 Page 32 Page 33 Page 34

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 57 Report No. : SA150730C47 Issued Date : Sep. 18, 2015 FCC SAR Test Report Report No. : SA150730C47 Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian City, Taipei County 231, Taiwan Product : Smartphone FCC ID : NM82PQ9100 Brand : HTC Model No. : 2PQ9100 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE Std 1528:2013 KDB 865664 D01 v01r04 / KDB 865664 D02 v01r01 KDB 248227 D01 v02r01 / KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 KDB 941225 D01 v03 / KDB 941225 D05 v02r03 / KDB 941225 D06 v02 Sample Received Date : Jul. 30, 2015 Date of Testing : Aug. 21, 2015 ~ Sep. 05, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 57 Report No. : SA150730C47 Issued Date : Sep. 18, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ...............................................................................................…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 18, 2015 Report No. : SA150730C47 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 18, 2015 Report No. : SA150730C47 Appendix B. SAR Plots of SAR Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination, and measured SAR > 1.5 W/kg are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/01 P01 GSM850_GPRS12_Left Cheek_Ch189_Ant0 DUT: 150730C48 Communication System: GPRS12; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: H07T10N2_0901 Medium parameters used: f = 836.4 MHz; σ = 0.912 S/m; ε r = 42.612; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.0 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.9, 9.9, 9.9); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1652; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.382 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.358 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.399 W/kg SAR(1 g) = 0.308 W/kg; SAR(10 g) = 0.234 W/kg Maximum value of SAR (measured) = 0.362 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/08/29 P02 GSM1900_GPRS12_Left Cheek_Ch661_Ant1 DUT: 150730C46 Communication System: GPRS12; Frequency: 1880 MHz;Duty Cycle: 1:2 Medium: H16T20N1_0829 Medium parameters used: f = 1880 MHz; σ = 1.441 S/m; ε r = 38.937; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.21, 8.21, 8.21); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.09 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.16 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.694 W/kg; SAR(10 g) = 0.364 W/kg Maximum value of SAR (measured) = 1.01 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/08/29 P03 WCDMA II_RMC12.2K_Left Cheek_Ch9400_Ant1 DUT: 150730C48 Communication System: WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0829 Medium parameters used: f = 1880 MHz; σ = 1.441 S/m; ε r = 38.937; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.21, 8.21, 8.21); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.43 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.690 W/kg; SAR(10 g) = 0.356 W/kg Maximum value of SAR (measured) = 1.00 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/08/30 P04 WCDMA V_RMC12.2K_Left Cheek_Ch4182_Ant0 DUT: 150730C48 Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: H07T10N1_0830 Medium parameters used: f = 836.4 MHz; σ = 0.928 S/m; ε r = 42.392; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：23.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.9, 9.9, 9.9); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.368 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.579 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.391 W/kg SAR(1 g) = 0.301 W/kg; SAR(10 g) = 0.225 W/kg Maximum value of SAR (measured) = 0.354 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/08/31 P05 LTE 5_QPSK10M_Left Cheek_Ch20525_Ant0_1RB_OS24 DUT: 150730C48 Communication System: LTE; Frequency: 836.5 MHz;Duty Cycle: 1:1 Medium: H07T10N2_0831 Medium parameters used: f = 836.5 MHz; σ = 0.927 S/m; ε r = 42.171; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.0 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.9, 9.9, 9.9); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1652; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.248 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.644 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.271 W/kg SAR(1 g) = 0.208 W/kg; SAR(10 g) = 0.158 W/kg Maximum value of SAR (measured) = 0.249 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/02 P06 LTE 7_QPSK20M_Left Check_Ch21100_Ant1_1RB_OS50 DUT: 150730C48 Communication System: LTE; Frequency: 2535 MHz;Duty Cycle: 1:1 Medium: H19T27N1_0902 Medium parameters used: f = 2535 MHz; σ = 1.973 S/m; ε r = 38.557; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.0 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(7.26, 7.26, 7.26); Calibrated: 2015/…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 18, 2015 Report No. : SA150730C47 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/01 System Check_H835_150901 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d092 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H07T10N2_0901 Medium parameters used: f = 835 MHz; σ = 0.911 S/m; ε r = 42.634; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.0 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.9, 9.9, 9.9); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1652; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.12 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.66 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.63 W/kg SAR(1 g) = 2.45 W/kg; SAR(10 g) = 1.61 W/kg Maximum value of SAR (measured) = 3.10 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/08/29 System Check_H1900_150829 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0829 Medium parameters used: f = 1900 MHz; σ = 1.459 S/m; ε r = 38.859; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.21, 8.21, 8.21); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 16.1 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 103.0 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 19.1 W/kg SAR(1 g) = 10.5 W/kg; SAR(10 g) = 5.48 W/kg Maximum value of SAR (measured) = 14.8 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/08/24 System Check_H2450_150824 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 835 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H19T27N2_0824 Medium parameters used: f = 2450 MHz; σ = 1.869 S/m; ε r = 37.935; ρ = 1000 kg/m 3 Ambient Temperature：23.8°C; Liquid Temperature：23.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(7.89, 7.89, 7.89); Calibrated: 2015/02/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2015/04/28 - Phantom: Twin SAM Phantom_1654; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.0 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 102.1 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 25.1 W/kg SAR(1 g) = 12.3 W/kg; SAR(10 g) = 5.73 W/kg Maximum value of SAR (measured) = 18.7 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/02 System Check_H2600_150902 DUT: Dipole 2600 MHz; Type: D2600V2; SN: 1058 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H19T27N1_0902 Medium parameters used: f = 2600 MHz; σ = 2.045 S/m; ε r = 38.308; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.0 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(7.26, 7.26, 7.26); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 23.7 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 109.6 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 32.2 W/kg SAR(1 g) = 15 W/kg; SAR(10 g) = 6.63 W/kg Maximum value of SAR (measured) = 23.5 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/08/21 System Check_H5300_150821 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1040 Communication System: CW; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: H34T60N3_0821 Medium parameters used: f = 5300 MHz; σ = 4.888 S/m; …
