NM82PQ9120Smartphone

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit
Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. Safety and regulatory guide 3 This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, TC P900-US
Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts or circuits, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.
Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard.  Avoid dropping the phone. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. 4 Safety and regulatory guide Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Using Your Phone While Flying Use of cell phones may be restricted on aircraft. Please check with your airline to see what restrictions may apply. You may be required to turn off your phone at certain times. Use of your phone’s cellular connection and use of your phone for voice communications may be prohibited by law or airline policy. For your safety and the safety of other passengers, always follow crew instructions regarding the use of your phone. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Road safety When behind the wheel, driving safely should always be your first priority. According to the National Highway Traffic Safety Administration (NHTSA), scientific research indicates that using a Safety and regulatory guide 5 wireless phone while driving degrades…

Text truncated - open the document above for the full version.

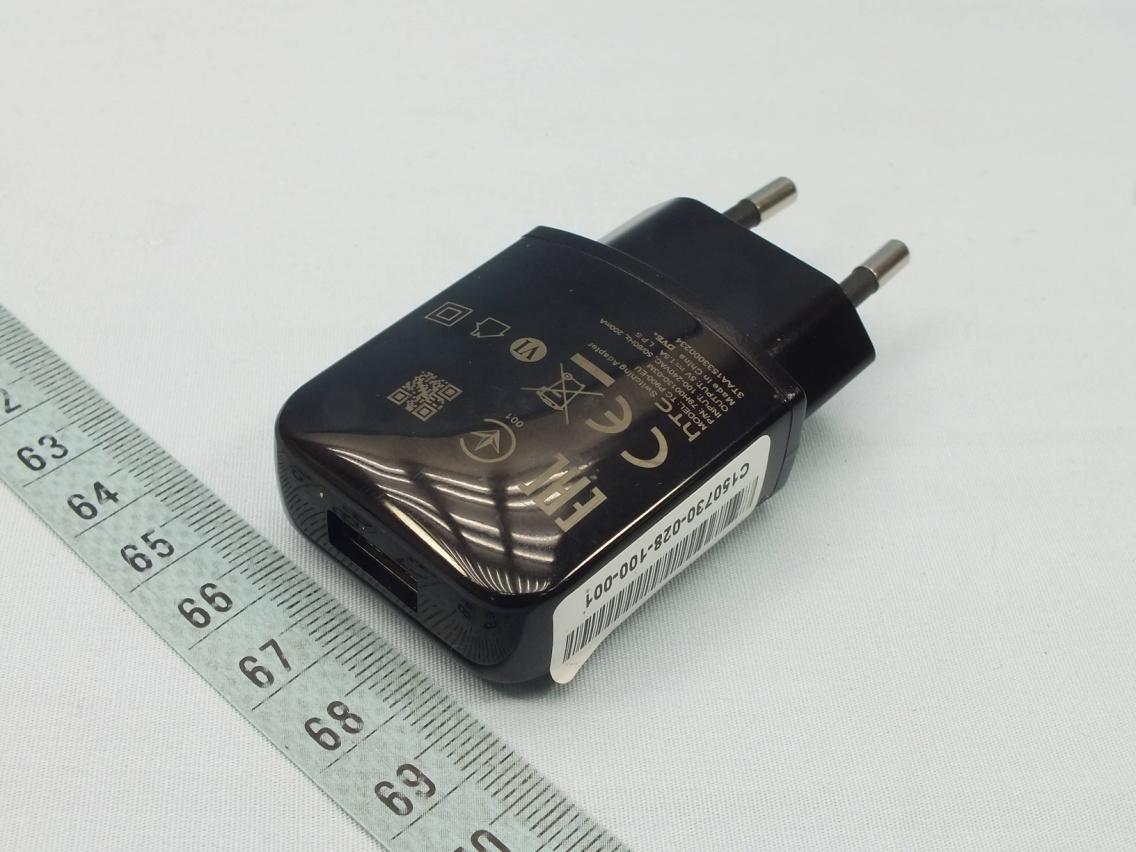

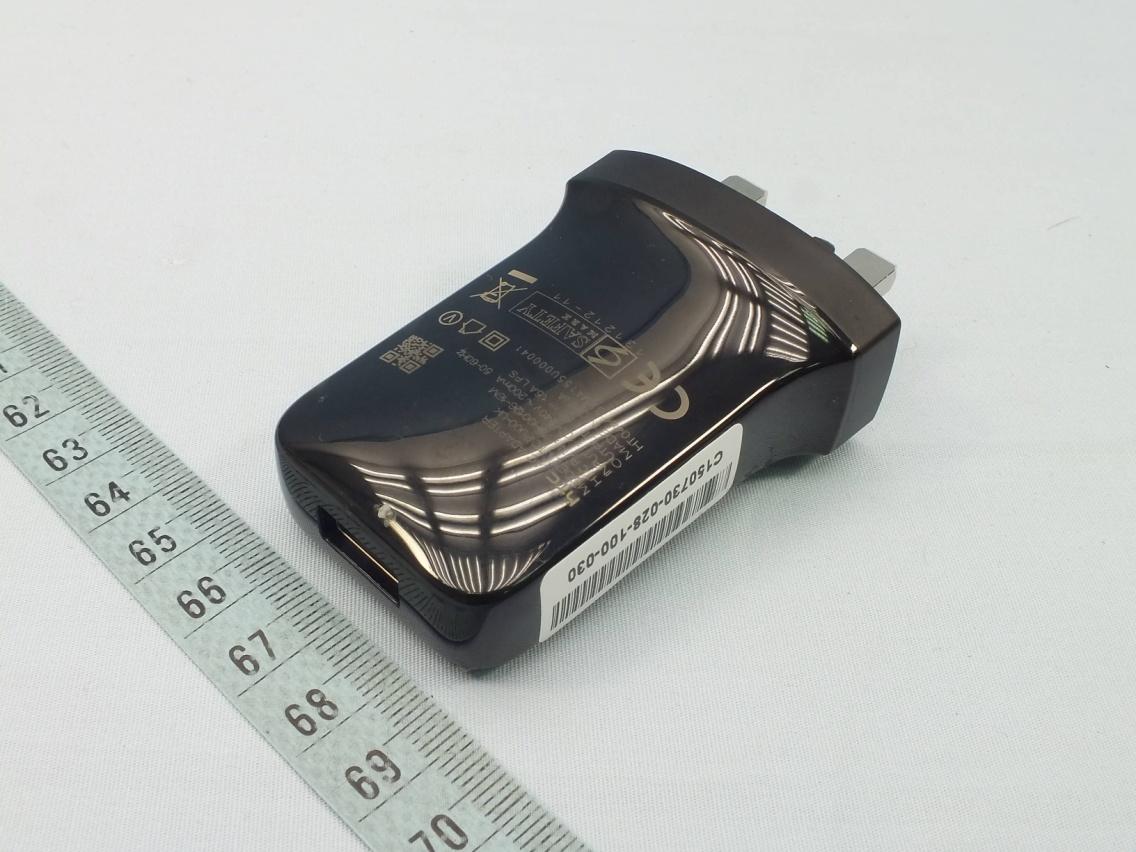

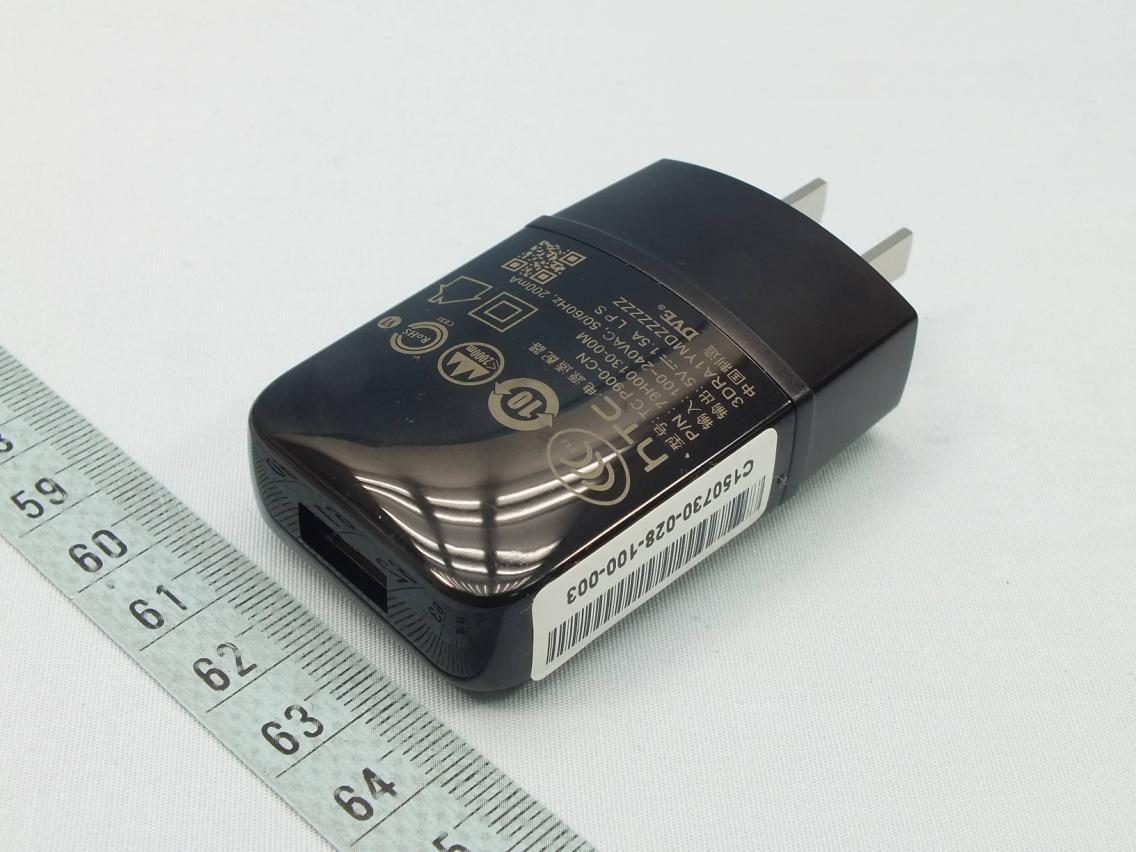

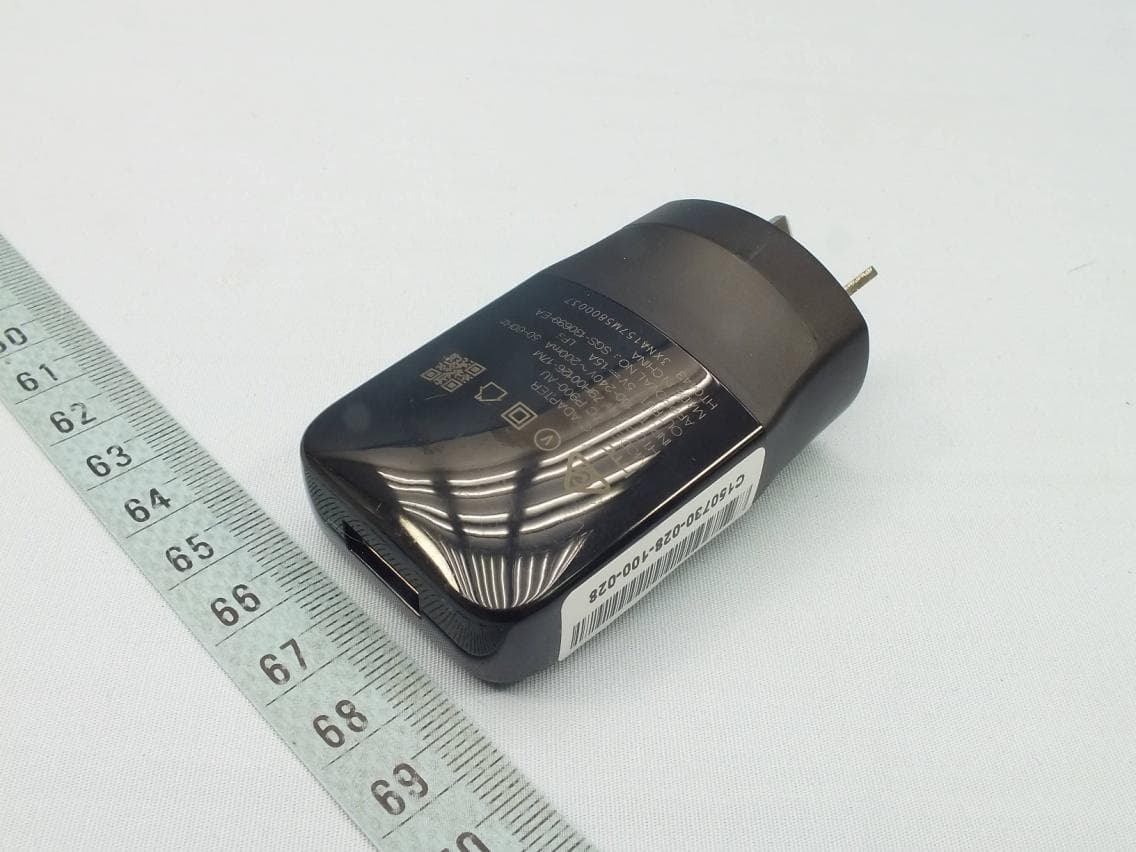

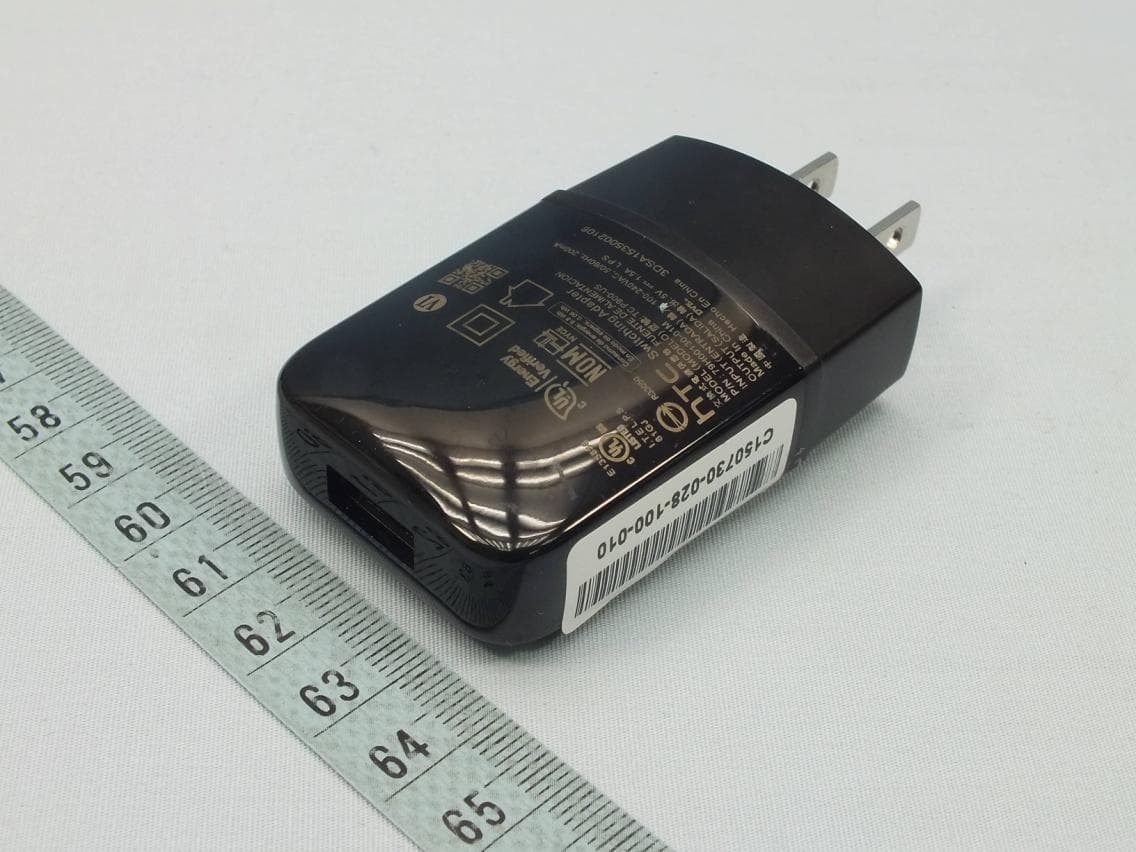

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Adapter 1 Deevan TC P900-US TW TC P900-EU TC P900-IN TC P900-US I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Adapter 2 Salcomp TC P900-US TC P900-EU TC P900-UK TC P900-AU I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Battery ATL B2PQ9100 Rating: 3.85Vdc, 2150mAh Type: Li-ion Earphone 1 MERRY Max-301 1.1m cable Earphone 2 Cotron Max-301 1.1m cable USB Cable 1 Luxshare DC MSR600 1.0m cable USB Cable 2 Foxconn DC MSR600 1.0m cable USB Cable 3 Foxlink DC MSR600 1.0m cable USB Cable 4 COXOC DC MSR600 1.0m cable LCD Panel SDC AMS499 -- Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 Page 27 Page 28

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 64 Report No. : SA150729C02 Issued Date : Sep. 16, 2015 FCC SAR Test Report Report No. : SA150729C02 Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian City, Taipei County 231, Taiwan Product : Smartphone FCC ID : NM82PQ9120 Brand : HTC Model No. : 2PQ9120 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE Std 1528:2013 KDB 865664 D01 v01r04 / KDB 865664 D02 v01r01 KDB 248227 D01 v02r01 / KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 KDB 941225 D01 v03 / KDB 941225 D05 v02r03 / KDB 941225 D06 v02 Sample Received Date : Jul. 29, 2015 Date of Testing : Aug. 27, 2015 ~ Sep. 08, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 64 Report No. : SA150729C02 Issued Date : Sep. 16, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation ...............................................................................................…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 16, 2015 Report No. : SA150729C02 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 16, 2015 Report No. : SA150729C02 Appendix B. SAR Plots of SAR Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination, and measured SAR > 1.5 W/kg are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/07 P01 GSM850_GPRS10_Left Cheek_Ch128_Ant0 DUT: 150821C08 Communication System: GPRS10; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: H07T10N2_0907 Medium parameters used: f = 824.2 MHz; σ = 0.934 S/m; ε r = 43.22; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.9, 9.9, 9.9); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.335 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.646 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.358 W/kg SAR(1 g) = 0.279 W/kg; SAR(10 g) = 0.210 W/kg Maximum value of SAR (measured) = 0.326 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/08 P02 GSM1900_GPRS10_Left Cheek_Ch512_Ant1 DUT: 150821C08 Communication System: GPRS10; Frequency: 1850.2 MHz;Duty Cycle: 1:4 Medium: H16T20N1_0908 Medium parameters used: f = 1850.2 MHz; σ = 1.412 S/m; ε r = 40.089; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：23.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.21, 8.21, 8.21); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.662 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.84 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.812 W/kg SAR(1 g) = 0.456 W/kg; SAR(10 g) = 0.235 W/kg Maximum value of SAR (measured) = 0.630 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/03 P03 WCDMA II_RMC12.2K_Left Cheek_Ch9538_Ant0 DUT: 150821C08 Communication System: WCDMA; Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0903 Medium parameters used: f = 1908 MHz; σ = 1.47 S/m; ε r = 40.256; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(8.11, 8.11, 8.11); Calibrated: 2015/03/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2015/03/20 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.00 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.231 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.702 W/kg; SAR(10 g) = 0.433 W/kg Maximum value of SAR (measured) = 0.961 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/03 P04 WCDMA IV_RMC12.2K_Left Cheek_Ch1413_Ant1 DUT: 150821C08 Communication System: WCDMA; Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0903 Medium parameters used: f = 1733 MHz; σ = 1.309 S/m; ε r = 40.898; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(8.26, 8.26, 8.26); Calibrated: 2015/03/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2015/03/20 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.10 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.93 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.584 W/kg; SAR(10 g) = 0.313 W/kg Maximum value of SAR (measured) = 0.834 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/07 P05 WCDMA V_RMC12.2K_Left Cheek_Ch4233_Ant0 DUT: 150821C08 Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: H07T10N2_0907 Medium parameters used: f = 847 MHz; σ = 0.958 S/m; ε r = 42.931; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.9, 9.9, 9.9); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) - Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.315 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.064 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.343 W/kg SAR(1 g) = 0.266 W/kg; SAR(10 g) = 0.199 W/kg Maximum value of SAR (measured) = 0.314 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/08 P06 LTE 2_QPSK20M_Left Cheek_Ch19100_Ant1_1RB_OS50 DUT: 150821C08 Communication System: LTE; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0908 Medium parameters used: f = 1900 MHz; σ = 1.459 S/m; ε r = 39.968; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：23.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.21, 8.21, 8.21); Calib…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 16, 2015 Report No. : SA150729C02 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/07 System Check_H750_150907 DUT: Dipole 750 MHz; Type: D750V3; SN: 1132 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H06T09N1_0907 Medium parameters used: f = 750 MHz; σ = 0.885 S/m; ε r = 42.448; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.0 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(10.24, 10.24, 10.24); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1652; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.63 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.46 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 3.05 W/kg SAR(1 g) = 2.1 W/kg; SAR(10 g) = 1.4 W/kg Maximum value of SAR (measured) = 2.63 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/07 System Check_H835_150907 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d092 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H07T10N2_0907 Medium parameters used: f = 835 MHz; σ = 0.945 S/m; ε r = 43.081; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(9.9, 9.9, 9.9); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.06 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.95 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 3.61 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 3.06 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/03 System Check_H1750_150903 DUT: Dipole 1750 MHz; Type: D1750V2; SN: 1023 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0903 Medium parameters used: f = 1750 MHz; σ = 1.323 S/m; ε r = 40.825; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(8.26, 8.26, 8.26); Calibrated: 2015/03/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2015/03/20 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.1 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.0 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 15.9 W/kg SAR(1 g) = 8.9 W/kg; SAR(10 g) = 4.75 W/kg Maximum value of SAR (measured) = 12.5 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/03 System Check_H1900_150903 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0903 Medium parameters used: f = 1900 MHz; σ = 1.46 S/m; ε r = 40.3; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3971; ConvF(8.11, 8.11, 8.11); Calibrated: 2015/03/26; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1431; Calibrated: 2015/03/20 - Phantom: Twin SAM Phantom_1823; Type: QD000P40CD; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.9 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.9 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 18.5 W/kg SAR(1 g) = 10 W/kg; SAR(10 g) = 5.18 W/kg Maximum value of SAR (measured) = 14.3 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/08/27 System Check_H2450_150827 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 835 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H19T27N1_0827 Medium parameters used: f = 2450 MHz; σ = 1.862 S/m; ε r = 38.048; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：23.0 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(7.13, 7.13, 7.13); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2014/07/22 - Phantom: Twin SAM Phantom_1485; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.5 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 106.4 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 5.92 W/kg Maximum value of SAR (measured) = 20.5 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/08 System Check_H2600_150908 DUT: Dipole 2600 MHz; Type: D2600V2; SN: 1058 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H19T27N1_0908 Medium parameters used: f = 2600 MHz; σ = 2.029 S/m; ε r = 38.503; ρ = 1000 kg/m 3 Ambient Temperature：23.9 °C; Liquid Temperature：23.5 °C DASY5 Configuration: - Probe: EX3D…

Text truncated - open the document above for the full version.

Report No.: RF150729C02-4 Page No. 1 / 41 Report Format Version: 6.1.1 FCC Test Report Report No.: RF150729C02-4 FCC ID: NM82PQ9120 Test Model: 2PQ9120 Received Date: Jul. 29, 2015 Test Date: Aug. 03, 2015 ~ Spe. 02, 2015 Issued Date: Sep. 16, 2015 Applicant: HTC Corporation Address: 1F, 6-3 Baoqiang Road, Xindian City, Taipei County 231, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) Test Location (1): No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Test Location (2): No.215, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RF150729C02-4 Page No. 2 / 41 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ........................................................................................................................... 5 2 Summary of Test Results ........................................................................................................................... 6 2.1 Measurement Uncertainty ..................................................................................................................... 6 2.2 Modification Record .............................................................................................................................. 6 3 General Information ................................................................................................................................... 7 3.1 General Description of EUT .................................................................................................................. 7 3.2 Description of Test Modes ..................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail .................................................................... 9 3.3 Description of Support Units ................................................................................................................ 11 3.3.1 Configuration of System under Test .......................................................................................... 11 3.4 General Description of Applied Standards ........................................................................................... 11 4 Test Types and Results ............................................................................................................................ 12 4.1 Radiated Emission and Bandedge Measurement .............................................................................. 12 4.1.1 Limits of Radiated Emission and Bandedge Measurement ..................................................... 12 4.1.2 Test Instruments ....................................................................................................................... 13 4.1.3 Test Procedures ........................................................................................................................ 14 4.1.4 Deviation from Test Standard ................................................................................................... 14 4.1.5 Test Set Up ............................................................................................................................... 15 4.1.6 EUT Operating Conditions ...........................................................................................…
