Important Information for the HTC One® A9 Important Safety Information – page 2 Manufacturer’s Warranty – page 18 General Terms and Conditions of Service – page 34 Important Message from Sprint – page 66 2 Important Safety Information Important Safety Information This booklet contains important operational and safety information that will help you safely use your phone. Failure to read and follow the information provided in this booklet may result in serious bodily injury, death, or property damage. General Precautions There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service. • To maximize performance, do not touch the bottom portion of your phone where the internal antenna is located while using the phone. • Speak directly into the mouthpiece. • Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off. • Do not expose your phone to direct sunlight for extended periods of time (such as on the dashboard of a car). • Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it. • Any changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. Note: For the best care of your device, only Sprint- authorized personnel should service your phone and accessories. Failure to do so may be dangerous and void your warranty. 2 Important Safety Information Important Safety Information 3 Maintaining Safe Use of and Access to Your Phone Do Not Rely on Your Phone for Emergency Calls Mobile phones operate using radio signals, which cannot guarantee connection in all conditions. Therefore you should never rely solely upon any mobile phone for essential communication (e.g., medical emergencies). Emergency calls may not be possible on all cellular networks or when certain network services or mobile phone features are in use. Check with your local service provider for details. Road safety When behind the wheel, driving safely should always be your first priority. According to the National Highway Traffic Safety Administration (NHTSA), scientific research indicates that using a wireless phone while driving degrades a driver’s performance, whether used in a hands-free or hand-held mode. NHTSA advises that the “safest course of action is to refrain from using a cell phone while driving.” NHTSA’s policy on “Cell Phone Use While Driving,” as well as Frequently Asked Questions on the subject, are available at www.nhtsa.gov. For your safety and the safety of those around you, please consider turning your phone off while you are driving. If you choose to use your phone while driving, be aware that some state and local governments have adopted laws governing the use of wireless devices while driving. It is your responsibility to know and comply with the laws in your area. Tip: Purchase an optional hands-free accessory at your local Sprint Store, or call Sprint at 1-866-866-7509. 4 Important Safety Information Following Safety Guidelines To operate your phone safely and efficiently, always follow any special regulations in a given area. Turn your phone off in areas where use is forbidden or when it may cause interference or danger. Using Your Phone Near Other Electronic Devices Most modern electronic equipment is shielded from radio frequency (RF) signals. However, RF signals from wireless phones may affect inadequately shielded electronic equipment. RF signals may affect improperly installed or inadequately shielded electronic operating systems or entertainment systems in motor vehicles. Check with the manufacturer or their representative to determine if these systems are adequately shielded from external RF signals. Also check with the manufacturer regarding any equipment that has been added to your vehicle. Consult the manufacturer of any personal medical devices, such as pacemakers and hearing aids, to determine if they are adequately shielded from external RF signals. Note: Always turn off the phone in healthcare facilities, and request permission before using the phone near medical equipment. Using Your Phone While Flying Use of cell phones may be restricted on aircraft. Please check with your airline to see what restrictions may apply. You may be required to turn off your phone at certain times. Use of your phone’s cellular connection and use of your phone for voice communications may be prohibited by law or airline policy. For your safety and the safety of other passengers, always follow crew instructions regarding the use of your phone. 4 Important Safety Information Important Safety Information 5 Turning Off Your Phone in Dangerous Areas To avoid interfering with blasting operations, turn your phone off when in a blasting area or in other areas with signs indicating two-way radios should be turned off. Construction crews often use remote-control RF devices to set off explosives. Turn your phone off when you’re in any area that has a potentially explosive atmosphere. Although it’s rare, your phone and accessories could generate sparks. Sparks can cause an explosion or fire, resulting in bodily injury or even death. These areas are often, but not always, clearly marked. They include: • Fueling areas such as gas stations. • Below deck on boats. • Fuel or chemical transfer or storage facilities. • Areas where the air contains chemicals or particles such as grain, dust, or metal powders. • Any other area where you would normally be advised to turn off your vehicle’s engine. Note: Never transport or store flammable gas, flammable liquids, or explosives in the compartment of your vehicle that contains your phone or accessories. Restricting Children’s Access to Your Phone Your phone is not a toy. Do not allow children to play with it as they could hurt themselves and others, damage the phone or make cal…

Text truncated - open the document above for the full version.

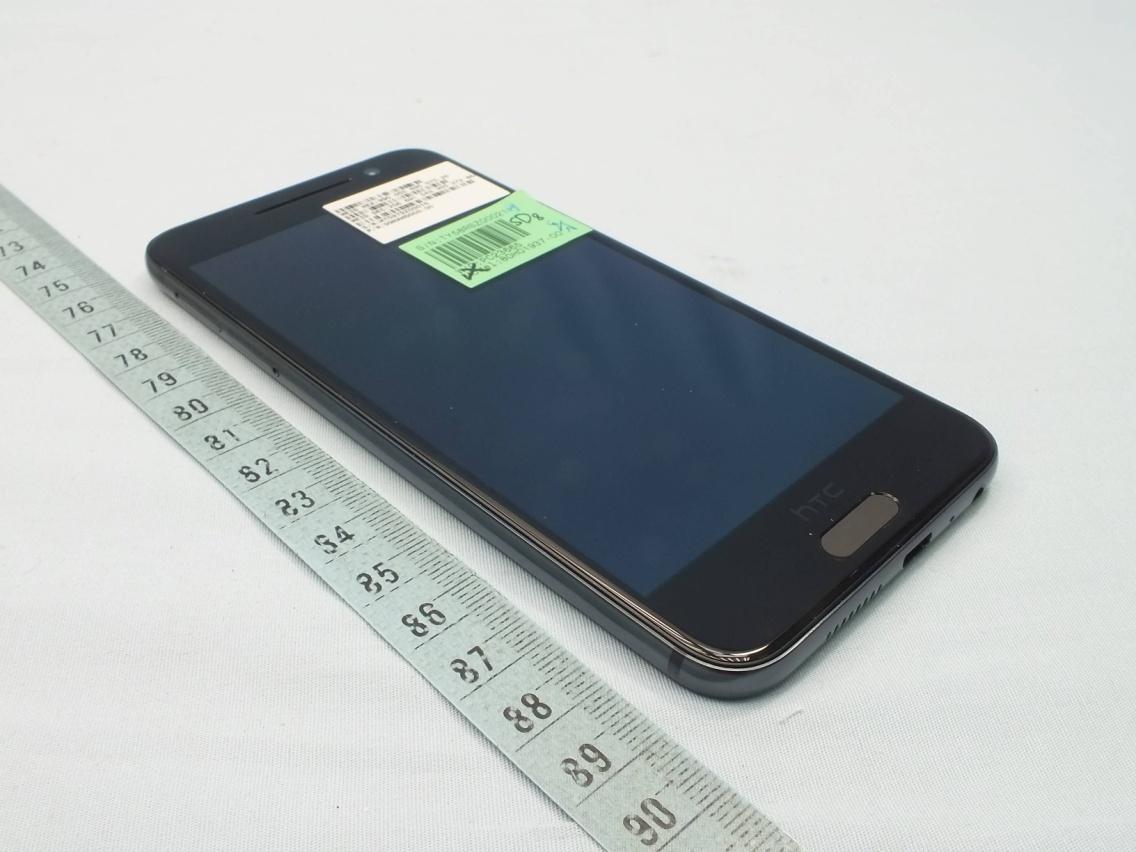

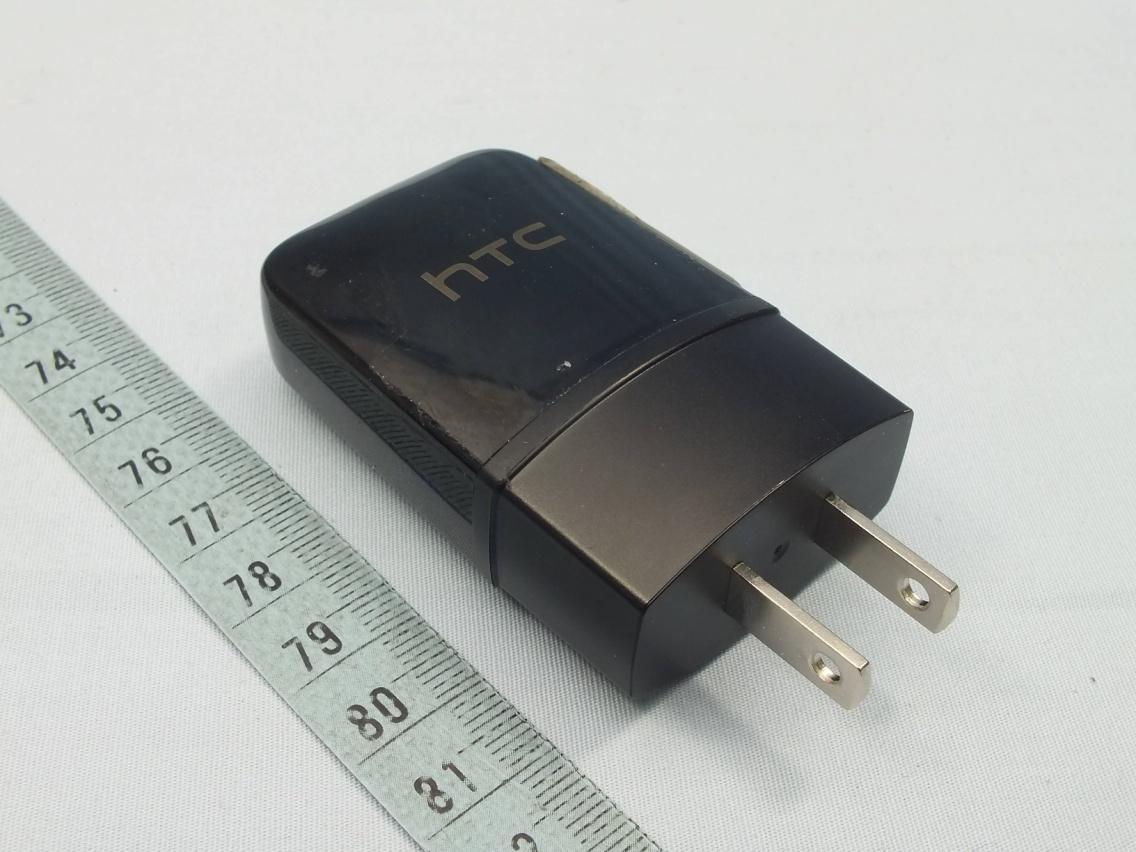

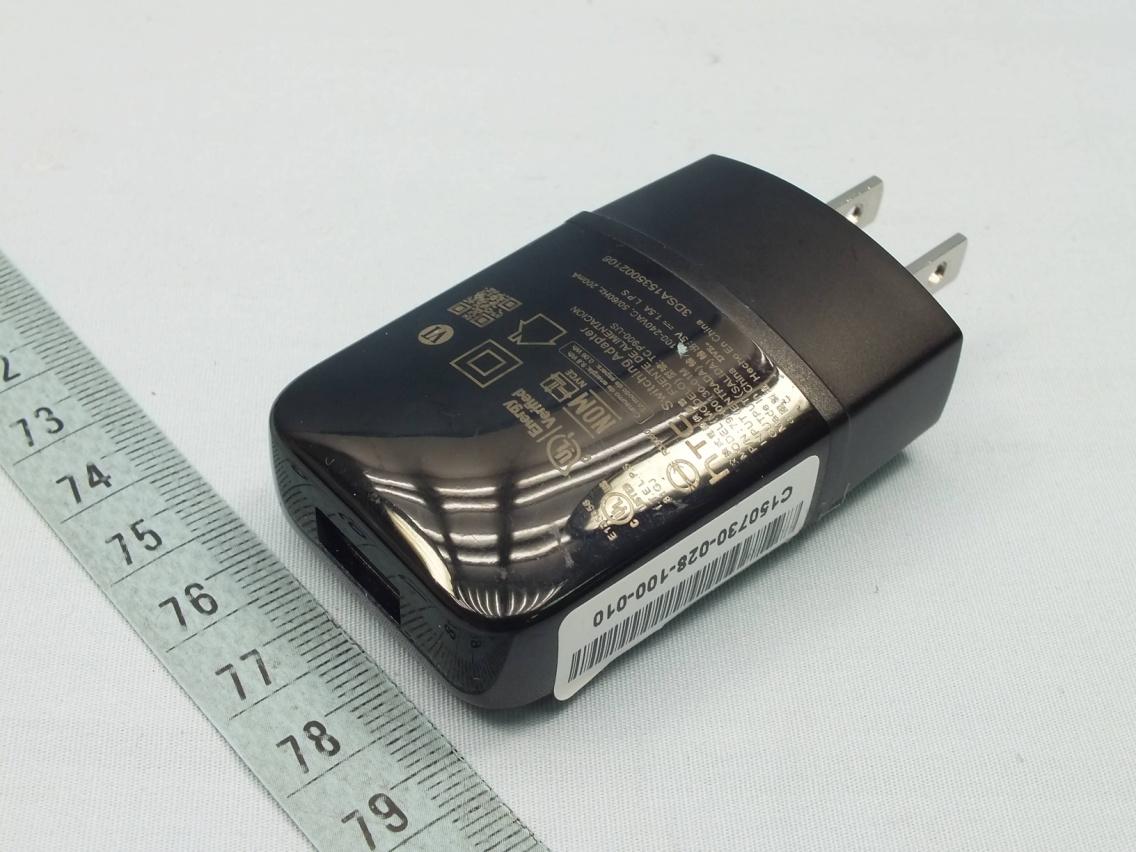

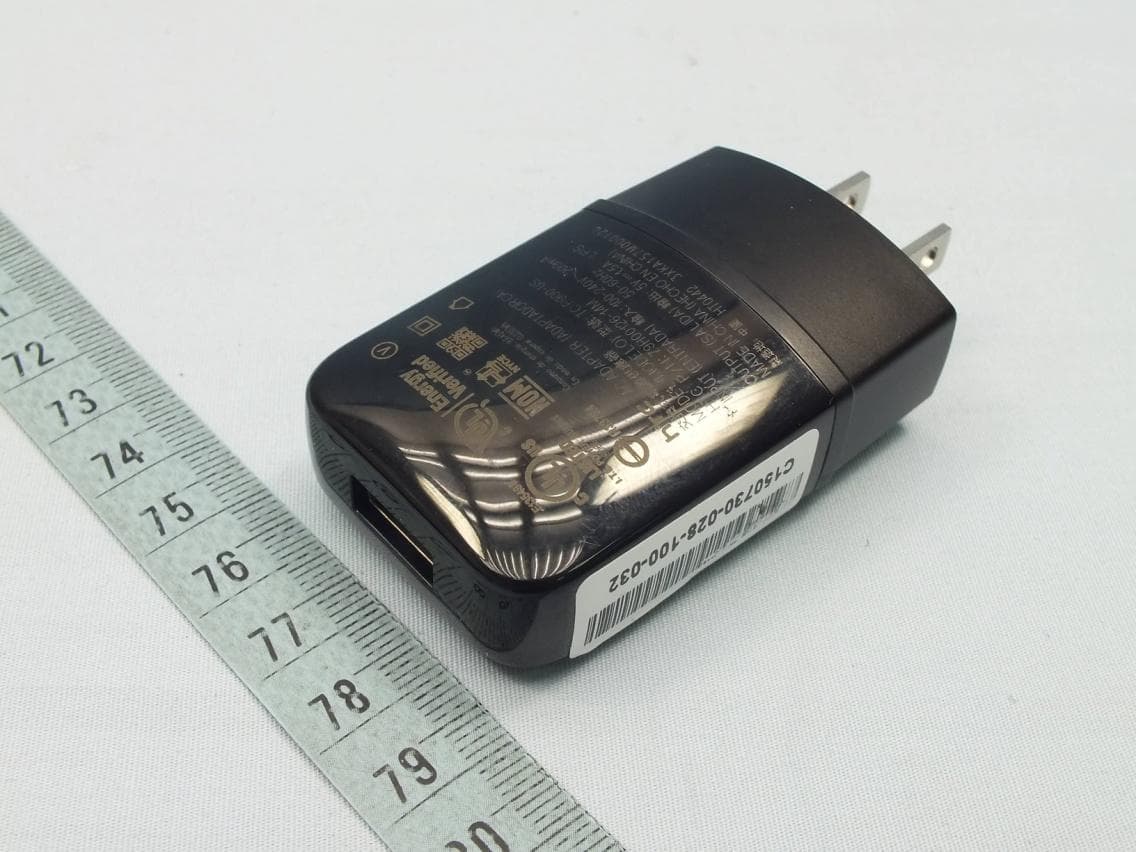

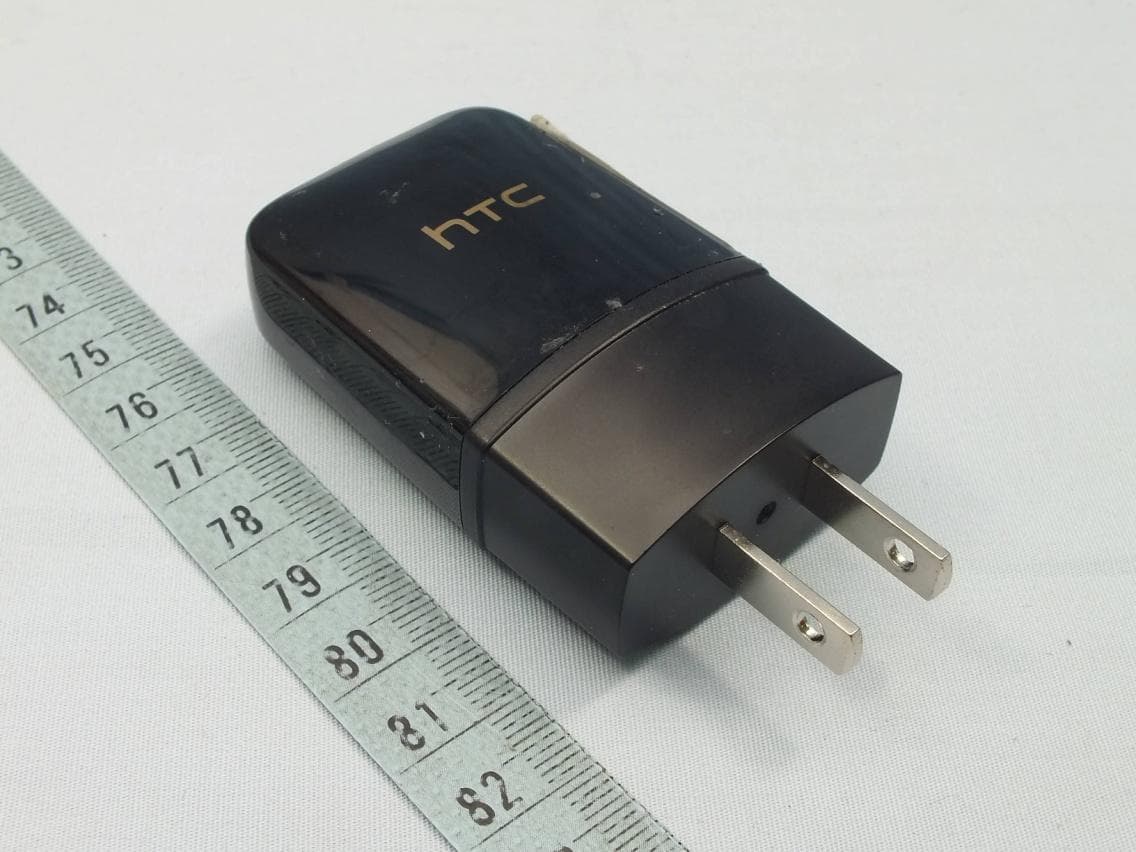

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Adapter 1 Deevan TC P900-US I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Adapter 2 Salcomp TC P900-US I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.5A Battery ATL B2PQ9100 Rating: 3.85Vdc, 2150mAh Type: Li-ion Earphone 1 MERRY Max-301 1.1m cable Earphone 2 Cotron Max-301 1.1m cable USB Cable 1 Luxshare DC MSR600 1.0m cable USB Cable 2 Foxconn DC MSR600 1.0m cable USB Cable 3 Foxlink DC MSR600 1.0m cable USB Cable 4 COXOC DC MSR600 1.0m cable LCD Panel SDC AMS499 -- Page 2 Page 3 Page 4 Page 5

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 17, 2015 Report No. : SA150727C10 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 17, 2015 Report No. : SA150727C10 Appendix B. SAR Plots of SAR Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination, and measured SAR > 1.5 W/kg are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/08 # ("9  2 :; <=   ($ "  Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: H07T10N2_0908 Medium parameters used: f = 848.31 MHz;  = 0.93 S/m;  r = 41.845;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįĵġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.45, 9.45, 9.45); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2015/07/22 - Phantom: Twin SAM Phantom_1822; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) >()* *$+--. Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.465 W/kg >/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.305 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.498 W/kg (2+3.%4 6,&' 3(2+3.%4"&' 3 Maximum value of SAR (measured) = 0.462 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/04 #" ("9  2 :; <=  , ($ "  Communication System: CDMA2000; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H16T20N2_0904 Medium parameters used: f = 1880 MHz;  = 1.437 S/m;  r = 39.031;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįĴġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.21, 8.21, 8.21); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) >()* *$+-6-. Interpolated grid: dx=2.000 mm, dy=2.000 mm Maximum value of SAR (interpolated) = 1.39 W/kg >/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.04 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.63 W/kg (2+3.%45&' 3(2+3.%455&' 3 Maximum value of SAR (measured) = 1.32 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/08 # ("9  2 :; <=  5, ($ "  Communication System: CDMA2000; Frequency: 817.9 MHz;Duty Cycle: 1:1 Medium: H07T10N2_0908 Medium parameters used: f = 818 MHz;  = 0.902 S/m;  r = 42.212;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįĵġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.45, 9.45, 9.45); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2015/07/22 - Phantom: Twin SAM Phantom_1822; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) >()* *$+--. Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.416 W/kg >/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.892 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.446 W/kg (2+3.%4 &' 3(2+3.%4"&' 3 Maximum value of SAR (measured) = 0.417 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/06 #5<?" @#A" <=  6 ($ 29 ; "  Communication System: LTE; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0906 Medium parameters used: f = 1880 MHz;  = 1.434 S/m;  r = 40.527;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįĶġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįıġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.21, 8.21, 8.21); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1652; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) >()* *$+-"-. Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.09 W/kg >/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.60 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.17 W/kg (2+3.%4,&' 3(2+3.%4 &' 3 Maximum value of SAR (measured) = 1.01 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/06 #<?5 @#A" <=  " ($ 29 ; "  Communication System: LTE; Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0906 Medium parameters used: f = 1732.5 MHz;  = 1.313 S/m;  r = 40.922;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįIJġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.49, 8.49, 8.49); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1652; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) >()* *$+"-. Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.30 W/kg >/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.24 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 1.43 W/kg (2+3.%46"&' 3(2+3.%45"&' 3 Maximum value of SAR (measured) = 1.22 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/05 #<? @#A <=  "5 ($ 29 ;"5 "  Communication System: LTE; Frequency: 829 MHz;Duty Cycle: 1:1 Medium: H07T10N2_0905 Medium parameters used: f = 829 MHz;  = 0.905 S/m;  r = 42.724;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįĸġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįĵġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3650; Con…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Sep. 17, 2015 Report No. : SA150727C10 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/07      ! " Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H06T09N1_0907 Medium parameters used: f = 750 MHz;  = 0.885 S/m;  r = 42.448;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįĸġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįijġɗ DASY5 Configuration:     !" #$ %&''%  - Sensor-Surface: &mm (Mechanical Surface Detection)  !(#"()  * &% !" #$ %&''%% - Phantom: Twin SAM Phantom_1485; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) #$%"&'()* *$+,-"-. Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.67 W/kg #$%"&'/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.37 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.10 W/kg (2+3.%"4 &' 3(2+3.%455&' 3 Maximum value of SAR (measured) = 2.67 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/05   6   6 6 "!57" Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H07T10N2_0905 Medium parameters used: f = 835 MHz;  = 0.911 S/m;  r = 42.621;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįĸġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįĵġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(9.45, 9.45, 9.45); Calibrated: 2015/07/23; - Sensor-Surface: &mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1277; Calibrated: 2015/07/22 - Phantom: Twin SAM Phantom_1822; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) #$%"&'()* *$+,-,-. Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.99 W/kg #$%"&'/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.26 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.53 W/kg (2+3.%"4 ,&' 3(2+3.%4&' 3 Maximum value of SAR (measured) = 3.00 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/06    , "!"  Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: H16T20N1_0906 Medium parameters used: f = 1750 MHz;  = 1.324 S/m;  r = 40.863;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįIJġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(8.49, 8.49, 8.49); Calibrated: 2015/07/23; - Sensor-Surface: &mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1652; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) #$%"&'()* *$+,-,-. Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.2 W/kg #$%"&'/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 98.85 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 15.9 W/kg (2+3.%4&' 3(2+3.%546,&' 3 Maximum value of SAR (measured) = 12.6 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/04    5 "!7 , Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H16T20N2_0904 Medium parameters used: f = 1900 MHz;  = 1.459 S/m;  r = 38.968;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįĴġɗ DASY5 Configuration: -    ++%&+%&+%& !" #$ %&''%  - Sensor-Surface: &mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) #$%"&'()* *$+,-,-. Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 16.2 W/kg #$%"&'/ *$+--.' 01 Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 103.1 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 19.3 W/kg (2+3.%4&' 3(2+3.%45&' 3 Maximum value of SAR (measured) = 14.9 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/08/24   "5 6"5 "5"5"!6  Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H19T27N3_0824 Medium parameters used: f = 2450 MHz;  = 1.876 S/m;  r = 38.427;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįĶġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįıġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3864; ConvF(7.35, 7.35, 7.35); Calibrated: 2015/07/23; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2015/06/11 - Phantom: Twin SAM Phantom_1653; Type: QD000P40; - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) #$%"&'()* *$+6-6-. Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.9 W/kg #$%"&'/ *$+--.' 01 Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 105.0 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 26.8 W/kg (2+3.% &' 3(2+3.%,4&' 3 Maximum value of SAR (measured) = 20.0 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2015/09/07   ",  ",","!6 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H19T27N1_0907 Medium parameters used: f = 2600 MHz;  = 2.031 S/m;  r = 38.41;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijĴįķġɗļġġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijĴįĵġɗ DASY5 Configuration: …

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 70 Report No. : SA150727C10 Issued Date : Sep. 17, 2015 FCC SAR Test Report Report No. : SA150727C10 Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian City, Taipei County 231, Taiwan Product : Smartphone FCC ID : NM82PQ9300 Brand : HTC Model No. : 2PQ9300 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE Std 1528:2013 KDB 865664 D01 v01r0 4 / KDB 865664 D02 v01r01 KDB 248227 D01 v02r01 / KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 KDB 941225 D01 v03 / KDB 941225 D05 v02r03 / KDB 941225 D06 v02 Sample Received Date : Jul. 27, 2015 Date of Testing : Aug. 24, 2015 ~ Sep. 15, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. onneWu/SupervisorIvonne W donLin / Assistant Manag ofthi Ivonn FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 70 Report No. : SA150727C10 Issued Date : Sep. 17, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification .................................................................…
