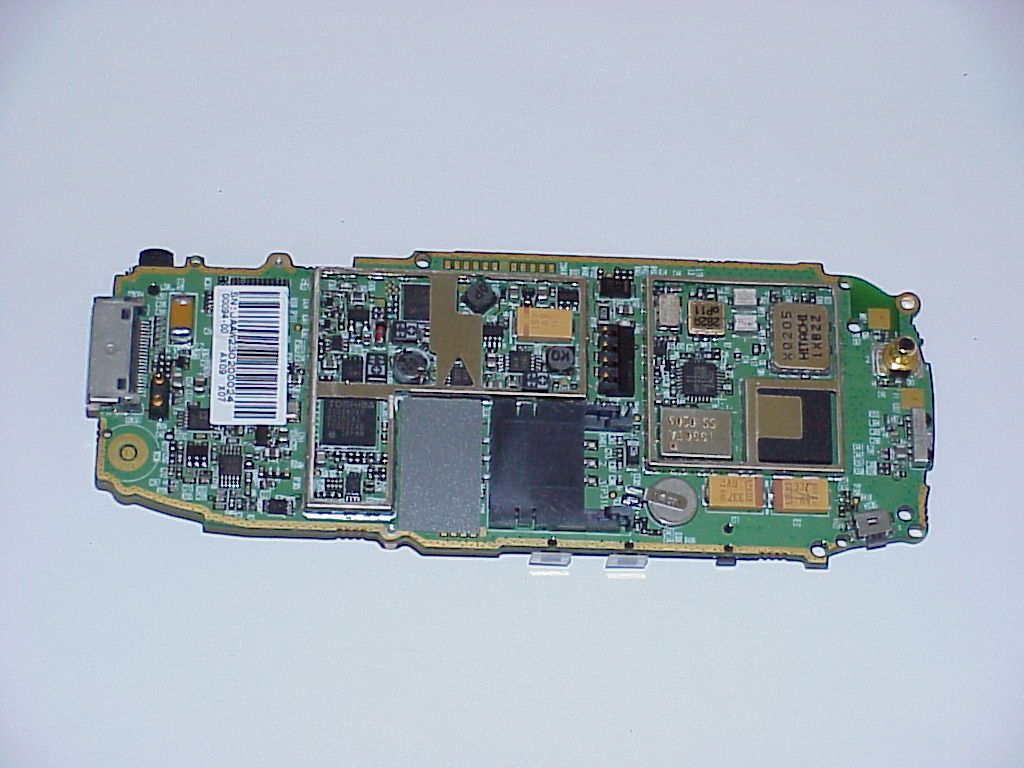

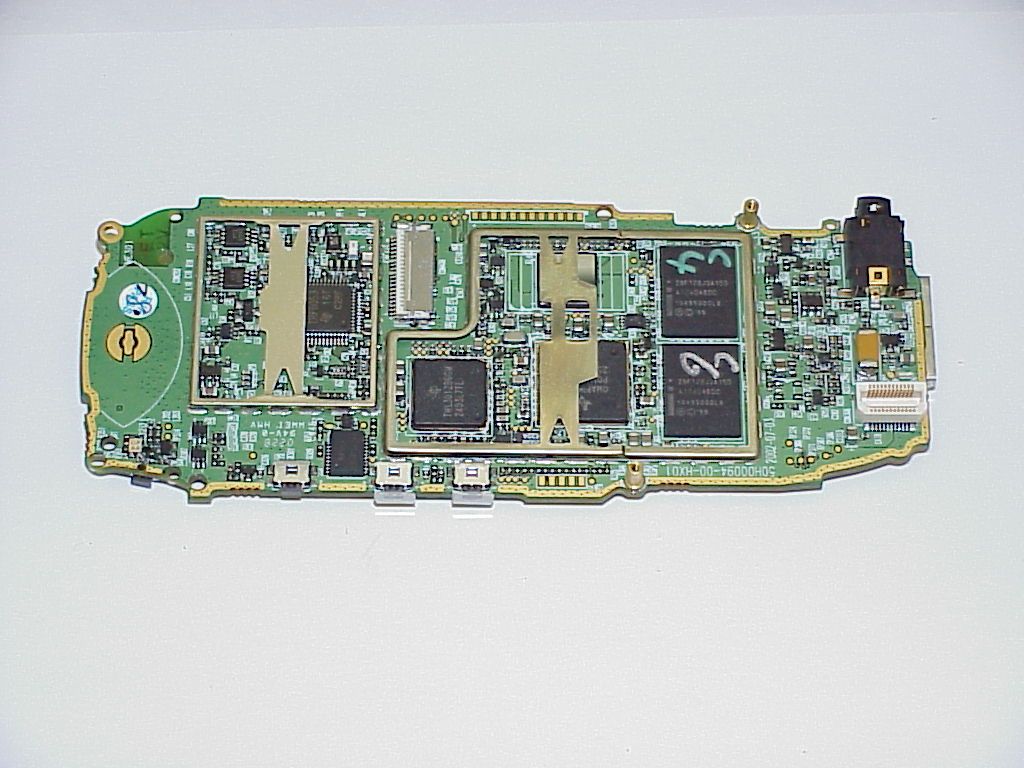

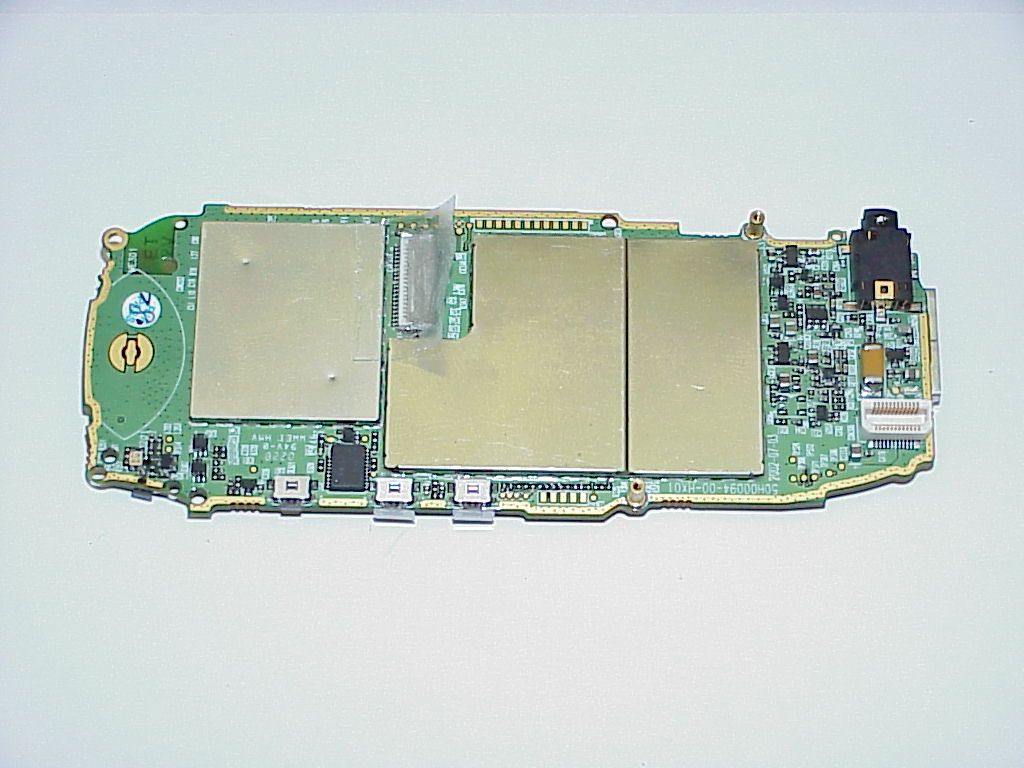

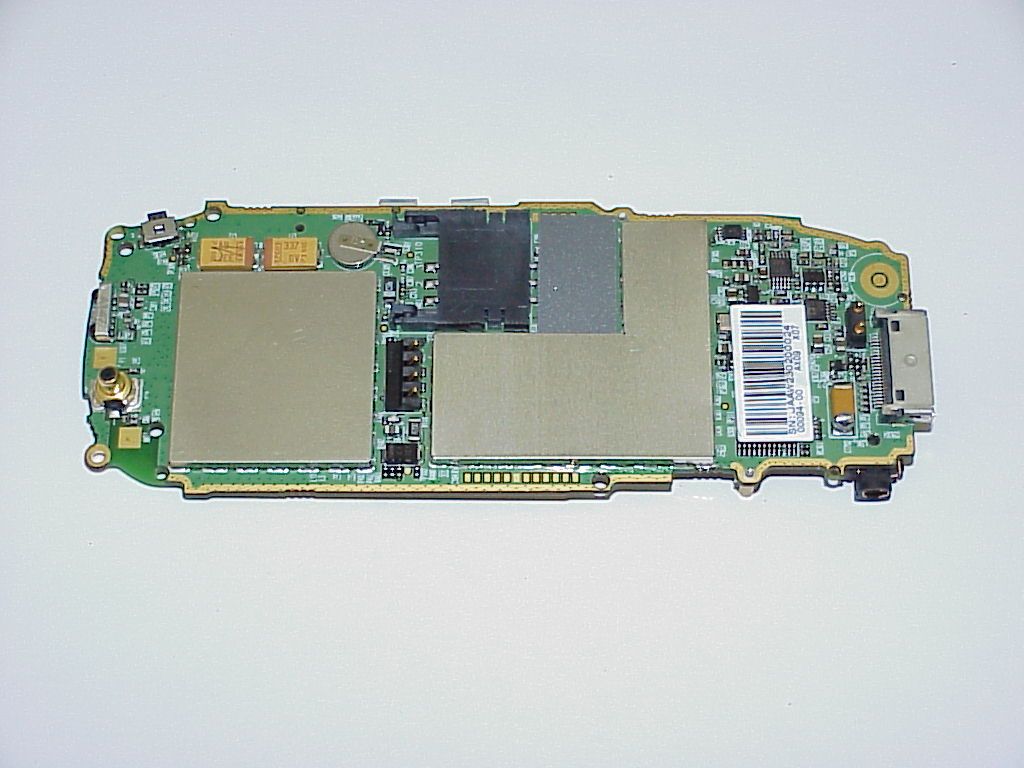

NM8CANARYGSM 900 / 1800 / 1900 Phone

User's Guide Canary: Windows® Powered Smartphone 2002 © 2002 Microsoft Corporation. All rights reserved. ActiveSync, Hotmail, Microsoft, MS-DOS, MSN, Outlook, Passport, Windows, Windows NT, Windows CE, Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Contents Chapter 1 Getting Started...............................................................................1 Getting to know your phone ..............................................................................1 Front View .........................................................................................................1 Back, side and base view ...................................................................................3 Status indicators .................................................................................................4 Synchronizing with ActiveSync ........................................................................5 Battery................................................................................................................6 Accessories ........................................................................................................7 Inserting the SIM card .......................................................................................8 Where to find information .................................................................................9 Chapter 2 The Basics .....................................................................................10 Navigation methods .........................................................................................10 Entering text and numbers on your phone .......................................................13 Securing your phone ........................................................................................15 Chapter 3 Phone Calls ...................................................................................17 Making a call....................................................................................................17 Receiving a call................................................................................................19 In-call options ..................................................................................................19 Reviewing your calls........................................................................................20 Shortcuts ..........................................................................................................21 Advanced dialing options ................................................................................22 Chapter 4 Settings..........................................................................................24 Viewing and changing settings ........................................................................24 Resetting to factory defaults ............................................................................30 Chapter 5 Messaging Features .....................................................................31 Sending e-mail and SMS messages .................................................................31 Receiving e-mail and SMS messages ..............................................................33 Viewing your message folders.........................................................................34 Managing your Inbox.......................................................................................35 Message notifications.......................................................................................37 SMS messages .................................................................................................37 Chapter 10 3 Communicating with MSN Messenger............................................................38 Chapter 6 Contacts, Calendar, and Tasks...................................................41 Using Contacts .................................................................................................41 Using Calendar.................................................................................................44 Using Tasks......................................................................................................48 Chapter 7 Synchronizing Information.........................................................51 Using ActiveSync ............................................................................................51 Synchronizing information ..............................................................................54 Synchronizing Using an Infrared Connection..................................................55 ActiveSync Errors ............................................................................................55 Chapter 8 Internet, Entertainment and More ............................................57 Using Internet Explorer....................................................................................57 Using Media Player..........................................................................................60 Modem Link.....................................................................................................64 Solitaire ............................................................................................................65 Calculator .........................................................................................................66 Chapter 9 Appendix C: Regulatory Notices ................................................67 Regulatory Agency Identification Numbers ....................................................67 European Union Notice....................................................................................67 Important Safety Information ..........................................................................68 Safety…

Text truncated - open the document above for the full version.

1. The "high noise level" is caused by the high RF attenuation of the spectrum Analyzer. The attenuation was set so high because of the fundamental signal in order not to overload the input. 2. I attach a excel sheet with the data measured in Saarbruecken and our values put in this list in red. We observed a higher difference for the left hand position. Due to the situation we do these tests on our own costs we reported only the data. Saarbruecken had our full report available and confirmed that the plots looked similar. For validation reasons we will do further comparison beginning next year with other phones.

Answers: 1. This phone uses a Windows based plat form called "Pocket PC". If the manual is talking about pocket it is used in the sense of the Software. This has nothing to do with carrying the device in the pocket. 2. The 29.8 dBm was the maximum power the device could be set. The rated power is the theoretical power. There is no scaling necessary since this is the factory setting for this phones. 3. The device is using a GPRS class which has only one timeslot for uplink and 4 timeslots for downlink. So the phone was measured at its maximum. 4. This is only fro a memory card. It was checked during SAR tests that the card has no influence. The tests were then done with no card inserted. This was expected since the card slot is far away from the hot spot. 5. 10 mm for the coarse scan and for the zoom scan 3.2 mm (X) and 6.4 mm (Y,Z) 6. Isotropy at 1900 MHz: Axial isotropy varies from probe to probe. The IXP-050 probe used as an example had axial isotropy's assessed by NPL as follows: 900MHz ± 0.13 dB 1800MHz ± 0.11 dB 1900MHz ± 0.123 dB The largest of these, ± 0.13 dB equates to ±3% DCP is not frequency dependant. It depends of the type of modulation. Calibration: Full calibration was done at 1900 MHz Please refer to page 4 of 19 of Appendix C Paragraph 7 sentence 1 Early pages of the report are a general description only. 7. The amplifier setting was 2x Integration time 120 msec 8. For site dependent uncertainties we used numbers estimated / calculated according the IEE 1528. Regarding the integration time we used the following calculation For an integration time of int t = 20 milliseconds (the SAR probes sampling rate), if 1 pulse was missed, using Section E2.8 equation (E.3) of IEEE 1528 Only 1 pulse will be missed as a GSM standard TDMA signal has an idle frame of 1 in 26 over a period of 120 milliseconds. No other integration time figure is required as this is covered by the CW/TDMA investigation and linearity The Indexsar probe amplifiers have the facility for increasing the integration time in multiples of 20mS (50 Hz) or 16.67mS (60Hz). It is recommended that the integration period is set to 6 cycles for GSM phone testing. This reduces the uncertainty above as a good match with the frame rate can be achieved. The uncertainty above is reduced to ±0.4%. 9. This angles are guaranteed by construction using a upright head phantom. 10. The liquid parameters are in Annex C of the report. We changed the templates for future reports and include the parameters in the plots. 11. The z-axis scan is not done. The documentation shows that the liquid is 15 cm above the scan area, which is an alternative method. 12. I attach a copy of the user manual. Please don't publish this manual without the permission of the manufacturer.

Applicant: High Tech Computer Corp Correspondence Reference Number: 7811 731 Confirmation Number: TC920783 Response to correspondence reference number: 7811 Spherical isotropy: The IndexSAR probes’s spherical isotropy was only reported for 900 MHz. At other frequencies spherical isotropy was checked. At all frequencies the spherical isotropy was similar to the values reported for 900 MHz. Spherical isotropy values over frequency will follow a distribution similar to the distribution shown for axial isotropy. DCP, test software & probe calibration : Calibration for probe S/N:0106, which was used for the testing in question, was performed on 07/10/2002. Therefore the “P1528comp” document dated 1/29/03 is not applicable to this calibration. As you mentioned IndexSAR has changed their software and calibration procedures. We use the latest versions of the software to perform SAR tests. In October 2002 we purchased another probe S/N:0123. Probe S/N:0106 was kept as a backup, but was never needed. Probe S/N: 0106 is now at IndexSAR being calibrated to their latest procedures. This demonstrates that we are using the current procedures. As further assurance we will list the software version in our reports and as always we will include the probe calibration documents in our reports. Integration time: For an integration time of tint = 20 milliseconds (the SAR probes sampling rate), if 1 pulse was missed, this induces the following uncertainty: -3 U= 2. 4.6 * 10 tin U = ± 2.23% Only 1 pulse will be missed as a GSM standard TDMA signal has an idle frame of 1 in 26 over a period of 120 milliseconds. No other integration time figure is required as this is covered by the CW/TDMA investigation and linearity. The IndexSAR probe amplifiers have the facility for increasing the integration time in multiples of 20 mSec (50Hz) or 16.67 mSec (60Hz). We perform SAR testing of GSM devices with the integration period set to 6 cycles. This reduces the uncertainty shown above as a better match with the frame rate is achieved. The uncertainty shown above is then reduced to ±0.4%. Linearity: 0.125 dB is the correct value. We will make sure we use the correct values according to P1528 uncertainty procedures. Detection limits: According to the SAR equipment manufacturer this item is not applicable, providing that the measured SAR is within 0.1W/kg and 10W/kg. Measurement device: According to the SAR equipment manufacturer this item is not applicable, uncertainties are taken into account in the probe calibration. Response time: According to the SAR equipment manufacturer this item is not applicable, the probe is stationary for a time period greater than twice the response time before the measured SAR is logged. Noise: The noise level is periodically measured and is less than 0.01 W/kg. With this level of noise, the uncertainty due to noise can be neglected.

CETECOM Inc. 411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. Phone: + 1 (408) 586 6200
Fax: + 1 (408) 586 6299
E-mail: [email protected]
http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 g:\emc\projects\htc\326-2002_smartphone\sar\test_report\1900\326_fcc_1900_2002.doc © Copyright by CETECOM SAR TEST REPORT No. 326_FCC_1900_2002 for the High Tech Computer, Corp. 900/1800/1900 MHz Model Number: Smart Phone Date of Report: 2002-09-03 Date of issue: 2002-09-03 Report Copy No.: 01 SAR Test Report No. 326_FCC_1900_2002 Date of Report: 2002-09-03 Page 2 of 27 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. Contents 1. ASSESSMENT ................................................................................................................ 4 2. ADMINISTRATIVE DATA ................................................................................................ 5 2.1. Identification of the Testing Laboratory Issuing the SAR Assessment Report.............. 5 2.2. Identification of the Client ........................................................................................ 5 2.3. Identification of the Manufacturer ............................................................................ 5 3. EQUIPMENT UNDER INVESTIGATION (EUI)................................................................. 6 3.1. Identification of the Equipment under Investigation ................................................. 6 3.2. Front View of the Equipment under Investigation .................................................... 7 4. SUBJECT OF INVESTIGATION ...................................................................................... 8 4.1. The IEEE Standard C95.1 and the FCC Exposure Criteria...................................... 8 4.2. Distinction Between Exposed Population, Duration of Exposure and Frequencies .. 8 4.3. Distinction between Maximum Permissible Exposure and SAR Limits..................... 9 4.4. SAR Limit ................................................................................................................ 9 5. THE FCC MEASUREMENT PROCEDURE................................................................... 10 5.1. General Requirements .......................................................................................... 10 5.2. Device Operating Next to a Person’s Ear .............................................................. 10 5.3. Test Positions........................................................................................................ 11 5.4. Test positions of device relative to head................................................................ 11 5.5. Test to be Performed............................................................................................. 14 5.6. Body-worn and Other Configurations.................................................................... 14 5.7. Procedure for assessing the peak spatial-average SAR ........................................ 15 5.8. Determination of the largest peak spatial-average SAR ........................................ 17 6. THE MEASUREMENT SYSTEM.................................................................................... 18 6.1. Robot system specification.................................................................................... 18 6.2. Probe and amplifier specification........................................................................... 19 6.3. Phantoms.............................................................................................................. 19 6.4. SAR measurement procedure ............................................................................... 20 SAR Test Report No. 326_FCC_1900_2002 Date of Report: 2002-09-03 Page 3 of 27 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. 6.5. SARA2 Interpolation and Extrapolation schemes.................................................. 20 6.6. Interpolation of 2D area scan ................................................................................ 21 6.7. Extrapolation of 3D scan ....................................................................................... 21 6.8. Interpolation of 3D scan and volume averaging..................................................... 21 7. UNCERTAINTY ASSESSMENT ....................................................................................23 7.1. Measurement Uncertainty Budget ......................................................................... 24 8. TEST RESULTS SUMMARY ......................................................................................... 25 8.1. Conducted Output Power ...................................................................................... 25 8.2. Head SAR results for GSM 1900MHz band for PC20A......................................... 25 8.3. Body SAR results for GSM 1900MHz band for PC20A.......................................... 25 8.4. Validation Check Results....................................................................................... 26 9. REFERENCES............................................................................................................... 27 SAR Test Report No. 326_FCC_1900_2002 Date of Report: 2002-09-03 Page 4 of 27 V.2.16M-2002-03-12 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. 1. Assessment The High Tech Computer, Corp. Smart Phone is in compliance with the exposure criteria specified in Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled expos…

Text truncated - open the document above for the full version.

SAR Test Report No 326_FCC_1900_2002 Date of Report: 2002-09-03 Appendix A Page 1 of 12 Appendix A: Measurement Plots 1900 MHz Head SAR Plot 1. Date: 8/22/2002 Temperature Air / Liquid: 22.3
C / 22.0
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Left touch Channel: 661 Maximum 1 gram SAR: 0.697W/Kg Maximum 10 gram SAR: 0.409W/Kg Power reference start: 0.183W/Kg Power reference end 0.177W/Kg Power reference change 2 -3.5% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 7.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No 326_FCC_1900_2002 Date of Report: 2002-09-03 Appendix A Page 2 of 12 Plot 2. Date: 8/22/2002 Temperature Air / Liquid: 22.3
C / 22.0
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Left tilt Channel: 661 Maximum 1 gram SAR: 0.773 W/Kg Maximum 10 gram SAR: 0.437 W/Kg Power reference start: 0.212 W/Kg Power reference end 0.215 W/Kg Power reference change 2 1.26% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 7.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No 326_FCC_1900_2002 Date of Report: 2002-09-03 Appendix A Page 3 of 12 Plot 3. Date: 8/22/2002 Temperature Air / Liquid: 22.3
C / 22.0
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Right touch Channel: 661 Maximum 1 gram SAR: 0.584W/Kg Maximum 10 gram SAR: 0.377W/Kg Power reference start: 0.178W/Kg Power reference end 0.178W/Kg Power reference change 2 0.00W/Kg 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 7.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No 326_FCC_1900_2002 Date of Report: 2002-09-03 Appendix A Page 4 of 12 Plot 4. Date: 8/22/2002 Temperature Air / Liquid: 22.3
C / 22.0
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Right tilt Channel: 661 Maximum 1 gram SAR: 0.530 W/Kg Maximum 10 gram SAR: 0.318 W/Kg Power reference start: 0.157 W/Kg Power reference end 0.150 W/Kg Power reference change 2 -3.86% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 7.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No 326_FCC_1900_2002 Date of Report: 2002-09-03 Appendix A Page 5 of 12 Plot 5. Date: 8/22/2002 Temperature Air / Liquid: 22.3
C / 22.0
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Left tilt Channel: 512 Maximum 1 gram SAR: 0.590 W/Kg Maximum 10 gram SAR: 0.335W/Kg Power reference start: 0.170 W/Kg Power reference end 0.168 W/Kg Power reference change 2 -1.18% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 7.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No 326_FCC_1900_2002 Date of Report: 2002-09-03 Appendix A Page 6 of 12 Plot 6. Date: 8/22/2002 Temperature Air / Liquid: 22.3
C / 22.0
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.574, Y=0.845, Z=0.518 Position: Left tilt Channel: 810 Maximum 1 gram SAR: 0.888 W/Kg Maximum 10 gram SAR: 0.525 W/Kg Power reference start: 0.260W/Kg Power reference end 0.251 W/Kg Power reference change 2 -3.39% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 7.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No 326_FCC_1900_2002 Date of Report: 2002-09-03 Appendix A Page 7 of 12 1900 MHz Body SAR Results 1 st Peak Plot 7. Date: 8/23/2002 Temperature Air / Liquid: 22.0
C / 22.0
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Position: In pouch w/ headset Channel: 661 Maximum 1 gram SAR: 0.660 W/Kg Maximum 10 gram SAR: 0.392 W/Kg Power reference start: 0.176W/Kg Power reference end 0.182 W/Kg Power reference change 2 3.19% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 7.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No 326_FCC_1900_2002 Date of Report: 2002-09-03 Appendix A Page 8 of 12 Results 2 nd Peak Plot 8. Date: 8/23/2002 Temperature Air / Liquid: 22.0
C / 22.0
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Position: In pouch w/ headset Channel: 661 Maximum 1 gram SAR: 0.573 W/Kg Maximum 10 gram SAR: 0…

Text truncated - open the document above for the full version.

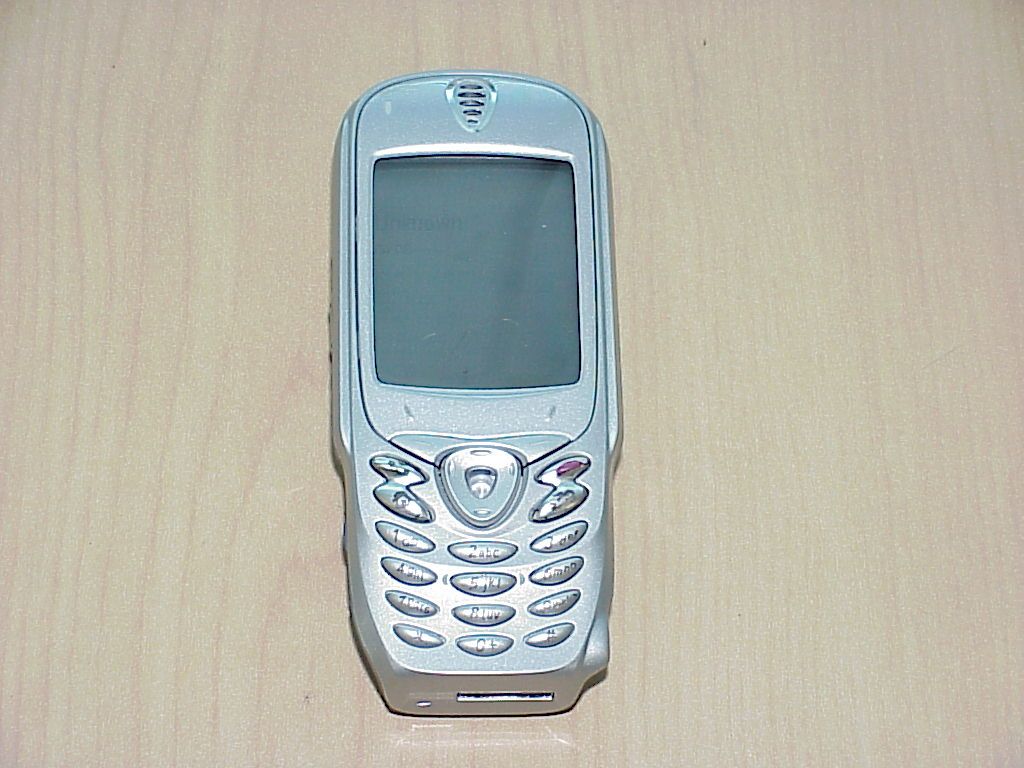

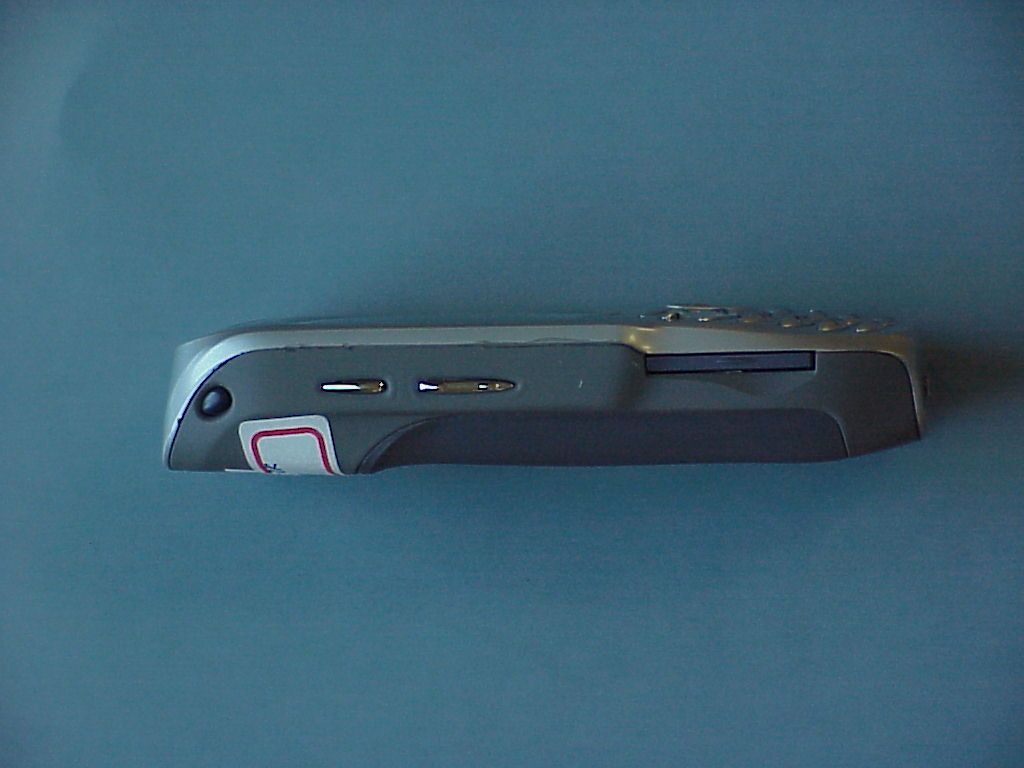

SAR Test Report No. 326_FCC_1900_2002 Date of Report:2002-09-03 Appendix B Page 1 of 9 Appendix B: Photos EUT Photos Photo 1. SAR Test Report No. 326_FCC_1900_2002 Date of Report:2002-09-03 Appendix B Page 2 of 9 Photo 2. SAR Test Report No. 326_FCC_1900_2002 Date of Report:2002-09-03 Appendix B Page 3 of 9 Set-up Photos Photo 3. Left touch SAR Test Report No. 326_FCC_1900_2002 Date of Report:2002-09-03 Appendix B Page 4 of 9 Photo 4. Left tilt SAR Test Report No. 326_FCC_1900_2002 Date of Report:2002-09-03 Appendix B Page 5 of 9 Photo 5. Right touch SAR Test Report No. 326_FCC_1900_2002 Date of Report:2002-09-03 Appendix B Page 6 of 9 Photo 6. Right tilt SAR Test Report No. 326_FCC_1900_2002 Date of Report:2002-09-03 Appendix B Page 7 of 9 Photo 7. Body SAR with headset SAR Test Report No. 326_FCC_1900_2002 Date of Report:2002-09-03 Appendix B Page 8 of 9 Photo 8. Photo to demonstrate 15 cm Z-axis head phantom SAR Test Report No. 326_FCC_1900_2002 Date of Report:2002-09-03 Appendix B Page 9 of 9 Photo 9. Photo to demonstrate 15 cm Z-axis flat phantom

Testplan and results for FCC ID: NM8CANARY (FCC Sup C to OET bul.65) Date: 11/6/2002 Op: G.Nr.: Customer: Typ: HTC IMEI: S/N: HT230CK22851 S/W: H/W: 33039901000280-8 Channel: Frequency: Limit: 1,6W/Kg (1g) 1g 10g 1g Band Hand Position Value (W/Kg) Temperature /° C Band Hand Position Value (W/Kg) 1900 MHz Left Hand 1900 MHz Right Hand Ch661 Cheek (0.697) 0.42 0.245 21 Ch661 Cheek (0.584) 0.416 Ch661 tilted 15° (0.733) 0.455 0.254 21.3 Ch661 tilted 15° (0.530) 0.501 Ch512 worst case tilted 15° Ch512 worst case tilted 15° 0.328 Ch810 tilted 15° (0.888) 0.521 0.296 21.8 Ch810 tilted 15° 0.493 1900 MHz Body Ch661 front Ch661 rear Ch512 worst case Ch810

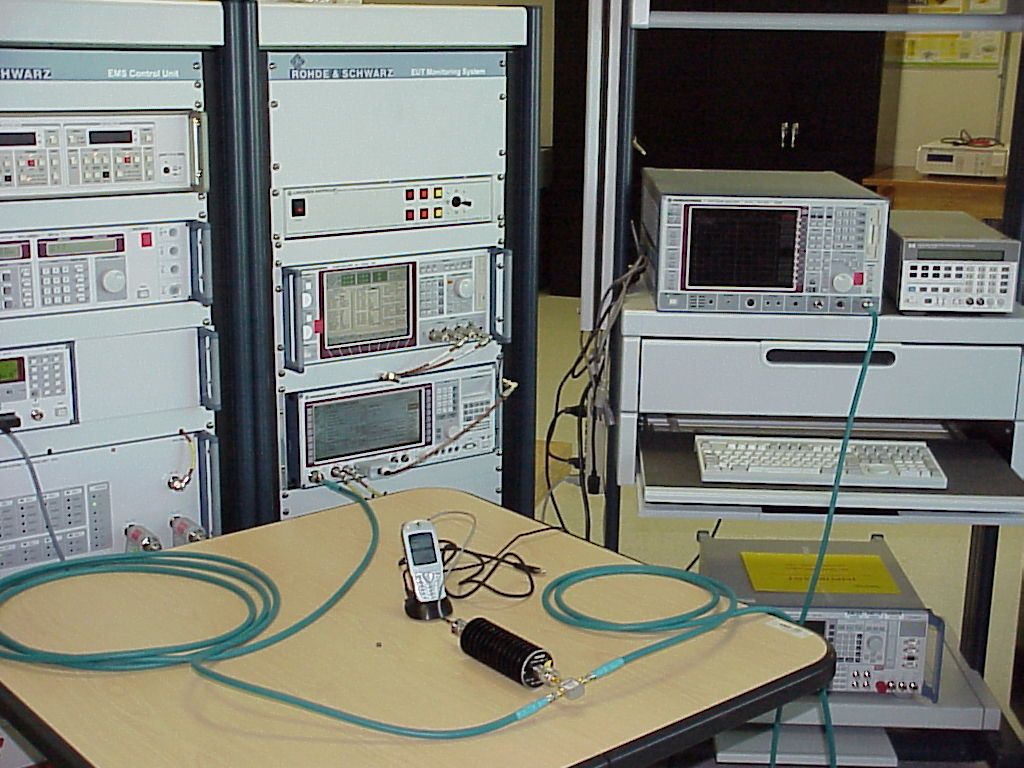

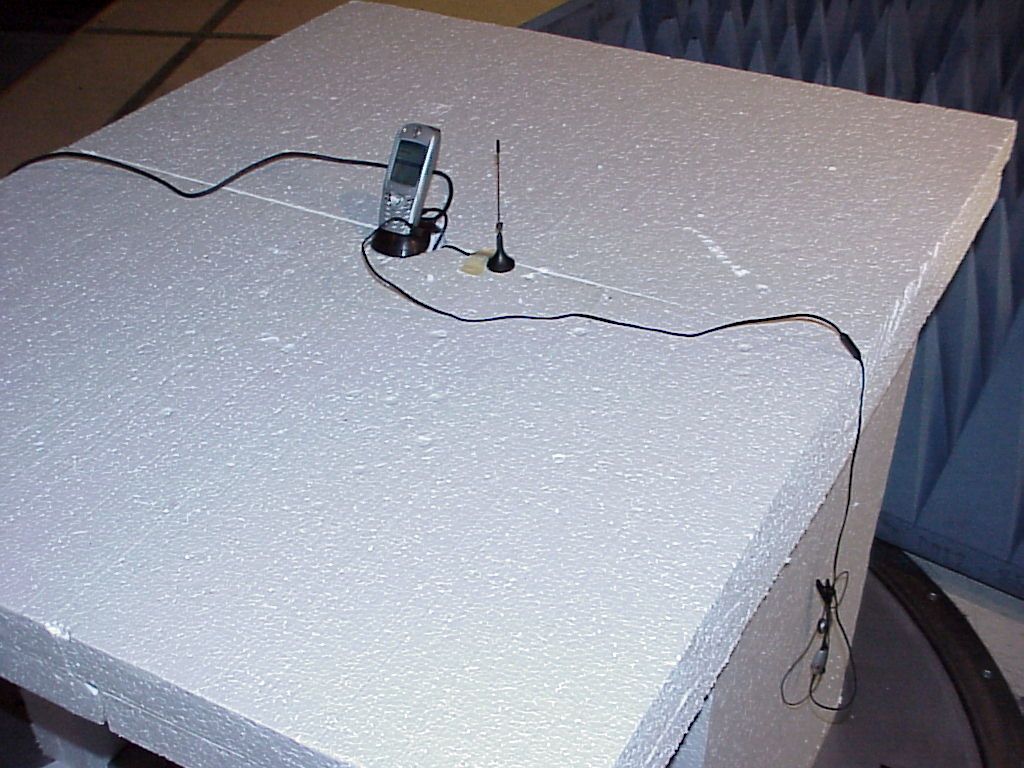

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 54 Pages Page 1 (54) Test report no.: EMC_326_FCC24_2002 FCC Part 24 / RSS 133 (PC20A) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 CETECOM Inc. Test report no.: EMC_326_FCC24_2002 Issue date: 2002-09-06 Page 2 (54) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_326_FCC24_2002 Issue date: 2002-09-06 Page 3 (54) 1.3 Details of applicant Name : High Tech Computer, Corp. Street : 1F, 6-3, Bau-Chian Rd., Hsin Tien City / Zip Code : Taipei 231 Country : Taiwan Contact : Jesse Kuo Telephone : +886 2 8912 4138 Tele-fax : +886 2 8912 6309 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2002-08-10 Date of receipt test item : 2002-08-31 Date of test : 2002-09-04/05 1.5 Test item Manufacturer : Applicant Name of EUT : Smart Phone Model No. : PC20A Description : GSM Triband Mobile Phone HW & SW HX01 & 0.79 FCC-ID : NM8CANARY Additional information Frequency : 1850.2MHz – 1909.8MHz for GSM 1900 Type of modulation : GMSK Number of channels : 299 for GSM 1900 Antenna : Plane (integral) Power supply : Battery (AC adaptor) Output power : 32.15dBm(1.64W) max. EIRP for GSM 1900 Extreme vol. Limits : 3.6 – 4.2 VDC Extreme temp. Tolerance : -10 C to +55 C 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: EMC_326_FCC24_2002 Issue date: 2002-09-06 Page 4 (54) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2002-09-06 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2002-09-06 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_326_FCC24_2002 Issue date: 2002-09-06 Page 5 (54) 2.2 Test report TEST REPORT Test report no.: EMC_326_FCC24_2002 (PC20A) CETECOM Inc. Test report no.: EMC_326_FCC24_2002 Issue date: 2002-09-06 Page 6 (54) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT SUBCLAUSE § 24.232 .................................................... 7 FREQUENCY STABILITY SUBCLAUSE § 24.235................................................. 12 OCCUPIED BANDWIDTH §2.1049 .......................................................................... 14 EMISSIONS LIMITS §24.238........................................................................... 21 RECEIVER RADIATED EMISSIONS SUBCLAUSE § 15.209................................................ 41 CONDUCTED SPURIOUS EMISSIONS ..................................................................................................... 46 CONDUCTED EMISSIONS § 15.107/207................................................................ 51 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS...…
