NM8CBBTPacket PC With Bluetooth

EasyGuide Pocket LOOX 400 Series English answers 2 Are there ... ... any technical problems or other questions which you would like to be clarified? Please contact: • your sales partner • your sales outlet Further information can be found in the "Safety and Ergonomics" and "Warranty" manuals. The latest information on our products, tips, updates, etc., can be found on the internet under: http://www.fujitsu-siemens.com Distributed by Fujitsu Siemens Computers GmbH Order No.: A26391-K150-Z120-1-7619 AG 0304 03/04 Pocket LOOX 400 Series Introduction Information before you start Software overview Operating the Pocket PC FSC SpeedMenu - quickly operating Pocket PC Configuring the Pocket PC Connecting and networking the Pocket PC with other devices Troubleshooting and tips Technical data Index March 2004 edition Adobe and Acrobat are trademarks of Adobe systems Incorporated and may be protected in certain countries. Intel is a registered trademark, XScale is trademark of Intel Corporation, U.S.A. Microsoft, Windows and ActiveSync are registered trademarks of the Microsoft Corporation. Windows Mobile is a trademark of Microsoft Corporation. The SD Logo is a trademark of Secure Digital. The Bluetooth trademarks are the property of Bluetooth SIG, Inc., U.S.A. licensed for Fujitsu Siemens Computers GmbH. All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged. Copyright  Fujitsu Siemens Computers GmbH 2004 All rights, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole, are reserved. Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Delivery subject to availability. Right of technical modification reserved. A26391-K150-Z120-2-7619 Contents Your Pocket LOOX...........................................................................................................................1 Information before you start ...........................................................................................................3 To make things clear .........................................................................................................................3 Important notes .................................................................................................................................4 Safety notes...............................................................................................................................4 Energy saving ............................................................................................................................5 Disposal and recycling ...............................................................................................................5 CE marking................................................................................................................................6 European Union Notice..............................................................................................................6 Battery storage ..........................................................................................................................8 Cleaning Pocket PC...................................................................................................................8 Software overview ...........................................................................................................................9 Operating the Pocket PC...............................................................................................................11 Overview of operating elements and connections............................................................................12 Initial start-up...................................................................................................................................13 Inserting battery .......................................................................................................................14 Connecting PSC11R-050 power adapter .................................................................................15 Installing ActiveSync on your PC/notebook..............................................................................16 First data synchronisation between the Pocket PC and the PC/notebook ................................17 Starting Pocket PC the first time ..............................................................................................18 Switching Pocket PC off and on.......................................................................................................19 Switching Pocket PC off and on during normal use .................................................................19 Switching on and off with soft reset (warm boot)......................................................................20 Resetting Pocket PC to delivered state....................................................................................21 Using standard operating elements .................................................................................................22 Using the pen ..........................................................................................................................22 Using navigation key................................................................................................................22 Using the application buttons ...................................................................................................23 Switching display lighting off and on ................................................................................................23 Make sound recordings ...................................................................................................................24 Inserting and removing memory cards...........................................…

Text truncated - open the document above for the full version.

Mike Kuo From: [email protected] Sent: April2 6 2004 To: Mike Kuo Cc: Lai, Harris (E-mail); Mike Kuo; Scott Wang; '[email protected]' Subject: RE: FW: High Tech Computer Corp. FCC ID:NM8CBBT, AN04T3857 4/26/2004 Hi Mike, Here is the reply. Your Question Your reply to Question #2 is not acceptable. The tests shall be made on the device which is " identical " to the product that is going to be marketed. Identical is defined per section 2.908 of FCC rule. Based upon your statement, you are not testing the EUT which is identical to the one is going to be marketed. Please redo the tests for PDA with Bluetooth module only with WLAN portion removed. Our Reply Test for PDA with the BT module and with the WLAN module removed is re-done. Attached is the revised test report. I do appreciate your special dealing with this case. Thank you. Best Rgds, WK Hi Ting: Your reply to Question #2 is not acceptable. The tests shall be made on the device which is " identical " to the product that is going to be marketed. Identical is defined per section 2.908 of FCC rule. Based upon your statement, you are not testing the EUT which is identical to the one is going to be marketed. Please redo the tests for PDA with Bluetooth module only with WLAN portion removed. Best Regards Mike Kuo <[email protected]> 2004/04/25 07:52 AM "'[email protected]'" <[email protected]>, Mike Kuo <[email protected]> [email protected], "Lai, Harris (E-mail)" <[email protected]>, Scott Wang <[email protected]> Mike Kuo -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Friday, April 23, 2004 1:29 AM To: Mike Kuo Cc: [email protected] Subject: FW: High Tech Computer Corp. FCC ID:NM8CBBT, AN04T3857 Hi Mike, Question #1: PDA is this application is considered as portable device with handheld operation only due the size of PDA and functions described in the user manual. Please remove section 7.7 of test report use MPE estimate to justify RF exposure compliance. During the previous TCB review, I have pointed out many times that do not use MPE estimate to justify RF exposure compliance for portable device. RF exposure condition for portable device is near field exposure not the far field exposure. MPE estimate calculation can only be used to address RF exposure condition for far field exposure. Since the Bluetooth output power is below " low power threshold ", SAR evaluation is not required for Bluetooth portion. Please delete MPE estimate and submit revised Bluetooth Test report. Ans #1: The test report is revised. Please refer to the attached. Question #2: Based upon the internal photos submitted. The WLAN portion of components are removed for this PDA w/Bluetooth . However, this Bluetooth test report is identical to the one submitted under FCC ID:NM8CB. Is the device showed in the external / Internal photos actually tested ? Why Bluetooth test report submitted under FCC ID:NM8CB and NM8CBBT are identical? Ans #2: No, the device showed in the external / Internal photos are not actually tested. The EUT in both cases are the same, including the PDA motherboard, the BT module and the WLAN module. For this case, the WLAN function is disabled while we are performing the test for the BT fuction. Moreover, the vendor WLAN module will be removed on shipment if the customer does not order the WLAN. Best regards, Ting -----Original Message----- From: CERTADM Sent: Thursday, April 22, 2004 11:40 AM To: Mike Kuo Subject: High Tech Computer Corp. FCC ID:NM8CBBT, AN04T3857 Mike Kuo <[email protected]> 2004/04/23 02:41 AM "CCS-Taiwan, Ting (E-mail)" <[email protected]>, "CCS-Taiwan, Wklo (E-mail)" <[email protected]> Scott Wang <[email protected]>, Helen Zhao <[email protected]> 4/26/2004 Notice_content ------------- Question #1: PDA is this application is considered as portable device with handheld operation only due the size of PDA and functions described in the user manual. Please remove section 7.7 of test report use MPE estimate to justify RF exposure compliance. During the previous TCB review, I have pointed out many times that do not use MPE estimate to justify RF exposure compliance for portable device. RF exposure condition for portable device is near field exposure not the far field exposure. MPE estimate calculation can only be used to address RF exposure condition for far field exposure. Since the Bluetooth output power is below " low power threshold ", SAR evaluation is not required for Bluetooth portion. Please delete MPE estimate and submit revised Bluetooth Test report. Question #2: Based upon the internal photos submitted. The WLAN portion of components are removed for this PDA w/Bluetooth . However, this Bluetooth test report is identical to the one submitted under FCC ID:NM8CB. Is the device showed in the external / Internal photos actually tested ? Why Bluetooth test report submitted under FCC ID:NM8CB and NM8CBBT are identical ? Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 4/26/2004

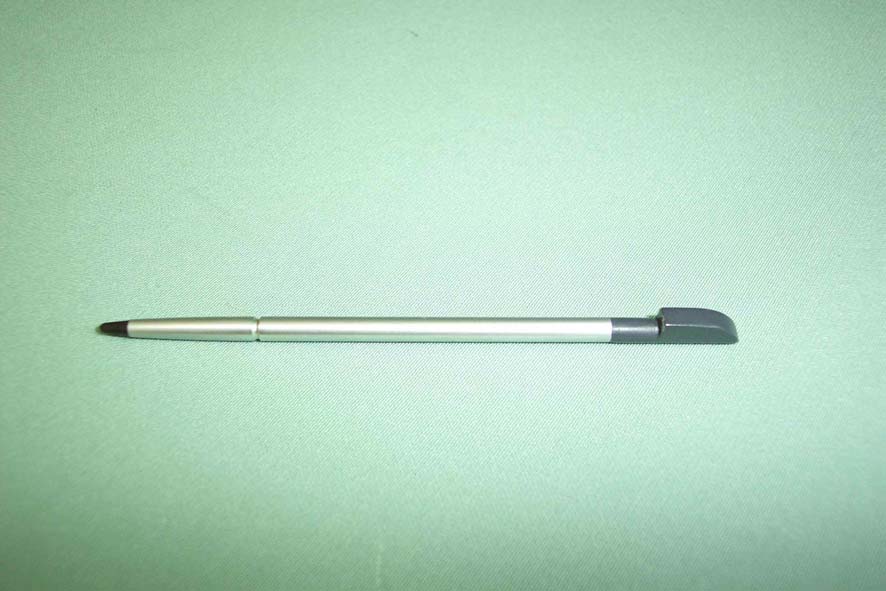

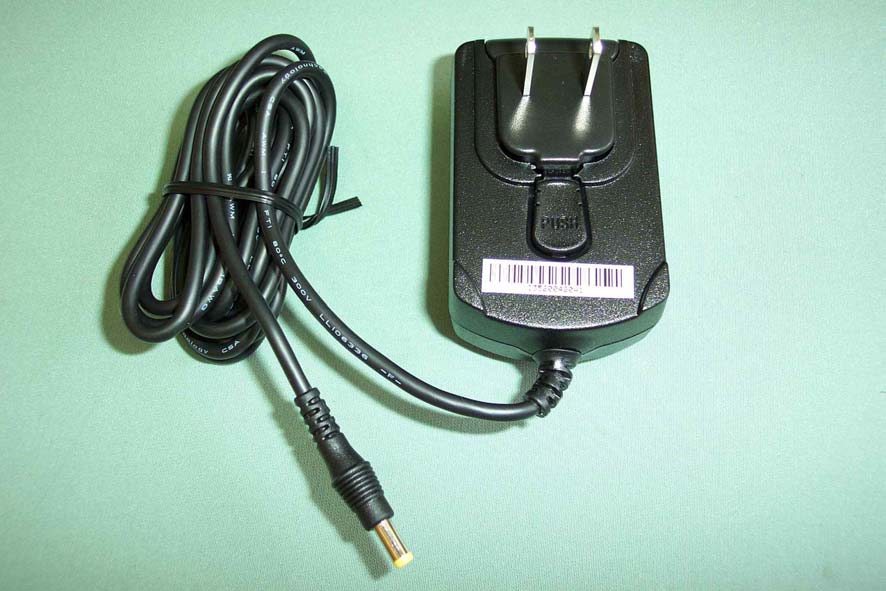

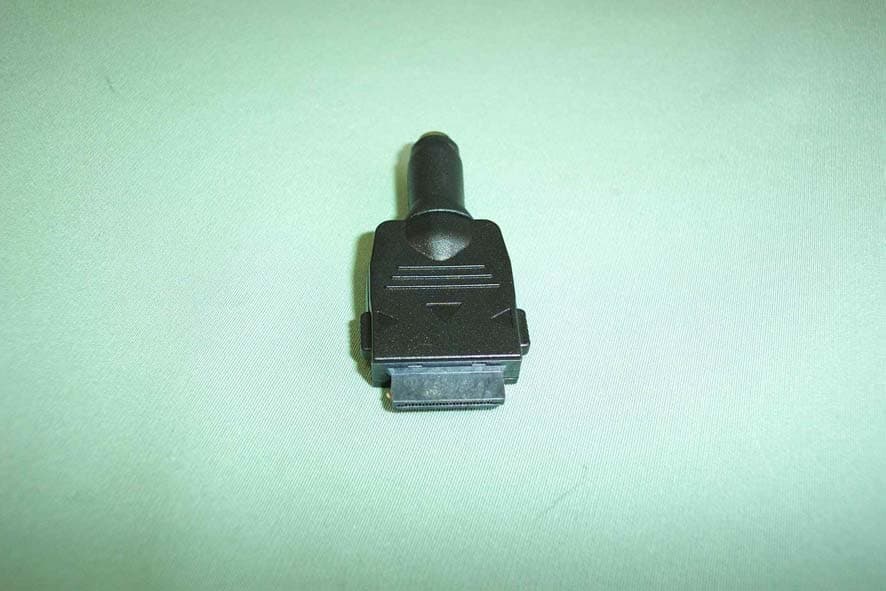

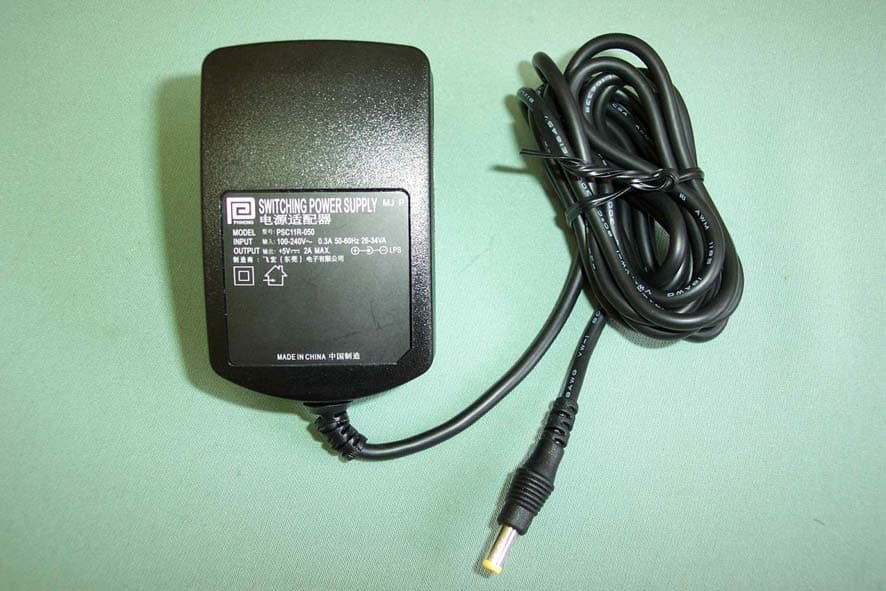

Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 1 of 14 External Photo Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 2 Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 3 Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 4 of 14 Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 5 Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 6 of 14 Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 7 of 14

Label Location

Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 8 Internal Photo Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 9 Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 10 Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 11 Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 12 Main board - Bluetooh Bluetooh Module Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 13 Compliance Certification Services Inc. Report No: B40226205 Date of Issue: March 25, 2004 Page 14

Radiation Pattern of Casablanca PDA positions (1) X-Y plane pattern x ˆ y ˆ z ˆ (2) X-Z plane pattern x ˆ y ˆ z ˆ (3) Y-Z plane pattern x ˆ y ˆ z ˆ Bluetooth antenna Ant. Type:PIFA (1) X-Y plane pattern 0 30 60 90 120 150 180 210 240 270 300 330 -40 -30 -20 -10 0 10 -40 -30 -20 -10 0 10 Y Axis Standing H pol gain Standing V pol gain Standing Total gain 2450 MHz Offset = 41.66 dB Max. Gain = 0.78 dB Ave. Gain = -3.85 dB X Axis (dB) (2) X-Z plane pattern 0 30 60 90 120 150 180 210 240 270 300 330 -40 -30 -20 -10 0 10 -40 -30 -20 -10 0 10 2450 MHz Offset = 41.66 dB Max. Gain = -1.17 dB Ave. Gain = -5.30 dB (dB) Z Axis X Axis Broadside H pol gain Broadside V pol gain Broadside Total gain (3) Y-Z plane pattern 0 30 60 90 120 150 180 210 240 270 300 330 -40 -30 -20 -10 0 10 -40 -30 -20 -10 0 10 2450 MHz Offset = 41.66 dB Max. Gain = -2.49 dB Ave. Gain = -7.26 dB (dB) Z Axis Y Axis Tabletop H pol gain Tabletop V pol gain Tabletop Total gain

Compliance Certification Services Inc. Report No: B40226205-RP FCC ID: NM8CBBT Date of Issue: April 8, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page 1 of 51 FCC 47 CFR PART 15 SUBPART C TEST REPORT For High Tech Computer Corp. Pocket PC Model: PL400MD Trade Name: FUJITSU SIEMENS COMPUTER Prepared for High Tech Computer Corp. 6F, No. 23, Hsin Hua Rd., Taoyuan 330, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40226205-RP FCC ID: NM8CBBT Date of Issue: April 8, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT .................................................................................................. 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1 PEAK POWER......................................................................................................................... 11 7.2 PEAK POWER SPECTRAL DENSITY......................................................................................... 12 7.3 BAND EDGES MEASUREMENT ..................................................................................... 15 7.4 FREQUENCY SEPARATION ............................................................................................ 20 7.5 NUMBER OF HOPPING FREQUENCY............................................................................ 22 7.6 TIME OF OCCUPANCY (DWELL TIME) ........................................................................ 24 7.7 RADIO FREQUENCY EXPOSURE............................................................................................. 32 7.8 SPURIOUS EMISSIONS ...................................................................................................... 33 7.9 POWERLINE CONDUCTED EMISSIONS.................................................................................... 40 APPENDIX 1 PHOTOGRPHS OF TEST SETUP.......................................................................... 50 Compliance Certification Services Inc. Report No: B40226205-RP FCC ID: NM8CBBT Date of Issue: April 8, 2004 Page 4 2. EUT DESCRIPTION Product Pocket PC Trade Name FUJITSU SIEMENS COMPUTER Model Number PL400MD Model Discrepancy N/A Power Supply Powered from AC/DC power adapter Model: PSC11R-050 Input: 100 - 240V, 50 - 60Hz, 0.3A Output: 5V, 2A Frequency Range 2402 ~ 2480 MHz Transmit Power 3.16 dBm Modulation Technique FHSS Number of Channels 79 Channels Antenna Designation Embedded inverted F Antenna Antenna Gain Gain: 0.78 dBi (max) Note: This submittal(s) (test report) is intended for FCC ID: NM8CBBT filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: B40226205-RP FCC ID: NM8CBBT Date of Issue: April 8, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4. Radiated testing was performed at an antenna to EUT distance 3 meters. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40226205-RP FCC ID: NM8CBBT Date of Issue: April 8, 2004 Page 52 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B40226205-RP FCC ID: NM8CBBT Date of Issue: April 8, 2004 Page 53 Conducted Emission Set Up Photos
