NM8DFPocket PC With 802.11b and Bluetooth Transmitters

User’s Guide HP iPAQ rx3000 series Mobile Media Companion Document Part Number: 364351-001 May 2004 © 2004 Hewlett-Packard Development Company, L.P. HP, Hewlett Packard, and the Hewlett-Packard logo are trademarks of Hewlett-Packard Company in the U.S. and other countries. iPAQ is a trademark of Hewlett-Packard Development Company, L.P. in the U.S. and other countries. Microsoft, Windows, the Windows logo, Outlook, and ActiveSync are trademarks of Microsoft Corporation in the U.S. and other countries. HP iPAQ Mobile Media Companion is Powered by Microsoft® Windows®. HP iPAQ products are Powered by Microsoft® Windows 2003 ®. SD Logo is a trademark of Secure Digital. Nevo, NevoMedia, Nevo Backup, NevoEdit, the Nevo logo, and the Nevo home screen are trademarks of Universal Electronics, Inc. in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies. Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The information in this document is provided “as is” without warranty of any kind, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company. Å WARNING: Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. Ä CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. User’s Guide HP iPAQ rx3000 series Mobile Media Companion First Edition (May 2004) Document Part Number: 364351-001 Manual Title Variablewww.hp.com1 Contents 1 Getting to Know Your HP iPAQ Using the Stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5 Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . 1–6 Setting the Time for Home and Locations You Are Visiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6 Setting the Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6 Entering Owner Information . . . . . . . . . . . . . . . . . . . . . . 1–7 Resetting the Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8 Performing a Normal Reset . . . . . . . . . . . . . . . . . . . . 1–8 Performing a Full Reset . . . . . . . . . . . . . . . . . . . . . . . 1–9 Aligning the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12 Routine Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12 2 Learning the Basics Using the Launch Page or Traditional Today Screen . . . 2–1 Navigation Bar and Command Bar . . . . . . . . . . . . . . 2–3 Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4 Pop-Up Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5 Creating information . . . . . . . . . . . . . . . . . . . . . . . . . 2–6 Customizing the Today Screen . . . . . . . . . . . . . . . . . 2–7 Using Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7 Using the iTask Launcher . . . . . . . . . . . . . . . . . . . . . 2–7 Launching Applications. . . . . . . . . . . . . . . . . . . . . . . 2–8 Pocket Internet Explorer . . . . . . . . . . . . . . . . . . . . . . 2–8 Switching Between Landscape and Portrait Screen Orientations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9 Contents Manual Title Variablewww.hp.com2 Minimizing Applications . . . . . . . . . . . . . . . . . . . . . 2–10 Closing Applications . . . . . . . . . . . . . . . . . . . . . . . . 2–10 Installing Applications. . . . . . . . . . . . . . . . . . . . . . . 2–11 Backing Up Information . . . . . . . . . . . . . . . . . . . . . 2–11 Using iPAQ File Store Folder . . . . . . . . . . . . . . . . . 2–13 3 Synchronizing with Your Computer Using Microsoft ActiveSync . . . . . . . . . . . . . . . . . . . . . . 3–1 Installing ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . 3–1 Synchronizing with Your Computer . . . . . . . . . . . . . 3–3 Changing Synchronization Settings. . . . . . . . . . . . . . 3–3 Manually Copying or Moving Files . . . . . . . . . . . . . . . . . 3–5 Installing a Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–6 Backing up and Restoring Files . . . . . . . . . . . . . . . . . . . . 3–6 Synchronizing Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7 Sending and Receiving E-mail Messages . . . . . . . . . . . . 3–7 Sending a Meeting Request . . . . . . . . . . . . . . . . . . . . . . . 3–8 4 Learning Input Methods Using Input Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1 Changing Word Suggestion Options . . . . . . . . . . . . . 4–1 Using the On-Screen Keyboard . . . . . . . . . . . . . . . . . 4–4 Writing with the Stylus and the Letter Recognizer . . 4–4 Writing with the Stylus and Microsoft Transcriber . . . . . 4–5 Writing with the Stylus and Block Recognizer . . . . . 4–6 Drawing and Writing on the Screen . . . . . . . . . . . . . 4–7 5 Using Your HP Photosmart Camera Getting to Know Your Camera Components . . . . . . . . . . 5–2 Capturing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3 HP Photosmart Camera . . . . . . . . . . . . . . . . . . . . . . . 5–3 Reviewing and Displaying . . . . . . . . . . . . . . . . . . . . . . . 5–15 HP Image Zone . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Mike Kuo From: [email protected] Sent: June17 2004 Thursday 3:00 AM To: Mike Kuo Cc: Lai, Harris (E-mail); CCS-Taiwan, Ting (E-mail); [email protected]; [email protected]; [email protected] Subject: High Tech Computer FCC ID:NM8DF, AN04T3930 6/17/2004 Hi Mike, Here are the replies. Question #1: Please provide clear copy of internal photos. The requirement for the photos are to show the component values. Ans #1: A clear copy of internal photos are attached as follows. Question #2: In the way the operational description is written, it looks like there two different devices. One is PDA with WLAN and the other one is PDA with Bluetooth. In this TCB application, review is performed on single device which is PDA with WLAN and Bluetooth under proposed FCC ID number : NM8DF. Please provide a marketing statement that FCC ID number :NM8DF will only be affixed on PDA when both WLAN and Bluetooth radios are existed on one PDA. Ans #2: A marketing statement is attached as follows. Question #3: Please provide RF conducted spurious emission plots from 30 MHz to 10th harmonic with WLAN mode. Ans #3: The RF conducted spurious emission plots are added. Please refer to the revised test report below. Question #4: Page 15 of SAR test report, body liquid was used but the heading for the tabular data indicated head liquid was used. Please make necessary correction. Ans #4: Correction is made. Please refer to the revised SAR test report below. Question #5: Based upon user manual, this PDA has optional extended 2880 mAh Lithium-ion battery. Additional batteries were not tested during SAR and there is no information on which battery was used during final Sar evaluation. Ans #5: A 1440 mAh Lithium-ion battery was adopted during the SAR testing. According to our finding, the 2880 mAh Lithium- ion is thicker twice times than the 1440 mAh one. Hence, this shoud not affect the compliance with the SAR requirements. Question #6: RF exposure warning statement does not include collocated transmitting restriction. Suggest text can be " This PDA has been tested and demonstrated compliance when Bluetooth and WLAN are transmitting simultaneously. This PDA must not be co-located or operating in conjunction with any other antenna or transmitter." Ans #6: Wordings of colocated transmitting restriction are added. Please refer to the revised user manual below. Thank you for your advice. And, your earliest issuance of the certificate will be highly appreciated. Best Rgds, WK Question #1: Please provide clear copy of internal photos. The requirement for the photos are to show the component values. Question #2: In the way the operational description is written, it looks like there two different devices. One is PDA with WLAN and the other one is PDA with Bluetooth. In this TCB application, review is performed on single device which is PDA with WLAN and Bluetooth under proposed FCC ID number : NM8DF. Please provide a marketing statement that FCC ID number :NM8DF will only be affixed on PDA when both WLAN and Bluetooth radios are existed on one PDA. Question #3: Please provide RF conducted spurious emission plots from 30 MHz to 10th harmonic with WLAN mode. Question #4: Page 15 of SAR test report, body liquid was used but the heading for the tabular data indicated head liquid was used. Please make necessary correction. Question #5: Based upon user manual, this PDA has optional extended 2880 mAh Lithium-ion battery. Additional batteries were not tested during SAR and there is no information on which battery was used during final Sar evaluation. Question #6: RF exposure warning statement does not include collocated transmitting restriction. Suggest text can be " This PDA has been tested and demonstrated compliance when Bluetooth and WLAN are transmitting simultaneously. This PDA must not be co-located or operating in conjunction with any other antenna or transmitter." Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Mike Kuo <[email protected]> 2004/06/15 08:24 AM "CCS-Taiwan, Wklo (E-mail)" <[email protected]>, "CCS-Taiwan, Ting (E-mail)" <[email protected]> "Lai, Harris (E-mail)" <[email protected]> 6/17/2004

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: NM8DF To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until July 2, 2004: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards

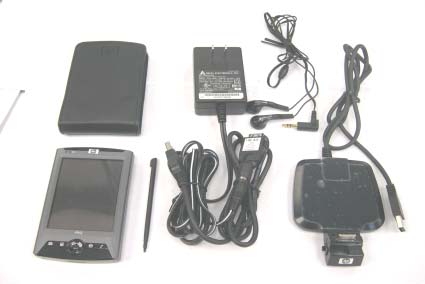

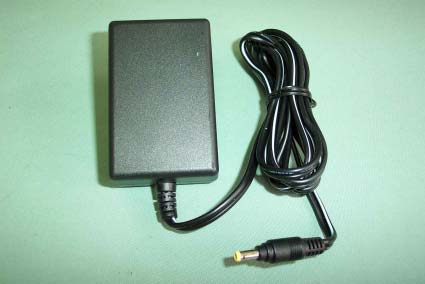

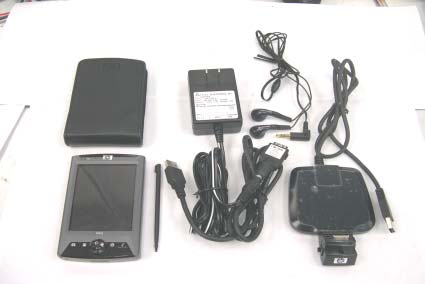

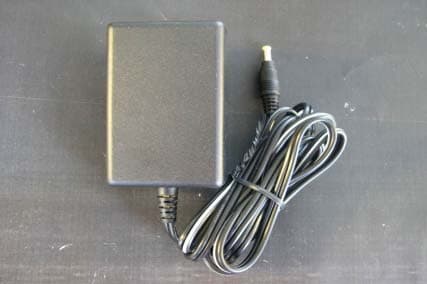

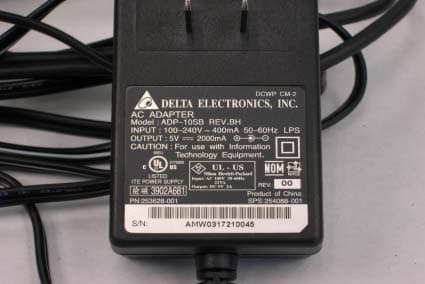

Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 1 of 16 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 2 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 3 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 4 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 5 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 6 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 7 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 8

█ Unit label location explanation 1. Agency Label (Main unit) 1.1 RX34XX Agency Label HTC P/N: P/N : 36514X-001 Size: 38 × 50 mm Barcode Type: Code 128

Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 9 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 10 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 11 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 12 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 13 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 14 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 15 Compliance Certification Services Inc. Report No: B40412405 Date of Issue: May 4, 2004 Page 16

04/01 Dragonfly Gain and Pattern Measurement: 0. Overview: The report shows the gain and pattern measurement results of Dragonfly project. (Fully integrated system, stylus included) 1. Antenna Types: BT : Chip antenna WLAN: Inverted-F antenna 2. Coordinate Configure: (1) H plane: (Standing) (2) E1 plane: (Side) (3) E2 plane: (Top) 3. BT antenna 1. Gain ( 2450 MHz) H plane E1 plane E2 plane Status Peak Average Peak Average Peak Average Without Stylus -0.79 -4.55 -0.72 -3.63 -3.04 -5.89 With Stylus -3.25 -6.25 -0.17 -3.02 -2.16 -5.61 2. Pattern Origin 4. WLAN antenna 1. Gain ( 2450 MHz) H plane E1 plane E2 plane Status Peak Average Peak Average Peak Average Without Stylus 2.24 -2.9 3.45 -0.26 1.42 -3.56 With Stylus 0.75 -3.55 0.65 -1.51 2.33 -3.32 2. Pattern Origin

Compliance Certification Services Inc. Report No: B40412405-SF Date of Issue: April 28, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 25 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For High Tech Computer Corp. Pocket PC Model Number: HSTNH-H03C-WL Model Name: rx3700 series; rx3400 series Trade Name: hp Prepared for High Tech Computer Corp. No. 23, Hsin Hua Rd., Taoyuan Hsien 330, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40412405-SF Date of Issue: April 28, 2004 Page 3 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .... 5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................... 5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 DASY4 Measurement Server.............................................................................................7 Data Acquisition Electronics (DAE)..................................................................................7 ES3DV2 Isotropic E-Field Probe for Dosimetric Measurements ......................................7 SAM Phantom (V4.0) ........................................................................................................8 Device Holder for SAM Twin Phantom ............................................................................8 System Validation Kits ......................................................................................................8 4. EVALUATION PROCEDURES .................................................................................. 9 5. MEASUREMENT UNCERTAINTY ......................................................................... 12 6. EXPOSURE LIMIT ..................................................................................................... 13 7. MEASUREMENT RESULTS..................................................................................... 14 7.1 SYSTEM PERFORMANCE CHECK..............................................................................14 7.2 TEST LIQUID CONFIRMATION...................................................................................16 7.3 EUT TUNE-UP PROCEDURES......................................................................................18 7.4 SAR MEASUREMENTS RESULTS...............................................................................19 8. EUT PHOTOS .............................................................................................................. 21 9. EQUIPMENT LIST & CALIBRATION STATUS................................................... 23 10. FACILITIES ................................................................................................................. 24 11. REFERENCES ............................................................................................................. 24 12. ATTACHMENTS......................................................................................................... 25 Compliance Certification Services Inc. Report No: B40412405-SF Date of Issue: April 28, 2004 Page 4 1. EUT DESCRIPTION Applicant: High Tech Computer Corp. No. 23, Hsin Hua Rd., Taoyuan Hsien 330, Taiwan, R.O.C. Model Number: HSTNH-H03C-WL Model Name rx3700 series; rx3400 series Model Name Discrepancy rx3700 series with CPU400 rx3400 series with CPU300 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 16.30dBm Max. SAR (1g): 0.511W/kg Application Type: Certification FCC Rule Part(s): 15C Antennas: PIFA Ant.(WLAN),Chip Ant.(BT) Compliance Certification Services Inc. Report No: B40412405-SF Date of Issue: April 28, 2004 Page 5 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m) which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40412405-RP FCC ID: NM8DF Date of Issue: May 4, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page 1 of 84 FCC 47 CFR PART 15 SUBPART C TEST REPORT For High Tech Computer Corp. Pocket PC Model Number: HSTNH-H03C-WL Model Name: rx3700 series; rx3400 series Trade Name: hp Prepared for High Tech Computer Corp. No. 23, Hsin Hua Rd., Taoyuan Hsien 330, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40412405-RP FCC ID: NM8DF Date of Issue: May 4, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT ................................................................................................... 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 CONDITION A: WLAN OPERATION........................................................................................... 11 7.1 6DB BANDWIDTH.................................................................................................................. 11 7.2 PEAK POWER......................................................................................................................... 15 7.3 BAND EDGES MEASUREMENT ..................................................................................... 19 7.4 PEAK POWER SPECTRAL DENSITY......................................................................................... 25 7.5 RADIO FREQUENCY EXPOSURE............................................................................................. 29 7.6 SPURIOUS EMISSIONS ...................................................................................................... 30 CONDITION B: BLUETOOTH OPERATION.............................................................................. 34 7.7 PEAK POWER......................................................................................................................... 34 7.8 PEAK POWER SPECTRAL DENSITY......................................................................................... 37 7.9 BAND EDGES MEASUREMENT ..................................................................................... 40 7.10 FREQUENCY SEPARATION ............................................................................................ 45 7.11 NUMBER OF HOPPING FREQUENCY............................................................................ 47 7.12 TIME OF OCCUPANCY (DWELL TIME) ........................................................................ 49 7.13 RADIO FREQUENCY EXPOSURE............................................................................................. 57 7.14 SPURIOUS EMISSIONS ...................................................................................................... 58 8. CONDITION C: CO-LACATED OPERATION (WLAN & BLUETOOTH OPERATED SIMULTANEOUSLY)....................................................................................................................... 77 8.1 POWERLINE CONDUCTED EMISSIONS.................................................................................... 83 9. APPENDIX 1 PHOTOGRPHS OF TEST SETUP ................................................................... 87 Compliance Certification Services Inc. Report No: B40412405-RP FCC ID: NM8DF Date of Issue: May 4, 2004 Page 4 2. EUT DESCRIPTION Product Pocket PC Trade Name hp Model Number HSTNH-H03C-WL Model Name rx3700 series; rx3400 series Model Name Discrepancy rx3700 series with CPU400 rx3400 series with CPU300 Power Supply Delta / Model Number: ADP-1…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40412405-RP FCC ID: NM8DF Date of Issue: May 4, 2004 Page 83 11. APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B40412405-RP FCC ID: NM8DF Date of Issue: May 4, 2004 Page 84 Conducted Emission Set Up Photos
