NM8DGH200Media Link HD

                   The user for Indoor operation in the 5150 – 5250 MHz band.
10 Safety and regulatory guide FCC RF Radiation Exposure Statement ƒ This Transmitter has been demonstrated co-location compliance requirements with WLAN. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ƒ This equipment complies with FCC RF radiation exposure limit set forth for an uncontrolled environment. WEEE notice The Directive on Waste electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of life. The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal.

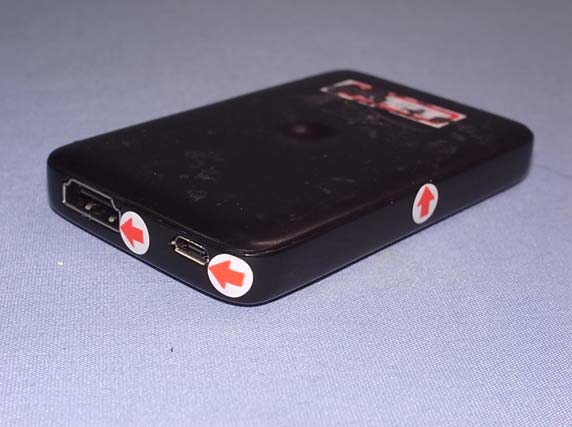

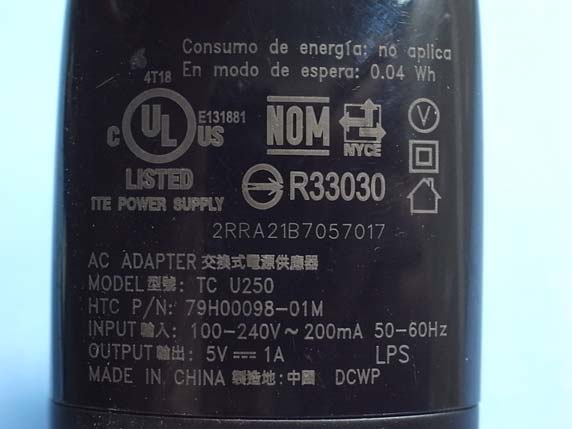

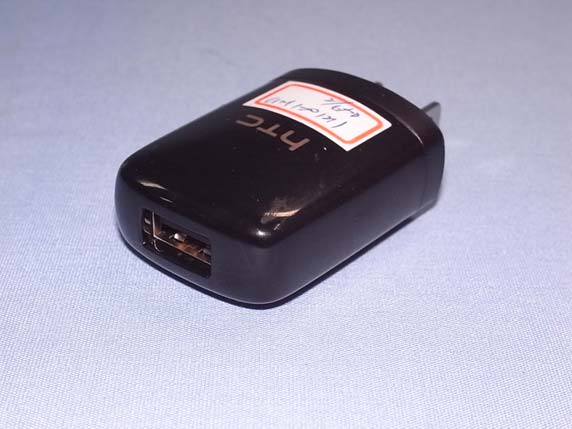

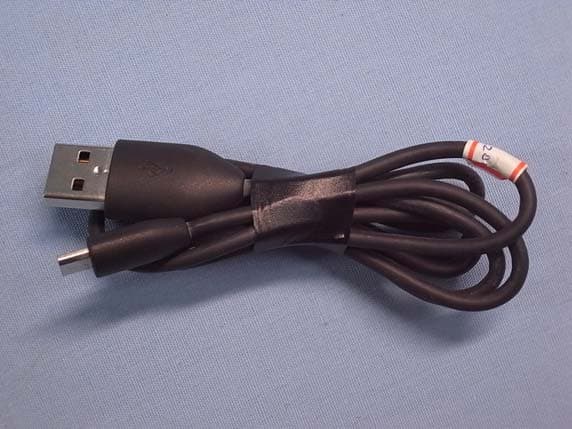

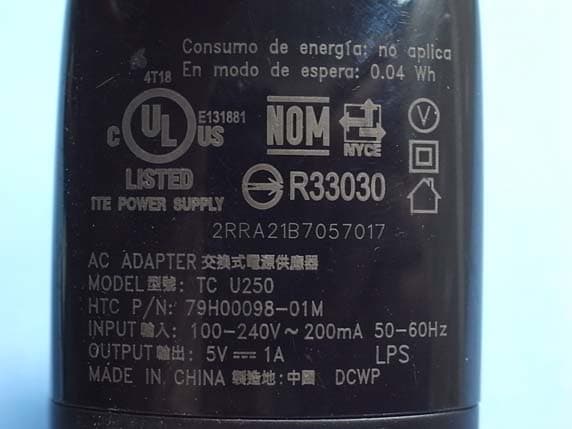

HTC Corporation Media Link HD FCC ID. : NM8DGH200 IC: 4115B-DGH200 EUT External Photos Figure 1 General Appearance (Front & Side View) Figure 2 General Appearance (Back & Side View) HTC Corporation Media Link HD FCC ID. : NM8DGH200 IC: 4115B-DGH200 Figure 3 AC Adapter, General Appearance (Front & Side View) Figure 4 AC Adapter, General Appearance (Back & Side View) HTC Corporation Media Link HD FCC ID. : NM8DGH200 IC: 4115B-DGH200 Figure 5 AC Adapter, Internal View (Label View) Figure 6 USB Cable HTC Corporation Media Link HD FCC ID. : NM8DGH200 IC: 4115B-DGH200 Figure 7 HDMI Cable

HTC Corporation Media Link HD FCC ID. : NM8DGH200 IC: 4115B-DGH200 FCC ID & IC Label Location z Label Placement Location z FCC ID & IC Label Format FCC & IC Label Placement Location

HTC Corporation Media Link HD FCC ID. : NM8DGH200 IC: 4115B-DGH200 EUT Internal Photos Figure 8 Internal View (Removed Covers) Figure 9 Internal View (Main Board, Back View) HTC Corporation Media Link HD FCC ID. : NM8DGH200 IC: 4115B-DGH200 Figure 10 Internal View (Main Board, Front View) Figure 11 AC Adapter,, Internal View (PCB, Front View) HTC Corporation Media Link HD FCC ID. : NM8DGH200 IC: 4115B-DGH200 Figure 12 AC Adapter,, Internal View (PCB, Back View)

Declaration of Compliance FCC ID: NM8DGH200 Product Name: Media Link HD Model No: DG H200 Futaba Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain for 2400 to 2483.5MHz is 1.95dBi= 1.57 5150 to 5250MHz is 3.19dBi= 2.08 5725 to 5850MHz is 1.7dBi = 1.48 The maximum power in 2400 to 2483.5MHz is 22.70dBm= 186.21mW RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) S = 186.21*1.57 / 4*π* 20^2 = 0.058mW/cm^2 The maximum power in 5150 to 5250MHz is 14.704dBm= 29.54mW RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) S = 29.54*2.08 / 4*π* 20^2 = 0.012mW/cm^2 The maximum power in 5725 to 5850MHz is 22.08dBm= 161.44mW RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) S = 161.44*1.48 / 4*π* 20^2 = 0.048mW/cm^2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID: NM8DGH200 IC:4115B-DGH200 Page 1 of 130 AUDIX Technology Corporation Report No. EM-F1010112 APPLICATION FOR CERTIFICATION On Behalf of HTC Corporation Media Link HD Model No. : DG H200 FCC ID : NM8DGH200 IC: 4115B-DGH200 Brand : hTC Prepared for : HTC Corporation No. 23, Xinghua Rd., Taoyuan City, Taoyuan 330, Taiwan Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number ： C1M1201211 Report Number ： EM-F1010112 Date of Test ： Feb. 01 ~ 10, 2012 Date of Report ： Feb. 23, 2012 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 2 of 130 AUDIX Technology Corporation Report No. EM-F1010112 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ................................................................................................ 4 1. GENERAL INFORMATION .................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Data Rate Relative to Output Power ................................................................................................ 6 1.3. Test Configuration for Each Test Item ............................................................................................ 7 1.4. Tested Supporting System Details ................................................................................................... 8 1.5. Description of Test Facility ............................................................................................................. 9 1.6. Measurement Uncertainty ................................................................................................................ 9 2. CONDUCTED EMISSION MEASUREMET ...................................................................... 10 2.1. Test Equipment .............................................................................................................................. 10 2.2. Block Diagram of Test Setup......................................................................................................... 10 2.3. Powerline Conducted Emission Limit [§15.207, Class B, RSS-Gen §7.2.2/Table 2] ................ 10 2.4. Operating Condition of EUT ......................................................................................................... 11 2.5. Test Procedure ............................................................................................................................... 11 2.6. Conducted Emission Measurement Results ................................................................................... 11 3. RADIATED EMISSION MEASUREMENT ....................................................................... 14 3.1. Test Equipment .............................................................................................................................. 14 3.2. Test Setup ...................................................................................................................................... 14 3.3. Radiated Emission Limits (§15.209, RSS-210 §2.7/Table 2) ........................................................ 16 3.4. Operating Condition of EUT ......................................................................................................... 16 3.5. Test Procedure ............................................................................................................................... 17 3.6. Test Results .................................................................................................................................... 18 4. 6dB BANDWIDTH MEASUREMENT ................................................................................ 42 4.1. Test Equipment .............................................................................................................................. 42 4.2. Block Diagram of Test Setup......................................................................................................... 42 4.3. Specification Limits [§15.247(a)(2), RSS-210 §A8.2 (a)] ............................................................ 42 4.4. Operating Condition of EUT ......................................................................................................... 42 4.5. Test Procedure ............................................................................................................................... 42 4.6. Test Results .................................................................................................................................... 43 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............................................. 53 5.1. Test Equipment .............................................................................................................................. 53 5.2. Block Diagram of Test Setup......................................................................................................... 53 5.3. Specification Limits [§15.247(b)-(3), RSS-210 §A8.4 (4)] ........................................................... 53 5.4. Operating Condition of EUT ......................................................................................................... 53 5.5. Test Procedure ............................................................................................................................... 53 5.6. Test Results .................................................................................................................................... 54 6. EMISSION LIMITATIONS MEASUREMENT ................................................................. 55 6.1. Test Equipment .............................................................................................................................. 55 6.2. Block Diagram of Test Setup.......................…

Text truncated - open the document above for the full version.

FCC ID: NM8DGH200 IC:4115B-DGH200 Page 83 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11n-HT20 (2.4GHz), Frequency: 2412MHz FCC ID: NM8DGH200 IC:4115B-DGH200 Page 84 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 85 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 86 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11n-HT20 (2.4GHz), Frequency: 2437MHz FCC ID: NM8DGH200 IC:4115B-DGH200 Page 87 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 88 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 89 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11n-HT20 (2.4GHz), Frequency: 2462MHz FCC ID: NM8DGH200 IC:4115B-DGH200 Page 90 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 91 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 92 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11n-HT20 (5.8GHz), Frequency: 5745MHz FCC ID: NM8DGH200 IC:4115B-DGH200 Page 93 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 94 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 95 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11n-HT20 (5.8GHz), Frequency: 5785MHz FCC ID: NM8DGH200 IC:4115B-DGH200 Page 96 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 97 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 98 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11n-HT20 (5.8GHz), Frequency: 5825MHz FCC ID: NM8DGH200 IC:4115B-DGH200 Page 99 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 100 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 101 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11n-HT40 (5.8GHz), Frequency: 5755MHz FCC ID: NM8DGH200 IC:4115B-DGH200 Page 102 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 103 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 104 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11n-HT40 (5.8GHz), Frequency: 5795MHz FCC ID: NM8DGH200 IC:4115B-DGH200 Page 105 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 106 of 130 AUDIX Technology Corporation Report No. EM-F1010112 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 107 of 130 AUDIX Technology Corporation Report No. EM-F1010112 7. BAND EDGES MEASUREMENT 7.1. Test Equipment The following test equipment was used during the band edges measurement: Item Type Manufacturer Model No. Serial No. Last Cal. Next Cal. 1. Spectrum Analyzer Agilent N9030A-544 US51350140 Oct. 14, 11’ Oct. 13, 12’ 7.2. Block Diagram of Test Setup The same as section.4.2. 7.3. Specification Limits [§15.247(c), RSS-210 §A8.5] The highest level should be at least 20 dB below that in the 100kHz bandwidth. 7.4. Operating Condition of EUT The test program “hyper terminal” was used to enable the EUT to transmit data at different channel frequency individually. 7.5. Test Procedure The transmitter output was connected to the spectrum analyzer. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100kHz bandwidth from band edge. The measurement guideline was according to 558074 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 108 of 130 AUDIX Technology Corporation Report No. EM-F1010112 7.6. Test Results PASSED. All the test results are attached in next pages. Test Date : Feb. 01, 2012 Temperature : 25°C Humidity : 51% Test Date : Feb. 02, 2012 Temperature : 24°C Humidity : 52% DTS 802.11b (2.4GHz) Below Band edge: The highest emission level is -52.444dBm on 2.39992GHz。 Upper Band edge : The highest emission level is -47.910dBm on 2.48350GHz。 DTS 802.11g (2.4GHz) Below Band edge: The highest emission level is -27.448dBm on 2.39992GHz。 Upper Band edge : The highest emission level is -36.927dBm on 2.48350GHz。 DTS 802.11a (5.8GHz) Below Band edge: The highest emission level is -46.251dBm on 5.72492GHz。 Upper Band edge : The highest emission level is -48.594dBm on 5.585000GHz。 802.11n-HT20 (2.4GHz) Below Band edge: The highest emission level is -27.194dBm on 2.39992GHz。 Upper Band edge : The highest emission level is -34.492dBm on 2.48350GHz。 802.11n-HT20 (5.8GHz) Below Band edge: The highest emission level is -43.291dBm on 5.72492GHz。 Upper Band edge : The highest emission level is -48.594dBm on 5.85000GHz。 DTS 802.11n-HT40 (5.8GHz) Below Band edge: The highest emission level is -37.449dBm on 5.7250GHz。 Upper Band edge : The highest emission level is -51.871dBm on 5.85000GHz。 FCC ID: NM8DGH200 IC:4115B-DGH200 Page 109 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11b (2.4GHz) Below Band edge Upper Band edge FCC ID: NM8DGH200 IC:4115B-DGH200 Page 110 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11g (2.4GHz) Below Band edge Upper Band edge FCC ID: NM8DGH200 IC:4115B-DGH200 Page 111 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11a (5.8GHz) Below Band edge Upper Band edge FCC ID: NM8DGH200 IC:4115B-DGH200 Page 112 of 130 AUDIX Technology Corporation Report No. EM-F1010112 802.11n-HT20 (2.4GHz) Below Band edge Upper Band edge FCC ID: NM8DGH200 IC:4115B-DGH200 Page 113 of 130 AUDIX Technology Corporation Report No. EM-F1010112 802.11n-HT20 (5.8GHz) Below Band edge Upper Band edge FCC ID: NM8DGH200 IC:4115B-DGH200 Page 114 of 130 AUDIX Technology Corporation Report No. EM-F1010112 DTS 802.11n-HT40 (5.8GHz) Below Band edge Upp…

Text truncated - open the document above for the full version.

FCC ID: NM8DGH200 IC:4115B-DGH200 Page 127 of 130 AUDIX Technology Corporation Report No. EM-F1010112 10. PHOTOGRAPHS 10.1. Photos of Conducted Disturbance Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID: NM8DGH200 IC:4115B-DGH200 Page 128 of 130 AUDIX Technology Corporation Report No. EM-F1010112 AP Server FCC ID: NM8DGH200 IC:4115B-DGH200 Page 129 of 130 AUDIX Technology Corporation Report No. EM-F1010112 10.2. Photos of Radiated Measurement at Semi-Anechoic Chamber 10.2.1.Frequency Below 1GHz 10.2.2. Frequency Above 1GHz FCC ID: NM8DGH200 IC:4115B-DGH200 Page 130 of 130 AUDIX Technology Corporation Report No. EM-F1010112 10.3. Photo of Section RF Conducted Measurement 10.4. Photo of Maximum Peak Output Power Measurement
