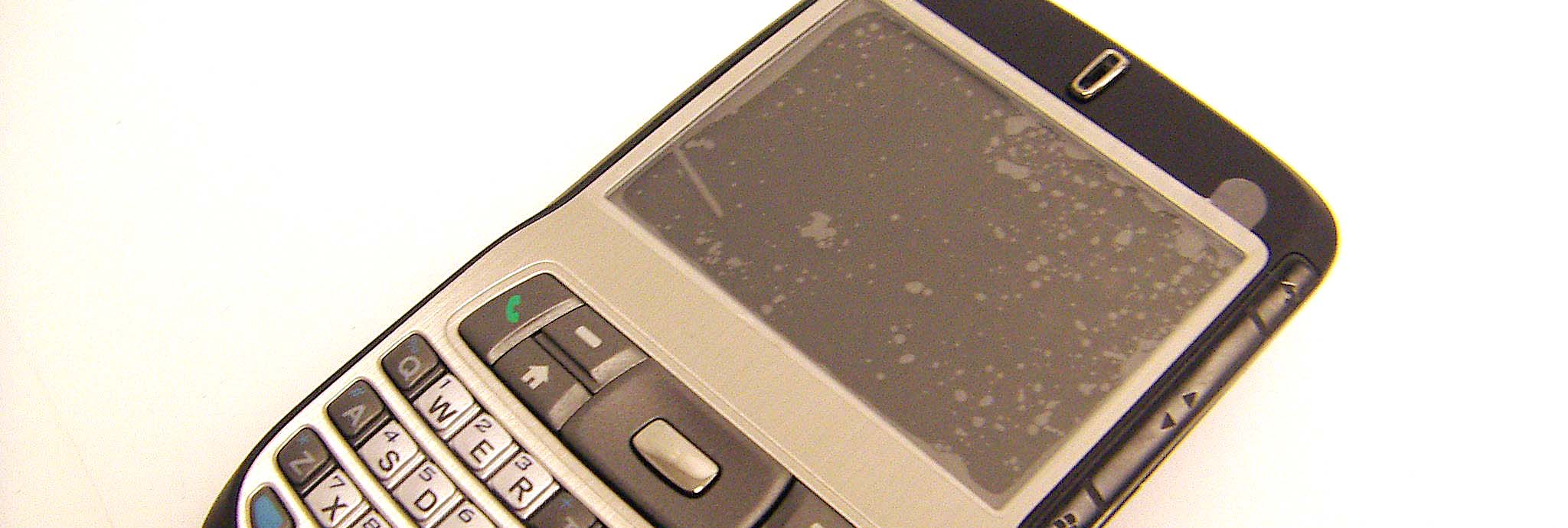

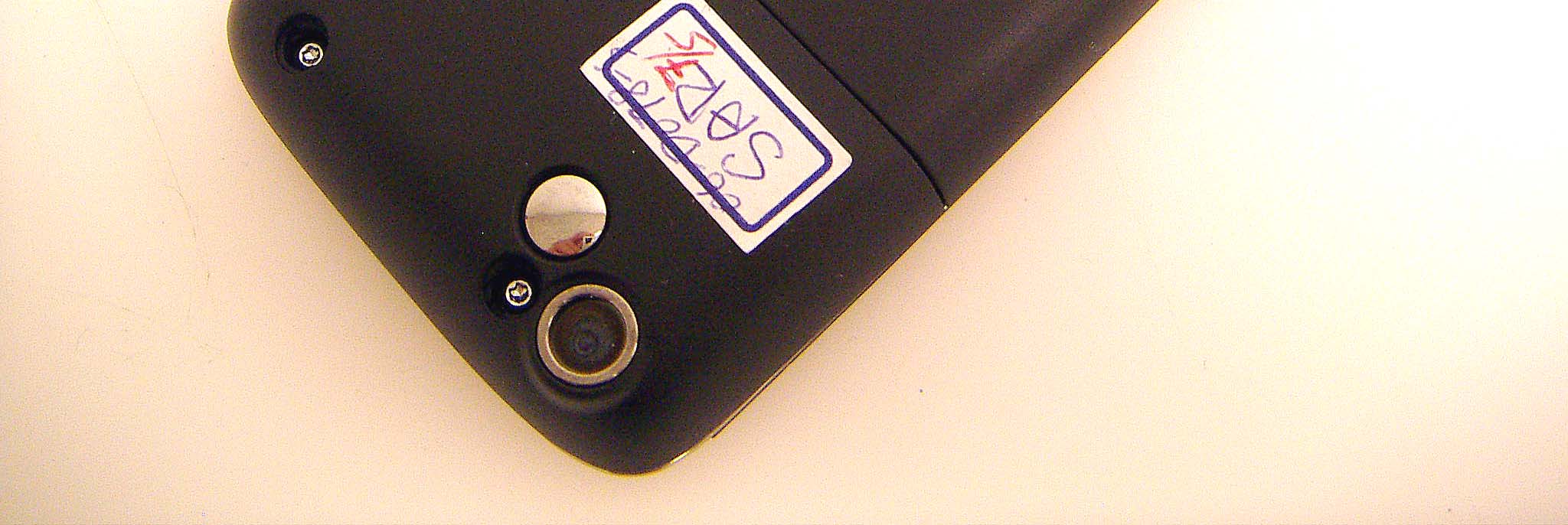

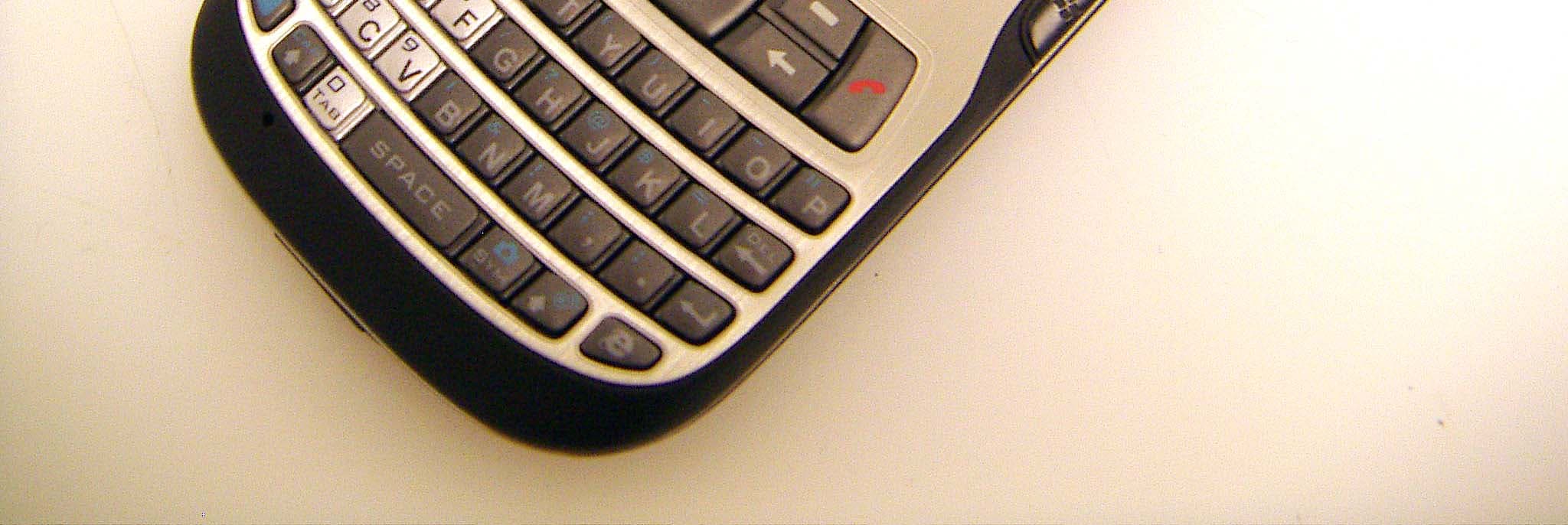

NM8EXCASmartphone

Smart User Manual 2 Congratulations on the purchase of your new Windows Mobile™ Smartphone! Please Read Before Proceeding. THIS DEVICE IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX . DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING . YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’S OUTER CASING . PRIVACY RESTRICTIONS Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. COPYRIGHT INFORMATION Microsoft, MS-DOS, Windows, Windows NT, Windows Server, Windows Mobile, ActiveSync, Excel, Internet Explorer, MSN, Outlook, PowerPoint, and Word are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. 3 Important Health Information and Safety Precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire and damage to the equipment, observe the following precautions. ELECTRICAL SAFETY This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION CAUTION – Improper grounding when connecting the product to an associated equipment can result in a risk of electric shock. This product is equipped with a USB cable for connecting the product to a desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting the product to the computer. The power supply cord of a desktop or notebook computer has an equipment- grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT • Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. • Handle battery packs carefully This product contains a Li-Ion/Li-Ion Polymer battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, 4 puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING! Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60 o C (140 o F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. PREVENTION OF HEARING LOSS CAUTION –Using earphones or headphones and prolonged listening at high volume levels may cause permanent hearing loss. NOTE: For France, mobile headphones or earphones for this device (Manufactured by Supplier Name: Merry, Model Numbers EMC220-001) has been tested to comply with the Sound Pressure Level requirement laid down in NF EN 50332-1:2000 standard as required by French Article L. 5232-1. 5 SAFETY IN AIR CRAFTS Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Flight Mode. ENVIRONMENT RESTRICTIONS Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. EXPLOSIVE ATMOSPHERES When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. These include fueling areas, below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains c…

Text truncated - open the document above for the full version.

FCC Antenna Pre-test Report PROPRIETARY NOTE THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO HIGH TECH COMPUTER CORP. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF HIGH TECH COMPUTER CORP. HTC CONFIDENTIAL Page 1 of 5 IS-DCC-GEN-009-1.2 High Tech Computer, Antenna Report Project Name : Excalibur Date: 06/07/2006 Project Manager: Jesse_Hsu AuthorStanley Wang Countersign: Stanley Wang FCC Antenna Pre-test Report PROPRIETARY NOTE THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO HIGH TECH COMPUTER CORP. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF HIGH TECH COMPUTER CORP. HTC CONFIDENTIAL Page 2 of 5 IS-DCC-GEN-009-1.2 High Tech Computer, CONTENTS Embedded Quad-Band ,WLAN and Bluetooth Antenna Test Results ............ P.3 FCC Antenna Pre-test Report PROPRIETARY NOTE THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO HIGH TECH COMPUTER CORP. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF HIGH TECH COMPUTER CORP. HTC CONFIDENTIAL Page 3 of 5 IS-DCC-GEN-009-1.2 High Tech Computer, Embedded Quad-Band Antenna 1. Overview The document is the specification of the embedded Quad-band antenna for phone applications. Quad -band includes GSM850, GSM900, DCS1800, PCS1900,. 1.1 Denotations dBi: Decibel relative isotropic antenna VSWR: Voltage Standing Wave Ratio Tx: Transmit frequency Rx: Receive frequency GSM: Global Service for Mobile communication PCS: Personal Communication System DCS: Digital Communication System SAR: Specific Absorption Rate Peak Gain: The peak value of the antenna gain Average Gain: The average value of the antenna gain 1.2 Antenna Type EDGEshorting monopole type WLANshorting monopole type BTPIFA type 1.3 Antenna Brand EDGEHTC WLANHTC BTHTC 1.4 Antenna Model name EDGED00031388 WLAN36H00417-00M BTD00031818 FCC Antenna Pre-test Report PROPRIETARY NOTE THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO HIGH TECH COMPUTER CORP. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF HIGH TECH COMPUTER CORP. HTC CONFIDENTIAL Page 4 of 5 IS-DCC-GEN-009-1.2 High Tech Computer, 2. Gain measurements 2.1 EDGE 3D Antenna Gain Measurement Result Frequency (MHz) 824 894 960 1710 1850 1990 Peak Gain (dBi) -1.9 -0.96 -3.98 -1.42 +1.68 -0.07 Average Gain (dBi) -4.16 -4.65 -7.54 -4.52 -1.55 -3.66 2.2 Bluetooth 2D Antenna Gain Measurement Result Frequency (MHz) 2402 2441 2480 Peak Gain (dBi) +0.54 +1.51 +1.13 Average Gain (dBi) -2.98 -2.76 -2.02 2.3 WLAN 2D Antenna Gain Measurement Result Frequency (MHz) 2412 2442 2472 Peak Gain (dBi) +0.99 +1.48 +0.09 Average Gain (dBi) -4.08 -2.73 -4.57 FCC Antenna Pre-test Report PROPRIETARY NOTE THIS DOCUMENT CONTAINS INFORMATION CONFIDENTIAL AND PROPRIETARY TO HIGH TECH COMPUTER CORP. AND SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT WAS OBTAINED WITHOUT THE EXPRESSED WRITTEN CONSENT OF HIGH TECH COMPUTER CORP. HTC CONFIDENTIAL Page 5 of 5 IS-DCC-GEN-009-1.2 High Tech Computer, 2.4 EDGE EIRP and EIS Measurement Result GSM850 Channel 128 189 251 EIRP (dBm) 30.30 32.10 32.40 Cell power (dBm) -108 -107.5 -106 EGSM Channel 975 42 124 EIRP (dBm) 28.48 28.86 28.79 Cell power (dBm) -104.5 -106 -104.5 DCS Channel 512 698 885 EIRP (dBm) 26.87 27.27 28.64 Cell power (dBm) -107 -107.5 -108 PCS Channel 512 661 810 EIRP (dBm) 30.17 30.70 31.56 Cell power (dBm) -108 -108 -109 2.5 Bluetooth EIRP and EIS Measurement Result Channel 0 39 78 EIRP (dBm) +1.26 +1.92 +3.21 Sensitivity (dBm) -80.8 -80.3 -82 2.6 WLAN EIRP Measurement Result Channel 0 39 78 EIRP (dBm) 13.8 12.5 11.5 3. Antenna Materials The antenna can not have the materials of plumbum (Pb), halogen and mercury (Hg).

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC OET BULLETIN 65 SUPPLEMENT C FOR SMARTPHONE MODEL: EXCA100 (WITHOUT JOG BAR) FCC ID: NM8EXCA REPORT NUMBER: 06I10345-3B ISSUE DATE: JUNE 27, 2006 Prepared for HIGH TECH COMPUTER CORP. 23 HSIN HUA RD., TAOYUAN 330, TAIWAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 06I10345-3B DATE: June 27, 2006 FCC ID: NM8EXCA COMPLIANCE CERTIFICATION SERVICES Page: 2 of 45 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issued date Revisions Revised By -- June 22, 2006 Initial issue HS B June 27, 2006 Correction of model number ND REPORT NO: 06I10345-3B DATE: June 27, 2006 FCC ID: NM8EXCA COMPLIANCE CERTIFICATION SERVICES Page: 3 of 45 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: June 13, 14, 15, and 16, 2006 APPLICANT: ADDRESS: High Tech Computer Corp. 23 Hsin Hua Rd., Taoyuan 330, Taiwan FCC ID: MODEL: NM8EXCA EXCA100 (without jog bar) DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure Smartphone EXCA100 (without jog bar) is a quad band phone which includes WLAN and Bluetooth. This device can operate in 900 and 1800MHz bands which are not used in US. This report is applicable only to 850MHz, 1900MHz, and 2.4 GHz band. Test Sample is a: Production unit Rule Parts Frequency Range [MHz] The Highest SAR Values [1g_mW/g] The Highest Multi-band SAR Values [1g_mW/g] FCC 22H 824.2-848.8 Head: 0.952 Body: 1.470 Head: 1.09 Body: 1.49 FCC 24E 1850.2-1909.8 Head: 1.30 Body: 1.030 Head: 1.22 Body: 0.952 15C 2412-2462 Body: 0.066 Body: 1.49 Testing has been carried out in accordance with: 47CFR §2.1093 - Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) - Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 - Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528_2003 - IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: Hsin Fu Shih Ninous Davoudi Senior Engineer EMC Engineer Compliance Certification Services Compliance Certification Services REPORT NO: 06I10345-3B DATE: June 27, 2006 FCC ID: NM8EXCA COMPLIANCE CERTIFICATION SERVICES Page: 4 of 45 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1 EQUIPMENT UNDER TEST (EUT) DESCRIPTION.................................................................................... 5 2 FACILITIES AND ACCREDITATION ........................................................................................................... 5 3 SYSTEM DESCRIPTION............................................................................................................................. 6 3.1 COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATIG LIQUIDS......................................... 7 4 TEST POSITIONS FOR DEVICES OPERATING NEXT TO A PERSON’S EAR ........................................ 8 4.1 CHEEK/TOUCH POSITION ................................................................................................................ 9 4.2 EAR/TILT POSITION ........................................................................................................................ 10 4.3 TEST POSITIONS FOR BODY-WORN AND OTHER SIMILAR CONFIGURATIONS ..................... 11 5 SIMULATING LIQUID PARAMETERS CHECK......................................................................................... 12 5.1 SIMULATING LIQUID PARAMETER CHECK RESULT ................................................................... 13 6 SYSTEM PERFORMANCE CHECK.......................................................................................................... 21 6.1 SYSTEM PERFORMANCE CHECK RESULTS ............................................................................... 22 7 SAR MEASURMENT PROCEDURE ......................................................................................................... 23 7.1 DASY4 SAR MEASURMENT PROCEDURE.................................................................................... 24 7.2 DASY4 MULTIBAND SAR MEASURMENT PROCEDURE.............................................................. 25 8 PROCEDURE USED TO ESTABLISH TEST SIGNAL .............................................................................. 26 9 SAR MEASURMENT RESULTS................................................................................................................ 28 9.1 GSM850 ............................................................................................................................................ 28 9.1.1 LEFT HAND SIDE .......................................................................................................................... 28 9.1.2 RIGHT HAND SIDE........................................................................................................................ 29 9.1.3 BODY POSITION WITH HO…

Text truncated - open the document above for the full version.

Date/Time: 6/13/2006 9:22:32 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.869 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.65, 9.65, 9.65); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 21; Postprocessing SW: SEMCAD, V1.8 Build 170 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.50 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 53.5 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 3.42 W/kg SAR(1 g) = 2.32 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (measured) = 2.49 mW/g 0 dB = 2.49mW/g Date/Time: 6/13/2006 9:34:29 AM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 1.68 mW/g Date/Time: 6/15/2006 2:12:32 PM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.869 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.65, 9.65, 9.65); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 21; Postprocessing SW: SEMCAD, V1.8 Build 170 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.50 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 53.5 V/m; Power Drift = -0.037 dB Peak SAR (extrapolated) = 3.42 W/kg SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (measured) = 2.49 mW/g 0 dB = 2.49mW/g Date/Time: 6/15/2006 2:24:29 PM Test Laboratory: Compliance Certification Services System Performance Check @ 835MHz DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 d=15mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 1.68 mW/g Date/Time: 6/14/2006 9:45:55 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(8, 8, 8); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 21; Postprocessing SW: SEMCAD, V1.8 Build 170 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.2 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.2 V/m; Power Drift = 0.137 dB Peak SAR (extrapolated) = 17.0 W/kg SAR(1 g) = 9.52 mW/g; SAR(10 g) = 4.95 mW/g Maximum value of SAR (measured) = 10.7 mW/g 0 dB = 10.7mW/g Date/Time: 6/14/2006 9:56:10 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 d=10mm; Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 5.99 mW/g Date/Time: 6/15/2006 9:05:55 AM Test Laboratory: Compliance Certification Services System Performance Check @ 1900MHz DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(8, 8, 8); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 21; Postprocessing SW: SEMCAD, V1.8 Build 170 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.2 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.2 V/m; Power Drift = 0.111 dB Peak SAR (extrapolated) = 17.1 W/kg SAR(1 g) = 9.55 mW/g…

Text truncated - open the document above for the full version.

Date/Time: 6/13/2006 11:42:48 AM Test Laboratory: Compliance Certification Services Head-Left Hand Side DUT: HTC Smart Phone; Type: Smart phone; Serial: HT619FJ00049 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 825 MHz; σ = 0.859 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.65, 9.65, 9.65); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 21; Postprocessing SW: SEMCAD, V1.8 Build 170 GSM850 ch 128-Touch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.843 mW/g GSM850 ch 128-Touch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 27.2 V/m; Power Drift = -0.017 dB Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.805 mW/g; SAR(10 g) = 0.587 mW/g Maximum value of SAR (measured) = 0.855 mW/g Date/Time: 6/13/2006 11:00:59 AM Test Laboratory: Compliance Certification Services Head-Left Hand Side DUT: HTC Smart Phone; Type: Smart phone; Serial: HT619FJ00049 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.87 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.65, 9.65, 9.65); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 21; Postprocessing SW: SEMCAD, V1.8 Build 170 GSM850 ch 190-Touch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.900 mW/g GSM850 ch 190-Touch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 28.0 V/m; Power Drift = 0.011 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.842 mW/g; SAR(10 g) = 0.607 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.885 mW/g Date/Time: 6/13/2006 12:30:54 PM Test Laboratory: Compliance Certification Services Head-Left Hand Side DUT: HTC Smart Phone; Type: Smart phone; Serial: HT619FJ00049 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.88 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.65, 9.65, 9.65); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 21; Postprocessing SW: SEMCAD, V1.8 Build 170 GSM850 ch 251-Touch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.692 mW/g GSM850 ch 251-Touch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 24.8 V/m; Power Drift = 0.105 dB Peak SAR (extrapolated) = 0.958 W/kg SAR(1 g) = 0.661 mW/g; SAR(10 g) = 0.471 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.695 mW/g Date/Time: 6/13/2006 1:20:00 PM Test Laboratory: Compliance Certification Services Head-Left Hand Side DUT: HTC Smart Phone; Type: Smart phone; Serial: HT619FJ00049 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.87 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.65, 9.65, 9.65); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 21; Postprocessing SW: SEMCAD, V1.8 Build 170 GSM850 ch 190-Tilt/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.681 mW/g GSM850 ch 190-Tilt/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 27.1 V/m; Power Drift = -0.041 dB Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.649 mW/g; SAR(10 g) = 0.436 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.695 mW/g Date/Time: 6/13/2006 3:54:11 PM Test Laboratory: Compliance Certification Services Head-Right Hand Side DUT: HTC Smart Phone; Type: Smart phone; Serial: HT619FJ00049 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 825 MHz; σ = 0.859 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom section: Right Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(9.65, 9.65, 9.65); Calibrated: 5/30/2006 - Sensor-Surface…

Text truncated - open the document above for the full version.

Date/Time: 6/14/2006 11:18:49 AM Test Laboratory: Compliance Certification Services Head-Left Hand Side DUT: HTC Smart Phone; Type: Smart phone; Serial: HT619FJ00049 Communication System: DCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.37 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(8, 8, 8); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 21; Postprocessing SW: SEMCAD, V1.8 Build 170 GSM1900 ch 512-Touch/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.648 mW/g GSM1900 ch 512-Touch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 13.0 V/m; Power Drift = 0.069 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.634 mW/g; SAR(10 g) = 0.313 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.676 mW/g Date/Time: 6/14/2006 10:30:18 AM Test Laboratory: Compliance Certification Services Head-Left Hand Side DUT: HTC Smart Phone; Type: Smart phone; Serial: HT619FJ00049 Communication System: DCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Phantom section: Left Section R…

Text truncated - open the document above for the full version.
