Appendix A Maintaining Pocket PC Phone User Manual170 Appendix B Regulatory Pocket PC Phone User Manual171 Regulatory Agency Identification Numbers For regulatory identification purposes your product is assigned a model number PH20AX. The following accessories have been approved for use with your device. Their assigned model numbers listed below can identify these approved accessories. To ensure continued reliable and safe operation of your Pocket PC Phone, use only the accessories listed below with your PH20A2. AccessoriesModel Number CradlePH25 Battery PackPH26X FCC Compliance Statement nFCC part 15, part 22 and part 24 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (!) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. n FCC ID : NM8 HARRIER n Statement according to FCC part 15.105 NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : nThe above X may be any alphanumeric character or blank denoting external cosmetic changes. nThis product is intended for use with certified Class 2 Limited Power Source, rated 5 VDC, minimum 2A power supply unit. Appendix B Regulatory Pocket PC Phone User Manual172 Appendix B Regulatory Pocket PC Phone User Manual173 n Reorient or relocate the receiving antenna. n Increase the separation between the equipment and receiver. n Consult the dealer or an experienced radio/TV technician for help. n Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Modifications: The FCC requires the user to be notified that any changes or modifications made to the device that are not expressly approved by High Tech Computer Corporation may void the Reference authority to operate the equipment. Important Health and Safety Information Retain and follow all product safety and operating instructions. Observe all warn and in the operating instructions on the product To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment observe the following precautions. a) General Precautions nHeed service markings Except as explained elsewhere in the Operating or Service documentation, do not service any product yourself. Service needed on components inside these compartments should be done by an authorized service technicians or provider. nDamage requiring service Unplug the product from the electrical outlet and refer servicing to an authorized service technicians or provider under the following conditions: lLiquid has been spilled or an object has fallen into the product. lThe product has been exposed to rain or water. lThe product has been dropped or dama-ged. lThere are noticeable signs of overheat-ing. lThe product does not operate normally when you follow the operating instructions. nAvoid hot areas The product should be placed away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. nAvoid wet areas Never use the product in a wet location. nAvoid pushing objects into product Never push objects of any kind into cabinet slots or other openings in the product. Slots and Appendix B Regulatory Pocket PC Phone User Manual172 Appendix B Regulatory Pocket PC Phone User Manual173 nMounting Accessories Do not use the product on an unstable table, cart, stand, tripod, or bracket. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. nAvoid unstable mounting Do not place the product with an unstable base. nUse product with approved equipment This product should be used only with personal computers and options identified as suitable for use with your equipment. nAdjust the volume Turn down the volume before using headphones or other audio devices. nCleaning Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning, but NEVER use water to clean the LCD screen. b) Safety Precautions for Power Supply Unit nUse the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product nHandle battery packs carefully This product contains a Li-ion Polymer battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 °C (140°F). Warning: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY RE-PLACED. TO REDUCE RISK OF FIRE OR BURNS, DO NOT DISASSEMBLE, CRUSH, PUNCTURE, SHORT EXTERNAL CONTACTS, HEAT ABOVE 100°C (212°F), OR DISPOSE OF IN FIRE OR WATER. REPLACE ONLY WITH SPECIFIED BATTERIES. RECYCLE OR DISPOSE OF USED BATTERIES ACCORDING TO THE LOCAL …

Text truncated - open the document above for the full version.

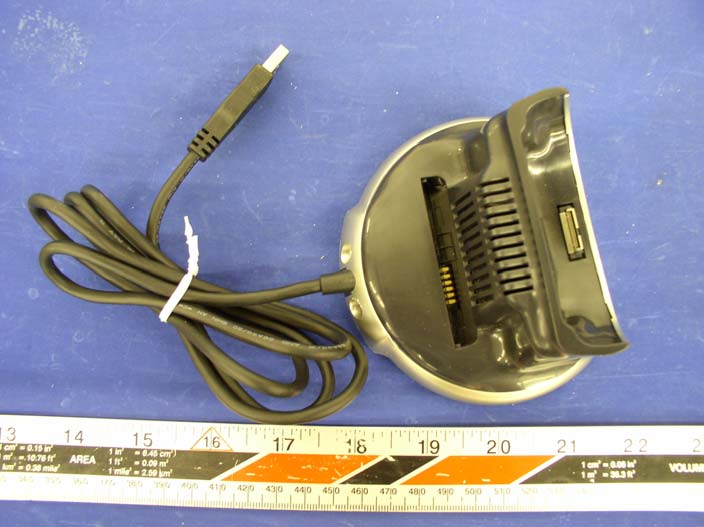

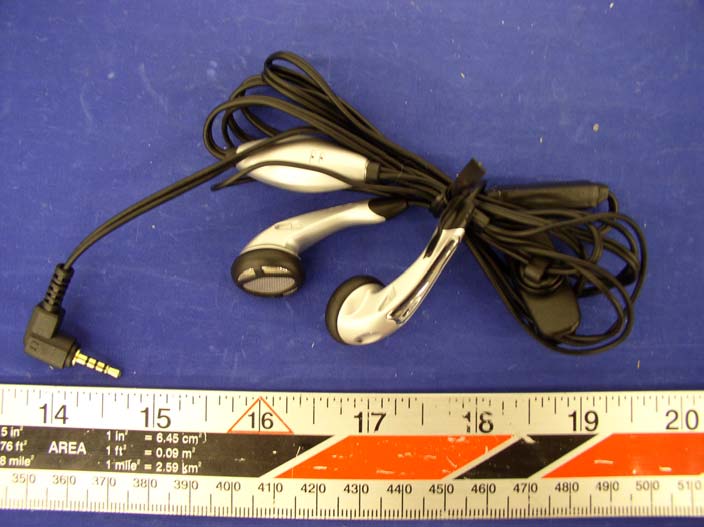

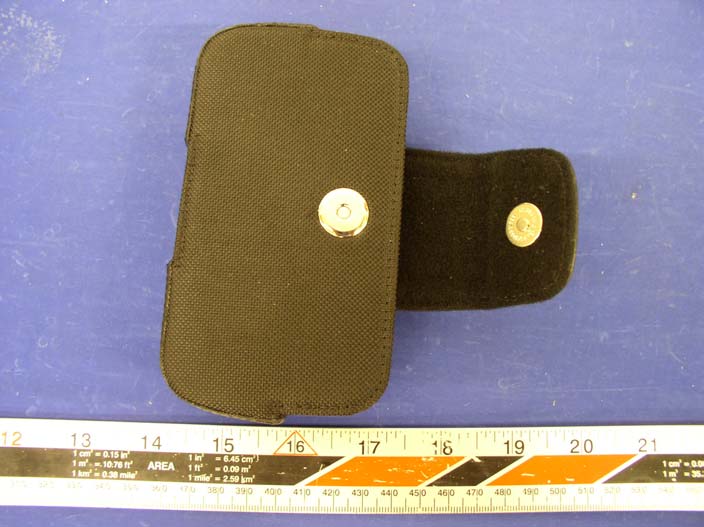

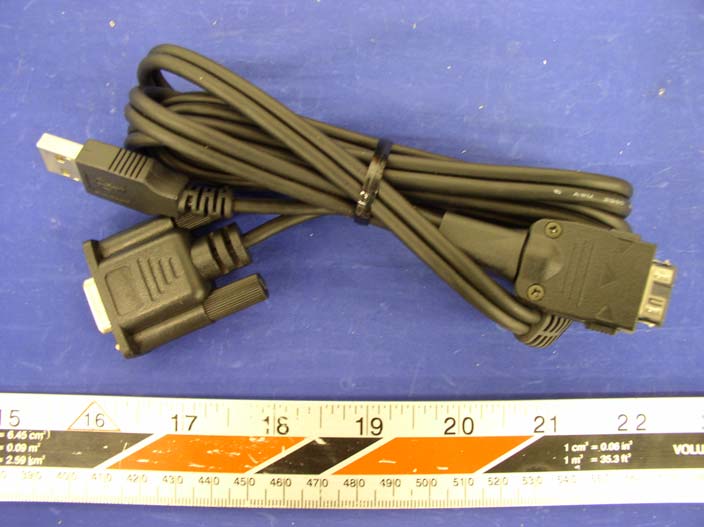

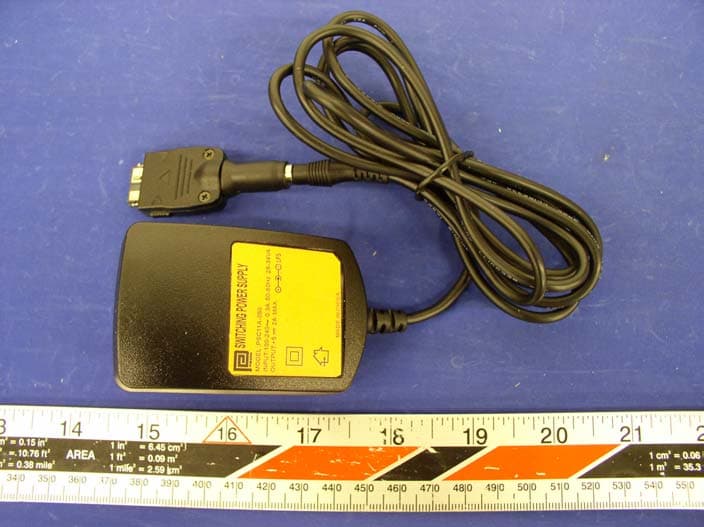

High Tech Computer, Corp. FCC ID: NM8HARRIER AC Power Adapter EUT – Battery Front View High Tech Computer, Corp. FCC ID: NM8HARRIER EUT – Battery Rear View EUT – Cradle View High Tech Computer, Corp. FCC ID: NM8HARRIER EUT – Data Cable EUT – Earphone High Tech Computer, Corp. FCC ID: NM8HARRIER EUT – Pouch

EXHIBIT C - EUT PHOTOGRAPHS PH20A2 Chassis – Top View PH20A2 Chassis – Back View PH20A2 Chassis – Front View PH20A2 Chassis – Rear View PH20A3 Chassis – Top View PH20A3 Chassis – Back View PH20A3 Chassis – Front View PH20A3 Chassis – Rear View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom View of EUT/FCC ID Label FCC ID: NM8HARRIER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept an y interference received,

PH20A2 Chassis – Cover off View PH20A2 EUT – Component View with Shielding PH20A2 EUT – Component View without Shielding PH20A2 EUT – Solder View with Shielding PH20A2 EUT – Solder View without Shield PH20A2 EUT – Antenna View PH20A3 Chassis – Cover off View PH20A3 EUT – Component View with Shielding PH20A3 EUT – Component View without Shielding PH20A3 EUT – Solder View with Shielding PH20A3 EUT – Solder View without Shield PH20A3 EUT – Antenna View

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. SAR EVALUATION REPORT For High Tech Computer, Corp. 23, Hsin-Hua Rd., Taoyuan, 330, Taiwan FCC ID: NM8HARRIER This Report Concerns: Original Report Equipment Type: CDMA 800/1900 + Bluetooth PDA Phone Test Engineer: Eric Hong / Daniel Deng / Report No.: R0407195S Report Date: 2004-08-05 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 2 of 134 TABLE OF CONTENTS SUMMARY....................................................................................................................................................................4 1 - REFERENCE ...........................................................................................................................................................7 2 - TESTING EQUIPMENT.........................................................................................................................................8 2.1 EQUIPMENTS LIST & CALIBRATION INFO...............................................................................................................8 2.2 EQUIPMENT CALIBRATION CERTIFICATE...............................................................................................................8 3 - EUT DESCRIPTION .............................................................................................................................................31 3.1 EUT DESCRIPTION...............................................................................................................................................31 4 - SYSTEM TEST CONFIGURATION...................................................................................................................32 4.1 JUSTIFICATION.....................................................................................................................................................32 4.2 EUT EXERCISE PROCEDURE................................................................................................................................32 4.3 EQUIPMENT MODIFICATIONS...............................................................................................................................32 5 – CONDUCTED OUTPUT POWER MEASUREMENTS ...................................................................................33 5.1 PROVISION APPLICABLE.......................................................................................................................................33 5.2 TEST PROCEDURE................................................................................................................................................33 5.3 TEST PROCEDURE................................................................................................................................................33 5.4 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................33 5.5 TEST RESULTS.....................................................................................................................................................34 6 - DOSIMETRIC ASSESSMENT SETUP...............................................................................................................48 6.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................................................49 6.2. SYSTEM COMPONENTS........................................................................................................................................50 6.3 MEASUREMENT UNCERTAINTY............................................................................................................................54 7 - EVALUATION PROCEDURE.............................................................................................................................55 7.1 SAR EVALUATION PROCEDURE...........................................................................................................................55 7.2 EXPOSURE LIMITS................................................................................................................................................56 7.3 SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION...................................................................................56 7.4 SAR MEASUREMENT...........................................................................................................................................56 7.5 SYSTEM ACCURACY VERIFICATION.....................................................................................................................57 SYSTEM VALIDATION RESULT...................................................................................................................................58 8 - SAR TEST RESULTS............................................................................................................................................72 8.1 SAR BODY AND HEAD WORST-CASE TEST DATA...............................................................................................72 8.2 PLOTS OF TEST RESULT.......................................................................................................................................74 EXHIBIT A - SAR SETUP PHOTOGRAPHS .......................................................................................................112 PH20A2, BODY WORN, BACK TOUCHING FLAT PHANTOM WITH HEADSET AND POUCH........................................112 P…

Text truncated - open the document above for the full version.

High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 31 of 134 3 - EUT DESCRIPTION 3.1 EUT Description The SAR testing is for the TNF part of the device. * The test data gathered are from typical production sample, serial number: H0002 & H0003, provided by the manufacturer. Applicant: High Tech Computer, Corp. Product Description: CDMA 800/1900 + Bluetooth PDA Phone Product Model Number: PH20A2 FCC ID: NM8HARRIER Serial Number: H0002, H0003 Maximum RF Output Power: 0.0011W (Bluetooth); 0.209W (ERP, CDMA); 0.200W (ERP, PCS) RF Exposure environment: General Population/Uncontrolled Applicable Standard FCC CFR 47, Part 15.247, 22, 24 Application Type: Certification High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 32 of 134 4 - SYSTEM TEST CONFIGURATION 4.1 Justification The system was configured for testing in a typical fashion (as normally used by a typical user). 4.2 EUT Exercise Procedure The EUT exercising program used during SAR testing was designed to exercise the various system components in a manner similar to a typical use. 4.3 Equipment Modifications No modification(s) were made by BACL to ensure that the EUT complies with the applicable limits. High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 33 of 134 5 – CONDUCTED OUTPUT POWER MEASUREMENTS 5.1 Provision Applicable According to FCC §2.1046 and §22.913 (a), the ERP of mobile transmitters and auxiliary test transmitters must not exceed 7 watts. According to FCC §2.1046 and §24.232 (b), Mobile/portable stations are limited to 2 watts e.i.r.p. peak power and the equipment must employ means to limit the power to the minimum necessary for successful communications. 5.2 Test Procedure The RF output of the transmitter was connected to the input of the spectrum analyzer through sufficient attenuation. 5.3 Test Procedure The RF output of the transmitter was connected to the input of the spectrum analyzer through sufficient attenuation. 5.4 Test Equipment List and Details Manufacturer Description Model Serial Number Cal. Date HP Spectrum Analyzer HP8564E 3943A01781 2003-08-01 HP Plotter HP7470A 2541A49659 Not Required A.H. Systems Horn Antenna SAS200 261 2004-05-31 ETS Logperiodic Antenna3148 0004-1155 2003-10-11 EMCO Biconical Antenna 3110B 9603-2315 2003-10-11 * Statement of Traceability: BACL Corp. certifies that all calibrations have been performed in accordance to NVLAP requirements, traceable to the NIST. High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 34 of 134 5.5 Test Results Model: PH20A2 CDMA800, Cellular band, Part 22: Channel Frequency (MHz) Output Power in dBm Output Power in W Limit in W LOW 824.73 24.83 0.290 7 MIDDLE 836.40 24.83 0.290 7 HIGH 848.19 24.67 0.293 7 CDMA1900, PCS band, Part 24: Channel Frequency (MHz) Output Power in dBm Output Power in W Limit in W LOW 1851.25 24.67 0.293 2 MIDDLE 1880.00 24.83 0.290 2 HIGH 1908.75 24.67 0.293 2 CDMA2000, Cellular band, Part 22: Channel Frequency (MHz) Output Power in dBm Output Power in W Limit in W LOW 824.73 24.67 0.293 7 MIDDLE 836.40 24.67 0.293 7 HIGH 848.19 24.67 0.293 7 CDMA2000, PCS band, Part 24: Channel Frequency (MHz) Output Power in dBm Output Power in W Limit in W LOW 1851.25 24.33 0.271 2 MIDDLE 1880.00 24.33 0.271 2 HIGH 1908.75 23.50 0.224 2 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 35 of 134 Model: PH20A3 CDMA800, Cellular band, Part 22: Channel Frequency (MHz) Output Power in dBm Output Power in W Limit in W LOW 824.70 24.50 0.282 7 MIDDLE 836.20 24.67 0.293 7 HIGH 848.20 24.50 0.282 7 CDMA1900, PCS band, Part 24: Channel Frequency (MHz) Output Power in dBm Output Power in W Limit in W LOW 1851.00 24.50 0.282 2 MIDDLE 1880.00 24.50 0.282 2 HIGH 1908.75 24.50 0.282 2 CDMA2000, Cellular band, Part 22: Channel Frequency (MHz) Output Power in dBm Output Power in W Limit in W LOW 824.73 24.50 0.282 7 MIDDLE 836.40 24.67 0.293 7 HIGH 848.19 24.50 0.282 7 CDMA2000, PCS band, Part 24: Channel Frequency (MHz) Output Power in dBm Output Power in W Limit in W LOW 1851.00 24.33 0.271 2 MIDDLE 1880.00 24.50 0.282 2 HIGH 1908.75 24.50 0.282 2 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 36 of 134 Model: PH20A2 Plots of Conducted Output Power for CDMA800, Cellular band, Part 22 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 37 of 134 Plots of Conducted Output Power for CDMA1900, PCS band, Part 24 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 38 of 134 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 39 of 134 Plots of Conducted Output Power for CDMA2000, Cellular band, Part 22 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 40 of 134 Plots of Conducted Output Power for CDMA2000, PCS band, Part 24: High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 41 of 134 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 42 of 134 Model: PH20A3 Plots of Conducted Output Power for CDMA800, Cellular band, Part 22 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 43 of 134 Plots of Conducted Output Power for CDMA1900, PCS band, Part 24 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 44 of 134 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 45 of 134 Plots of Conducted Output Power for CDMA2000, Cellular band, Part 22 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 46 of 134 Plots of Conducted Output Power for CDMA2000, PCS band, Part 24: High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 47 of 1…

Text truncated - open the document above for the full version.

High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 84 of 134 Plot #11 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 85 of 134 Plot #12 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 86 of 134 Plot #13 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 87 of 134 Plot #14 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 88 of 134 Plot #15 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 89 of 134 Plot #16 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 90 of 134 Plot #17 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 91 of 134 Plot #18 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 92 of 134 Plot #19 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 93 of 134 Plot #20 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 94 of 134 Plot #21 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 95 of 134 Plot #22 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 96 of 134 Plot #23 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 97 of 134 Plot #24 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 98 of 134 Plot #25 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 99 of 134 Plot #26 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 100 of 134 Plot #27 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 101 of 134 Plot #28 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 102 of 134 Plot #29 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 103 of 134 Plot #30 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 104 of 134 Plot #31 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 105 of 134 Plot #32 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 106 of 134 Plot #33 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 107 of 134 Plot #34 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 108 of 134 Plot #35 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 109 of 134 Plot #36 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 110 of 134 Plot #37 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 111 of 134 Plot #38 High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 112 of 134 EXHIBIT A - SAR SETUP PHOTOGRAPHS PH20A2, Body Worn, Back Touching Flat Phantom with Headset and Pouch PH20A2, Body Worn, Back Touching Flat Phantom CDMA2000, Cellular Band Mode High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 113 of 134 PH20A2, Body Worn, Face Touching Flat Phantom with Headset and Pouch High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 114 of 134 PH20A2, Face Held, Left Head Cheek Touching Flat Phantom PH20A2, Face Held, Left Head Tilted Touching Flat Phantom High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 115 of 134 PH20A2, Face Held, Right Head Cheek Touching Flat Phantom PH20A2, Face Held, Right Head Tilted Touching Flat Phantom High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 116 of 134 PH20A3, Body Worn, Back Touching Phantom with Headset, Memory Card and Pouch PH20A3, Body Worn, EVDO Back Touch Phantom With Accessory (Cable, Memory Card) High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 117 of 134 PH20A3, Face Held, Left Head Cheek Touching Flat Phantom PH20A3, Face Held, Left Head Tilted Touching Flat Phantom High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 118 of 134 PH20A3, Face Held, Right Head Cheek Touching Flat Phantom PH20A3, Face Held, Right Head Tilted Touching Flat Phantom High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 119 of 134 EXHIBIT B – EUT PHOTOGRAPHS PH20A2 Chassis – Top View PH20A2 Chassis – Back View High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 120 of 134 PH20A2 Chassis – Front View PH20A2 Chassis – Rear View High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 121 of 134 PH20A2 Chassis – Cover off View PH20A2 EUT – Component View with Shielding High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 122 of 134 PH20A2 EUT – Component View without Shielding PH20A2 EUT – Solder View with Shielding High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 123 of 134 PH20A2 EUT – Solder View without Shield PH20A2 EUT – Antenna View High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 124 of 134 PH20A3 Chassis – Top View PH20A3 Chassis – Back View High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 125 of 134 PH20A3 Chassis – Front View PH20A3 Chassis – Rear View High Tech Computer, Corp. FCC ID: NM8HARRIER Report #R0407195S SAR Evaluation Report Page 126 of 134 PH20A3 Chassis – Cover off View PH20A3 EUT – Component View with Shielding High Tec…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC Type Approval EMI MEASUREMENT AND TEST REPORT For High Tech Computer, Corp. 23, Hsin-Hua Rd., Taoyuan, 330 Taiwan FCC ID: NM8HARRIER This Report Concerns: Original Report Equipment Type: CDMA 800/1900 + Bluetooth PDA Phone Test Engineer: Ling Zhang / Daniel Deng / Report No.: R0407195 Report Date: 2004-08-05 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 High Tech Computer, Corp. FCC ID: NM8HARRIER Report # R0407195Rpt Page 2 of 116 FCC Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................5 OBJECTIVE...................................................................................................................................................................5 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................6 TEST METHODOLOGY..................................................................................................................................................6 TEST FACILITY.............................................................................................................................................................6 SYSTEM TEST CONFIGURATION ..........................................................................................................................7 JUSTIFICATION.............................................................................................................................................................7 BLOCK DIAGRAM.........................................................................................................................................................7 EQUIPMENT MODIFICATIONS.......................................................................................................................................7 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................7 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................7 POWER SUPPLY INFORMATION.....................................................................................................................................7 CONFIGURATION OF TEST SYSTEM..............................................................................................................................8 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................8 SUMMARY OF TEST RESULTS FOR FCC PART 15............................................................................................9 ANTENNA REQUIREMENT ....................................................................................................................................10 §15.207(A) - CONDUCTED EMISSION...................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 TEST SETUP................................................................................................................................................................11 SPECTRUM ANALYZER SETUP....................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST PROCEDURE...................................................................…
