NM8HC3UPocket PC With 802.11b and Bluetooth

Models HC03U, HC03UL, and HD04U www.dell.com | support.dell.com Dell™ Axim™ X50 Owner’s Manual Notes, Notices, and Cautions NOTE:A NOTE indicates important information that helps you make better use of your computer. NOTICE:A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION:A CAUTION indicates a potential for property damage, personal injury, or death. Abbreviations and Acronyms For a complete list of abbreviations and acronyms, see the "Glossary" on page 165. ____________________ Information in this document is subject to change without notice. © 2004 Dell Inc. All rights reserved. Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, Axim,TrueMobile, Dimension,Inspiron,OptiPlex,Latitude,Dell Precision,Po w e r A p p, PowerVault,PowerEdge,PowerConnect, and DellNet are trademarks of Dell Inc.;Intel,Pentium, and Celeron are registered trademarks and XScale and StrataFlash are trademarks of Intel Corporation; Microsoft,Windows,Windows Media, and ActiveSyncare registered trademarks and Windows Mobile is a trademark of Microsoft Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell Inc. under license. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. Models HCO3U, HC03UL, and HD04U July 2004P/N N6966Rev. A00 Contents3 Contents CAUTION: Safety Instructions. . . . . . . . . . 11 SAFETY: General . . . . . . . . . . . . . . . 11 SAFETY: Power . . . . . . . . . . . . . . . 12 SAFETY: Battery . . . . . . . . . . . . . . . 12 SAFETY: Air Travel . . . . . . . . . . . . . . 13 SAFETY: Electromagnetic Compatibility Instructions . . . . . . . . . . . . . . . . . . 13 When Using Your Device . . . . . . . . . . . . . 13 SAFETY: Ergonomic Computing Habits . . . . 14 SAFETY: Protecting Against Electrostatic Discharge . . . . . . . . . . . . . . . . . . . 14 SAFETY: Battery Disposal . . . . . . . . . . 15 Finding Information . . . . . . . . . . . . . . . 15 1About Your Device Front, Side, and Back Views. . . . . . . . . . . 17 Front and Side Views . . . . . . . . . . . . . 17 Back View . . . . . . . . . . . . . . . . . . 19 Using the Battery . . . . . . . . . . . . . . . . . 19 Installing and Removing the Battery . . . . . 20 Charging the Battery . . . . . . . . . . . . . 22 Connecting to a Computer . . . . . . . . . . . . 23 4Contents Using the Cradle. . . . . . . . . . . . . . . . 23 USB Charging . . . . . . . . . . . . . . . . . 26 Using the Sync Cable . . . . . . . . . . . . . 27 Checking Built-In Storage . . . . . . . . . . . . 28 Using Cards . . . . . . . . . . . . . . . . . . . . 29 CompactFlash Cards . . . . . . . . . . . . . . 29 See the documentation that came with the card for information on using the card. . . . 30 Secure Digital Memory Cards . . . . . . . . . 30 Performing a Reset . . . . . . . . . . . . . . . . 31 Soft Reset . . . . . . . . . . . . . . . . . . . 31 Hard Reset . . . . . . . . . . . . . . . . . . . 32 2Using Microsoft ® Windows Mobile™ 2003 Second Edition Device Buttons and the Stylus . . . . . . . . . . 33 Today Screen . . . . . . . . . . . . . . . . . . . 33 Status Icons . . . . . . . . . . . . . . . . . . . . 34 Programs . . . . . . . . . . . . . . . . . . . . . 36 Program Buttons . . . . . . . . . . . . . . . . 36 Switcher Bar . . . . . . . . . . . . . . . . . . 36 Navigation Bar and Command Bar . . . . . . . . 38 Pop-Up Menus . . . . . . . . . . . . . . . . . . . 39 Finding and Organizing Information . . . . . . . 39 Backing Up Data . . . . . . . . . . . . . . . . . . 40 Contents5 3Entering Information Entering Text Using the Input Panel. . . . . . . 41 Typing With the Soft Keyboard . . . . . . . . 42 Letter Recognizer . . . . . . . . . . . . . . . 43 Block Recognizer . . . . . . . . . . . . . . . 43 Transcriber . . . . . . . . . . . . . . . . . . 43 Editing Typed Text . . . . . . . . . . . . . . 44 Writing on the Screen . . . . . . . . . . . . . . 44 Editing Written Text . . . . . . . . . . . . . 45 Drawing on the Screen . . . . . . . . . . . . . . 48 Creating a Drawing . . . . . . . . . . . . . . 48 Editing a Drawing . . . . . . . . . . . . . . . 48 Recording a Message . . . . . . . . . . . . . . . 49 Using My Text . . . . . . . . . . . . . . . . . . . 50 4Adjusting Settings Personal Tab . . . . . . . . . . . . . . . . . . . 51 System Tab . . . . . . . . . . . . . . . . . . . . 51 Connections Tab . . . . . . . . . . . . . . . . . 52 5Using Microsoft ® ActiveSync ® About ActiveSync. . . . . . . . . . . . . . . . . 53 Installing and Using ActiveSync . . . . . . . . . 54 6Contents 6Scheduling and Communicating About Microsoft ® Pocket Outlook . . . . . . . . 55 Calendar . . . . . . . . . . . . . . . . . . . . . . 55 Using the Summary Screen . . . . . . . . . . 57 Creating Meeting Requests . . . . . . . . . . . 57 Contacts . . . . . . . . . . . . . . . . . . . . . . 58 Finding a Contact . . . . . . . . . . . . . . . 59 Using the Summary Screen . . . . . . . . . . 59 Tasks . . . . . . . . . . . . . . . . . . . . . . . . 59 Notes . . . . . . . . . . . . . . . . . . . . . . . . 61 Messaging . . . . . . . . . . . . . . . . . . . . . 62 Synchronizing E-Mail Messages . . . . . . . . 62 Connecting Directly to an E-Mail Server . . . . 63 Using the Message List . . . . . . . . . . . . 63 Composing Messages . . . . . . . . . . . . . . 65 Managing E-Mail Messages and Folders . . . . 66 Notifications . . . . . . . . . . . . . . . . . . . . 67 7Adding and Removing Programs Adding Programs Using Microsoft ® ActiveSync ® 69 Downloading Programs From the Internet . . . . 70 Adding a Program to the Start Menu . . . . . . . 70 Using File Explorer on the Device . . . . . . . 71 Using ActiveSync on the…

Text truncated - open the document above for the full version.

Chris Harvey From: [email protected] on behalf of [email protected] Sent: Thursday, August 26, 2004 9:42 PM To: Compliance Certification Services Cc: [email protected]; [email protected]; [email protected] Subject: ??: High Tech Computer Corp., FCC ID: NM8HC3U, Assessment NO.: AN04T4144, Notice#1 Page 1 of 2 8/27/2004 Hi Mike, Please refer to the following for our replies. Thank you for your advice. Best regards, Ting Dear Harris, I have reveiwed the above referenced application and find that the following items need to be addressed before teh review can be completed: There are 2 documented models of this EUT, listed as Type 1 and Type 2 in the test report. The maximum measured Peak power for the WLAN transmitter, according to the test report, is 12.85dBm for the Type 2 device. The maximum antenna gain according to the antenna documentation is 1.33dBi. This would result in an EIRP of 14.18dBm or 26mW. According to the TCB Exclusion list, this device requires SAR compliance measurements for TCB approval. Additionally, since there is a collocated (simultaneous transmit) Bluetooth transmitter, SAR measurements would be required with the Bluetooth transmitter turned on. Please note that the RF Exposure section of the test report (page 36) documented the RF power level for the Type 2 device and concluded that SAR was not required. However, the power level stated was the conducted measurement, and the antenna gain of 1.33dBi was not taken into consideration to determine if the EIRP exceeded the Low Threshold. Ans: This device is a PDA that its normal operating configuration is hand-held/ hand- operated portable device which operates at 20 cm from a person¡¦s body; and also because this PDA doesn't has GSM, GPRS and related cellular phone functions that body-worn operating configurations is not required. Based on these reasons, SAR test is not required even the output power is higher than the low threshold. Please indicate which version of ANSI C63.4 has been utilized in the site attenuation and measurements documented in the test report. Ans: Please refer to the attached for revised test report of assessment no.AN04T4143 and AN04T4144. Compliance Certification Services <charvey- [email protected]> 2004/08/25 08:02 PM ¦¬¥ó¤H¡G "[email protected]" <[email protected]> °Æ¥»§Û°e¡G "[email protected]" <[email protected]> ¥D¦®¡G High Tech Computer Corp., FCC ID: NM8HC3U, Assessment NO.: AN04T4144, Notice#1 Additionally, I have changed teh FCC ID number on the form 731 which had a different number (NM88HC3U) than the rest of the application. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Page 2 of 2 8/27/2004

September 3, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: NM8HC3U To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna spec. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until November 8, 2004: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Colin Lu / Project Manager High Tech Computer Corp. 2004/09/03

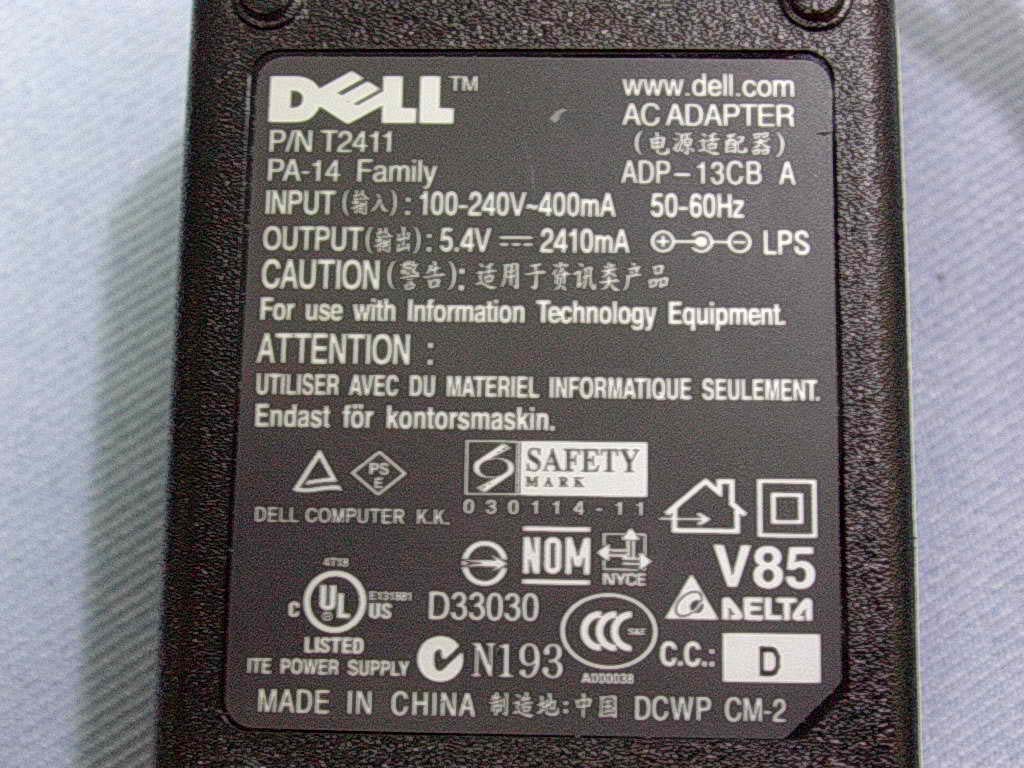

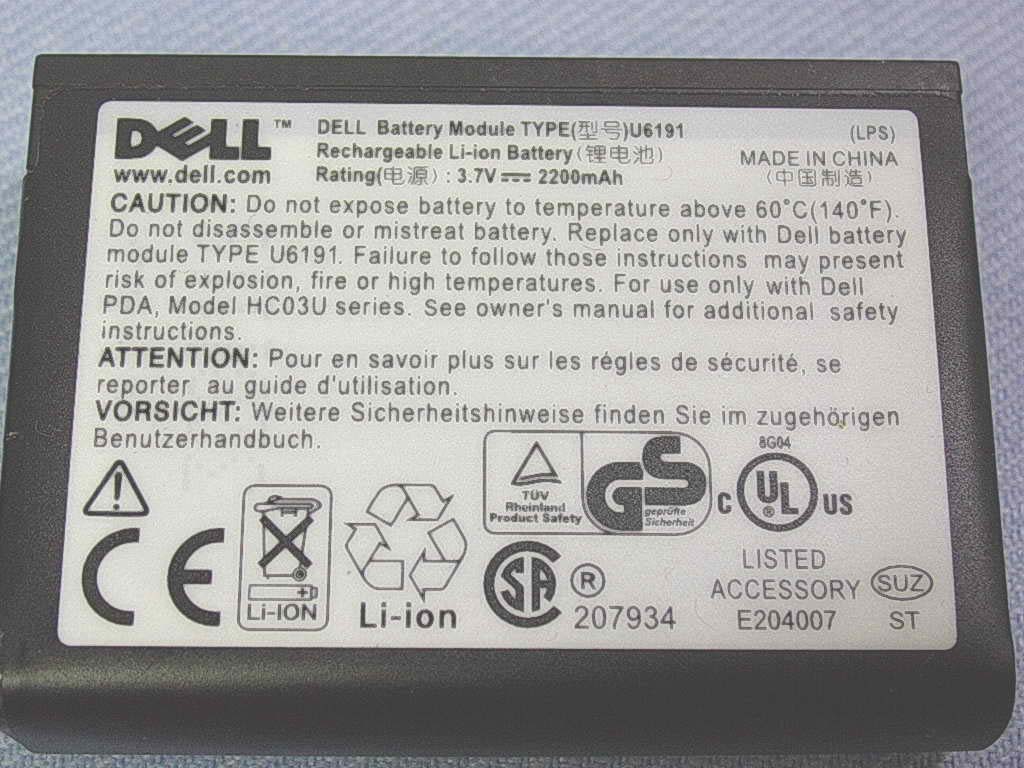

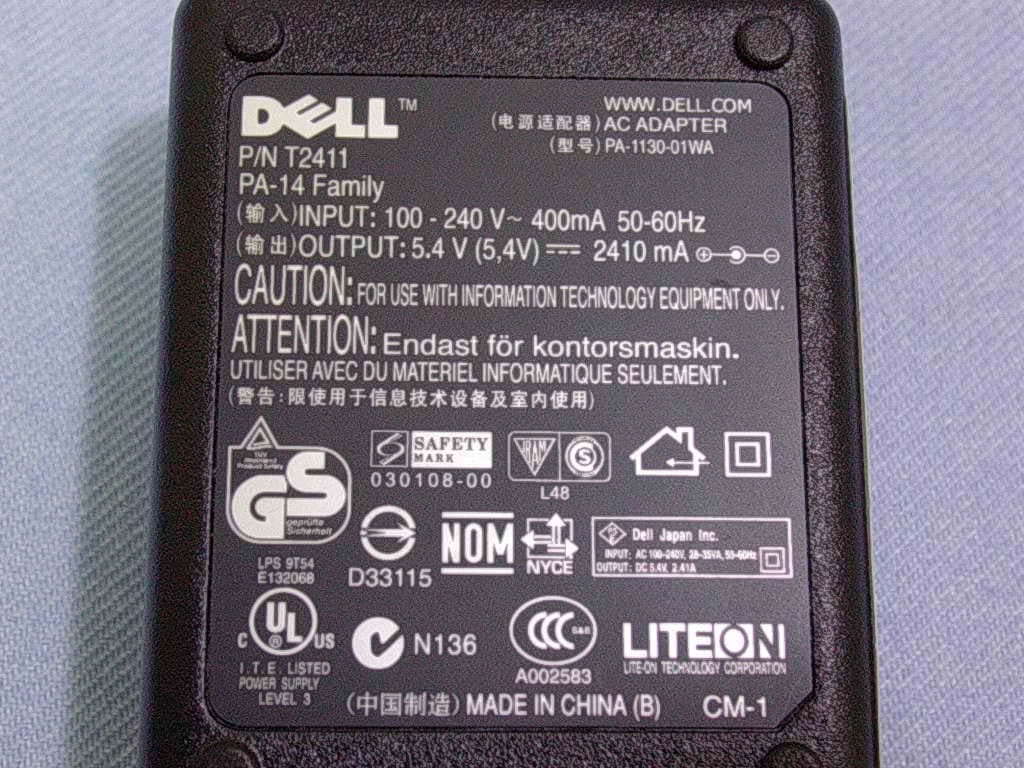

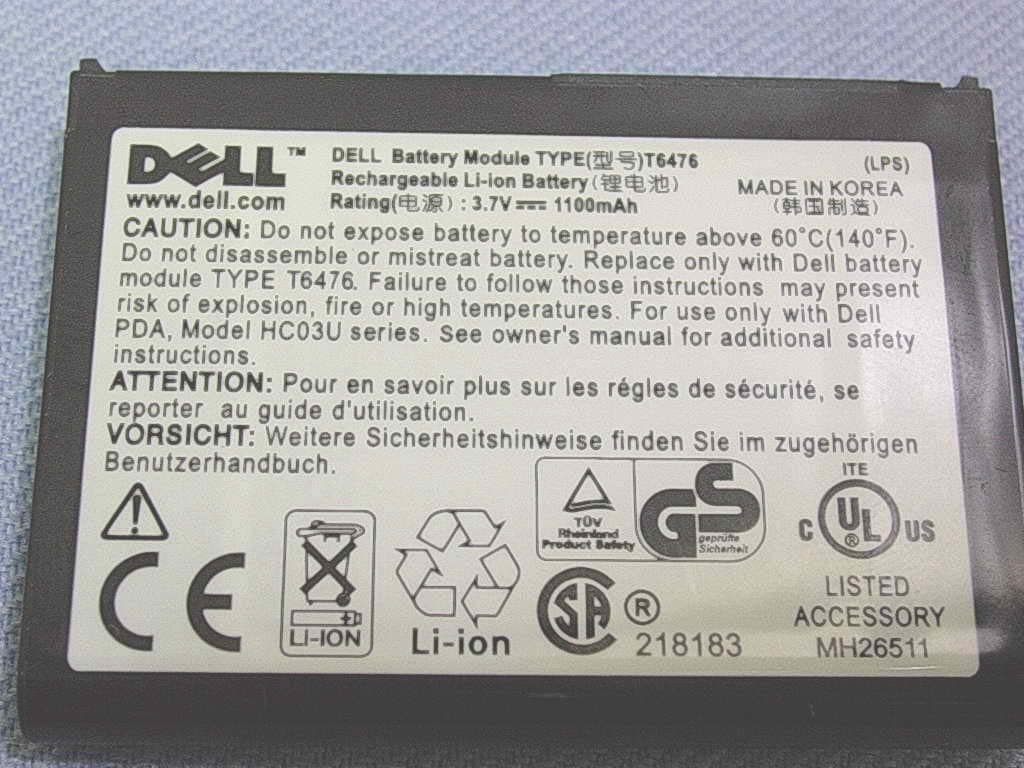

Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 1 of 10 EXTERNAL PHOTOGRAPHS OF EUT TYPE 1 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 2 Type 2 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 3 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 4 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 5 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 6 S-video Cable for Type 2

Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 7 INTERNAL PHOTOGRAPHS OF EUT Type 1 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 8 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 9 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 10 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 11 Type 2 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 12 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19S, 2004 Page 13

Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3U Date of Issue: August 16, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page 1 of 133 FCC 47 CFR PART 15 SUBPART C TEST REPORT For High Tech Computer Corp. Pocket PC Trade Name: Dell Model: HC03U Prepared for High Tech Computer Corp. No. 23, Hsin Hua Rd., Taoyuan Hsien 330, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3U Date of Issue: August 16, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT .................................................................................................. 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 CONDITION A: WLAN OPERATION........................................................................................... 11 7.1 6DB BANDWIDTH.................................................................................................................. 11 7.2 PEAK POWER......................................................................................................................... 16 7.3 BAND EDGES MEASUREMENT ..................................................................................... 21 7.4 PEAK POWER SPECTRAL DENSITY......................................................................................... 30 7.5 RADIO FREQUENCY EXPOSURE............................................................................................. 35 CONDITION B: BLUETOOTH OPERATION.............................................................................. 37 7.6 PEAK POWER......................................................................................................................... 37 7.7 BAND EDGES MEASUREMENT ..................................................................................... 39 7.8 PEAK POWER SPECTRAL DENSITY......................................................................................... 48 7.9 FREQUENCY SEPARATION ............................................................................................ 54 7.10 NUMBER OF HOPPING FREQUENCY............................................................................ 58 7.11 TIME OF OCCUPANCY (DWELL TIME) ........................................................................ 61 7.12 RADIO FREQUENCY EXPOSURE............................................................................................. 73 7.13 SPURIOUS EMISSIONS ...................................................................................................... 75 7.14 CONDUCTED MEASUREMENT............................................................................................... 75 7.15 LIMIT................................................................................................................................... 75 7.16 RADIATED EMISSIONS.......................................................................................................... 88 CONDITION C: CO-LOACATED OPERATION (WLAN & BLUETOOTH OPERATED SIMULTANEOUSLY)..................................................................................................................... 115 7.17 POWER LINE CONDUCTED EMISSIONS................................................................................. 127 APPENDIX 1 PHOTOGRPHS OF TEST SETUP........................................................................ 132 Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3U Date of Issue: August 16, 2004 Page 4 …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3U Date of Issue: August 16, 2004 Page 132 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3U Date of Issue: August 16, 2004 Page 133 Conducted Emission Set Up Photos
