NM8HC3ULPocket PC With Bluetooth

Models HC03U, HC03UL, and HD04U www.dell.com | support.dell.com Dell™ Axim™ X50 Owner’s Manual Notes, Notices, and Cautions NOTE:A NOTE indicates important information that helps you make better use of your computer. NOTICE:A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION:A CAUTION indicates a potential for property damage, personal injury, or death. Abbreviations and Acronyms For a complete list of abbreviations and acronyms, see the "Glossary" on page 165. ____________________ Information in this document is subject to change without notice. © 2004 Dell Inc. All rights reserved. Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, Axim,TrueMobile, Dimension,Inspiron,OptiPlex,Latitude,Dell Precision,Po w e r A p p, PowerVault,PowerEdge,PowerConnect, and DellNet are trademarks of Dell Inc.;Intel,Pentium, and Celeron are registered trademarks and XScale and StrataFlash are trademarks of Intel Corporation; Microsoft,Windows,Windows Media, and ActiveSyncare registered trademarks and Windows Mobile is a trademark of Microsoft Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell Inc. under license. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. Models HCO3U, HC03UL, and HD04U July 2004P/N N6966Rev. A00 Contents3 Contents CAUTION: Safety Instructions. . . . . . . . . . 11 SAFETY: General . . . . . . . . . . . . . . . 11 SAFETY: Power . . . . . . . . . . . . . . . 12 SAFETY: Battery . . . . . . . . . . . . . . . 12 SAFETY: Air Travel . . . . . . . . . . . . . . 13 SAFETY: Electromagnetic Compatibility Instructions . . . . . . . . . . . . . . . . . . 13 When Using Your Device . . . . . . . . . . . . . 13 SAFETY: Ergonomic Computing Habits . . . . 14 SAFETY: Protecting Against Electrostatic Discharge . . . . . . . . . . . . . . . . . . . 14 SAFETY: Battery Disposal . . . . . . . . . . 15 Finding Information . . . . . . . . . . . . . . . 15 1About Your Device Front, Side, and Back Views. . . . . . . . . . . 17 Front and Side Views . . . . . . . . . . . . . 17 Back View . . . . . . . . . . . . . . . . . . 19 Using the Battery . . . . . . . . . . . . . . . . . 19 Installing and Removing the Battery . . . . . 20 Charging the Battery . . . . . . . . . . . . . 22 Connecting to a Computer . . . . . . . . . . . . 23 4Contents Using the Cradle. . . . . . . . . . . . . . . . 23 USB Charging . . . . . . . . . . . . . . . . . 26 Using the Sync Cable . . . . . . . . . . . . . 27 Checking Built-In Storage . . . . . . . . . . . . 28 Using Cards . . . . . . . . . . . . . . . . . . . . 29 CompactFlash Cards . . . . . . . . . . . . . . 29 See the documentation that came with the card for information on using the card. . . . 30 Secure Digital Memory Cards . . . . . . . . . 30 Performing a Reset . . . . . . . . . . . . . . . . 31 Soft Reset . . . . . . . . . . . . . . . . . . . 31 Hard Reset . . . . . . . . . . . . . . . . . . . 32 2Using Microsoft ® Windows Mobile™ 2003 Second Edition Device Buttons and the Stylus . . . . . . . . . . 33 Today Screen . . . . . . . . . . . . . . . . . . . 33 Status Icons . . . . . . . . . . . . . . . . . . . . 34 Programs . . . . . . . . . . . . . . . . . . . . . 36 Program Buttons . . . . . . . . . . . . . . . . 36 Switcher Bar . . . . . . . . . . . . . . . . . . 36 Navigation Bar and Command Bar . . . . . . . . 38 Pop-Up Menus . . . . . . . . . . . . . . . . . . . 39 Finding and Organizing Information . . . . . . . 39 Backing Up Data . . . . . . . . . . . . . . . . . . 40 Contents5 3Entering Information Entering Text Using the Input Panel. . . . . . . 41 Typing With the Soft Keyboard . . . . . . . . 42 Letter Recognizer . . . . . . . . . . . . . . . 43 Block Recognizer . . . . . . . . . . . . . . . 43 Transcriber . . . . . . . . . . . . . . . . . . 43 Editing Typed Text . . . . . . . . . . . . . . 44 Writing on the Screen . . . . . . . . . . . . . . 44 Editing Written Text . . . . . . . . . . . . . 45 Drawing on the Screen . . . . . . . . . . . . . . 48 Creating a Drawing . . . . . . . . . . . . . . 48 Editing a Drawing . . . . . . . . . . . . . . . 48 Recording a Message . . . . . . . . . . . . . . . 49 Using My Text . . . . . . . . . . . . . . . . . . . 50 4Adjusting Settings Personal Tab . . . . . . . . . . . . . . . . . . . 51 System Tab . . . . . . . . . . . . . . . . . . . . 51 Connections Tab . . . . . . . . . . . . . . . . . 52 5Using Microsoft ® ActiveSync ® About ActiveSync. . . . . . . . . . . . . . . . . 53 Installing and Using ActiveSync . . . . . . . . . 54 6Contents 6Scheduling and Communicating About Microsoft ® Pocket Outlook . . . . . . . . 55 Calendar . . . . . . . . . . . . . . . . . . . . . . 55 Using the Summary Screen . . . . . . . . . . 57 Creating Meeting Requests . . . . . . . . . . . 57 Contacts . . . . . . . . . . . . . . . . . . . . . . 58 Finding a Contact . . . . . . . . . . . . . . . 59 Using the Summary Screen . . . . . . . . . . 59 Tasks . . . . . . . . . . . . . . . . . . . . . . . . 59 Notes . . . . . . . . . . . . . . . . . . . . . . . . 61 Messaging . . . . . . . . . . . . . . . . . . . . . 62 Synchronizing E-Mail Messages . . . . . . . . 62 Connecting Directly to an E-Mail Server . . . . 63 Using the Message List . . . . . . . . . . . . 63 Composing Messages . . . . . . . . . . . . . . 65 Managing E-Mail Messages and Folders . . . . 66 Notifications . . . . . . . . . . . . . . . . . . . . 67 7Adding and Removing Programs Adding Programs Using Microsoft ® ActiveSync ® 69 Downloading Programs From the Internet . . . . 70 Adding a Program to the Start Menu . . . . . . . 70 Using File Explorer on the Device . . . . . . . 71 Using ActiveSync on the…

Text truncated - open the document above for the full version.

宏達國際電子股份有限公司 High Tech Computer, Corp. Date: 20 August, 2004 Letter of Declaration To whom it may concern: We would like to declare that the Block diagram and Schematic diagram, which we have provided to Compliance Certification Services Inc. for approval purposes, are for the use on both products of the following details: Product name: Pocket PC Brand name: Dell FCC ID: NM8HC3U / IC: 4115B-HC3U for model name: HC03U FCC ID: NM8HC3UL / IC: 4115B-HC3UL for model name: HC03UL Therefore on the Block diagram and Schematic diagram will contain the information of Bluetooth function and WLAN function. In case the approval is for FCC ID: NM8HC3UL and IC: 4115B-HC3UL with Bluetooth function only, please disregard the WLAN function part. If there are any questions regarding this declaration, please do not hesitate to contact us. Thank you for your understanding. Yours Sincerely, ric Chen/Project Manager .tw E High Tech Computer Corp. Email: [email protected]

September 3, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: NM8HC3UL To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna spec. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until November 8, 2004: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Colin Lu / Project Manager High Tech Computer Corp. 2004/09/03

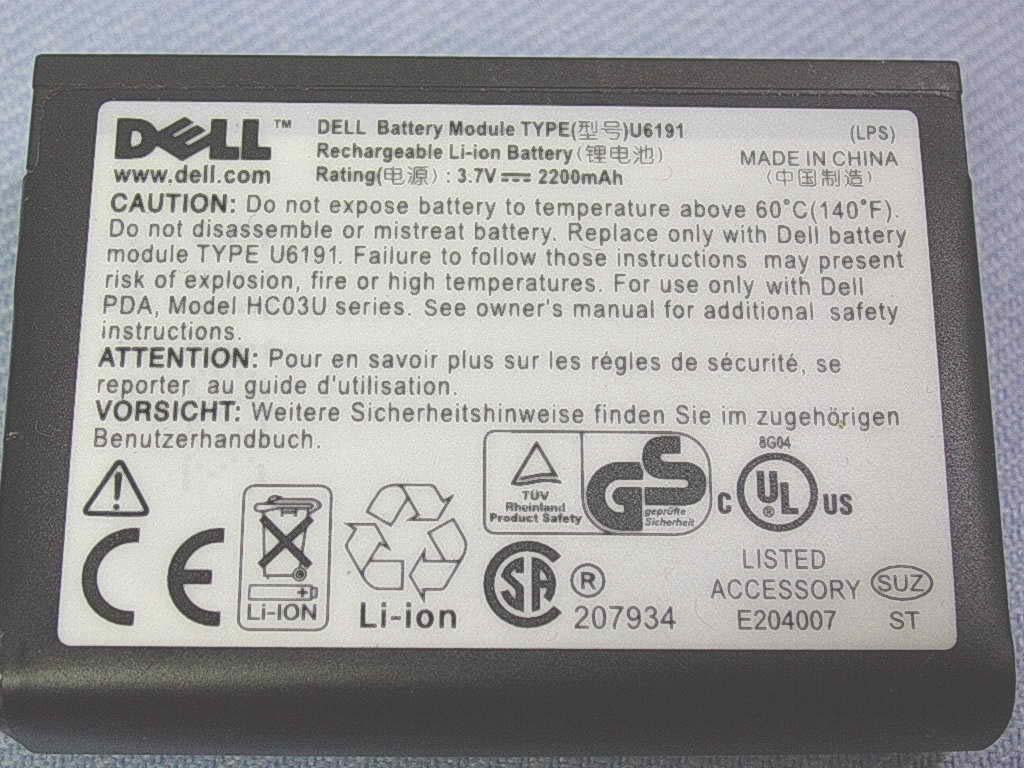

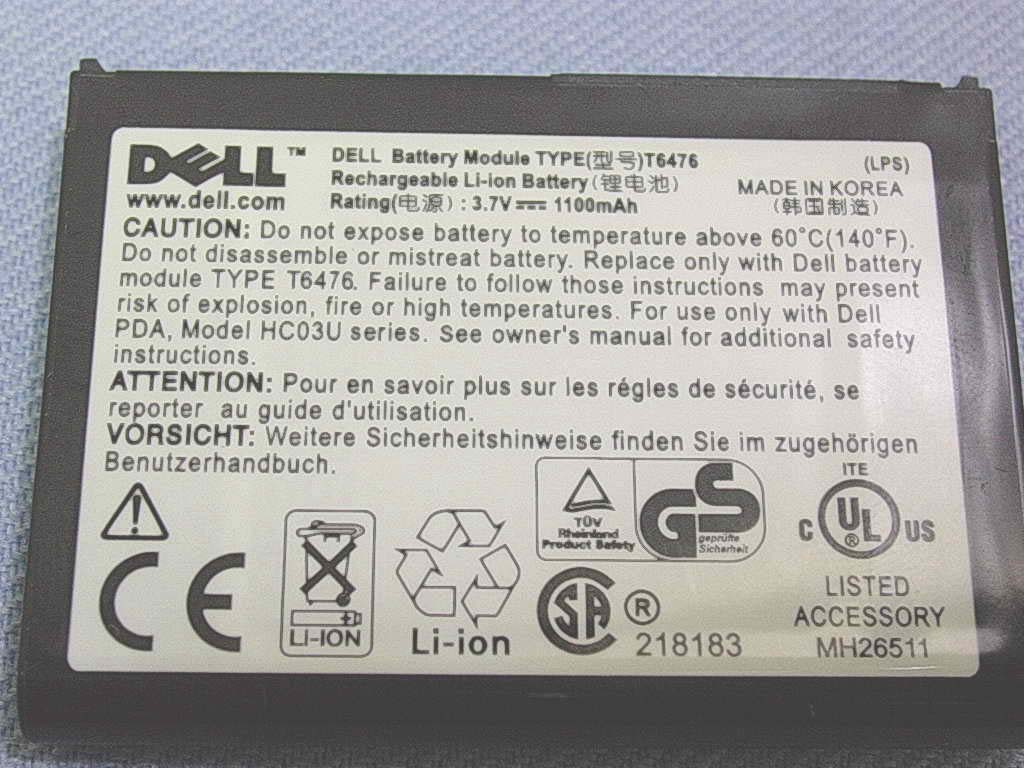

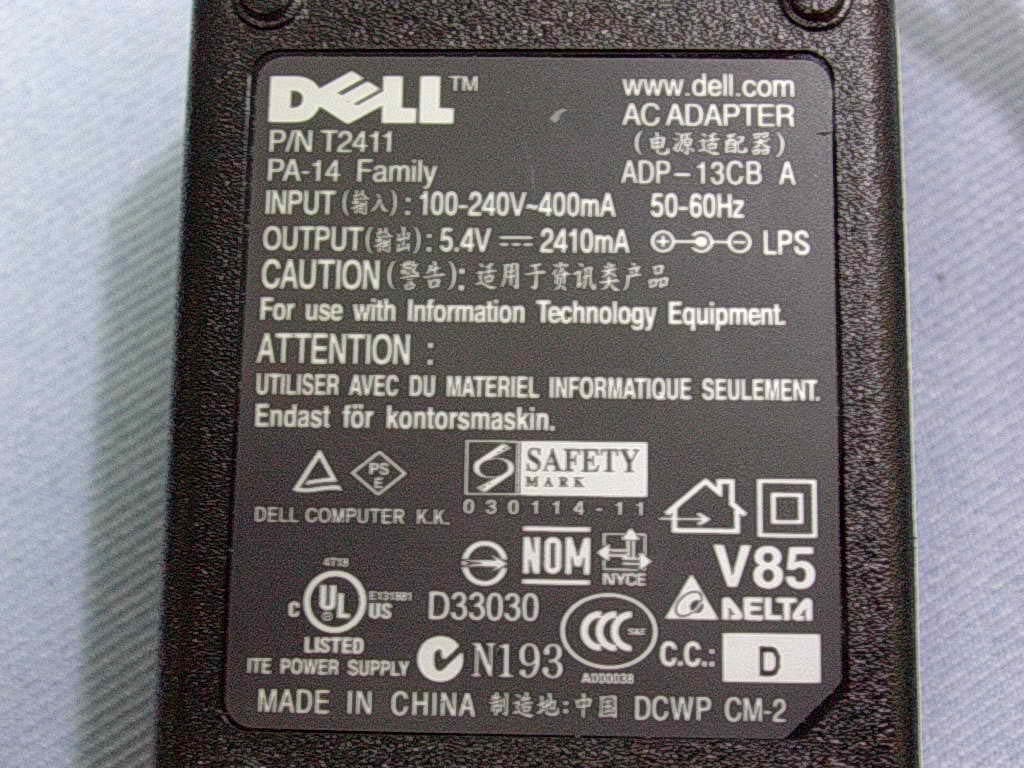

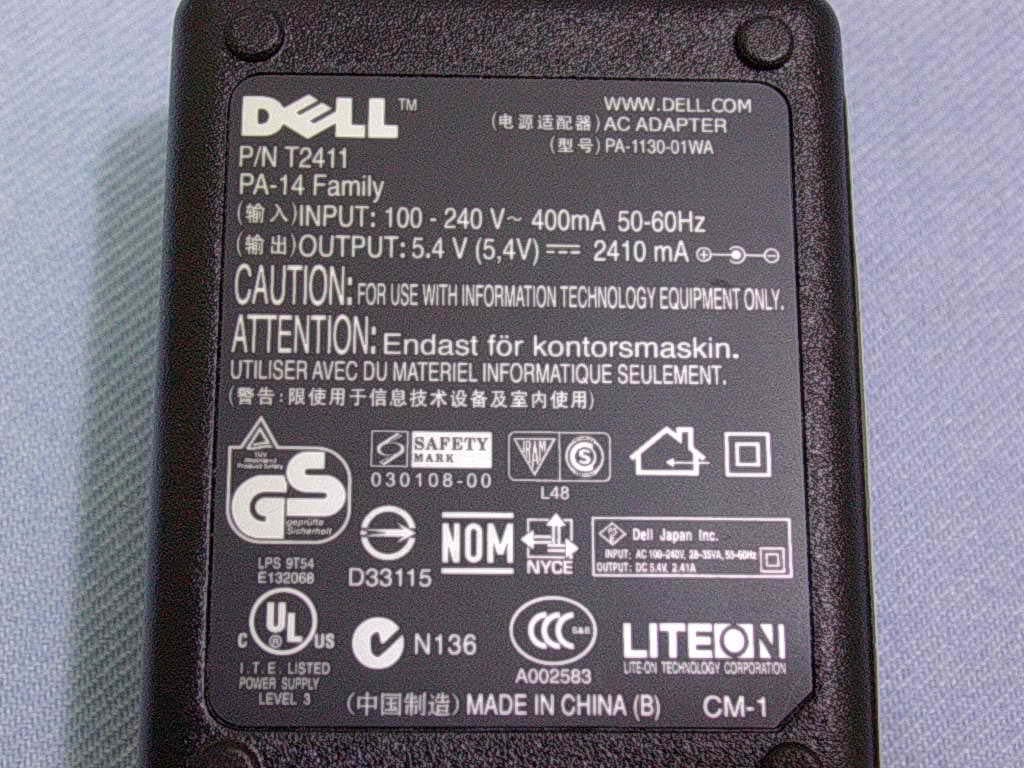

Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 1 of 9 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 2 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 3 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 4 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 5

Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 6 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 7 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 8 Compliance Certification Services Inc. Report No: 40727203 Date of Issue: August 19, 2004 Page 9

Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3UL Date of Issue: August 17, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 50 FCC 47 CFR PART 15 SUBPART C TEST REPORT For High Tech Computer Corp. Pocket PC Model: HC03UL Trade Name: Dell Prepared for High Tech Computer Corp. No. 23, Hsin Hua Rd., Taoyuan Hsien 330, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3UL Date of Issue: August 17, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ........ ...............................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 PEAK POWER....................................................................................................................................11 7.2 BAND EDGES MEASUREMENT ................................................................................................12 7.3 PEAK POWER SPECTRAL DENSITY....................................................................................................17 7.4 FREQUENCY SEPARATION.......................................................................................................20 7.5 NUMBER OF HOPPING FREQUENCY ......................................................................................22 7.6 TIME OF OCCUPANCY (DWELL TIME)...................................................................................24 7.7 RADIO FREQUENCY EXPOSURE........................................................................................................32 7.8 SPURIOUS EMISSIONS ................................................................................................................33 7.9 POWERLINE CONDUCTED EMISSIONS...............................................................................................46 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................49 Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3UL Date of Issue: August 17, 2004 Page 4 2. EUT DESCRIPTION Product Pocket PC Trade Name Dell Model Number HC03UL Model Discrepancy N/A Power Supply Delta / PA-14 I/P: AC 100-240V, 50-60Hz, 400mA O/P: DC 5.4V, 2410mA LITEON / PA-14 I/P: AC 100-240V, 50-60Hz, 400mA O/P: DC 5.4V, 2410mA Battery: 1. Dell / U6191 / 3.7V, 2200mAh 2. Dell / T6476 / 3.7V, 1100mAh Frequency Range 2402 ~ 2480 MHz Transmit Power 1.13 dBm Modulation Technique GSFK Transmit Data Rate 1MHz Number of Channels 79 Channels Antenna Specification Chip Antenna / Gain: -2.62 dBi Note: This submittal(s) (test report) is intended for FCC ID: NM8HC3UL filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3UL Date of Issue: August 17, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2001) and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous no…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3UL Date of Issue: August 17, 2004 Page 49 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 40727203-RP FCC ID: NM8HC3UL Date of Issue: August 17, 2004 Page 50 Conducted Emission Set Up Photos
