NM8HTL23Smartphone

Safety and regulatory guide 2 Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE THE DEVICE OUT OF THE BOX. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit  Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. Safety and regulatory guide 3 This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model: Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (140 ̊F). WARNING: To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.  Take extra precautions  Keep the device dry and away from water or any liquid as it may cause a short circuit.  The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.  If the battery leaks:  Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.  Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.  Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety precautions for direct sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product inside a vehicle or in 4 Safety and regulatory guide places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of hearing loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. NOTE: For France, Earphone (listed below) for this device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable NF EN 50332-1:2000 and/or NF EN 50332-2:2003 standards as required by French Article L. 5232-1.  Earphone, manufactured by HTC, Model. Safety in aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your phone by switching to Airplane Mode. Environment restrictions Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Explosive atmospheres When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or Safety and regulatory guide 5 even death. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. These include fueling areas…

Text truncated - open the document above for the full version.

0PAG100 User guide HTC CONFIDENTIAL For certification review only Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates important information that you need in order to accomplish a certain task or to get a feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems. Conventions used in this guide HTC CONFIDENTIAL For certification review only Important note on recoverable data Files and other data that have been deleted, cleared, removed, or erased from your phone may still be recoverable by third-party data recovery software. Even a factory reset may not permanently erase all data from your phone, including personal information. Important note on recoverable data HTC CONFIDENTIAL For certification review only Phone setup and transfer Setting up your new phone for the first time When you switch on your new phone for the first time, you’ll be asked to set it up. You can enable TalkBack to navigate by voice feedback before selecting the language. Press and hold two fingers on the screen until you hear a message saying that accessibility mode is enabled. Walk through the on-device setup to choose your Internet connection, sign in to your accounts, and more. There are different options you can choose to set up your new phone: §If you don't plan to restore a previous backup from your online storage, you can use the HTC Get Started service to first personalize your new phone and set up your accounts from your computer. On the Fast and easy setup screen, tap I want to use Get Started. Your phone will show you the URL of the HTC Get Started site and a pair code. On your computer's web browser, just go to the URL and enter the pair code to start your web setup. Save your setup to your HTC Account so you can download your personalized settings to your phone. If you already finished the HTC Get Started setup before turning on your new phone, just download your web setup. §If you have content from another phone that you want to transfer, whether it's from an Android ™ or other phone, select Get content from old phone. §If you have a previous phone backup that you want to restore from your online storage, select Restore from HTC Backup. To make it easier for you to back up and restore content from device to another HTC phone in the future, select Back up phone daily. Some features that need to connect to the Internet such as location-based services and auto-sync of your online accounts may incur extra data fees. To avoid incurring data fees, disable these features under Settings. For more information on location services, see Turning location services on or off on page 158. Phone setup and transfer HTC CONFIDENTIAL For certification review only Restoring your backup from your online storage If you used HTC Backup before, you can restore your backup to device when you turn the phone on for the first time or after a factory reset. Depending on the amount of content, restoring your backup to your phone through your data connection may incur additional data costs and take a long time. Using a Wi-Fi ® connection is recommended. 1.When you're asked whether you have a Google ® Account, sign in to your account. 2.Use your mobile data or Wi-Fi connection to connect your phone to the Internet. 3.If you used your Google login credentials as your HTC Account and your backup is in Google Drive ™ , tap Sign in with Google. If not, tap Remind me later, go to the Transfer or restore screen, and select Restore from HTC Backup. 4.Follow the onscreen instructions to restore your backup and to continue setting up your phone. 5.Slide open the Notifications panel to check if there's any notification to finish setting up your phone. Free apps from Google Play ™ will be restored in the background, and you can track the progress via a notification in the status bar. To restore paid apps, you need to download and install them from Google Play. Your apps will appear on the Apps screen as they are installed. The Apps and Home screen shortcuts will be reorganized as in your backup after all of your apps have been installed. You may continue using phone while apps are being restored. Phone setup and transfer HTC CONFIDENTIAL For certification review only Transferring content from an Android phone On your old Android phone, download the HTC Transfer Tool and use it to transfer your content to your new HTC phone. The types of locally stored content on your old phone that the tool can transfer include contacts, messages, calendar events, web bookmarks, music, photos, and videos. Some settings can also be transferred. §You need Android version 2.2 or later to use the HTC Transfer Tool on your old phone. §If your old phone has Android version 2.1 or an earlier version, you need to use Bluetooth ® transfer. For details, see Transferring contacts from your old phone through Bluetooth on page 19. 1.If you're setting up your new HTC phone for the first time, select Get content from old phone. Or go to Settings, and then tap Get content from another phone. 2.Choose whether to transfer from an old HTC Android phone or other Android phone. 3.Tap Full transfer, and then tap Next. 4.Follow the steps shown on your new phone to download the HTC Transfer Tool from Google Play to your old phone, install it, and open the tool. 5.When you see a PIN on your old phone, make sure the same PIN also appears on your new phone before you continue. If the PIN code doesn't appear, this may mean that your old phone is unable to…

Text truncated - open the document above for the full version.

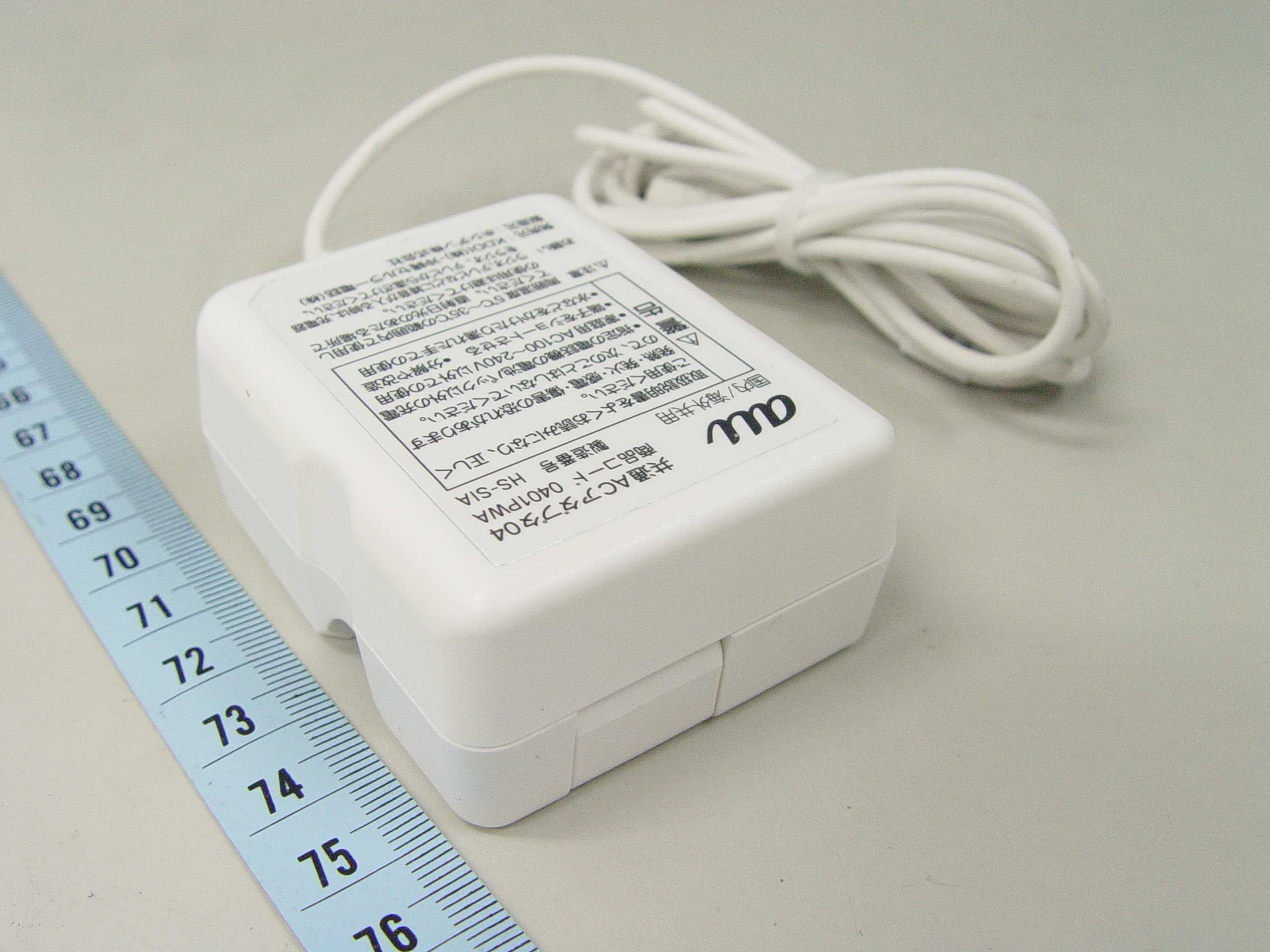

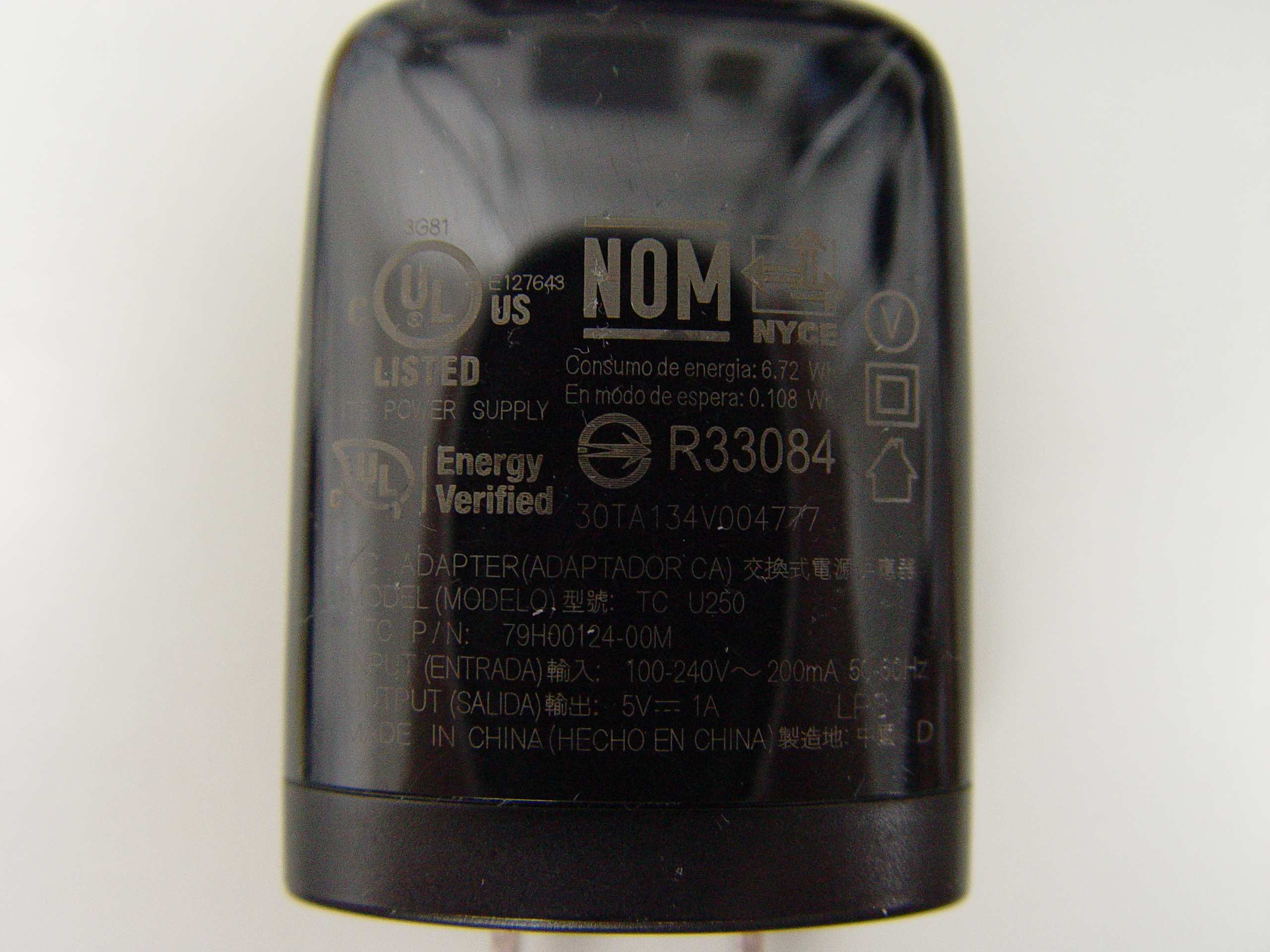

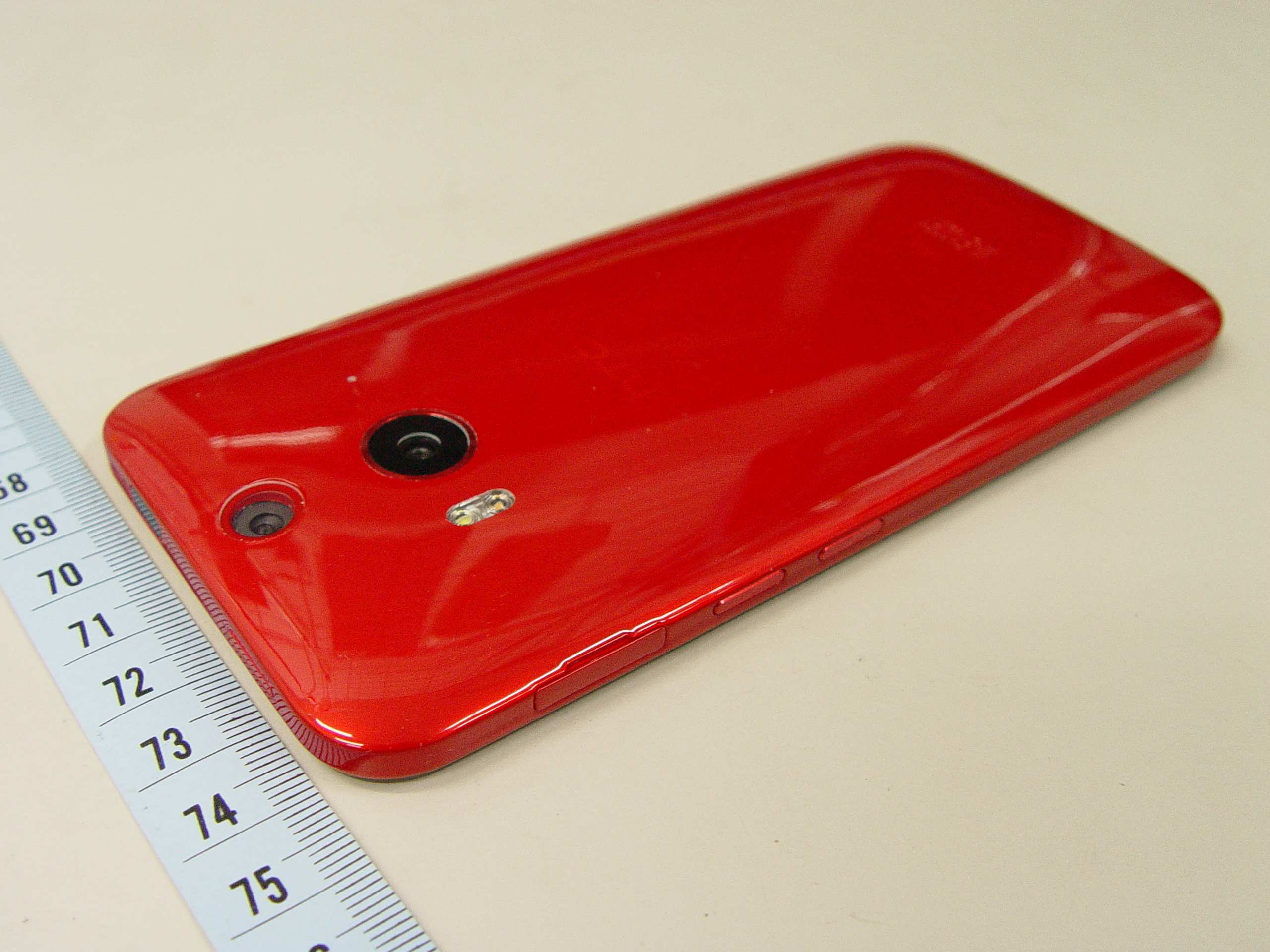

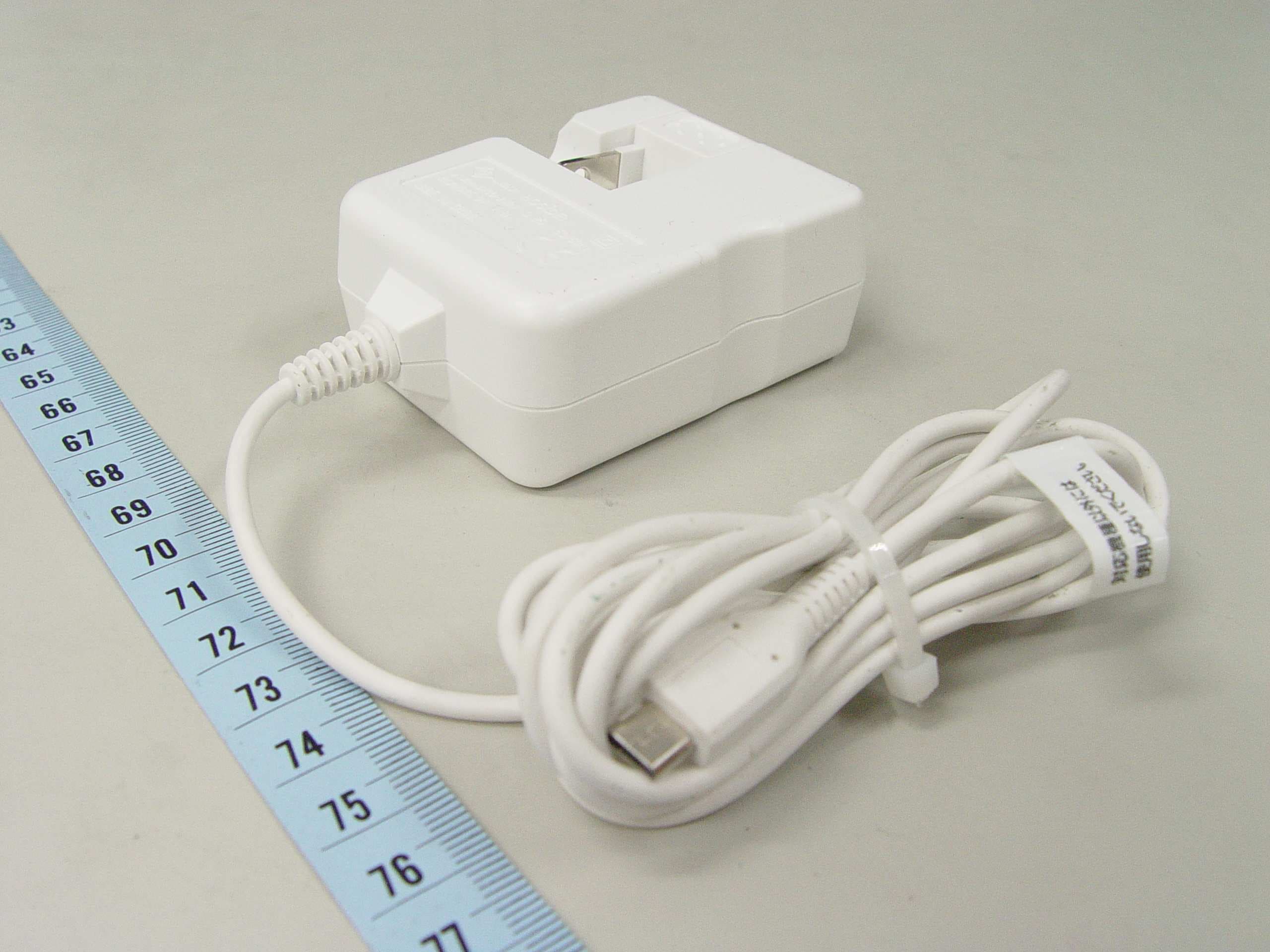

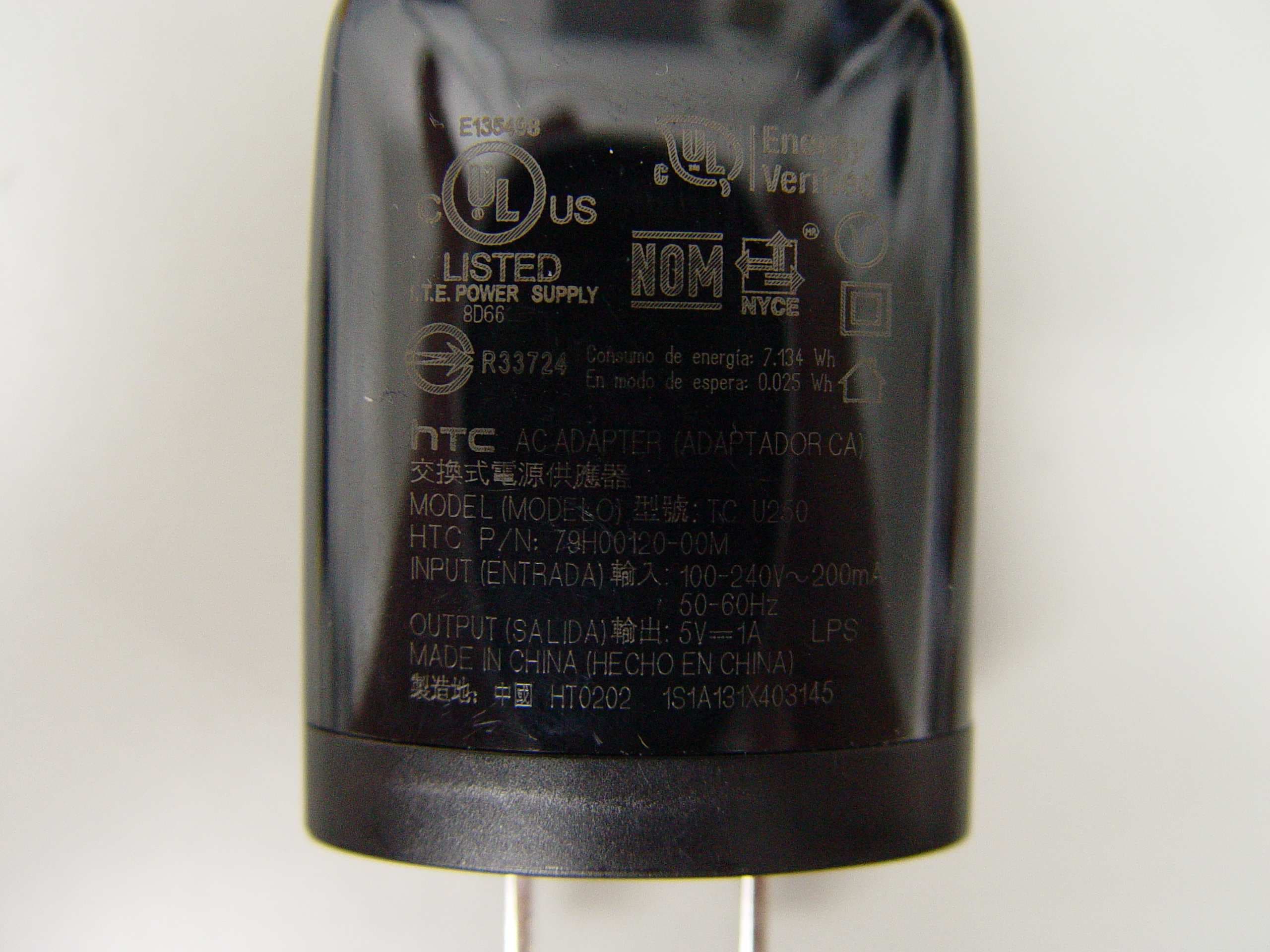

Page 1 CONSTRUCTION PHOTOS OF EUT The EUT has following accessories. Product Brand MODEL Description Power Adapter 1 Salcomp TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 2 Phihong TC U250 I/P: 100-240Vac, 200mA O/P: 5Vdc, 1A Power Adapter 3 Hosiden 0401PWA I/P: 100-240Vac, 200mA O/P: 5Vdc, 1.8A Power cord: 14.5m non-shielded cable w/o core Battery FORMOSA B0PAG100 Rating: 3.8Vdc, 2700mAh Type: Li-ion Earphone 1 Merry MAX-301 1.1m cable Earphone 2 Cotron MAX-301 1.1m cable Earphone 3 JBL J22a 1.33m cable USB Cable 1 Foxlink DC M430 1.8m cable USB Cable 2 Foxconn DC M430 1.8m cable USB Cable 3 Foxlink DC MSR600 1m cable USB Cable 4 Foxconn DC MSR600 1m cable USB Cable 5 Coxoc DC MSR600 1m cable LCM Sharp LS050T -- Photo Camera Liteon ATA1301 -- Video Camera Liteon 3BF507P1A -- Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

Made in Taiwan FOR CERTIFICATION ONLY FCC ID: NM8HTL23CDMA_HTL23

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : May 14, 2014 Report No. : SA140409C02A Reference No.: 140409C03 Appendix A. SAR Plots of System Verification The plots for system verification with largest deviation for each SAR system combination are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/28 System Check_H750_140428 DUT: Dipole 750 MHz; Type: D750V3; SN: 1013 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: H750_0428 Medium parameters used: f = 750 MHz;  = 0.894 S/m;  r = 40.229;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĸġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįĴġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.89, 10.89, 10.89); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Left; Type: SAM V5.0; Serial: TP 1823 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.65 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.561 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.08 W/kg SAR(1 g) = 2.1 W/kg; SAR(10 g) = 1.4 W/kg Maximum value of SAR (measured) = 2.64 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/28 System Check_H835_140428 DUT: Dipole 835 MHz; Type: D835V2; SN: 4d121 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: H835_0428 Medium parameters used: f = 835 MHz;  = 0.92 S/m;  r = 41.626;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįķġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįijġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.52, 10.52, 10.52); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Left; Type: SAM V5.0; Serial: TP 1823 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.00 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.903 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.34 W/kg; SAR(10 g) = 1.53 W/kg Maximum value of SAR (measured) = 2.99 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/28 System Check_H1900_140428 DUT: Dipole 1900 MHz; Type: D1900V2; SN: 5d036 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: H1900_0428 Medium parameters used: f = 1900 MHz;  = 1.438 S/m;  r = 39.089;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĹġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįķġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.7, 8.7, 8.7); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Front; Type: SAM V5.0; Serial: TP 1822 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.9 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.656 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 19.1 W/kg SAR(1 g) = 9.83 W/kg; SAR(10 g) = 4.94 W/kg Maximum value of SAR (measured) = 14.6 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/05/06 System Check_H2450_140506 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 716 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: H2450_0506 Medium parameters used: f = 2450 MHz;  = 1.861 S/m;  r = 38.631;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĹġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijıįĺġɗ DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(7.95, 7.95, 7.95); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Front; Type: QD000P40CD; Serial: TP 1654 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.8 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.8 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 27.6 W/kg SAR(1 g) = 12.7 W/kg; SAR(10 g) = 5.75 W/kg Maximum value of SAR (measured) = 19.9 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/29 System Check_H2600_140429 DUT: Dipole 2600 MHz; Type: D2600V2; SN: 1003 Communication System: CW; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: H2600_0429 Medium parameters used: f = 2600 MHz;  = 2.052 S/m;  r = 37.587;  = 1000 kg/m 3 DASY5 Configuration: -    !" #$%&' ' - Sensor-Surface: 2mm (Mechanical Surface Detection) - !(#"() * & !" #$%& ''% - + #,*-+ #,.#/01*- " !/&2%% - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 21.8 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.5 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 29.7 W/kg SAR(1 g) = 14.5 W/kg; SAR(10 g) = 6.94 W/kg Maximum value of SAR (measured) = 22.0 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/05/06 System Check_H5200_140506 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 101 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: H5G_0506 Medium parameters used: f = 5200 MHz;  = 4.793 S/m;  r = 35.542;  = 1000 kg/m 3 łŮţŪŦůŵġŕŦŮűŦųŢŵŶųŦ烉ijIJįĹġɗļġōŪŲŶŪťġŕŦŮűŦųŢŵŶųŦ烉ijIJįIJġɗ DASY5 Configuration: - Probe:…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : May 14, 2014 Report No. : SA140409C02A Reference No.: 140409C03 Appendix B. SAR Plots of SAR Measurement The SAR plots for highest measured SAR in each exposure configuration, wireless mode and frequency band combination, and measured SAR > 1.5 W/kg are shown as follows. Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/28 P0 GSM850_GPRS12_Left Cheek_Ch128 DUT: 140409C03 Communication System: GPRS12; Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium: H835_0428 Medium parameters used: f = 824.2 MHz;  = 0.909 S/m;  r = 41.776;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.52, 10.52, 10.52); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Left; Type: SAM V5.0; Serial: TP 1823 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) - Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.803 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.562 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.867 W/kg SAR(1 g) = 0.710 W/kg; SAR(10 g) = 0.562 W/kg Maximum value of SAR (measured) = 0.794 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/28          Communication System: GPRS12; Frequency: 1850.2 MHz;Duty Cycle: 1:2 Medium: H1900_0428 Medium parameters used: f = 1850.2 MHz;  = 1.385 S/m;  r = 39.313;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.7, 8.7, 8.7); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Front; Type: SAM V5.0; Serial: TP 1822 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164)  !"##$ Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0907 W/kg %&&' !##($)*+ Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.226 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.102 W/kg  !$,-"(.)/ !$,- .) Maximum value of SAR (measured) = 0.0860 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/28 . 00 -1      Communication System: WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: H1900_0428 Medium parameters used: f = 1880 MHz;  = 1.416 S/m;  r = 39.173;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(8.7, 8.7, 8.7); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Front; Type: SAM V5.0; Serial: TP 1822 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164)  !"##$ Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0975 W/kg %&&' !##($)*+ Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.706 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.0990 W/kg  !$,-" .)/ !$,-.) Maximum value of SAR (measured) = 0.0915 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/28 P WCDMA V_RMC12.2K_Left Cheek_Ch4182 DUT: 140409C03 Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: H835_0428 Medium parameters used: f = 836.4 MHz;  = 0.922 S/m;  r = 41.608;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.52, 10.52, 10.52); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Left; Type: SAM V5.0; Serial: TP 1823 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) - Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.478 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.738 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.513 W/kg SAR(1 g) = 0.422 W/kg; SAR(10 g) = 0.333 W/kg Maximum value of SAR (measured) = 0.439 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/28 P CDMA BC0_RC3+SO55_Left Cheek_Ch384 DUT: 140409C03 Communication System: CDMA2000; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: H835_0428 Medium parameters used: f = 837 MHz;  = 0.922 S/m;  r = 41.6;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.52, 10.52, 10.52); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Left; Type: SAM V5.0; Serial: TP 1823 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) - Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.584 W/kg - Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.570 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.633 W/kg SAR(1 g) = 0.519 W/kg; SAR(10 g) = 0.409 W/kg Maximum value of SAR (measured) = 0.581 W/kg Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2014/04/28 P" LTE 17_QPSK10M_Right Cheek_Ch23800_1RB_OS24 DUT: 140409C03 Communication System: LTE; Frequency: 711 MHz;Duty Cycle: 1:1 Medium: H750_0428 Medium parameters used: f = 711 MHz;  = 0.86 S/m;  r = 40.728;  = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3590; ConvF(10.89, 10.89, 10.89); Calibrated: 2014/03/04; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2013/09/25 - Phantom: SAM Phantom_Left; Type: SAM V5.0; Serial: TP 1823 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) - Area Scan (61x111x1): Interpolated grid: …

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : May 14, 2014 Report No. : SA140409C02A Reference No.: 140409C03 Appendix C. Calibration Certificate for Probe and Dipole The SPEAG calibration certificates are shown as follows. Annual Confirmation of SAR Reference Dipole Model: D750V3 S/N : 1013 Measured Date : Apr. 24, 2014 Frequency (MHz) Type Item Previous Measurement Annual Check Deviation Accepted Tolerance Note 750 Head TSL Return Loss -29.272 -30.125 2.9 % ±20 % PASS Real Impedance 53.498 52.443 -1.055 ±5 Ω PASS Imaginary Impedance -0.66211 -1.9648 -1.30269 ±5 Ω PASS 750 Body TSL Return Loss -30.343 -29.365 -3.2 % ±20 % PASS Real Impedance 48.809 48.898 0.089 ±5 Ω PASS Imaginary Impedance -2.7578 -3.4515 -0.6937 ±5 Ω PASS 750 MHz, Head TSL 750 MHz, Body TSL Annual Confirmation of SAR Reference Dipole Model: D835V2 S/N : 4d121 Measured Date : Apr. 24, 2014 Frequency (MHz) Type Item Previous Measurement Annual Check Deviation Accepted Tolerance Note 835 Head TSL Return Loss -30.231 -29.447 -2.6 % ±20 % PASS Real Impedance 52.387 49.407 -2.98 ±5 Ω PASS Imaginary Impedance -2.0566 -3.3194 -1.2628 ±5 Ω PASS 835 Body TSL Return Loss -26.57 -25.576 -3.7 % ±20 % PASS Real Impedance 47.438 46.948 -0.49 ±5 Ω PASS Imaginary Impedance -3.791 -4.0984 -0.3074 ±5 Ω PASS 835 MHz, Head TSL 835 MHz, Body TSL Annual Confirmation of SAR Reference Dipole Model: D1900V2 S/N : 5d036 Measured Date : Jan. 20, 2014 Frequency (MHz) Type Item Previous Measurement Annual Check Deviation Accepted Tolerance Note 1900 Head TSL Return Loss -25.996 -25.844 -0.6 % ±20 % PASS Real Impedance 51.111 51.555 0.444 ±5 Ω PASS Imaginary Impedance 4.957 5.0363 0.0793 ±5 Ω PASS 1900 Body TSL Return Loss -24.508 -24.067 -1.8 % ±20 % PASS Real Impedance 47.498 46.556 -0.942 ±5 Ω PASS Imaginary Impedance 5.2422 4.9878 -0.2544 ±5 Ω PASS 1900 MHz, Head TSL 1900 MHz, Body TSL

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 47 Report No. : SA140409C02A Issued Date : May 14, 2014 Reference No.: 140409C03 FCC SAR Test Report Report No. : SA140409C02A Applicant : HTC Corporation Address : 1F, 6-3 Baoqiang Road, Xindian District, New Taipei City, Taiwan 231 Product : Smartphone FCC ID : NM8HTL23 Brand : HTC Model No. : HTL23 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 / KDB 248227 D01 v01r02 KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 / KDB 941225 D01 v02 KDB 941225 D02 v02r02 / KDB 941225 D03 v01 / KDB 941225 D05 v02r03 KDB 941225 D06 v01r01 Sample Received Date : Apr. 09, 2014 Date of Testing : Apr. 28, 2014 ~ May 06, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Ivonne Wu / Supervisor Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 47 Report No. : SA140409C02A Issued Date : May 14, 2014 Reference No.: 140409C03 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value .....................................................................................................…

Text truncated - open the document above for the full version.
