NM8LIBR100PDA Phone with Bluetooth

Smart User Manual 2 Please Read Before Proceeding THIS DEVICE IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’S OUTER CASING. PRIVACY RESTRICTIONS Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your Pocket PC Phone. INTELLECTUAL PROPERTY RIGHT INFORMATION Copyright © 2006 High Tech Computer Corp. All rights reserved. , , , ExtUSB are trademarks and/or service marks of High Tech Computer Corp. Microsoft, MS-DOS, Windows, Windows NT, Windows Server, Windows Mobile, ActiveSync, Excel, Internet Explorer, MSN, Hotmail, Outlook, PowerPoint, Word, and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc. microSD is a trademark of SD Card Association. Java, J2ME and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. Copyright © 2006, Adobe Systems Incorporated. Copyright © 2006, Macromedia Netherlands, B.V. Macromedia, Flash, Macromedia Flash, Macromedia Flash Lite and Reader are trademarks and/or registered trademarks of Macromedia Netherlands, B.V. or Adobe Systems Incorporated. Copyright © 2006, JATAAYU SOFTWARE (P) LTD. All Rights Reserved. Copyright © 2006, Tao Group Limited. All Rights Reserved. Copyright © 2006, Tegic Communications. T9 and XT9 are trademarks or registered trademarks of Tegic Communications. XT9 Mobile Interface is licensed under one or more of the following: U.S. Pat. Nos.5,187,480, 5,818,437, 5,945,928, 5,953,541, 6,011,554, 6,286,064, 6,307,548, 6,307,549, and 6,636,162, 6,646,573, 6,970,599, 6,801,190, 7,030,863, 7,088,345; Australia Pat. Nos. 727539, 746674, 747901; Austria Pat. Nos. AT225534, AT221222; Brazil P.I. No. 9609807-4; Canada Pat. Nos. 1,331,057, 2,227,904, 2,278,549, 2,302,595; Japan Pat. Nos. 3532780, 3492981; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK1010924; Republic of Singapore Pat. Nos. 51383, 66959, 71976, 89076; European Pat. Nos. 0 842 463 (96927260.8), 1 010 057 (98903671.0), 1 018 069 (98950708.2); Republic of Korea Pat. Nos. KR201211B1, KR226206B1, 402252, 552085; People’s Republic of China Pat. No. ZL96196739.0; Mexico Pat. Nos. 208141, 216023, 218409; Russian Federation Pat. Nos. 2206118, 2214620, 2221268; New Zealand Pat. No. 519928; and additional patents are pending worldwide. Licensed by QUALCOMM Incorporated under one or more of the following patents: 4,901,307 5,490,165 5,056,109 5,504,773 5,101,501 5,778,338 5,506,865 5,109,390 5,511,073 5,228,054 5,535,239 5,710,784 5,267,261 5,544,196 5,267,262 5,568,483 5,337,338 5,659,569 5,600,754 5,414,796 5,657,420 5,416,797 3 ArcSoft MMS Composer™ Copyright © 2003-2006, ArcSoft, Inc. and its licensors. All Rights Reserved. ArcSoft & the ArcSoft logo are registered trademarks of ArcSoft, Inc. in the United States and/or other countries. All other company, product and service names mentioned herein are trademarks, registered trademarks or service marks of their respective owners. HTC shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material. The information is provided “as is” without warranty of any kind and is subject to change without notice. HTC also reserves the right to revise the content of this document at any time without prior notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in a retrieval system, or translated into any language in any form without prior written permission of HTC. 4 Important Health Information and Safety Precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire and damage to the equipment, observe the following precautions. ELECTRICAL SAFETY This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION CAUTION – Connecting to an improperly grounded equipment can result in an electric shock to your device. This product equipped with a USB Cable for connecting with desk-top or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The desk-top or notebook computer is equipped with a power supply cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT • Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. • Handle battery packs carefully This product contains a Li-Ion or Li-Ion Polymer battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to …

Text truncated - open the document above for the full version.

Experiencing Multimedia 81 Using the above capture modes, the camera captures files in the following formats: Capture typeFormat Still ImageJPEG VideoMotion-JPEG (.avi) MPEG-4 (.mp4) H.263 baseline (.3gp) 3GPP2 (.3g2) MMS Video MPEG-4 (.mp4) H.263 baseline (.3gp) 3GPP2 (.3g2) Camera mode icons and indicators The Camera [Photo] screen 2 1 3 7 9 456 10 8 1 Picture Viewer. Click the left SOFT KEY to view the picture or video in Pictures & Videos. 2 Zoom-ratio. Indicates the current zoom ratio. Press NAVIGATION up/down or press the number keys as indicated to increase or decrease the zoom level. 3 Camera Settings. Click the right SOFT KEY to open the Camera Settings screen. 4 Exposure Value (EV). Allows you to set brightness by adjusting the exposure value from -2 EV to +2 EV (increments of 0.5) by pressing NAVIGATION left/right or using the number keys as indicated. 5 Metering Mode. Indicates the current metering mode. 6 White Balance. Indicates the current white balance setting. : Auto; : Daylight; : Night; : Incandescent; : Fluorescent. 7 Self-timer. Indicates the current self-timer setting while capturing images. Choose the self-timer setting (Off, 2 seconds, or 10 seconds) from the Camera Settings screen. 8 Remaining Information Indicator. In Photo, Contacts Picture, Picture Theme, Panorama, and Sports, this shows the remaining, available shots of pictures that you can take based on the current settings. In Video and MMS Video modes, this shows the remaining duration that can be recorded. While recording video, this shows the recorded duration. 9 Storage. Indicates where the captured images and video clips will be saved. The icon indicates the phone’s main memory; the icon indicates the storage card. 10 Resolution. Indicates the current image or video size based on the resolution you chose. For the list of available resolutions, see “Use zooming.” 11 Capture mode. Indicates the current capture mode. 11 82 Experiencing Multimedia The Camera [Video] screen The recording status is displayed by a red, blinking indicator while video recording is in progress. Recording Status The Camera [Picture Theme] screen Progress Indicator In Picture Theme, Panorama, and Sports modes, this indicates the total number of consecutive shots. The Review screen After capturing image or recording video, the Review screen appears allowing you to decide the action for the image/video. Photo, Video, MMS Video, Picture Theme, and Panorama modes Contacts Picture mode Sports mode IconFunction Back. Click to go back to Camera screen. Delete. Click to remove the captured image or video clip. Send. Click to send the captured image or video clip to someone via e-mail or MMS. View. Click to switch to Pictures & Videos to show the still image, or switch to Windows Media Player to play back the video clip. Assign to Contacts. Click to associate the photo to a selected contact. Note After you have taken photos in Sports mode, the total number of consecutive shots is shown at the lower right corner of the Review screen. Press NAVIGATION CONTROL up/down or use number keys as indicated to browse through the sequence of photos. Experiencing Multimedia 83 Use Still Image capture modes While using Still Image capture modes, such as Photo, Contacts Picture, Picture Theme, and Panorama, you can capture a single still image by pressing ENTER. In Sports mode, press ENTER once, and then pan your phone to take the consecutive shots. The number of shots taken depends on the option you set. Still images are captured and saved in the JPEG format. While capturing an image in the Picture Theme mode, you can select a preset template. To browse and choose from different templates, click the right SOFT KEY on the Camera screen, and then use the NAVIGATION CONTROL to select . Depending on the chosen template, one or more photos may need to be taken for the template. Use Video capture mode While using the Video capture mode, press ENTER to start recording a video clip (with audio if desired). To stop recording, press ENTER again. Your phone displays the first frame of the captured video clip by default on the Review screen. Before you capture a video clip, click the right SOFT KEY and then select > Capture Format to specify the file format. You can set the encoding format to Motion-JPEG, MPEG4, H.263, or 3GPP2. You can also specify the recording limit in terms of time or file size by pressing the right SOFT KEY then selecting > Record ing Limit. To change the video resolution, click the right SOFT KEY and then select . Use MMS Video capture mode While using the MMS Video capture mode, press ENTER to start recording a video clip (with audio if desired). To stop recording, press ENTER again. The recording length of MMS video is fixed. The recording automatically stops when the preset length is reached. However, you can manually stop recording the video anytime. The time indicator at the top-right side of the screen indicates the time limit. You can specify the encoding format to be either H.263, MPEG4, or 3GPP2 by clicking the right SOFT KEY then selecting > Capture Format; however, the ideal format for MMS is H.263 (.3gp). After you capture the video file, click the Send icon ( ) to send the file through MMS. Use zooming Before capturing a still image or a video clip, you can first zoom in to make the object in focus move closer, and you can zoom out to make the object move farther away. In all capture modes, press NAVIGATION up on your phone to zoom in, NAVIGATION down to zoom out. You can also use the number keys as indicated to zoom in or out in any capture mode. 84 Experiencing Multimedia The camera zoom range for a picture or video depends on the capture mode and capture size. The following table is a summary. Please note the capture sizes available for certain capture formats also vary from one capture mode to another. The zoom range has been calculated based on the following ratio: Capture modeResolutionZoom range Video and MMS VideoSmall (…

Text truncated - open the document above for the full version.

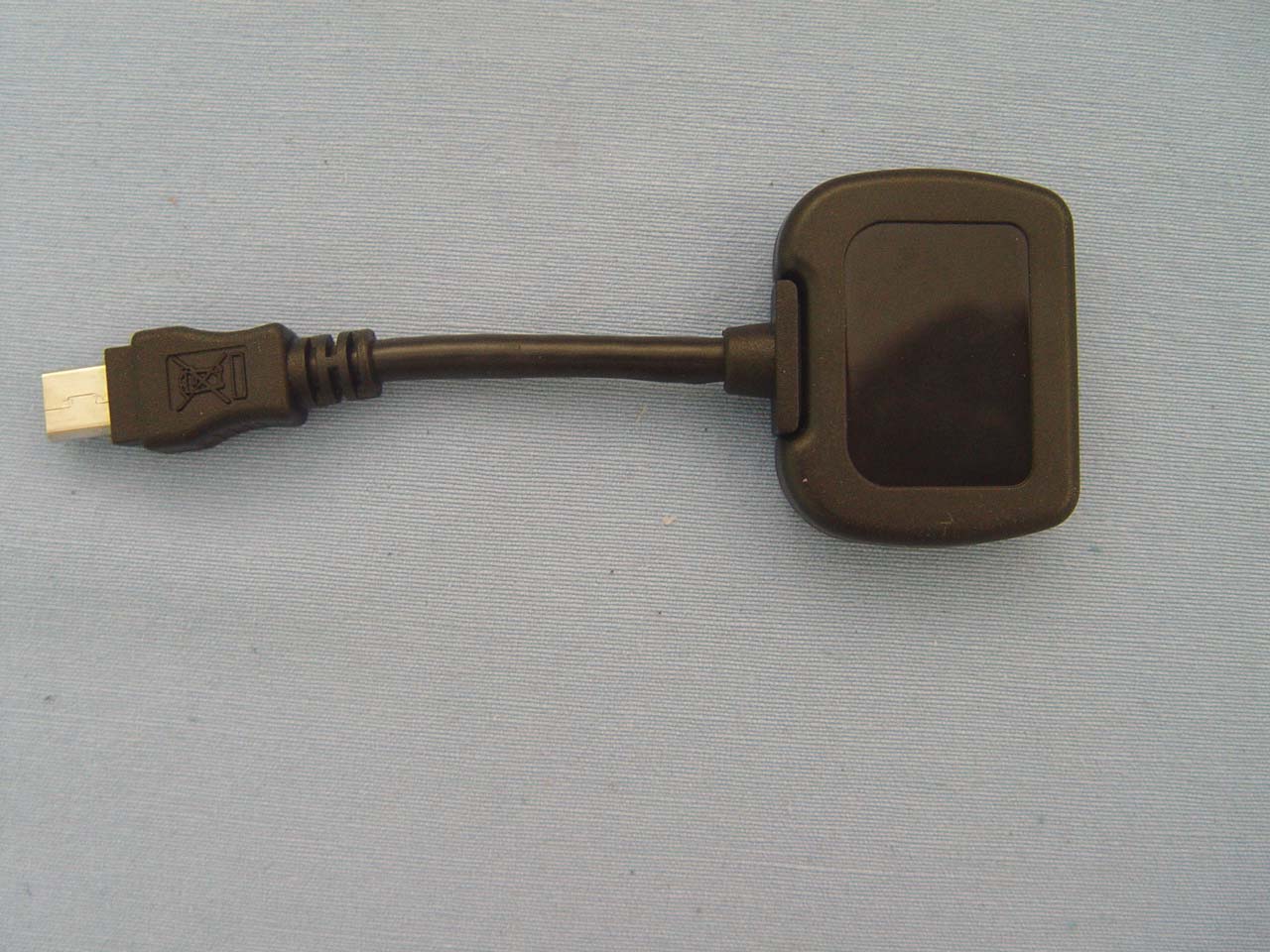

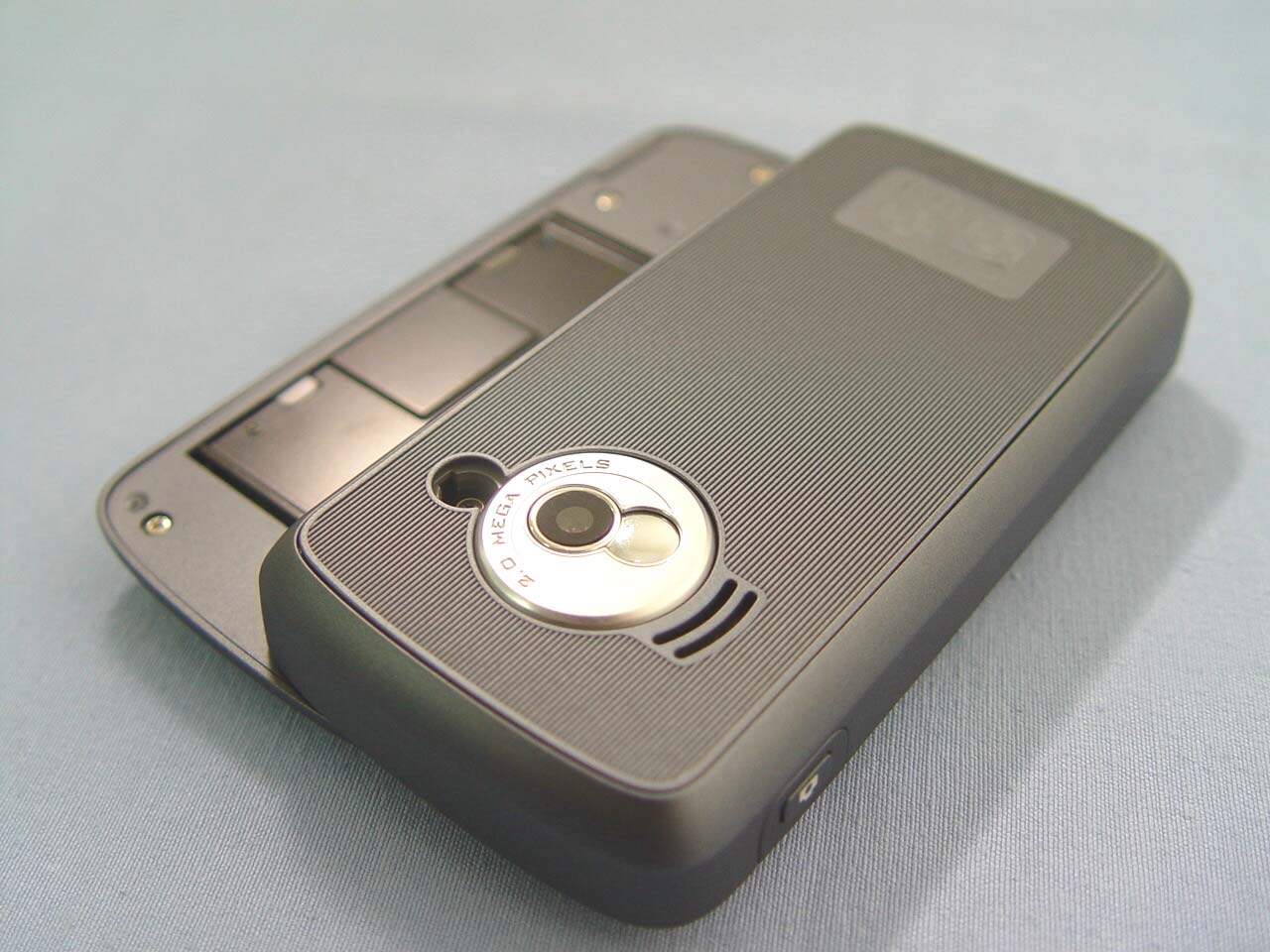

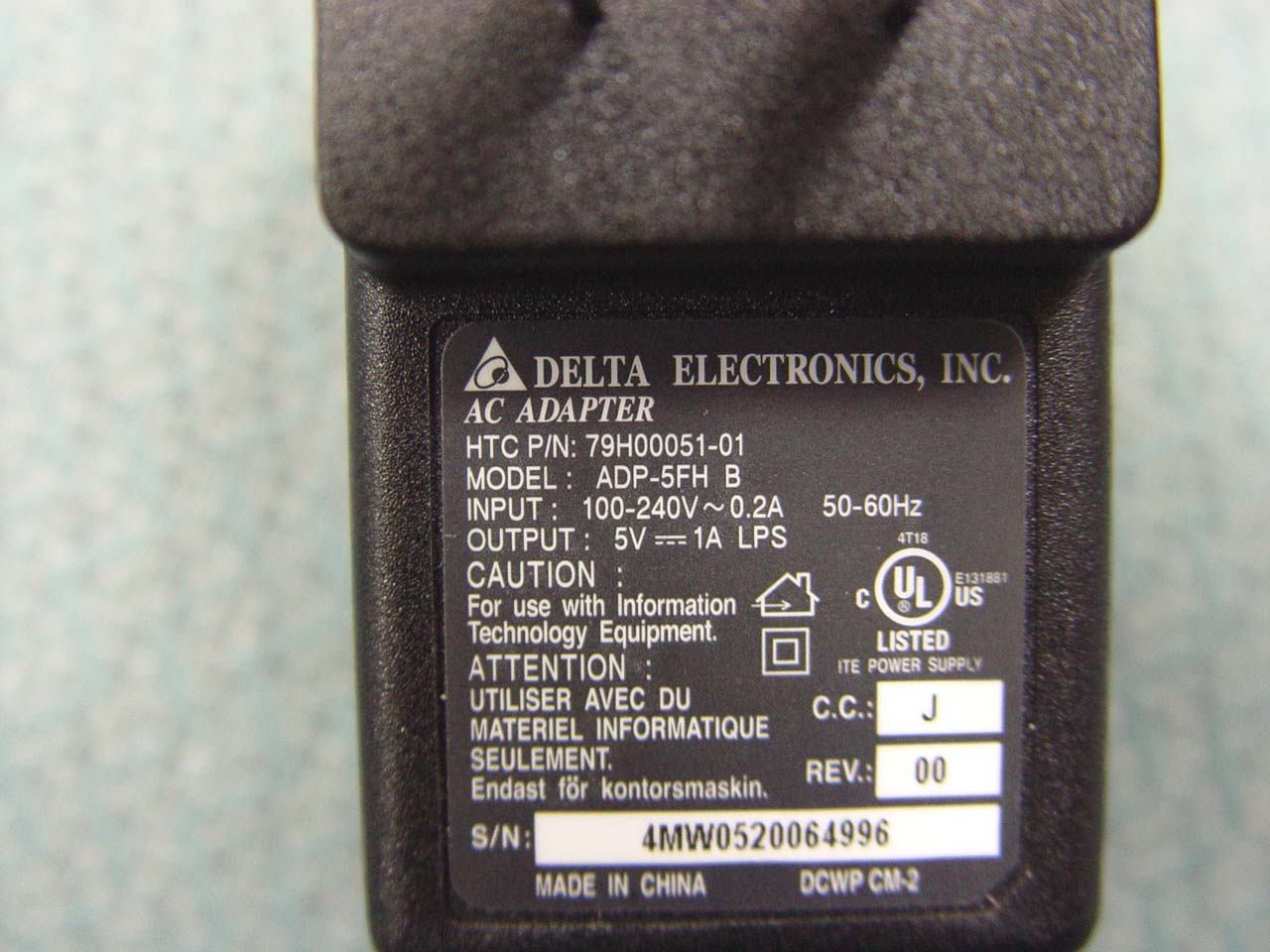

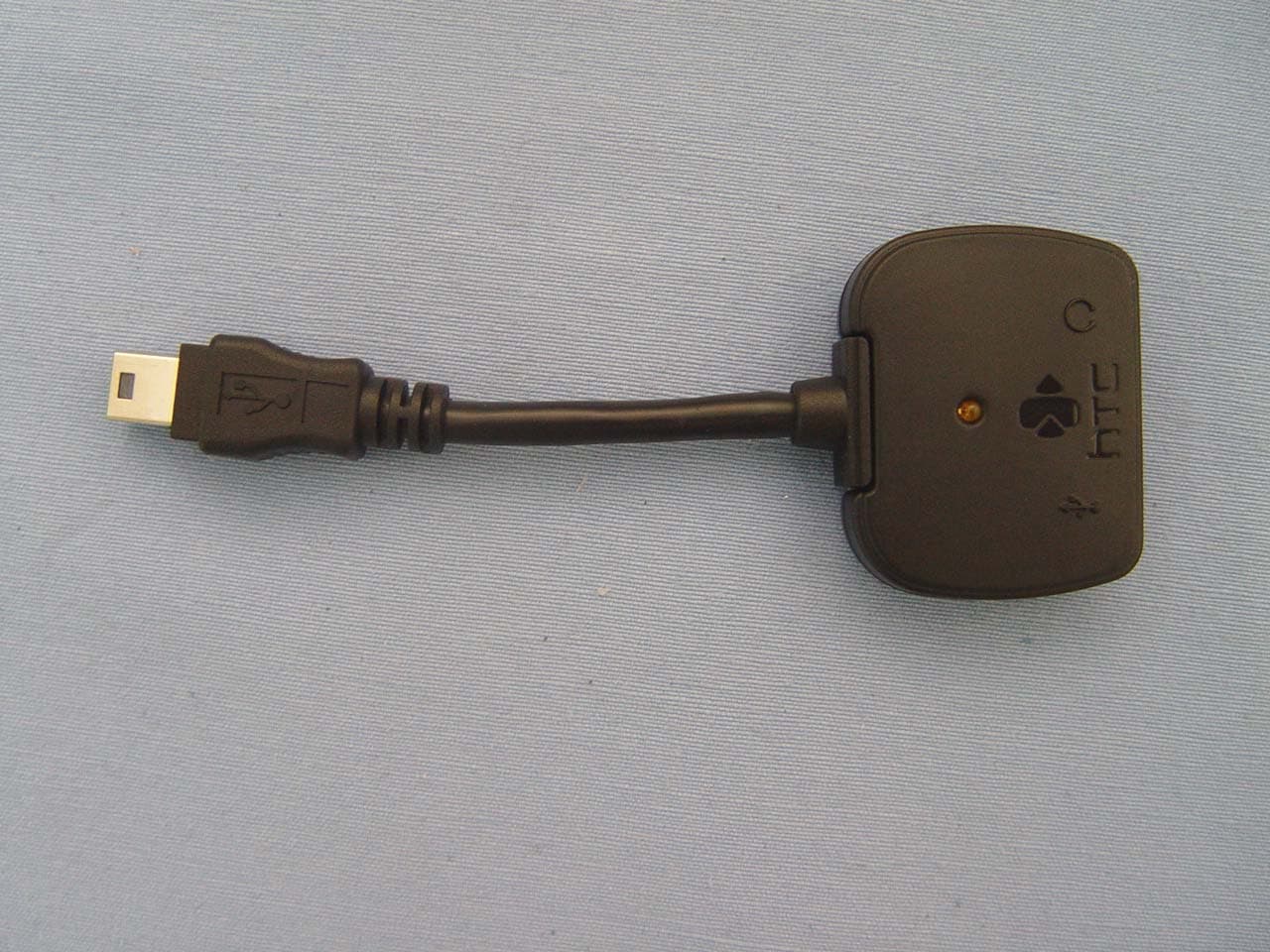

Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 1 Total Page: 16 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 2 Rev.00 Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 3 Rev.00 Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 6 Rev.00 Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 7 Rev.00 Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 9 Rev.00

HTC Confidential LIBR100 Label Plan High Tech Computer Corp. 1 1

Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 10 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 11 Rev.00 Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 12 Rev.00 Bluetooth Antenna GSM Antenna Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 13 Rev.00 Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 14 Rev.00 GSM Antenna Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 15 Rev.00 Bluetooth Antenna Compliance Certification Services Inc. Report No.: 60703201 Date of Issue: March 27, 2007 Page 16 Rev.00

Compliance Certification Services Inc. Report No.: 60703201-SF FCC ID: NM8LIBR100 Date of Issue: March 26, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page1 of 39 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Smart Phone Model: LIBR100 Trade Name: N/A Issued to High Tech Computer Corp. 1F, No. 6-3, Baoqiang Rd., Xindian City, Taipei County 231, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60703201-SF FCC ID: NM8LIBR100 Date of Issue: March 26, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION)........................................................3 2. EUT DESCRIPTION .........................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ........................5 4. DOSIMETRIC ASSESSMENT SETUP...........................................................................................5 4.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................6 4.2 SYSTEM COMPONENTS............................................................................................................7 5. EVALUATION PROCEDURES.......................................................................................................9 6. MEASUREMENT UNCERTAINTY..............................................................................................13 7. EXPOSURE LIMIT .........................................................................................................................14 8. EUT ARRANGEMENT ...................................................................................................................15 8.1 ANTHROPOMORPHIC HEAD PHANTOM.............................................................................15 8.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION ............................................................16 8.3 DEFINITION OF THE “TILTED” POSITION...........................................................................17 9. MEASUREMENT RESULTS .........................................................................................................18 9.1 SYSTEM PERFORMANCE CHECK .........................................................................................18 9.2 TEST LIQUIDS CONFIRMATION............................................................................................20 9.3 EUT TUNE-UP PROCEDURES .................................................................................................22 9.4 SAR MEASUREMENT RESULTS ............................................................................................25 10. EQUIPMENT LIST & CALIBRATION STATUS .......................................................................37 11. FACILITIES .....................................................................................................................................38 12. REFERENCES .................................................................................................................................38 13. ATTACHMENTS .............................................................................................................................39 Compliance Certification Services Inc. Report No.: 60703201-SF FCC ID: NM8LIBR100 Date of Issue: March 26, 2007 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant High Tech Computer Corp. 1F, No. 6-3, Baoqiang Rd., Xindian City, Taipei County 231, Taiwan, R.O.C. Equipment Under Test: Smart Phone Trade Name: N/A Model Number: LIBR100 Date of Test: March 14 ~ 16, 2007 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C(Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Johnny Liu Rex Lai Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 60703201-SF FCC ID: NM8LIBR100 Date of Issue: March 26, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Smart Phone Trade Name N/A Model Number LIBR100 Model Discrepancy N/A Frequency Range CDMA Cellular: 824 MHz to 849 MHz CDMA PCS: 1850 MHz to1910 MHz EVDO Cellular: 824 MHz to 849 MHz EVDO PCS: 1850 MHz to1910 MHz Bluetooth: 2400MHz to 2483.5MHz Transmit Power CDMA Cellular: 25.08 dBm CDMA PCS: 25.08 dBm EVDO Cellular: 25.20 dBm EVDO PCS: 25.01 dBm Max. SAR (1g): CDMA Cellular: Head: 1.110 W/kg (Right head Cheek position) Body: 1.030 W/kg (Body position) EVDO: 1.150 W/kg (Body position) CDMA PCS: Head: 1.490 W/kg (Right head Tilted position) Body: 1.160 W/kg (Body position) EVDO: 1.380 W/kg (Body position) Modulation Technique TDMA Antenna Specification Antenna. Type CDMA antenna: Monopole antenna Bluetooth antenna: Monopole antenna Compliance Certification Services Inc. Report No.: 60703201-SF FCC ID: NM8LIBR100 Date of Issue: March 26, 2007 Page…

Text truncated - open the document above for the full version.

Date/Time:3/15/2007 10:59:10 AM Test Laboratory: Compliance Certification Services Inc. D835V2-SN 4d015-Head DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d015 Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835 MHz; ı = 0.902 mho/m; İ r = 41.5; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(10.57, 10.57, 10.57); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.77 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 52.1 V/m; Power Drift = -0.002 dB Peak SAR (extrapolated) = 3.54 W/kg SAR(1 g) = 2.31 mW/g; SAR(10 g) = 1.48 mW/g Maximum value of SAR (measured) = 2.83 mW/g d=10mm, Pin=250mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.94 mW/g Page1 Page2 Date/Time:3/14/2007 9:56:42 AM Test Laboratory: Compliance Certification Services Inc. D1900V2 SN-5d056 Head DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d056 Communication System: CW1900; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1900 MHz; ı = 1.44 mho/m; İ r = 39.2; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.4 deg C;Liquid Temperature:23.4 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(8.52, 8.52, 8.52); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.95 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 96.7 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 9.6 mW/g; SAR(10 g) = 4.9 mW/g Maximum value of SAR (measured) = 13.0 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 13.5 mW/g Page1 Page2 Date/Time:3/16/2007 10:59:10 AM Test Laboratory: Compliance Certification Services Inc. D835V2-SN 4d015-Body DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d015 Communication System: CW 835; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835 MHz; ı = 0.941 mho/m; İ r = 55.4; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.0 deg C;Liquid Temperature:23.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(10.96, 10.96, 10.96); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.99 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 53.0 V/m; Power Drift = -0.002 dB Peak SAR (extrapolated) = 3.81 W/kg SAR(1 g) = 2.49 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 3.06 mW/g d=10mm, Pin=250mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 2.10 mW/g Page1 Page2 Date/Time:3/16/2007 8:45:02 AM Test Laboratory: Compliance Certification Services Inc. D1900V2 SN-5d056 Body DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d056 Communication System: CW1900; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; ı = 1.5 mho/m; İ r = 51.7; ȡ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.0 deg C;Liquid Temperature:23.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV3 - SN3531; ConvF(8.43, 8.43, 8.43); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.23 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 94.1 V/m; Power Drift = -0.071 dB Peak SAR (extrapolated) = 16.0 W/kg SAR(1 g) = 9.28 mW/g; SAR(10 g) = 4.78 mW/g Maximum value of SAR (measured) = 12.5 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 13.5 mW/g Page1 Page2 Date/Time: 3/15/2007 1:51:23 PM Test Laboratory: Compliance Certification Services Inc. CDMA Cellular Left Head LIBR100 close DUT: LIBR100; Type: Cell phone; Serial: N/A Communication System: CDMA Cellular; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.7 MHz; ı = 0.892 mho/m; İ r = 41.7; ȡ = 1000 kg/m 3 Phantom section: Left Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe:EX3DV3 - SN3531; ConvF(10.57, 10.57, 10.57); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom:…

Text truncated - open the document above for the full version.

Date/Time: 3/15/2007 2:37:53 PM Test Laboratory: Compliance Certification Services Inc. CDMA Cellular Left Head LIBR100 slide DUT: LIBR100; Type: Cell phone; Serial: N/A Communication System: CDMA Cellular; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 824.7 MHz; ı = 0.892 mho/m; İ r = 41.7; ȡ = 1000 kg/m 3 Phantom section: Left Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe:EX3DV3 - SN3531; ConvF(10.57, 10.57, 10.57); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Left CheekLow CH1013/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.995 mW/g Left CheekLow CH1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 29.9 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.878 mW/g; SAR(10 g) = 0.625 mW/g Maximum value of SAR (measured) = 1.02 mW/g Page1 Page2 Date/Time: 3/15/2007 2:52:59 PM Test Laboratory: Compliance Certification Services Inc. CDMA Cellular Left Head LIBR100 slide DUT: LIBR100; Type: Cell phone; Serial: N/A Communication System: CDMA Cellular; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; ı = 0.903 mho/m; İ r = 41.5; ȡ = 1000 kg/m 3 Phantom section: Left Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe:EX3DV3 - SN3531; ConvF(10.57, 10.57, 10.57); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Left Cheek Middle CH384/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.14 mW/g Left Cheek Middle CH384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 31.8 V/m; Power Drift = -0.008 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1.050 mW/g; SAR(10 g) = 0.745 mW/g Maximum value of SAR (measured) = 1.23 mW/g Page1 Page2 Date/Time: 3/15/2007 3:07:19 PM Test Laboratory: Compliance Certification Services Inc. CDMA Cellular Left Head LIBR100 slide DUT: LIBR100; Type: Cell phone; Serial: N/A Communication System: CDMA Cellular; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 848.31 MHz; ı = 0.914 mho/m; İ r = 41.3; ȡ = 1000 kg/m 3 Phantom section: Left Section Air Temperature:24.2 deg C;Liquid Temperature:23.2 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe:EX3DV3 - SN3531; ConvF(10.57, 10.57, 10.57); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE3 Sn500; Calibrated: 8/23/2006 z Phantom: SAM 34; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Left Cheek Low CH777/Area Scan (8x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.06 mW/g Left Cheek Low CH777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 29.8 V/m; Power Drift = -0.051 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.917 mW/g; SAR(10 g) = 0.651 mW/g Maximum value of SAR (measured) = 1.022 mW/g Left Cheek Low CH777/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 29.8 V/m; Power Drift = -0.051 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.770 mW/g; SAR(10 g) = 0.490 mW/g Maximum value of SAR (measured) = 0.982 mW/g Page1 Page2 Date/Time: 3/15/2007 3:31:03 PM Test Laboratory: Compliance Certification Services Inc. CDMA Cellular Left Head LIBR100 slide DUT: LIBR100; Typ…
