NM8OPBGSM/GPRS/EDGE Smart phone with WLAN and Bluetooth

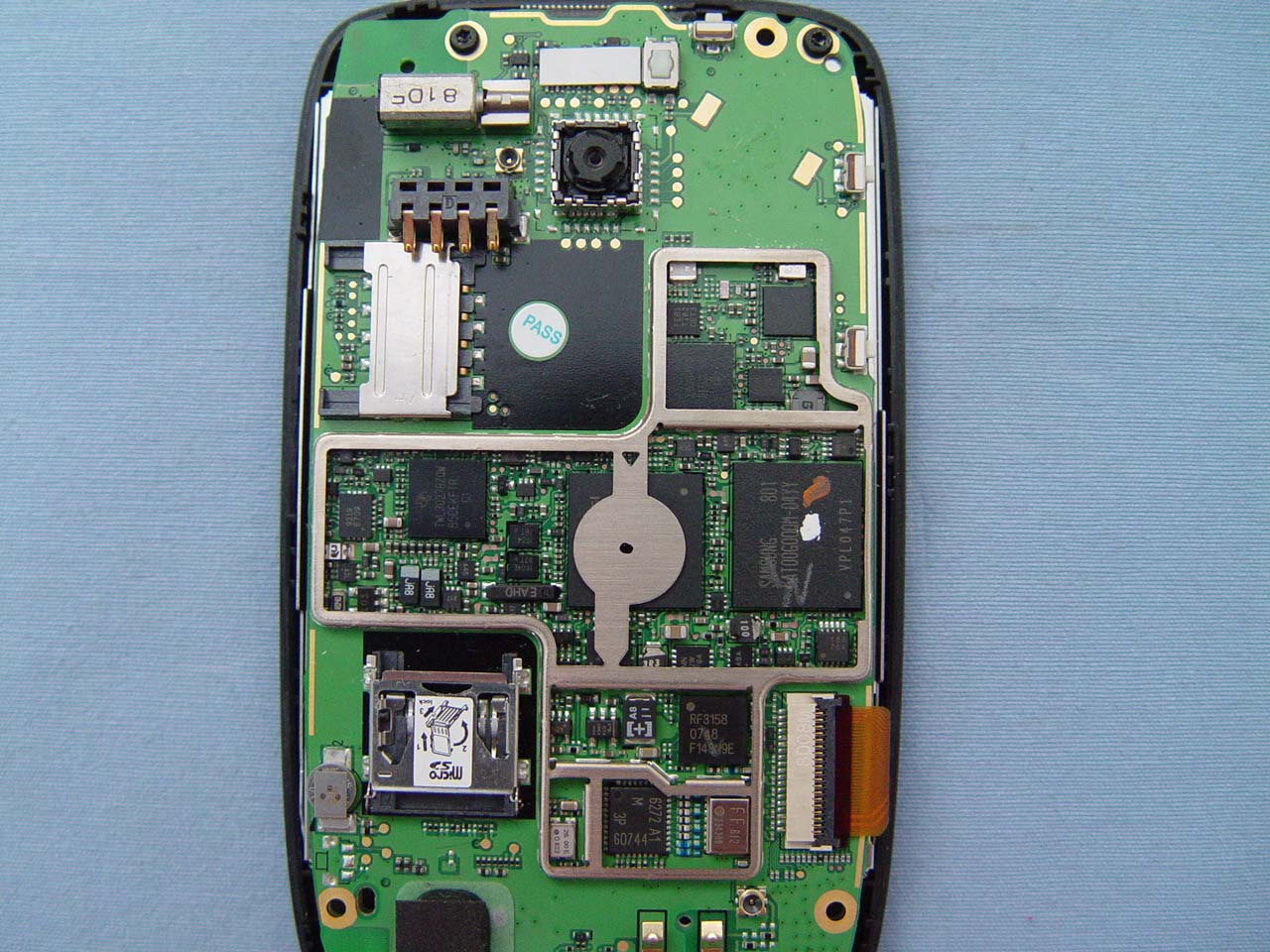

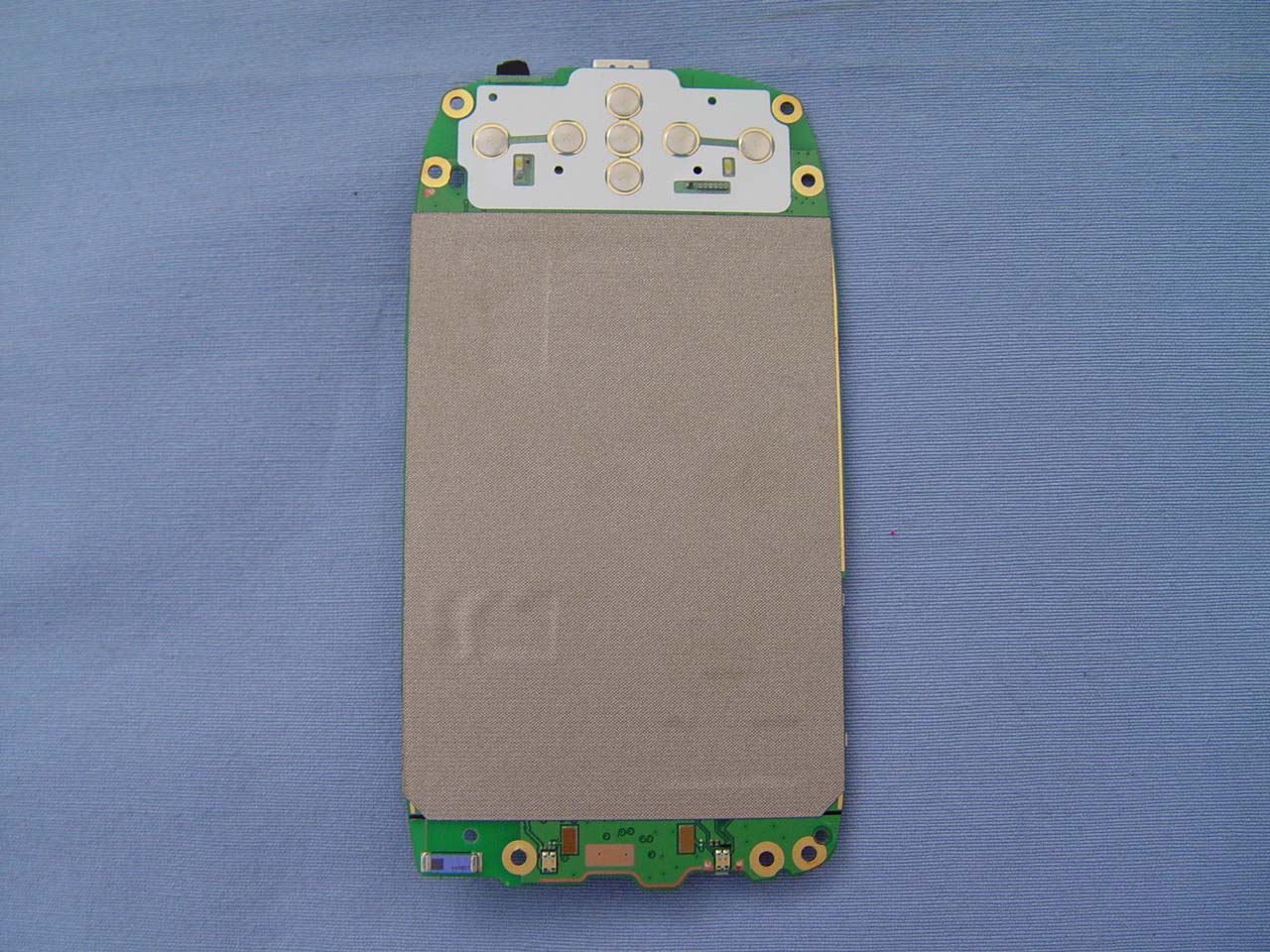

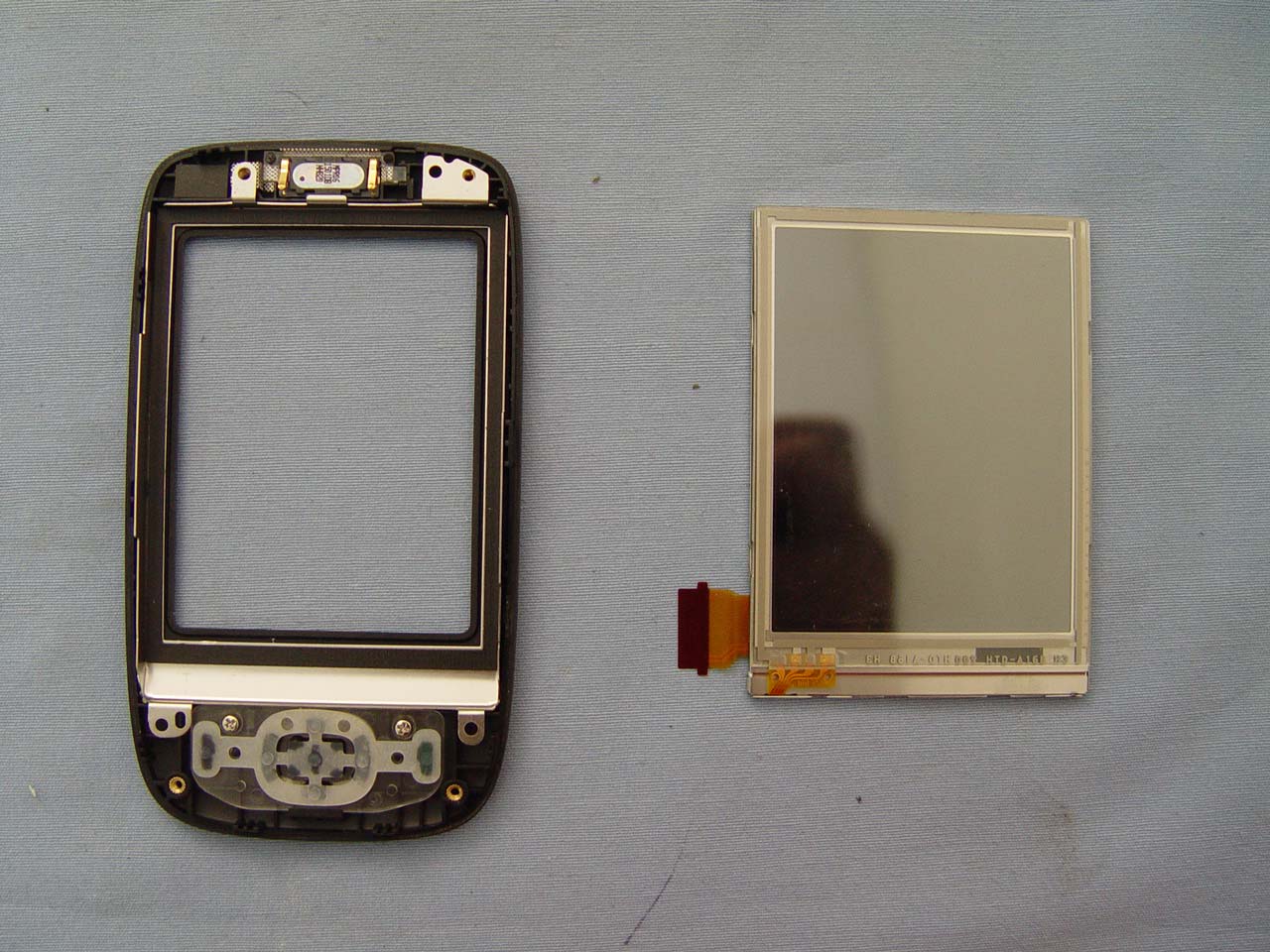

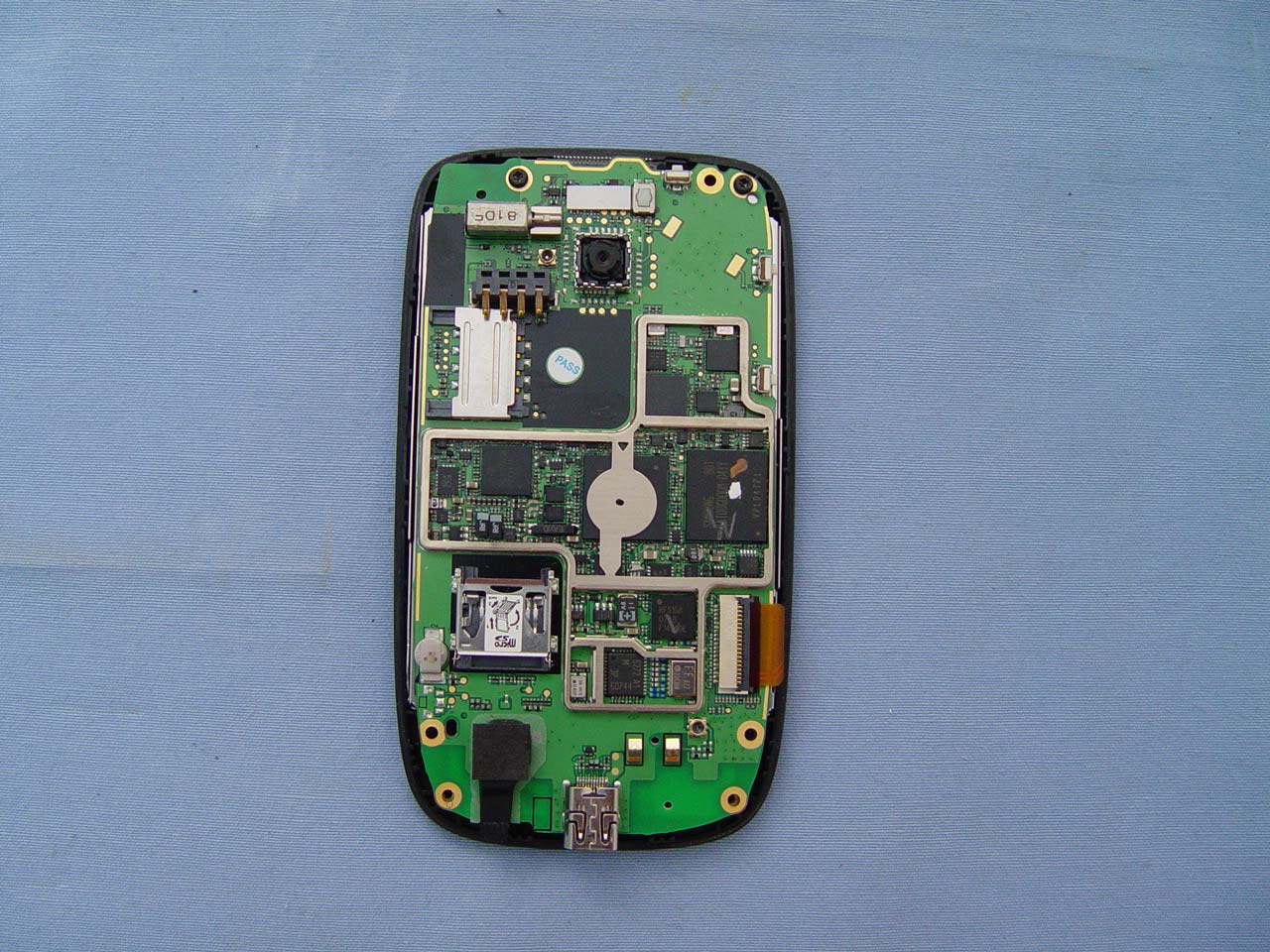

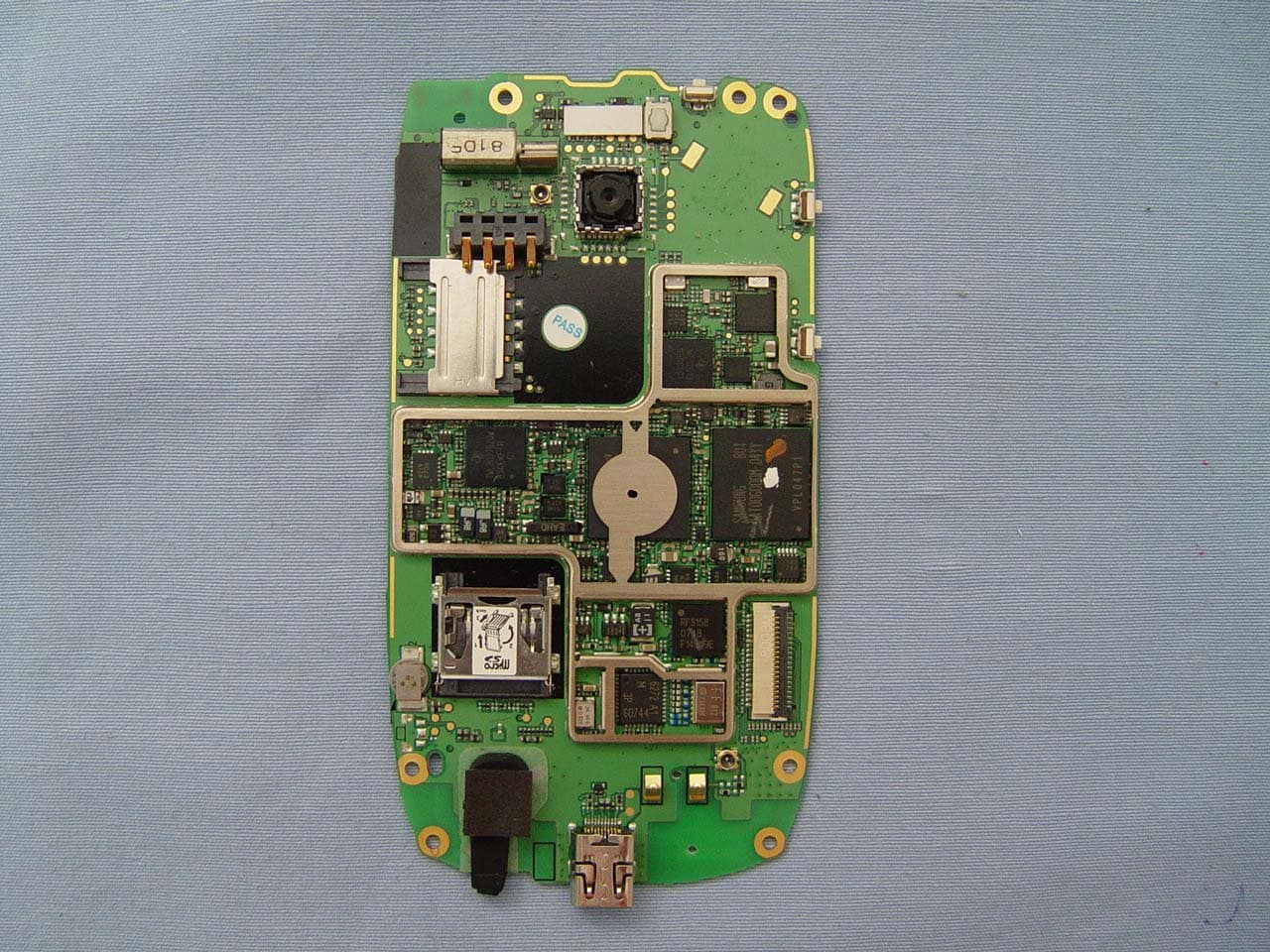

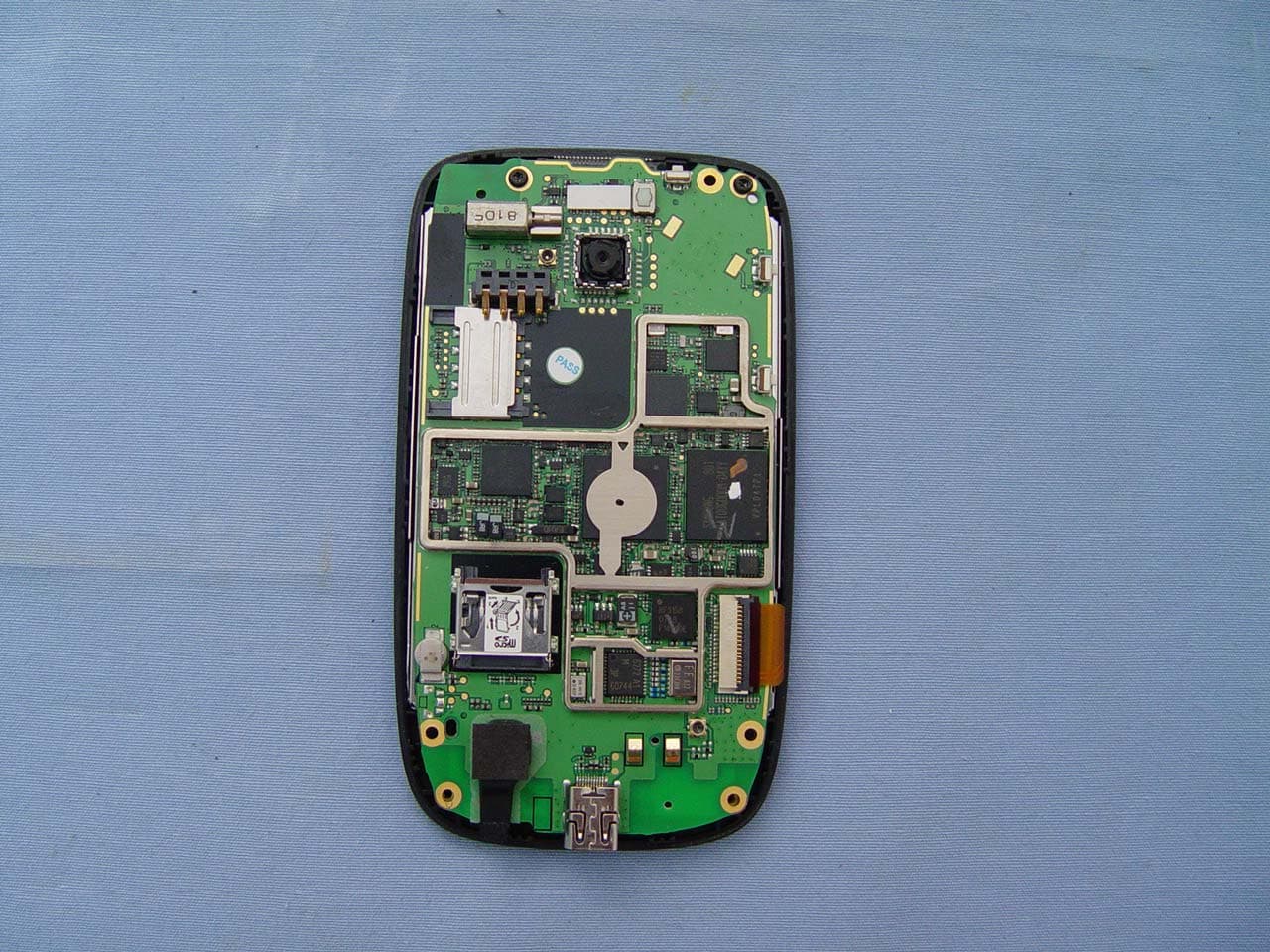

Compliance Certification Services Inc. Report No.: 80827003 Date of Issue: October 6, 2008 Page 5 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 80827003 Date of Issue: October 6, 2008 Page 6 Rev. 00 Compliance Certification Services Inc. Report No.: 80827003 Date of Issue: October 6, 2008 Page 7 Rev. 00 Compliance Certification Services Inc. Report No.: 80827003 Date of Issue: October 6, 2008 Page 8 Rev. 00 Compliance Certification Services Inc. Report No.: 80827003 Date of Issue: October 6, 2008 Page 9 Rev. 00

Compliance Certification Services Inc. Report No: 80827003-SF FCC ID: NM8OPB Date of Issue: September 18, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 31 Rev. 00 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For PDA phone Model: OPAL100 Trade Name: HTC Issued to HTC Corporation No. 23 Xinghua Rd., Taoyuan City, Taiwan County, 330 R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien, 248 Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 80827003-SF Date of Issue: September 18, 2008 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ....................................................3 2. EUT DESCRIPTION ......................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .........................5 4. DOSIMETRIC ASSESSMENT SETUP........................................................................................5 4.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................6 4.2 SYSTEM COMPONENTS............................................................................................................7 5. EVALUATION PROCEDURES ...................................................................................................9 6. MEASUREMENT UNCERTAINTY ..........................................................................................13 7. EXPOSURE LIMIT ......................................................................................................................14 8. EUT ARRANGEMENT................................................................................................................15 8.1 ANTHROPOMORPHIC HEAD PHANTOM.............................................................................15 8.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION ............................................................16 8.3 DEFINITION OF THE “TILTED” POSITION...........................................................................17 9. MEASUREMENT RESULTS......................................................................................................18 9.1 SYSTEM PERFORMANCE CHECK .........................................................................................18 9.2 TEST LIQUIDS CONFIRMATION............................................................................................20 9.3 EUT TUNE-UP PROCEDURES .................................................................................................24 9.4 SAR MEASUREMENT RESULTS ............................................................................................26 10. EQUIPMENT LIST & CALIBRATION STATUS ....................................................................33 11. FACILITIES..................................................................................................................................34 12. REFERENCES ..............................................................................................................................34 13. ATTACHMENTS..........................................................................................................................35 Compliance Certification Services Inc. Report No.: 80827003-SF Date of Issue: September 18, 2008 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant HTC Corporation No. 23 Xinghua Rd., Taoyuan City, Taiwan County, 330 R.O.C. Equipment Under Test: PDA phone Trade Name: HTC Model Number: OPAL100 Date of Test: August 26 ~ September 06, 2008 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C(Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Rex Lai Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 80827003-SF Date of Issue: September 18, 2008 Page 4 Rev. 00 2. EUT DESCRIPTION Product PDA phone Model Number / Trade Name OPAL100 / HTC Model Discrepancy N/A Frequency Range GSM / GPRS / EGPRS: 850: 824 ~ 849 MHz GSM / GPRS / EGPRS: 1900: 1850 ~ 1910 MHz 802.11b / g: 2400 ~ 2483.5 MHz Bluetooth: 2400 ~ 2483.5 MHz 850 Band: GSM 850: 33.27 dBm GPRS 850: 33.28 dBm EDGE850: 26.84 dBm 1900 Band: GSM 1900: 29.92 dBm GPRS 1900: 29.93 dBm EDGE1900: 26.12 dBm Transmit Power(Average) 2.4GHz: 802.11b: 16.88 dBm 802.11g: 14.13 dBm Bluetooth (GFSK): -0.91 dBm Bluetooth (8DPSK): -4.34 dBm Max. SAR (1g): GSM 850: Head: 0.292 W/kg (Right head Cheek position) Body: 0.339 W/kg (Body position) GPRS: 0.639 W/kg (Body position) EDGE: 0.191 W/kg (Body position) PCS1900: Head: 0.941 W/kg (Left head Cheek position) Body: 0.657 W/kg (Body position) GPRS: 1.370 W/kg (Body position) EDGE: 0.514 W/kg (Body position) 802.11b: Head: 0.111 W/kg (Left head Tilted position) Body: 0.020 W/kg (Body position) 802.11g: Head: 0.098 W/kg (Right head Cheek position) Body: 0.016 W/kg (Body position) Modulation Technique GSM / PCS: TDMA 802.11b: Direct Sequence Spread Spectr…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 80827003-RP3 FCC ID: NM8OPB Date of Issue: October 6, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 99 Rev. 00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E TEST REPORT For PDA phone Trade Name: HTC Model: OPAL100 Issued to HTC Corporation No. 23, Xinghua Rd., Taoyuan City, Taiwan County, 330 R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 80827003-RP3 FCC ID: NM8OPB Date of Issue: October 6, 2008 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 9 5.1 FACILITIES.............................................................................................................................. 9 5.2 EQUIPMENT............................................................................................................................. 9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 11 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 11 6.2 SUPPORT EQUIPMENT .................................................................................................... 11 7. FCC PART 22 & 24 REQUIREMENTS ................................................................................... 12 7.1 AVERAGE POWER.............................................................................................................. 12 7.2 ERP & EIRP MEASUREMENT ......................................................................................... 14 7.3 OCCUPIED BANDWIDTH MEASUREMENT ................................................................. 19 7.4 OUT OF BAND EMISSION AT ANTENNA TERMINALS ............................................. 30 7.5 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ............................ 48 7.6 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT ........................... 86 7.7 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ..................................... 90 7.8 POWERLINE CONDUCTED EMISSIONS.................................................................................... 94 APPENDIX I PHOTOGRAPHS OF TEST SETUP........................................................................ 97 Compliance Certification Services Inc. Report No.: 80827003-RP3 FCC ID: NM8OPB Date of Issue: October 6, 2008 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: HTC Corporation No. 23, Xinghua Rd., Taoyuan City, Taiwan County, 330 R.O.C. Equipment Under Test: PDA phone Trade Name: HTC Model Number: OPAL100 Date of Test: August 28 ~ September 1, 2008 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI/TIA/EIA-603-A-2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rule FCC PART 22 Subpart H and PART 24 Subpart E. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 80827003-RP3 FCC ID: NM8OPB Date of Issue: October 6, 2008 Page 4 Rev. 00 2. EUT DESCRIPTION Product PDA phone Tr a de N a me HTC Model Number OPAL100 Model Discrepancy N/A Power Supply 1. VDC from Power Adapter 2. Battery 3. Powered from Host device via USB cable Power Adapter Power Rating PSAI05R-050Q I/P: 100-240VAC, 50-60Hz, 0.3A O/P: 5V, 1.0A HITACHI Model 60H00071-00M LCD Panel Manufacturer TPO Model 60H00119-00M Liteon Model D00074209 Camera Manufacturer Primax Model D00074213 TWS Model PHAR160 (3.7V, 1100mAh) Battery Pack Manufacturer WELLDONE Model PHAR160 (3.7V, 1100mAh) Acce…

Text truncated - open the document above for the full version.

APPENDIX III SAR TEST SETUP PHOTO Head position: Left Cheek position Right Cheek position Left Tilted position Right Tilted position Body position Face Up Face Down 15mm 15mm
