NM8PB31200Smartphone

User Manual www.htc.com  Please Read Before Proceeding THE BATTERY IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. PRIVACY RESTRICTIONS Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. INTELLECTUAL PROPERTY RIGHT INFORMATION Copyright © 2009 HTC Corporation. All Rights Reserved. HTC, the HTC logo, HTC Innovation, ExtUSB, HTC Sense, HTC Peep, Footprints, HTC Sync, and HTC Care are trademarks and/or service marks of HTC Corporation. Copyright © 2009 Google Inc. Used with permission. Google, the Google logo, Android, Google Search, Google Maps, Gmail, YouTube, Android Market, and Google Talk are trademarks of Google Inc. Google, the Google logo and Google Maps are trademarks of Google, Inc. TeleAtlas® Map Data ©2009. Street View Images ©2009 Google. Microsoft, Windows, Windows XP, Windows Vista, Word, Excel, PowerPoint, and Outlook are either registered trademarks or  trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc. Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc. microSD is a trademark of SD Card Association. Java, J2ME and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. Twitter is a trademark of Twitter, Inc., and is used under license. Facebook is a trademark of Facebook, Inc. Flickr is a trademark of Yahoo! Inc. This device contains Adobe® Flash® Player software under license from Adobe Systems Incorporated, Copyright © 1995-2009 Adobe Macromedia Software LLC Licensed by QUALCOMM Incorporated under one or more of the following patents: 4,901,307 5,490,165 5,056,109 5,504,773 5,101,501 5,778,338 5,506,865 5,109,390 5,511,073 5,228,054 5,535,239 5,710,784 5,267,261 5,544,196 5,267,262 5,568,483 5,337,338 5,659,569 5,600,754 5,414,796 5,657,420 5,416,797 All other company, product and service names mentioned herein are trademarks, registered trademarks or service marks of their respective owners. HTC shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material. The information is provided “as is” without warranty of any kind and is subject to change without  notice. HTC also reserves the right to revise the content of this document at any time without prior notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in a retrieval system, or translated into any language in any form without prior written permission of HTC. Disclaimers THE WEATHER INFORMATION, STOCK DATA, DATA AND DOCUMENTATION ARE PROVIDED “AS IS” AND WITHOUT WARRANTY OR TECHNICAL SUPPORT OF ANY KIND FROM HTC. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, express or implied, arising by law or otherwise, regarding the Weather Information, Stock Data, Data, Documentation, or any other Products and services, including without limitation any express or implied warranty of merchantability, express or implied warranty of fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, usefulness, that the Weather Information, Stock Data, Data and/or Documentation will be error-free, or implied warranties arising from course of dealing or course of performance. Without limiting the foregoing, it is further understood that HTC and its Providers are not responsible for Your use or misuse of the Weather Information, Stock Data, Data and/or Documentation or the results from such use. HTC and its Providers make no express or implied warranties, guarantees or affirmations that weather information will occur or has occurred as the reports, forecasts,  data, or information state, represent or depict and it shall have no responsibility or liability whatsoever to any person or entity, parties and non-parties alike, for any inconsistency, inaccuracy, or omission for weather or events predicted or depicted, reported, occurring or occurred. WITHOUT LIMITING THE GENERALITY OF THE FOREGOING, YOU ACKNOWLEDGE THAT THE WEATHER INFORMATION, STOCK DATA, DATA AND/OR DOCUMENTATION MAY INCLUDE INACCURACIES AND YOU WILL USE COMMON SENSE AND FOLLOW STANDARD SAFETY PRECAUTIONS IN CONNECTION WITH THE USE OF THE WEATHER INFORMATION, STOCK DATA, DATA OR DOCUMENTATION. Limitation of Damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS PROVIDERS BE LIABLE TO USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, IN CONTRACT OR TORT, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS ARISING OUT OF, OR RELATED TO, IN ANY MANNER, OR THE DELIVERY, PERFORMANCE OR NONPERFORMANCE OF OBLIGATIONS, OR USE OF THE WEATHER INFORMATION, STOCK DATA, DATA OR DOCUMENTATION HEREUNDER REGARDLESS OF THE FORESEEABILITY THEREOF.  Important Health Information and Safety Precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. ELEC…

Text truncated - open the document above for the full version.

120 Getting Connected Tap Disconnect & unpair if you want the phone to erase all pairing information with the hands-free headset or car kit. You will be prompted to enter the passcode again when you connect to that Bluetooth device. 7.1 Using Camera and Camcorder Use Camera or Camcorder to take and share pictures and videos. Your phone comes with a 5.0 megapixel camera with auto-focus feature that lets you capture sharp pictures and videos. Important You must install a storage card before you use Camera or Camcorder. All pictures or videos that you capture on your phone are stored on the storage card. For more information on how to install a storage card on your phone, refer to Chapter 1. Opening Camera Press HOME, then tap > Camera if you want to capture photos or Camcorder if you want to shoot videos. When you open Camera, the screen orientation will depend on how you are holding the phone. For camcorder, the screen automatically switches to landscape orientation. Tip You can easily switch to the other capture mode while you are in Camera or Camcorder. Refer to “Changing capture modes” in this chapter for details. Chapter 7 Camera and Multimedia 122 Camera and Multimedia Zoom control Remaining available shots* Current capture mode. Tap to switch between Photo and Video modes. Opens the Albums program. See “Albums” in this chapter for details. Camera screen when phone is held upright. Camera screen when phone is held horizontally. * In Video mode, this shows the recording duration. To show the Zoom control and the remaining available shots or recording duration, slide your finger up or down on the Camera screen. The Zoom control will disappear after a few seconds. Tip You can also roll the TRACKBALL to show the Zoom control. When the Zoom control is showing, roll the TRACKBALL up to zoom in or roll the TRACKBALL down to zoom out. Closing Camera On the Camera screen, press HOME or BACK. Camera and Multimedia 123 Changing capture modes The phone offers two capture modes: Photo and Video. On the screen, tap to switch between Photo and Video modes. Taking pictures 1. Switch to Photo capture mode. 2. Frame your subject on the screen. Tip Hold the phone upright when taking portrait shots or hold the phone horizontally when taking landscape shots. By doing this, you do not need to rotate the photo after capturing it. 3. Tap an area on the screen you want to focus. The auto-focus indicator appears and starts to focus on the selected area. 4. Press the TRACKBALL to take the shot. Auto-focus indicator Tip Slide your finger up or down on the Camera screen to show the Zoom control. Drag the Zoom control slider up or down to zoom in or out. You can also roll the TRACKBALL up or down to zoom in or out. 124 Camera and Multimedia Shooting videos 1. Switch to the Video capture mode. 2. Frame your subject on the screen. 3. Press the TRACKBALL button to start capturing video. Press the TRACKBALL again to stop capturing video. Recording indicator Capture duration Camera and Multimedia 125 Review screen After capturing a photo or video, the review screen lets you save, view, send, or delete the picture or video by tapping a button at the bottom of the screen. Review screen buttons IconFunctionIconFunction View View the captured image or video in Albums. Delete Delete the captured image or video. Send Send the captured image or video via email or MMS or set the captured image as your Home screen wallpaper. Back Return to the live Camera or Camcorder screen. Camera menu panel The Camera menu panel lets you adjust basic camera settings and access advanced camera settings. 126 Camera and Multimedia 12345 To open the menu panel While on the Camera screen, press MENU. 1 Resolution Tap to change the resolution (capture size). 2 White Balance Tap to adjust the white balance. White balance enables the camera to capture colors more accurately by adjusting to the current lighting environment. White balance settings include: Auto, Daylight, Cloudy, Incandescent, and Fluorescent. 3 Brightness Tap to open the Brightness bar so you can adjust the brightness. On the Brightness bar, tap to decrease, or to increase the brightness level. Tap outside the Brightness bar to apply the change. 4 Zoom Tap to show the Zoom control. 5 Advanced Tap to open the advanced camera settings. Camera and Multimedia 127 7.2 Using Albums Albums lets you view photos and play back videos. You can also view your photos or your friends’ photos on Facebook or Flickr. For photos, you can also do basic editing tasks, set them as your wallpaper or contact picture, and share to your friends. Opening Albums Press HOME, then tap > Albums. If you stored your files in folders (directories) on the storage card, Albums will display these folders as separate albums. Tap to view the files inside the album. This album contains all the pictures inside all the albums. Album name and number of files inside. This album contains all the videos inside all the albums. Tap to view pictures in Albums or pictures in your Facebook or Flickr account. When viewing pictures in Albums, scroll up the screen or roll the TRACKBALL down to view more albums. Notes • Depending on the number of pictures stored on the storage card, it may take a while for Albums to load all your photos on the screen. • You need to be signed in to your Facebook and Flickr accounts to view the pictures in those accounts. 128 Camera and Multimedia Working with pictures Once you have taken a picture, you can view it or share it with friends. You can also view your pictures or your friends’ pictures on your Facebook or Flickr account. To view pictures in Albums 1. On the Albums screen, go to the Albums tab, and then tap an album to view the pictures inside the album. 2. Slide your finger onscreen to go through the pictures. Tap the thumbnail to view it in full screen. Tap to go back to the Albums screen. Tip You can choose to display the photos as thumbnails. To view the photos inside the album as thumbnai…

Text truncated - open the document above for the full version.

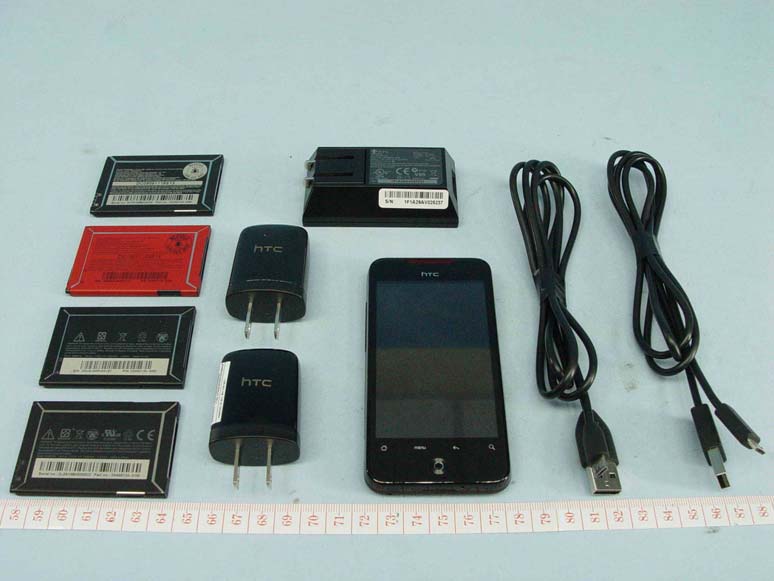

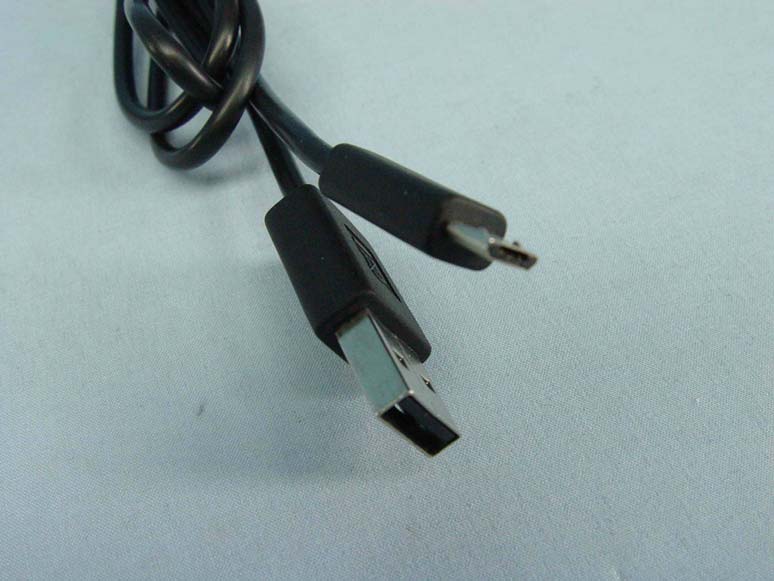

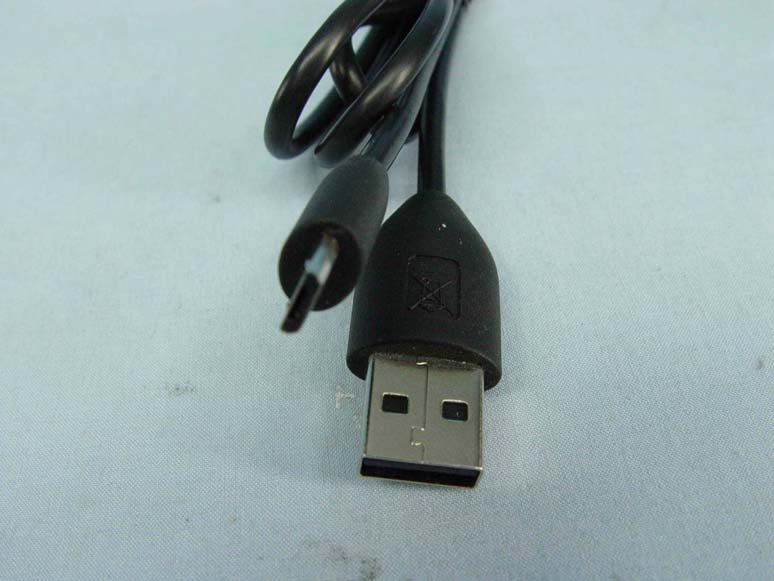

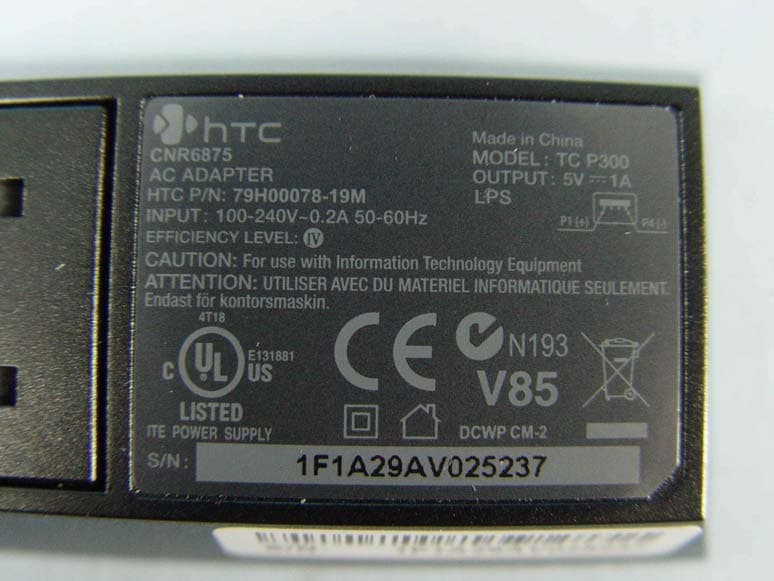

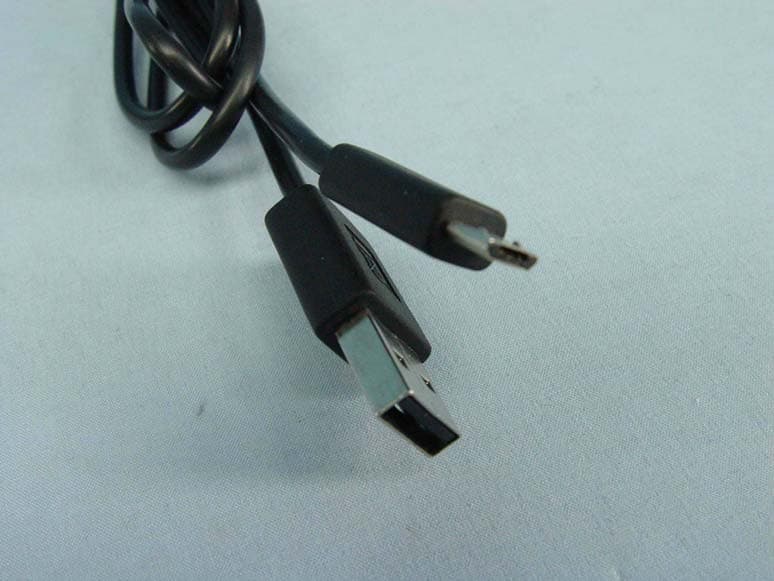

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Adapter (Brand: Delta, Model: TC P300) Page 5 Adapter (Brand: Delta, Model: TC U250) Page 6 Adapter (Brand: Emerson, Model: TC U250) Page 7 USB Cable (Brand: MEC, Model: DC M410) USB Cable (Brand: Foxlink, Model: DC M410)

P/N XXHXXXXX MEID: XXXXXXXXXXXXXXX

Page 8 Battery (Brand: HT ENERGY, Model: BB96100) Battery (Brand: HT ENERGY, Model: BTR6300B) Page 9 Battery (Brand: Formosa, Model: BB96100) Battery (Brand: Formosa, Model: BTR6300B) Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24

FCC ID : NM8PB31200 No simultaneous SAR justification Per “648474 D01 SAR Handsets Multi Xmiter and Ant, v01r05”, Test mode of SAR is as below Test mode Test channel Max sar value ( W/kg ) Remark CDMA Low ,middle, High 1.39 NA 11 b/g Highest power 0.407 less than 0.8W/kg , other channels is unnecessary Bluetooth NA NA Distance between Bluetooth and CDMA antenna is 9.12 cm > 5cm and highest output power is 0.9 mW < 60/f(GHz) mW. Therefore, stand-alone SAR is unnecessary Max SAR value ( W/ kg ) of each mode : Test mode RIGHT HEAD LEFT HEAD CHEEK TILT CHEEK TILT BODY CDMA 850 0.89 0.495 0.789 0.395 0.069 CDMA 1900 0.66 0.402 1.390 0.362 0.494 11 B/G 0.407 0.301 0.268 0.244 0.693 Bluetooth 0 0 0 0 0 Co-transmit SAR Co-transmit SAR RIGHT HEAD LEFT HEAD Co-transmit mode CHEEK TILT CHEEK TILT BODY CDMA 850+ 11B/G+BT 1.297 0.796 1.057 0.639 0.762 CDMA 1900+ 11B/G+BT 1.067 0.703 1.658 0.606 1.187 MAX SAR of co-transmit mode is 1.658 W/kg FCC ID : NM8PB31200 Distance between antennas ( cm ) : CDMA WLAN BT CDMA 9.12 9.12 WLAN 9.12 0 BT 9.12 0 Note 1) The EUT used the same antenna for Wireless LAN & Bluetooth function, but the two functions CAN NOT be used at the same time. 2) Please refer to” OpDes-Antenna_ NM8PB31200 “ for antenna separation distance Peak SAR location PIC1 is the test plot of M03 of 15.247 SAR report. SAR value is 0.268 W/kg PIC1 PIC 2 is the test plot of M09 of Part 22/24 SAR report.SAR value is 1.39 W/kg FCC ID : NM8PB31200 PIC 3 is combined with PIC1 and PIC 2. PIC3 is combined by DASY software PIC3 DASY program has a reference point which can help to define the relative location of Peak SAR point. Therefore, distance between 2 PEAK SAR point can be calculated. Maxima found : CDMA1900 (68.83 , 252 , -170.5) ; 11b (19.92 , 297.4 , -171.2) Distance between PEAK SAR locations = √ ( X 2 +Y 2 ) = √((68.83-19.92) 2 +(297.4-252) 2 ) = 65.28mm =6.528cm Conclusion: 1. Antenna Separation is 9.12cm > 5cm 2. Sum of SAR is 1.39+0.268 = 1.658W / kg >1.6 W / kg Peak SAR location = 6.528cm SPLSR = 1.658 /6.528=0.253 < 0.3 Accordingly, simultaneous Transmission SAR is not required for this EUT

Report No.: SA981217L06 1 Report Format Version 3.0.1 SAR TEST REPORT (WLAN) REPORT NO.: SA981217L06 MODEL NO.: PB31200 RECEIVED: Dec. 17, 2009 TESTED: Dec. 24, 2009 ISSUED: Jan. 08, 2010 APPLICANT: HTC Corporation ADDRESS: No. 23, Xinghua Rd., Taoyuan City, 330, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 33 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: SA981217L06 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION ..................................................................................................................3 2. GENERAL INFORMATION ..................................................................................................4 2.1 GENERAL DESCRIPTION OF EUT.....................................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................................6 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ............................................................6 2.4 TEST EQUIPMENT ............................................................................................................10 2.5 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ......................... 11 3. DESCRIPTION OF SUPPORT UNITS...............................................................................14 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS ...........................................15 4.1. DESCRIPTION OF TEST CONDITION..............................................................................15 4.2. DESCRIPTION OF TEST MODE .......................................................................................15 4.3. SUMMARY OF TEST RESULTS........................................................................................17 5. TEST RESULTS .................................................................................................................18 5.1 TEST PROCEDURES ........................................................................................................18 5.2 SAR LIMITS .......................................................................................................................19 5.3 MEASURED SAR RESULTS .............................................................................................20 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ...............................................................21 6. SYSTEM VALIDATION.......................................................................................................24 6.1 TEST PROCEDURE ..........................................................................................................24 6.2 VALIDATION RESULTS .....................................................................................................25 6.3 SYSTEM VALIDATION UNCERTAINTIES .........................................................................26 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES .................................................27 7.1. PROBE CALIBRATION UNCERTAINTY ...........................................................................27 7.2. ISOTROPY UNCERTAINTY ..............................................................................................28 7.3. BOUNDARY EFFECT UNCERTAINTY .............................................................................28 7.4. PROBE LINEARITY UNCERTAINTY .................................................................................29 7.5. READOUT ELECTRONICS UNCERTAINTY.....................................................................29 7.6. RESPONSE TIME UNCERTAINTY ...................................................................................29 7.7. ROBE POSITIONER MECHANICAL TOLERANCE ..........................................................30 7.8. PROBE POSITIONING ......................................................................................................30 7.9. PHANTOM UNCERTAINTY...............................................................................................31 7.10. DASY4 UNCERTAINTY BUDGET .....................................................................................32 8. INFORMATION ON THE TESTING LABORATORIES.......................................................33 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA981217L06 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: Smartphone MODEL NO.: PB31200 BRAND: HTC APPLICANT: HTC Corporation TESTED: Dec. 24, 2009 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 The above equipment (model: PB31200) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Jan. 08, 2010 Rennie Wang / Supervisor TECHNICAL ACCEPTANCE : , DATE:Jan. 08, 2010 Responsible for RF Mason Chang / Engineer APPROVED BY : , DATE:Jan. 08, 2010 Gary Chang / Assistant Manager Report No.: SA981217L06 4 Report Form…

Text truncated - open the document above for the full version.

D2: DOSIMETRIC E-FIELD PROBE D3: DAE

D4: SYSTEM VALIDATION DIPOLE

Report No.: RF981217L06-2 1 Report Format Version 3.0.1 FCC TEST REPORT (WLAN) REPORT NO.: RF981217L06-2 MODEL NO.: PB31200 RECEIVED: Dec. 17, 2009 TESTED: Dec. 24, 2009 ~ Jan. 27, 2010 ISSUED: Feb. 01, 2010 APPLICANT: HTC Corporation ADDRESS: No. 23, Xinghua Rd., Taoyuan City, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981217L06-2 2 Report Format Version 3.0.1 Table of Contents 1 CERTIFICATION...........................................................................................................4 2 SUMMARY OF TEST RESULTS ..................................................................................5 2.1 MEASUREMENT UNCERTAINTY ...............................................................................5 3 GENERAL INFORMATION ...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT.............................................................................6 3.2 DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................10 3.4 DESCRIPTION OF SUPPORT UNITS .......................................................................11 4 TEST TYPES AND RESULTS ....................................................................................12 4.1 RADIATED EMISSION MEASUREMENT ..................................................................12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................12 4.1.2 TEST INSTRUMENTS ...............................................................................................13 4.1.3 TEST PROCEDURES ................................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................14 4.1.5 TEST SETUP .............................................................................................................15 4.1.6 EUT OPERATING CONDITIONS ...............................................................................15 4.1.7 TEST RESULTS .........................................................................................................16 4.2 CONDUCTED EMISSION MEASUREMENT .............................................................27 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................27 4.2.2 TEST INSTRUMENTS ...............................................................................................27 4.2.3 TEST PROCEDURES ................................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................28 4.2.5 TEST SETUP .............................................................................................................29 4.2.6 EUT OPERATING CONDITIONS ...............................................................................29 4.2.7 TEST RESULTS .........................................................................................................30 4.3 6dB BANDWIDTH MEASUREMENT .........................................................................40 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................40 4.3.2 TEST INSTRUMENTS ...............................................................................................40 4.3.3 TEST PROCEDURE ..................................................................................................40 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................40 4.3.5 TEST SETUP .............................................................................................................41 4.3.6 EUT OPERATING CONDITIONS ...............................................................................41 Report No.: RF981217L06-2 3 Report Format Version 3.0.1 4.3.7 TEST RESULTS .........................................................................................................42 4.4 MAXIMUM OUTPUT POWER ....................................................................................44 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT ....................................44 4.4.2 TEST INSTRUMENTS ...............................................................................................44 4.4.3 TEST PROCEDURES ................................................................................................44 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................44 4.4.5 TEST SETUP .............................................................................................................45 4.4.6 EUT OPERATING CONDITIONS ...............................................................................45 4.4.7 TEST RESULTS .........................................................................................................46 4.5 POWER SPECTRAL DENSITY MEASUREMENT .........................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (For WLAN 2.4GHz & BT) TEST MODE A 2 TEST MODE B 3 TEST MODE C 4 TEST MODE D 5 TEST MODE E 6 RADIATED EMISSION TEST (For WLAN 2.4GHz & BT) TEST MODE A 7 TEST MODE B 8 TEST MODE C 9 TEST MODE D 10 TEST MODE E 11 (For PART 22) 12 (For PART 24) 13 (SAR Test Set Up Photos) A. RIGHT HEAD POSITION: CHEEK TILT B. LEFT HEAD POSITION: CHEEK TILT C. BODY POSITION: BOTTOM FRONT 14 DESCRIPTION OF ANTENNA LOCATION

A SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : Feb. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PB31200 FCC HAC RF Emissions Test Report Report No. : HA9D1711A Appendix D. Product Photos Battery 1 (HT / BB96100/BTR6300B) Battery 2 (Formosa / BB96100/BTR6300B) A SPORTON INTERNATIONAL INC. Page Number : E1 of E1 TEL : 886-3-327-3456 Report Issued Date : Feb. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PB31200 FCC HAC RF Emissions Test Report Report No. : HA9D1711A Appendix E. Test Setup Photos Front View Left Side View Right Side View

A SPORTON INTERNATIONAL INC. Page Number : C1 of C1 TEL : 886-3-327-3456 Report Issued Date : Feb. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PB31200 FCC HAC T-Coil Test Report Report No. : HA9D1711B Appendix C. Product Photos Battery 1 (HT / BB96100/BTR6300B) Battery 2 (Formosa / BB96100/BTR6300B) A SPORTON INTERNATIONAL INC. Page Number : D1 of D1 TEL : 886-3-327-3456 Report Issued Date : Feb. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PB31200 FCC HAC T-Coil Test Report Report No. : HA9D1711B Appendix D. Test Setup Photos Front View Left Side View Right Side View
