NM8PB92300Smartphone

Your HTC XXX User guide For Certification Only 2010/10/28 Before you do anything else, please read this Charge the battery The battery in your phone hasn’t been charged yet. While your phone is charging, it’s important that you do not remove the battery pack. Doing so can damage your phone. Also, please don’t try to take your phone apart. (If you do, it may invalidate your warranty.) Choose a rate plan wisely Your phone can use up a lot of Internet bandwidth really quickly. Before you use your phone, we strongly recommend that you talk to your mobile operator about data rates. If you’re on a standard data plan, the costs could really add up. Switching to a flat-rate plan could be a lot cheaper. Know about privacy laws Some countries have strict laws about how and when you can record phone conversations. For example, you may need to tell the person you’re speaking to before you start recording. It’s a good idea to find out what the laws are where you live before you use your phone’s recording feature. And finally, a few important words from our legal team (LIMITATION OF DAMAGES) To the maximum extent permitted by applicable law, in no event shall HTC or its affiliates be liable to you, any user, or third party for any indirect, special, consequential, incidental or punitive damages of any kind, arising in contract, tort, or otherwise, including, but not limited to, injury, loss of revenue, loss of goodwill, loss of business opportunity, loss of data, and/or loss of profits, regardless of the foreseeability thereof or whether HTC or its affiliates have been advised of the possibility of such damages. And in no event shall the total liability of HTC or its affiliates exceed the amount received from you, regardless of the legal theory under which the cause of action is brought. The foregoing does not affect any statutory rights which may not be disclaimed. Please also read the Safety and regulatory guide that is included in the box for information on the proper usage of your phone to prevent injuries and to avoid damaging your phone. You can also refer to this guide for regulatory information about your phone. For Certification Only 2010/10/28 Trademarks and copyrights Copyright © 2010 HTC Corporation. All Rights Reserved. The HTC logo, the HTC quietly brilliant logo, HTC XXX, HTC Sense, Footprints, HTC Sync, and HTC Care are trademarks and/or service marks of HTC Corporation. Copyright © 20 10 Google Inc. Used with permission. Google, the Google logo, Android, Google Search, Google Maps, Gmail, YouTube, Android Market, and Google Talk are trademarks of Google Inc. Google, the Google logo and Google Maps are trademarks of Google, Inc. TeleAtlas® Map Data ©2010. Street View Images ©2010 Google. Microsoft, Windo ws, Windows XP, Windows Vista, Active Sync, and Outlook are either regist ered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth and the Bluetooth logo ar e trademarks owned by Bluetooth SIG, Inc. Wi-Fi is a regis tered trademark of the Wireless Fidelity Alliance, Inc. microSD is a trademark of SD Car d Association. Java, J2ME and all other Java-based marks are trademarks or registered trademarks of Sun Microsy stems, Inc. in the United States and other countries. Facebook is a tr ademark of Facebook, Inc. Twitter is a tr ademark of Twitter, Inc., and is used under license. Flickr is a trademark of Yahoo! Inc. All other company , product and service names mentioned herein are trademarks, registered trademarks or service marks of their r espective owners. HTC shall not be liable for t echnical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting fr om furnishing this material. The information is provided “ as is” without warranty of any kind and is subject to change without notice. HTC also reserv es the right to revise the content of this document at any time without prior notice. No part of this document may be repr oduced or transmitted in any form or by any means, electronic or mechanical, including photoc opying, recording or storing in a retrieval system, or translated into any language in any form without prior written permission of HTC. For Certification Only 2010/10/28 Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. A note often gives additional information, such as what happens on your phone when you choose to do or not to do a certain action. A note also provides information that may only be applicable to some situations. This is a tip. A tip gives you an alternative way to do a particular step or procedure, or lets you know of an option that you may find helpful. This indicates that something is very important. Important information is something that you need to do in order to accomplish a certain task or to get a phone feature to work properly. This provides safety precaution information, that is, information that you need to be careful about to prevent potential problems when using your phone. For Certification Only 2010/10/28 Contents Basics 14 Inside the box ...............................................................................................................................14 Your Phone .....................................................................................................................................14 Front panel ................................................................................................................................................................14 Back panel .................................................................................................................................................................15 Top panel ....................................................................................................................................................................16 Left panel.................…

Text truncated - open the document above for the full version.

Safety and regulatory guide  Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Safety and regulatory guide  Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate  Safety and regulatory guide outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC adapter: HTC, Model TC A50, TC B50, TC C50, TC E50 and TC U50. Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (10 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (10° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s). HTC, Model BB9100 Take extra precautions Keep the battery or device dry and away from water or any liquid as it may cause a short circuit.  •  •  • Safety and regulatory guide 5 Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek med…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 November 11, 2010 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. November 11, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Smartphone Model name: PB92300 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

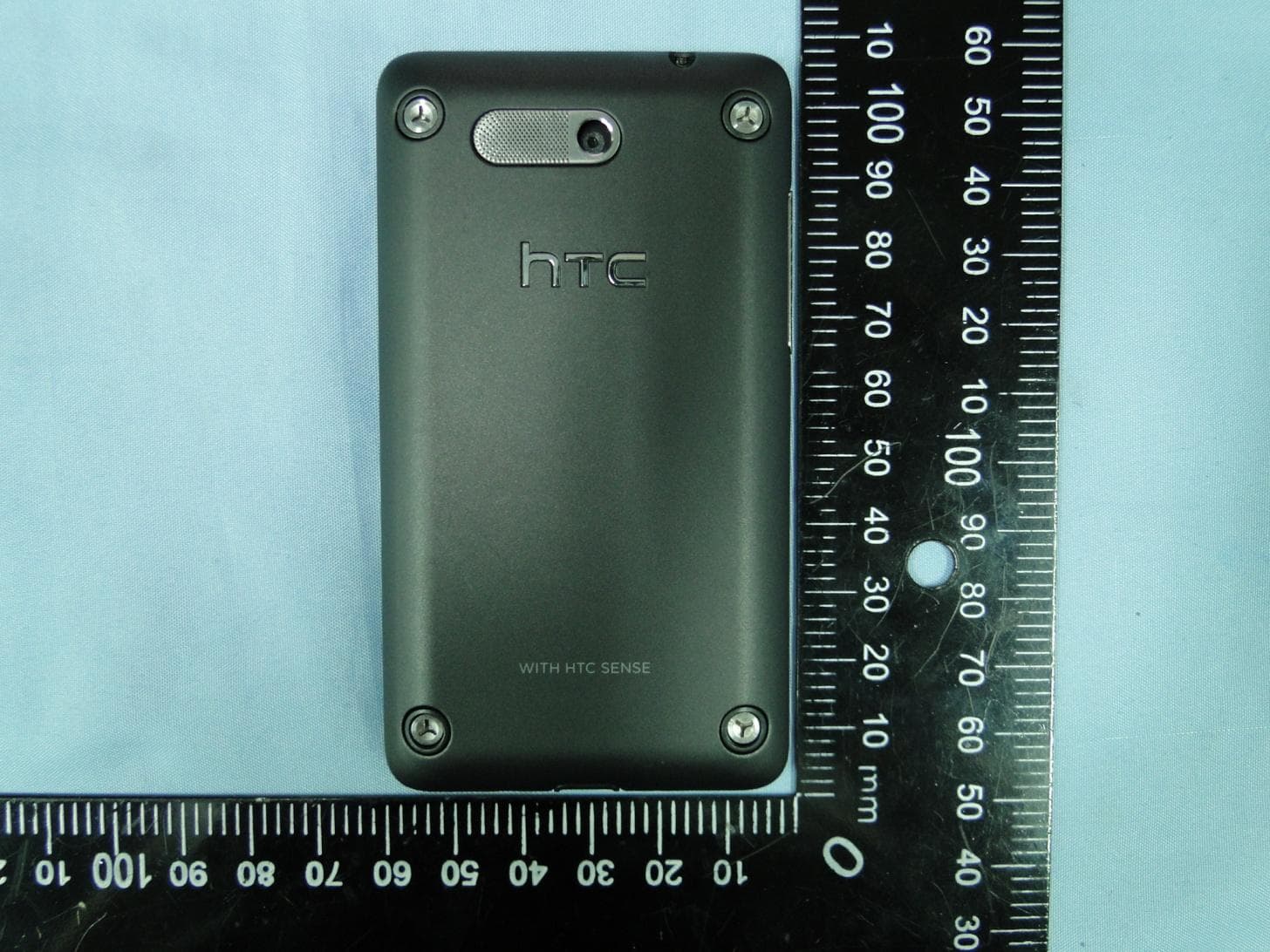

Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 1 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 2 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 3 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 4 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 5 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 6 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 7 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Sample 2 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 8 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 9 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 10 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 11 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 12 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 720510 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 13 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name Delta Model Name TC X250 (X=U,E,B,C,A) AC Adapter 2 Brand Name Emerson Model Name TC X250 (X=A, B, C, E, U) Battery Brand Name TWS Model Name BB92100 Earphone 1 Brand Name COTRON Model Name RC E160 Earphone 2 Brand Name Merry Model Name RC E160 USB Cable 1 Brand Name MEC Model Name DC M410 USB Cable 2 Brand Name Foxlink Model Name DC M410 LCM Brand Name Espon Model Name L5F31040 P00 Camera 1 Brand Name LiteOn Model Name 09P1BA510 Camera 2 Brand Name Primax Model Name NBRB92 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 14 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Adapter 1 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 15 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Adapter 2 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 16 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 17 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Earphone 1 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 18 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Earphone 2 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 19 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 USB Cable 1 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 20 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 720510 USB Cable 2

Remark: 1. Cell phones or Cordless phones can have the Identifier in the battery compartment under certain conditions. a) The available label area on the phone is limited because they are relatively small and have many contoured surfaces, keypads, LCD displays, charge contacts and/or other connectors. b) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement c) The label will be readily visible at the time of purchase because the phone will be marketed without the battery installed.

Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 21 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 3. Internal Photograph of EUT Sample 1 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 22 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 23 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 24 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 25 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Sample 2 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 26 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 27 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 28 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 29 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 WWAN Antenna Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 30 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 Bluetooth and WLAN Antenna Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 31 of 31 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 720510 GPS Antenna

Photographs of EUT Report No.: EP0O0632-01 Model Name: PB92300 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 GPS Antenna (Rx Only) Bluetooth and WLAN Antenna (Tx / Rx) WWAN Antenna (Tx / Rx) 7.3 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 FCC SAR Test Report Report No. : FA0O0632-01A FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Smartphone MODEL NAME : PB92300 FCC ID : NM8PB92300 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Oct. 06, 2010 and completely tested on Oct. 14, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Nov. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PB92300 FCC SAR Test Report Report No. : FA0O0632-01A Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 7 3.3 Device Category and SAR Limits ..................................................................................................................... 7 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition .................................................................................................................................. 7 3.4.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage .........................................................................................................................................17 5.7.2 Data Evaluation ..............................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/10/14 System Check_Head_835MHz_101014 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_101014 Medium parameters used: f = 835 MHz; σ = 0.918 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.21, 6.21, 6.21); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn393; Calibrated: 2010/8/18 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.03 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.7 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.958 mW/g; SAR(10 g) = 0.624 mW/g Maximum value of SAR (measured) = 1.04 mW/g 0 dB = 1.04mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/10/14 System Check_Body_835MHz_101014 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_101014 Medium parameters used: f = 835 MHz; σ = 0.954 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn393; Cal…

Text truncated - open the document above for the full version.
