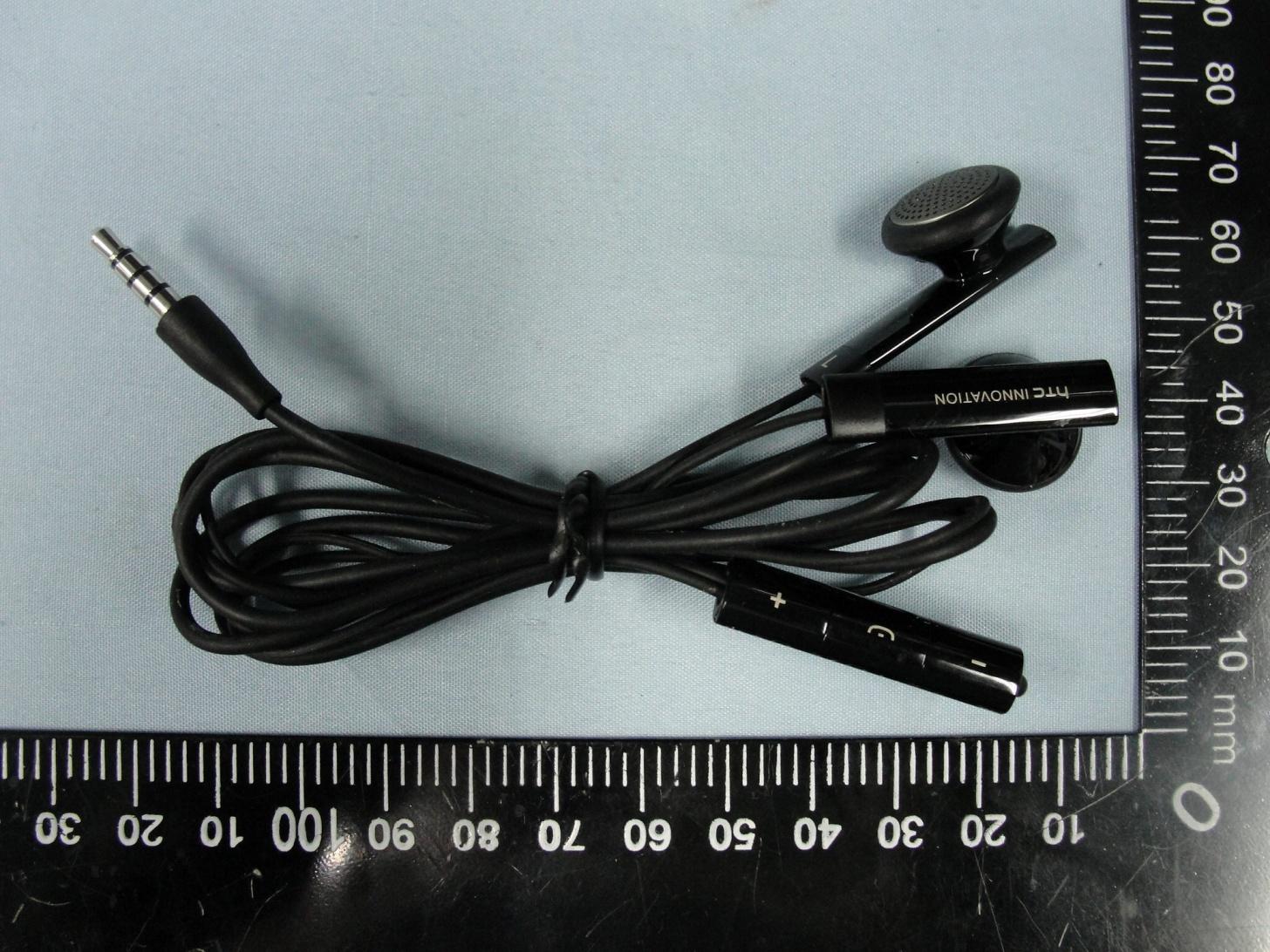

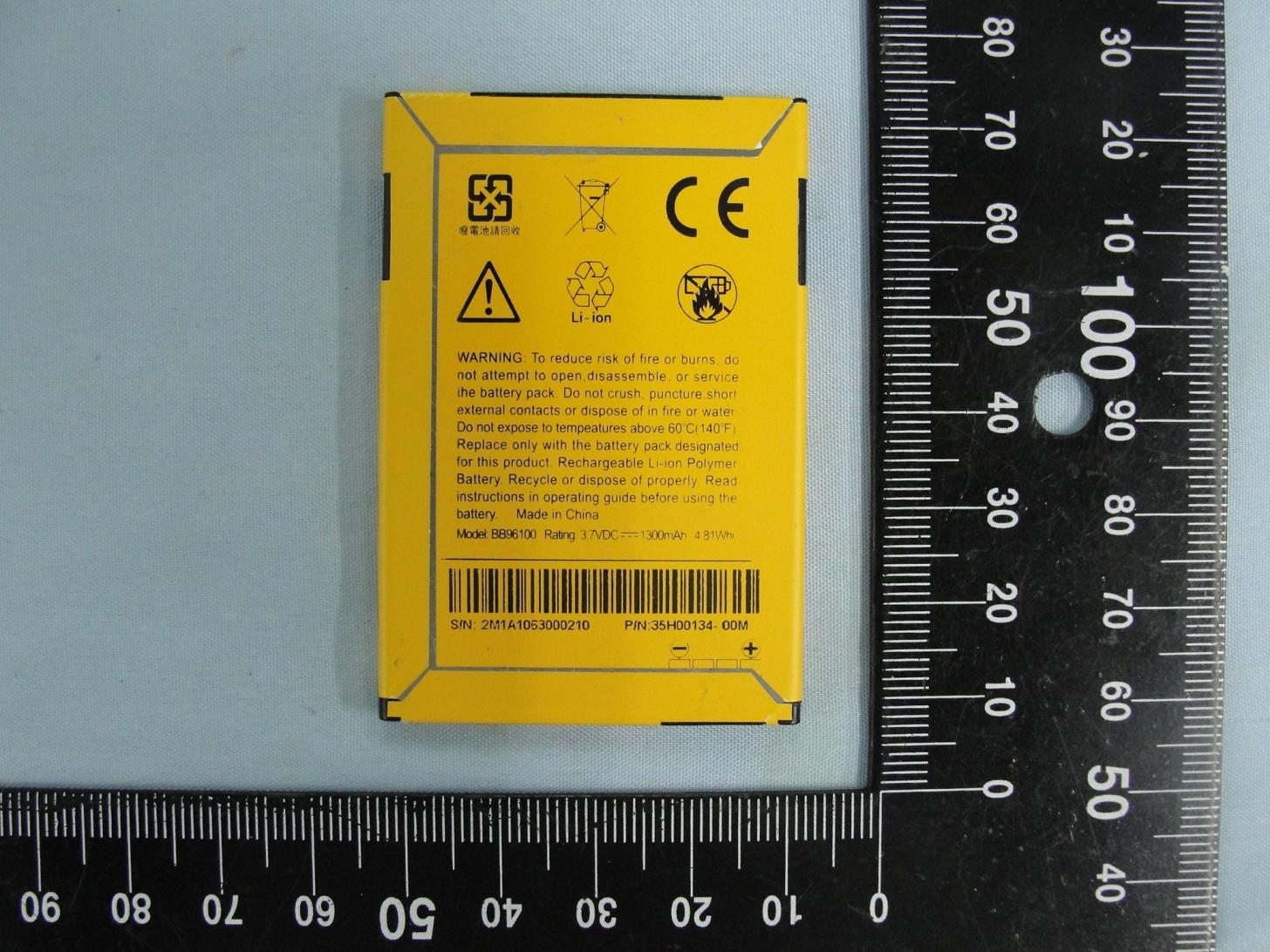

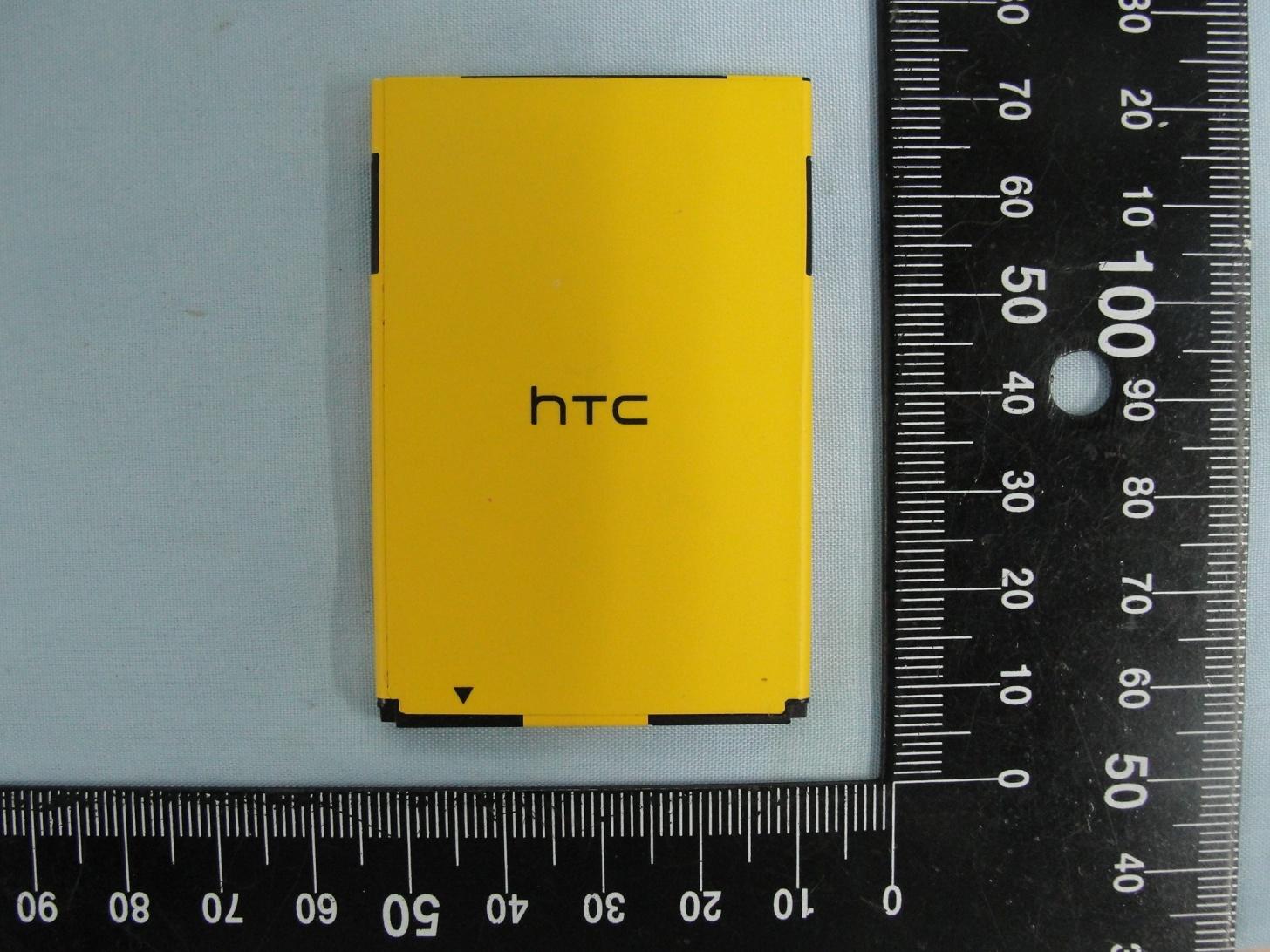

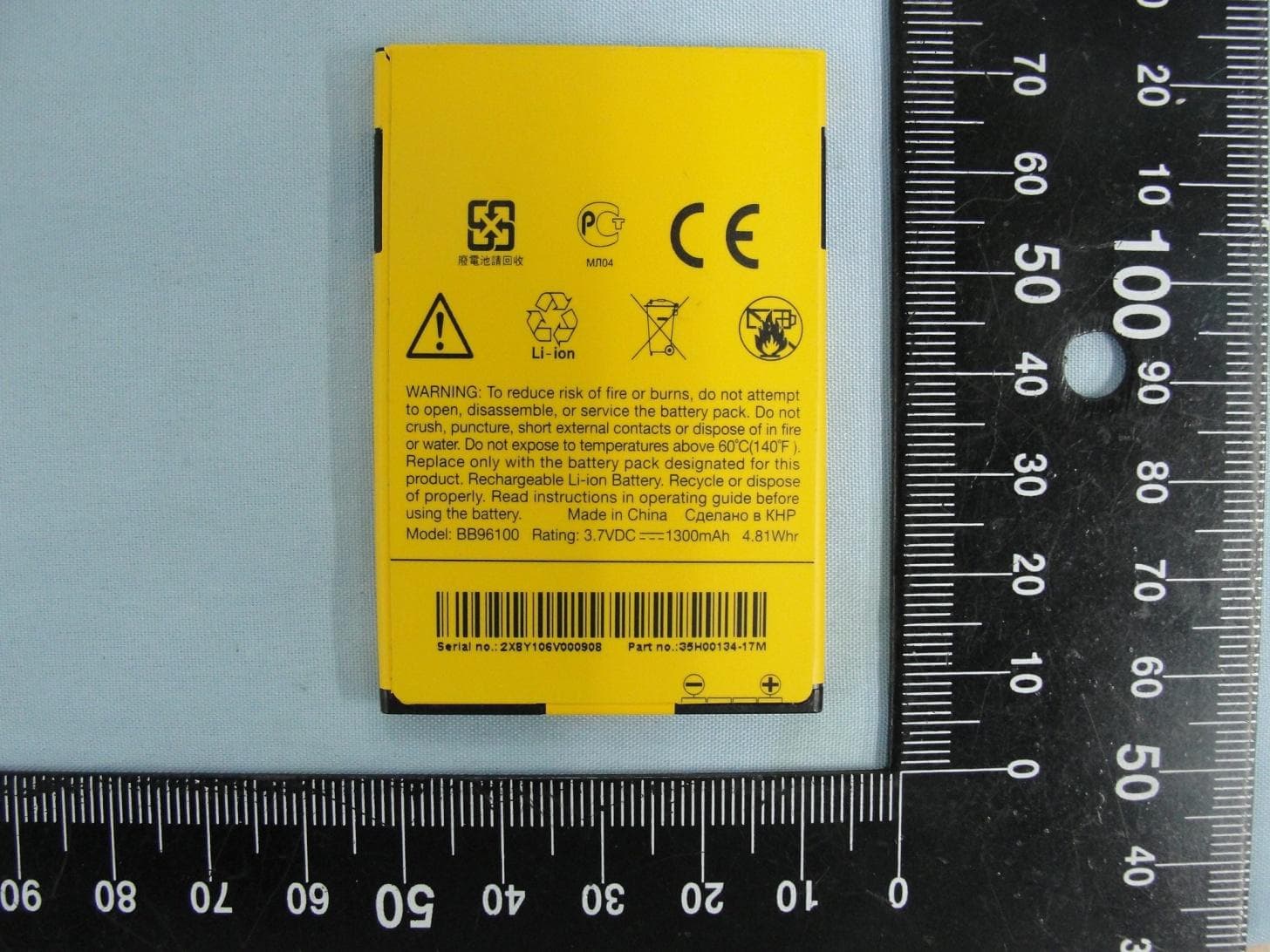

Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 1 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 1. External Photograph of EUT Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 2 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 3 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 4 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 5 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 6 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 720510 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 7 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Emerson Model Name TC U250 Power Rating I/P:100-240Vac, 50-60Hz, 0.2A; O/P: 5Vdc, 1A AC Adapter 2 Brand Name HTC Manufacturer Delta Model Name TC U250 Power Rating I/P:100-240Vac, 50-60Hz, 0.2A; O/P: 5Vdc, 1A Battery 1 Brand Name HTC Manufacturer TWS Model Name BB96100 Power Rating 3.7Vdc, 1300mAh, 4.81Whr Type Li-ion Battery 2 Brand Name HTC Manufacturer Formosa Model Name BB96100 Power Rating 3.7Vdc, 1300mAh, 4.81Whr Type LI-POLYMER Earphone 1 Brand Name Merry Model Name HS G400 Signal Line Type 1.2 meter shielded cable without ferrite core Earphone 2 Brand Name Cotron Model Name HS G400 Signal Line Type 1.2 meter shielded cable without ferrite core USB Cable 1 Brand Name Coxoc Model Name DC M410 Signal Line Type 1.2 meter shielded cable without ferrite core USB Cable 2 Brand Name Foxlink Model Name DC M410 Signal Line Type 1.2 meter shielded cable without ferrite core LCM-Main Brand Name Sharp Model Name LS038Y1LX02 LCM-2 nd source Brand Name Sony Model Name ACX426AKM-7 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 8 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 9 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Adapter 1 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 10 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 11 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 12 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Adapter 2 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 13 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 14 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 15 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Battery 1 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 16 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 17 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Battery 2 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 18 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 19 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Earphone 1 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 20 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Earphone 2 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL …

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 23 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 3. Internal Photograph of EUT Sample A Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 24 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 25 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 26 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 27 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 28 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 29 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 30 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 31 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 32 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 33 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 34 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Sample B Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 35 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 Bluetooth & WLAN Antenna Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 36 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 GPS Antenna Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 37 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 WWAN Antenna Photographs of EUT Report No.: EP062527 Model Name: PC40100 SPORTON INTERNATIONAL INC. Page Number : 38 of 38 TEL : 886-3-327-3456 Report Issued Date : Aug. 13, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 720510 WWAN Antenna

9.3 cm WLAN / BT Ant WWAN Ant GPS Ant

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/10 System Check_Head_2450MHz_10710 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100710 Medium parameters used: f = 2450 MHz; σ = 1.83 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 5.67 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.1 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 10.5 W/kg SAR(1 g) = 4.95 mW/g; SAR(10 g) = 2.32 mW/g Maximum value of SAR (measured) = 5.63 mW/g 0 dB = 5.63mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/9 System Check_Body_2450MHz_100709 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_100709 Medium parameters used: f = 2450 MHz; σ = 1.93 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.19, 4.19, 4.19); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 6.36 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.4 V/m; Power Drift = -0.049 dB Peak SAR (extrapolated) = 12.4 W/kg SAR(1 g) = 5.5 mW/g; SAR(10 g) = 2.56 mW/g Maximum value of SAR (measured) = 6.16 mW/ g 0 dB = 6.16mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/10 #25 802.11b_Right Cheek_Ch6_Battery1_SampleA DUT: 062527 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100710 Medium parameters used: f = 2437 MHz; σ = 1.81 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.054 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.98 V/m; Power Drift = 0.195 dB Peak SAR (extrapolated) = 0.107 W/kg SAR(1 g) = 0.052 mW/g; SAR(10 g) = 0.028 mW/g Maximum value of SAR (measured) = 0.054 mW/g 0 dB = 0.054mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/10 #26 802.11b_Right Tilted_Ch6_Battery1_SampleA DUT: 062527 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100710 Medium parameters used: f = 2437 MHz; σ = 1.81 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.075 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.53 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 0.169 W/kg SAR(1 g) = 0.078 mW/g; SAR(10 g) = 0.039 mW/g Maximum value of SAR (measured) = 0.085 mW/g 0 dB = 0.085mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/10 #27 802.11b_Left Cheek_Ch6_Battery1_SampleA DUT: 062527 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100710 Medium parameters used: f = 2437 MHz; σ = 1.81 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.097 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.90 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 0.218 W/kg SAR(1 g) = 0.098 mW/g; SAR(10 g) = 0.046 mW/g Maximum value of SAR (measured) = 0.106 mW/g 0 dB = 0.106mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/10 #27 802.11b_Left Cheek_Ch6_Battery1_SampleA_2D DUT: 062527 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100710 Medium parameters used: f = 2437 MHz; σ = 1.81 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.097 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.90 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 0.218 W/kg SAR(1 g) = 0.098 mW/g; SAR(10 g) = 0.046 mW/g Maximum value of SAR (measured) = 0.106 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/10 #28 802.11b_Left Tilted_Ch6_Battery1_SampleA DUT: 062527 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100710 Medium parameters used: f = 2437 MHz; σ = 1.81 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.099 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.10 V/m; Power Drift = 0.165 dB Peak SAR (extrapolated) = 0.220 W/kg SAR(1 g) = 0.094 mW/g; SAR(10 g) = 0.046 mW/g Maximum value of SAR (measured) = 0.098 mW/g 0 dB = 0.098mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/9 #32 802.11b_Face_1.5cm_Ch6_Battery1_Earphone1_SampleA DUT: 062527 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_100709 Medium parameters used: f = 2437 MHz; σ = 1.91 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.19, 4.19, 4.19); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 FCC SAR Test Report Report No. : FA062527B FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Windows Phone MODEL NAME : PC40100 FCC ID : NM8PC40100 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jun. 25, 2010 and completely tested on Jul. 10, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Aug. 11, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40100 FCC SAR Test Report Report No. : FA062527B Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 7 3.3 Device Category and SAR Limits ..................................................................................................................... 7 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition .................................................................................................................................. 7 3.4.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................…
