NM8PC40220WINDOWS PHONE

Your HTC 7 Trophy User guide  Conventions used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. It might give extra information that’s only applicable in certain situations. Or explain a specific feature in a bit more detail. This is important info. Stuff you really need to know to accomplish a task or get a feature to work properly. This is a tip. It might provide an alternative way to do something or tell you about a special option you might find useful. This is a safety precaution. Read these carefully to avoid any potential problems when using your phone. Want more info? For other helpful resources, go to www.htc.com/support. Please also read the Safety and regulatory guide that’s included in the box. For additional information about your phone, go to windowsphone.com. Note: Certain Microsoft services/features may not be available in your country or region. Basics Inside the box You’ll find the following inside the box: Phone Battery USB cable 3.5mm stereo headset Power adapter Micro SD card (installed) Quick Start Guide Product Safety & Warranty Statement         12 Basics Your phone Front panel 1 2 3 4 5 6 7 1 Earpiece 2 Touch screen 3 BACK 4 Microphone 5 SEARCH 6 START 7 Notification LED Top panel 1 2 1 POWER 2 3.5mm audio jack Basics 13 Left and right panels 1 2 3 1 VOLUME UP/DOWN 2 USB connector 3 CAMERA 14 Basics Back panel 1 2 3 4 1 5 megapixel camera 2 LED flashlight 3 Back cover 4 Speaker Basics 15 Back cover Removing the back cover Remove the back cover to access the battery compartment and SIM card slot. With the phone turned off, hold your phone securely with the front facing down. With your thumb or finger, lift up the back cover from the small notch at the top of the phone. 1. 2. Replacing the back cover Secure the bottom part of the back cover first by aligning the tabs on the back cover into the openings located inside the battery compartment. Press the sides and the top part of the back cover down to lock the cover into place. You will hear a click when the back cover is locked in place. 1. 2. 16 Basics Battery Your phone uses a rechargeable battery. Please use only original batteries and accessories that came with your phone or replacements that we recommend. How long the battery can last before it needs recharging depends on how you use your phone. Among these are the phone features and accessories you use (for example, leaving your Bluetooth connection always on uses more power). Long phone calls and frequent web browsing use up much battery power. Also, consider your location: poor signal strength from your mobile network and extreme temperature make the battery work harder. Inserting the battery Remove the back cover. See “Removing the back cover”. Insert the battery with its exposed copper contacts into the phone first. The exposed copper contacts should be on the left when you insert the battery. Gently push the battery into place. 1. 2. 3. Basics 17 Removing the battery Take the back cover off. See “Removing the back cover”. Lift the battery from the groove at the upper left side of the battery compartment to remove the battery. Charging the battery The battery is partially charged when shipped. Before you turn on and start using your phone, it is recommended that you charge the battery. Some batteries perform best after several full charge/ discharge cycles. To charge the battery, please use only the power adapter and USB cable that come with your phone. Don’t remove the battery from the phone while you’re charging it with the power or car adapter.   1. 2. 18 Basics Connect the bigger end of the USB cable to the power adapter. Connect the smaller end of the USB cable to the phone. Plug in the power adapter to an electrical outlet to start charging the battery. Your phone may turn on when the battery is being charged. As the battery is being charged, the notification LED shows a solid red light when the battery is being charged. The light turns to solid green when the phone is fully charged. When you charge the battery while the phone is on, the charging battery icon is displayed in the status bar of the Start screen. After the battery has been fully charged, a full battery icon will be displayed in the status bar of the Start screen. As a safety precaution, the battery stops charging when it overheats. 1. 2. 3. Basics 19 Switching your phone on or off Switching your phone on Press the POWER button. Easy. When you turn on the phone for the first time, you’ll need to set it up. Go to “Setting up your phone for the first time” and we’ll take you through it. Switching your phone off If the display is off, press the POWER button to turn it back on. Unlock your phone if the Lock screen is displayed. See “Unlocking the screen” in the Getting started chapter. Press and hold the POWER button until you see the word “Goodbye” onscreen. 1. 2. 3. 20 Basics Finger gestures TapWhen you want to type using the keyboard, select items onscreen such as apps and settings, or press onscreen buttons, simply tap them with your finger. Press and hold To open the available options for an item (e.g. contact or link in a web page), simply press and hold the item. Swipe or slideTo swipe or slide means to quickly drag your finger vertically or horizontally across the screen. DragPress and hold your finger with some pressure before you start to drag. While dragging, do not release your finger until you have reached the target position. FlickFlicking the screen is similar to swiping, except that you need to swipe your finger in light, quicker strokes. This finger gesture is always in a vertical direction, such as when flicking the contacts or message list. RotateFor most screens, you can automatically change the screen orientation from portrait to landscape by turning the phone sideways. When entering text, you can turn the phone sideways to bring up a bigger keyboard. PinchIn some applications, like Pic…

Text truncated - open the document above for the full version.

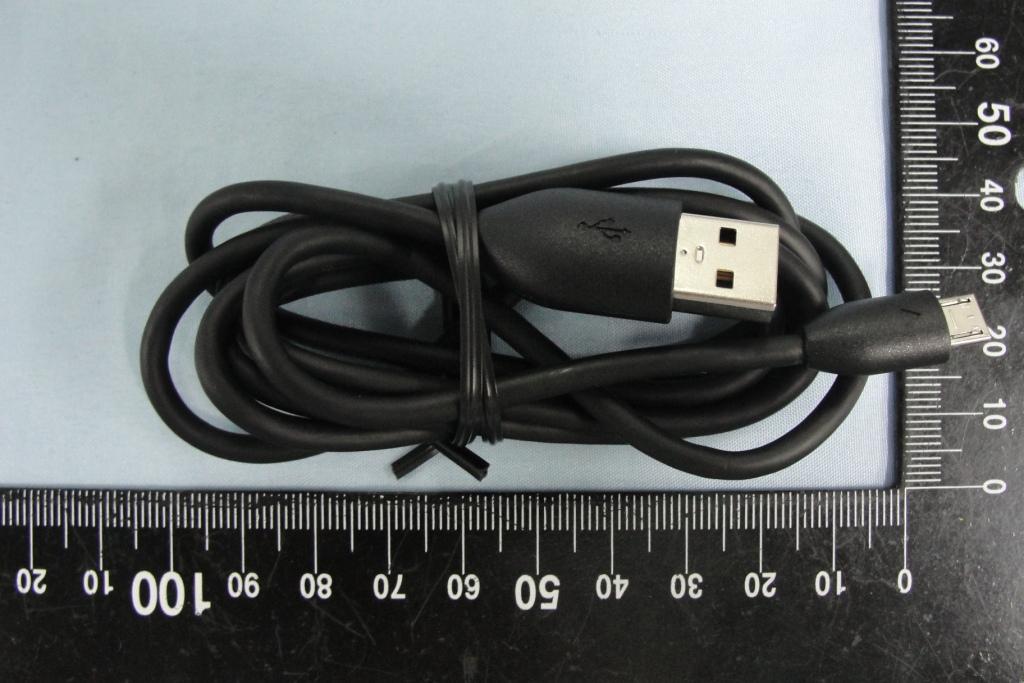

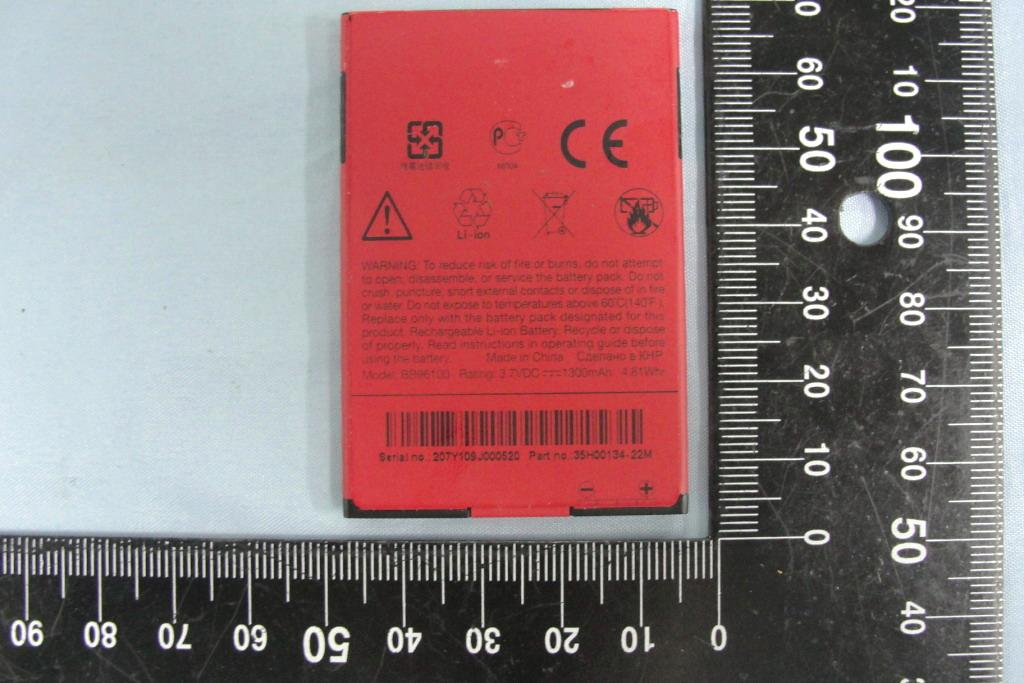

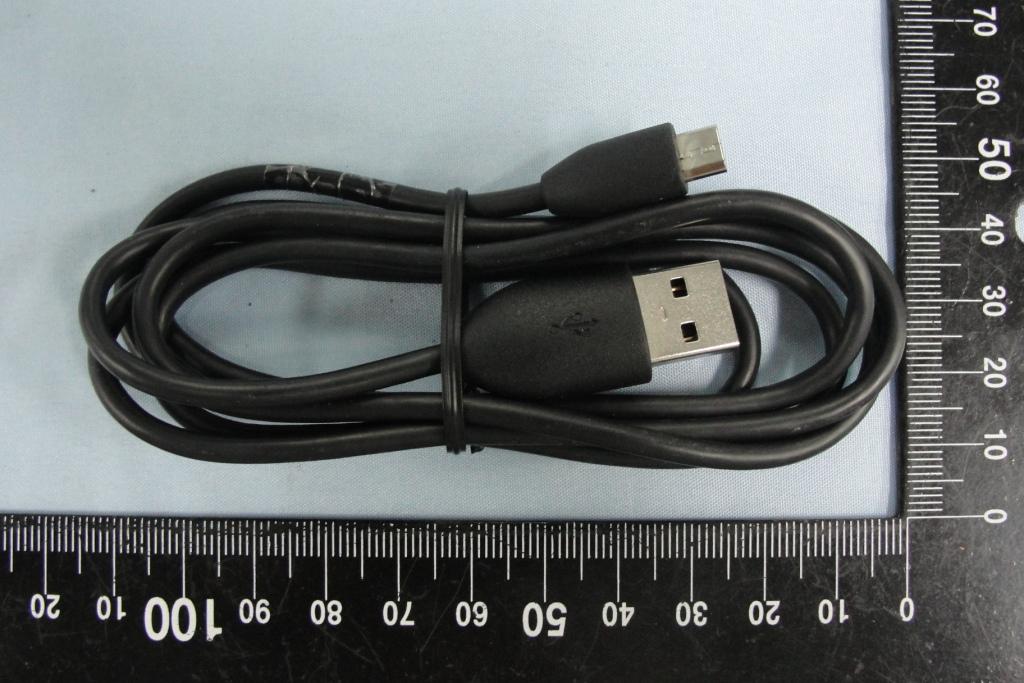

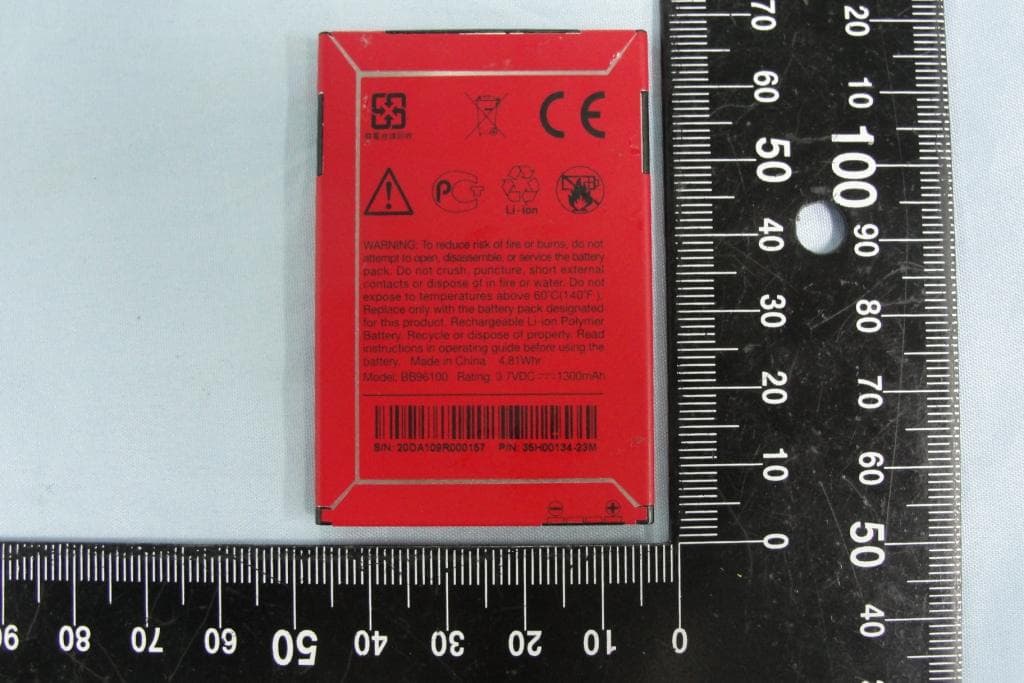

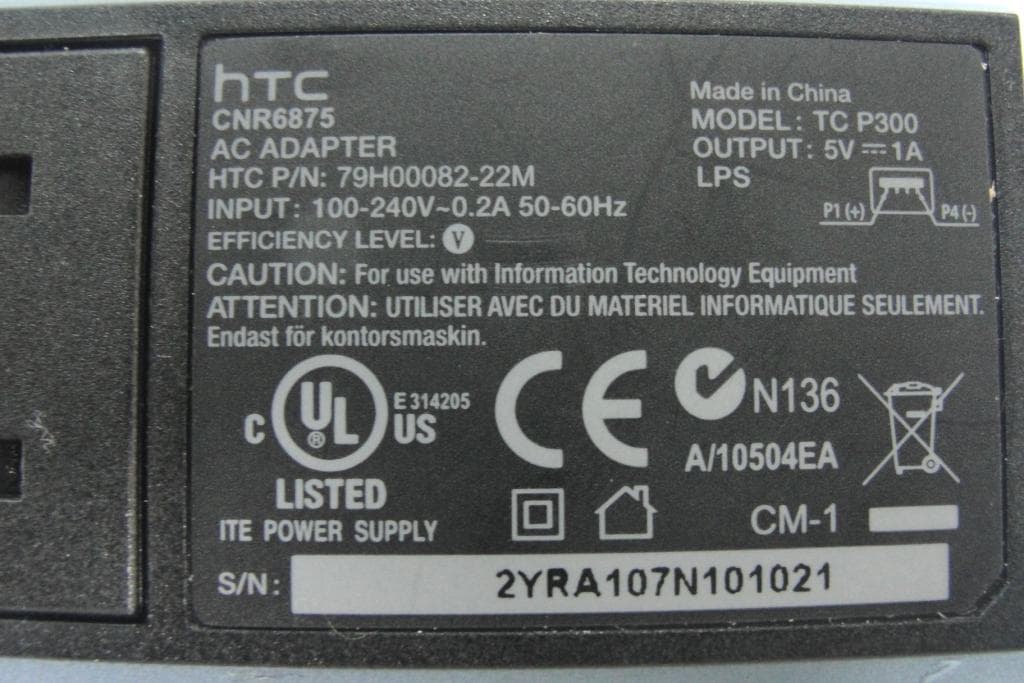

Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 1 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 1. External Photograph of EUT Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 2 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 720510 Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 3 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Foxlink Model Name TC P300 AC Adapter 2 Brand Name HTC Manufacturer Delta Model Name TC P300 Battery 1 Brand Name HTC Manufacturer TWS Model Name BB96100 Battery 2 Brand Name HTC Manufacturer Formosa Model Name BB96100 USB Cable 1 Brand Name COXOC Model Name DC M411 USB Cable 2 Brand Name Foxlink Model Name DC M411 LCM-Main Brand Name Sharp Model Name LS038Y1LX02 LCM-2 nd source Brand Name Sony Model Name ACX426AKM-7 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 4 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 5 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 Adapter 1 Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 6 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 Adapter 2 Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 7 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 Battery 1 Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 8 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 Battery 2 Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 9 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 USB Cable 1 Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 10 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 720510 USB Cable 2

Remark: 1. Cell phones or Cordless phones can have the Identifier in the battery compartment under certain conditions. a) The available label area on the phone is limited because they are relatively small and have many contoured surfaces, keypads, LCD displays, charge contacts and/or other connectors. b) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement c) The label will be readily visible at the time of purchase because the phone will be marketed without the battery installed.

Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 11 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 3. Internal Photograph of EUT Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 12 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 13 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 WWAN Main Antenna Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 14 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 WWAN Aux. Antenna Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 15 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 Bluetooth and WLAN Antenna Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 16 of 16 TEL : 886-3-327-3456 Report Issued Date : Feb. 15, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 720510 GPS Antenna

Photographs of EUT Report No.: EP120119 Model Name: PC40200(MWP6985) SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Feb. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC40220 GPS Antenna (Rx Only) Bluetooth and WLAN Antenna (Tx / Rx) WWAN Main Antenna (Tx / Rx) WWAN Aux. Antenna (Rx Only) 8.5 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 35 TEL : 886-3-327-3456 Report Issued Date : Feb. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 FCC SAR Test Report Report No. : FA120119A FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Windows Phone MODEL NAME : PC40200(MWP6985) FCC ID : NM8PC40220 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Feb. 01, 2011 and completely tested on Feb. 08, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 35 TEL : 886-3-327-3456 Report Issued Date : Feb. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : NM8PC40220 FCC SAR Test Report Report No. : FA120119A Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 6 3.4 Device Category and SAR Limits ..................................................................................................................... 6 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage ...................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/5 System Check_Head_835MHz_110205 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_110205 Medium parameters used: f = 835 MHz; σ = 0.921 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.77 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.9 V/m; Power Drift = -0.050 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.56 mW/g; SAR(10 g) = 1.68 mW/g Maximum value of SAR (measured) = 2.77 mW/g 0 dB = 2.77mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/8 System Check_Head_835MHz_110208 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_110208 Medium parameters used: f = 835 MHz; σ = 0.884 mho/m; ε r = 43; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.21, 6.21, 6.21); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.63 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.5 V/m; Power Drift = 0.030 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.62 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/7 System Check_Body_835MHz_110207 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110207 Medium parameters used: f = 835 MHz; σ = 0.996 mho/m; ε r = 55.4; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.87 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.9 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 3.73 W/kg SAR(1 g) = 2.65 mW/g; SAR(10 g) = 1.76 mW/g Maximum value of SAR (measured) = 2.86 mW/g 0 dB = 2.86mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/8 System Check_Body_835MHz_110208 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110208 Medium parameters used: f = 835 MHz; σ = 0.994 mho/m; ε r = 54.7; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.12, 6.12, 6.12); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.70 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.3 V/m; Power Drift = -0.034 dB Peak SAR (extrapolated) = 3.52 W/kg SAR(1 g) = 2.49 mW/g; SAR(10 g) = 1.65 mW/g Maximum value of SAR (measured) = 2.70 mW/g 0 dB = 2.70mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/1 System Check_Head_1900MHz_110201 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110201 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.0 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.09, 5.09, 5.09); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.4 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.7 V/m; Power Drift = -0.006 dB Peak SAR (extrapolated) = 16.8 W/kg SAR(1 g) = 9.77 mW/g; SAR(10 g) = 5.17 mW/g Maximum value of SAR (measured) = 11.1 mW/g 0 dB = 11.1mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/5 System Check_Head_1900MHz_110205 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110205 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.03, 5.03, 5.03); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolate…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/5 #07 CDMA2000 BC0_RC3+SO55_Right Cheek_Ch777_Sample1_Battery1 DUT: 120119 Communication System: CDMA ; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL_850_110205 Medium parameters used: f = 848.31 MHz; σ = 0.934 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch777/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.4 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.4 V/m; Power Drift = -0.015 dB Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 1.34 mW/g; SAR(10 g) = 0.994 mW/g Maximum value of SAR (measured) = 1.4 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/5 #07 CDMA2000 BC0_RC3+SO55_Right Cheek_Ch777_Sample1_Battery1_2D DUT: 120119 Communication System: CDMA ; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL_850_110205 Medium parameters used: f = 848.31 MHz; σ = 0.934 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch777/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.4 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.4 V/m; Power Drift = -0.015 dB Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 1.34 mW/g; SAR(10 g) = 0.994 mW/g Maximum value of SAR (measured) = 1.4 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/5 #03 CDMA2000 BC0_RC3+SO55_Right Tilted_Ch384_Sample1_Battery1 DUT: 120119 Communication System: CDMA ; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: HSL_850_110205 Medium parameters used: f = 837 MHz; σ = 0.923 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch384/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.562 mW/g Ch384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.6 V/m; Power Drift = -0.047 dB Peak SAR (extrapolated) = 0.639 W/kg SAR(1 g) = 0.522 mW/g; SAR(10 g) = 0.392 mW/g Maximum value of SAR (measured) = 0.551 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/5 #09 CDMA2000 BC0_RC3+SO55_Left Cheek_Ch777_Sample1_Battery1 DUT: 120119 Communication System: CDMA ; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL_850_110205 Medium parameters used: f = 848.31 MHz; σ = 0.934 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch777/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.27 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.1 V/m; Power Drift = -0.083 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 1.19 mW/g; SAR(10 g) = 0.879 mW/g Maximum value of SAR (measured) = 1.24 mW/g 0 dB = 1.24mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/5 #05 CDMA2000 BC0_RC3+SO55_Left Tilted_Ch384_Sample1_Battery1 DUT: 120119 Communication System: CDMA ; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: HSL_850_110205 Medium parameters used: f = 837 MHz; σ = 0.923 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.23, 6.23, 6.23); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch384/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.710 mW/g Ch384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.6 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 0.811 W/kg SAR(1 g) = 0.667 mW/g; SAR(10 g) = 0.504 mW/g Maximum value of SAR (measured) = 0.706 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/2/5 #12 CDMA2000 BC1_RC3+SO55_Right Cheek_Ch600_Sample1_Battery1 DUT: 120119 Communication System: CDMA ; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110205 Medium parameters used: f = 1880 MHz; σ = 1.41 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.03, 5.03, 5.03); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch600/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.32 mW/g Ch600/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.2 V/m; Power Drift = -0.055 dB Peak SAR (extrapolated) = 1.62 W/kg SAR(1 g) = 1.1 mW/g; SAR(10 …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERN…

Text truncated - open the document above for the full version.
