NM8PC93100Windows Phone

User guide  Icons used in this guide In this user guide, we use the following symbols to indicate useful and important information: This is a note. It might give extra information that’s only applicable in certain situations. Or explain a specific feature in a bit more detail. This is important info. Stuff you really need to know to accomplish a task or get a feature to work properly. This is a tip. It might provide an alternative way to do something or tell you about a special option you might find useful. This is a safety precaution. Read these carefully to avoid any potential problems when using your phone. Want more info? For other helpful resources, go to www.htc.com/support. Please also read the Safety and regulatory guide that’s included in the box. For additional information about your phone, go to windowsphone.com. Note: Certain Microsoft services/features may not be available in your country or region.  Contents Contents Getting started Setting up your phone for the first time 6 Start screen 6 Accessing apps and settings 7 Hubs 7 Sleep mode 7 Unlocking the screen 8 Changing your lock screen wallpaper 8 Status icons 9 Adjusting the volume 9 Searching 10 Interacting with your phone by speaking 10 Setting up an account 10 Changing the ringtone 11 Changing the theme 11 Phone calls Making calls 1 Receiving calls 1 Using in-call options 1 Using call history 15 Call services 16 Turning Flight mode (Airplane mode) on or off 16 People About the People hub 17 Viewing your contacts list and feeds 17 Adding a new contact 18 Merging contact information 19 Editing, searching, and deleting 19 Your Me tile 0 Keyboard Using the onscreen keyboard  Entering words with predictive text  Changing keyboard settings  Messaging About Messaging 4 Sending a text message 4 Sending a picture message 5 Viewing and replying to a message 5 Managing message conversations 6 4 Contents Email Adding a POP/IMAP email account 7 Adding a Microsoft Exchange Server account 7 Checking your inbox 8 Sending an email message 9 Calendar About Calendar 1 Creating a calendar appointment 1 Changing calendar views  Viewing, editing or deleting an appointment  Viewing, dismissing, or snoozing appointment reminders  Displaying and synchronizing calendars 4 Getting connected Data connection 5 Wi-Fi 6 Using your phone’s web browser 7 Bluetooth 40 Camera Camera basics 4 Taking a photo 4 Capturing a video 4 After capturing 44 Camera settings 44 Pictures About the Pictures hub 45 Viewing photos and videos 46 Touching up your photos 46 Sending your photos 46 Sharing your photos on the Web 47 Zune Synchronizing your computer and phone 48 Music + Videos hub 49 Listening to music 49 Watching videos 50 Listening to or watching your podcasts 50 Listening to the radio 50 Maps and location Turning on location services 51 Bing Maps 51 HTC Hub About the HTC Hub 55 5 Contents More apps Microsoft Office Mobile 010 60 Windows Marketplace 61 Games 61 Security Protecting your phone with a password 6 Protecting your phone through the Web 6 Settings Settings on your phone 64 Changing display settings 65 Changing sound settings 65 Checking information about your phone 66 Changing the phone language 66 Update and reset Updating the phone software 67 Restarting or factory resetting your phone 67 Trademarks and copyright 69 Index 70 6 Getting startedGetting started Getting started Setting up your phone for the first time When you switch on your phone for the first time, you’ll be asked to set some options such as your time zone and your Window Live ID. Just follow the onscreen instructions and you’ll be up and running with your phone in no time. Start screen Up front on the Start screen, you get to see at a glance Windows® Phone live tiles that continuously update and show what’s most personal to you. You’ll see things like your photo album, XBOX LIVE, how many new messages and email you have, and more. Simply swipe your finger up or down to scroll through the tiles on the Start screen. Rearranging the tiles on the Start screen Press and hold the tile you want to move until it floats. Drag the tile to the position where you want to place it. Pause at the top or bottom edge of the screen to drag the tile to the extended Start screen. When the tile is where you want it, tap the tile to dock it. Pinning items to the Start screen You can pin just about anything you want to the Start screen: apps, pictures, songs, shortcuts, and even contacts. For example, when you pin a contact to the Start screen, you’ll get all of that person’s updates—feeds, email, text messages, and call notifications—right from that tile. 1. 2. 3. 7 Getting startedGetting started To pin something, let’s say a contact, to the Start screen, press and hold it until a menu appears, and then tap pin to start. Unpinning a tile On the Start screen, press and hold the tile you want to remove, and then tap . Accessing apps and settings Easy. On the Start screen, just tap or slide your finger left. Hubs Simplify your everyday tasks with hubs. Instead of going in and out of various apps, hubs simplify things by tying together related experiences. For example, in the People Hub, not only can you see all your contacts but you can also check status updates from your Facebook friends. Check out the other cool hubs on your phone such as Office, Pictures, Music + Videos, and more. Sleep mode Sleep mode saves battery power by putting your phone into a low power state while the display is off. It also stops accidental button presses when the phone’s in your bag or pocket. You’ll still receive messages and calls though. Switching to Sleep mode Press the POWER button to turn off the display and switch your phone to Sleep mode. Your phone also automatically goes into Sleep mode when it’s idle for a while. 8 Getting startedGetting started Waking up from Sleep mode Your phone automatically wakes up when you have an incoming call. To wake it up manually, press the POWER b…

Text truncated - open the document above for the full version.

Safety and Warranty Information 2 Important Safety Information3 Important Safety Information Important Health Information and Safety Precautions (page 3) General Precautions (page 10) Additional Safety Information (page 13) This User Guide contains important operational and safety information that will help you safely use your device. Failure to read and follow the information provided in this guide may result in serious bodily injury, death, or property damage. Important Health Information and Safety Precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical Safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety Precautions for Proper Grounding Installation CAUTION: Connecting to an improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The Important Safety Information 4Important Safety Information power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety Precautions for Power Supply Unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s).  AC Adapter HTC, Model TC U250 Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 140°F (60 °C). WARNING:There is a danger of explosion if the battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60°C (140°F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. Note:This product should be operated only with the following designated Battery Pack(s).  HTC, Model RHOD160. Important Safety Information5 Important Safety Information Take Extra Precautions Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed. Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725-2006. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard. Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice. 6Important Safety Information Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice. Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. Safety Precautions for Direct Sunlight Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. Prevention of Hearing Loss CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. Safety in Aircraft Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you wan…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 October 18, 2010 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. October 18, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Windows Phone Model name: PC93100 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

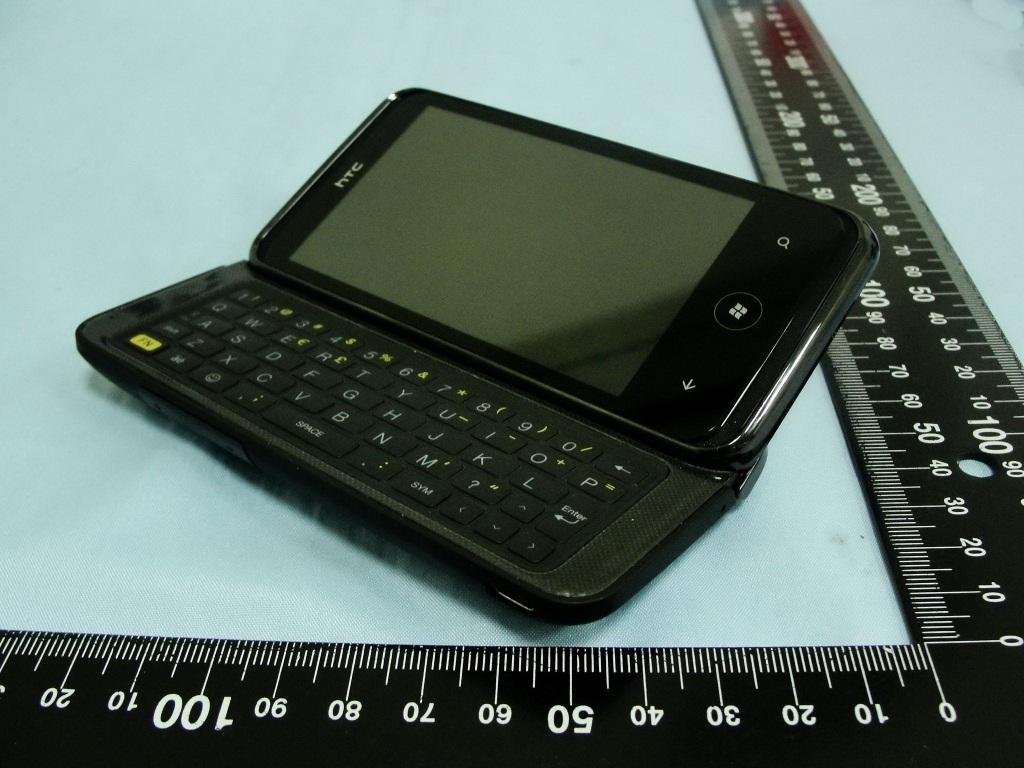

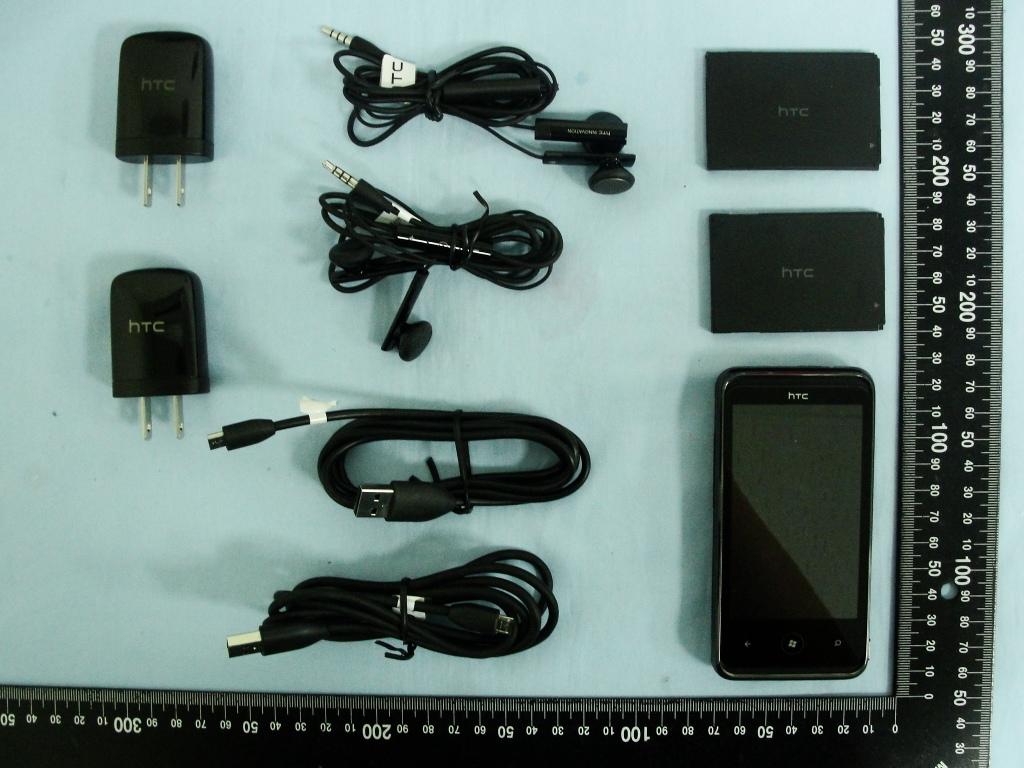

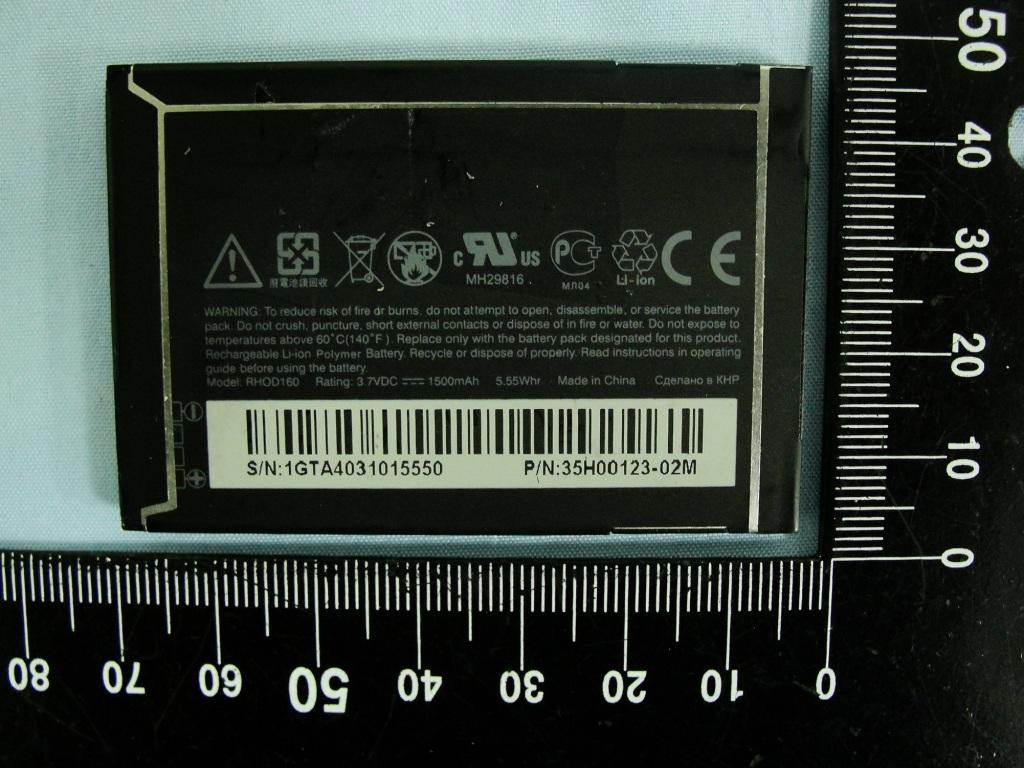

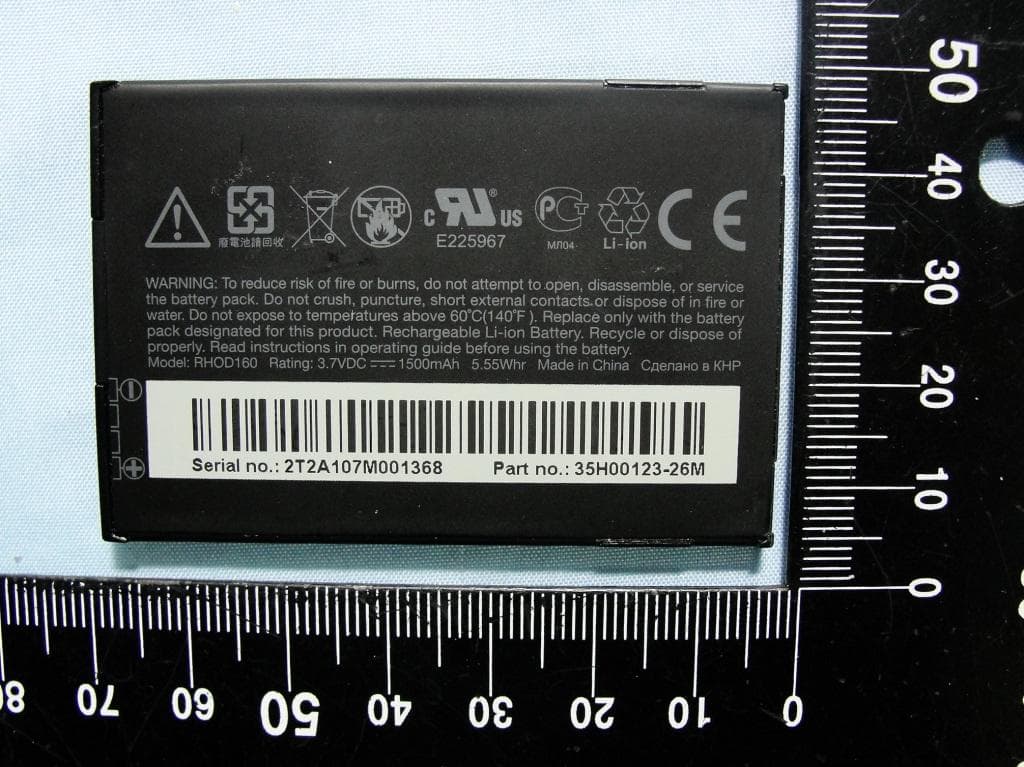

Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 1 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 1. External Photograph of EUT Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 2 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 720510 Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 3 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Emerson Model Name TC U250 AC Adapter 2 Brand Name HTC Manufacturer Delta Model Name TC U250 Battery 1 Brand Name HTC Manufacturer HT Model Name RHOD160 Battery 2 Brand Name HTC Manufacturer Formosa Model Name RHOD160 Earphone 1 Brand Name HTC Manufacturer Merry Model Name HS G400 Earphone 2 Brand Name HTC Manufacturer Cotron Model Name HS G400 USB Cable 1 Brand Name COXOC Model Name DC M410 USB Cable 2 Brand Name Foxlink Model Name DC M410 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 4 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 5 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 Adapter 1 Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 6 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 Adapter 2 Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 7 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 Battery 1 Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 8 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 720510 Battery 2

Remark: 1. Cell phones or Cordless phones can have the Identifier in the battery compartment under certain conditions. a) The available label area on the phone is limited because they are relatively small and have many contoured surfaces, keypads, LCD displays, charge contacts and/or other connectors. b) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement c) The label will be readily visible at the time of purchase because the phone will be marketed without the battery installed.

Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 9 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 3. Internal Photograph of EUT Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 10 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 11 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 WWAN Main Antenna <Tx/Rx> Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 12 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 WWAN Aux. Antenna <Tx/Rx> Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 13 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 Bluetooth & WLAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 14 of 14 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 720510 GPS Antenna <Rx>

Photographs of EUT Report No.: EP091629 Model Name: PC93100 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 GPS Antenna <Rx> Bluetooth & WLAN Antenna <Tx/Rx> WWAN Main Antenna <Tx/Rx> WWAN Aux. Antenna <Rx> 8.7 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 FCC SAR Test Report Report No. : FA091629B FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Windows Phone MODEL NAME : PC93100 FCC ID : NM8PC93100 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Sep. 16, 2010 and completely tested on Oct. 13, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Oct. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PC93100 FCC SAR Test Report Report No. : FA091629B Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 6 3.3 Device Category and SAR Limits ..................................................................................................................... 6 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition .................................................................................................................................. 7 3.4.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage .........................................................................................................................................16 5.7.2 Data Evaluation ...............................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/30 System Check_Head_2450MHz_100930 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100930 Medium parameters used: f = 2450 MHz; σ = 1.85 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 5.82 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.8 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 10.7 W/kg SAR(1 g) = 5.04 mW/g; SAR(10 g) = 2.37 mW/g Maximum value of SAR (measured) = 5.74 mW/g 0 dB = 5.74mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/10/13 System Check_Head_2450MHz_101013 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_101013 Medium parameters used: f = 2450 MHz; σ = 1.86 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.1 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn393; Calibrated: 2010/8/18 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 5.79 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.2 V/m; Power Drift = -0.034 dB Peak SAR (extrapolated) = 10.8 W/kg SAR(1 g) = 5.07 mW/g; SAR(10 g) = 2.39 mW/g Maximum value of SAR (measured) = 5.74 mW/g 0 dB = 5.74mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/30 System Check_Body_2400MHz_100930 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_100930 Medium parameters used: f = 2450 MHz; σ = 2.02 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3661; ConvF(7.34, 7.34, 7.34); Calibrated: 2009/12/30 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn393; Calibrated: 2010/8/18 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 6.15 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.7 V/m; Power Drift = 0.070 dB Peak SAR (extrapolated) = 10.4 W/kg SAR(1 g) = 5.26 mW/g; SAR(10 g) = 2.47 mW/g Maximum value of SAR (measured) = 6.08 mW/g 0 dB = 6.08mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/30 #29 802.11b_Right Cheek_Ch6_Battrry 2_Slide Off DUT: 091629 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100930 Medium parameters used: f = 2437 MHz; σ = 1.83 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.457 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.13 V/m; Power Drift = 0.110 dB Peak SAR (extrapolated) = 0.981 W/kg SAR(1 g) = 0.438 mW/g; SAR(10 g) = 0.211 mW/g Maximum value of SAR (measured) = 0.484 mW/g 0 dB = 0.484mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/30 #29 802.11b_Right Cheek_Ch6_Battrry 2_Slide Off_2D DUT: 091629 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100930 Medium parameters used: f = 2437 MHz; σ = 1.83 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：22.8 °C; Liquid Temperature：21.2 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.5, 4.5, 4.5); Calibrated: 2010/5/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2010/8/18 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.457 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.13 V/m; Power Drift = 0.110 dB Peak SAR (extrapolated) = 0.981 W/kg SAR(1 g) = 0.438 mW/g; SAR(10 g) = 0.211 mW/g Maximum value of SAR (measured) = 0.484 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/9/30 #24 802.11b_Right Tilted_Ch6_Battrry 1_Slide Off DUT: 091629 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100930 Medium parameters used: f = 2437 MHz; σ = 1.83 mho/m; …
