NM8PD29110Windows Phone

Safety and regulatory guide  Safety and regulatory guide Please read before proceeding THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE. Privacy restrictions Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone. Disclaimers ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HTC AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or otherwise, related to the Accessed Information, including without limitation any express or implied representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that HTC and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use, and that you use such information at your own risk. Safety and regulatory guide  Limitation of damages TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HTC OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITY THEREOF OR WHETHER HTC OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL LIABILITY OF HTC OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED. Important health information and safety precautions When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. Electrical safety This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. Safety precautions for proper grounding installation CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate  Safety and regulatory guide outlet which is properly installed and grounded in accordance with all local codes and ordinances. Safety precautions for power supply unit Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s). AC Adapter HTC, Model TC U50, TC E50, TC B50, TC C50, TC A50, Handle battery packs carefully This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60 ̊C (10 ̊F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (10° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. NOTE: This product should be operated only with the following designated Battery Pack(s). HTC, Model BD9100   • Safety and regulatory guide 5 Take extra precautions Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor. Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed. If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advic…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 September 15, 2010 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. September 15, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Windows Phone Model name: PD29110 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

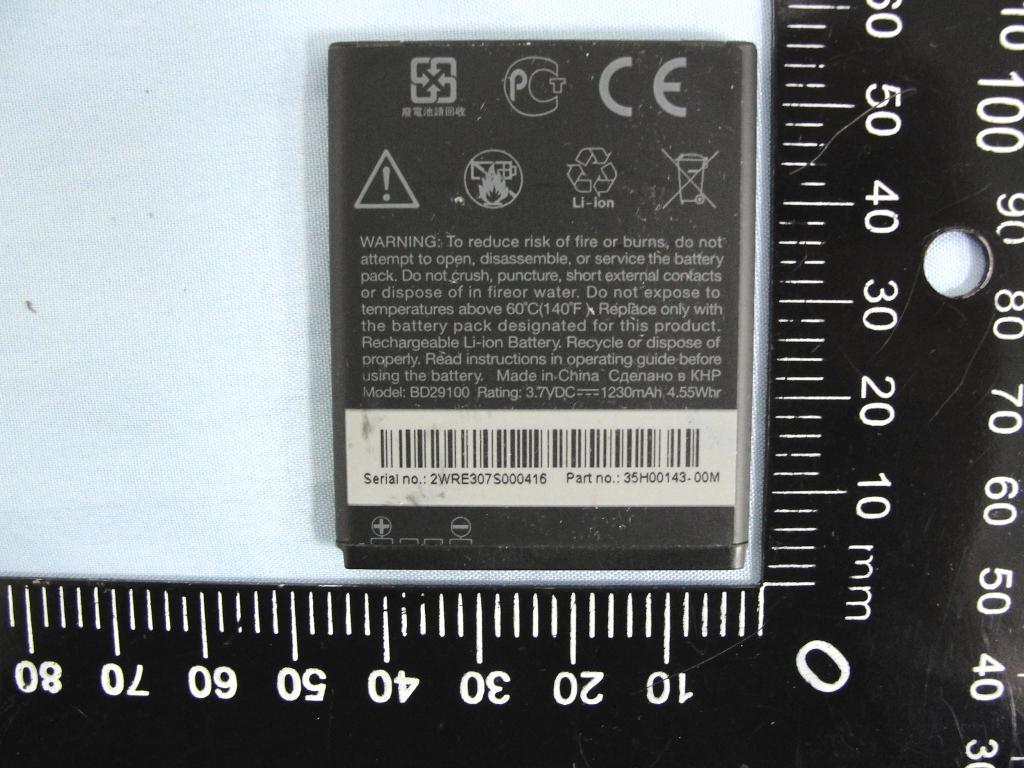

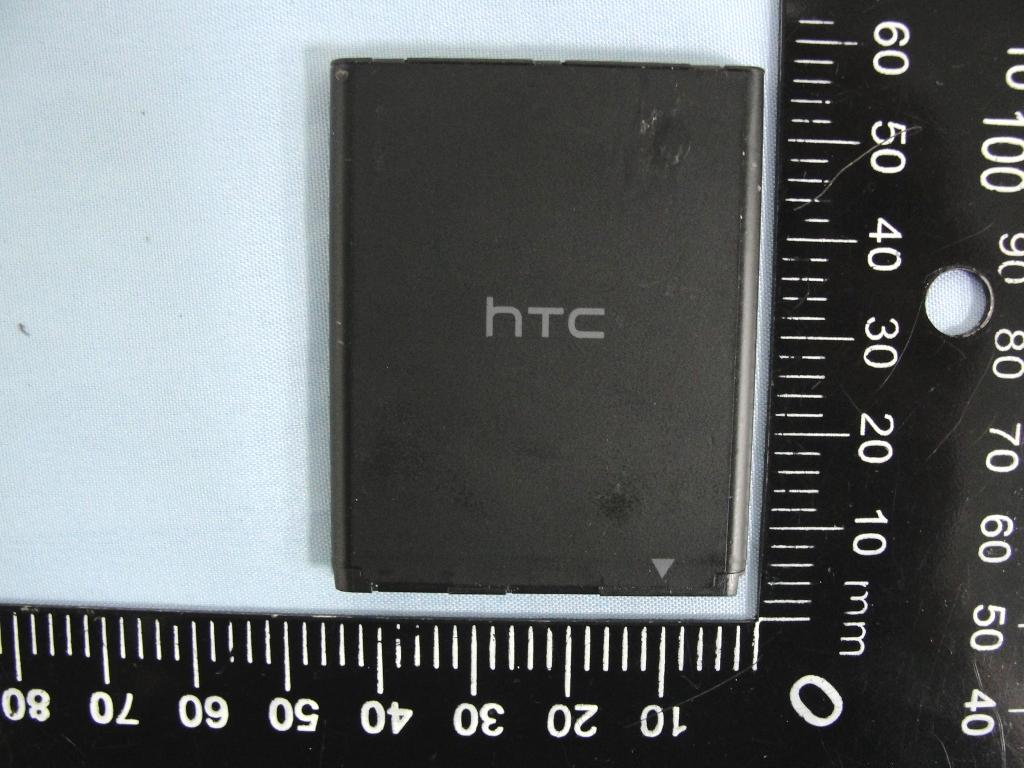

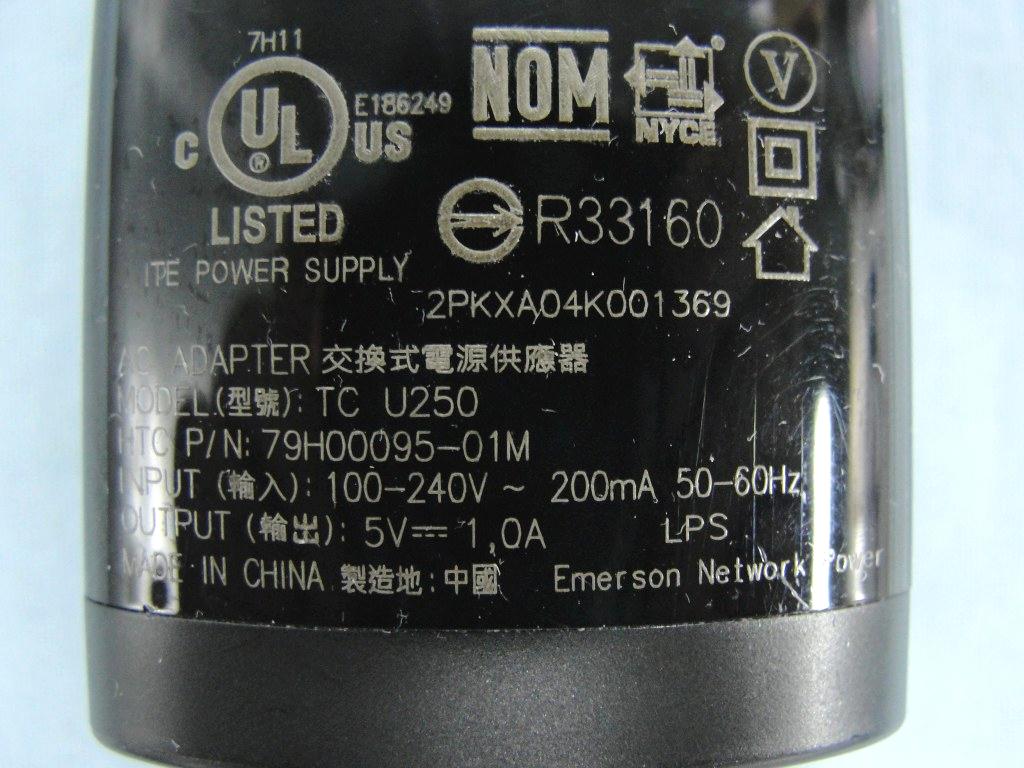

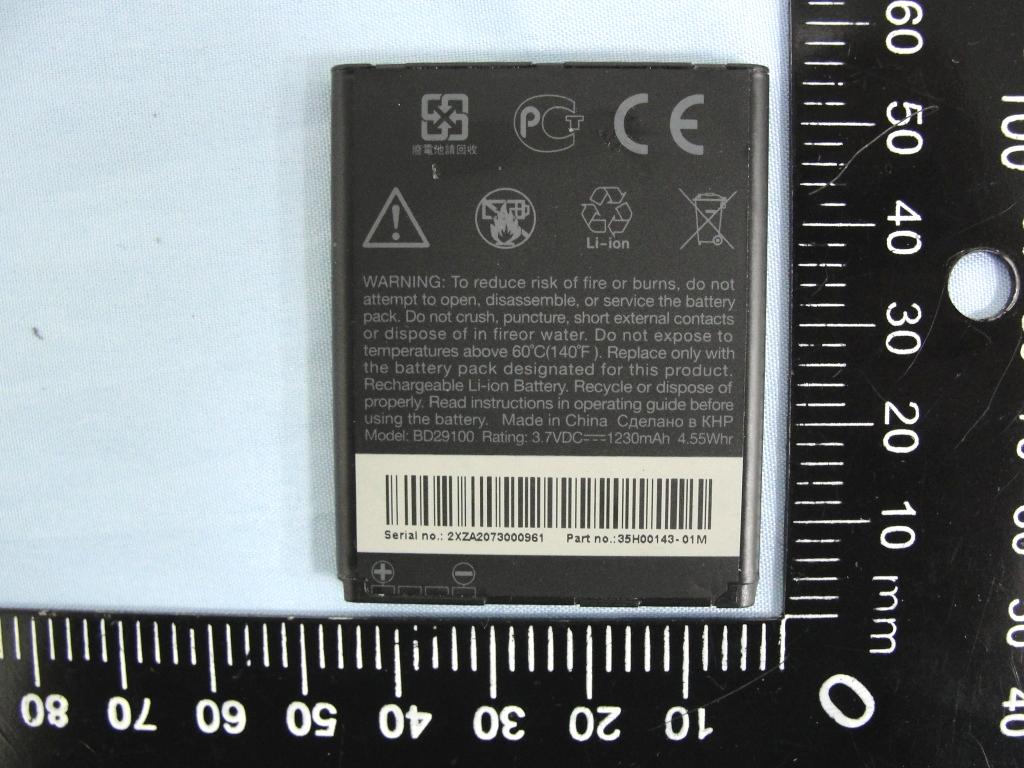

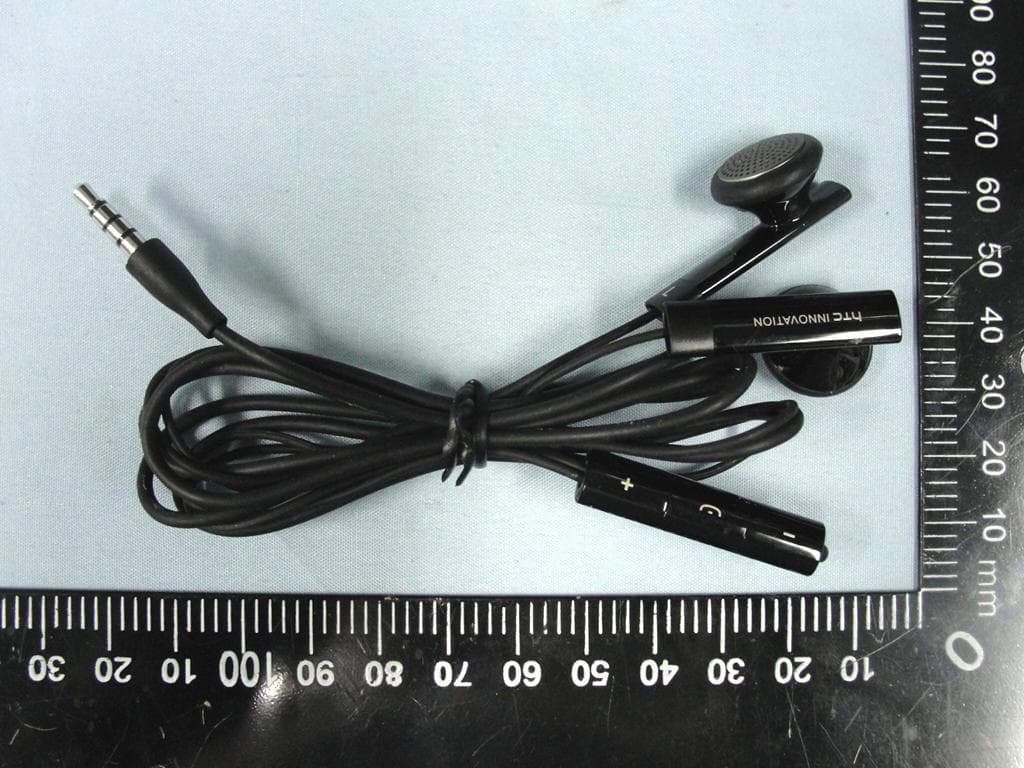

Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 1 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 2 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 3 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 4 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 5 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 6 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 7 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Sample 2 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 8 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 9 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 10 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 11 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 12 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 720510 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 13 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name HTC Manufacturer Emerson Model Name TC U250 AC Adapter 2 Brand Name HTC Manufacturer Delta Model Name TC U250 Battery 1 Brand Name HTC Manufacturer HT Model Name BD29100 Battery 2 Brand Name HTC Manufacturer TWS Model Name BD29100 Earphone 1 Brand Name HTC Manufacturer Cotron Model Name HS G400 Earphone 2 Brand Name HTC Manufacturer Merry Model Name HS G400 USB Cable 1 Brand Name Coxoc Model Name DC M410 USB Cable 2 Brand Name Foxlink Model Name DC M410 LCM-Main Brand Name Sharp Model Name LQ043Y1DX02 LCM-2 nd Brand Name AUO Model Name H430VL02 V4 Camera-Main Brand Name Liteon Model Name 09P1BA503 Camera-2 nd Brand Name PRIMAX Model Name NBRB76 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 14 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 15 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Adapter 1 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 16 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 17 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 18 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Adapter 2 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 19 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 20 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 21 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Battery 1 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 22 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC …

Text truncated - open the document above for the full version.

Remark: 1. Cell phones or Cordless phones can have the Identifier in the battery compartment under certain conditions. a) The available label area on the phone is limited because they are relatively small and have many contoured surfaces, keypads, LCD displays, charge contacts and/or other connectors. b) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement c) The label will be readily visible at the time of purchase because the phone will be marketed without the battery installed.

Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 29 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 3. Internal Photograph of EUT Sample 1 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 30 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 31 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 32 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 33 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 34 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 35 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 36 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 37 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 38 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 39 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 40 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 41 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 42 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 43 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 44 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 45 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 46 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 47 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 720510 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 48 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Sample 2 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 49 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 50 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 51 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 52 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 53 of 69 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 Photographs of EUT Report No.: EP080411 Model Name: PD29110 SPORTON INTERNATIONAL INC. Page Number : 54 of 69 TEL : 886-3-327-3456 Report Issued …

Text truncated - open the document above for the full version.

WWAN Antenna (Tx/Rx) Bluetooth and WLAN Antenna (Tx/Rx) 3 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 FCC SAR Test Report Report No. : FA080411B FCC SAR Test Report APPLICANT : HTC Corporation EQUIPMENT : Windows Phone MODEL NAME : PD29110 FCC ID : NM8PD29110 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Aug. 04, 2010 and completely tested on Aug. 16, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Sep. 14, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NM8PD29110 FCC SAR Test Report Report No. : FA080411B Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 6 3.3 Device Category and SAR Limits ..................................................................................................................... 6 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition .................................................................................................................................. 7 3.4.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage .........................................................................................................................................16 5.7.2 Data Evaluation ...............................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/8/16 System Check_Head_2450MHz_100816 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100816 Medium parameters used: f = 2450 MHz; σ = 1.85 mho/m; ε r = 38.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.48, 4.48, 4.48); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 5.69 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.1 V/m; Power Drift = -0.000655 dB Peak SAR (extrapolated) = 9.99 W/kg SAR(1 g) = 4.91 mW/g; SAR(10 g) = 2.33 mW/g Maximum value of SAR (measured) = 5.6 mW/ g 0 dB = 5.6mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/8/16 System Check_Body_2450MHz_100816 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_100816 Medium parameters used: f = 2450 MHz; σ = 2 mho/m; ε r = 54; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.19, 4.19, 4.19); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 6.35 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.6 V/m; Power Drift = 0.011 dB Peak SAR (extrapolated) = 12.8 W/kg SAR(1 g) = 5.51 mW/g; SAR(10 g) = 2.54 mW/g Maximum value of SAR (measured) = 6.13 mW/g 0 dB = 6.13mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/8/16 #39 802.11b_Right Cheek_Ch1_PDA 1_Battery 1 DUT: 080411 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100816 Medium parameters used: f = 2412 MHz; σ = 1.81 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.48, 4.48, 4.48); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch1/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.077 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.4 V/m; Power Drift = 0.166 dB Peak SAR (extrapolated) = 0.056 W/kg SAR(1 g) = 0.025 mW/g; SAR(10 g) = 0.012 mW/g Maximum value of SAR (measured) = 0.029 mW/ g 0 dB = 0.029mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/8/16 #39 802.11b_Right Cheek_Ch1_PDA 1_Battery 1_2D DUT: 080411 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100816 Medium parameters used: f = 2412 MHz; σ = 1.81 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.48, 4.48, 4.48); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch1/Area Scan (51x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.077 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.4 V/m; Power Drift = 0.166 dB Peak SAR (extrapolated) = 0.056 W/kg SAR(1 g) = 0.025 mW/g; SAR(10 g) = 0.012 mW/g Maximum value of SAR (measured) = 0.029 mW/g Test La…
